C. S. O. M. : Mastoidectomy Dr. Vishal Sharma

Schwartze’s Cortical Mastoidectomy

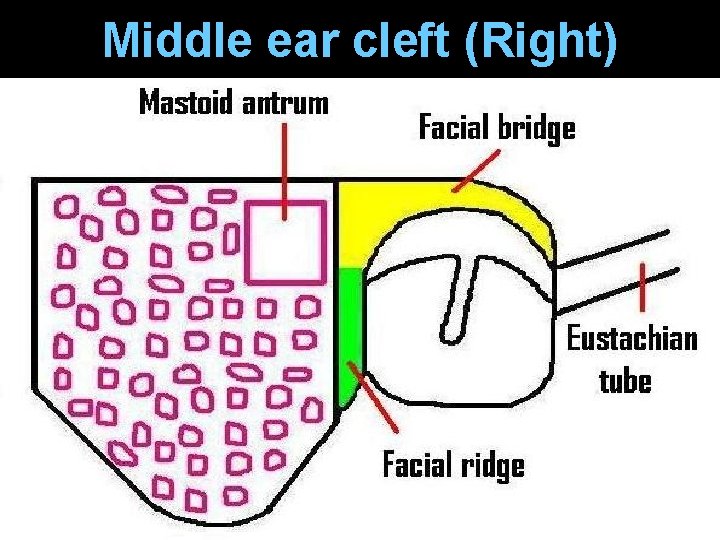

Middle ear cleft (Right)

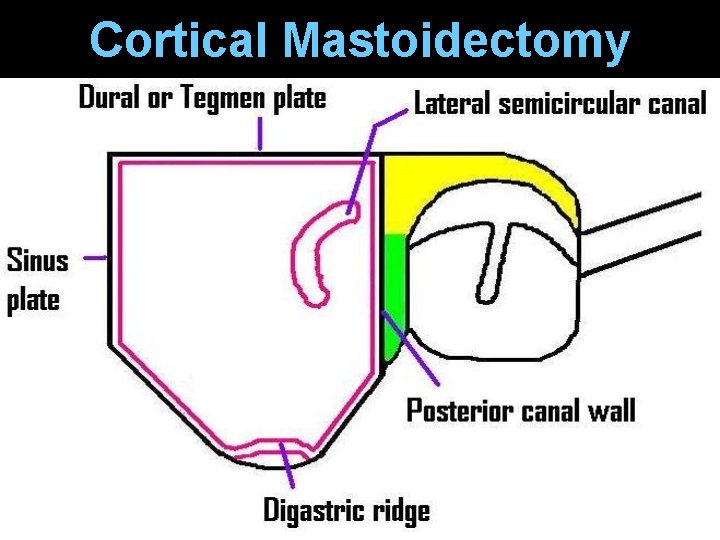

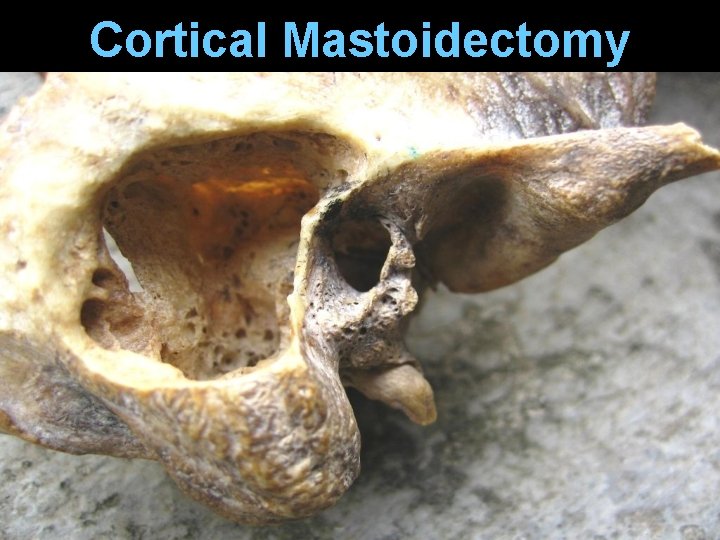

Cortical Mastoidectomy

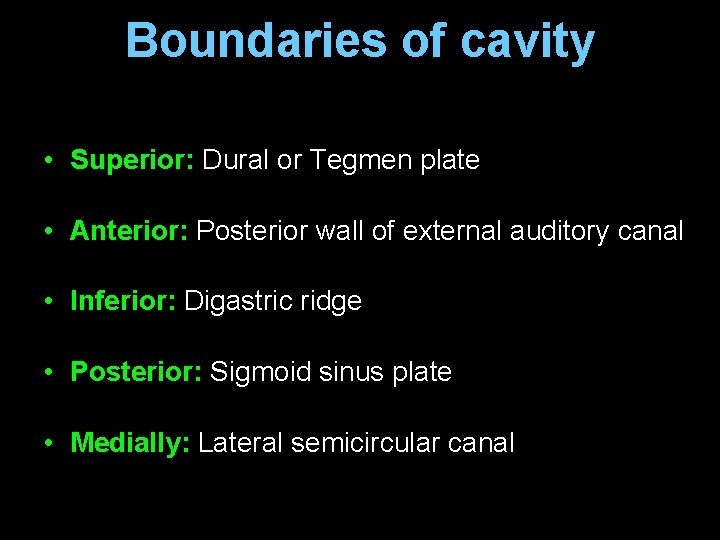

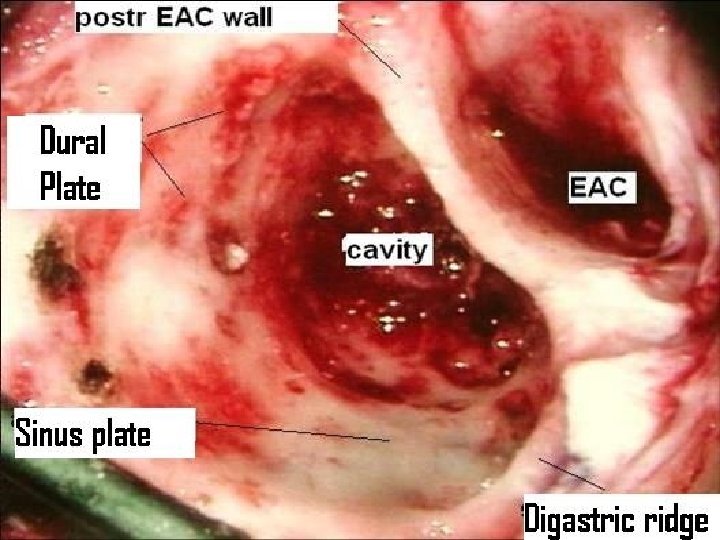

Boundaries of cavity • Superior: Dural or Tegmen plate • Anterior: Posterior wall of external auditory canal • Inferior: Digastric ridge • Posterior: Sigmoid sinus plate • Medially: Lateral semicircular canal

Normal temporal bone (right)

Cortical Mastoidectomy

Indications

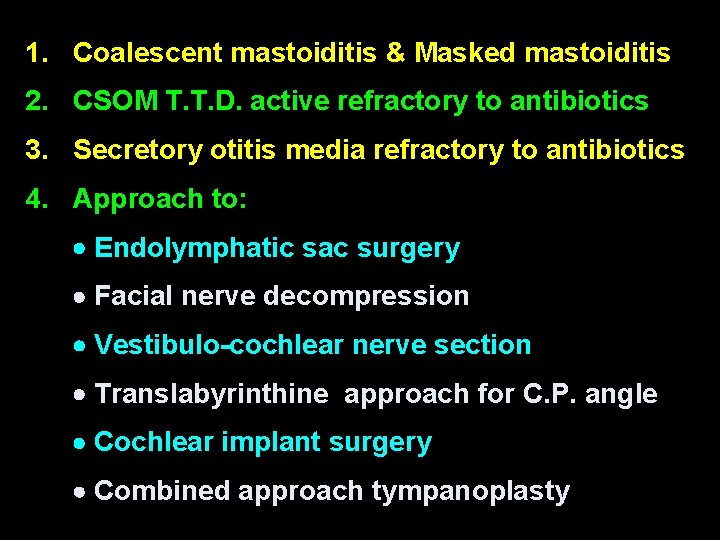

1. Coalescent mastoiditis & Masked mastoiditis 2. CSOM T. T. D. active refractory to antibiotics 3. Secretory otitis media refractory to antibiotics 4. Approach to: Endolymphatic sac surgery Facial nerve decompression Vestibulo-cochlear nerve section Translabyrinthine approach for C. P. angle Cochlear implant surgery Combined approach tympanoplasty

Antiseptic dressing

Draping

Infiltration with Lignocaine

Marking of incision

Wilde’s post-aural incision

Incision deepened till periosteum

Musculo-periosteal flap elevated

Bezold’s abscess

Aspiration of pus

Drainage of abscess

Drainage of abscess

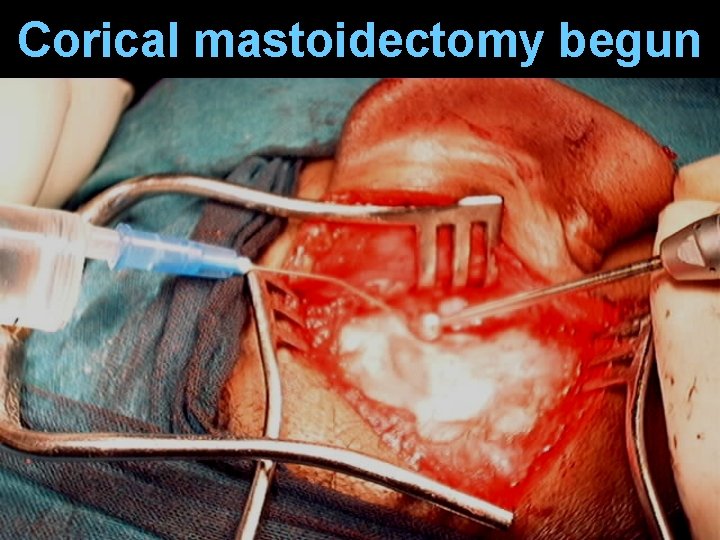

Corical mastoidectomy begun

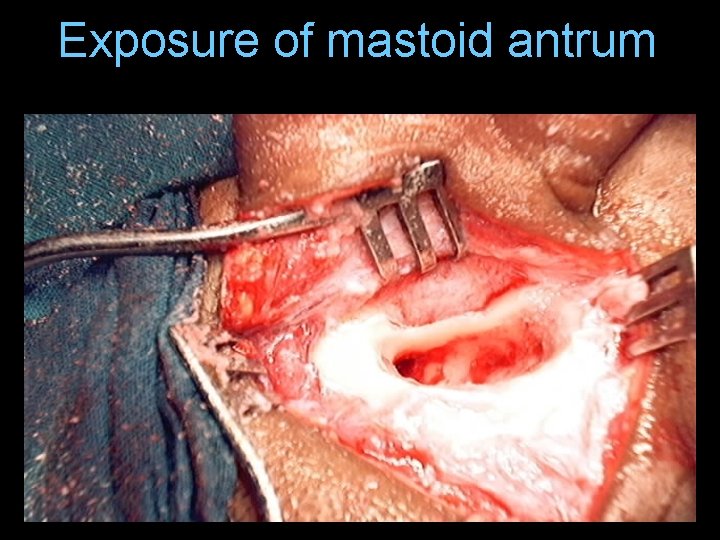

Exposure of mastoid antrum

Widening of aditus

Aditus widened

Final Cavity (right)

Final Cavity (left)

Drain put in mastoid cavity

Mastoid dressing

Healed post-aural scar

Treatment for Attico-antral disease

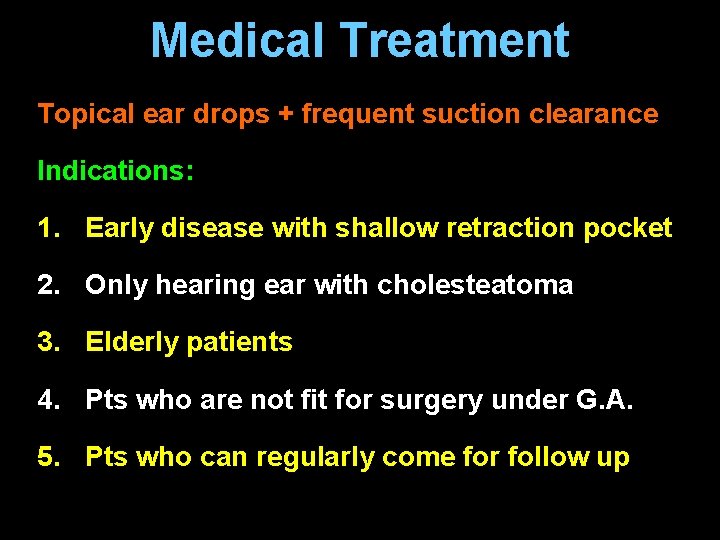

Medical Treatment Topical ear drops + frequent suction clearance Indications: 1. Early disease with shallow retraction pocket 2. Only hearing ear with cholesteatoma 3. Elderly patients 4. Pts who are not fit for surgery under G. A. 5. Pts who can regularly come for follow up

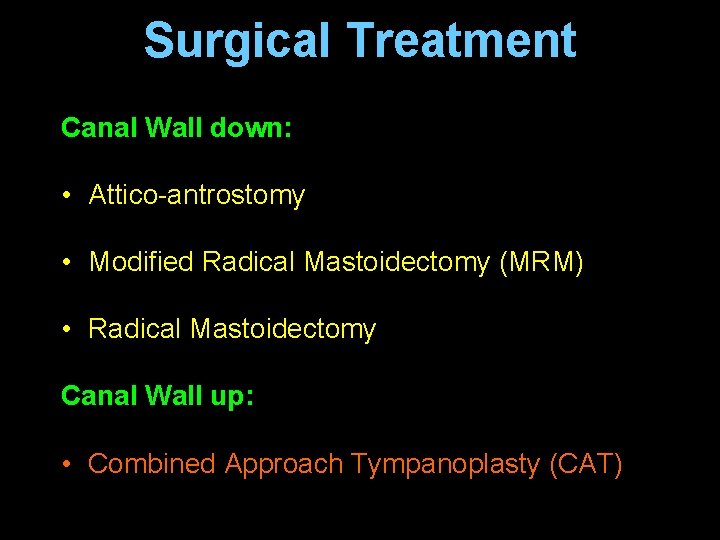

Surgical Treatment Canal Wall down: • Attico-antrostomy • Modified Radical Mastoidectomy (MRM) • Radical Mastoidectomy Canal Wall up: • Combined Approach Tympanoplasty (CAT)

Mac Ewan’s triangle

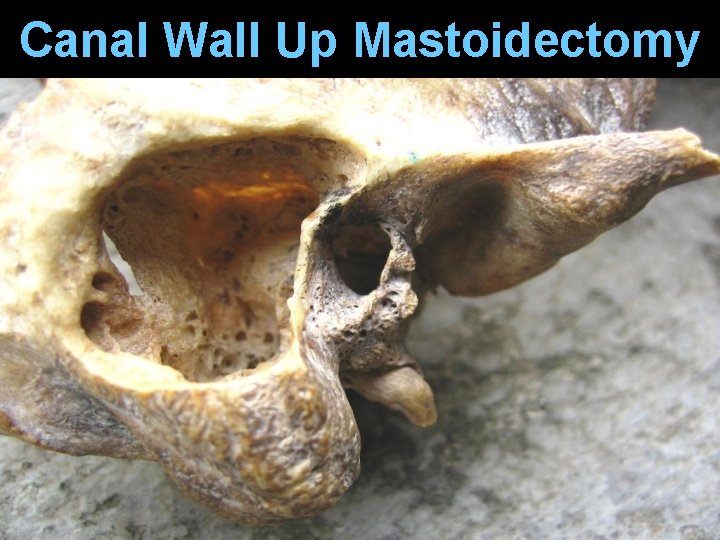

Canal Wall Up Mastoidectomy

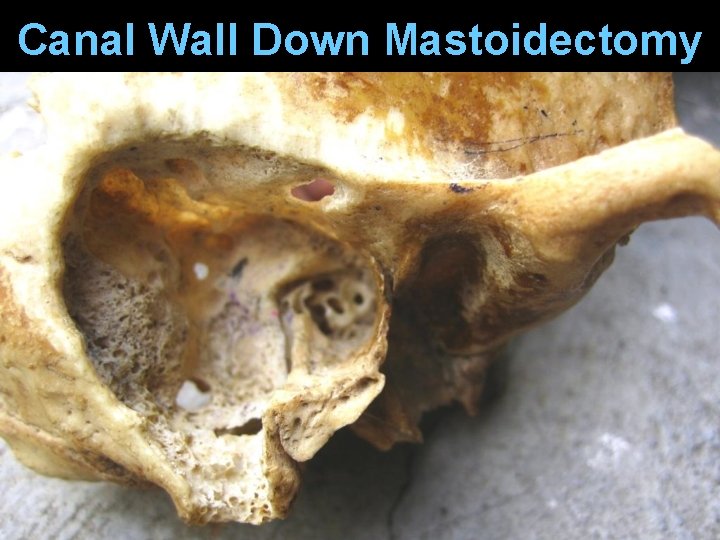

Canal Wall Down Mastoidectomy

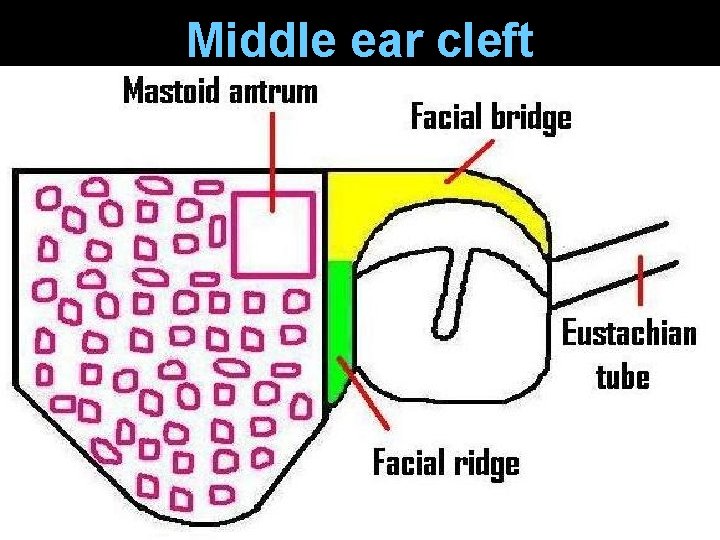

Middle ear cleft

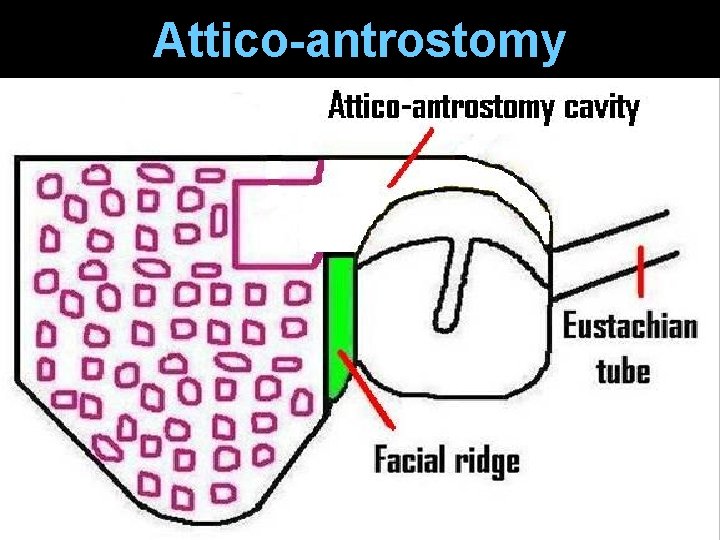

Attico-antrostomy

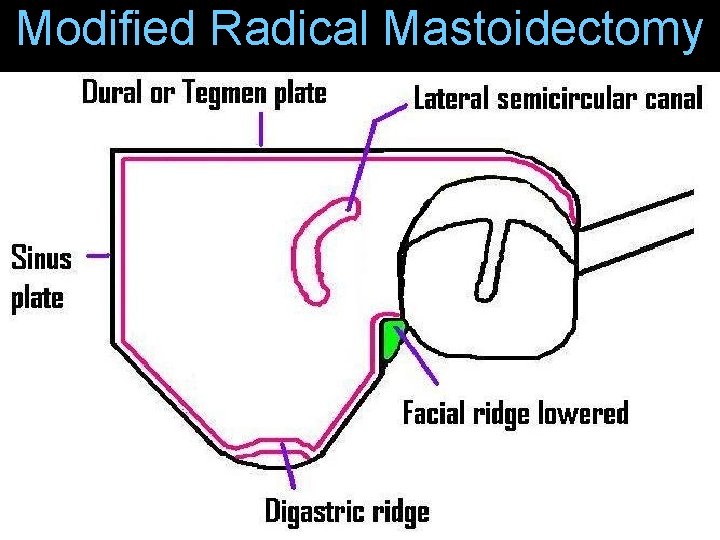

Modified Radical Mastoidectomy

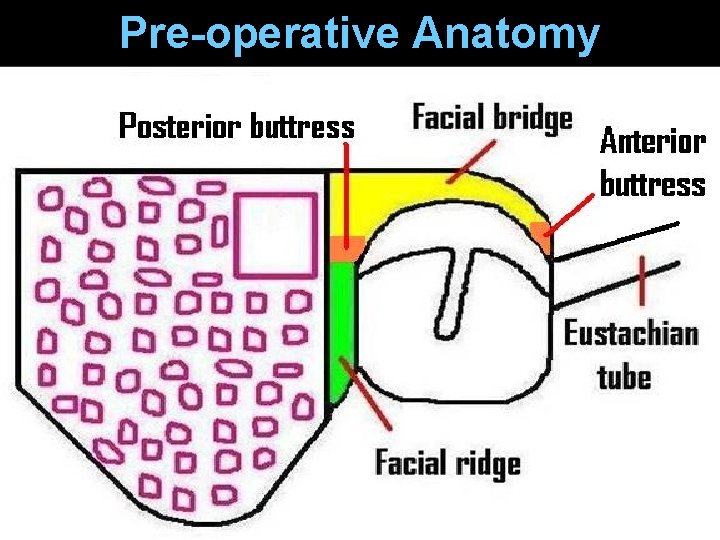

Pre-operative Anatomy

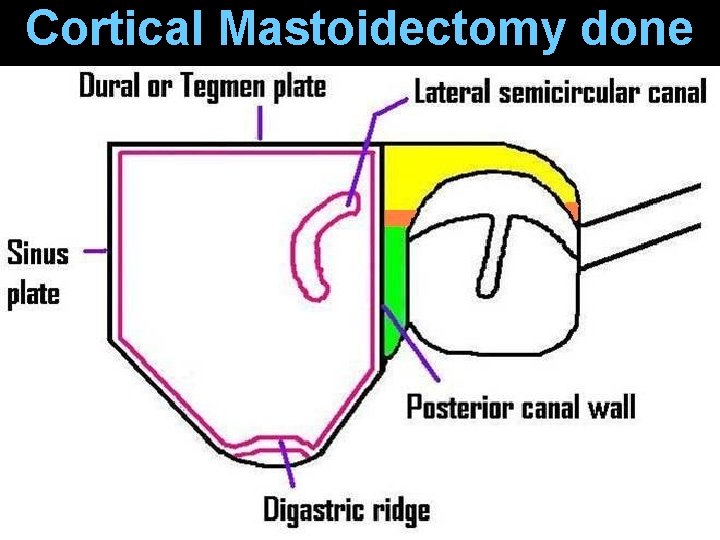

Cortical Mastoidectomy done

Modified Radical Mastoidectomy

Surgical Steps

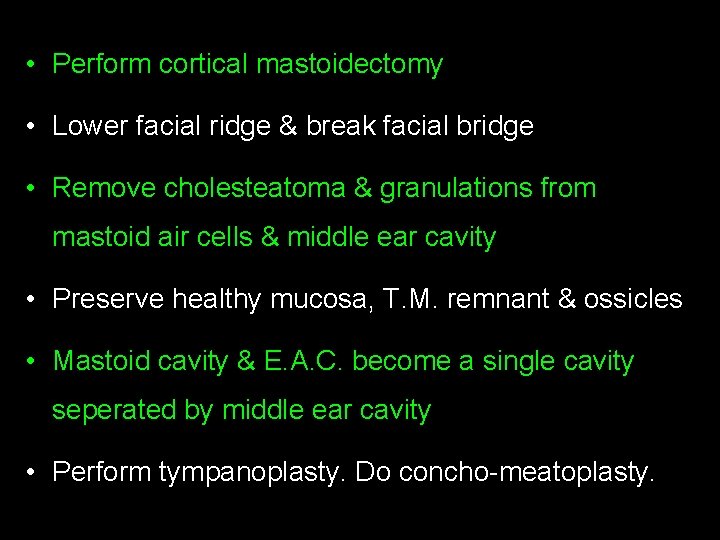

• Perform cortical mastoidectomy • Lower facial ridge & break facial bridge • Remove cholesteatoma & granulations from mastoid air cells & middle ear cavity • Preserve healthy mucosa, T. M. remnant & ossicles • Mastoid cavity & E. A. C. become a single cavity seperated by middle ear cavity • Perform tympanoplasty. Do concho-meatoplasty.

Antiseptic dressing

Draping

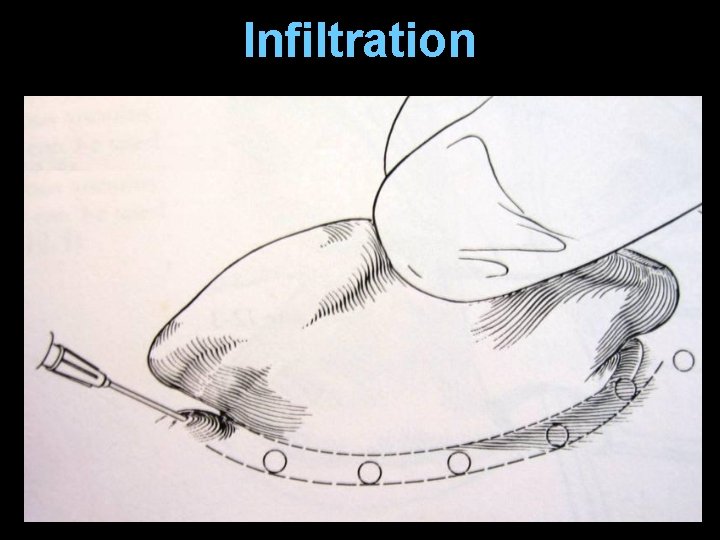

Infiltration

Infiltration

Marking of incision

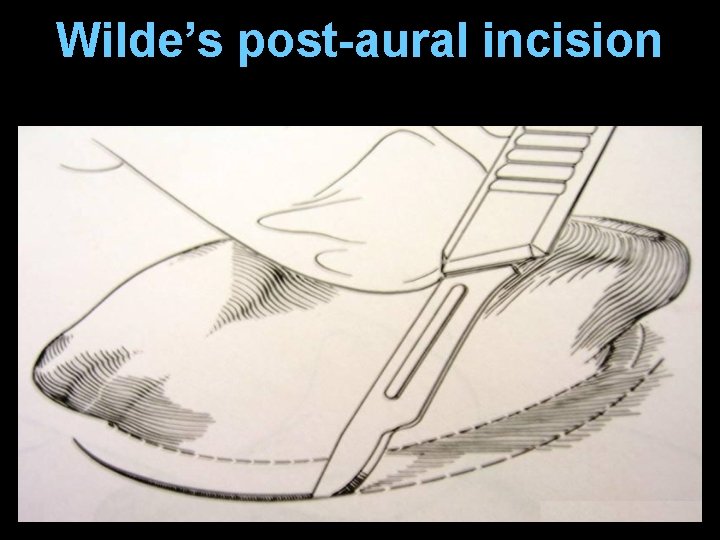

Wilde’s post-aural incision

Wilde’s post-aural incision

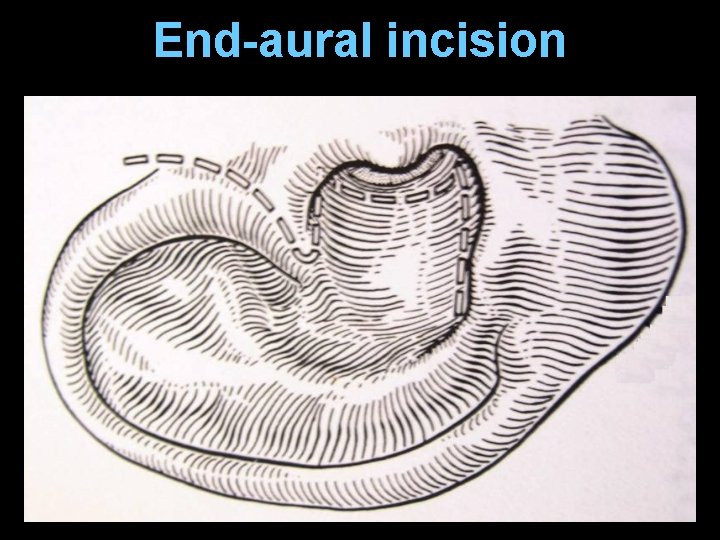

End-aural incision

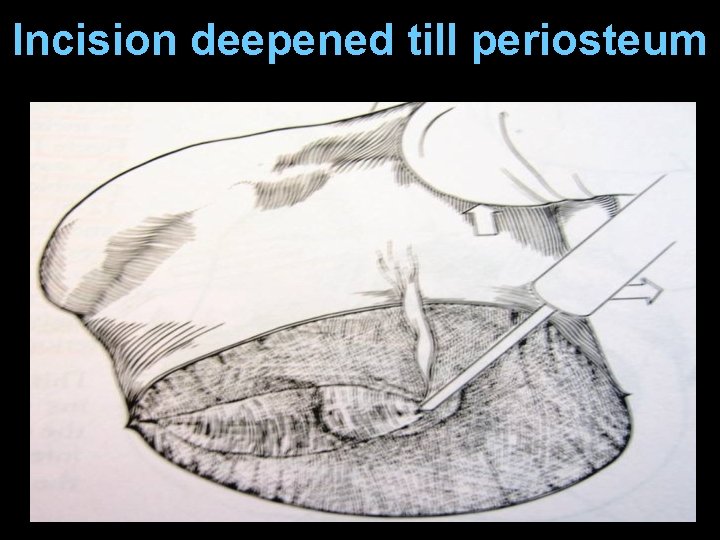

Incision deepened till periosteum

Incision deepened till periosteum

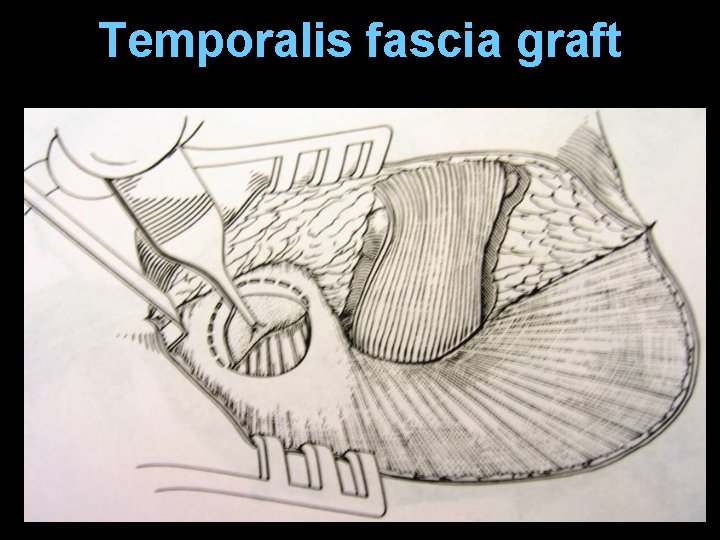

Temporalis fascia graft

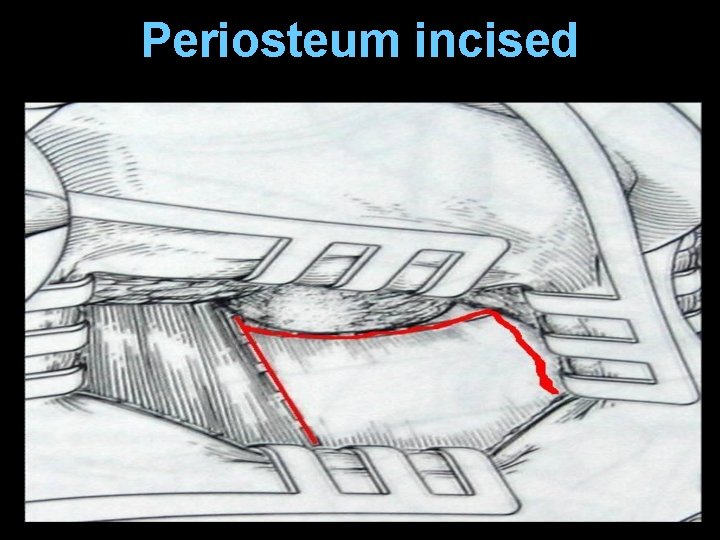

Periosteum incised

Periosteal flap elevated

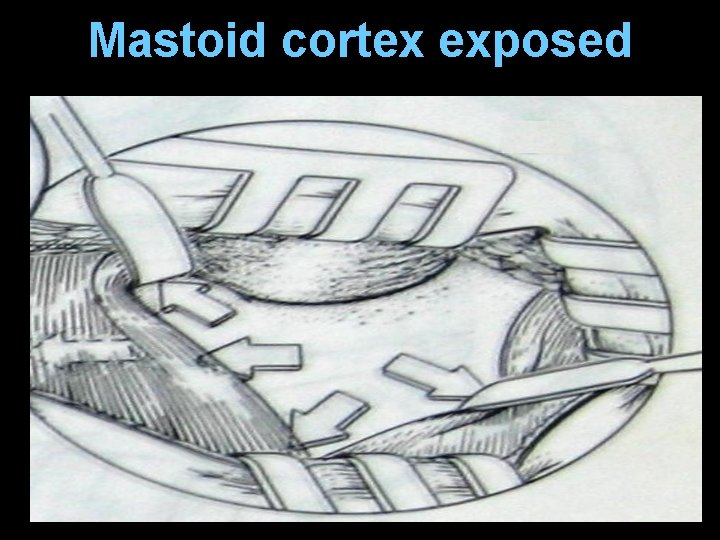

Mastoid cortex exposed

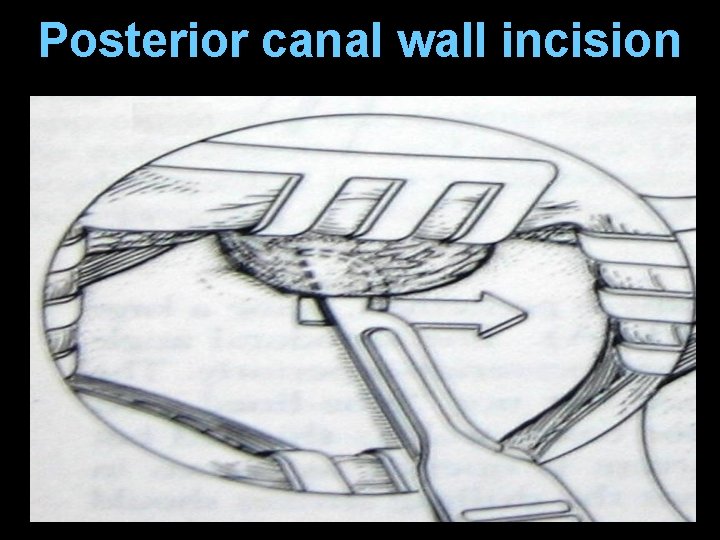

Posterior canal wall incision

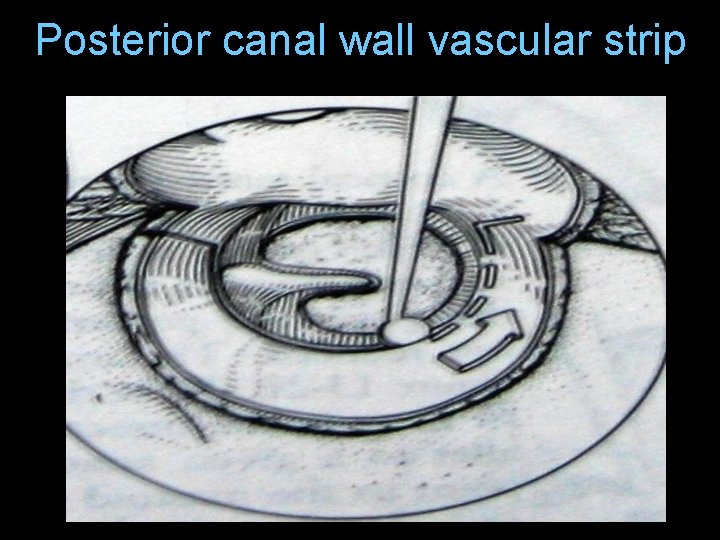

Posterior canal wall vascular strip

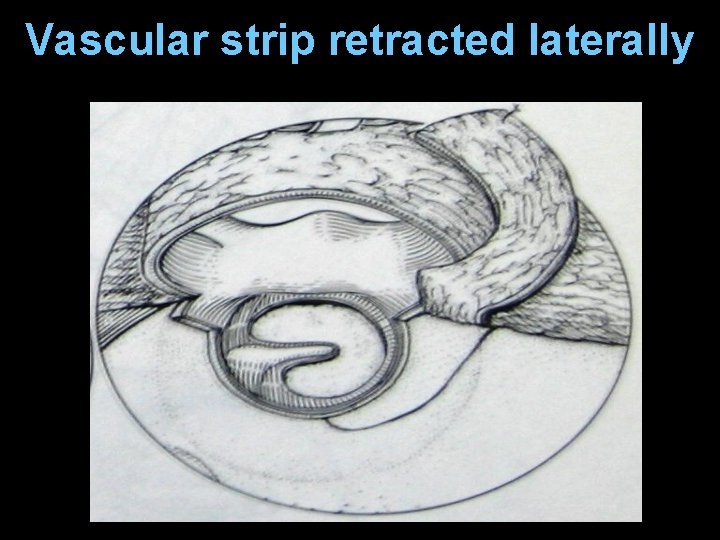

Vascular strip retracted laterally

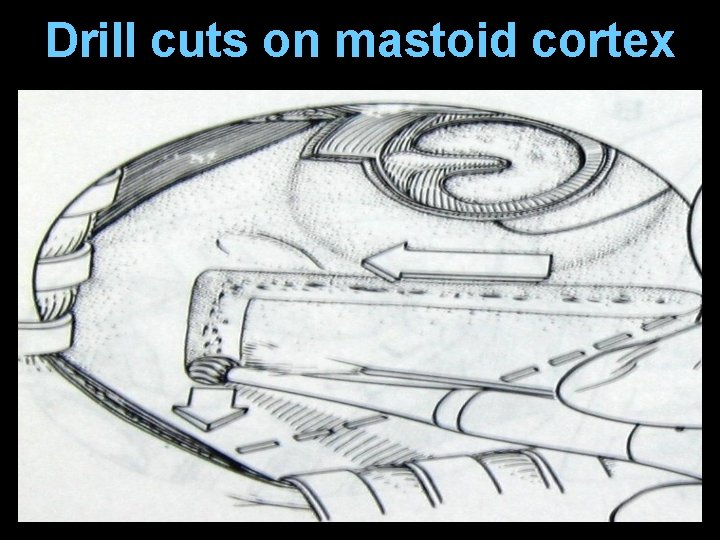

Drill cuts on mastoid cortex

Corical mastoidectomy begun

Cholesteatoma in mastoid cavity

Exposure of mastoid antrum

Widening of aditus

Aditus widened

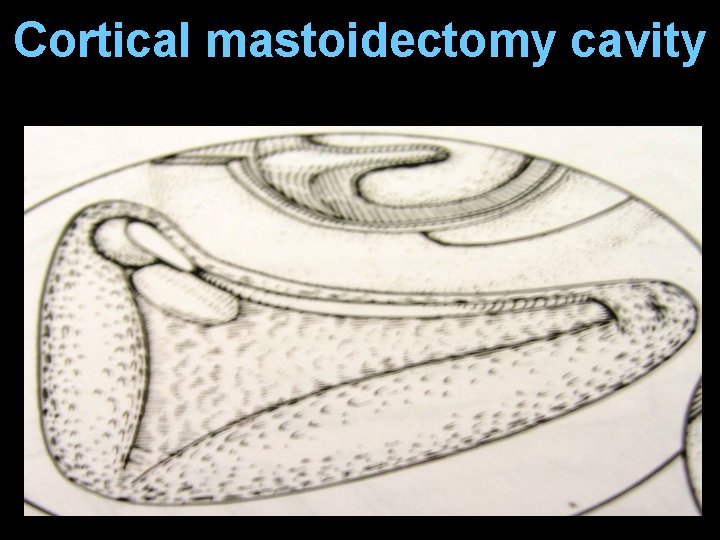

Cortical mastoidectomy cavity

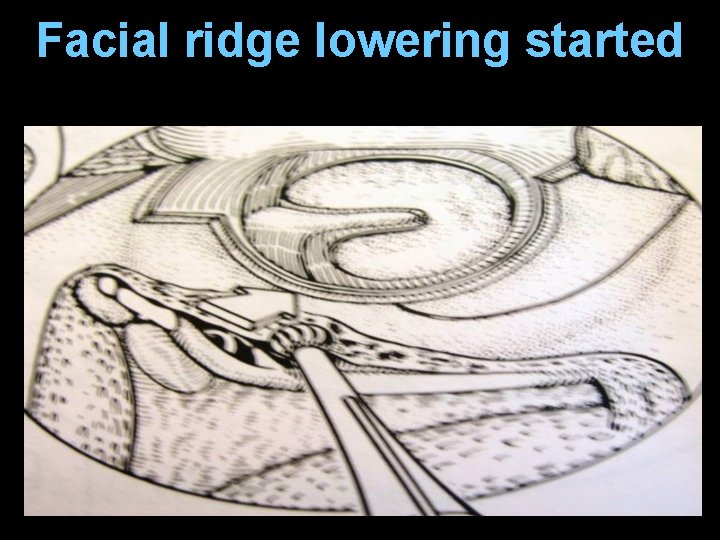

Facial ridge lowering started

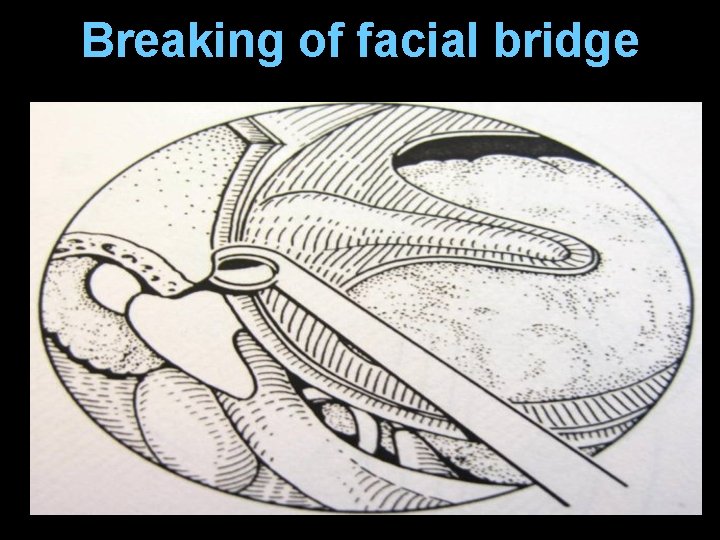

Breaking of facial bridge

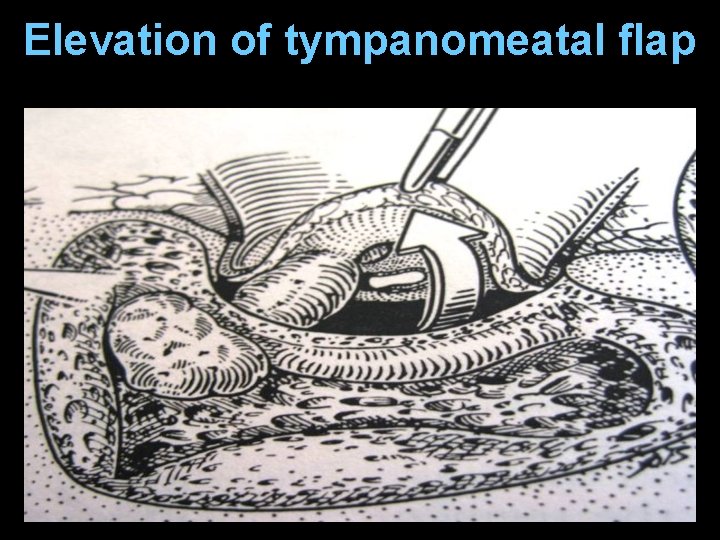

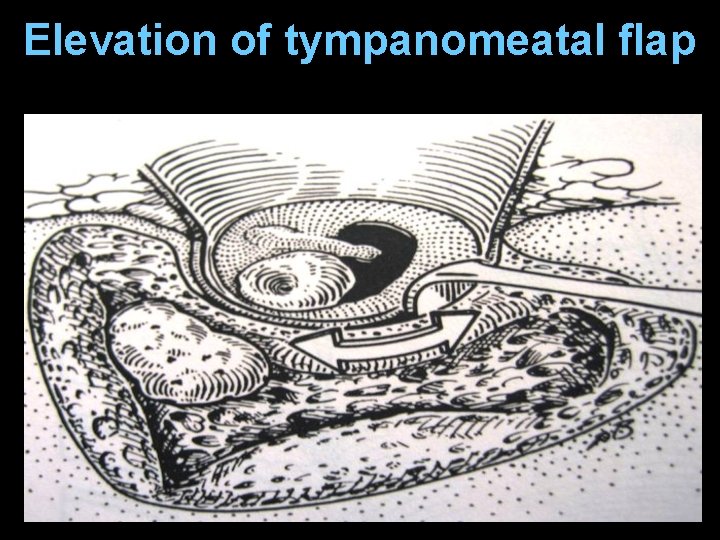

Elevation of tympanomeatal flap

Elevation of tympanomeatal flap

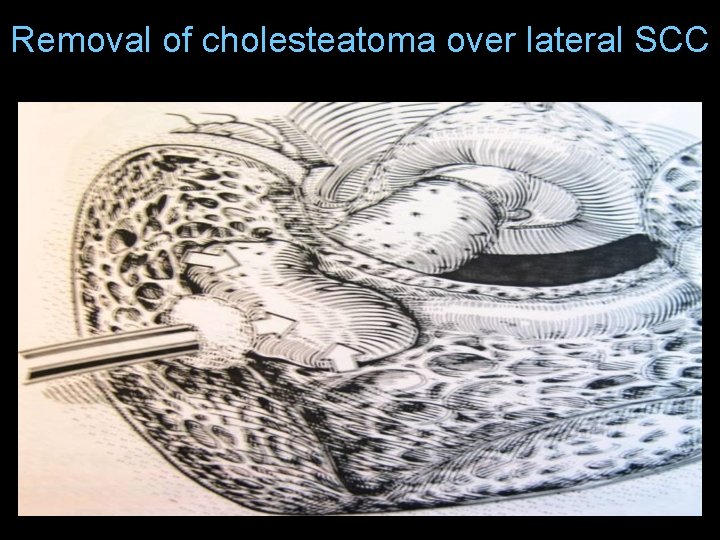

Removal of cholesteatoma over lateral SCC

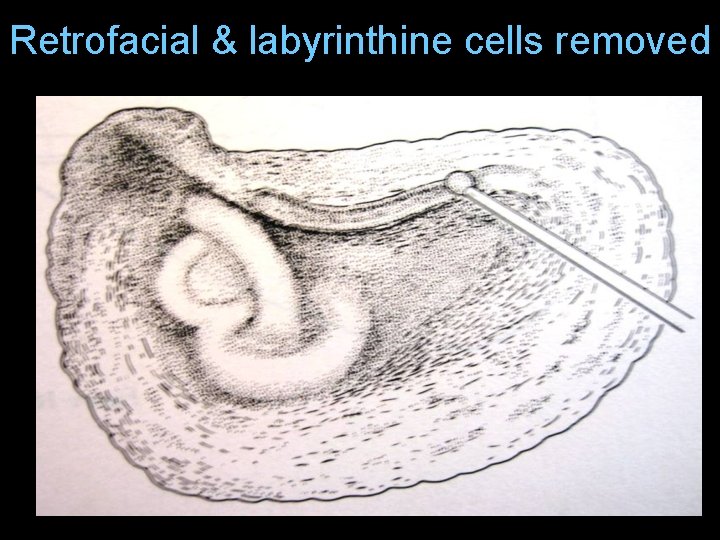

Retrofacial & labyrinthine cells removed

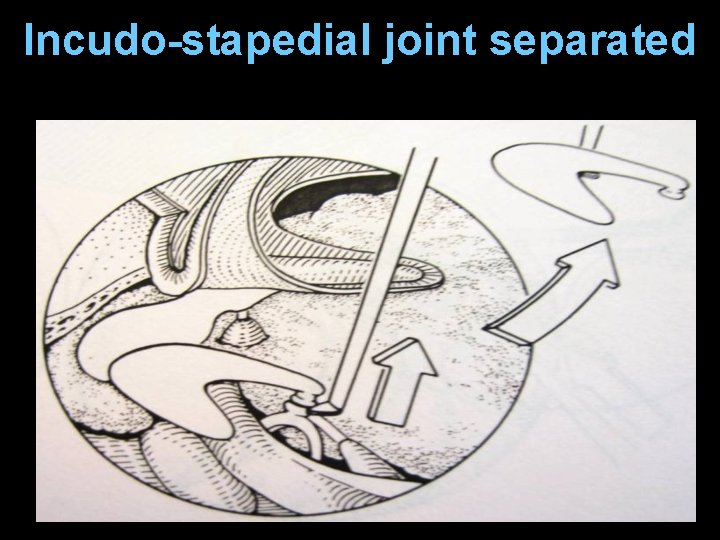

Incudo-stapedial joint separated

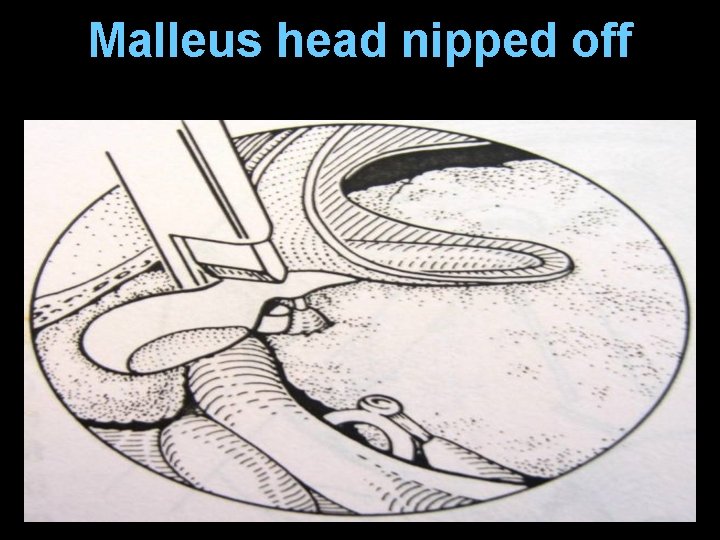

Malleus head nipped off

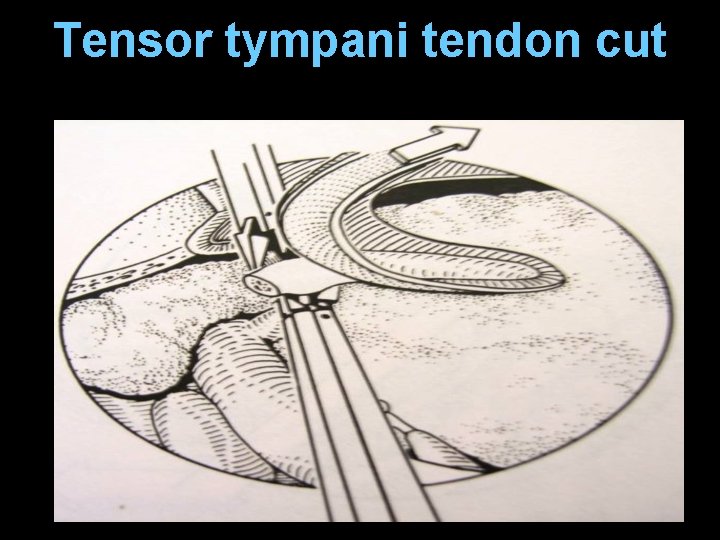

Tensor tympani tendon cut

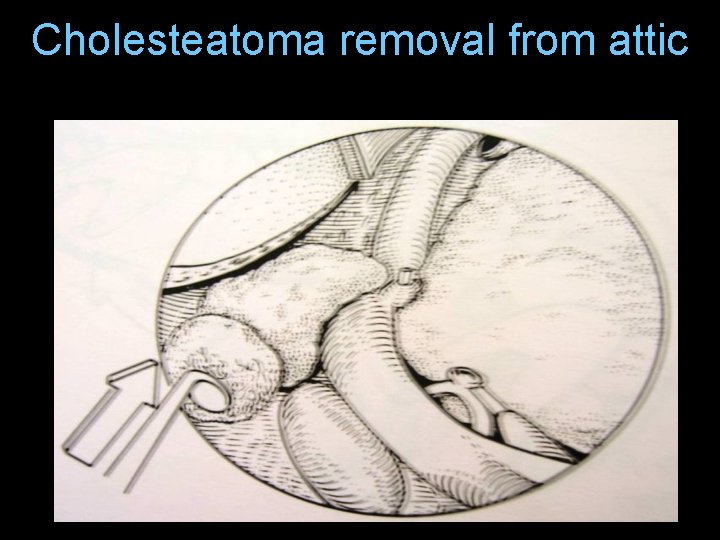

Cholesteatoma removal from attic

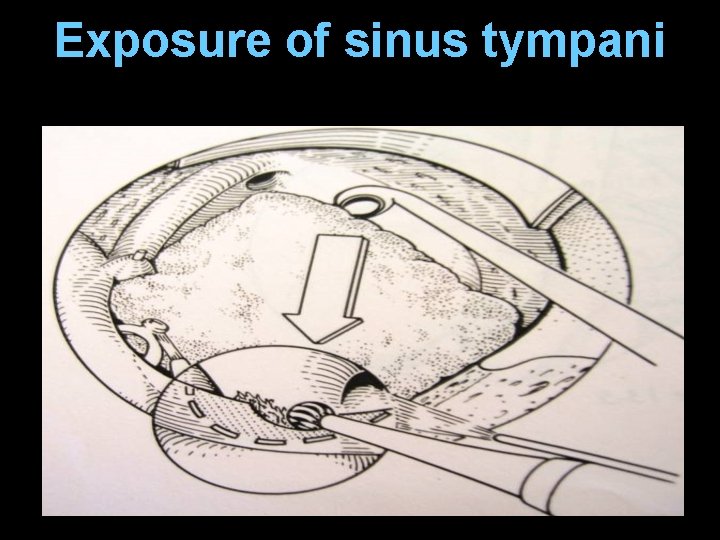

Exposure of sinus tympani

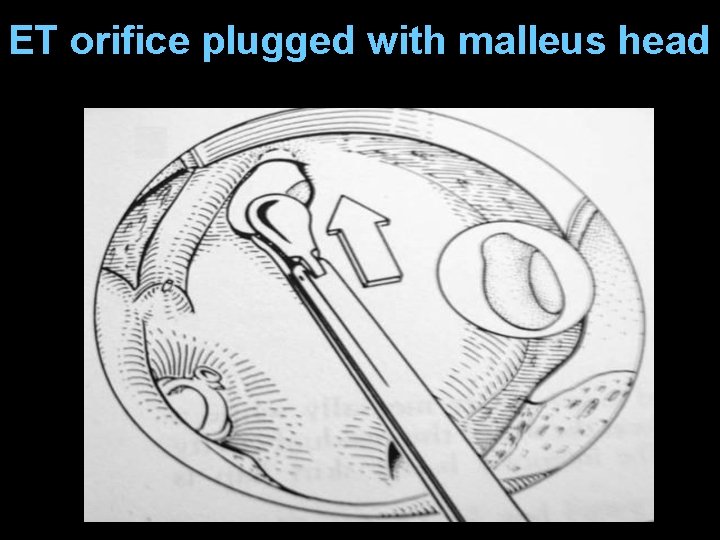

ET orifice plugged with malleus head

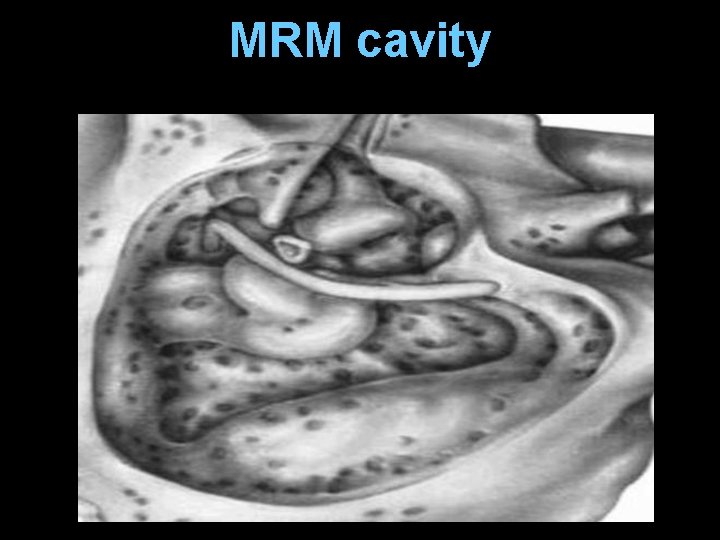

MRM cavity

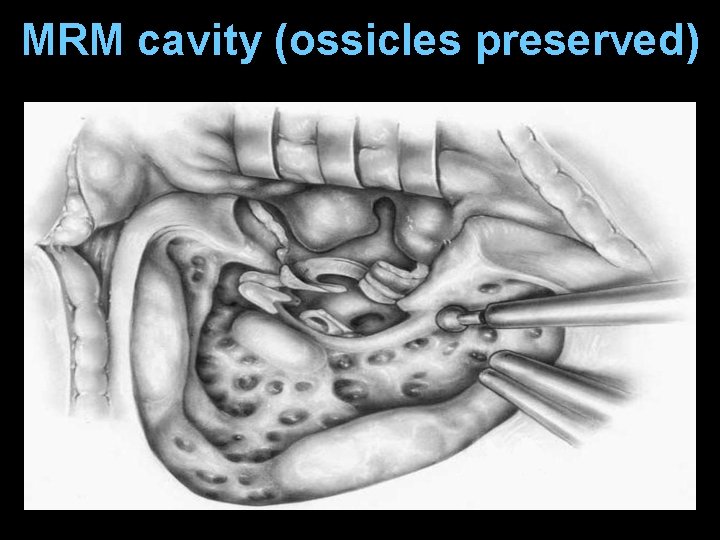

MRM cavity (ossicles preserved)

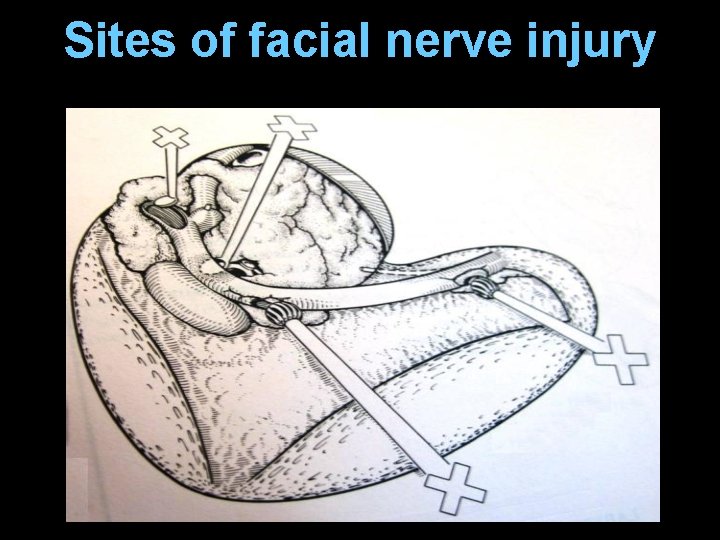

Sites of facial nerve injury

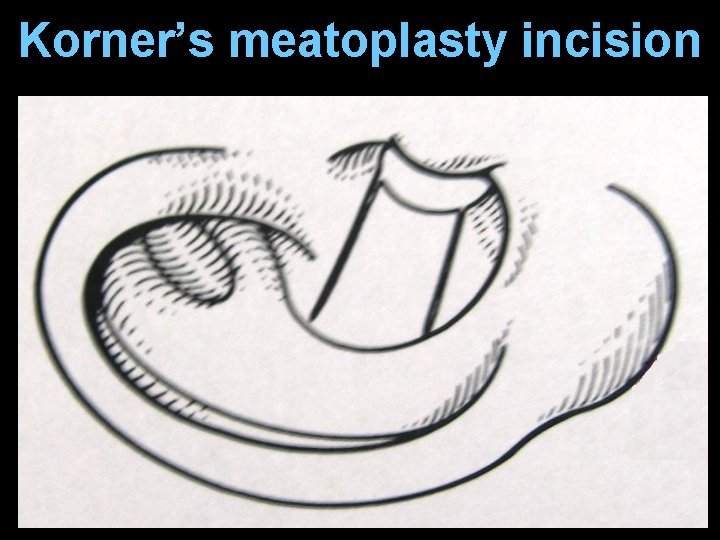

Korner’s meatoplasty incision

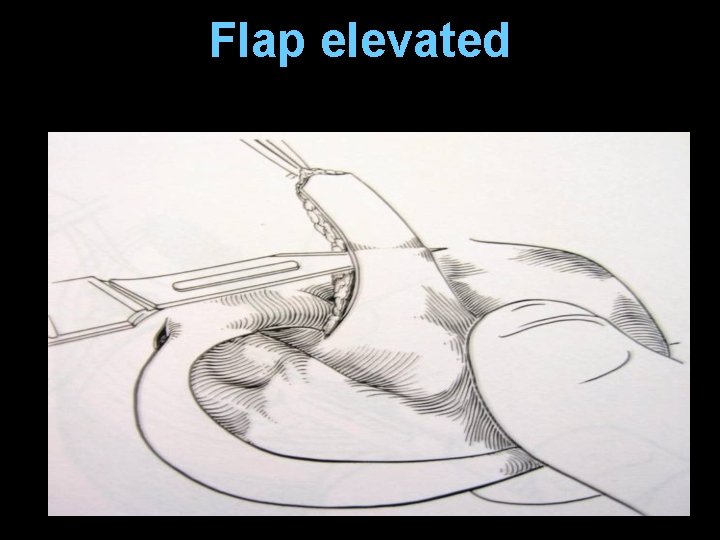

Flap elevated

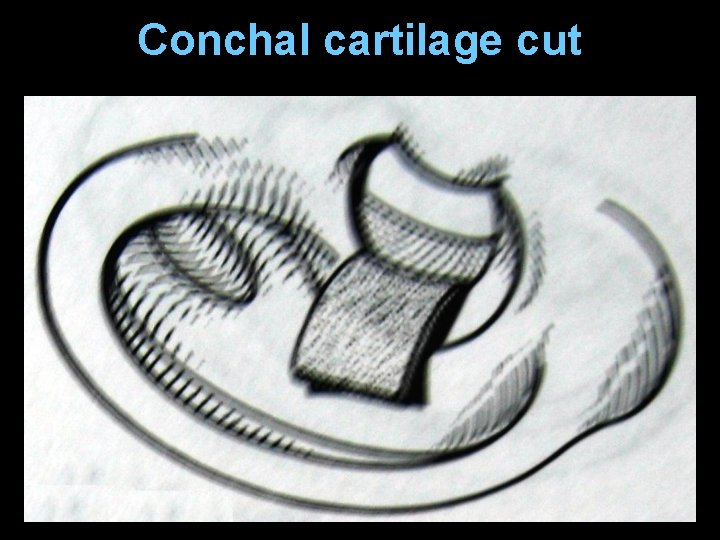

Conchal cartilage cut

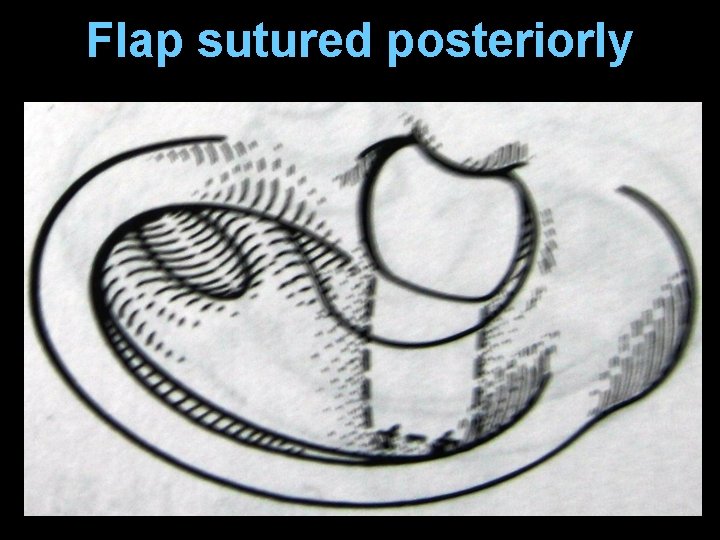

Flap sutured posteriorly

Healed Concho-meatoplasty

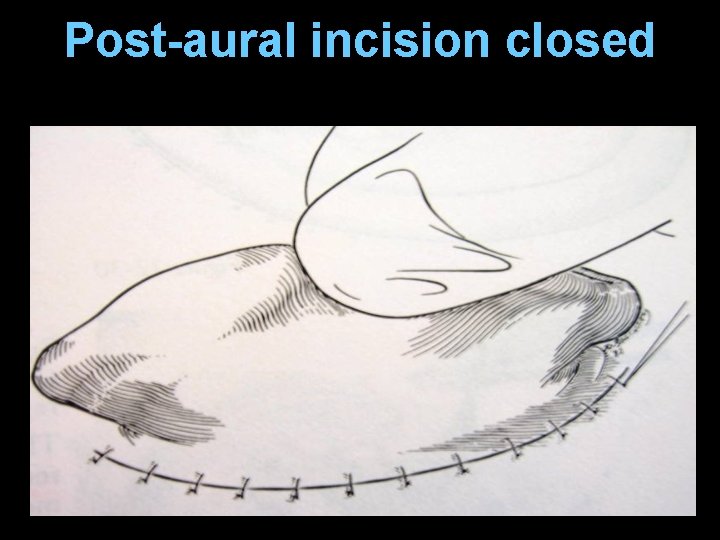

Post-aural incision closed

Radical Mastoidectomy

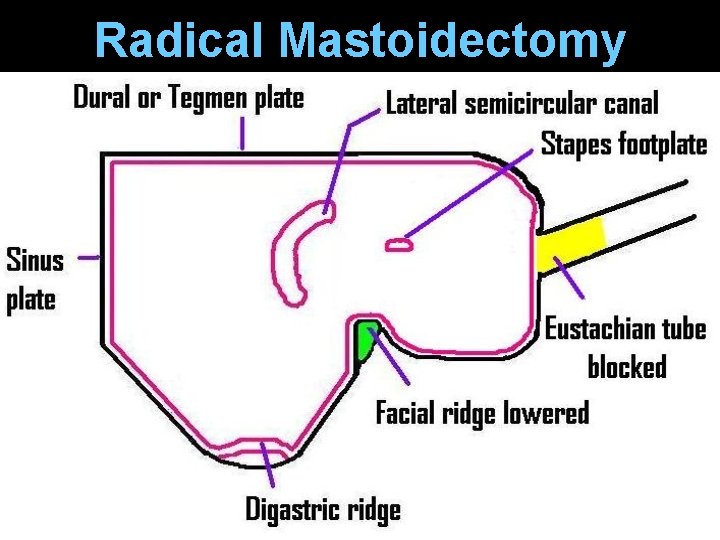

Radical Mastoidectomy

Surgical Steps

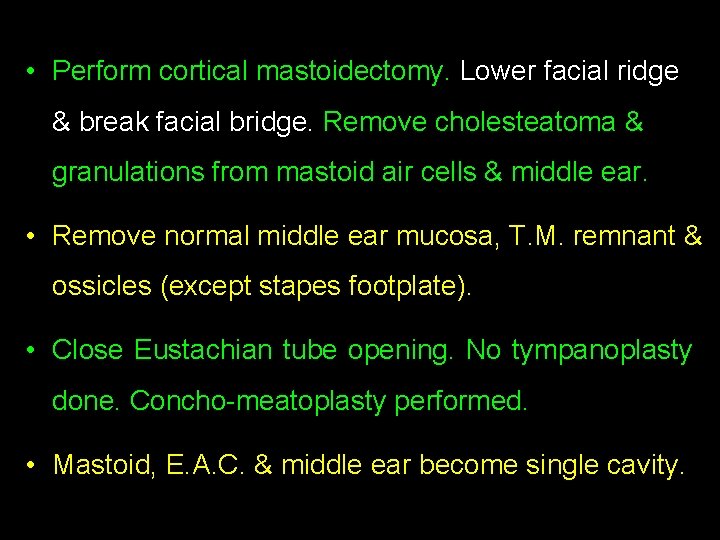

• Perform cortical mastoidectomy. Lower facial ridge & break facial bridge. Remove cholesteatoma & granulations from mastoid air cells & middle ear. • Remove normal middle ear mucosa, T. M. remnant & ossicles (except stapes footplate). • Close Eustachian tube opening. No tympanoplasty done. Concho-meatoplasty performed. • Mastoid, E. A. C. & middle ear become single cavity.

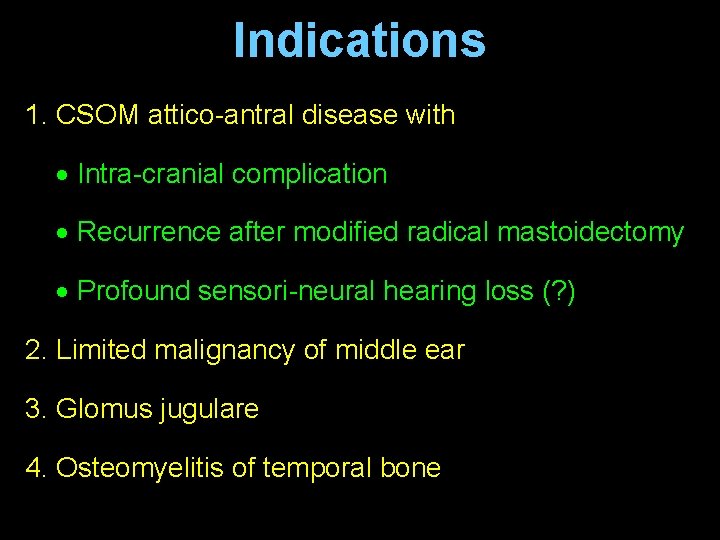

Indications 1. CSOM attico-antral disease with Intra-cranial complication Recurrence after modified radical mastoidectomy Profound sensori-neural hearing loss (? ) 2. Limited malignancy of middle ear 3. Glomus jugulare 4. Osteomyelitis of temporal bone

Causes of discharging mastoid cavity

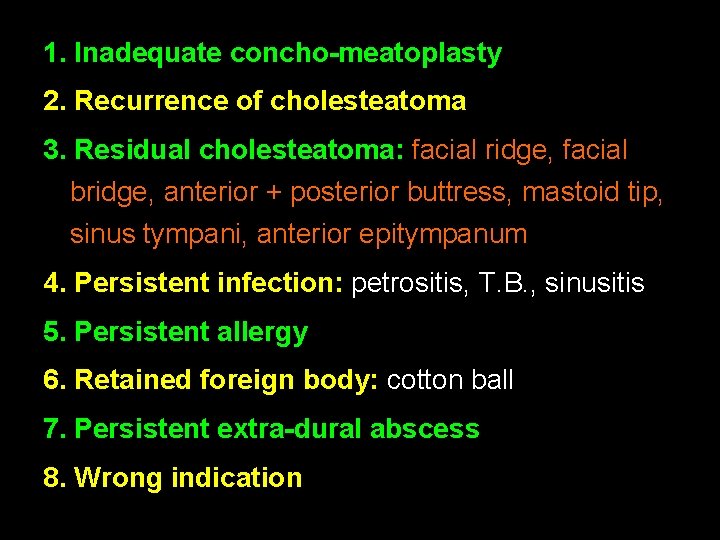

1. Inadequate concho-meatoplasty 2. Recurrence of cholesteatoma 3. Residual cholesteatoma: facial ridge, facial bridge, anterior + posterior buttress, mastoid tip, sinus tympani, anterior epitympanum 4. Persistent infection: petrositis, T. B. , sinusitis 5. Persistent allergy 6. Retained foreign body: cotton ball 7. Persistent extra-dural abscess 8. Wrong indication

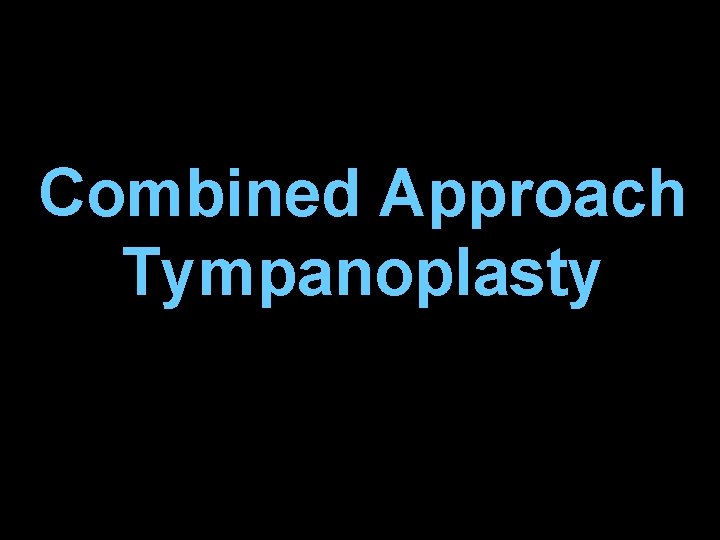

Combined Approach Tympanoplasty

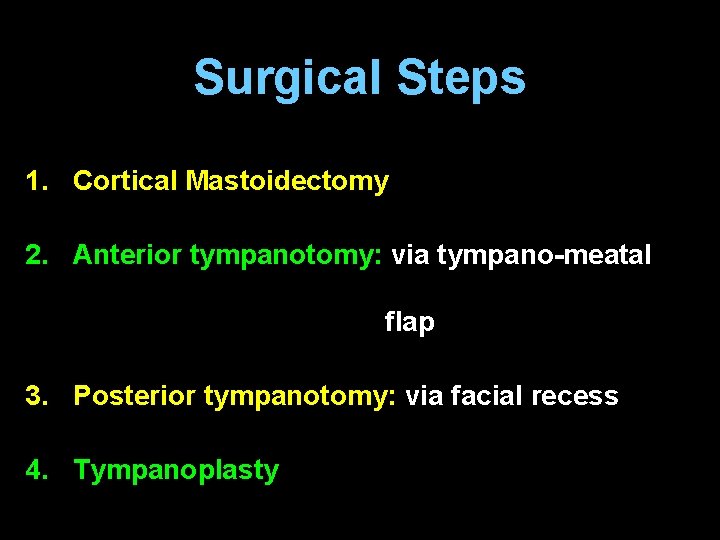

Surgical Steps 1. Cortical Mastoidectomy 2. Anterior tympanotomy: via tympano-meatal flap 3. Posterior tympanotomy: via facial recess 4. Tympanoplasty

Cortical Mastoidectomy

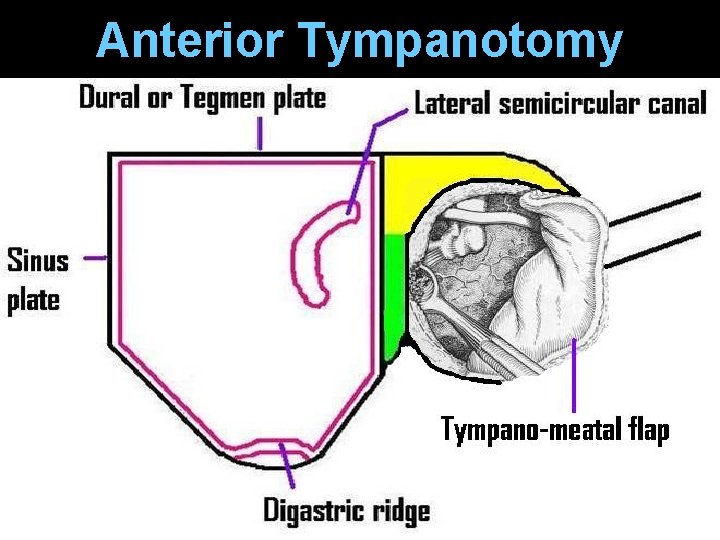

Anterior Tympanotomy

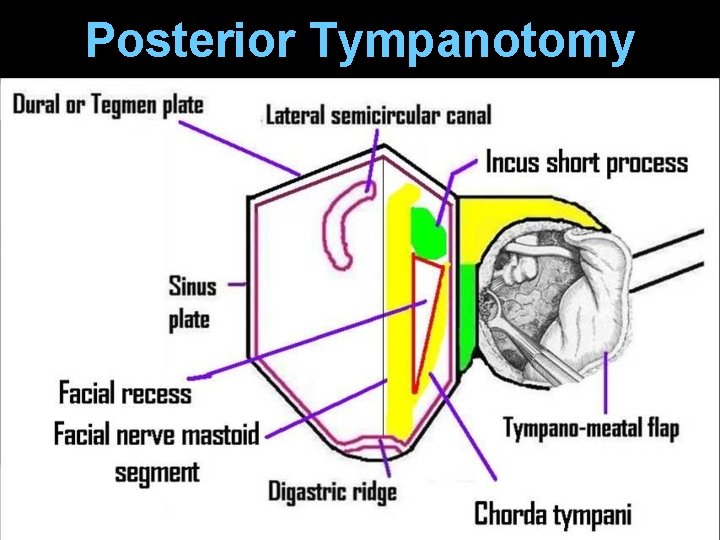

Posterior Tympanotomy

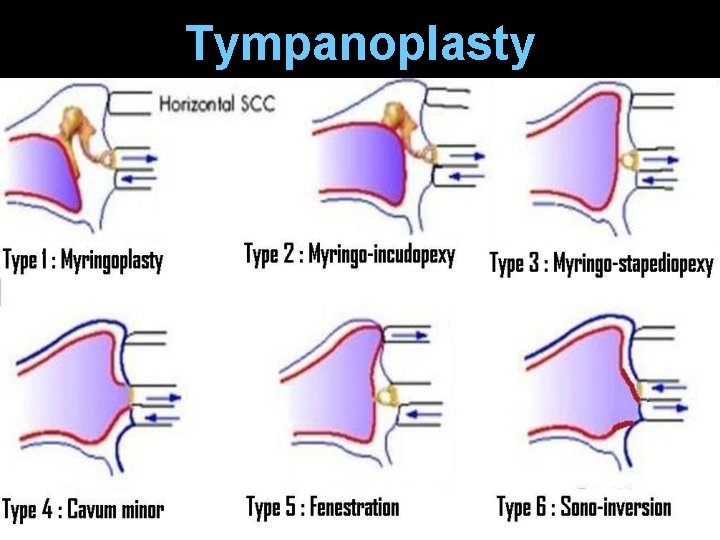

Tympanoplasty
