Surface Simplification Dr. Scott Schaefer 1
Surface Simplification n Given a closed polygon model, reduce the number of polygons and maintain appearance of the shape 5804 tris 2500 tris 1000 tris 500 tris 2/32
Reducing Polygons Perform local, topological operations to reduce number of polygons n Vertex removal n 3/32
Reducing Polygons Perform local, topological operations to reduce number of polygons n Vertex removal n Edge Collapse n 4/32
Reducing Polygons Perform local, topological operations to reduce number of polygons n Vertex removal n Edge Collapse n Face Collapse, … n 5/32
Reducing Polygons Perform local, topological operations to reduce number of polygons n Vertex removal n Edge Collapse n Face Collapse, … n 6/32
Surface Simplification How do we determine the order of edge collapse operations? n Where do we place new vertex after collapse? n 7/32
Error Metrics For Simplification QEF: Quadratic Error Function n Measures distance to infinite planes n 8/32
Error Metrics For Simplification QEF: Quadratic Error Function n Measures distance to infinite planes n 9/32
Error Metrics For Simplification QEF: Quadratic Error Function n Measures distance to infinite planes n symmetric 3 x 3 3 x 1 10/32
Error Metrics For Simplification QEF: Quadratic Error Function n Measures distance to infinite planes n symmetric 3 x 3 3 x 1 1 x 1 Requires 10 floats independent of number of polygons!!! 11/32

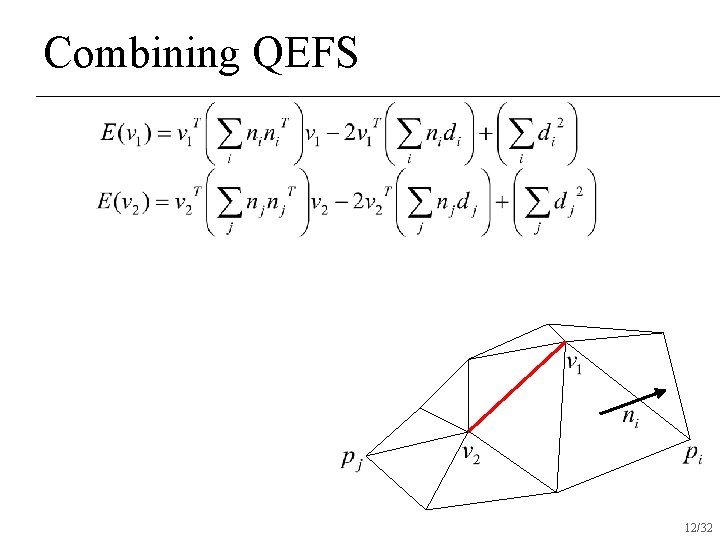

Combining QEFS 12/32
Combining QEFS Add 10 numbers to combine QEFs!!! 13/32
Placement of Vertices Using QEFs n Place new vertex at minimum of error function 14/32

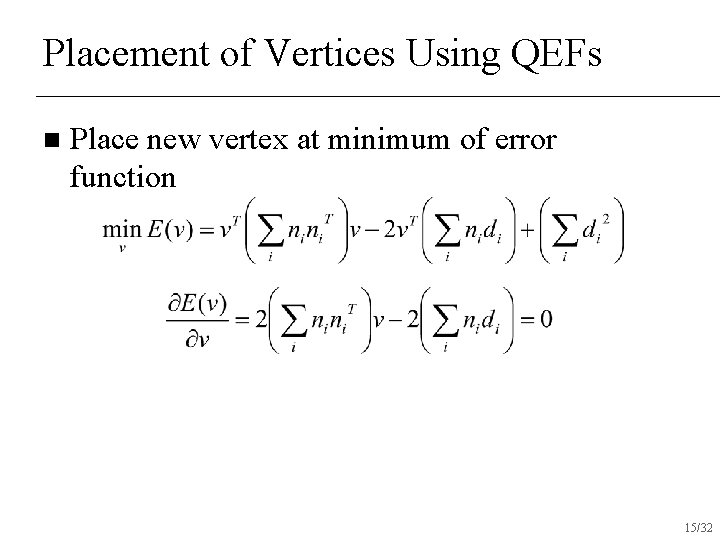

Placement of Vertices Using QEFs n Place new vertex at minimum of error function 15/32
Placement of Vertices Using QEFs n Place new vertex at minimum of error function 16/32
Placement of Vertices Using QEFs n Place new vertex at minimum of error function Not invertible in flat areas or straight edges!!! 17/32
Placement of Vertices Using QEFs n Place new vertex at minimum of error function Pseudoinverse minimizes |v| 18/32
Placement of Vertices Using QEFs n Let where c is a point we want to minimize the distance to 19/32
Placement of Vertices Using QEFs n Let where c is a point we want to minimize the distance to 20/32
Placement of Vertices Using QEFs n Let where c is a point we want to minimize the distance to 21/32
Placement of Vertices Using QEFs n Let where c is a point we want to minimize the distance to 22/32
Plane-Based Quadratic Error Function Compact representation (10 numbers) n Fast to combine multiple functions (addition) n Relatively easy to minimize (pseudoinverse) n n Suffers from numerical instabilities 23/32
Surface Simplification Algorithm Build QEFs for each vertex n For each edge u Compute combined QEF and error u Insert edge into priority queue sorted by error n While poly # > target # u Collapse edge n 24/32
Surface Simplification: Edge Collapse n Place new vertex at minimizer of QEF 25/32
Surface Simplification: Edge Collapse Place new vertex at minimizer of QEF n QEF of new vertex is combined QEF n 26/32
Surface Simplification: Edge Collapse Place new vertex at minimizer of QEF n QEF of new vertex is combined QEF n Remove all edges touching collapsed edge from priority queue n 27/32
Surface Simplification: Edge Collapse Place new vertex at minimizer of QEF n QEF of new vertex is combined QEF n Remove all edges touching collapsed edge from priority queue n Recompute QEF/error for all edges touching new vertex and insert into priority queue n 28/32
Surface Simplification: Edge Collapse Edge collapse may alter topology of surface n Test for topology change and exclude unsafe edge collapses n Unsafe edge may become safe after another collapse n Alternatively, perform two edge collapses n 29/32
Surface Simplification: Edge Collapse Edge collapse may alter topology of surface n Test for topology change and exclude unsafe edge collapses n Unsafe edge may become safe after another collapse n Alternatively, perform two edge collapses n unsafe edge collapses 30/32
Surface Simplification: Edge Collapse Edge collapse may alter topology of surface n Test for topology change and exclude unsafe edge collapses n Unsafe edge may become safe after another collapse n Alternatively, perform two edge collapses n 31/32
Surface Simplification Extremely fast n Somewhat memory intensive u Limits maximum surface size n Greedy algorithm u Does not guarantee optimal sequence of edge collapses!!! n 32/32
