Fractals and Iterated Affine Transformations Dr Scott Schaefer
- Slides: 193
Fractals and Iterated Affine Transformations Dr. Scott Schaefer 1
What are Fractals? 2/193
What are Fractals? 3/193

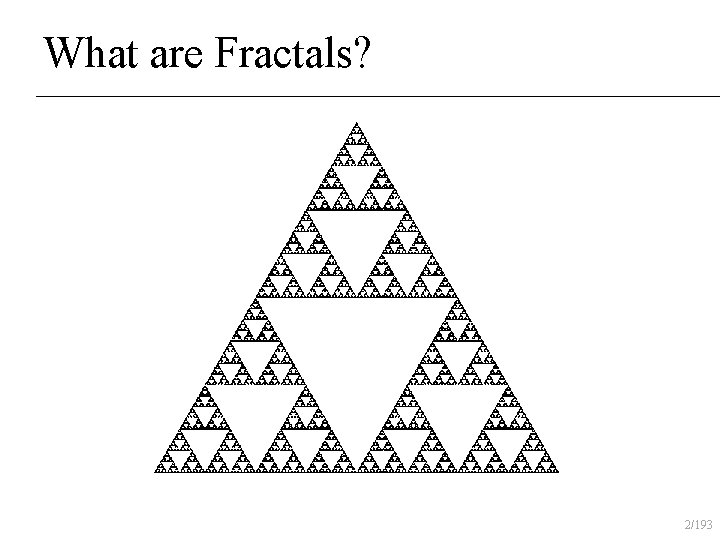

What are Fractals? 4/193
What are Fractals? 5/193
What are Fractals? n Recursion made visible n A self-similar shape created from a set of contractive transformations 6/193
Contractive Transformations n A transformation F(X) is contractive if, for all compact sets Transformations on sets? n Distance between sets? n 7/193
Transformations on Sets n Given a transformation F(x), n In other words, F(X) means apply the transformation to each point in the set X 8/193

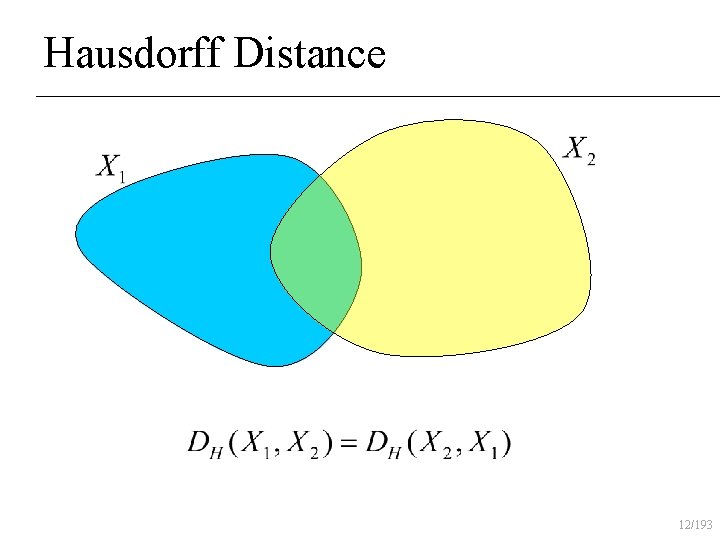

Hausdorff Distance 9/193
Hausdorff Distance 10/193
Hausdorff Distance 11/193
Hausdorff Distance 12/193
Hausdorff Distance 13/193
Hausdorff Distance 14/193
Hausdorff Distance 15/193
Hausdorff Distance 16/193
Hausdorff Distance 17/193
Hausdorff Distance 18/193
Contractive Transformations n A transformation F(X) is contractive if, for all compact sets 19/193
Iterated Affine Transformations n Special class of fractals where each transformation is an affine transformation 20/193
Rendering Fractals Given starting set X 0 n Attractor is 21/193
Rendering Fractals Given starting set X 0 n Attractor is 22/193
Rendering Fractals Given starting set X 0 n Attractor is 23/193
Rendering Fractals Given starting set X 0 n Attractor is 24/193
Rendering Fractals Given starting set X 0 n Attractor is 25/193

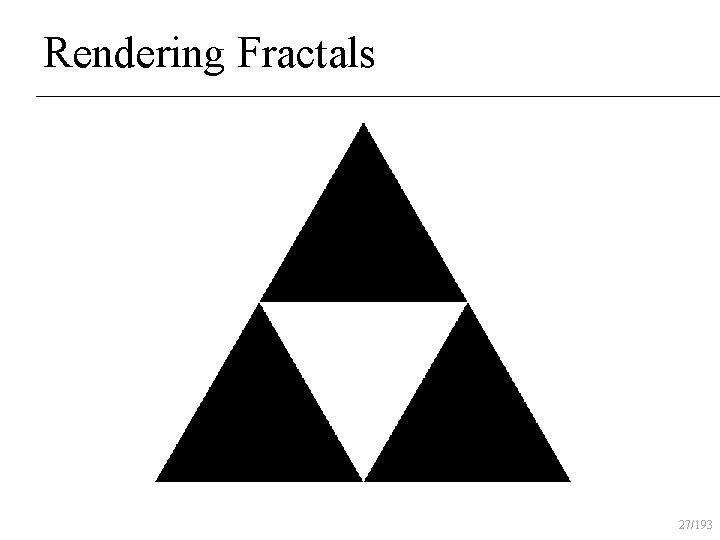

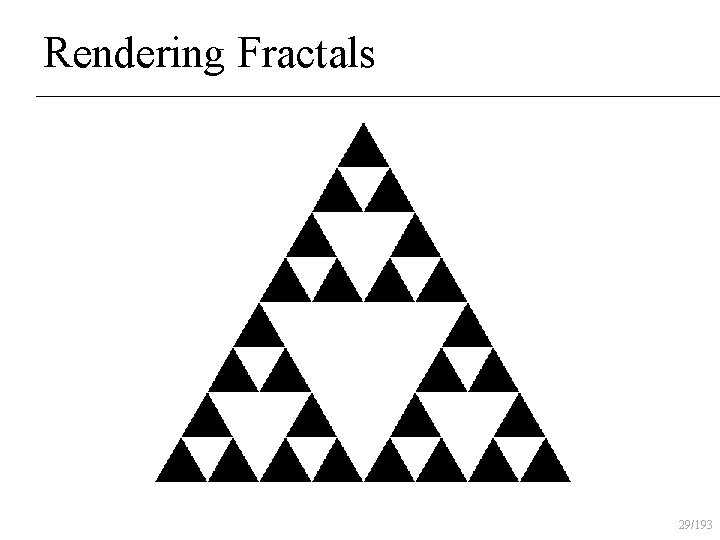

Rendering Fractals 26/193
Rendering Fractals 27/193
Rendering Fractals 28/193
Rendering Fractals 29/193
Rendering Fractals 30/193
Rendering Fractals 31/193
Rendering Fractals 32/193
Rendering Fractals 33/193
Rendering Fractals 34/193
Rendering Fractals 35/193

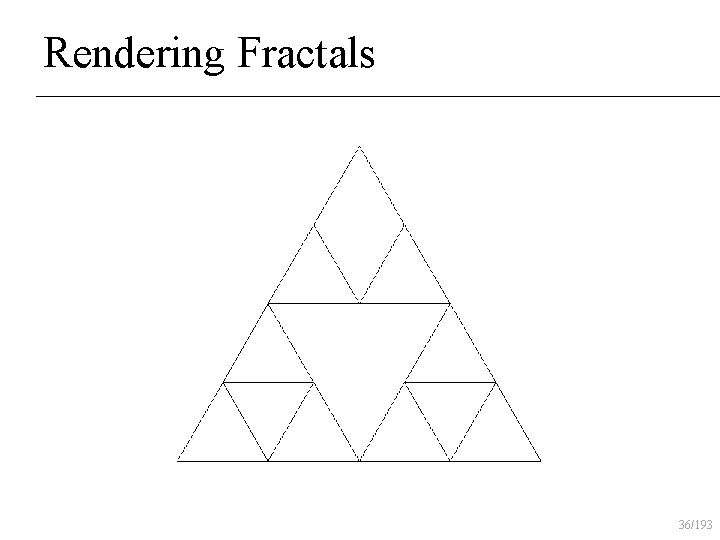

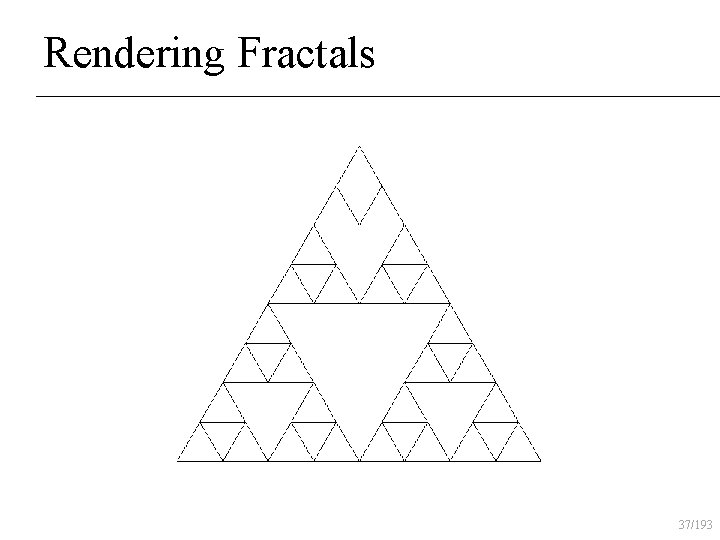

Rendering Fractals 36/193
Rendering Fractals 37/193
Rendering Fractals 38/193
Rendering Fractals 39/193
Rendering Fractals 40/193
Rendering Fractals 41/193
Rendering Fractals 42/193

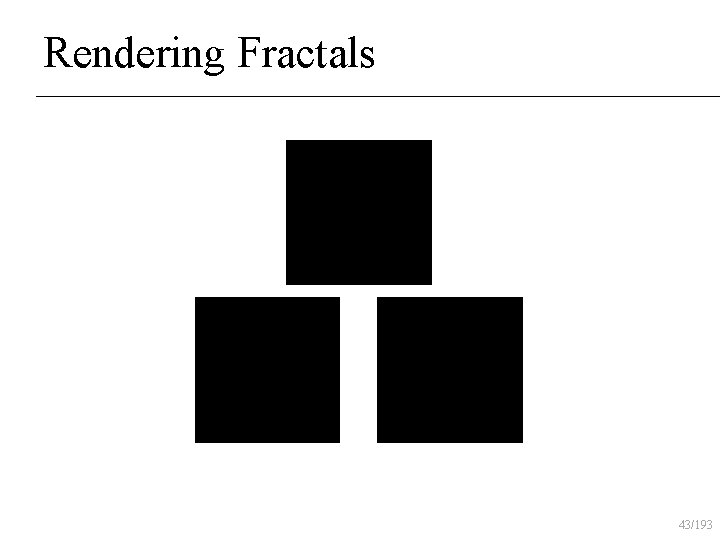

Rendering Fractals 43/193

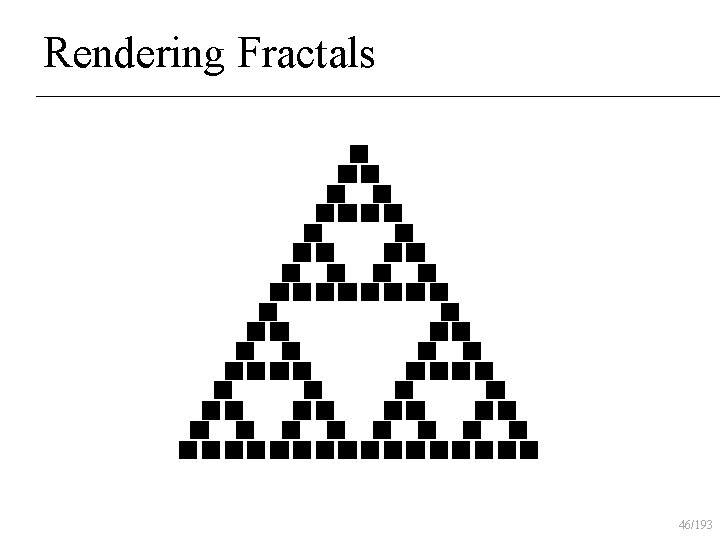

Rendering Fractals 44/193
Rendering Fractals 45/193
Rendering Fractals 46/193
Rendering Fractals 47/193
Rendering Fractals 48/193
Rendering Fractals 49/193
Contractive Transformations n A transformation F(X) is contractive if, for all compact sets n A set of transformations has a unique attractor if all transformations are contractive u That attractor is independent of the starting shape!!! 50/193
Rendering Fractals 51/193
Rendering Fractals 52/193
Rendering Fractals 53/193
Rendering Fractals 54/193
Rendering Fractals 55/193
Rendering Fractals 56/193
Rendering Fractals 57/193
Rendering Fractals 58/193
Rendering Fractals 59/193
Rendering Fractals 60/193
Rendering Fractals 61/193
Rendering Fractals 62/193
Rendering Fractals 63/193
Rendering Fractals 64/193

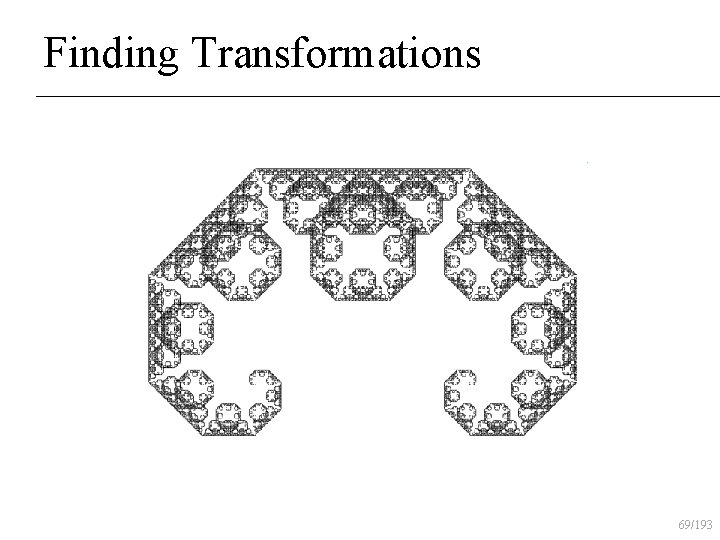

Finding Transformations 65/193
Finding Transformations 66/193
Finding Transformations 67/193
Finding Transformations 68/193
Finding Transformations 69/193
Fractal Tennis Start with any point x For ( i=1; i<100; i++ ) x = Mrandom*x For ( i=1; i<100000; i++ ) draw(x) x = Mrandom*x 70/193
Fractal Tennis Start with any point x For ( i=1; i<100; i++ ) x = Mrandom*x For ( i=1; i<100000; i++ ) draw(x) x = Mrandom*x Gets a point on the fractal 71/193
Fractal Tennis Start with any point x For ( i=1; i<100; i++ ) x = Mrandom*x For ( i=1; i<100000; i++ ) draw(x) x = Mrandom*x Creates new points on the fractal 72/193
Fractal Tennis – Example 25, 000 Points 73/193

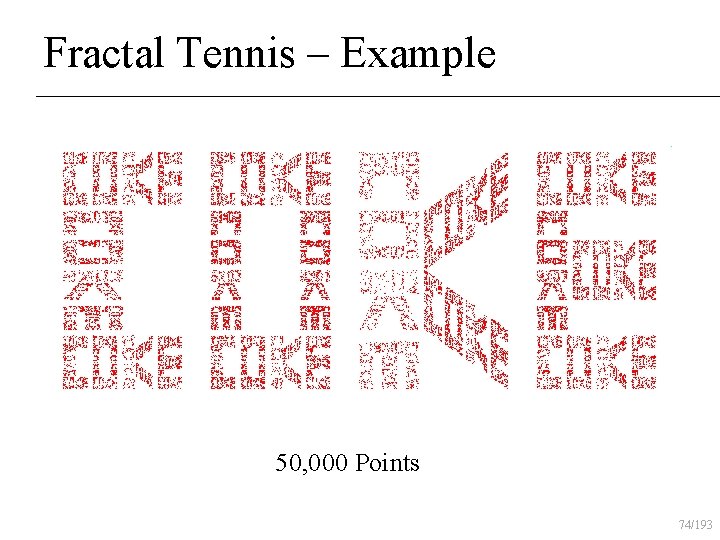

Fractal Tennis – Example 50, 000 Points 74/193
Fractal Tennis – Example 75, 000 Points 75/193
Fractal Tennis – Example 100, 000 Points 76/193

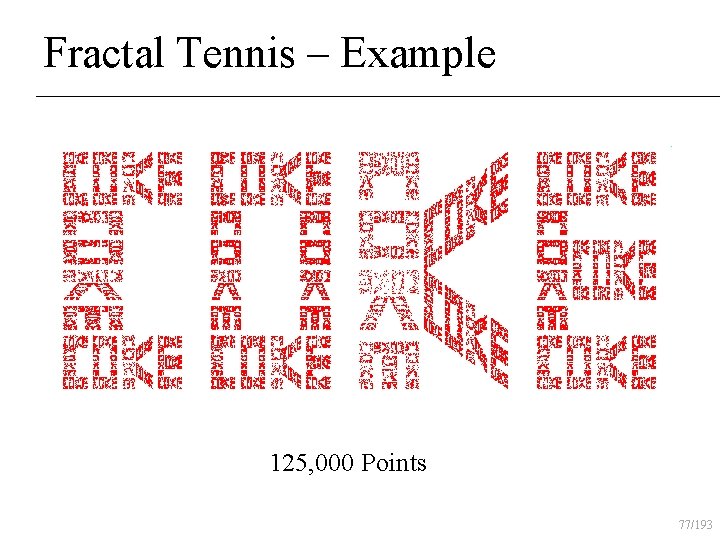

Fractal Tennis – Example 125, 000 Points 77/193
Fractal Tennis – Example 150, 000 Points 78/193
Fractal Tennis – Example 175, 000 Points 79/193
Fractal Tennis – Example 200, 000 Points 80/193
Modified Fractal Tennis 81/193
Modified Fractal Tennis 25, 000 Points 82/193

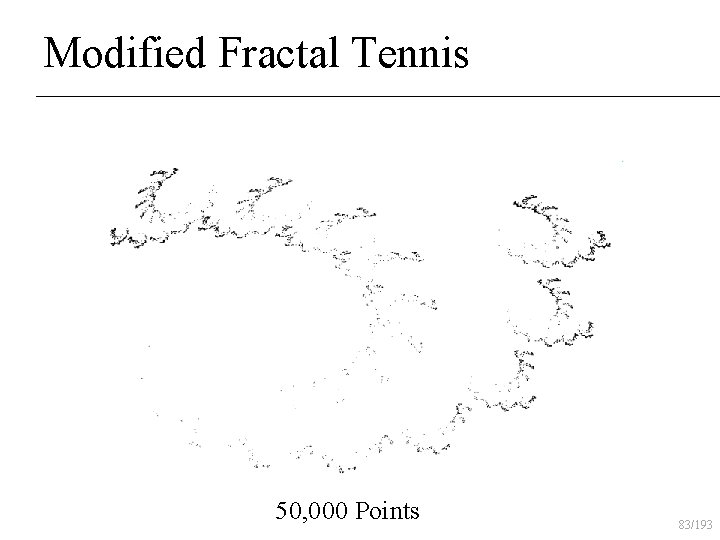

Modified Fractal Tennis 50, 000 Points 83/193
Modified Fractal Tennis 75, 000 Points 84/193
Modified Fractal Tennis 100, 000 Points 85/193
Modified Fractal Tennis 125, 000 Points 86/193
Modified Fractal Tennis 150, 000 Points 87/193
Modified Fractal Tennis 175, 000 Points 88/193
Modified Fractal Tennis 200, 000 Points 89/193
Modified Fractal Tennis n Weight probabilities based on area 200, 000 Points 90/193
Modified Fractal Tennis n Weight probabilities based on area 25, 000 Points 91/193
Modified Fractal Tennis n Weight probabilities based on area 50, 000 Points 92/193
Modified Fractal Tennis n Weight probabilities based on area 75, 000 Points 93/193
Modified Fractal Tennis n Weight probabilities based on area 100, 000 Points 94/193

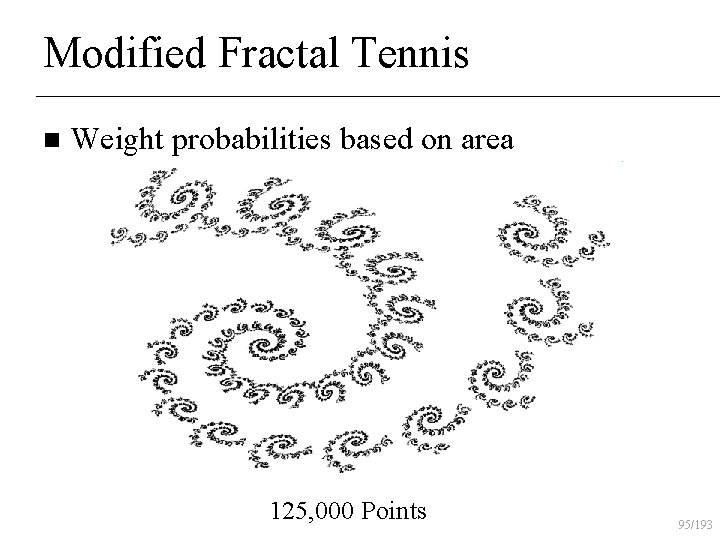

Modified Fractal Tennis n Weight probabilities based on area 125, 000 Points 95/193
Modified Fractal Tennis n Weight probabilities based on area 150, 000 Points 96/193
Modified Fractal Tennis n Weight probabilities based on area 175, 000 Points 97/193
Modified Fractal Tennis n Weight probabilities based on area 200, 000 Points 98/193
Condensation Sets n Given a condensation set C 99/193
Condensation Set Example 100/193
Condensation Sets – Example Condensation Set 101/193
Condensation Sets – Example 102/193
Condensation Sets – Example 103/193
Condensation Sets – Example 104/193
Condensation Sets – Example 105/193

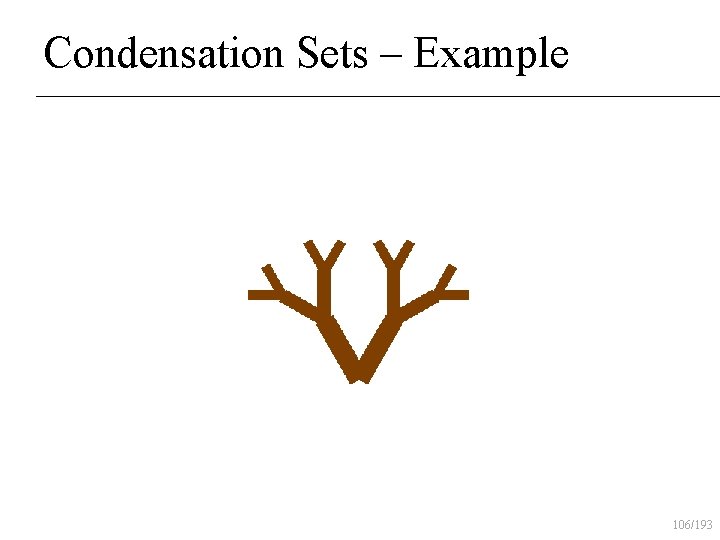

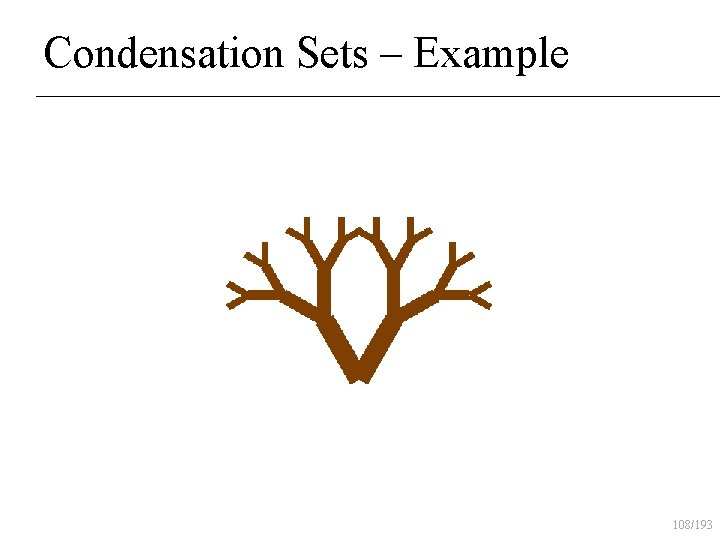

Condensation Sets – Example 106/193
Condensation Sets – Example 107/193
Condensation Sets – Example 108/193
Condensation Sets – Example 109/193
Condensation Sets – Example 110/193
Condensation Sets – Example 111/193
Condensation Sets – Example 112/193
Condensation Sets – Example 113/193
Condensation Sets – Example 114/193
Condensation Sets – Example 115/193
Condensation Sets – Example 116/193
Condensation Sets – Example 117/193

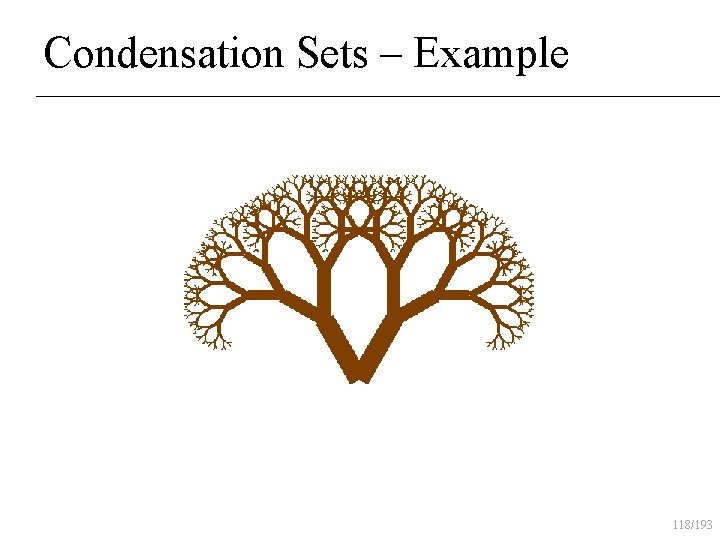

Condensation Sets – Example 118/193

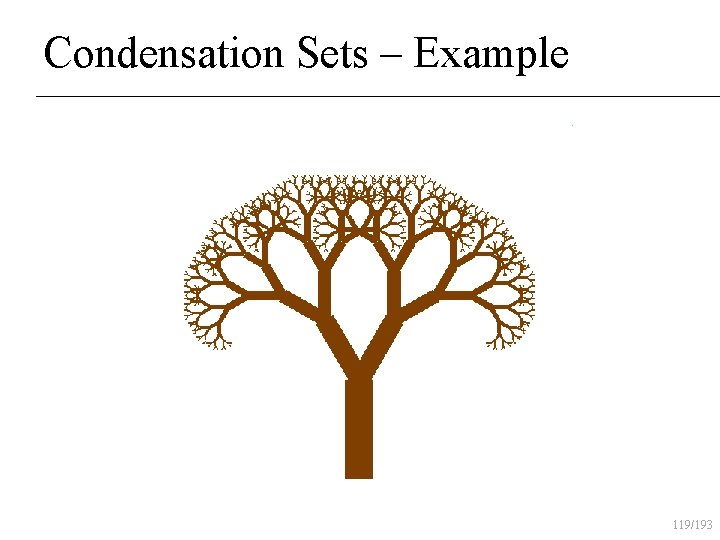

Condensation Sets – Example 119/193
Condensation Sets – Example 120/193
Condensation Sets – Example 121/193
Rendering Fractals 122/193

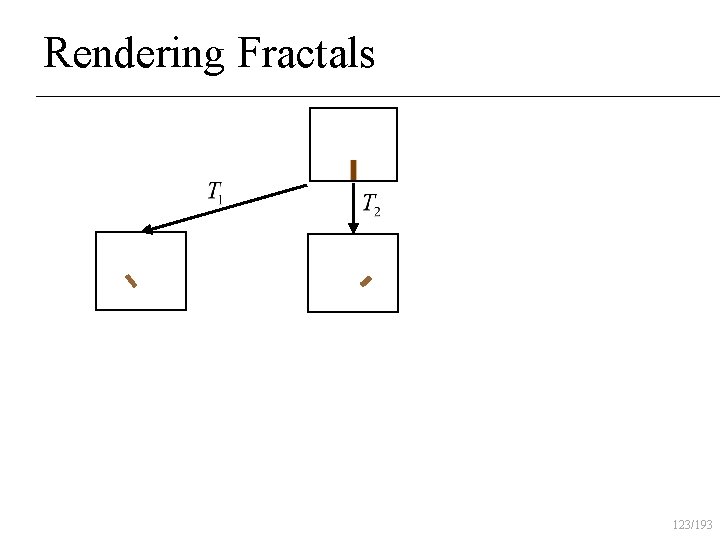

Rendering Fractals 123/193
Rendering Fractals 124/193
Rendering Fractals 125/193

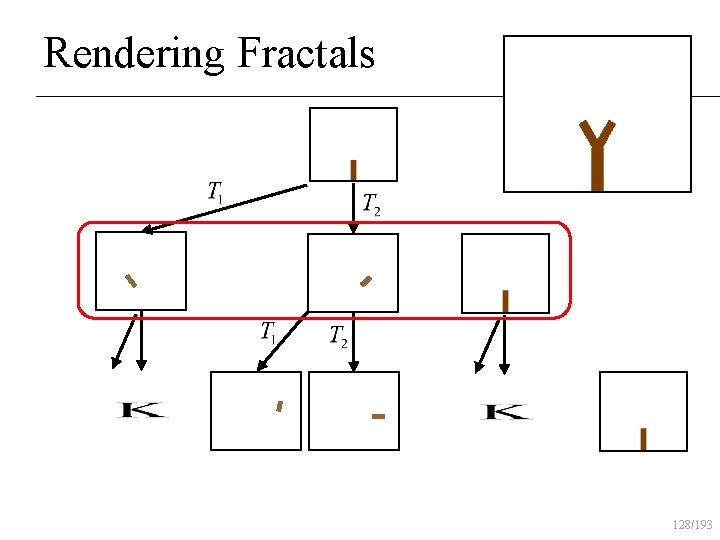

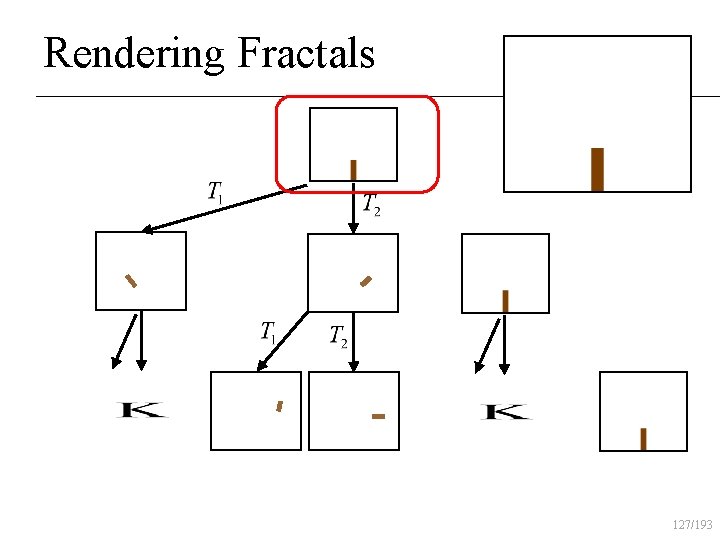

Rendering Fractals 126/193
Rendering Fractals 127/193
Rendering Fractals 128/193
Rendering Fractals 129/193

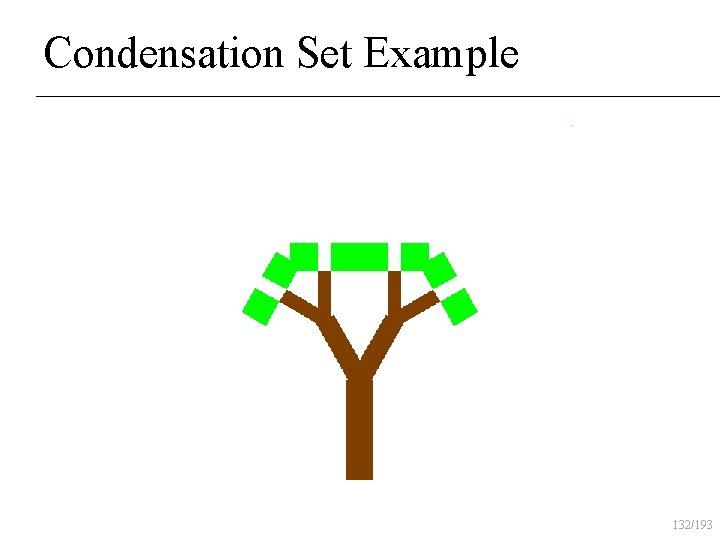

Condensation Set Example 130/193
Condensation Set Example 131/193
Condensation Set Example 132/193

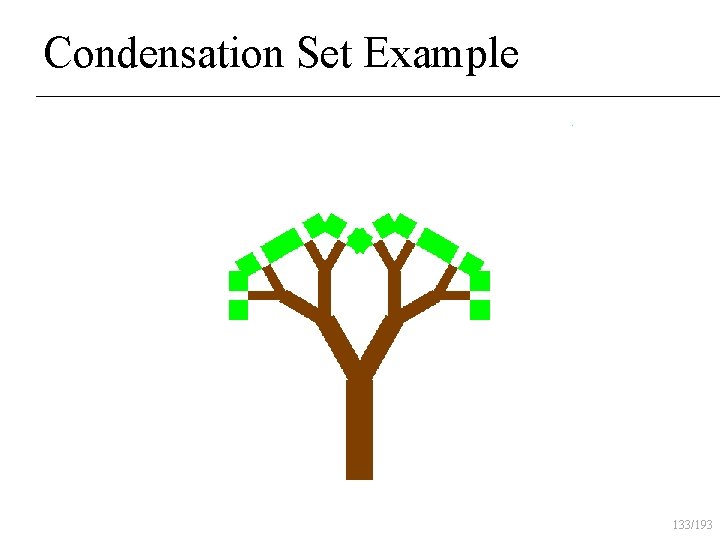

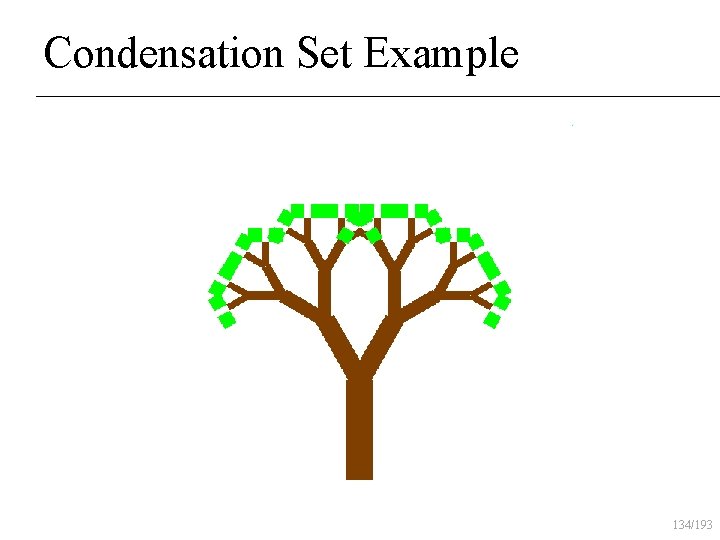

Condensation Set Example 133/193
Condensation Set Example 134/193
Condensation Set Example 135/193
Condensation Set Example 136/193
Condensation Set Example 137/193
Condensation Set Example 138/193

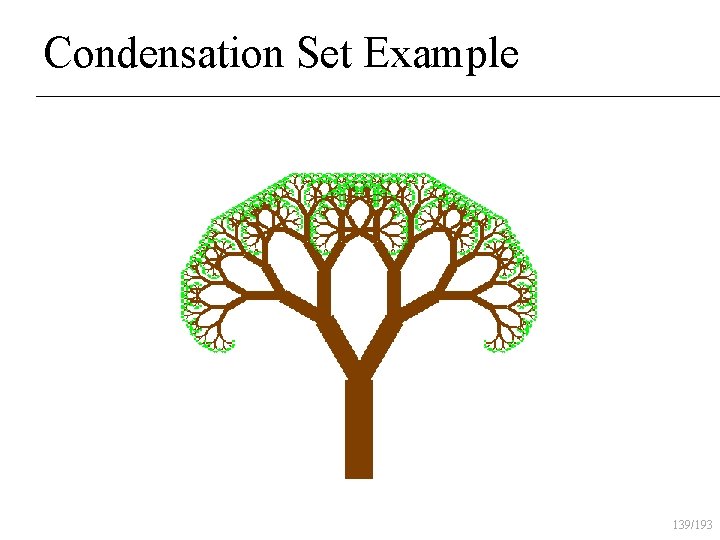

Condensation Set Example 139/193
Condensation Set Example 140/193

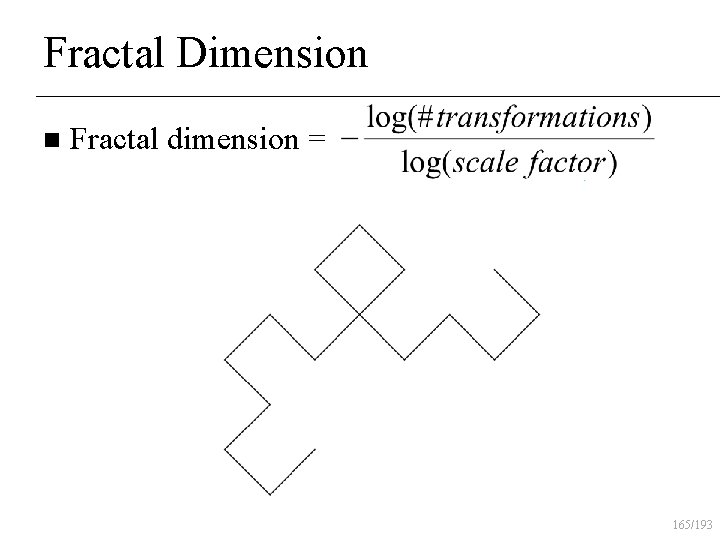

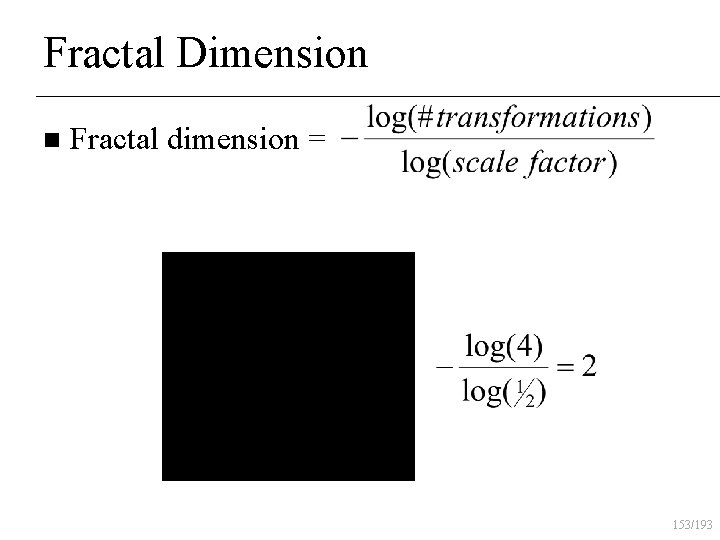

Fractal Dimension n Fractal dimension = 141/193
Fractal Dimension n Fractal dimension = 142/193
Fractal Dimension n Fractal dimension = 143/193

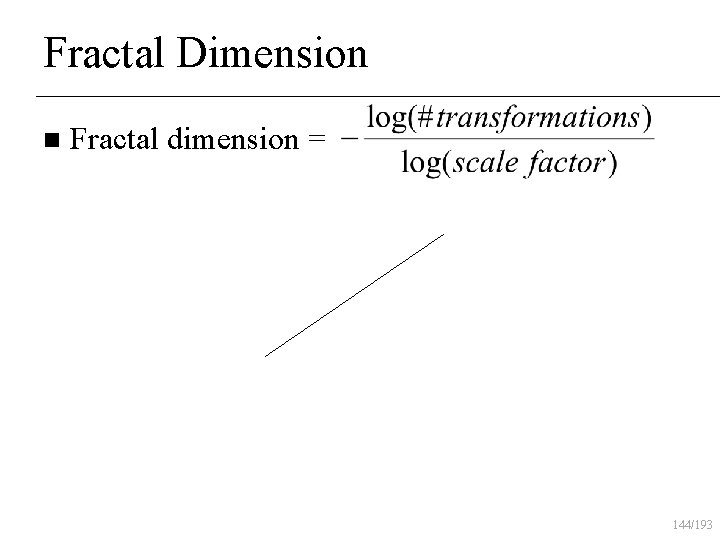

Fractal Dimension n Fractal dimension = 144/193
Fractal Dimension n Fractal dimension = 145/193

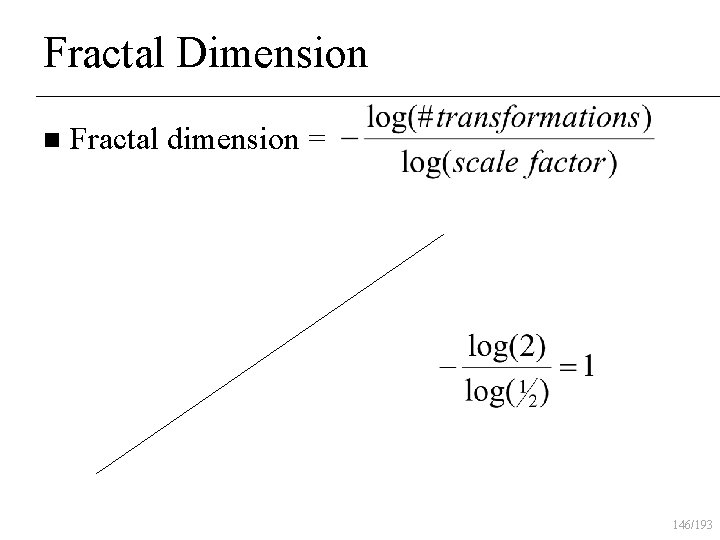

Fractal Dimension n Fractal dimension = 146/193

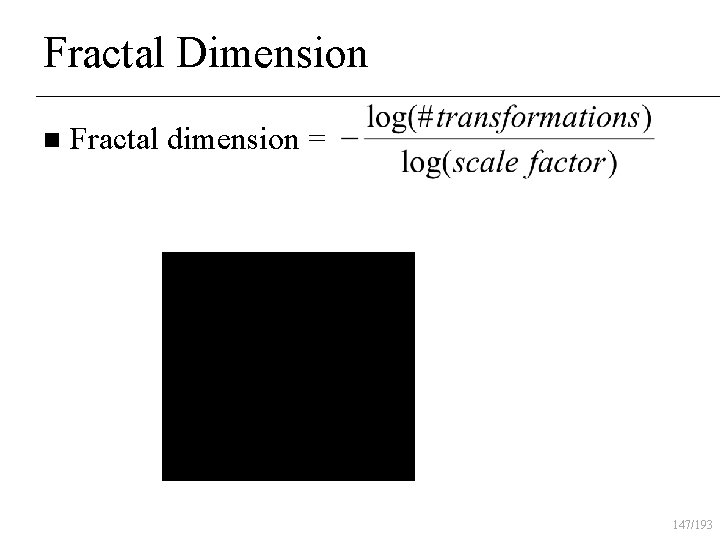

Fractal Dimension n Fractal dimension = 147/193
Fractal Dimension n Fractal dimension = 148/193
Fractal Dimension n Fractal dimension = 149/193
Fractal Dimension n Fractal dimension = 150/193
Fractal Dimension n Fractal dimension = 151/193
Fractal Dimension n Fractal dimension = 152/193
Fractal Dimension n Fractal dimension = 153/193

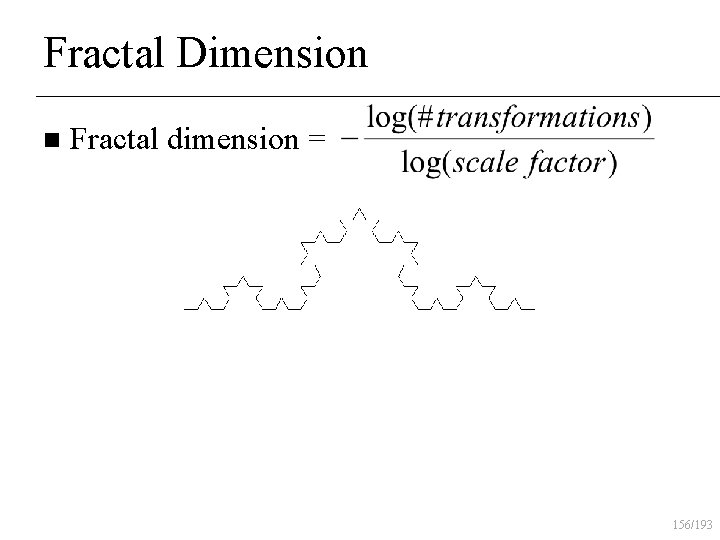

Fractal Dimension n Fractal dimension = 154/193
Fractal Dimension n Fractal dimension = 155/193
Fractal Dimension n Fractal dimension = 156/193
Fractal Dimension n Fractal dimension = 157/193
Fractal Dimension n Fractal dimension = 158/193
Fractal Dimension n Fractal dimension = 159/193
Fractal Dimension n Fractal dimension = 160/193
Fractal Dimension n Fractal dimension = 161/193
Fractal Dimension n Fractal dimension = 162/193
Fractal Dimension n Fractal dimension = 163/193
Fractal Dimension n Fractal dimension = 164/193
Fractal Dimension n Fractal dimension = 165/193
Fractal Dimension n Fractal dimension = 166/193

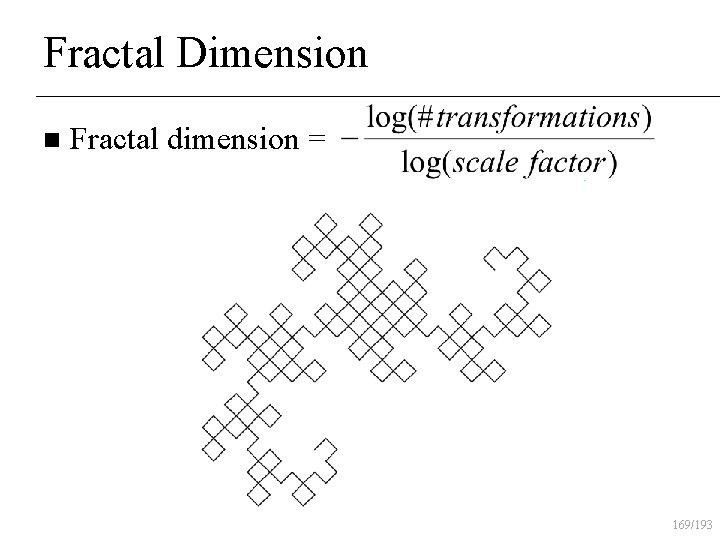

Fractal Dimension n Fractal dimension = 167/193

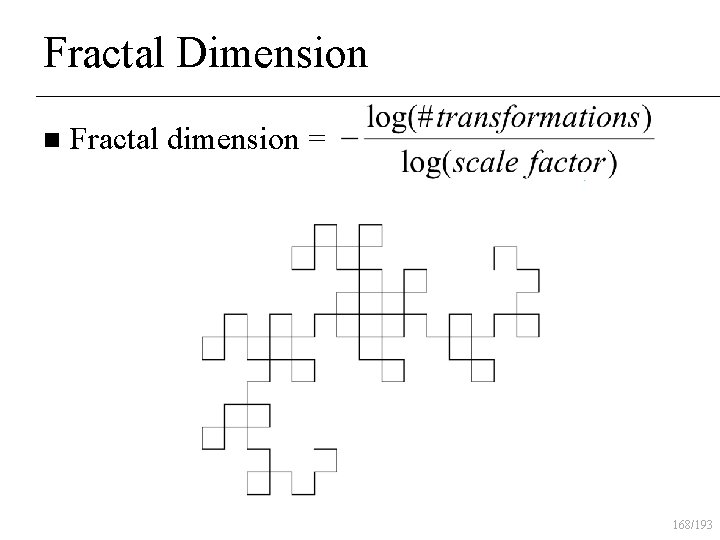

Fractal Dimension n Fractal dimension = 168/193

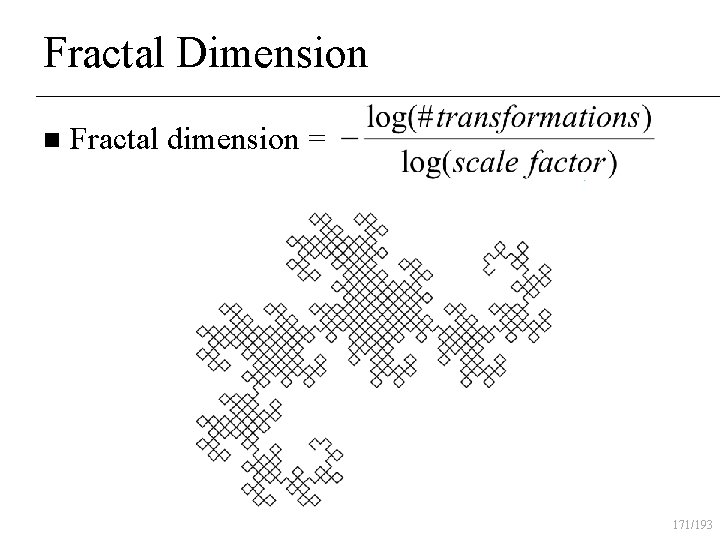

Fractal Dimension n Fractal dimension = 169/193
Fractal Dimension n Fractal dimension = 170/193
Fractal Dimension n Fractal dimension = 171/193
Fractal Dimension n Fractal dimension = 172/193
Fractal Dimension n Fractal dimension = 173/193
Fractal Dimension n Fractal dimension = 174/193
Fractal Dimension n Fractal dimension = 175/193
Fractal Dimension n Fractal dimension = 176/193
Fractal Dimension n Fractal dimension = 177/193
Fractal Dimension n Fractal dimension = 178/193

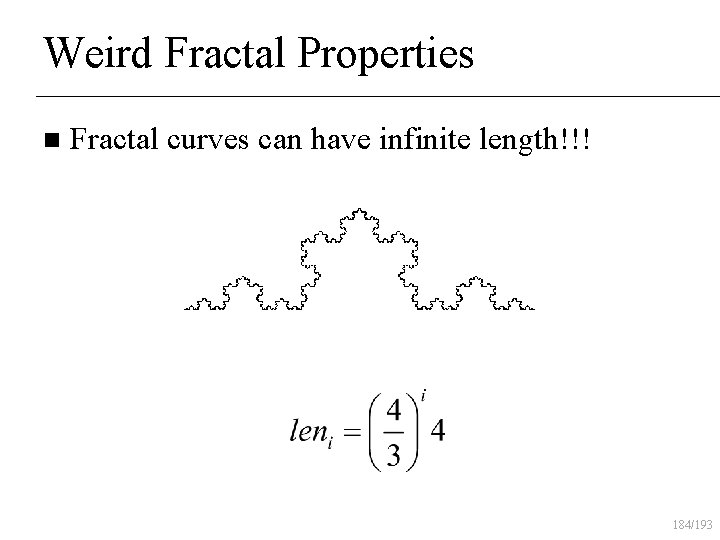

Weird Fractal Properties n Fractal curves can have infinite length!!! 179/193
Weird Fractal Properties n Fractal curves can have infinite length!!! 180/193
Weird Fractal Properties n Fractal curves can have infinite length!!! 181/193
Weird Fractal Properties n Fractal curves can have infinite length!!! 182/193
Weird Fractal Properties n Fractal curves can have infinite length!!! 183/193
Weird Fractal Properties n Fractal curves can have infinite length!!! 184/193
Weird Fractal Properties n Fractal curves can have infinite length!!! 185/193

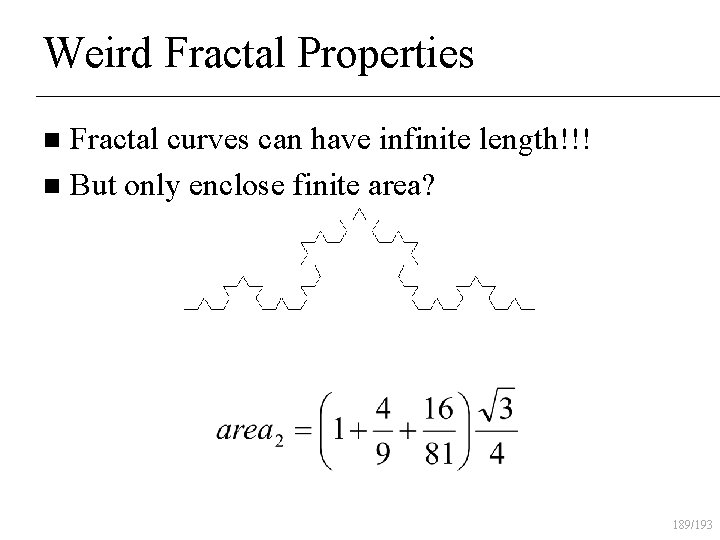

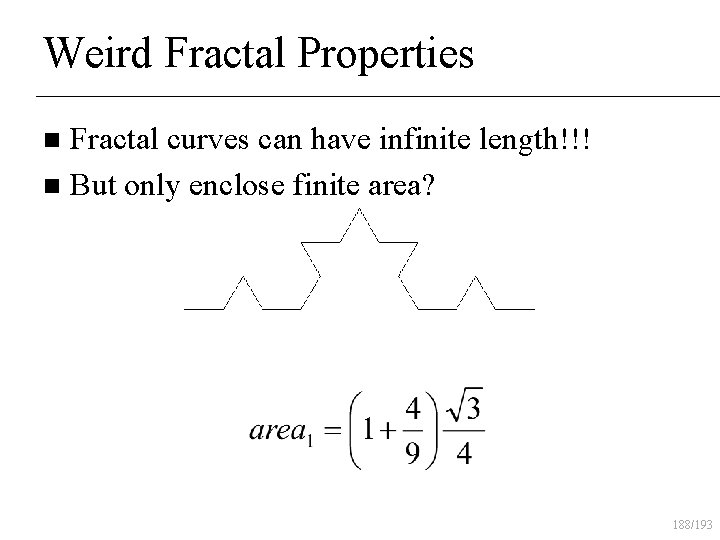

Weird Fractal Properties Fractal curves can have infinite length!!! n But only enclose finite area? n 186/193
Weird Fractal Properties Fractal curves can have infinite length!!! n But only enclose finite area? n 187/193

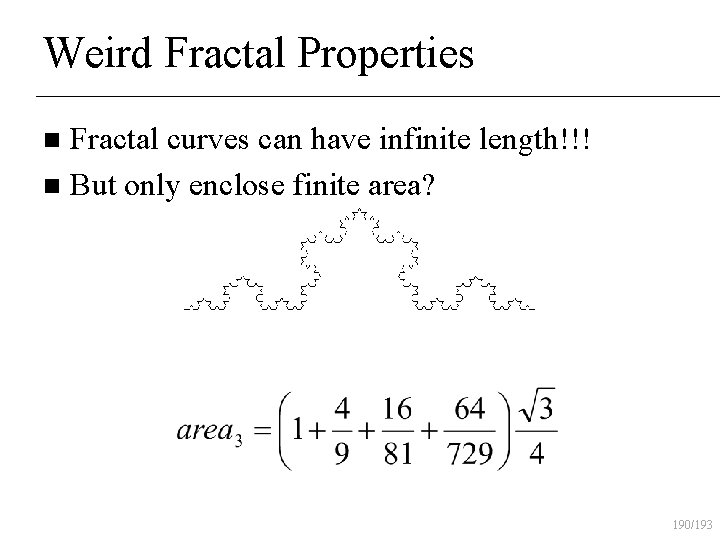

Weird Fractal Properties Fractal curves can have infinite length!!! n But only enclose finite area? n 188/193

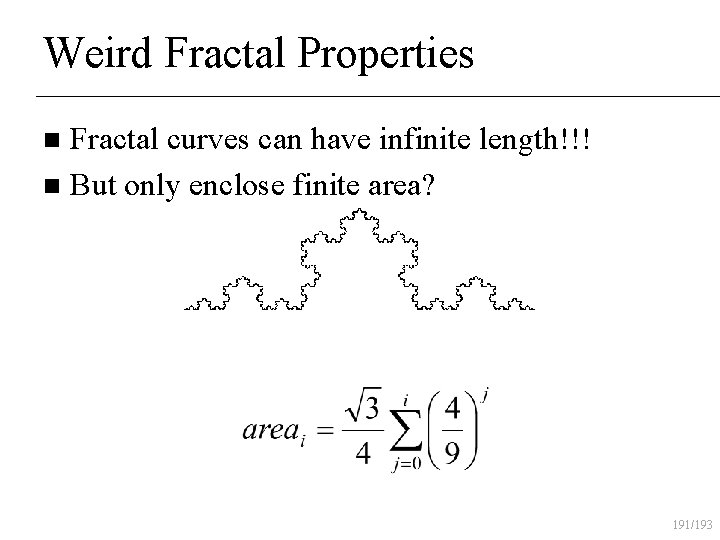

Weird Fractal Properties Fractal curves can have infinite length!!! n But only enclose finite area? n 189/193
Weird Fractal Properties Fractal curves can have infinite length!!! n But only enclose finite area? n 190/193
Weird Fractal Properties Fractal curves can have infinite length!!! n But only enclose finite area? n 191/193
Weird Fractal Properties Fractal curves can have infinite length!!! n But only enclose finite area? n 192/193
Weird Fractal Properties 193/193
