ROC 800 -Series Remote Operations Controller The Solution to Field Automation Problems Flow Computer Division ESC to Exit ROC 800 of 38

Building on Our Reputation for Solving Problems l l The ROC family of Remote Operations Controllers has established an industry benchmark for flexibility, robustness, ease of use and reliability. The ROC 800 -Series builds upon this reputation with new features, benefits and technology that make it the preferred choice for your most demanding remote measurement and control applications. ESC to Exit Flow Computer Division ROC 800 2 of 38

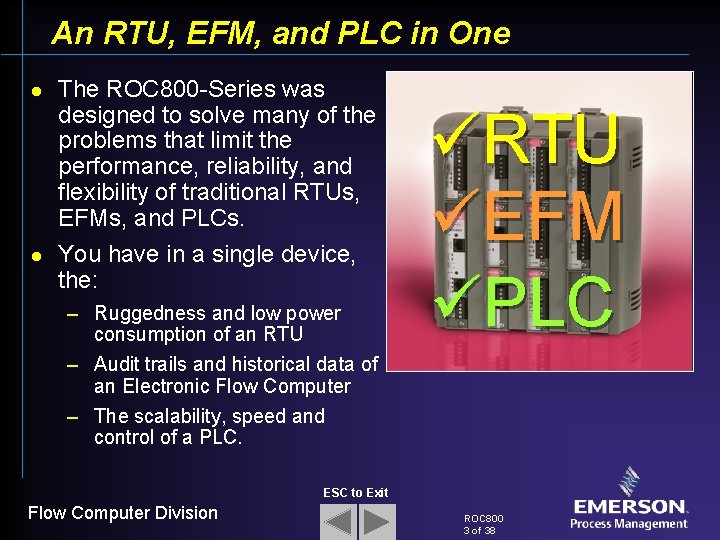

An RTU, EFM, and PLC in One l l The ROC 800 -Series was designed to solve many of the problems that limit the performance, reliability, and flexibility of traditional RTUs, EFMs, and PLCs. You have in a single device, the: – Ruggedness and low power consumption of an RTU – Audit trails and historical data of an Electronic Flow Computer – The scalability, speed and control of a PLC. üRTU üEFM üPLC ESC to Exit Flow Computer Division ROC 800 3 of 38

Unparalleled Applications Flexibility l l The ROC 800 -Series is ideal for field applications where the monitoring, measurement and control of processes and equipment are required. Some of the more popular applications include: – – – – Gas production Fiscal metering Compressor stations Offshore platforms Small gas processing operations Water and wastewater facilities Tank farms Boilers and chillers. ESC to Exit Flow Computer Division ROC 800 4 of 38

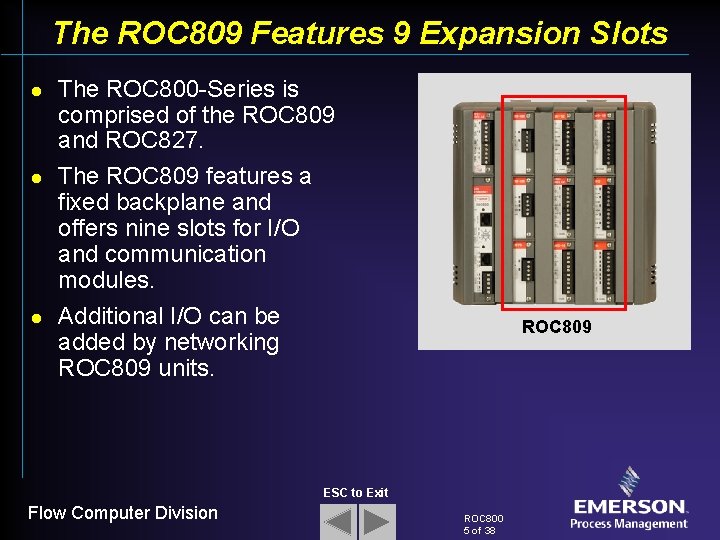

The ROC 809 Features 9 Expansion Slots l l l The ROC 800 -Series is comprised of the ROC 809 and ROC 827. The ROC 809 features a fixed backplane and offers nine slots for I/O and communication modules. Additional I/O can be added by networking ROC 809 units. ROC 809 ESC to Exit Flow Computer Division ROC 800 5 of 38

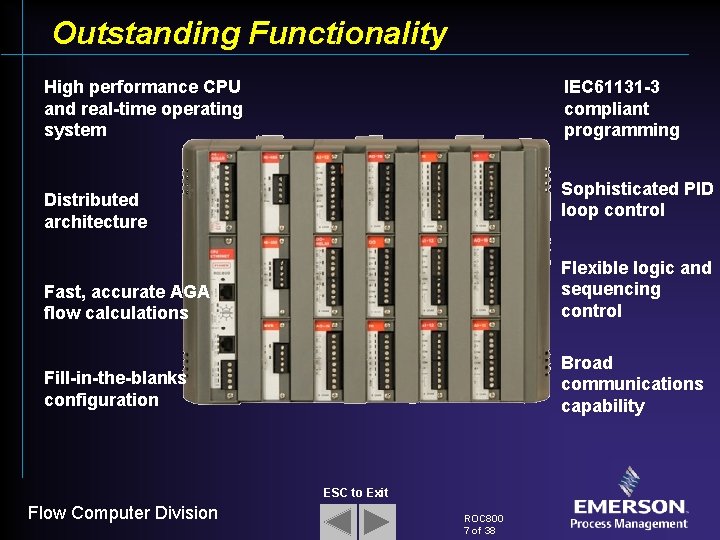

Outstanding Functionality High performance CPU and real-time operating system IEC 61131 -3 compliant programming Sophisticated PID loop control Distributed architecture Fast, accurate AGA flow calculations Flexible logic and sequencing control Fill-in-the-blanks configuration Broad communications capability ESC to Exit Flow Computer Division ROC 800 7 of 38

Field-Ready Hardware Rugged I/O and communication modules feature fuseless protection DIN rail mounting tabs make installation easy Generous wiring raceways with covers keep wiring neat Modular ABS housing resists corrosion Field wiring terminals plug-in for easy module removal Reliable operation over a wide temperature range I/O and communication modules can be removed and replaced under power Low power -- draws less than 70 ma at 12 VDC (base unit) ESC to Exit Flow Computer Division ROC 800 8 of 38

Performance Problems Solved l l l Traditional RTUs lack the processing speed and capacity to handle control jobs requiring extremely fast response, like those performed by PLCs. The ROC 800 -Series closes this performance gap by using the Motorola® Power. PC® (MPC 862) 32 -bit microprocessor as its engine. Not only is the MPC 862 fast, but it is designed for telecommunications and networking giving it a real edge over most PLCs. ESC to Exit Flow Computer Division ROC 800 9 of 38

Performance Problems Solved l Application Integration User C Environment IEC-61131 FST PID MODBUS ROC 800 Protocol Pre-emptive, multi-tasking, message-based architecture Real-Time Operating System ESC to Exit Flow Computer Division Events & Alarms Historical Database Meter Runs Communications IO Execution IO Module Interface Hardware Support l The ROC 800 -Series uses a real-time, multi-tasking operating system designed specifically for the kind of measurement and control tasks encountered in field applications. This operating system has proven its robustness in industrial control, telecommunications and avionics applications. ROC 800 10 of 38

Performance Problems Solved l l l The high power consumption of PLCs often limits their use to factory applications. Low power consumption for remote operation was a key design goal of the ROC 800 -Series. In addition to using low-power components, extensive use is made of the "sleep" modes provided by the CPU. Sleep modes shut down operations when they are not needed, such as certain software tasks, and they control power to devices such as LEDs. ESC to Exit Flow Computer Division ROC 800 11 of 38

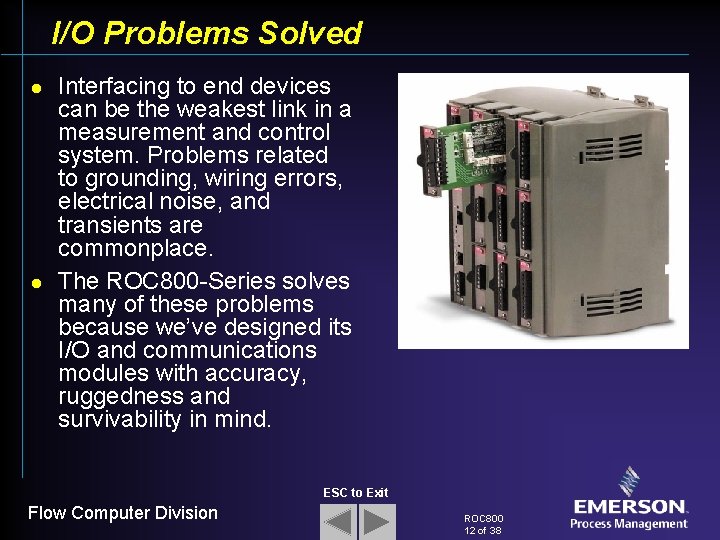

I/O Problems Solved l l Interfacing to end devices can be the weakest link in a measurement and control system. Problems related to grounding, wiring errors, electrical noise, and transients are commonplace. The ROC 800 -Series solves many of these problems because we’ve designed its I/O and communications modules with accuracy, ruggedness and survivability in mind. ESC to Exit Flow Computer Division ROC 800 12 of 38

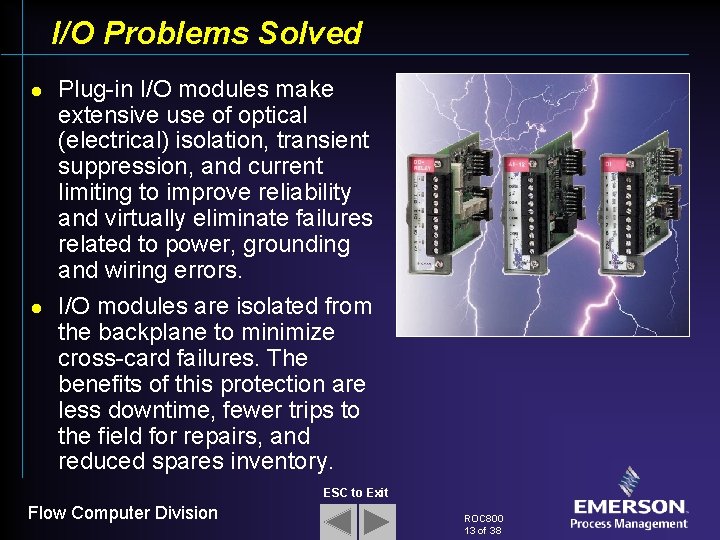

I/O Problems Solved l l Plug-in I/O modules make extensive use of optical (electrical) isolation, transient suppression, and current limiting to improve reliability and virtually eliminate failures related to power, grounding and wiring errors. I/O modules are isolated from the backplane to minimize cross-card failures. The benefits of this protection are less downtime, fewer trips to the field for repairs, and reduced spares inventory. ESC to Exit Flow Computer Division ROC 800 13 of 38

I/O Problems Solved l l The HART interface module supports HARTcompatible smart instrumentation, increasing the number of instruments that can be connected to the ROC 800 -Series. In addition, It supports the transfer of diagnostic information from smart devices to the ROC 800 Series. ESC to Exit Flow Computer Division ROC 800 14 of 38

I/O Problems Solved l l I/O modules can be plugged into the module slots in any order and combination of module types. An extensive range of I/O types are supported by the ROC 800 -Series giving it great flexibility in handling a broad range of applications. Analog In HART Interface Discrete In Analog Out Pulse In Discrete Out RTD/TC In Relay Out ESC to Exit Flow Computer Division ROC 800 15 of 38

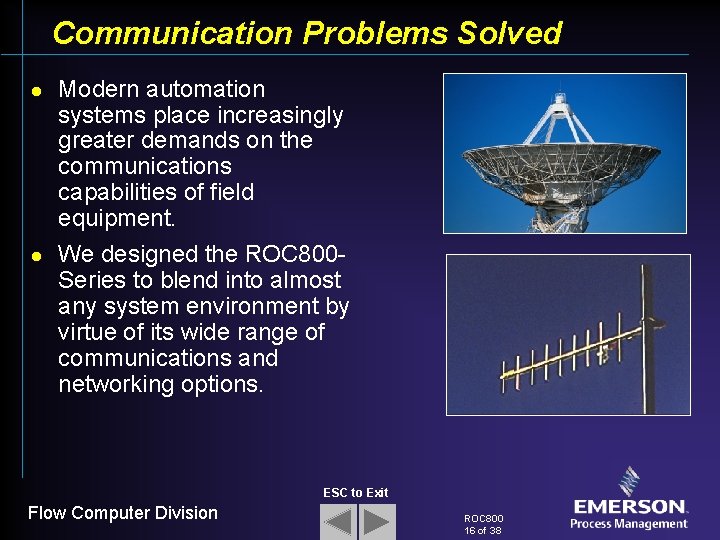

Communication Problems Solved l l Modern automation systems place increasingly greater demands on the communications capabilities of field equipment. We designed the ROC 800 Series to blend into almost any system environment by virtue of its wide range of communications and networking options. ESC to Exit Flow Computer Division ROC 800 16 of 38

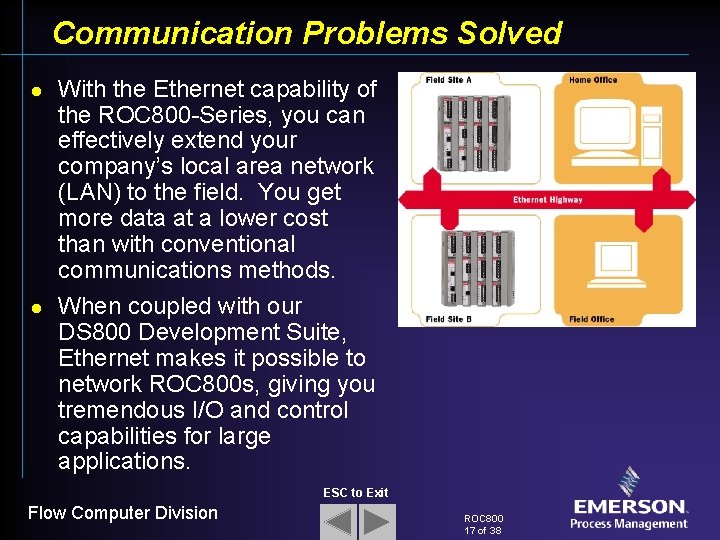

Communication Problems Solved l l With the Ethernet capability of the ROC 800 -Series, you can effectively extend your company’s local area network (LAN) to the field. You get more data at a lower cost than with conventional communications methods. When coupled with our DS 800 Development Suite, Ethernet makes it possible to network ROC 800 s, giving you tremendous I/O and control capabilities for large applications. ESC to Exit Flow Computer Division ROC 800 17 of 38

Communication Problems Solved l l In addition to an Ethernet port, the ROC 800 -Series has two built-in EIA-232 (RS-232) ports, one typically used for communications to a PCbased local operator interface, and one for communication to other devices. Three additional ports can be added using plug-in Communication Modules. ESC to Exit Flow Computer Division ROC 800 18 of 38

Communication Problems Solved l l l An outstanding feature of the ROC 800 -Series is its Spontaneous Report-by. Exception (SRBX) Data Transmission capability. A host computer can poll the ROC 800 -Series at a user-specified time interval, or the unit can initiate a transmission when certain alarm conditions occur. SRBX can greatly reduce communication system loading and related costs. ESC to Exit Flow Computer Division ROC 800 19 of 38

Application Problems Solved l l l The problem with many RTUs, PLCs and flow computers is their inability to meet a wide range of applications common to field installations. The ROC 800 -Series addresses this problem with a comprehensive applications package that supports a wide range of metering and control needs. The package builds upon the outstanding features proven in tens of thousands of ROC 300 series installations worldwide. ESC to Exit Flow Computer Division ROC 800 20 of 38

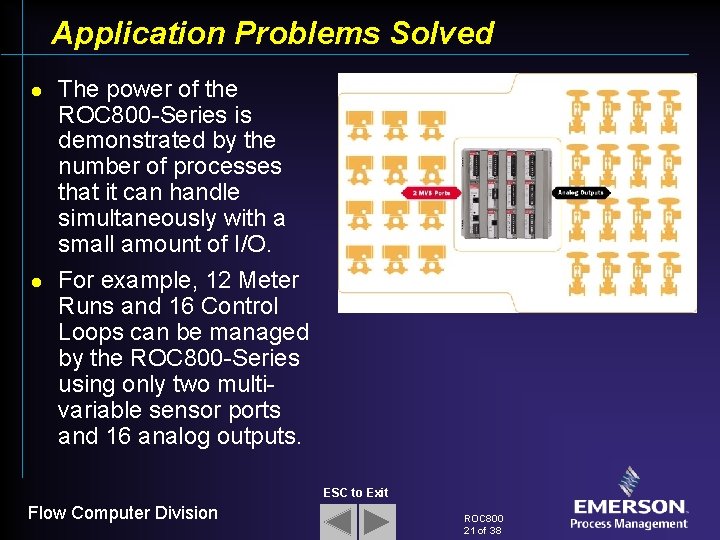

Application Problems Solved l l The power of the ROC 800 -Series is demonstrated by the number of processes that it can handle simultaneously with a small amount of I/O. For example, 12 Meter Runs and 16 Control Loops can be managed by the ROC 800 -Series using only two multivariable sensor ports and 16 analog outputs. ESC to Exit Flow Computer Division ROC 800 21 of 38

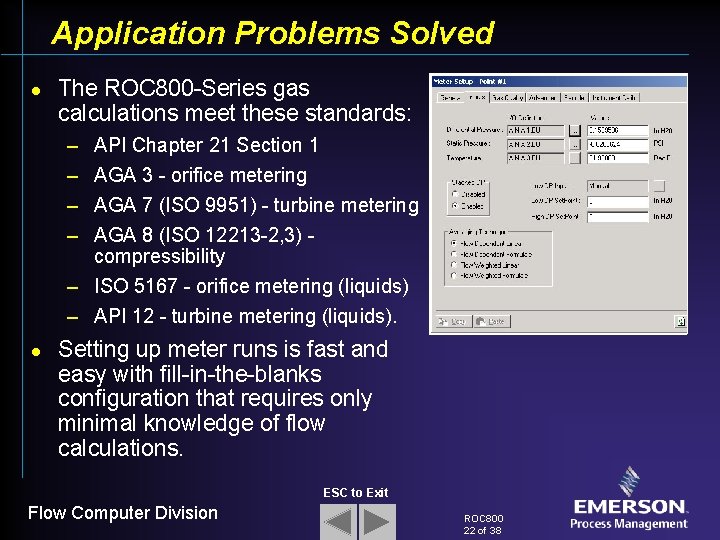

Application Problems Solved l The ROC 800 -Series gas calculations meet these standards: – – API Chapter 21 Section 1 AGA 3 - orifice metering AGA 7 (ISO 9951) - turbine metering AGA 8 (ISO 12213 -2, 3) compressibility – ISO 5167 - orifice metering (liquids) – API 12 - turbine metering (liquids). l Setting up meter runs is fast and easy with fill-in-the-blanks configuration that requires only minimal knowledge of flow calculations. ESC to Exit Flow Computer Division ROC 800 22 of 38

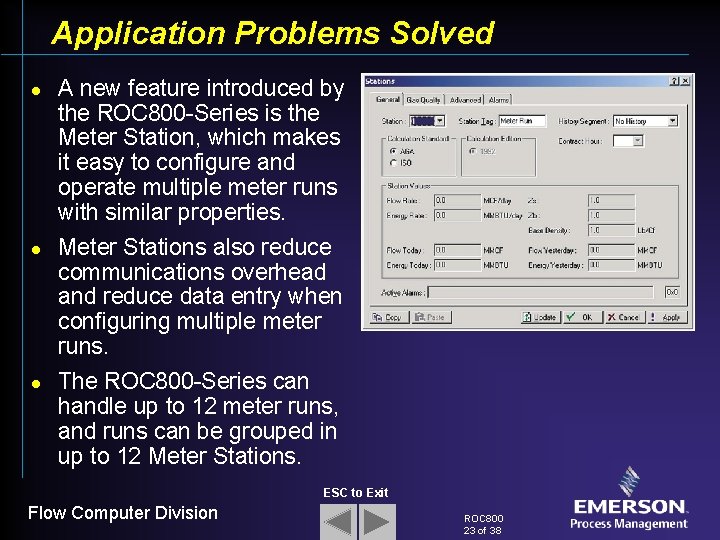

Application Problems Solved l l l A new feature introduced by the ROC 800 -Series is the Meter Station, which makes it easy to configure and operate multiple meter runs with similar properties. Meter Stations also reduce communications overhead and reduce data entry when configuring multiple meter runs. The ROC 800 -Series can handle up to 12 meter runs, and runs can be grouped in up to 12 Meter Stations. ESC to Exit Flow Computer Division ROC 800 23 of 38

Application Problems Solved l The ROC 800 -Series provides outstanding PID loop control capability that rivals that found in dedicated process controllers. The control firmware incorporates: – Pre-configured templates for basic PID loop control – Up to 16 PID control loops each with override support – Support for both analog and discrete control devices. l In addition, special loop control strategies can be implemented using the extensive programming capabilities of the ROC 800 -Series. ESC to Exit Flow Computer Division ROC 800 24 of 38

Application Problems Solved l l l The ROC 800 -Series provides you with Function Sequence Table (FST) control. You construct control strategies by choosing from logic, math, comparison, time-related, controlrelated, database and general command sets. Current ROC 300 users can run their FSTs on the ROC 800 -Series with only minor modifications. ESC to Exit Flow Computer Division ROC 800 25 of 38

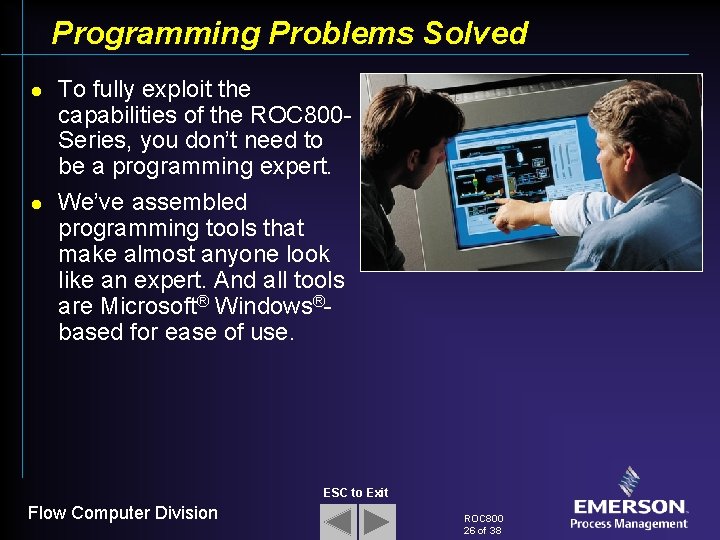

Programming Problems Solved l l To fully exploit the capabilities of the ROC 800 Series, you don’t need to be a programming expert. We’ve assembled programming tools that make almost anyone look like an expert. And all tools are Microsoft® Windows®based for ease of use. ESC to Exit Flow Computer Division ROC 800 26 of 38

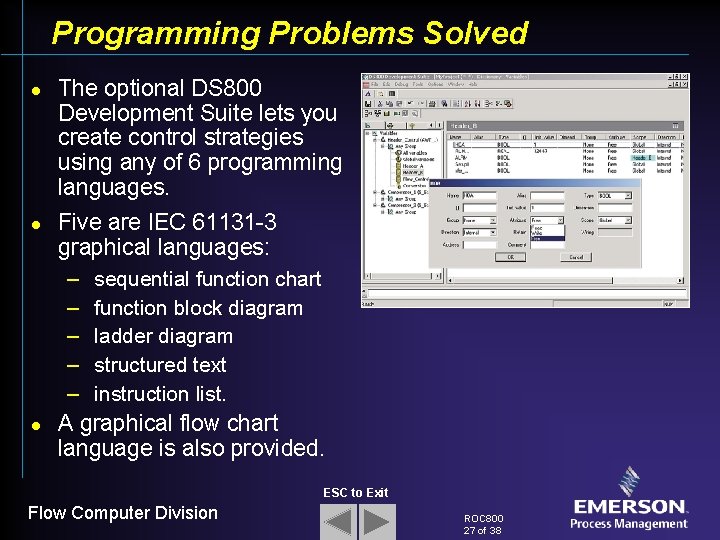

Programming Problems Solved l l The optional DS 800 Development Suite lets you create control strategies using any of 6 programming languages. Five are IEC 61131 -3 graphical languages: – – – l sequential function chart function block diagram ladder diagram structured text instruction list. A graphical flow chart language is also provided. ESC to Exit Flow Computer Division ROC 800 27 of 38

Programming Problems Solved l l DS 800 provides a standard programming interface that lets people with different backgrounds and skills create different elements of a program. When completed, all elements will work together seamlessly. For example, if you program PLCs, DS 800 lets you create programs in ladder logic. And, if your background is process control, you can create programs using Function Block diagrams. ESC to Exit Flow Computer Division ROC 800 28 of 38

Programming Problems Solved l l l User C/C++ Programming capability allows experienced programmers to implement control strategies in the ROC 800 Series. We provide a library of commands that allow you use off -the-shelf programming tools to interface to the ROC 800’s database. The User C/C++ support for the ROC 800 -Series was developed so programmers do not need an extensive knowledge of the firmware architecture. ESC to Exit Flow Computer Division ROC 800 29 of 38

Configuration Problems Solved l l l The ROC 800 -Series uses our Microsoft® Windows®- based ROCLINK 800 software package to perform configuration and data retrieval functions. These functions can be performed on-site, or remotely through virtually any communications link. The remote capability can yield tremendous cost savings by reducing the need for on-site travel. Operator help screens can be accessed either from a Help menu or in a context-sensitive fashion. ESC to Exit Flow Computer Division ROC 800 30 of 38

Configuration Problems Solved l With ROCLINK 800 you can: – Configure and view I/O points, meter stations, flow calculations, PID control loops, system parameters and power management features – Retrieve, log and print history data – Retrieve, log and print events and alarms – Perform five-point calibration on analog inputs including multivariable sensor inputs – Implement user security levels – Create and edit graphical displays – Create and edit Function Sequence Tables (FSTs) – Set up communications parameters for direct connection, radio interface, telephone modems and other communications methods. ESC to Exit Flow Computer Division ROC 800 31 of 38

Remote Asset Problems Solved l l The ROC 800 -Series is a core component of Smart Remote Automation, an extension of Plant. Web® digital architecture. The ROC 800 -Series enables Smart Remote Automation by capturing and delivering smart instrumentation diagnostic data to you from remote locations, providing you with an accurate view of instrument performance. ESC to Exit Flow Computer Division ROC 800 32 of 38

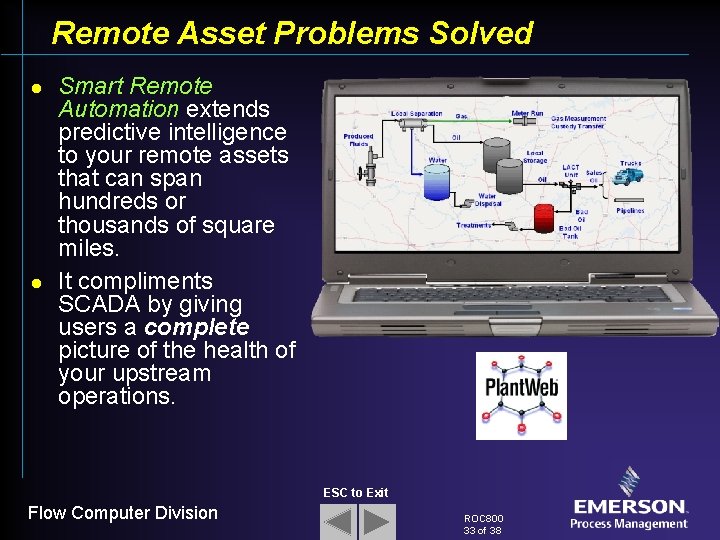

Remote Asset Problems Solved l l Smart Remote Automation extends predictive intelligence to your remote assets that can span hundreds or thousands of square miles. It compliments SCADA by giving users a complete picture of the health of your upstream operations. ESC to Exit Flow Computer Division ROC 800 33 of 38

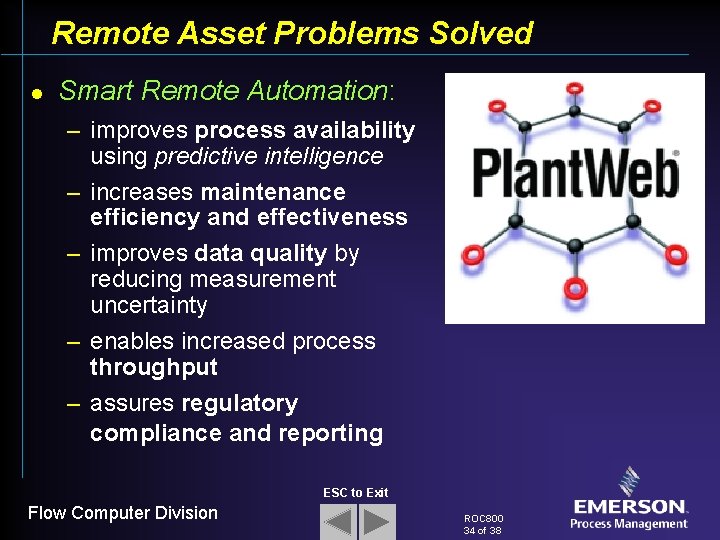

Remote Asset Problems Solved l Smart Remote Automation: – improves process availability using predictive intelligence – increases maintenance efficiency and effectiveness – improves data quality by reducing measurement uncertainty – enables increased process throughput – assures regulatory compliance and reporting ESC to Exit Flow Computer Division ROC 800 34 of 38

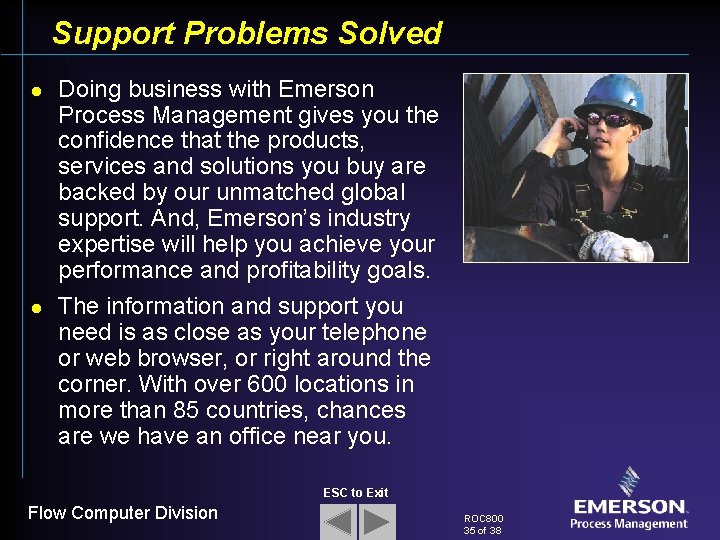

Support Problems Solved l l Doing business with Emerson Process Management gives you the confidence that the products, services and solutions you buy are backed by our unmatched global support. And, Emerson’s industry expertise will help you achieve your performance and profitability goals. The information and support you need is as close as your telephone or web browser, or right around the corner. With over 600 locations in more than 85 countries, chances are we have an office near you. ESC to Exit Flow Computer Division ROC 800 35 of 38

Go With the Leader in Process Control. . . Process Management Network Power Appliance Solutions Climate Technologies Motor Technologies Industrial Automation Professional Tools Storage Solutions ESC to Exit Flow Computer Division ROC 800 36 of 38 Emerson Power & Water Solutions

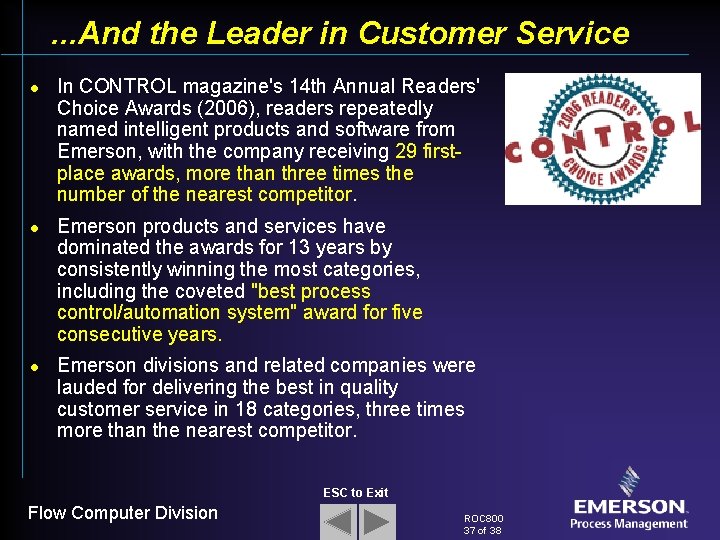

. . . And the Leader in Customer Service l l l In CONTROL magazine's 14 th Annual Readers' Choice Awards (2006), readers repeatedly named intelligent products and software from Emerson, with the company receiving 29 firstplace awards, more than three times the number of the nearest competitor. Emerson products and services have dominated the awards for 13 years by consistently winning the most categories, including the coveted "best process control/automation system" award for five consecutive years. Emerson divisions and related companies were lauded for delivering the best in quality customer service in 18 categories, three times more than the nearest competitor. ESC to Exit Flow Computer Division ROC 800 37 of 38

Go with Emerson Process Management! l For detailed information on the ROC 800 -Series and other Flow Computer Division products, contact your Emerson Process Management Representative or call: – 1 -800 -807 -0730 (U. S. & Canada only) – 1 -641 -754 -3449 (Worldwide). l You can also visit us on the World Wide Web at: – www. Emerson. Process. com/flow ESC to Exit Flow Computer Division ROC 800 38 of 38
