Diagnosis with continuous and multiple predictors ROC curves
- Slides: 24
Diagnosis with continuous and multiple predictors ROC curves Multiple tests and indices Framingham risk score for CVD RAND 1 © 2008 Emmett Keeler
HW: Screening kids for cholesterol and “treating” those that are high • • Treatment: Give parents diet and exercise tips Given cost of screening Cs, of treatment Ct å treatment costs are mainly costs of instruction Distribution of log cholesterol values (c), benefits of treatment b(c) How to spend budget for this program? å å If there are not many kids in jurisdiction If there are many more kids that could benefit than can be treated RAND 2 © 2008 Emmett Keeler
Setting Treatment cutoffs Let A(x) = E(b(c) | c > x) Discounted Years saved by treatment b(x) Let Strategy 1 be treat one more Strategy II be screen more, treat if above x Let (x) be cdf of X = P(c < x) contains (x) X contains 1 - (x) of kids
Key Points • • • Odds make Bayes Revision easy ROC curves can help find the threshold for a many-valued test result to be considered positive, but why bother? å Just use likelihood ratio of observed result Can combine multiple tests into predictions using regression, and develop a useful index RAND 4 © 2008 Emmett Keeler
Odds and Probabilities å The odds of an event is the ratio of the probability of an event happening to the probability of the event not happening: • Odds = Pr(Y=1)/Pr(Y=0) = P/(1 -P) “ 3 to 1 in favor” = odds of 3 = probability of 0. 75 “ 2 to 1 in favor” = odds of 2 = probability of 0. 67 “ 1 to 1” = odds of 1 = probability of 0. 50 “ 2 to 1 against” =odds of 1/2=probability of 0. 33 “ 3 to 1 against” = odds of 1/3=probability of 0. 25 See Hunink page 145 RAND 5 © 2008 Emmett Keeler
Odds and Probability - 2 Odds of E = x: y <--> p(E) = x/(x+y) p(E) =p <--> Odds of E = p / (1 -p) Odds are not unique-- 1: 2 is same as 2: 4 • As the probability of an event approaches 1, the odds approach infinity RAND 6 © 2008 Emmett Keeler
Likelihood ratio and Bayes • • • The result specific likelihood ratio for any result is the probability of that result conditional on disease / probability conditional on no disease. LR (Disease |Test +) = P(T+ | D)/ P(T+ | no D) = sensitivity/1 -specificity Theorem: Posterior odds = prior odds x LR( observed result) å Proof by example to follow RAND 7 © 2008 Emmett Keeler
Proof by example of odds revision Disease test + . 8 test - . 2 No Disease . 2. 8 conditional probabilities • • • Disease No Disease prior odds LR of test posterior odds convert prior probability to odds, e. g. 20% --> 20/80 or 1/4 multiply prior odds by LR of test result convert posterior odds to probability
ROC curves • • Deals with where to draw line between normal and abnormal test results with a continuous measure such as blood pressure. Good discussion in Hunink, Chapter 7 RAND 9 © 2008 Emmett Keeler
More refined test results Test Result Diseased Disease in Patient Cumulated App No App. 3 . 05 A Probable . 4 . 15 . 7 . 2 B ? ? ? . 2 . 9 . 4 Prob not . 1 . 3 1 . 7 NSAP 0 . 3 1 1 1. 0
Where to draw the line for disease? Disease in Patient Cumulated Test App NSAP Disease . 3 . 05 A Probable . 7 ROC curve True Pos. B . 2 treat lots B ? ? ? . 9 . 4 C Prob not 1 A . 7 D NSAP 1 1 1 - True Neg.
Bayes with combined test results Test Performance on Known Cases Disease No Disease ? ? ? or worse . 3 . 8 These are the conditional probabilities P(T obs. |D) Current Patient Disease probable prior patients No Disease 15 760 50 950 1. Split 1000 prior people on bottom of 2 nd box 2. Compute people in each after test cell 3. Compute “posterior” P(Disease|Test result) = 15 / (15 +. 8 X 950) = 15 /(15 + 760) = 0. 019 <. 024 so we don’t operate, so test has helped.
Bayes with combined test results (odds version) Test Performance on Known Cases Disease No Disease ? ? ? or worse . 3 . 8 These are the conditional probabilities P(T obs. |D) Current Patient Disease No Disease prior odds 1 19 LR 3 8 3 152 post odds 1. p =. 05 so odds = p/1 -p = 1/19 2. Compute posterior odds 3/155 3. convert to prob. 3/(3+152) = 0. 019 <. 024 so we don’t operate, so test has helped
But combined rules may not be best (odds version) Test Performance on Known Cases Disease No Disease ? ? ? . 2 Current Patient Disease No Disease . 2 These are the conditional probabilities P(T obs. |D) Odds of test result ? ? ? are 1 to 1, so post test prob = prior prob =. 05 which remains >. 024 Only the observed test result is relevant!
But combined rules may not be best Test Performance on Known Cases Disease No Disease ? ? ? . 2 These are the conditional probabilities P(T obs. |D) Current Patient Disease No Disease probable prior patients 50 950 Only the observed test result is relevant!
Problems with using ROC Curves • • To use tests, ROC is not needed å Use Likelihood Ratio of observed result instead Often, the dependent variable is not 0, 1 å å å Hypertension, expensive next year. . . Each level has a different ROC curve Regression on test results more informative. • easy to include multiple tests • test performance given by standard statistics RAND 16 © 2008 Emmett Keeler
Multiple “tests” and logistic regression If we want to predict Y a 0, 1 variable from many “tests” (characteristics). E. g. , Y= who will benefit from cataract surgery, based on age, self-reported visual functioning, a clinical history and exam. (Mangione developed a CSI this way) Fit log(pj/(1 - pj)) = ∑i xijbij , where p is E(Y) and xij is the value of person j on test i. Then each person has an index Ij = ∑ xibi. The index can be used in a decision rule. For each T, we can calculate the LR P(I =T|Y=1)/ P(I =T | Y=0), and use it for decisions. RAND 17 © 2008 Emmett Keeler
Odds Ratios in logistic regression • What do the coefficients bi mean? change in E(log(p/1 -p)) as Xi goes from 0 to 1 å log(odds if X = 1) - log (odds if X = 0) For a dichotomous Xi, let P 1 and P 0 be Pr(Y=1|Xi =1) and Pr(Y=1|Xi =0). The odds ratio (OR) of an event (here Y=1) for two groups (here split by Xi) is defined as å [Odds in group 1]/[Odds in group 0] = å [P 1/(1 -P 1)]/[P 0/(1 -P 0)] å • • So bi = Log(OR) Warning: The OR ≠ risk ratio (RR) = P 1/P 0 RAND 18 © 2008 Emmett Keeler

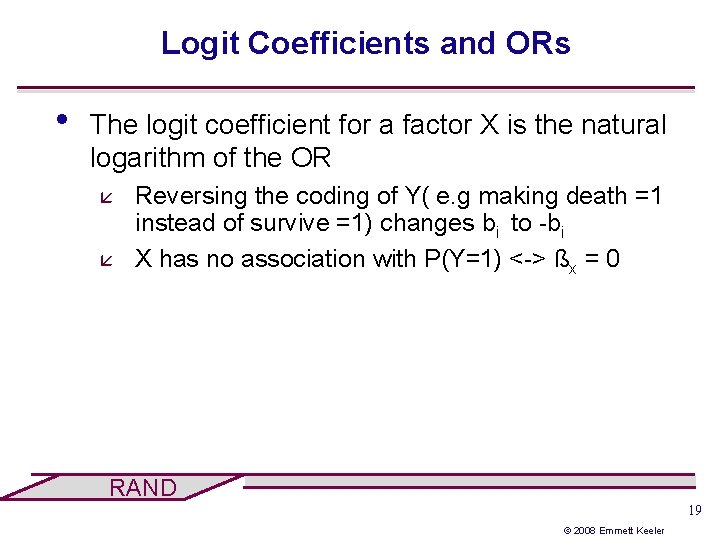

Logit Coefficients and ORs • The logit coefficient for a factor X is the natural logarithm of the OR å å Reversing the coding of Y( e. g making death =1 instead of survive =1) changes bi to -bi X has no association with P(Y=1) <-> ßx = 0 RAND 19 © 2008 Emmett Keeler
A Diagnostic Index for CVD • Uses Framingham Study starting in 22 nd year when HDL was first measured. å • • å mother of all health panels. gave first estimates of risk of HBP, cholesterol … D’Agostino paper goal is to develop predictor of CVD to help clinicians manage and motivate patients without CVD to improve risk factors. This 2008 paper is one of a long string of such studies, starting with Cornfield, 1962. RAND 20 © 2008 Emmett Keeler
Methods • • • Organized data on 8491 eligible patients Got the usual suspects for risk factors Men and women done separately Some preliminary runs to get to final list å Cox regression: similar to logistic but takes time to event into account. å • dropped family history, obesity, ECG LVH … interpretation based on survival at the mean of all risk factors x Cox index adjustments. Note risk factors entered as logs in regression å so what does a 1% change in X do to log odds? RAND 21 © 2008 Emmett Keeler
Modifications for clinical tool • • Lab and non-lab versions of variables å Make integer scale and tables å å • • • BMI substitutes for cholesterol pick a small factor as the unit divide other coefficients by its coefficient and round. Translate integer scale into 10 year risk in %. Use “Heart Age” to interpret that result Sometimes we calibrate to different population by regressing their events on the FRS. RAND 22 © 2008 Emmett Keeler
Such Indices often used to calculate value of risk factor reduction • • • http: //www. thehealthierpeoplenetwork. org/id 4. h tml Typically collect data from patient, stick it in program, give feedback on current risk, and on results of lifestyle modification These functions might be built into EMRs RAND 23 © 2008 Emmett Keeler
Advanced topics I did not cover • • • Area under the ROC curve = c-statistic Formal derivation of where to draw the line for diseased for a differentiable risk factor. Both are discussed in Hunink. Next time we will look at a CEA analysis of diagnostic tools in the developing world. RAND 24 © 2008 Emmett Keeler
