Refraction Snells Law n 1 sin 1 n

  • Slides: 65
Download presentation
Refraction Snell’s Law: n 1 sin( 1) = n 2 sin( 2) where n

Refraction Snell’s Law: n 1 sin( 1) = n 2 sin( 2) where n 1 = c/v 1 and v 1 = [1/ ]1/2 and = K o where K = K( ). This means that n = n( ), and this means that -transmitted depends on the frequency. Thus different colors will be bent slightly differently. This is called DISPERSION.

Refraction and Dispersion DISPERSION • rainbows & prisms break white light into component colors

Refraction and Dispersion DISPERSION • rainbows & prisms break white light into component colors

Chromatic Aberration The thin lens equation was derived using Snell’s Law, which was derived

Chromatic Aberration The thin lens equation was derived using Snell’s Law, which was derived using the wave theory’s explanation of refraction. The wave theory’s explanation of color is based on frequency and wavelength. We can explain dispersion (rainbow and prism) by using the wave theory’s explanation of different colors having different speeds and hence different indices of refraction for the same material.

Refraction and Dispersion DISPERSION rainbows & prisms break white light into component colors because

Refraction and Dispersion DISPERSION rainbows & prisms break white light into component colors because different colors are bent slightly differently at each transmission. reflected Water droplet from the sun transmitted reflected transmitted to eye – looking away from the sun; different colors are bent at slightly different angles Transmitted – but sun is too bright to see this

Chromatic Aberration Putting these two ideas together, i. e. , colors have different frequencies

Chromatic Aberration Putting these two ideas together, i. e. , colors have different frequencies and different frequencies have slightly different speeds and hence indices of refraction, we come up with the prediction that the focal length of lenses will be slightly different for different colors! This means that a single lens will not be able to focus white light perfectly. We actually observe this, and it is called Chromatic Aberration. To reduce this, we can employ two lenses with different materials to replace a single lens. This adds to the expense and is one reason why good cameras are so expensive.

Minimizing Chromatic Aberration with a Doublet To minimize chromatic aberration, we can use a

Minimizing Chromatic Aberration with a Doublet To minimize chromatic aberration, we can use a doublet which is a system of two lenses back to back, one positive and one negative. We make the stronger positive lens out of a material that has less dispersion, and then make the weaker negative lens out of a different material that has more dispersion. This will keep the combination positive (converging) but will lessen the dispersion and hence lessen the chromatic aberration.

Refraction and Dispersion DISPERSION • rainbows & prisms break white light into component colors

Refraction and Dispersion DISPERSION • rainbows & prisms break white light into component colors • signal degeneration (except thru vacuum): signal pulses are Fourier series of frequencies and each frequency travels at different speed so pulse shape disperses

Waves So far, the wave theory has explained things very well: • speed of

Waves So far, the wave theory has explained things very well: • speed of light • different colors • reflection • refraction (dispersion, thin lenses) To look at the next property, shadows, we need to review the wave idea a little bit.

Waves (in general) Sine waves are “nice”. Other types of waves (such as square

Waves (in general) Sine waves are “nice”. Other types of waves (such as square waves, sawtooth waves, etc. ) can be formed by a superposition of sine waves - this is called Fourier Series. This means that sine waves can be considered as fundamental.

Demonstration of Fourier Series 4 3 2 1 F(x) 0 1 term 0 -1

Demonstration of Fourier Series 4 3 2 1 F(x) 0 1 term 0 -1 -2 -3 -4 5 10 15 20 25 30 35 40 45 6 terms

Waves (in general) E = Eo sin( ) where is a phase angle which

Waves (in general) E = Eo sin( ) where is a phase angle which describes the location along the wave = 90 degrees is the crest = 270 degrees is the trough

Waves (in general) E = Eo sin( ) where is a phase angle in

Waves (in general) E = Eo sin( ) where is a phase angle in a moving wave, changes with both – time (goes 2 radians in time T) and – distance (goes 2 radians in distance ) so = (2 / )*x ± (2 /T)*t – where 2 /T = and – where 2 / = k and so phase speed: v = distance/time = /T = f = /k

Waves (in general) For nice sine waves: E = Eo sin(kx ± t) For

Waves (in general) For nice sine waves: E = Eo sin(kx ± t) For waves in general, we can break the wave into component sine waves; this is called spectral analysis. We can do spectral analysis using a double slit (or better yet, a diffraction grating), which we consider next. We’ll do this in one of the labs!

Property #5: Light and Shadows Consider what we would expect from particle theory: sharp

Property #5: Light and Shadows Consider what we would expect from particle theory: sharp shadows dark light dark

Light and Shadows Consider what we would expect from wave theory: shadows NOT sharp

Light and Shadows Consider what we would expect from wave theory: shadows NOT sharp crest dark dim light dim dark

Light and Shadows What DOES happen? Look at a very bright laser beam going

Light and Shadows What DOES happen? Look at a very bright laser beam going through a vertical slit. (A laser has one frequency unlike white light. )

Double Slit Experiment We will consider this situation but only after we consider another:

Double Slit Experiment We will consider this situation but only after we consider another: the DOUBLE SLIT experiment: note: the different colors are used only to distinguish between the light that goes through the different slits. It should not be interpreted to mean that different colors of light go through the different slits.

Double Slit Experiment Note that along the solid green lines are places where crests

Double Slit Experiment Note that along the solid green lines are places where crests meets crests and troughs meet troughs. This is called constructive interference. Waves go through other waves instead of bouncing off like particles. When the waves meet, their values add together. Crest and crest will make a higher crest; trough on trough will tend to make a lower trough. crest on crest followed by trough on trough

Double Slit Experiment Note that along the dotted lines are places where crests meets

Double Slit Experiment Note that along the dotted lines are places where crests meets troughs and troughs meet crests. This is called destructive interference. When crest meets trough, the values tend to cancel. crest on trough followed by trough on crest followed By trough on trough

Double Slit Experiment Further explanations are in the Introduction to the Computer Homework Assignment

Double Slit Experiment Further explanations are in the Introduction to the Computer Homework Assignment Vol 5 #3 on Young’s Double Slit. crest on trough followed by trough on crest followed By trough on trough

Double Slit Experiment Our question now is: How is the pattern of bright and

Double Slit Experiment Our question now is: How is the pattern of bright and dark areas related to the parameters of the situation: , d, x and L? bright x dim d bright L SCREEN dim bright

Double Slit Experiment Magnified view of the slit and the direction of the light

Double Slit Experiment Magnified view of the slit and the direction of the light to the first (not central) maximum: sin( ) = / d purple angles 90 o note: requires < d d

Double Slit Experiment Magnified view of the slit and the direction of the light

Double Slit Experiment Magnified view of the slit and the direction of the light to the first (not central) maximum: sin( ) = / d as gets bigger, gets bigger d purple angles 90 o note: requires < d

Double slit: an example n = d sin( n) d tan( n) = d

Double slit: an example n = d sin( n) d tan( n) = d (xn/L) (for small angles, sin( ) tan( ), try this yourself!) here n is an integer indicating the number of the bright spot, and xn is the distance of the nth bright spot from the center. d = 0. 15 mm = 1. 5 x 10 -4 m x = ? ? ? measured in class L = ? ? ? measured in class n = 1 (if x measured between adjacent bright spots) = d x / L = (you do the calculation)

Interference: Diffraction Grating The same Young’s formula works for multiple slits as it did

Interference: Diffraction Grating The same Young’s formula works for multiple slits as it did for 2 slits. lens bright s 1 d s 2 s 3 s 4 s 5 4 s 2 = s 1 + s 3 = s 2 + = s 1 + 2 s 4 = s 3 + = s 1 + 3 s 5 = s 4 + = s 1 + 4 bright

Interference: Diffraction Grating With multiple slits, get MORE LIGHT and get sharper bright spots.

Interference: Diffraction Grating With multiple slits, get MORE LIGHT and get sharper bright spots. lens bright s 1 d s 2 s 3 s 4 s 5 4 s 2 = s 1 + s 3 = s 2 + = s 1 + 2 s 4 = s 3 + = s 1 + 3 s 5 = s 4 + = s 1 + 4 bright

Interference: Diffraction Grating With 5 slits, get cancellation when s = 0. 8 ;

Interference: Diffraction Grating With 5 slits, get cancellation when s = 0. 8 ; with two slits, only get complete cancellation when s = 0. 5 . lens s 1 d s 2 s 3 s 4 s 5 3. 2 bright dark s 2 = s 1 +. 8 bright s 3 = s 2 +. 8 = s 1 + 1. 6 s 4 = s 3 +. 8 = s 1 + 2. 4 s 5 = s 4 +. 8 = s 1 + 3. 2

Colors and Wavelengths for visible light, using the diffraction grating, we come up with

Colors and Wavelengths for visible light, using the diffraction grating, we come up with the following: – violet – blue – green – yellow – orange – red 400 - 450 nm 450 - 500 nm 500 - 550 nm 550 - 600 nm 600 - 650 nm 650 - 700 nm

Colors and wavelengths The wavelengths specified for the colors on the previous slide are

Colors and wavelengths The wavelengths specified for the colors on the previous slide are only approximate, and they do vary slightly with each person. On any test, I will give you one color leeway, e. g. , if the wavelength falls in the green range (previous slide), but you answer either blue or yellow, I will count your answer correct. Is the way we see different wavelengths (frequencies) of light similar to the way we hear different frequencies of sound?

Sound and frequencies For sound, our ears function like a Fourier analyzer – we

Sound and frequencies For sound, our ears function like a Fourier analyzer – we can actually hear each frequency. If we mix frequencies, we hear a chord. We can distinguish the base from the treble; we can distinguish the guitar from the piano.

Colors and frequencies For light, our eyes do NOT act this way. If we

Colors and frequencies For light, our eyes do NOT act this way. If we mix frequencies, we see only one color which is different from either of the “pure” colors (frequencies). We have two different types of retinal cells: rods and cones. The rod cells are not that closely packed, and only send a black and white signal. There are three different types of cone cells which act as color light receptors. The next slide shows only a rough picture. You should look on the web (see reference on next slide) to get a more accurate picture.

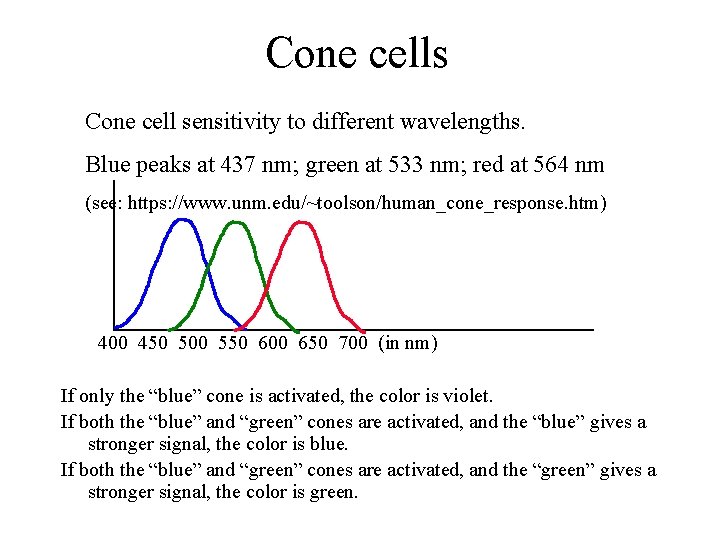

Cone cells Cone cell sensitivity to different wavelengths. Blue peaks at 437 nm; green

Cone cells Cone cell sensitivity to different wavelengths. Blue peaks at 437 nm; green at 533 nm; red at 564 nm (see: https: //www. unm. edu/~toolson/human_cone_response. htm) 400 450 500 550 600 650 700 (in nm) If only the “blue” cone is activated, the color is violet. If both the “blue” and “green” cones are activated, and the “blue” gives a stronger signal, the color is blue. If both the “blue” and “green” cones are activated, and the “green” gives a stronger signal, the color is green.

Cone cells Cone cell sensitivity to different wavelengths 400 450 500 550 600 650

Cone cells Cone cell sensitivity to different wavelengths 400 450 500 550 600 650 700 (in nm) If both the “green” and “red” cones are activated, and the “green” gives a stronger signal, the color is yellow. If both the “green” and “red” cones are activated, and the “red” gives a stronger signal, the color is orange. If only the “red” cone is activated, the color is red.

Colors and Wavelengths For other types of light (based on the technology used to

Colors and Wavelengths For other types of light (based on the technology used to make the light): – radio: f is 1 MHz for AM, 100 MHz for FM so is 1 km to 10 cm – microwaves/radar: 10 cm to 1 mm – infrared: 1 mm to 700 nm – visible 700 nm to 400 nm – ultraviolet 400 nm to 10 nm – x-ray & ray 10 nm on down

Diffraction: single slit How can we explain the pattern from light going through a

Diffraction: single slit How can we explain the pattern from light going through a single slit? screen w x L

Diffraction: single slit If we break up the single slit into a top half

Diffraction: single slit If we break up the single slit into a top half and a bottom half, then we can consider the interference between the two halves. screen w x L

Diffraction: single slit The path difference between the top half and the bottom half

Diffraction: single slit The path difference between the top half and the bottom half must be /2 to get a minimum. screen x w L

Diffraction: single slit This is just like the double slit case, except the distance

Diffraction: single slit This is just like the double slit case, except the distance between the “slits” is w/2, and this is the case for minimum: (w/2) sin( ) = /2 screen x w L

Diffraction: single slit In fact, we can break the beam up into 2 n

Diffraction: single slit In fact, we can break the beam up into 2 n pieces since pieces will cancel in pairs. This leads to: (w/2 n) sin( n) = /2 , screen or w sin( n) = n for MINIMUM. x w L

Diffraction: single slit REVIEW: • For double (and multiple) slits: n = d sin(

Diffraction: single slit REVIEW: • For double (and multiple) slits: n = d sin( n) for MAXIMUM (for ALL n) n = -2 -1 -1 0 0 1 2 • For single slit: n = w sin( n) for MINIMUM (for all n EXCEPT 0)

Diffraction: single slit NOTES: • For double slit, bright spots are equally separated. •

Diffraction: single slit NOTES: • For double slit, bright spots are equally separated. • For single slit, central bright spot is larger because n=0 is NOT a dark spot. • To have an appreciable , must be about the same size as & a little smaller than d and w • Recall that for small angles, sin ) tan( ) = x/L

Diffraction: circular opening If instead of a single SLIT, we have a CIRCULAR opening,

Diffraction: circular opening If instead of a single SLIT, we have a CIRCULAR opening, the change in geometry makes the single slit pattern into a series of rings; and the formula to be: 1. 22 n = D sin( n). Here n is an integer indicating the nth dark ring. The computer homework program on Resolution, CH Vol 5 #4, shows the rings in several diagrams and the use of this equation.

Diffraction: circular opening Since the light seems to act like a wave and spreads

Diffraction: circular opening Since the light seems to act like a wave and spreads out behind a circular opening, and since the eye (and a camera and a telescope and a microscope, etc. ) has a circular opening, the light from two closely spaced objects will tend to overlap. This will hamper our ability to resolve the light, that is, it will hamper our ability to see clearly.

Limits for Resolving Ability The dots represent either cone cells or diffraction spots. Can

Limits for Resolving Ability The dots represent either cone cells or diffraction spots. Can you tell what letter this is?

e Limits for Resolving Ability The dots represent either cone cells or diffraction spots.

e Limits for Resolving Ability The dots represent either cone cells or diffraction spots. You can see from the filled green dots that the letter is an e.

Limits for Resolving Ability Can you tell what letter this is?

Limits for Resolving Ability Can you tell what letter this is?

Limits for Resolving Ability e You can’t tell from the green dots that the

Limits for Resolving Ability e You can’t tell from the green dots that the letter is an e.

Diffraction: circular opening How close can two points of light be to still be

Diffraction: circular opening How close can two points of light be to still be resolved as two distinct light points instead of one? One standard, called the Rayleigh Criterion, is that the lights can just be resolved when the angle of separation is the same as the angle of the first dark ring of the diffraction pattern of one of the points: limit = 1 from 1. 22 * 1 * = D sin( 1).

Rayleigh Criterion: a picture The lens will focus the light to a fuzzy DOT

Rayleigh Criterion: a picture The lens will focus the light to a fuzzy DOT rather than a true point. D lens

Rayleigh Criterion: a picture The Rayleigh minimum angle, limit = sin-1(1. 22 /D) =

Rayleigh Criterion: a picture The Rayleigh minimum angle, limit = sin-1(1. 22 /D) = tan-1(x’/s’). D lens x’ s’

Rayleigh Criterion: a picture If a second point of light makes an angle of

Rayleigh Criterion: a picture If a second point of light makes an angle of limit with the first point, (blue angle = green angle) then it can just be resolved. lens D x x’ s s’

Rayleigh Criterion: a picture In this case: limit = sin-1(1. 22 /D) = tan-1(x’/s’)

Rayleigh Criterion: a picture In this case: limit = sin-1(1. 22 /D) = tan-1(x’/s’) = tan-1(x/s). D lens x x’ s s’

Rayleigh Criterion: an example • Consider the (ideal) resolving ability of the eye •

Rayleigh Criterion: an example • Consider the (ideal) resolving ability of the eye • Estimate D, the diameter of the pupil • Use = 550 nm (middle of visible spectrum) • Now calculate the minimum angle the eye can resolve. • Now calculate how far apart two points of light can be if they are 5 meters away.

Rayleigh Criterion: an example with D = 5 mm and = 550 nm, limit

Rayleigh Criterion: an example with D = 5 mm and = 550 nm, limit = sin-1 (1. 22 x 5. 5 x 10 -7 m/. 005 m) = 7. 7 x 10 -3 degrees =. 46 arc minutes so x/L = tan( limit), and x = 5 m * tan(7. 7 x 10 -3 degrees) =. 67 mm

Rayleigh Criterion: an example • Estimate how far it is from the lens of

Rayleigh Criterion: an example • Estimate how far it is from the lens of the eye to the retinal cells on the back of the eye. • With your same D and so same limit), now calculate how far the centers of the two dots of light on the retina are. • How does this distance compare to the distance between retinal cells (approx. diameter of the cells)?

Rayleigh Criterion: an example • L = 2 cm (estimation of distance from lens

Rayleigh Criterion: an example • L = 2 cm (estimation of distance from lens to retinal cells) • from previous part, limit = 7. 7 x 10 -3 degrees • so x = 2 cm * tan(7. 7 x 10 -3 degrees) = 2. 7 m.

Limits on Resolution: • Imperfections in the eye (correctable with glasses) • Rayleigh Criterion

Limits on Resolution: • Imperfections in the eye (correctable with glasses) • Rayleigh Criterion due to wavelength of visible light • Graininess of retinal cells (Note that in low light where only the rods are activated, we cannot resolve very well because the rod cells are not packed as closely as the cone cells are. Also in low light we only see in black and white – not in color. )

Limits on Resolution: further examples • eagle eyes and owl eyes eagles have 450,

Limits on Resolution: further examples • eagle eyes and owl eyes eagles have 450, 000 cones cells per mm 2 compared to humans who have about 200, 000 per mm 2. • cameras: – lenses (focal lengths, diameters) – films (speed and graininess) – shutter speeds and f-stops • Amt of light D 2 t • f-stop = f/D – f-stops & resolution: resolution depends on D

Limits on Resolution: further examples: microscope 1. 22 n = D sin( n) where

Limits on Resolution: further examples: microscope 1. 22 n = D sin( n) where 1 = limit , so 1. 22*1* = D sin( limit) ; also sin( limit) ≈ tan( limit) = h/s. Therefore, 1. 22 ≈ D*h/s, or h ≈ 1. 22 *s/D where h is the smallest size that is resolvable. This means that h ≈ . microscopes: smallest size = = 500 nm =. 5 m – can easily see. 5 mm, so M-max useful = 1, 000 – can reduce (and hence h) by – a) immersion in oil (since v and are smaller in oil) , b) use blue light (since blue has smaller than red).

Limits on Resolution: further examples • other types of light – x-ray diffraction (use

Limits on Resolution: further examples • other types of light – x-ray diffraction (use atoms as slits) – IR – radio & microwave • surface must be smooth on order of

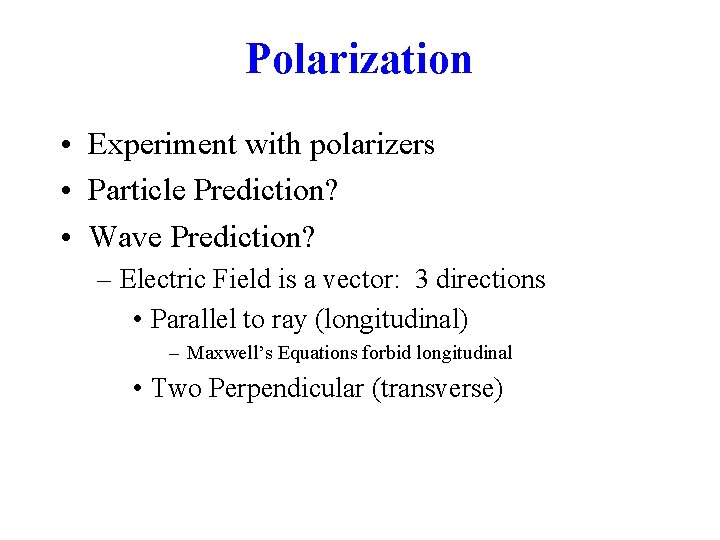

Polarization • Experiment with polarizers • Particle Prediction? • Wave Prediction? – Electric Field

Polarization • Experiment with polarizers • Particle Prediction? • Wave Prediction? – Electric Field is a vector: 3 directions • Parallel to ray (longitudinal) – Maxwell’s Equations forbid longitudinal • Two Perpendicular (transverse)

Polarization: Wave Theory #1 Polarization by absorption (Light is coming out toward you) unpolarized

Polarization: Wave Theory #1 Polarization by absorption (Light is coming out toward you) unpolarized light polarizer only lets vertical componet through no light gets through polarizer only lets horizontal component through

Polarization: Wave Theory Three polarizers in series: Sailboat analogy: North wind sail force on

Polarization: Wave Theory Three polarizers in series: Sailboat analogy: North wind sail force on sail boat goes along direction of keel

Polarization: Wave Theory #2 Polarization by reflection – Brewster Angle: when refracted + reflected

Polarization: Wave Theory #2 Polarization by reflection – Brewster Angle: when refracted + reflected = 90 o – Sunglasses and reflected glare incident ray vertical horizontal reflected ray no problem with horizontal almost no vertical since vertical is essentially longitudinal now surface refracted ray vertical can be transmitted

Polarization: Wave Theory #3 Polarization by double refraction – different indices of refraction (n’s)

Polarization: Wave Theory #3 Polarization by double refraction – different indices of refraction (n’s) in different directions due to different bonding #4 Polarization by scattering
