Problems of Priority • Print Jobs • Printers get print requests from all over a building. Suppose we want them to print staff jobs before faculty jobs before student jobs, and grad students before undergraduate students, and so on. How do we set this behavior up? • Emergency Room scheduling • Say you are in charge of scheduling patients for treatment in the ER. A gunshot victim would likely get treatment sooner than someone with a sore neck – regardless of arrival time. How do we always choose the most urgent case when new patients continue to arrive?

The Priority Queue ADT • A priority queue (PQ) is a restricted form of a list • items are arranged according to their priorities (or keys) • keys may or may not be unique • Unlike a queue which is FIFO • A priority queue removes items based on priority

PQ – Total Order Relation • A priority queue must hold a total order relation (example <= ) • A Total Order Relation has the following properties: • Reflexive • k <= k • Antisymmetric • if x <= y and y <= x then x = y • Transitive • if a <= b and b <= c then a <= c

2 ‘types’ of PQ • Priority Queues may be viewed as: • min PQ • minimum key value is the highest priority • max PQ • maximum key value is the highest priority

Priority Queue ADT Operations Main Methods of PQs • insert. Item(key, data) • aka enqueue(key, data) • inserts data into the PQ according to key • remove. Item() • removes the item with the smallest (largest) • depending if using a min PQ or max PQ d name e b o ay als Max() m ) key ( e. Item or remove v o m ) re e. Min( v o m ) re ueue( q e d or • size() • returns number of elements in PQ • empty() • returns true if zero elements in PQ • min. Item() / max. Item() • returns item with smallest/largest key • min. Key() / max. Key() • returns smallest/largest key Additional Methods of PQs

Priority Queues and Sorting • Priority Queues are useful for Sorting • This is covered in more detail in Chapter 10 • Briefly mention now • preview of things to come

Sorting Using a Priority Queue • Given a sequence of N items • a PQ can be used to sort the sequence: • Step 1 • Insert N items into the PQ via insert. Item(key, data) • Step 2 • Remove the items by calling remove. Item() N times • The first removes the largest item, the second call the second largest, … the last removes the smallest item

Sorting Using a Priority Queue • Given a sequence of N items • a PQ can be used to sort the sequence: • Step 1 • Insert N items into the PQ via insert. Item(key, data) • Step 2 • Remove the items by calling remove. Item() N times • The first removes the largest item, the second call the second largest, … the last removes the smallest item S

Sorting Using a Priority Queue • Given a sequence of N items • a PQ can be used to sort the sequence: • Step 1 • Insert N items into the PQ via insert. Item(key, data) • Step 2 • Remove the items by calling remove. Item() N times • The first removes the largest item, the second call the second largest, … the last removes the smallest item

Sorting Using a PQ • Given a sequence of N items Algorithm Priority. Queue. Sort (S, PQ): • a PQ can be used to sort the sequence: • Input: Step 1 Sequence, S, of n items, and empty priority queue, PQ. Output: Sequence S sorted by the total order relation. • Insert N items into the PQ via insert. Item(key, data) • while Step! 2 S. empty() do : = S. remove. First() • item Remove the items by calling remove. Item() N times PQ. insert. Item(item. key, • The first removesitem. data) the largest item, the second call the second while ! PQ. empty do last removes the smallest item largest, … the item : = PQ. remove. Item() S. insert. Last(item)

Marker Slide • Questions on: • Priority Queues • General • Next: • Priority Queues • Implementations • Unordered List • Ordered List • Binary Tree (Heap)

PQ Implementation • Priority Queues can be implemented using • Unordered List • Ordered List • Binary Tree (Heap) • This last one we will see later The card example just shown was using an unordered list

Implementing PQ as an Unordered List • Each item in a PQ is a composition of 2 objects • the key (priority) • and the data • Thus we have the pair (key, data) • So we can implement this using a linked list • details next slide, look at the list’s node structure

Recall Doubly Linked List template <typename T> class Item { public: T elem; Item<T> *prev, *next; }; next prev elem node • But for our priority queue we split elem into TWO things • key (of type int) • data (of type T)

Recall Doubly Linked List template <typename T> class Item { public: int key; T data; Item<T> *prev, *next; }; next prev key data node • But for our priority queue we split elem into TWO things • key (of type int) • data (of type T)

Implementing a PQ as Unordered list • So if we have a list of unordered stuff • To make it a PQ we need the functions • insert. Item(key, data) • remove. Item() • assume a Min PQ so this removes the item with the smallest key

PQ as Unordered list • PQ: : insert. Item(key, data) • This is just an insert. Front() call for the list • like m_list. insert. Front(…) • Recall this is an O(1) operation • Review of this follows

Re vie w Inserting at the Front 1. Allocate a new node 2. Have new node point to old head 3. Update head to point to new node context of PQ: : insert. Item(key, data) PQ is implemented using Unordered list head tail 12, Leonard 7, Sheldon 98, Howard 54, Raj

Re vie w Inserting at the Front 1. Allocate a new node 2. Have new node point to old head 3. Update head to point to new node context of PQ: : insert. Item(key, data) PQ is implemented using Unordered list head tail 19, Penny 12, Leonard 7, Sheldon 98, Howard 54, Raj

Re vie w Inserting at the Front 1. Allocate a new node 2. Have new node point to old head 3. Update head to point to new node context of PQ: : insert. Item(key, data) PQ is implemented using Unordered list head tail 19, Penny 12, Leonard 7, Sheldon 98, Howard 54, Raj

w vie Re Inserting at the Front 1. Allocate a new node 2. Have new node point to old head 3. Update head to point to new node context of PQ: : insert. Item(key, data) PQ is implemented using Unordered list tail head 19, Penny 12, Leonard 7, Sheldon 98, Howard 54, Raj

PQ as Unordered list • So if we have a list of unordered stuff • To make it a PQ we need the functions • insert. Item(key, data) • Can be done in O(1) -- as just seen • What about… • remove. Item() • assume a Min PQ so this removes the item with the smallest key

PQ as Unordered list • remove. Item() - remove item with minimum key • Whether using a singly or doubly linked list we must start either at the front or the back of the list and walk through the list to find the item • This is O(n)… cur. Ptr Min. So. Far First node is assumed to be minimum until something lower is found 56 89 12 36

PQ as Unordered list • remove. Item() - remove item with minimum key • Whether using a singly or doubly linked list we must start either at the front or the back of the list and walk through the list to find the item • This is O(n)… cur. Ptr Min. So. Far 56 89 12 36

PQ as Unordered list • remove. Item() - remove item with minimum key • Whether using a singly or doubly linked list we must start either at the front or the back of the list and walk through the list to find the item • This is O(n)… g < 56 n i h t ome s Far d o n S u n o i F t. M s u j d So a cur. Ptr Min. So. Far 56 89 12 36

PQ as Unordered list • remove. Item() - remove item with minimum key • Whether using a singly or doubly linked list we must start either at the front or the back of the list and walk through the list to find the item • This is O(n)… cur. Ptr Min. So. Far 56 89 12 36

PQ as Unordered list • remove. Item() - remove item with minimum key • Whether using a singly or doubly linked list we must start either at the front or the back of the list and walk through the list to find the item • This is O(n)… cur. Ptr Min. So. Far 56 89 12 36

PQ as Unordered list • remove. Item() - remove item with minimum key • Whether using a singly or doubly linked list we must start either at the front or the back of the list and walk through the list to find the item e list h t f nd o inting at e e h t o ode p s n e s i h s c t r i rea ve o. Fa o r S t m n i P e r r M cu ever inimum so ded r e h nee so w e the m Min. So. Far s a s r b e t t s n mu t poi s u j d and a • This is O(n)… 56 89 cur. Ptr 12 36

PQ as Unordered list • remove. Item() - remove item with minimum key • Whether using a singly or doubly linked list we must start either at the front or the back of the list and walk through the list to find the item e list h t f nd o inting at e e h t o ode p s n e s i h s c t r i rea ve o. Fa o r S t m n i P e r r M cu ever inimum so ded r e h nee so w e the m s a s b er must point dj and a • This is O(n)… 56 89 cur. Ptr 36

PQ as Unordered list • So if we have a list of unordered stuff • To make it a PQ we need the functions • insert. Item(key, data) • Can be done in O(1) • remove. Item() • Requires O(n) aster instead… f t n wa list e D w E … R good an ORDE o n s i use This e w e if Mayb

PQ as Unordered list • So if we have a list of unordered stuff • To make it a PQ we need the functions • insert. Item(key, data) • Can be done in O(1) • remove. Item() • Requires O(n) Whatt fdoes think? … eadclass aster the t s n i n wa list e D w E … R E ordered list help? Dan good Will R o O n n s a i use This e w e if Mayb

Marker Slide • Questions on: • Priority Queues • General • Implementations • Unordered List • Next: • Priority Queues • Implementations • Ordered List

Implementing a PQ as an Ordered list • Let’s say we have a list of Ordered stuff • To make it a PQ we still need the functions • insert. Item(key, data) • remove. Item() • assume a Min PQ so this removes the item with the smallest key

PQ as an Ordered list • PQ: : remove. Item() is now easy • This is just a remove. Front() call for the list • like m_list. remove. Front(…) • Recall this is an O(1) operation • Review of this follows

w vie Re Removing at the Front context of PQ: : remove. Item() PQ is implemented using Ordered list 1. Update head to point to next node in the list 2. Return elem of previous head and delete the node head tail 12 36 56 89

w vie Re Removing at the Front context of PQ: : remove. Item() PQ is implemented using Ordered list 1. Update head to point to next node in the list 2. Return elem of previous head and delete the node head tail 12 36 56 89

w vie Re Removing at the Front context of PQ: : remove. Item() PQ is implemented using Ordered list 1. Update head to point to next node in the list 2. Return elem of previous head and delete the node head tail 12 36 56 89

w vie Re Removing at the Front context of PQ: : remove. Item() PQ is implemented using Ordered list 1. Update head to point to next node in the list 2. Return elem of previous head and delete the node head tail 12 36 56 89

w vie Re Removing at the Front context of PQ: : remove. Item() PQ is implemented using Ordered list 1. Update head to point to next node in the list 2. Return elem of previous head and delete the node head tail 36 56 89

PQ as an Ordered list • Let’s say we have a list of Ordered stuff • To make it a PQ we need the functions • remove. Item() • Can be done in O(1) • What about… • insert. Item(key, data) • note this must maintain the ordering • so we have to find the correct place to insert it

PQ as an Ordered list • insert. Item(key, data) • Whether using a singly or doubly linked list we must start either at the front or the back of the list and walk through the list to find the correct place for the item • This is O(n)… 56 cur. Ptr prev. Ptr 12 36 89

PQ as an Ordered list • insert. Item(key, data) • Whether using a singly or doubly linked list we must start either at the front or the back of the list and walk through the list to find the correct place for the item • This is O(n)… 56 cur. Ptr prev. Ptr 12 36 89

PQ as an Ordered list • insert. Item(key, data) • Whether using a singly or doubly linked list we must start either at the front or the back of the list and walk through the list to find the correct place for the item • This is O(n)… 56 cur. Ptr prev. Ptr 12 36 89

PQ as an Ordered list • insert. Item(key, data) • Whether using a singly or doubly linked list we must start either at the front or the back of the list and walk through the list to find the correct place for the item • This is O(n)… y < 56 e k s ’ tr prev. P s key > 56 ey = 56 is k r’ cur. Pt place for o e e it s So th n them k a m to ee betw pointers t Adjus 12 56 cur. Ptr prev. Ptr 36 89

PQ as an Ordered list • insert. Item(key, data) • Whether using a singly or doubly linked list we must start either at the front or the back of the list and walk through the list to find the correct place for the item • This is O(n)… y < 56 e k s ’ tr prev. P s key > 56 ey = 56 is k r’ cur. Pt place for o e e it s So th n them k a m to ee betw pointers t Adjus 12 56 cur. Ptr prev. Ptr 36 89

PQ as an Ordered list • insert. Item(key, data) • Whether using a singly or doubly linked list we must start either at the front or the back of the list and walk through the list to find the correct place for the item • This is O(n)… y < 56 e k s ’ tr prev. P s key > 56 ey = 56 is k r’ cur. Pt place for o e e it s So th n them k a m to ee betw pointers t Adjus 12 cur. Ptr prev. Ptr 36 56 89

PQ as an Ordered list • Let’s say we have a list of Ordered stuff • To make it a PQ we need the functions • remove. Item() • Can be done in O(1) • red e d r o r un ues o e u d e Q insert. Item(key, data) order f Priority s O(n) , y a er w ations o at i h h t t i e n • Requires O(n) So ent ratio m e e p l o p list im least one ter… bad =) t t a e b e v ha thing g O(n) is e m o be s ayin s t s e u b I em Ther why would r 10 e t p a e il ch t … els n u wait o t e u hav o y t Bu

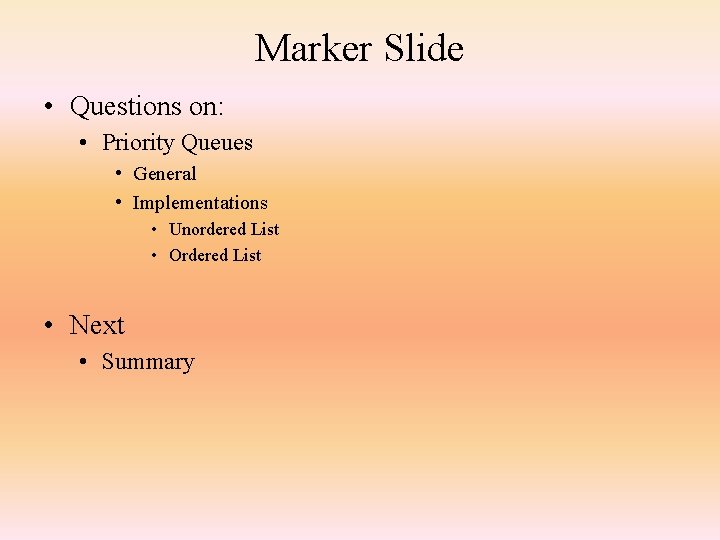

Marker Slide • Questions on: • Priority Queues • General • Implementations • Unordered List • Ordered List • Next • Summary

Summary: List-based Priority Queue • Unsorted list implementation • • Sorted list implementation Store the items of the priority queue in a list-based sequence, in arbitrary order 4 5 2 3 1 • Performance: • insert. Item takes O(1) time since we can insert the item at the beginning or end of the sequence • remove. Min, min. Key and min. Element take O(n) time since we have to traverse the entire sequence to find the smallest key • 1 Store the items of the priority queue in a sequence, sorted by key 2 3 4 5 • Performance: • insert. Item takes O(n) time since we have to find the place where to insert the item • remove. Min, min. Key and min. Element take O(1) time since the smallest key is at the beginning of the sequence
