Nondeterministic Finite Accepter (NFA) Alphabet = Fall 2004 COMP 335 2
Nondeterministic Finite Accepter (NFA) Alphabet = Two choices Fall 2004 COMP 335 3
Nondeterministic Finite Accepter (NFA) Alphabet = Two choices No transition Fall 2004 COMP 335 4
First Choice Fall 2004 COMP 335 5
First Choice Fall 2004 COMP 335 6
First Choice Fall 2004 COMP 335 7

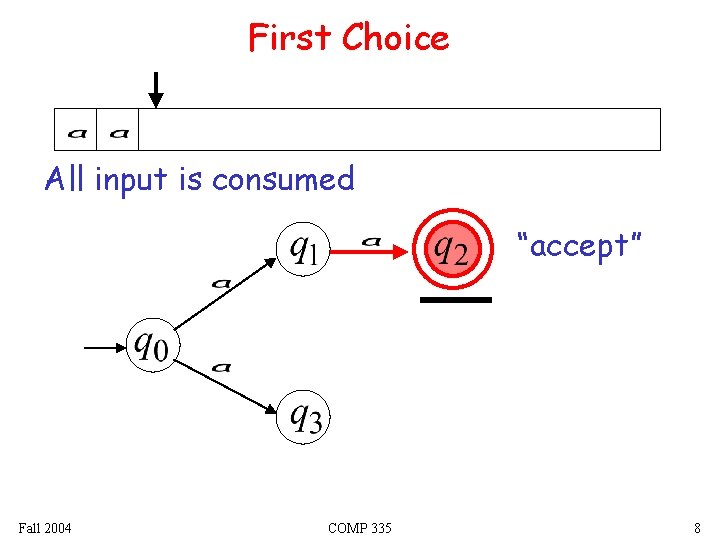

First Choice All input is consumed “accept” Fall 2004 COMP 335 8
Second Choice Fall 2004 COMP 335 9
Second Choice Fall 2004 COMP 335 10
Second Choice No transition: the automaton hangs Fall 2004 COMP 335 11

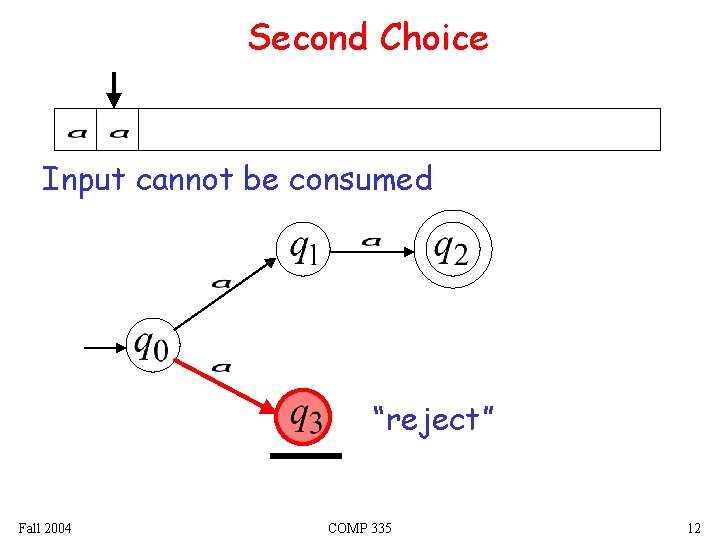

Second Choice Input cannot be consumed “reject” Fall 2004 COMP 335 12
An NFA accepts a string w: if there is at least one computation of the NFA that accepts the string w AND all the input is consumed and the automaton is in a final state Fall 2004 COMP 335 13
Example is accepted by the NFA: “accept” because this computation accepts Fall 2004 “reject” COMP 335 14

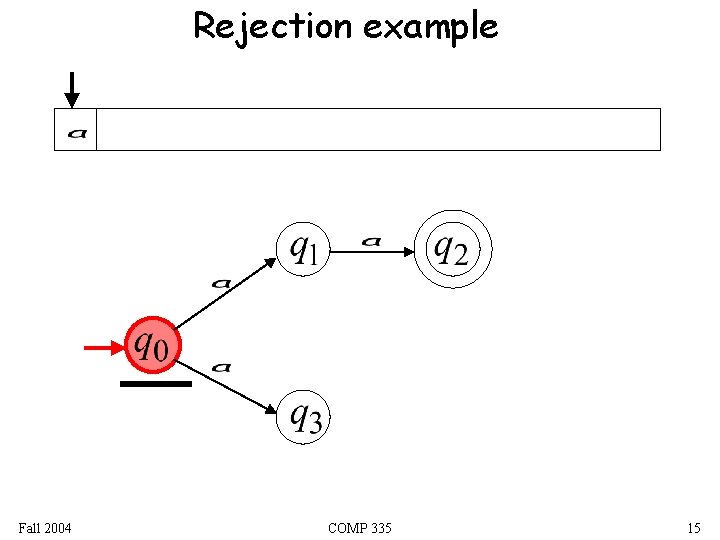

Rejection example Fall 2004 COMP 335 15
First Choice Fall 2004 COMP 335 16

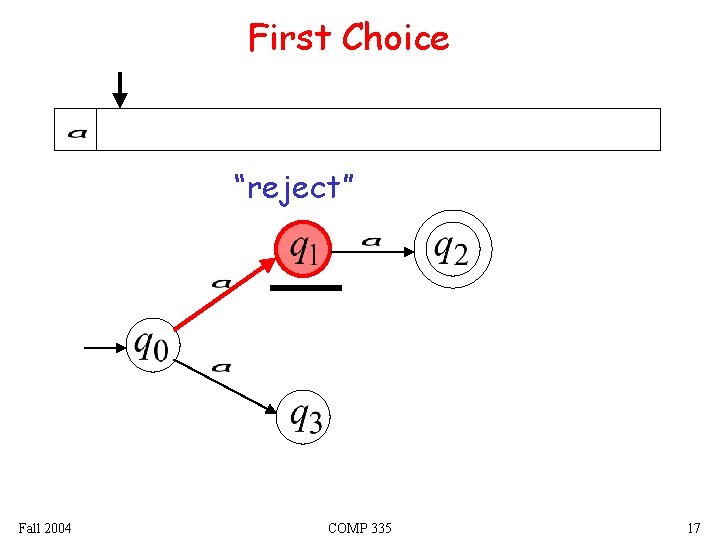

First Choice “reject” Fall 2004 COMP 335 17

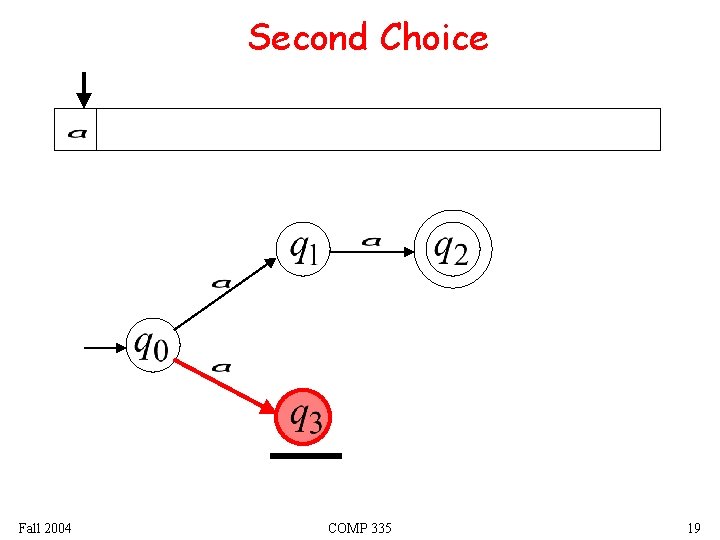

Second Choice Fall 2004 COMP 335 18
Second Choice Fall 2004 COMP 335 19
Second Choice “reject” Fall 2004 COMP 335 20
An NFA rejects a string w: if there is no computation of the NFA that accepts the string w: • All the input is consumed and the automaton is in a non final state OR • The input cannot be consumed Fall 2004 COMP 335 21

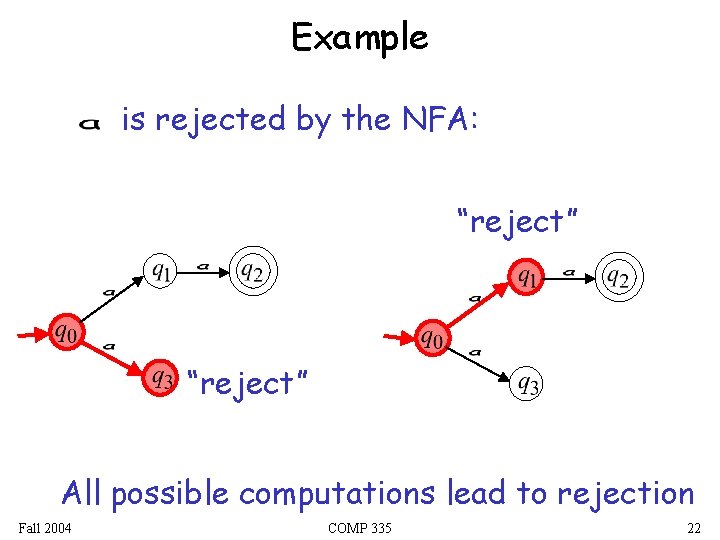

Example is rejected by the NFA: “reject” All possible computations lead to rejection Fall 2004 COMP 335 22
Rejection example Fall 2004 COMP 335 23

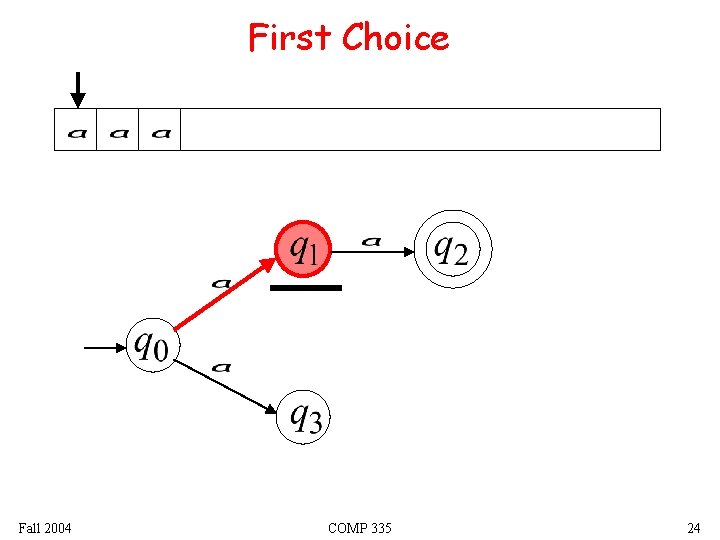

First Choice Fall 2004 COMP 335 24
First Choice No transition: the automaton hangs Fall 2004 COMP 335 25
First Choice Input cannot be consumed “reject” Fall 2004 COMP 335 26
Second Choice Fall 2004 COMP 335 27
Second Choice Fall 2004 COMP 335 28
Second Choice No transition: the automaton hangs Fall 2004 COMP 335 29
Second Choice Input cannot be consumed “reject” Fall 2004 COMP 335 30
is rejected by the NFA: “reject” All possible computations lead to rejection Fall 2004 COMP 335 31

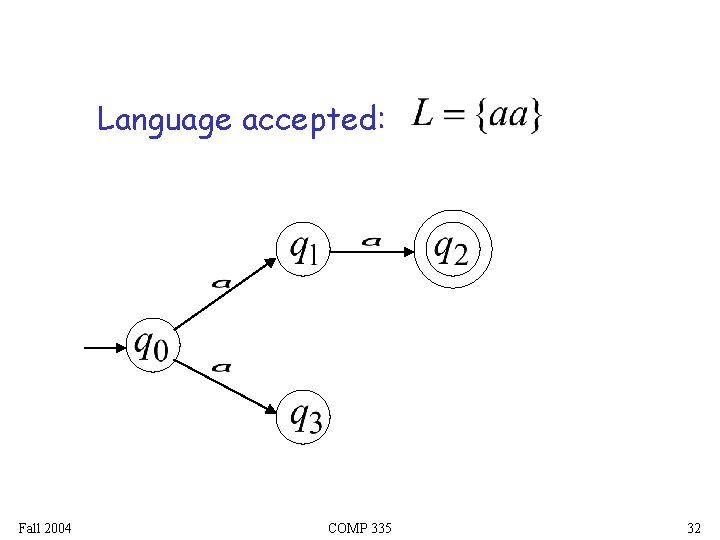

Language accepted: Fall 2004 COMP 335 32
Lambda Transitions Fall 2004 COMP 335 33
Fall 2004 COMP 335 34
Fall 2004 COMP 335 35
(read head does not move) Fall 2004 COMP 335 36

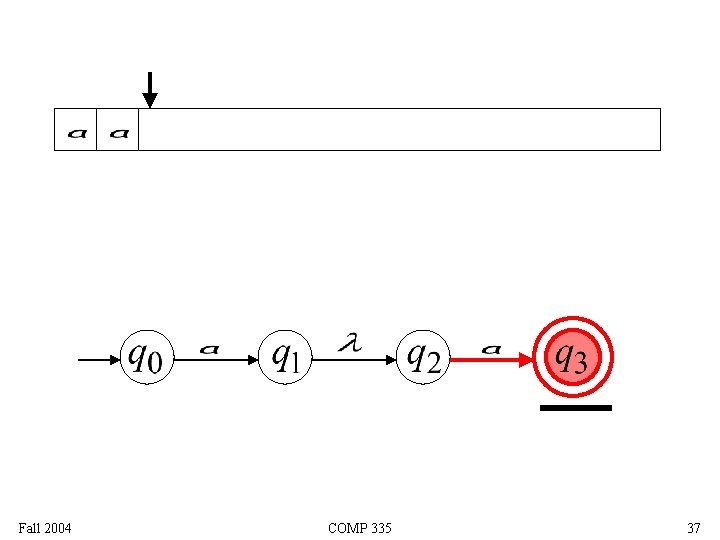

Fall 2004 COMP 335 37
all input is consumed “accept” String Fall 2004 is accepted COMP 335 38
Rejection Example Fall 2004 COMP 335 39
Fall 2004 COMP 335 40
(read head doesn’t move) Fall 2004 COMP 335 41
No transition: the automaton hangs Fall 2004 COMP 335 42
Input cannot be consumed “reject” String Fall 2004 is rejected COMP 335 43
Language accepted: Fall 2004 COMP 335 44
Another NFA Example Fall 2004 COMP 335 45
Fall 2004 COMP 335 46
Fall 2004 COMP 335 47
Fall 2004 COMP 335 48

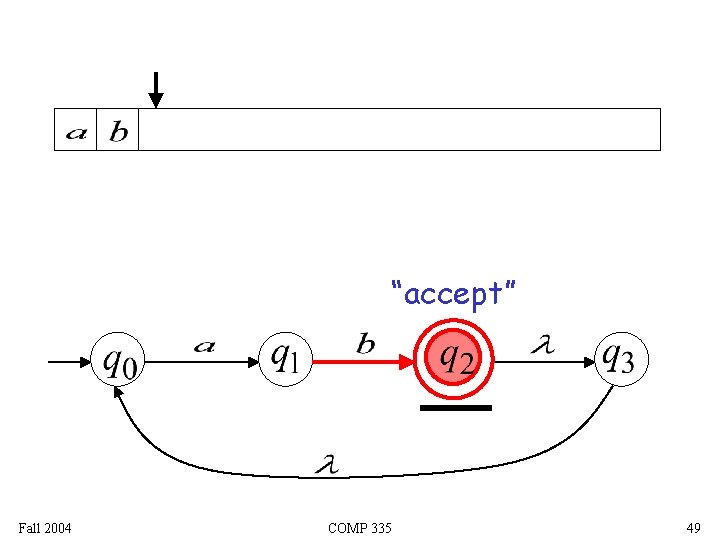

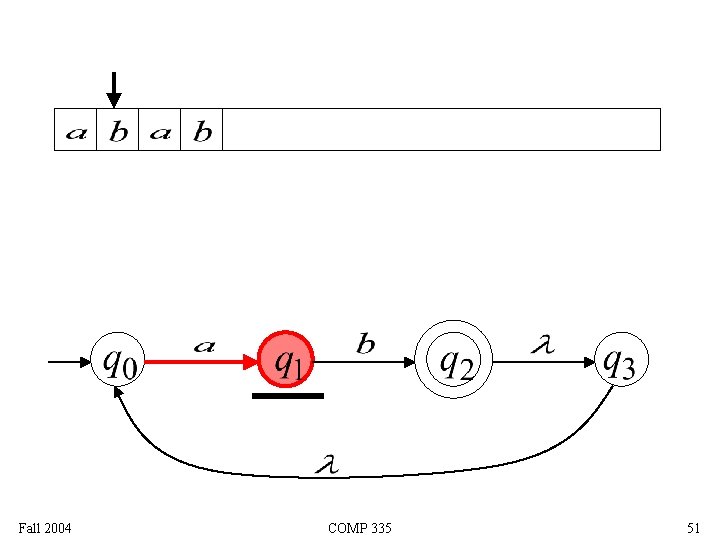

“accept” Fall 2004 COMP 335 49

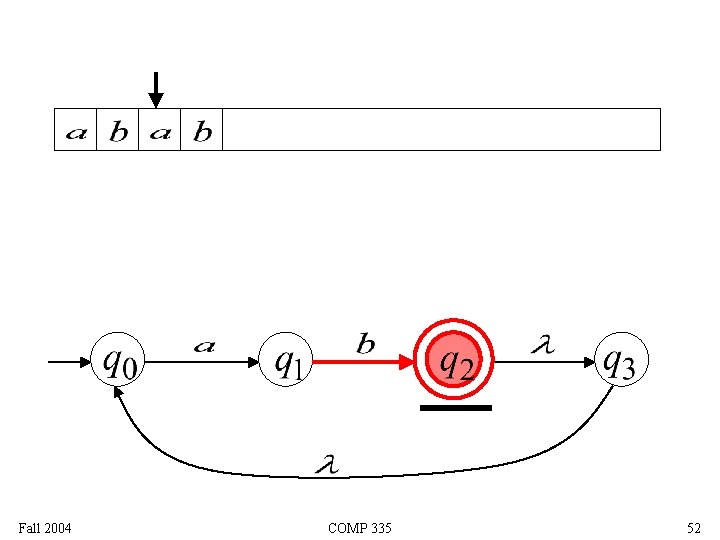

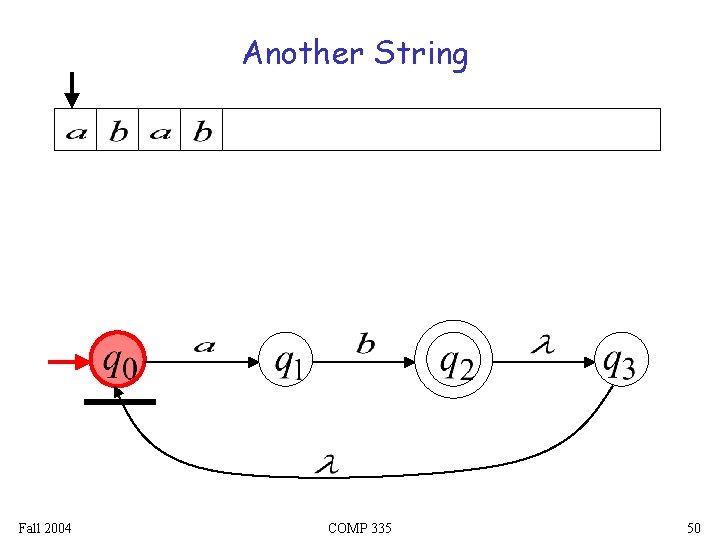

Another String Fall 2004 COMP 335 50
Fall 2004 COMP 335 51
Fall 2004 COMP 335 52
Fall 2004 COMP 335 53
Fall 2004 COMP 335 54
Fall 2004 COMP 335 55
Fall 2004 COMP 335 56
“accept” Fall 2004 COMP 335 57
Language accepted Fall 2004 COMP 335 58
