n LightEmitting Diodes LED n Laser Diodes VCSEL

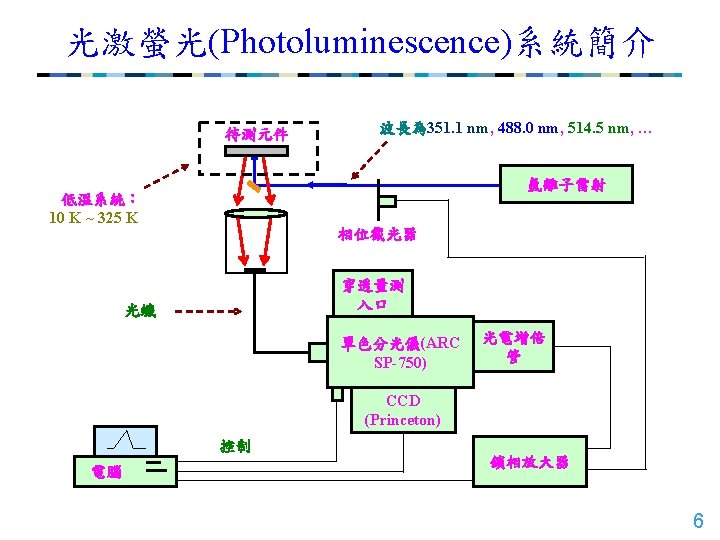

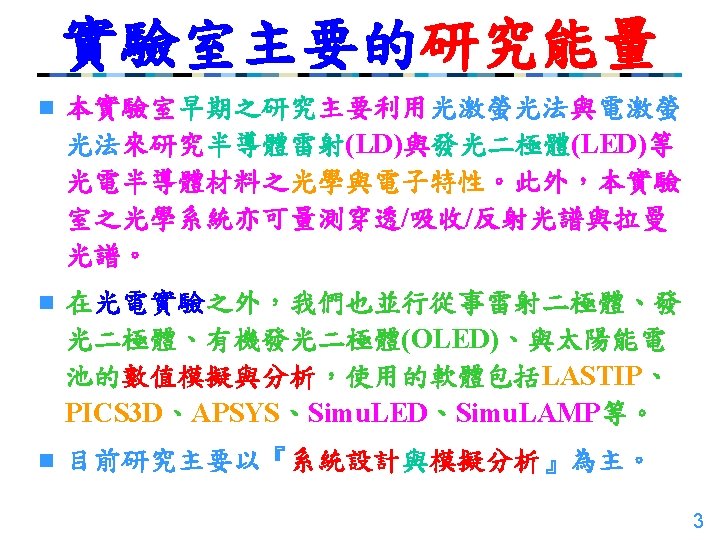

近年來主要的研究主題 n Light-Emitting Diodes (LED) n Laser Diodes & VCSEL n Light-Emitting Diodes (OLED) n Solar Cells (Si & III-V) n Others (III-N Band Structures & Bowing Parameters, Solid-State Lasers, etc. ) (數篇SCI論文被引用 數在 10次以上) 17

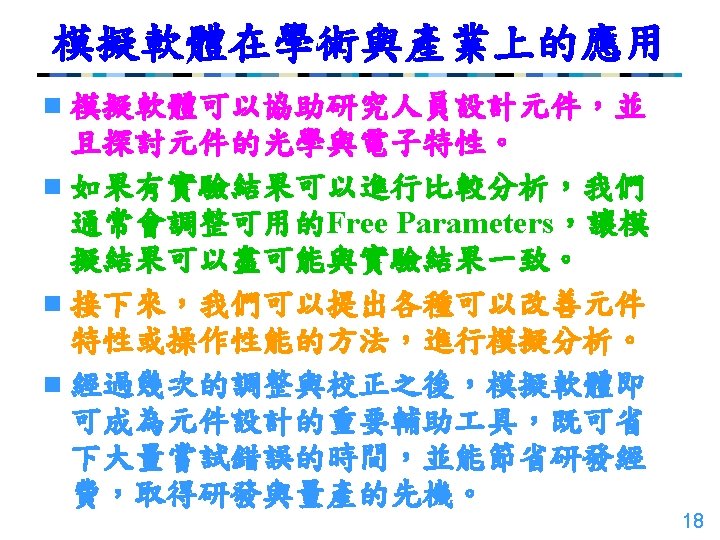

APSYS模擬軟體 (Advanced Physical Models of Semiconductor Devices) n LED、OLED、與Solar Cell等光電半導體 元件的設計、模擬、與分析，均可以借助 APSYS模擬軟體來執行。 n APSYS可以經由解Poisson’s equation、 current continuity equation、carrier energy transport equation、以及quantum mechanical wave equation等方程式，求得 光電半導體元件的各種光學與電子特性。 n APSYS亦使用Ray-Tracing技術，分析由元 件所輸出之光強度以及光場隨角度之分佈 情形。 19

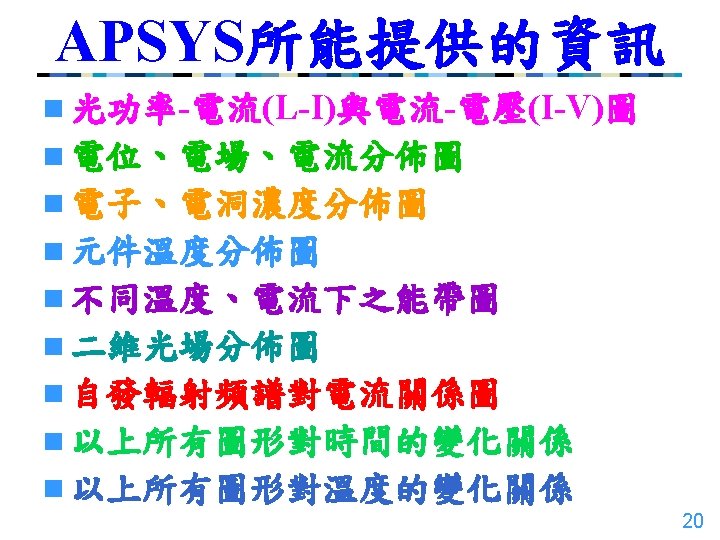

Examples of Simulations n. Simulation of LEDs n. Simulation of Laser Diodes n. Simulation of VCSELs n. Simulation of OLEDs n. Simulation of Solar Cells 21

Simulation of LEDs 22

23

n After comparing, preferable designs of the staggered QWs are In 0. 20 Ga 0. 80 N (1. 4 nm)–In 0. 26 Ga 0. 74 N (1. 6 nm), In 0. 21 Ga 0. 79 N (1. 4 nm)–In 0. 25 Ga 0. 75 N (1. 6 nm), and In 0. 22 Ga 0. 78 N (1. 5 nm)– In 0. 24 Ga 0. 76 N (1. 5 nm), which are named as structure A, structure B, and structure C, respectively. 24

25

26

27

The effective potential height for holes in the valence band of the In. Ga. N/Al. Ga. N structure is lower than that of the In. Ga. N/Ga. N one (i. e. , 0. 255 e. V vs. 0. 282 e. V) owing to the slighter polarization effect in the last-barrier/EBL interface. n The effective potential height for the electrons in the conduction band of the In. Ga. N/Al. Ga. N structure becomes higher than the other structure (i. e. , 0. 367 e. V vs. 0. 355 e. V), which denotes the enhancement of electron confinement. 28 n

29

30

31

The light performance of the blue In. Ga. N LEDs emitting in a spectral range from 435 to 445 nm can be enhanced effectively when the conventional Ga. N barrier layers are replaced by the low-indium-content In 0. 02 Ga 0. 98 N and In 0. 05 Ga 0. 95 N barrier layers. n The light performance of the 445 -nm LEDs with the In 0. 05 Ga 0. 95 N barrier layers is improved due to the increased overlap of electrons and holes inside the QW close to the p-side layers, which is the major source for radiative recombination. n 32

33

34

35

n The strong electric field caused by the piezoelectric polarization charges at the interface between the P-Al. Ga. N and barrier layer lowers the conduction band energy in the last barrier. Our calculation shows that the percentages n of electron leakage current for the LEDs with P-Al. Ga. N and N-Al. Ga. N are 46. 1% and 4. 5%, respectively, at 120 m. A. Besides the relatively uniform distribution of holes in the QWs, the sufficiently reduced electron leakage current is also a major cause for the improvement in efficiency droop. 36

37

Simulation of Laser Diodes 38

39

40

Simulation of VCSELs 41

42

43

44

Simulation of OLEDs 45

46

47

Simulation of Solar Cells 48

太陽能電池的模擬與分析 n Investigation of current matching for In 0. 49 Ga 0. 51 P/Ga. As/Ge triple-juction tandem solar cell Band diagram Schematic drawing of the solar cell structure 49

上中下三個Cells的I-V曲線 Device current is limited by the smallest current. 50

中間Cell的最佳厚度 … 3. 8 µm … … Ø Change thickness of middle cell base layer. 0. 17 µm … Ø Change thickness of middle cell emitter layer when the base layer thickness is fixed at 3. 8 µm. 51

上中兩個Cells的電流匹配 Sun light power 0. 236 µm Sun light power at top cell decay Sun light power n Base layer thicknesses of middle at middle cell → 3. 8 μm n Emitter layer thicknesses of middle cell → 0. 17 μm n. Base layer thickness of top cell → 0. 236 μm 52

優化後的結構 n Schematic drawing of optimized structure The photon current density of the device can be improved by enhancing the middle cell photon current density. 53

太陽能電池模擬與分析的結論 The short-circuit current density is improved due to the achievement of current match. n The short-circuit current density is improved from 16. 56 to 18. 78 m. A/cm 2 and the conversion efficiency is increased by about 3%. n improved about 3% 54
