Molecular Genetics
DNA: The Genetic Material MAIN IDEA: The discovery that DNA is the genetic code involved many experiments.
Rosalind Franklin n n Used X-ray crystallography to study DNA (pattern made when x-rays bombard them) Franklin concluded: DNA is a double helix
Watson and Crick n n n Heard of Franklin’s work before she published it Used her X-ray diffraction pictures and other mathematical data Designed the 3 -D model of DNA

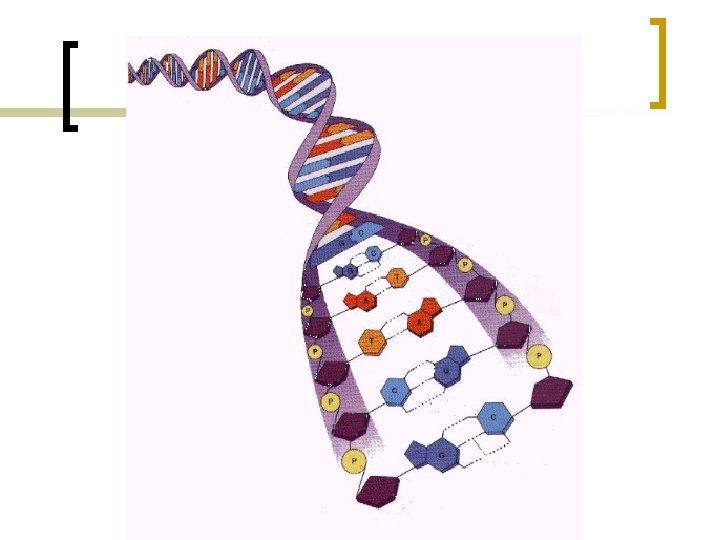

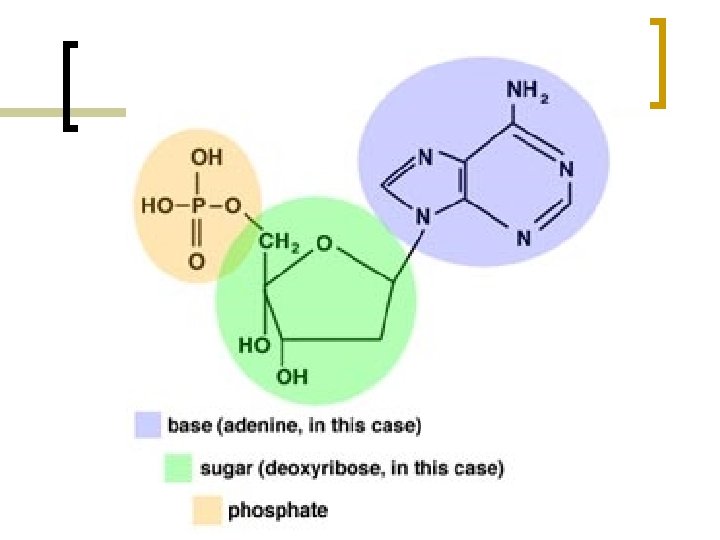

DNA Structure n n n Double helix (twisted ladder) Outside: sugar (deoxyribose) and phosphate Rungs: nitrogenous bases Adenine, guanine, cytosine, and thymine ¡ A-T, G-C ¡
Do Now n n One strand of DNA has the following sequence of nitrogen bases: ATTCGTAGCTAAC What is the sequence of nitrogenous bases on the complementary strand of DNA? How did scientists depend on each other to discover DNA?
Answer n n n ATTCGTAGCTAAC The complementary strand is: TAAGCATCGATTG

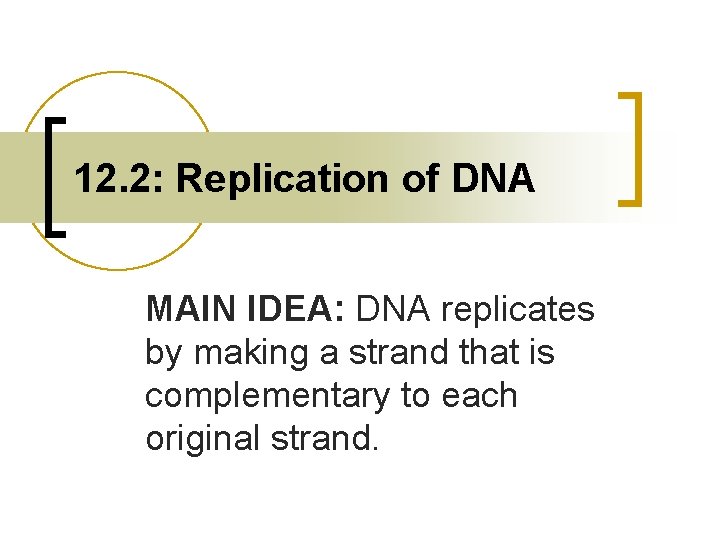

12. 2: Replication of DNA MAIN IDEA: DNA replicates by making a strand that is complementary to each original strand.

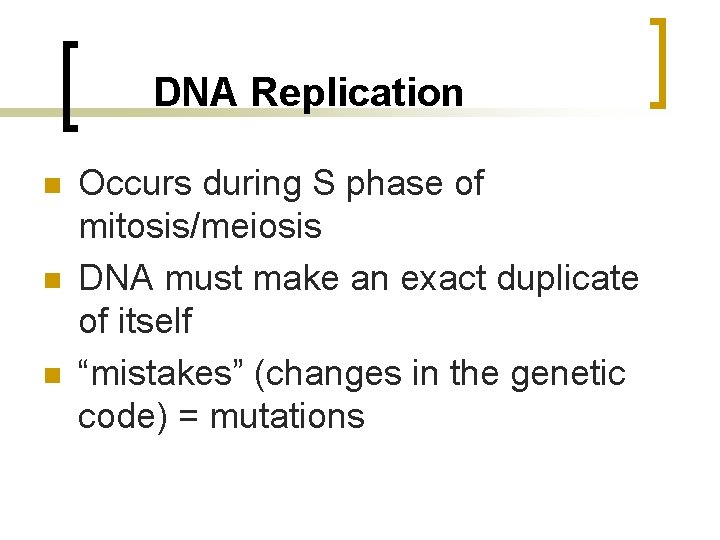

DNA Replication n Occurs during S phase of mitosis/meiosis DNA must make an exact duplicate of itself “mistakes” (changes in the genetic code) = mutations

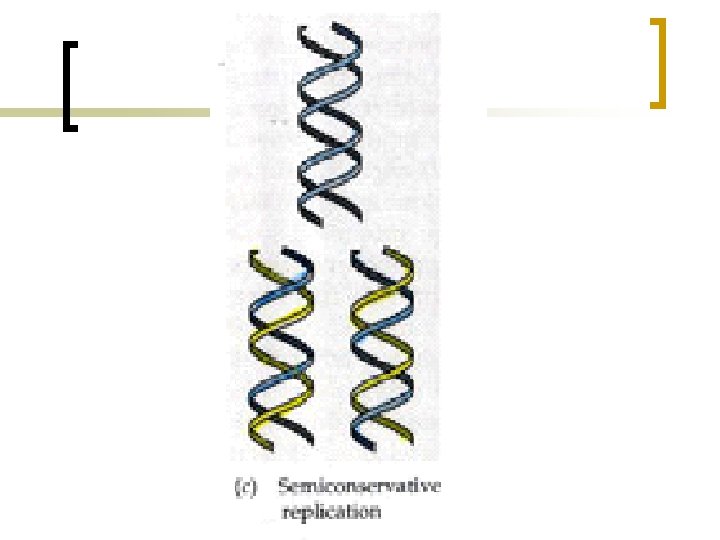

Semiconservative Replication n n Process proposed by Watson and Crick Original strands of DNA separate, serve as templates (patterns), and produce new DNA with one old strand one new strand

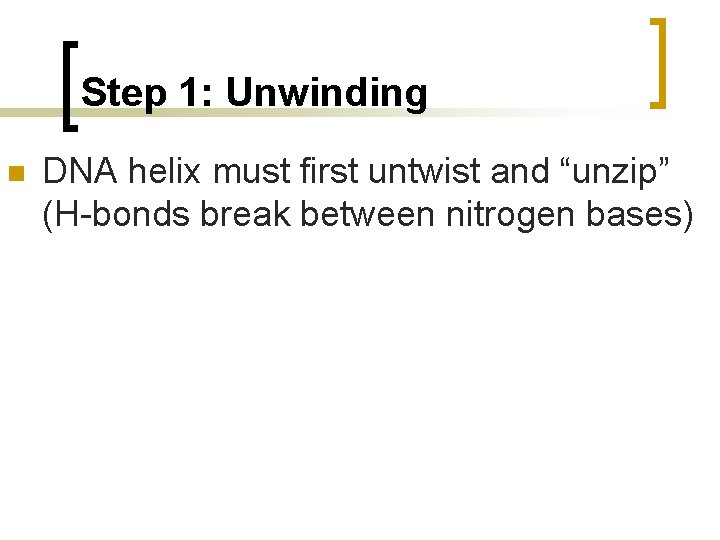

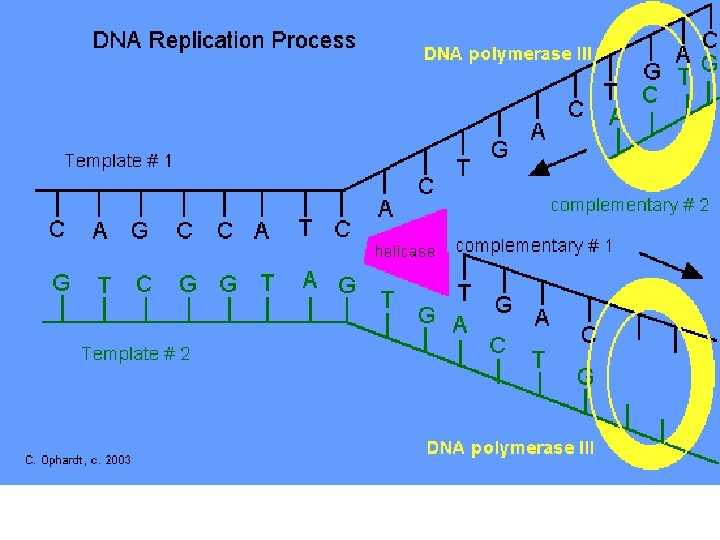

Step 1: Unwinding n DNA helix must first untwist and “unzip” (H-bonds break between nitrogen bases)

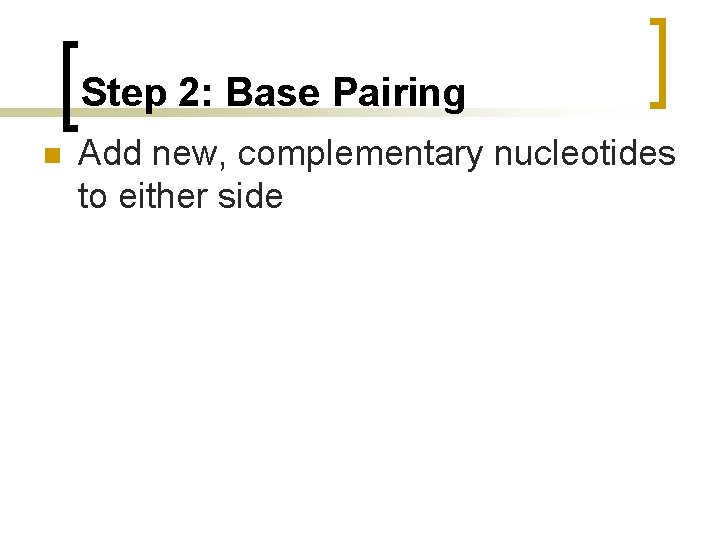

Step 2: Base Pairing n Add new, complementary nucleotides to either side
Step 3: Joining n n DNA replication may start at many different places on one chromosome These sections must then be joined together when complete
Result of Replication n 2 identical DNA molecules Each molecule: one old strand one complementary new strand Semi-conservative
12. 3: DNA, RNA, and Protein MAIN IDEA: DNA codes for RNA, which guides protein synthesis.
Protein Synthesis n n DNA codes for RNA, which codes for building proteins One gene directs the synthesis of one protein

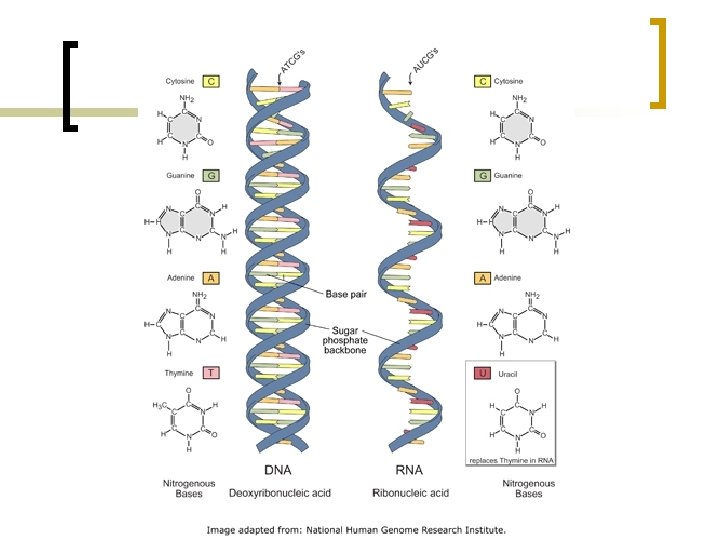

DNA and RNA DNA n Has two strands n Has thymine, not uracil n Cannot leave nucleus n Bigger than RNA n Only 1 type n Has sugar deoxyribose RNA n Has one strand n Has uracil, not thymine n Can leave nucleus n Smaller than DNA n 3 types n Has sugar ribose
BOTH DNA and RNA n n n Both… Are made of nucleotides Have adenine, cytosine, and guanine Carry genetic code Are nucleic acids

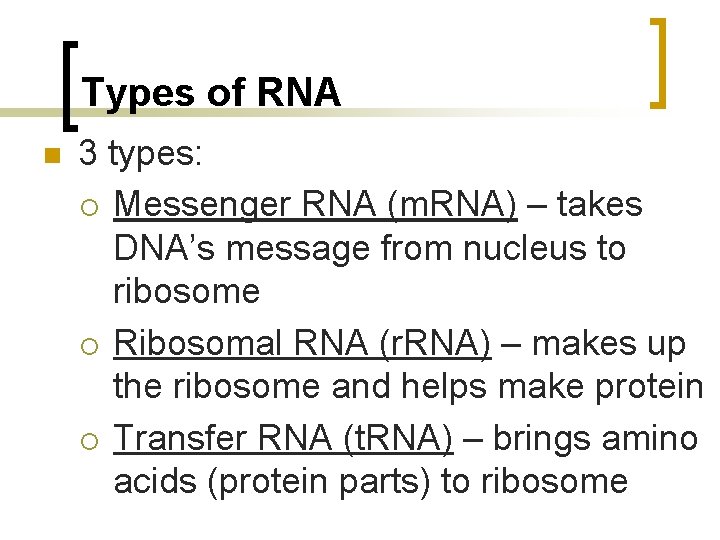

Types of RNA n 3 types: ¡ Messenger RNA (m. RNA) – takes DNA’s message from nucleus to ribosome ¡ Ribosomal RNA (r. RNA) – makes up the ribosome and helps make protein ¡ Transfer RNA (t. RNA) – brings amino acids (protein parts) to ribosome
Transcription n n DNA cannot leave nucleus, but RNA can DNA is first transcribed (copied) into m. RNA in the nucleus DNA unzips, and complementary m. RNA strand is made RNA nucleotides attached according to base-pairs

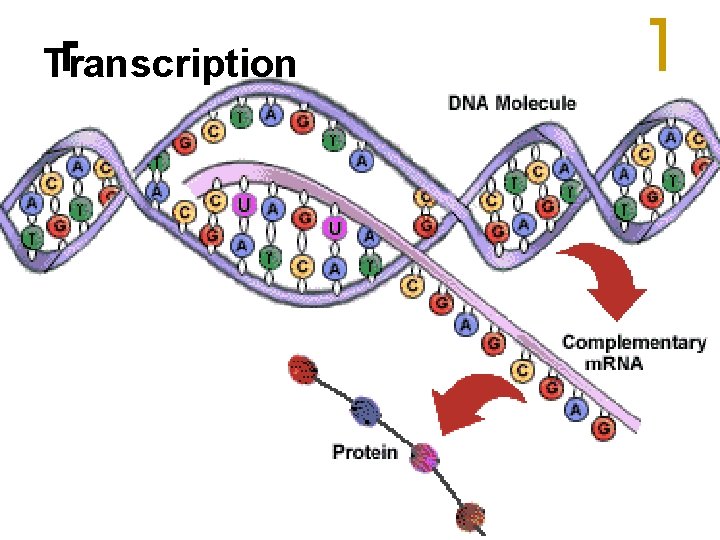

Transcription

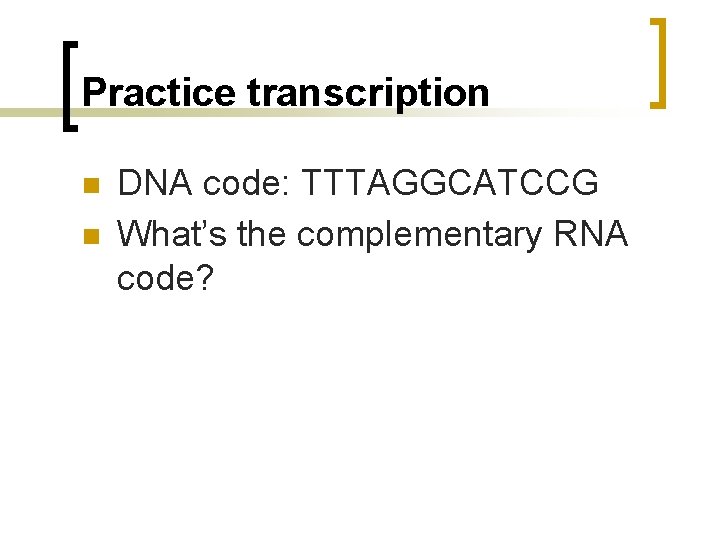

Practice transcription n n DNA code: TTTAGGCATCCG What’s the complementary RNA code?
Translation n n m. RNA leaves nucleus through nuclear pores goes to cytoplasm m. RNA joins ribosomes, and is translated into a protein t. RNA brings over the appropriate amino acid Each amino acid joins to make a chain protein!
Reading the Code n n n Codon – 3 -base code of DNA Each codon = 1 amino acid of protein chain 64 codons, but only 20 amino acids Some codons are repetitive and code for the same amino acids Some start and end the protein
Practice n m. RNA code: AUGCGGAUUUGA 1. Separate into codons Use the chart to translate Write the amino acids in the chain 2. 3.

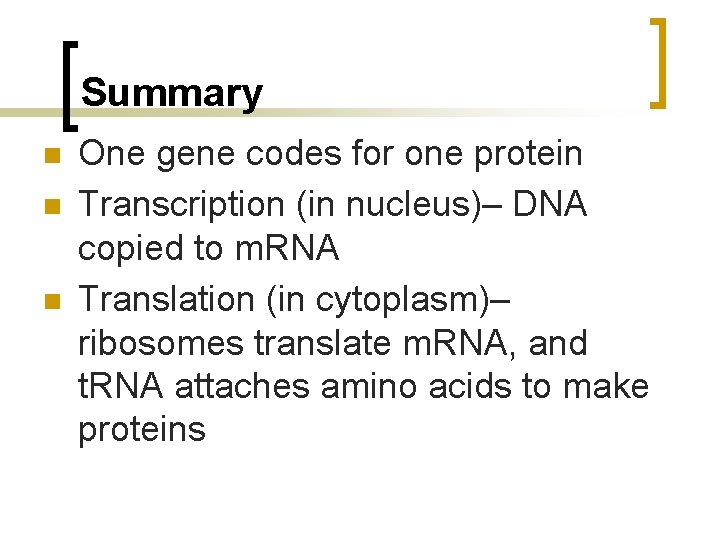

Summary n n n One gene codes for one protein Transcription (in nucleus)– DNA copied to m. RNA Translation (in cytoplasm)– ribosomes translate m. RNA, and t. RNA attaches amino acids to make proteins

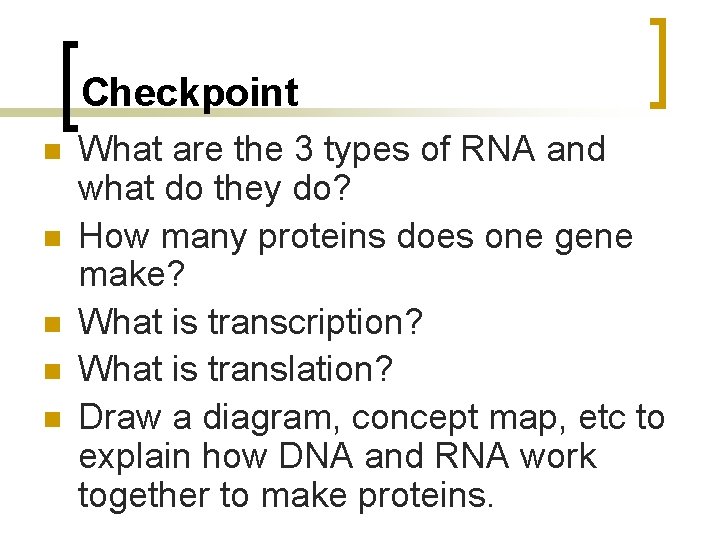

Checkpoint n n n What are the 3 types of RNA and what do they do? How many proteins does one gene make? What is transcription? What is translation? Draw a diagram, concept map, etc to explain how DNA and RNA work together to make proteins.
Gene Regulation and Mutations Chapter 12. 4
Gene Regulation n Gene expression is regulated by the cell; mutations can affect this expression
Mutations n n n Change in DNA sequence, either a single base pair (point mutation) or a large segment of DNA Can cause alternate phenotypes, diseases/disorders, non-functioning proteins Caused by mutagens
Point Mutations n n n Substitution – one base pair exchanged for a different one Can cause missense – wrong amino acid is used Can cause nonsense – codes for a stop codon and ends protein synthesis early
Examples NORMAL: THE BIG FAT CAT ATE THE WET RAT MISSENSE SUBSTITUTION: THE BIZ FAT CAT ATE THE WET RAT NONSENSE SUBSTITUTION: THE BIG RAT
Point Mutations cont’d n n n Deletion – one base pair eliminated Insertion – one base pair added Both result in frameshift, which is a change in the groups of 3 bases making codons

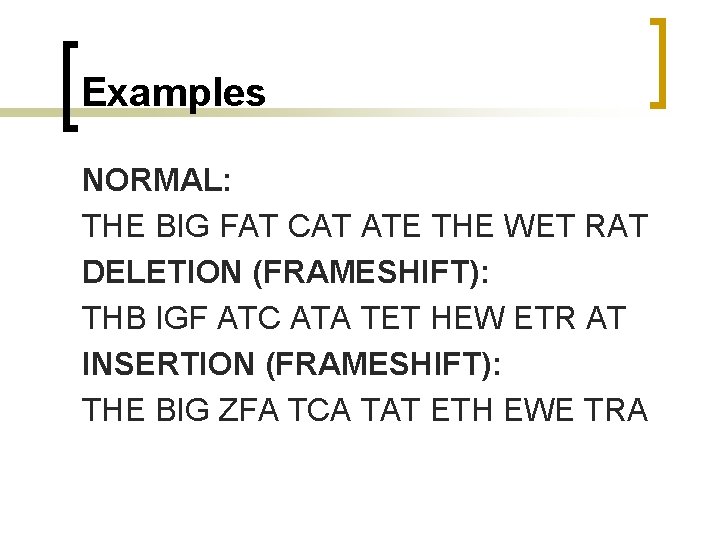

Examples NORMAL: THE BIG FAT CAT ATE THE WET RAT DELETION (FRAMESHIFT): THB IGF ATC ATA TET HEW ETR AT INSERTION (FRAMESHIFT): THE BIG ZFA TCA TAT ETH EWE TRA

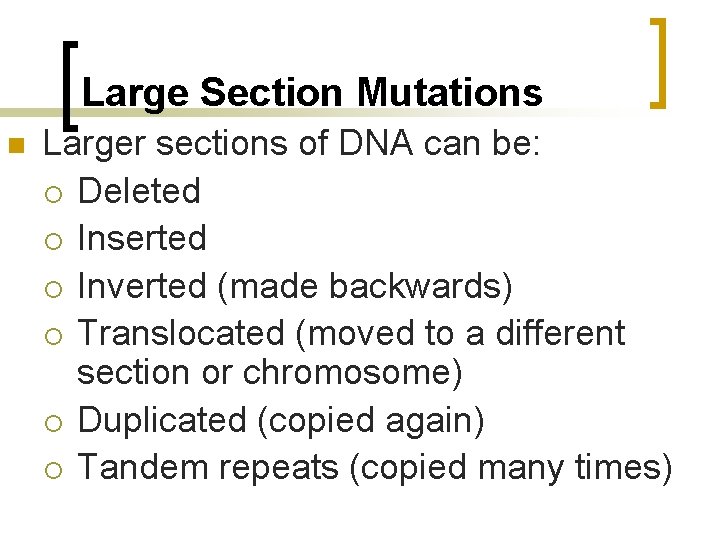

Large Section Mutations n Larger sections of DNA can be: ¡ Deleted ¡ Inserted ¡ Inverted (made backwards) ¡ Translocated (moved to a different section or chromosome) ¡ Duplicated (copied again) ¡ Tandem repeats (copied many times)
Think… n n What would be the result of a missense substitution mutation to an intron? What would most likely be the result of a mutation in the last base position of a codon?
