Restriction Enzymes Discovery In 1962 Werner Arber a

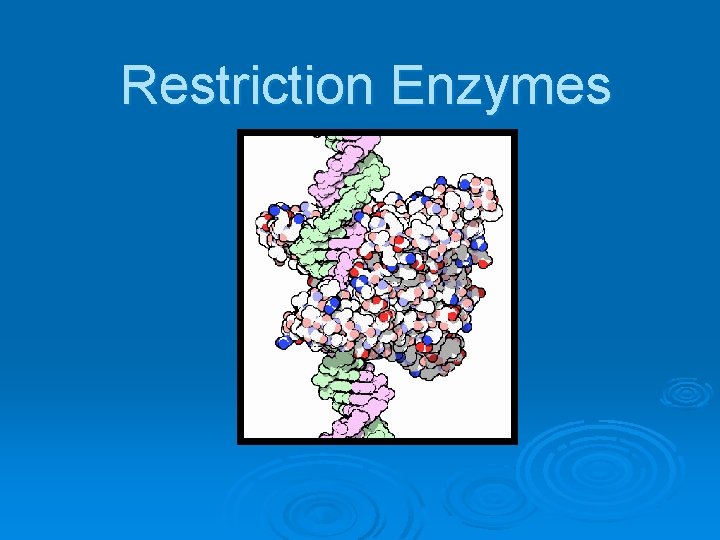

Restriction Enzymes

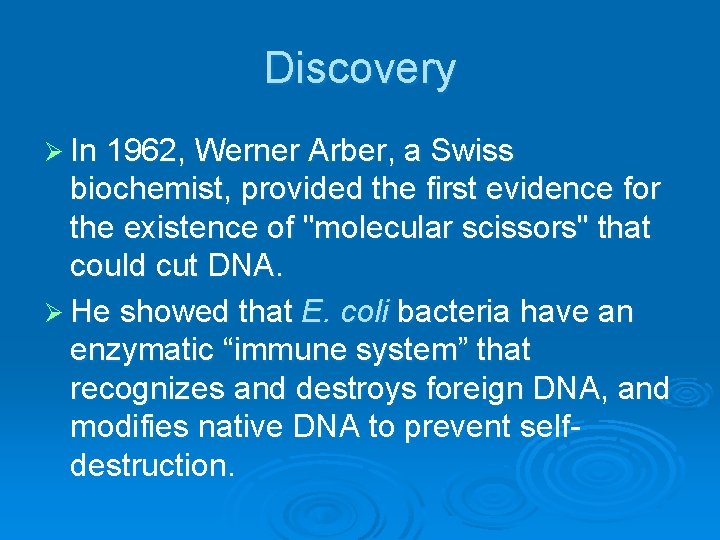

Discovery Ø In 1962, Werner Arber, a Swiss biochemist, provided the first evidence for the existence of "molecular scissors" that could cut DNA. Ø He showed that E. coli bacteria have an enzymatic “immune system” that recognizes and destroys foreign DNA, and modifies native DNA to prevent selfdestruction.

Molecular Scissors Ø By the early 1970 s these enzymes started to be identified and purified. Ø It was shown that each species of bacteria had its own population of a SPECIFIC restriction enzyme. Ø Each enzyme recognized its own specific sequence of DNA bases. It is at this sequence that the DNA was cut.

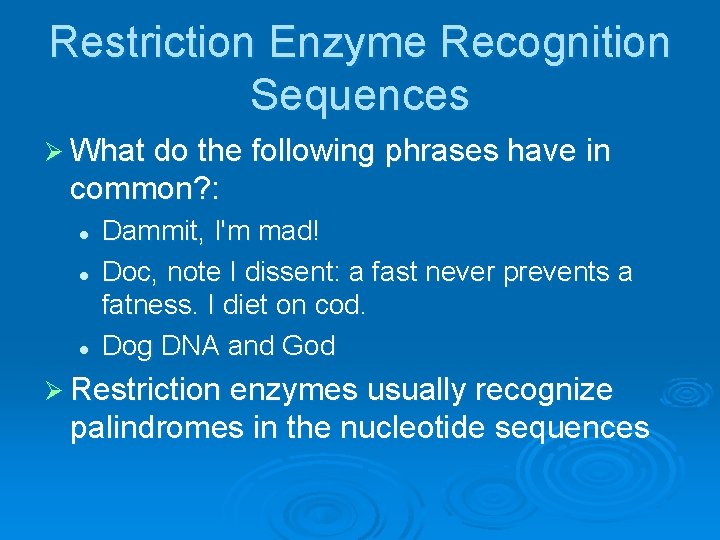

Restriction Enzyme Recognition Sequences Ø What do the following phrases have in common? : l l l Dammit, I'm mad! Doc, note I dissent: a fast never prevents a fatness. I diet on cod. Dog DNA and God Ø Restriction enzymes usually recognize palindromes in the nucleotide sequences

Restriction Enzyme Eco. RI Ø Ø Ø Eco RI recognizes the sequence 5’…. GAATTC…. . A cut is made between the G and the A on each strand. This restriction enzyme leaves the nucleotides 5’AATT overhanging. These are known as “sticky ends” because hydrogen bonds are available to “stick” to a complimentary 3’TTAA Note: Restriction enzymes don’t stop with one cut! They continue to cut at every recognition sequence on a DNA strand. Restriction Enzyme Cut from Eco. RI

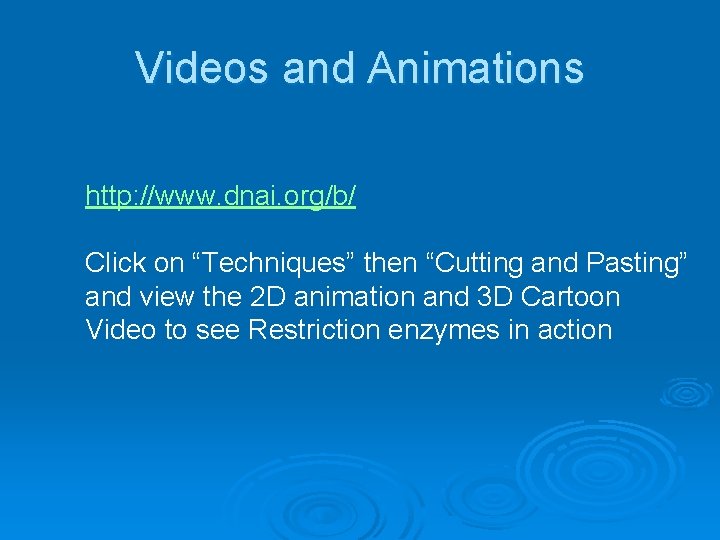

Videos and Animations http: //www. dnai. org/b/ Click on “Techniques” then “Cutting and Pasting” and view the 2 D animation and 3 D Cartoon Video to see Restriction enzymes in action

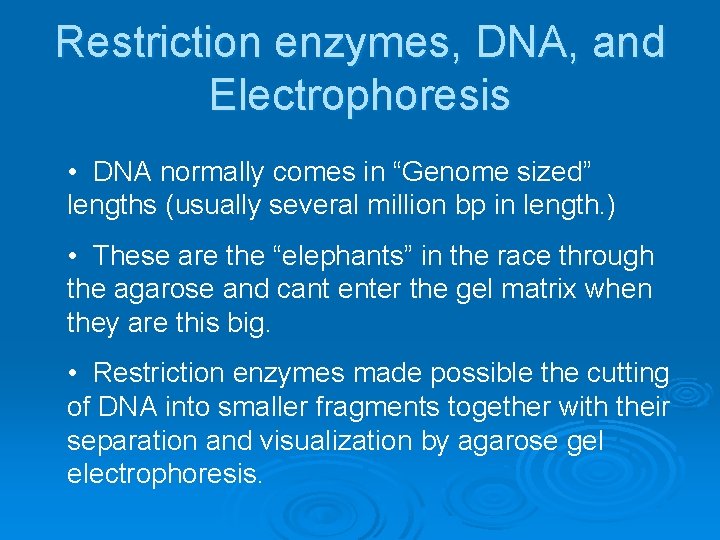

Restriction enzymes, DNA, and Electrophoresis • DNA normally comes in “Genome sized” lengths (usually several million bp in length. ) • These are the “elephants” in the race through the agarose and cant enter the gel matrix when they are this big. • Restriction enzymes made possible the cutting of DNA into smaller fragments together with their separation and visualization by agarose gel electrophoresis.

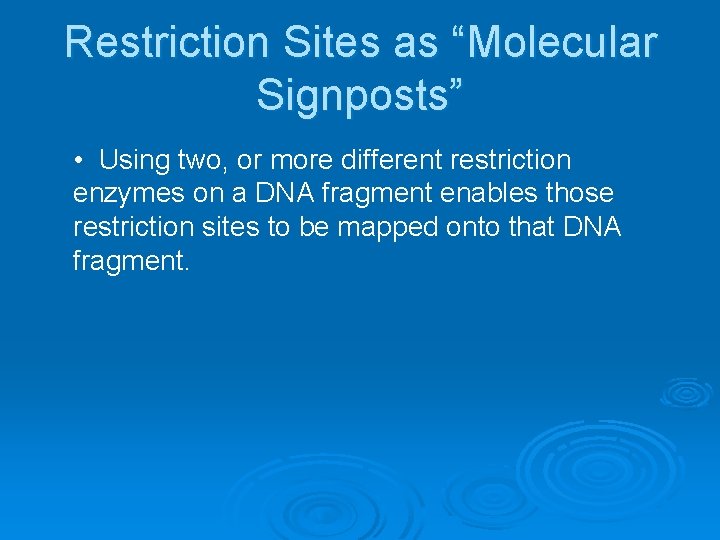

Restriction Sites as “Molecular Signposts” • Using two, or more different restriction enzymes on a DNA fragment enables those restriction sites to be mapped onto that DNA fragment.

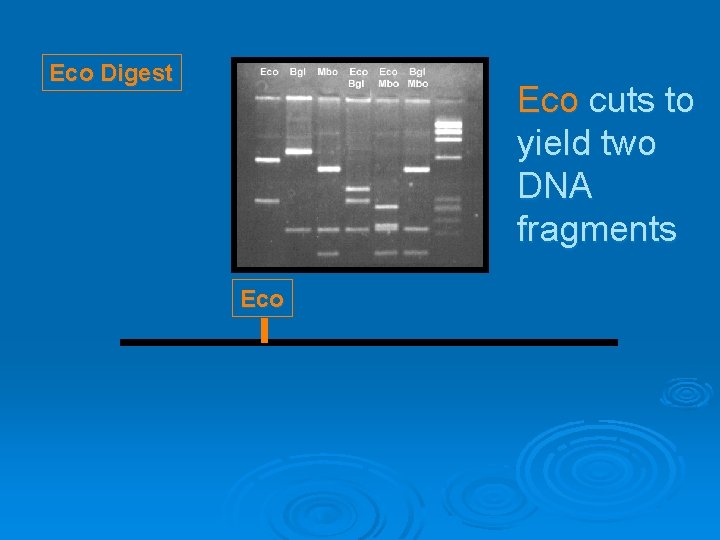

Eco Digest Eco cuts to yield two DNA fragments Eco

Bgl also cuts to yield two DNA fragments. But where is the Bgl site in relation to the Eco site? Bgl Digest Bgl Eco Or Eco Bgl

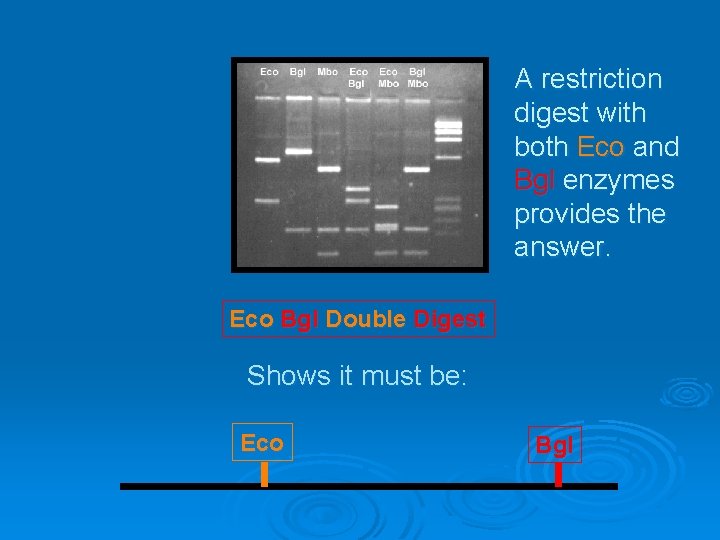

A restriction digest with both Eco and Bgl enzymes provides the answer. Eco Bgl Double Digest Shows it must be: Eco Bgl

Your Turn: • DNA- Off to the Races • Restriction Enzyme mapping challenge.
