Ch 16 Molecular Basis of Inheritance Chromosomes are
![Ch 16 Molecular Basis of Inheritance Ch 16 Molecular Basis of Inheritance](https://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-1.jpg)
Ch 16 Molecular Basis of Inheritance
![Chromosomes are made of ? Proteins ? specificity of function Lots of heterogenity Role Chromosomes are made of ? Proteins ? specificity of function Lots of heterogenity Role](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-2.jpg)
Chromosomes are made of ? Proteins ? specificity of function Lots of heterogenity Role of DNA as the hereditary factor was determined by studying bacteria infected by viruses Nucleic Acids? too uniform
![Transformation of Bacteria Griffith 1928 Transformation of Bacteria Griffith 1928](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-3.jpg)
Transformation of Bacteria Griffith 1928
![1944 Avery, Mc. Carty, and Mac. Leod announced that the transforming substance was… 3 1944 Avery, Mc. Carty, and Mac. Leod announced that the transforming substance was… 3](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-4.jpg)
1944 Avery, Mc. Carty, and Mac. Leod announced that the transforming substance was… 3 main candidates: 1. DNA 2. RNA 3. protein
![Avery, Mac. Leod, Mc. Carty (1944) • Purified various molecules from heat killed pathogenic Avery, Mac. Leod, Mc. Carty (1944) • Purified various molecules from heat killed pathogenic](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-5.jpg)
Avery, Mac. Leod, Mc. Carty (1944) • Purified various molecules from heat killed pathogenic bacteria A C G U protein A C G T RNA Now tried to transform nonpathogenic bacteria… DNA
![Avery, Mac. Cloud and Mc. Carty chemically show that DNA is the genetic material Avery, Mac. Cloud and Mc. Carty chemically show that DNA is the genetic material](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-6.jpg)
Avery, Mac. Cloud and Mc. Carty chemically show that DNA is the genetic material R R R • used the S (virulent) and R (avirulent) strains of D. pneumococci • chemically isolated and purified proteins, DNA, RNA of the S strain • They treated the living avirulent R strain with each of these chemicals. • only purified DNA changed the avirulent R strain into a virulent S strain
![Avery, Mac. Cloud and Mc. Carty chemically show that DNA is the genetic material Avery, Mac. Cloud and Mc. Carty chemically show that DNA is the genetic material](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-7.jpg)
Avery, Mac. Cloud and Mc. Carty chemically show that DNA is the genetic material Still R strain S Strain Conclusion: DNA is the genetic material because it could change the genetic composition of a cell
![The Hershey-Chase experiment: phages verified DNA was transforming agent Mc. Graw hill hershey chase The Hershey-Chase experiment: phages verified DNA was transforming agent Mc. Graw hill hershey chase](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-8.jpg)
The Hershey-Chase experiment: phages verified DNA was transforming agent Mc. Graw hill hershey chase experiment
![Fig. 16 -4 -1 EXPERIMENT Phage Radioactive protein Bacterial cell Batch 1: radioactive sulfur Fig. 16 -4 -1 EXPERIMENT Phage Radioactive protein Bacterial cell Batch 1: radioactive sulfur](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-9.jpg)
Fig. 16 -4 -1 EXPERIMENT Phage Radioactive protein Bacterial cell Batch 1: radioactive sulfur (35 S) DNA Radioactive DNA Batch 2: radioactive phosphorus ( 32 P)
![Fig. 16 -4 -2 EXPERIMENT Phage Empty Radioactive protein shell protein Bacterial cell Batch Fig. 16 -4 -2 EXPERIMENT Phage Empty Radioactive protein shell protein Bacterial cell Batch](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-10.jpg)
Fig. 16 -4 -2 EXPERIMENT Phage Empty Radioactive protein shell protein Bacterial cell Batch 1: radioactive sulfur (35 S) DNA Phage DNA Radioactive DNA Batch 2: radioactive phosphorus ( 32 P)
![Fig. 16 -4 -3 activity campbell EXPERIMENT Phage Empty Radioactive protein shell protein Radioactivity Fig. 16 -4 -3 activity campbell EXPERIMENT Phage Empty Radioactive protein shell protein Radioactivity](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-11.jpg)
Fig. 16 -4 -3 activity campbell EXPERIMENT Phage Empty Radioactive protein shell protein Radioactivity (phage protein) in liquid Bacterial cell Batch 1: radioactive sulfur (35 S) DNA Phage DNA Centrifuge Pellet (bacterial cells and contents) Radioactive DNA Batch 2: radioactive phosphorus ( 32 P) Centrifuge Pellet Radioactivity (phage DNA) in pellet
![Phages Phages](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-12.jpg)
Phages
![Chargaff’s Rule Remember…. Cut my py Chargaff’s Rule Remember…. Cut my py](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-13.jpg)
Chargaff’s Rule Remember…. Cut my py
![Building block of DNA? Building block of DNA?](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-14.jpg)
Building block of DNA?
![The double helix Activity: DNA RNA structure The double helix Activity: DNA RNA structure](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-15.jpg)
The double helix Activity: DNA RNA structure
![Watson and Crick Watson and Crick](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-16.jpg)
Watson and Crick
![Rosalind Franklin and her X-ray diffraction photo of DNA Rosalind Franklin and her X-ray diffraction photo of DNA](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-17.jpg)
Rosalind Franklin and her X-ray diffraction photo of DNA
![Purine and pyridimine Purine and pyridimine](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-18.jpg)

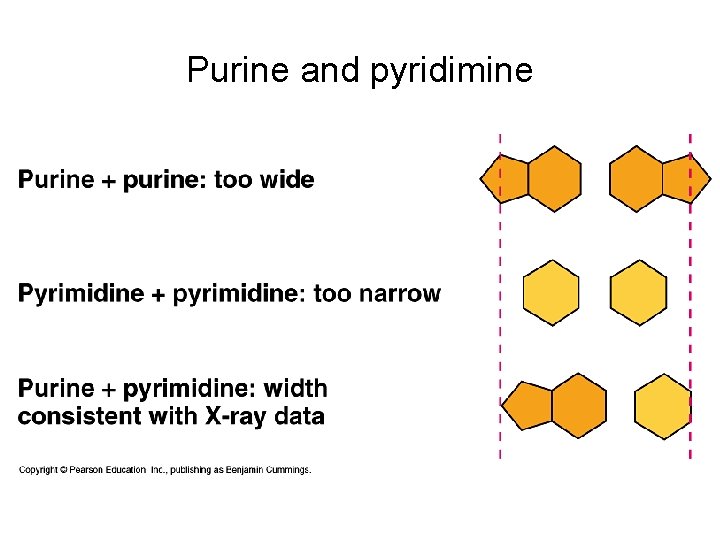

Purine and pyridimine
![Base pairing in DNA Base pairing in DNA](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-19.jpg)
Base pairing in DNA
![A model for DNA replication: the basic concept (Layer 1) A model for DNA replication: the basic concept (Layer 1)](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-20.jpg)
A model for DNA replication: the basic concept (Layer 1)
![A model for DNA replication: the basic concept (Layer 2) A model for DNA replication: the basic concept (Layer 2)](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-21.jpg)

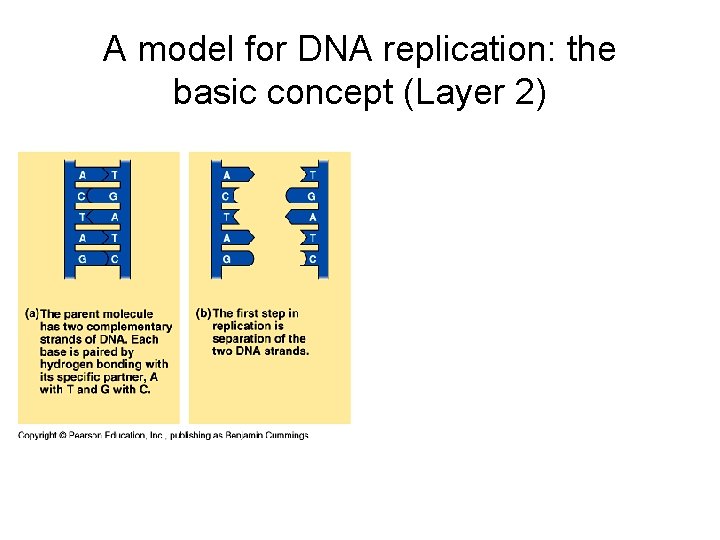

A model for DNA replication: the basic concept (Layer 2)
![A model for DNA replication: the basic concept (Layer 3) A model for DNA replication: the basic concept (Layer 3)](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-22.jpg)
A model for DNA replication: the basic concept (Layer 3)
![A model for DNA replication: the basic concept (Layer 4) A model for DNA replication: the basic concept (Layer 4)](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-23.jpg)
A model for DNA replication: the basic concept (Layer 4)
![Three alternative models of DNA replication Three alternative models of DNA replication](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-24.jpg)
Three alternative models of DNA replication

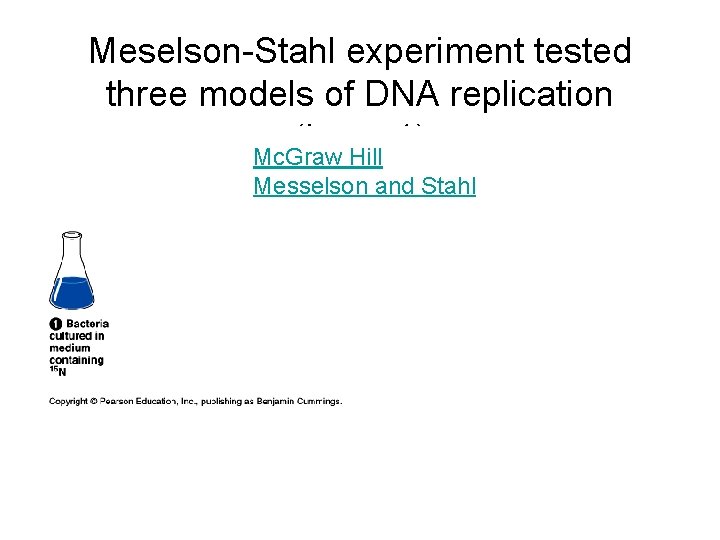

![Meselson-Stahl experiment tested three models of DNA replication (Layer 1) Mc. Graw Hill Messelson Meselson-Stahl experiment tested three models of DNA replication (Layer 1) Mc. Graw Hill Messelson](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-25.jpg)
Meselson-Stahl experiment tested three models of DNA replication (Layer 1) Mc. Graw Hill Messelson and Stahl
![Meselson-Stahl experiment tested three models of DNA replication (Layer 2) Meselson-Stahl experiment tested three models of DNA replication (Layer 2)](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-26.jpg)
Meselson-Stahl experiment tested three models of DNA replication (Layer 2)
![Meselson-Stahl experiment tested three models of DNA replication (Layer 3) Meselson-Stahl experiment tested three models of DNA replication (Layer 3)](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-27.jpg)
Meselson-Stahl experiment tested three models of DNA replication (Layer 3)
![Meselson-Stahl experiment tested three models of DNA replication (Layer 4) Meselson-Stahl experiment tested three models of DNA replication (Layer 4)](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-28.jpg)
Meselson-Stahl experiment tested three models of DNA replication (Layer 4)
![Origin of Replication in Bacteria Specific DNA sequence Origin of Replication in Bacteria Specific DNA sequence](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-29.jpg)
Origin of Replication in Bacteria Specific DNA sequence
![Origins of replication in eukaryotes DNA replication video Origins of replication in eukaryotes DNA replication video](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-30.jpg)
Origins of replication in eukaryotes DNA replication video
![Proteins used in DNA replication Proteins used in DNA replication](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-31.jpg)
Proteins used in DNA replication
![The main proteins of DNA replication and their functions helicase Single stranded binding proteins The main proteins of DNA replication and their functions helicase Single stranded binding proteins](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-32.jpg)
The main proteins of DNA replication and their functions helicase Single stranded binding proteins topoisomerase Primase DNA polymerase III DNA polymerase I how nucleotides are added DNA ligase
![Table 16 -1 Table 16 -1](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-33.jpg)

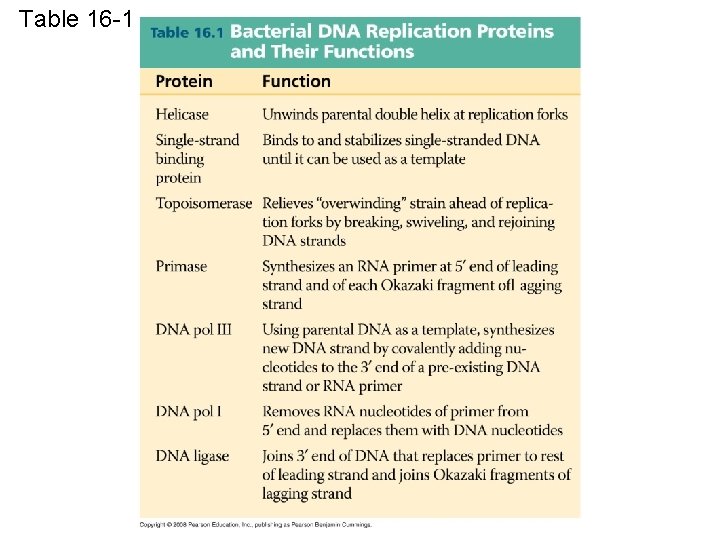

Table 16 -1
![The two strands of DNA are antiparallel Can only add to 3’ end The two strands of DNA are antiparallel Can only add to 3’ end](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-34.jpg)

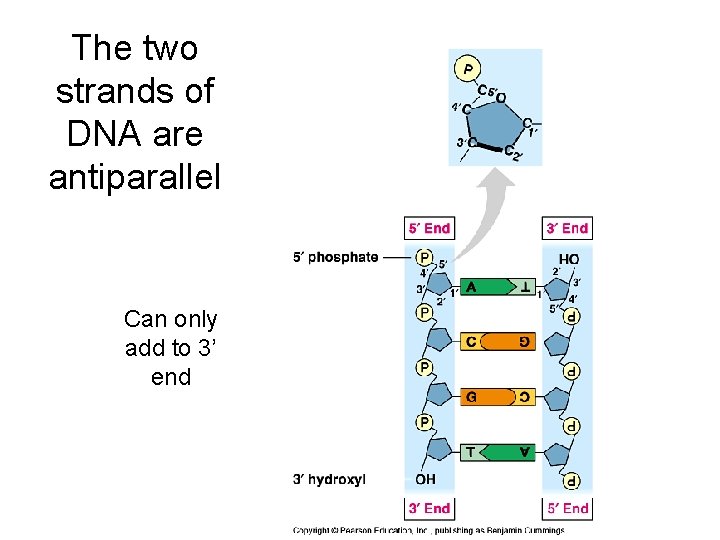

The two strands of DNA are antiparallel Can only add to 3’ end
![Incorporation of a nucleotide into a DNA strand • Each nucleotide that is added Incorporation of a nucleotide into a DNA strand • Each nucleotide that is added](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-35.jpg)
Incorporation of a nucleotide into a DNA strand • Each nucleotide that is added to a growing DNA strand is a nucleoside triphosphate • d. ATP supplies adenine to DNA and is similar to the ATP of energy metabolism • The difference is in their sugars: d. ATP has deoxyribose while ATP has ribose • As each monomer of d. ATP joins the DNA strand, it loses two phosphate groups as a molecule of pyrophosphate
![Fig. 16 -14 New strand 5 end Sugar 5 end 3 end T A Fig. 16 -14 New strand 5 end Sugar 5 end 3 end T A](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-36.jpg)
Fig. 16 -14 New strand 5 end Sugar 5 end 3 end T A T C G G C T A A Base Phosphate Template strand 3 end DNA polymerase 3 end A T Pyrophosphate 3 end C Nucleoside triphosphate 5 end C 5 end
![Direction of replication bioflix Activity DNA replication Direction of replication bioflix Activity DNA replication](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-37.jpg)
Direction of replication bioflix Activity DNA replication
![Synthesis of leading strand activity : DNA replication a closer look Activity DNA replication Synthesis of leading strand activity : DNA replication a closer look Activity DNA replication](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-38.jpg)
Synthesis of leading strand activity : DNA replication a closer look Activity DNA replication
![recap The rate of elongation is about 500 nucleotides per second in bacteria and recap The rate of elongation is about 500 nucleotides per second in bacteria and](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-39.jpg)
recap The rate of elongation is about 500 nucleotides per second in bacteria and 50 per second in human cells
![Synthesis of lagging strand Overview Origin of replication Leading strand Lagging strand 2 1 Synthesis of lagging strand Overview Origin of replication Leading strand Lagging strand 2 1](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-40.jpg)
Synthesis of lagging strand Overview Origin of replication Leading strand Lagging strand 2 1 Leading strand Overall directions of replication
![Fig. 16 -16 b 1 3 Template strand 5 5 3 Fig. 16 -16 b 1 3 Template strand 5 5 3](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-41.jpg)
Fig. 16 -16 b 1 3 Template strand 5 5 3
![Fig. 16 -16 b 2 3 Template strand 3 5 5 RNA primer 5 Fig. 16 -16 b 2 3 Template strand 3 5 5 RNA primer 5](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-42.jpg)

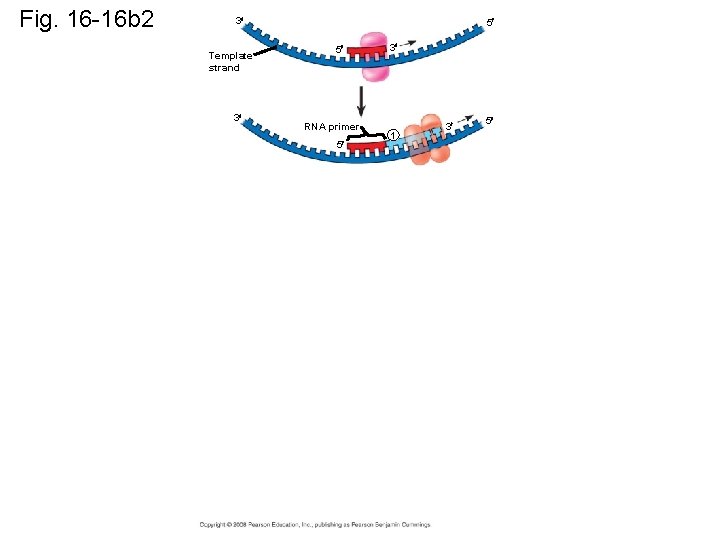

Fig. 16 -16 b 2 3 Template strand 3 5 5 RNA primer 5 3 1 3 5
![Fig. 16 -16 b 3 3 Template strand 3 5 5 RNA primer 5 Fig. 16 -16 b 3 3 Template strand 3 5 5 RNA primer 5](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-43.jpg)
Fig. 16 -16 b 3 3 Template strand 3 5 5 RNA primer 5 3 3 1 Okazaki fragment 3 1 5 5 3 5
![Fig. 16 -16 b 4 3 5 5 Template strand 3 RNA primer 5 Fig. 16 -16 b 4 3 5 5 Template strand 3 RNA primer 5](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-44.jpg)
Fig. 16 -16 b 4 3 5 5 Template strand 3 RNA primer 5 3 1 5 3 5 Okazaki fragment 3 3 3 1 5 5 2 1 3 5
![Fig. 16 -16 b 5 3 5 5 Template strand 3 RNA primer 5 Fig. 16 -16 b 5 3 5 5 Template strand 3 RNA primer 5](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-45.jpg)
Fig. 16 -16 b 5 3 5 5 Template strand 3 RNA primer 5 3 1 3 5 1 5 5 2 3 5 Okazaki fragment 3 3 3 1 3 5 5 2 1 3 5
![Fig. 16 -16 b 6 3 5 5 Template strand 3 RNA primer 5 Fig. 16 -16 b 6 3 5 5 Template strand 3 RNA primer 5](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-46.jpg)

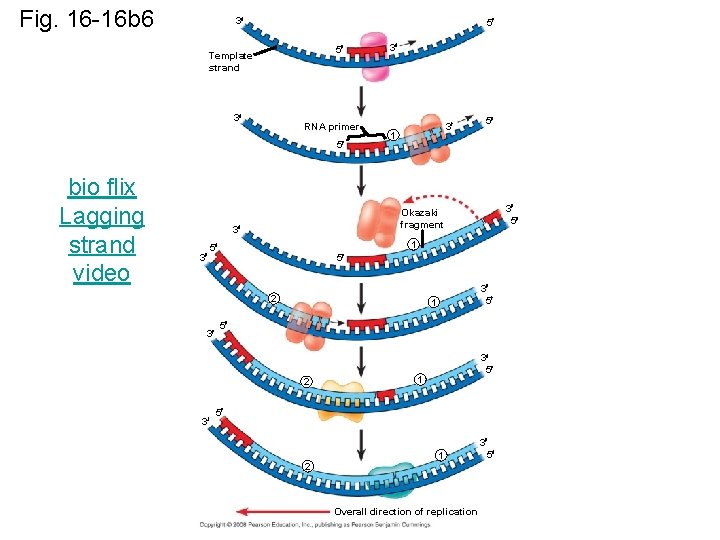

Fig. 16 -16 b 6 3 5 5 Template strand 3 RNA primer 5 bio flix Lagging strand video 3 1 5 2 3 5 1 5 2 3 3 5 1 5 3 5 Okazaki fragment 3 3 3 3 5 1 5 2 1 Overall direction of replication 3 5

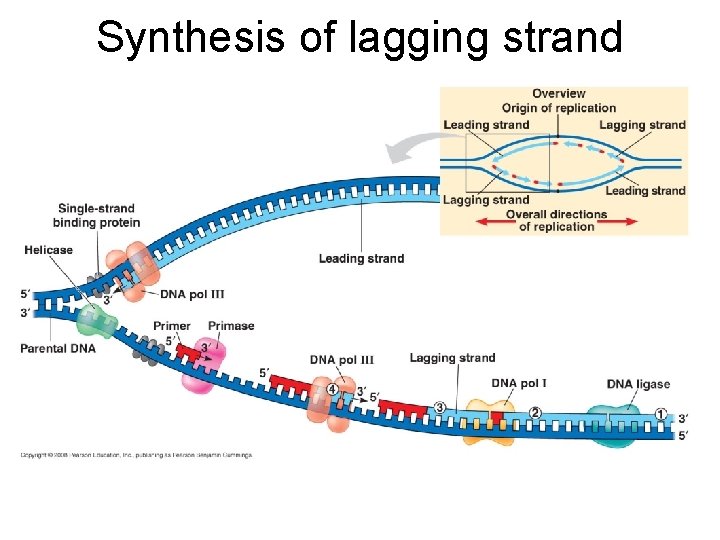

![Synthesis of lagging strand Synthesis of lagging strand](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-47.jpg)
Synthesis of lagging strand
![Priming DNA synthesis with RNA Priming DNA synthesis with RNA](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-48.jpg)
Priming DNA synthesis with RNA
![A summary of DNA replication A summary of DNA replication](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-49.jpg)

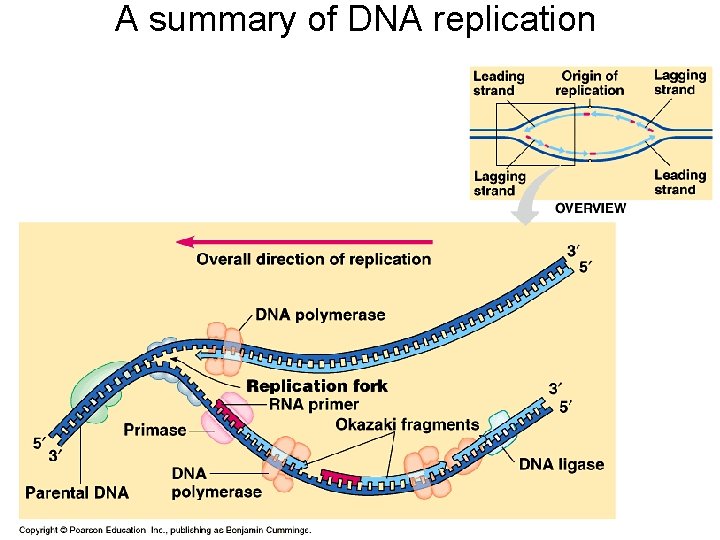

A summary of DNA replication
![The main proteins of DNA replication and their functions Activity: DNA replication review The main proteins of DNA replication and their functions Activity: DNA replication review](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-50.jpg)
The main proteins of DNA replication and their functions Activity: DNA replication review
![Nucleotide excision repair of DNA damage Nucleotide excision repair of DNA damage](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-51.jpg)
Nucleotide excision repair of DNA damage
![Fig. 16 -18 Nuclease DNA polymerase DNA ligase Fig. 16 -18 Nuclease DNA polymerase DNA ligase](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-52.jpg)
Fig. 16 -18 Nuclease DNA polymerase DNA ligase
![The endreplication problem The endreplication problem](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-53.jpg)
The endreplication problem
![Telomere = Aglet Telomere = Aglet](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-54.jpg)
Telomere = Aglet
![Fountain of Youth! Only in germ line cells Fountain of Youth! Only in germ line cells](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-55.jpg)
Fountain of Youth! Only in germ line cells
![Fig. 16 -19 5 Ends of parental DNA strands Leading strand Lagging strand 3 Fig. 16 -19 5 Ends of parental DNA strands Leading strand Lagging strand 3](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-56.jpg)
Fig. 16 -19 5 Ends of parental DNA strands Leading strand Lagging strand 3 Last fragment Previous fragment RNA primer Lagging strand 5 3 Parental strand Removal of primers and replacement with DNA where a 3 end is available 5 3 Second round of replication 5 New leading strand 3 New lagging strand 5 3 Further rounds of replication Shorter and shorter daughter molecules
![Telomeres and telomerase: Telomeres of mouse chromosomes Telomeres and telomerase: Telomeres of mouse chromosomes](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-57.jpg)
Telomeres and telomerase: Telomeres of mouse chromosomes
![Telomeres and telomerase Telomeres and telomerase](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-58.jpg)
Telomeres and telomerase
![Levels of DNA coiling and folding Nucleosome (10 nm in diameter) DNA double helix Levels of DNA coiling and folding Nucleosome (10 nm in diameter) DNA double helix](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-59.jpg)

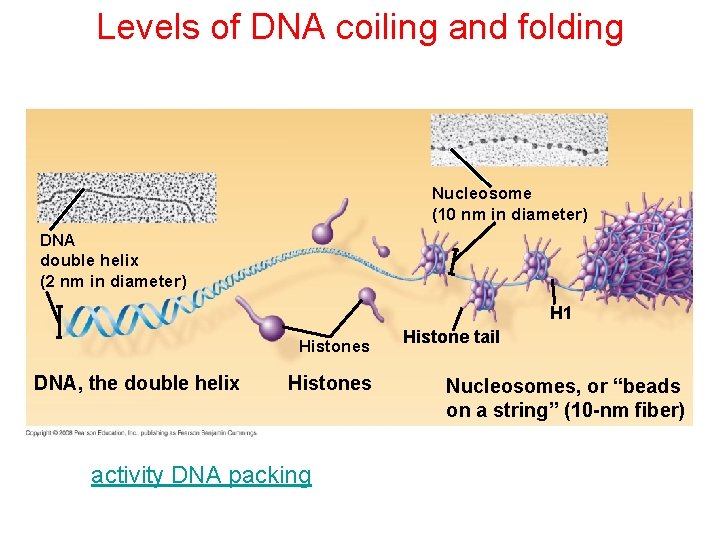

Levels of DNA coiling and folding Nucleosome (10 nm in diameter) DNA double helix (2 nm in diameter) H 1 Histones DNA, the double helix Histones activity DNA packing Histone tail Nucleosomes, or “beads on a string” (10 -nm fiber)
![Fig. 16 -21 b Chromatid (700 nm) 30 -nm fiber Loops Scaffold 300 -nm Fig. 16 -21 b Chromatid (700 nm) 30 -nm fiber Loops Scaffold 300 -nm](http://slidetodoc.com/presentation_image_h/0b6a43673a33ec53d24436911823d7be/image-60.jpg)
Fig. 16 -21 b Chromatid (700 nm) 30 -nm fiber Loops Scaffold 300 -nm fiber Replicated chromosome (1, 400 nm) 30 -nm fiber Looped domains (300 -nm fiber) Metaphase chromosome
