Java JavaPC programming environment Java syntax rules Java

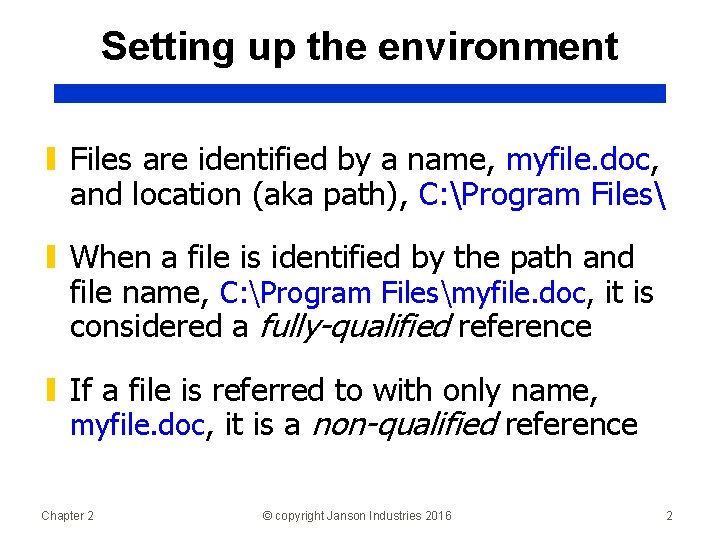

Setting up the environment ▮ Files are identified by a name, myfile. doc, and

Setting up the environment ▮ Having to type the fully-qualified name of every file

Setting up the environment ▮ Defining Path and CLASSPATH every time is time consuming

Setting the Path (Windows 7) Right click: “Computer” Choose: Properties Click: Advanced system settings

Setting the Path (Windows 7) In the System Variables pane: Click the variable Path

Setting the Path (Windows 7) In the Edit System Variable window, add to the

Setting the Classpath (Win 7) ▮ If there is no classpath environment variable, create

Setting the Path (Windows 10) Click the Start button, then All Apps Scroll down

Setting the Path (Windows 10) Click System Then click Advanced system settings Chapter 2

Setting the Path (Windows 10) Click the Environment Variables button Chapter 2 © copyright

Setting the Path (Windows 10) In the System Variables pane: Click the variable Path

Setting the Path (Windows 10) In the Edit environment variable window, click New button

Setting the Classpath (Win 10) ▮ If there is no classpath environment variable, create

Setting the Classpath (Win 10) ▮ Click the OK Button ▮ New variable should

General steps to run on PC ▮ Save the source code (E. g. Customer.

Java Concepts ▮ Java “program” is called a class ▮ Java classes grouped into

Java Language Organization Project Package Class Variable Class Method Variable Chapter 2 Class Package

Java Language Concepts ▮ Let’s concentrate on the source code ▮ Java classes comprised

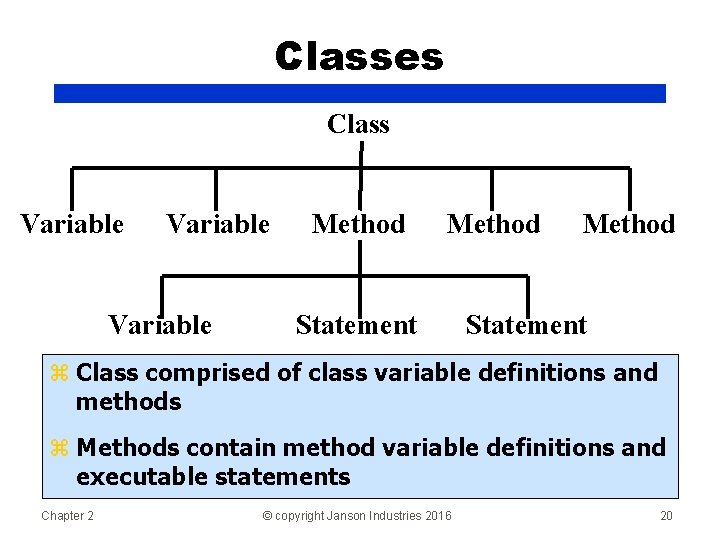

Classes Class Variable Method Statement z Class comprised of class variable definitions and methods

Java Class Example // Customer. java public class Customer { String cust. Name, Class

Classes ▮ Divided into the header and the body ▮ Header defines: ▮ The

Java Class “A class contains a template for creating objects” Class Definition: Class access

Java Method ▮ Comprised of a header/definition and body ▮ Header/definition comprised of: ▮

Java Method ▮ When a parameter is defined, must specify the data type and

Java Method ▮ Method header/definition examples: ▮ public void set. Customer. Name(String cust. Name)

Java Method ▮ Method "access" modifiers (cont’d): ▮ Private methods: ▮ only accessed by

Java Concepts ▮ Java classes can be invoked many ways ▮ 2 primary ways

Java Concepts ▮ If java class is invoked with the java command: ▮ main

Specialized Methods ▮ Constructors are methods that: ▮ Can not return any values ▮

main Method When main is invoked, object not created Main expects an array of

Customer has a class header, constructor, and main method that follow the previously defined

Method body ▮ Comprised of: ▮ variable definitions ▮ executable statements ▮ Enclosed in

Java Language ▮ Variables usually defined at the beginning of a class or method

Java Language ▮ Comment examples: /* This is an example */ Multiple line comment

Programming Conventions ▮ Class header and start of body defined public class Customer {

Source Code Rules ▮ Statements end with a semicolon (; ) private String cust.

Source Code Rules ▮ To invoke a method from outside the class, instantiate an

Source Code Rules ▮ Weird? Not really. To use Word Processing commands, don’t you

New Class header Class variables Method header Statements Chapter 2 © copyright Janson Industries

Creating an Object Class header Method header Statements What will be the result of

Execution Results ▮ Customer. App’s main method bytecode converted to machine language and loaded

Execution Results ▮ 3 String objects are created with the text “No Name”, “No

Execution Results ▮ Third statement in main executed: the Customerc 2 sl 31 object’s

Proving main vs. constructor What will be the result of running this? Let’s create

Chapter 2 © copyright Janson Industries 2016 Click on the src folder name and

Chapter 2 © copyright Janson Industries 2016 Specify the name of the new class

Starts you with a framework Move the cursor and start typing Chapter 2 ©

Enter the source code and run What are the results and why? Chapter 2

Exporting: Moving an app from RAD to the production environment Click FILE then EXPORT

Click File system then Next Chapter 2 © copyright Janson Industries 2016 51

In real world, usually export to JAR (Java ARchive) files. They are compressed files.

1. Select the java files to export 2. Enter export destination or. . .

Notice options to create directories and overwriting files Chapter 2 Click Finish © copyright

Go out and verify Cust 1. java is there. Chapter 2 © copyright Janson

Open with notepad to display Chapter 2 © copyright Janson Industries 2016 56

Make sure current directory and path variable are set javac and java Chapter 2

Exporting ▮ Moving between/setting up environments is one the most difficult thing (conceptually) for

Exporting ▮ This is where packages can mess you up! ▮ Ex. For a

Exporting and Running ▮ When file exported to Windows, Customer file must be in

Exporting and Running ▮ Need to add Proj 1 to the classpath and refer

Exporting and Running ▮ In other words, on the export window choose third option

Exporting and Running ▮ No project folder or src folder will be created ▮

Assgs ▮ Export file(s) or package (recommended) out of RAD workspace as a single

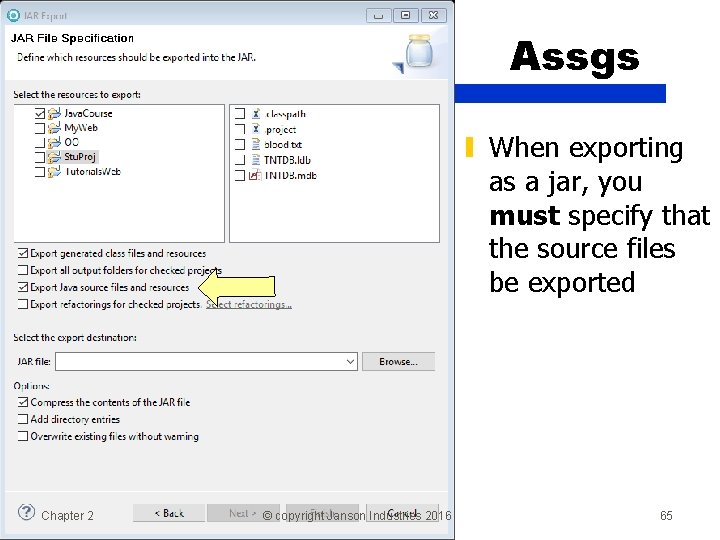

Assgs ▮ When exporting as a jar, you must specify that the source files

Assgs ▮ How to check you exported a jar file correctly ▮ Create a

Documentation ▮ Online documentation available. Ex: http: //download. oracle. com/javase/8/docs/api/ ▮ Gives an overview

Shows a brief description of all packages in V 8 Click the package name

Shows a hierarchy for the class Brief description and examples Chapter 2 © copyright

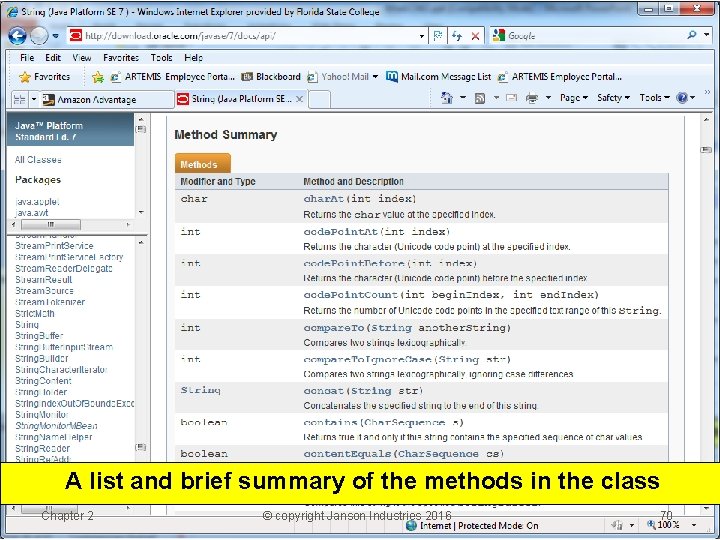

A list and brief summary of the methods in the class Chapter 2 ©

Documentation ▮ You can generate the same documentation for your classes ▮ First, you

Right click the class and select Export Chapter 2 © copyright Janson Industries 2016

Select Javadoc and click Next Chapter 2 © copyright Janson Industries 2016 73

RAD should know that javadoc is in the JDK in RAD Specify where the

Chapter 2 © copyright Janson Industries 2016 75

Console shows Javadoc messages Chapter 2 © copyright Janson Industries 2016 76

. html file with same name as class is there Double click to display

The “signature” of each method is shown Signature = method name + parameters The

Non-graded Assg ▮ Create Cust 1 ▮ Export Cust 1 and Run ▮ Export
