Engineering and Manufacturing Specialty HVAC Equipment since 1971
- Slides: 87
Engineering and Manufacturing Specialty HVAC Equipment since 1971 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
• Two adjacent manufacturing facilities. • Over 200, 000 square feet of floor space 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
150 to 200 dedicated employees 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Employee owned company 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Welded formed galvanized steel base 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Welded extruded aluminum base 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
12 inch welded structural steel base 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
1” 3 lb. and 4” batt type insulation or sprayed with up to 6” inches of polyurethane foam insulation. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Fiberglass insulation R value 4. 3 inch Polyurethane foam injected insulation R value 6. 7 per inch 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Panels are insulated with 2”, 3” or 4” double wall fiberglass or polyurethane foam insulation. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Seasons-4 units feature an aluminum casing that never needs painting and will not rust. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Galvanized Steel and Stainless Steel casing are also available. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Standard Available Colors 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Custom Colors Red 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 Yellow www. seasons 4. net
Full-height access doors feature full-length continuous hinges, stainless steel hold-backs, rain gutters and single door handle with multiple point latches. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Air Cooled Condensing Sections 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
550 tons of air cooled packaged unit 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Air Cooled Condensing Sections with expanded aluminum guards 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Air Cooled Condensing Sections with sound attenuators & louvers 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Air Cooled Condensing Sections with: EC motors 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Evaporative-Cooled Condensing Sections 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Water-Cooled w/Shell & Tube Condensers 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Water-Cooled w/Plate-type Condensers
Chilled water, Hot water or Steam coils with copper fins or Electro-Fin coated. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Copeland Scroll™ Digital Technology – 10 -100% Capacity Modulation – Effective Way To Achieve Infinite Capacity Modulation l l Available in 4 to 15 HP Models Compressor Controller monitors the cooling demand by modulating the solenoid valve Diagnostics-7 codes indicating faults Protection against excessive discharge temperature, low flow conditions and operation under fault conditions. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Seasons-4 uses Copeland semi-hermetic reciprocating compressors to deliver 5 to 300+ tons of cooling capacity. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Hermetic screw compressors. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net

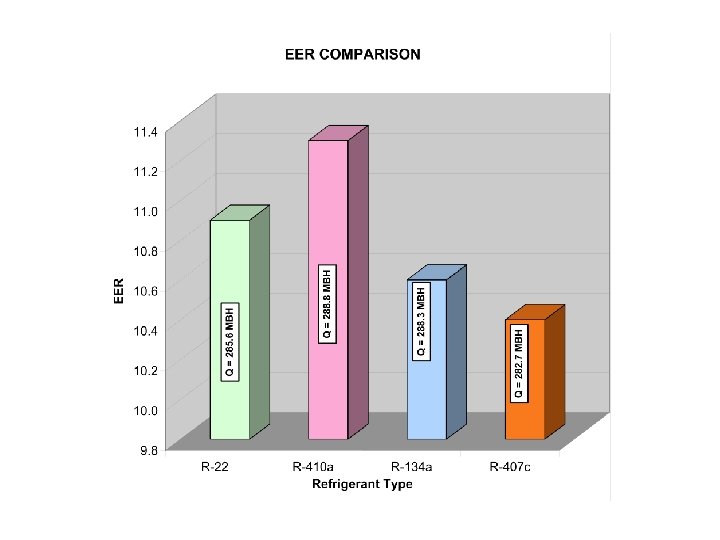

Seasons-4 offers HCFC- free refrigerants R-407 c R-134 a R-410 a R-22 will be phased-out by 2010 in new equipments and production must end by 2020. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
High efficiency SWSI backward inclined, airfoil plenum belt driven or direct drive supply air blowers with premium efficiency motors, mounted on 2” deflection spring isolators. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
High efficiency DWDI backward inclined, airfoil housed blowers 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Axial fans with roll-out carts 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Multiple fan arrangements 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Indirect natural gas or propane gas tubular duct furnaces with stainless steel heat exchangers 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Indirect natural gas or propane gas power burners with stainless steel drum and tube heat exchangers 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Seasons-4 Energy Recovery Systems Energy recovery can substantially reduce mechanical heating and cooling requirements associated with conditioning ventilation air in most buildings, specially buildings require 100% outside air at high ventilation rates. Seasons-4 offers the most commonly used energy recovery systems. 1 - Energy Recovery Wheels a) Enthalpy Wheels b) Sensible Wheels c) Desiccant Wheels 3 - Heat Pipes 2 - Air to Air fixed flat Heat Exchangers 4 - Run-Around Loops 1

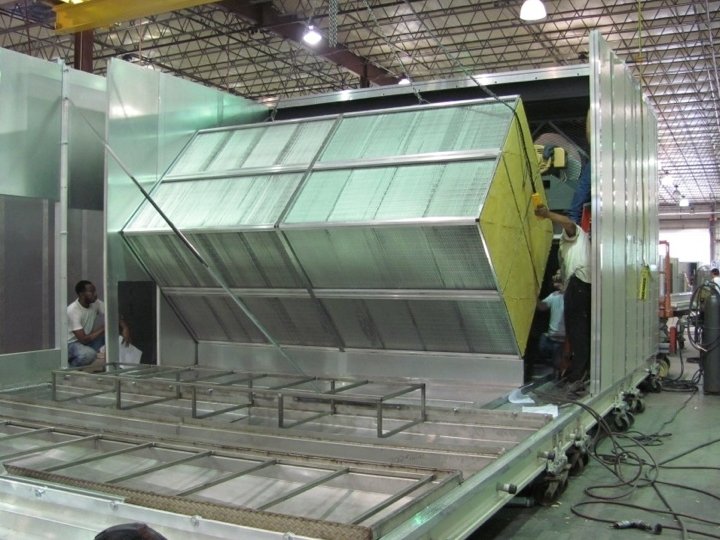

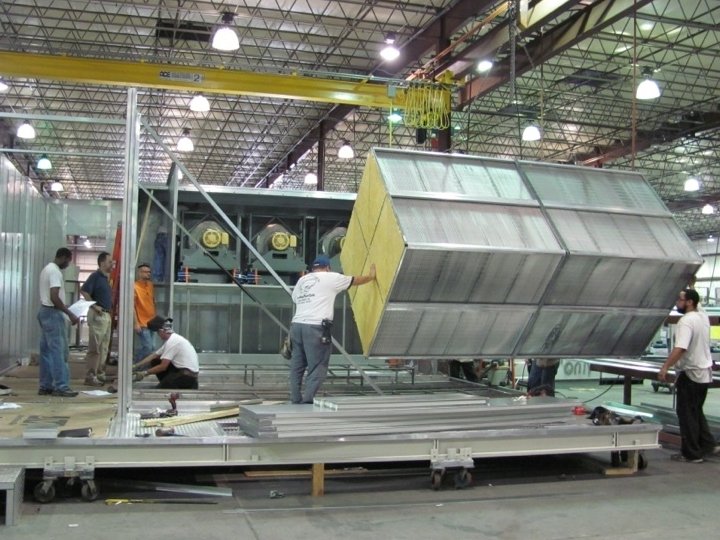

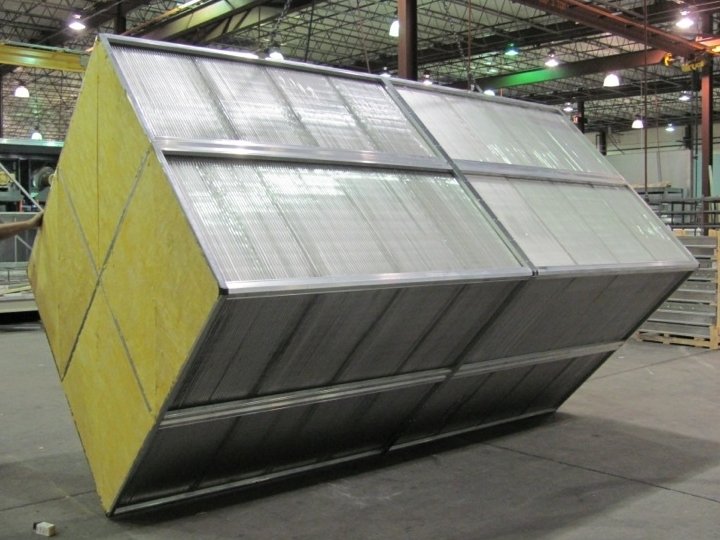

Energy Recovery Wheels: Energy recovery wheels are the most efficient energy recovery devices, effectiveness ranging from 50% to 80%. The wheels require routine maintenance of the belt and the motor and good filtration. Exhaust Air Fresh Air Supply Air Return Air
Heat pipe
Energy Recovery units with an Enthalpy wheel and a Sensible wheel in each unit.
FIXED-FLAT HEAT EXCHANGERS Plate heat exchanger are the second most efficient energy recovery systems, effectiveness ranging from 50% to 75%. Their most distinct advantage is that they have no moving parts. Return Air Supply Air Fresh Air Exhaust Air
Heat Pipe Heat Exchangers: Heat pipe heat exchangers have the appearance of ordinary finned coils with specific amount of refrigerant. Effectiveness between 50% to 65%. Because they lack moving parts, Heat Pipes are low maintenance and very rarely fail. Supply Air Return Air Exhaust Air Fresh Air
Flat Heat pipe
Wrap around Heat pipe
Run-Around Loops: Run-Around Loops, also known as coil energy recovery loops, use a coil placed in each air stream that are connected by pipes filled with a heat transfer fluid, generally a glycol Solution. Effectiveness ranging from 50% to 65%. Coil Fan Supply air Fresh Air Coil Fan Exhaust Air Pump Tank Return Air 2
Walk in Service Vestibule 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Walk in Service Corridors 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Walk in Service Corridors 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Network Integration The Bottom Line, Modbus BACnet a Division of Automated Logic Corp. no matter what BAS… N 2 Bus Lon. Works Network Interface card required You’re Covered.
Low Temperature Applications Seasons-4 also offers DX units to deliver 39°Fdp discharge air for critical food processing and dehumidification applications. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Dual Path Systems For Absolute dehumidification Outside air 95/78 deg F. Outside air coil 55/54 deg F. LAT Reheat coil Return air 75/63 deg F Return air coil 55/54 deg F. LAT 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Multi-zone Triple Deck Systems Constant volume or VAV. HOT DECK COLD DECK 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Multi-zone Triple Deck Systems Constant volume or VAV. HOT DECK SA BLOWER BYPASS COLD DECK 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Modified portable container with energy wheel and air cooled condensing section 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
8 -Hour Installation Leader in Direct replacement of Multi-zone, Single zone, Rooftop and Indoor units Lennox Nesbitt Carrier Mammoth Mc. Quay Air-Dyne Tjernlnd AAF Trane York Governaire Webster Marlo Des Champs ECS Dunham Bush Acme Schemenauer Pace Miller Picking Jackson & Church …and many more 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
A factory specialist measures the existing unit length, width, zones and utilities locations. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
The existing unit is removed 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
The existing unit curb is cleaned and covered with factory provided gasket. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Existing curb and utility connections are prepared for the new unit. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net

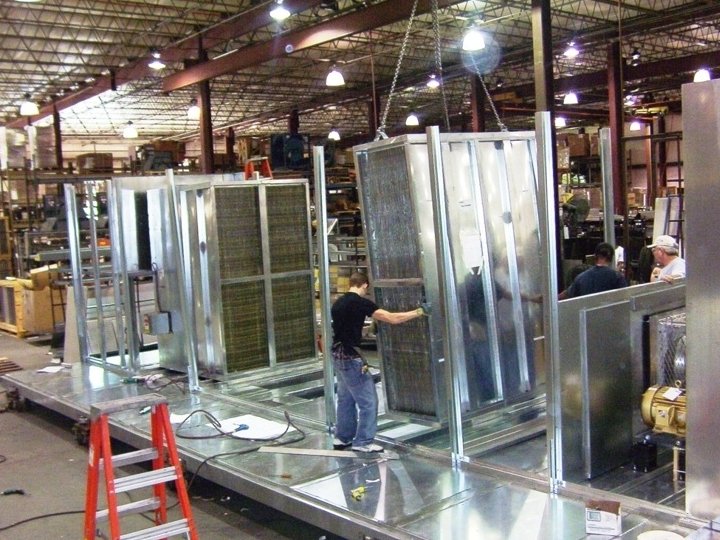

Units are built, factory tested and shipped……. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net

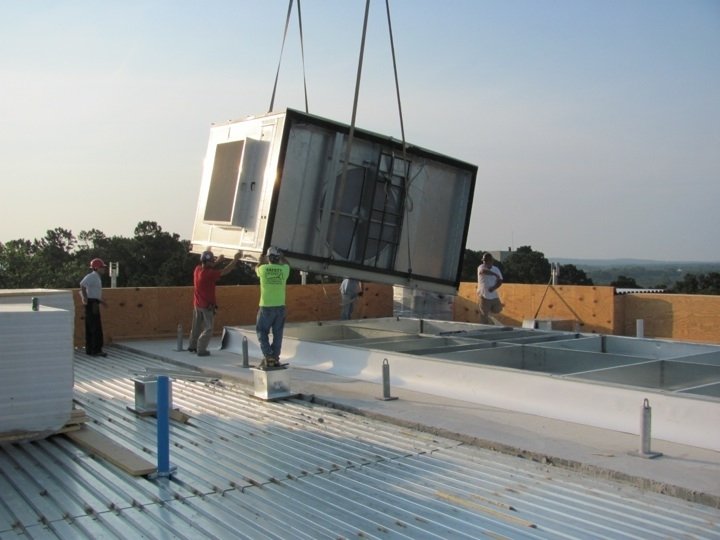

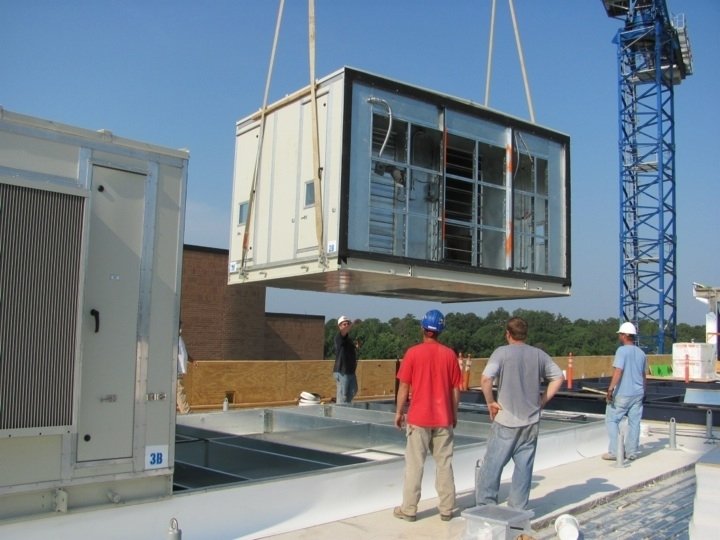

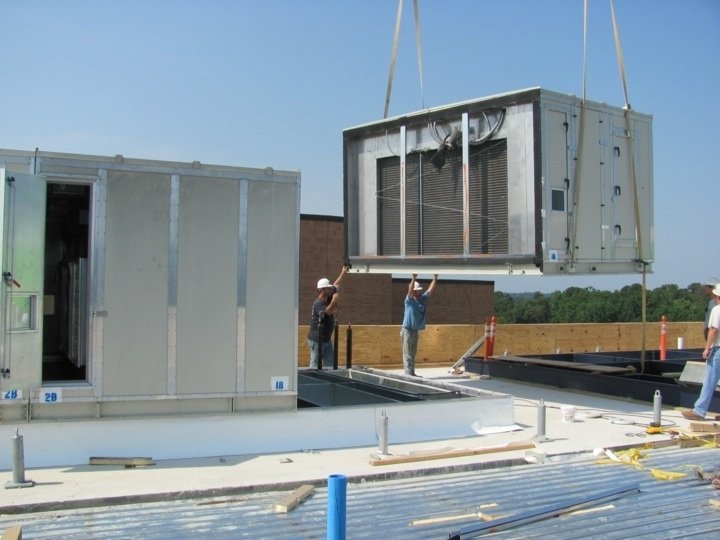

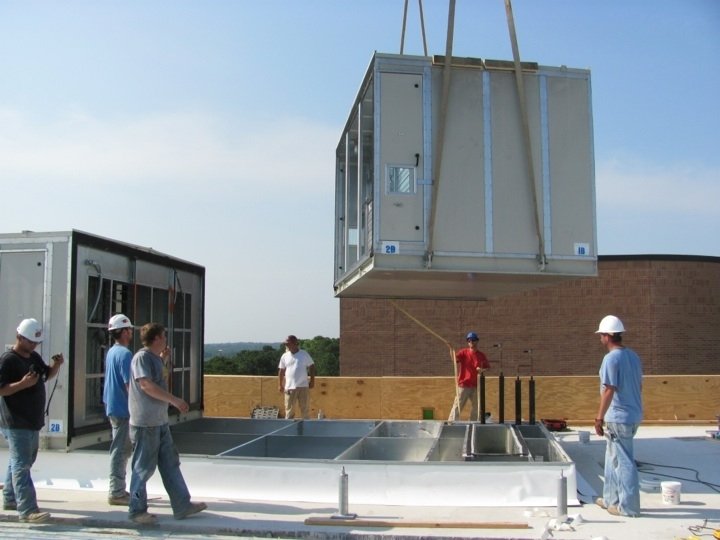

The new direct replacement unit is rigged onto the existing curb. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
The end panel is removed to match the existing zones. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
The utility connections and all the zones are matched and the unit is ready for start up. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
The utility connections and all the zones are matched and the unit is ready for start up. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Leader in direct replacements of Multi-zone or Single zone units. Existing Lennox unit Seasons-4 Direct Replacement 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Leader in Direct Replacements of Multi-zone or Single zone units. Existing York unit Seasons-4 Direct Replacement 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Leader in Direct Replacement of Multi-zone or Single zone units Carrier Single zone unit Seasons-4 Direct Replacement 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Leader in Direct Replacement of Multi-zone or Single zone units Mc. Quay Single zone unit with curb adaptor Seasons-4 Direct Replacement 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Leader in Direct Replacement of Multi-zone or Single zone units Existing roof built unit Seasons-4 Direct Replacement 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Leader in Direct Replacement of Multi-zone or Single zone units We can help you replace a “roof-made” unit with a custom designed, factory manufactured and tested Seasons-4 unit. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Leader in Direct Replacement of Multi-zone or Single zone units We can help you replace a “man-made” unit with a custom designed, factory manufactured and tested Seasons-4 unit. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Leader in Direct Replacement of Multi-zone or Single zone units 1 3 2 Precise engineering, job site delivery, rigging assistance and supervision of start up are provided by Seasons-4. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net

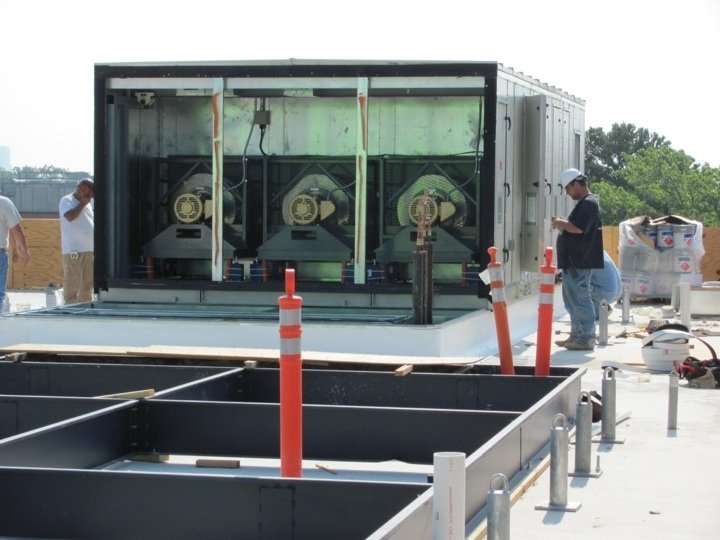

Custom designed air cooled condensing sections 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net

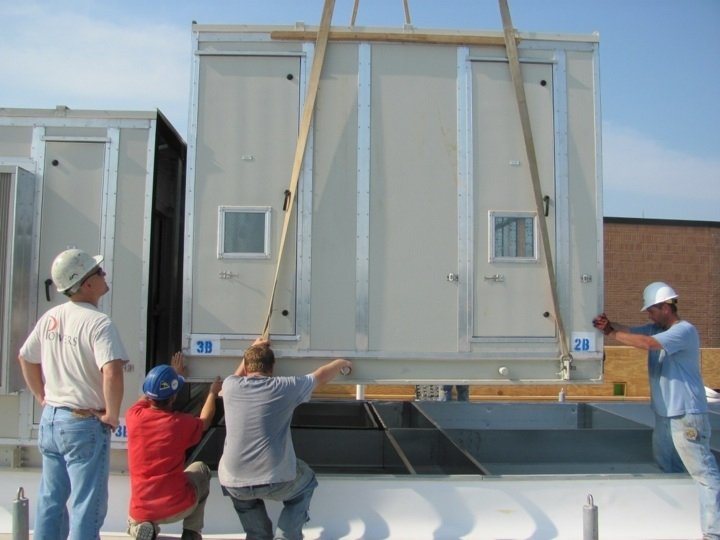

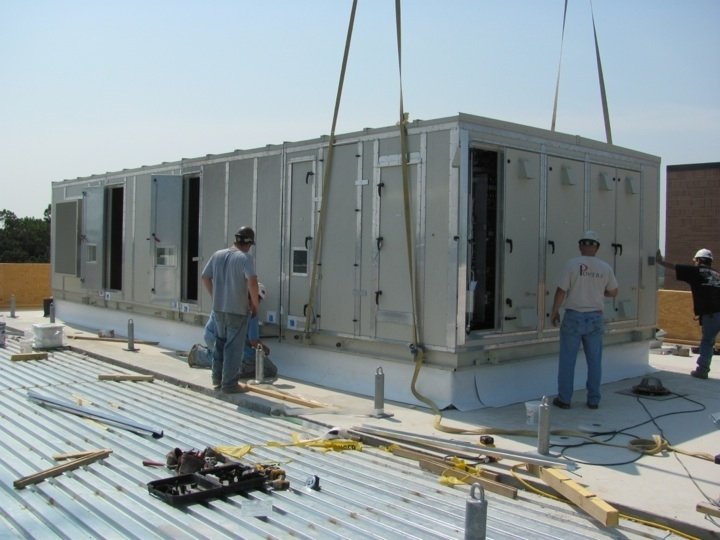

A Custom replacement unit is positioned carefully into place, saving the owner money and the contractor valuable time. SEASONS-4’s Custom HVAC Unit Engineering and Manufacturing help customers get their job done on time. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Every Seasons-4 unit is run-tested at our factory prior to shipment and delivered to the job site at the requested date and time. Seasons-4 provides factory rigging and start-up assistance. 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
Seasons-4 is the primary manufacturer for Los Angeles Unified School District (L. A. U. S. D) 10 years. Hacienda La Puente Unified School District, LA County. San Diego City USD. New York City School Construction Authority (NYCSA). Fairfax County School District in Virginia, . P. S. Business Office Buildings, Maryland. Department Of Motor Vehicles , California. Brandywine Realty, New Jersey. Cherry Creek School District, Colorado. Supermarkets: Food City, Safeway, Stater Brothers, HY VEE, Whole Foods, Wal Mart Super centers, Target Super Centers, SHAWS, Weis Market, Stop & Shop, Giant Eagle, Giant Foods, SAMS, Harris Teeters, Martins, Dierbergs, Redners, Wild Oats, Woodmans 4500 Industrial Access Road Douglasville, GA ; P 770 -489 -0716 www. seasons 4. net
