Industrial Electric Mfg. (IEM) IEM is the largest independent full-line manufacturer of electrical distribution equipment in North America ISO 9001 Certified Tradition. Technology. Innovation.

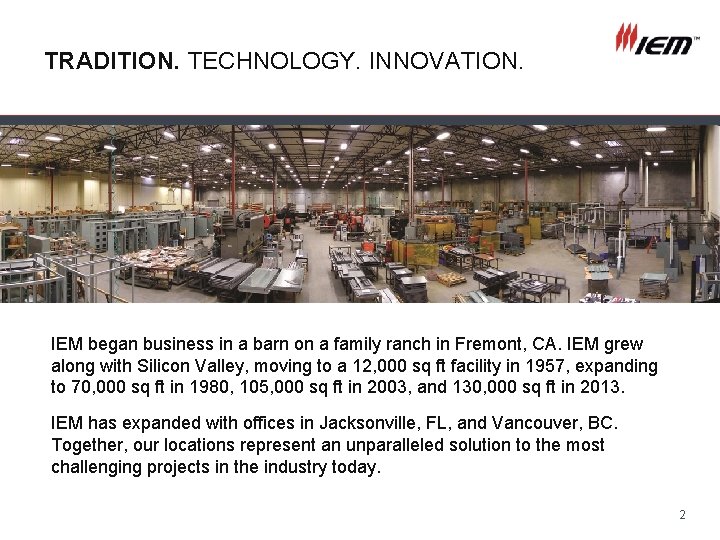

TRADITION. TECHNOLOGY. INNOVATION. IEM began business in a barn on a family ranch in Fremont, CA. IEM grew along with Silicon Valley, moving to a 12, 000 sq ft facility in 1957, expanding to 70, 000 sq ft in 1980, 105, 000 sq ft in 2003, and 130, 000 sq ft in 2013. IEM has expanded with offices in Jacksonville, FL, and Vancouver, BC. Together, our locations represent an unparalleled solution to the most challenging projects in the industry today. 2

TRADITION. TECHNOLOGY. INNOVATION. IEM has been solving power distribution challenges for HP, Apple, and dozens of prominent companies since they were startups. IEM developed a groundbreaking version of the medium voltage vacuum breaker in the 1980’s, pioneered the use of breakers on 21 k. V systems, and was the first to design a 3000 A free standing breaker for utilities. LV Switchboard installation for AT&T – Hayward, CA 3

TRADITION. TECHNOLOGY. INNOVATION. IEM pioneered the use of fully integrated CAD and manufacturing systems, beginning in 1979 with the first CAD/CAM system for electrical equipment metal fabrication. 4

IEM Expands to New Facilities IEM Canada, Inc. As an extension of the parent company, IEM Canada specializes in the design and development of paralleling switchgear and controls while offering all of IEM’s proven products and services. IEM Canada is located in Langley, B. C. IEM Power Systems, LLC (IEMPS) For over 30 years, IEMPS has been an industry leader in providing custom electrical systems with innovative new approaches to solutions for industrial and marine applications. IEMPS is located in Jacksonville, FL. 5

IEM Positioning 6

IEM Delivers Customer Specific Solutions Abbott Laboratories American Online (AOL) Apple AT&T Chevron Corp. Cisco Cox Communications Digital Reality Trust Dupont Fabros Google Hewlett Packard Co. IBM Intel Corp. Kaiser Permanente Medical Center Lawrence Livermore National Lab Lockhead Missles and Space Co. Mc. Carron Int’l Airport - Las Vegas Metro Atlanta Rapid Transit (MARTA) Microsoft NASA National Semiconductor Corp. Oakland International Airport Oracle Pacific Gas & Electric Co. Port of Oakland Qwest San Francisco International Airport Siemens Transportation Sprint Stanford University Sun Micro Systems United States Navy University of California, Berkeley Vantage Data Centers Verizon Yahoo!

IEM’s Unique Parallel Manufacturing System IEM’s unique parallel manufacturing system allows complete flexibility and modification at any stage of the manufacturing process. This IEM Difference results in shorter manufacturing cycles, increased flexibility after start of production, and easy integration of special designs. 8

IEM Product Scope • Arc-Resistant Switchgear • Panelboards • Switchboards • Low Voltage Switchgear • Medium Voltage Switchgear • Unit Substations • Paralleling Switchgear • Custom Assemblies • Systems Monitoring • 38 k. V Metal Clad Switchgear 9

MV Metal-Clad Arc Resistant Switchgear • Rated Voltage: 5 -15 k. V • Current: 600 -2000 A • Magnetically Actuated Vacuum Circuit Breaker • Full front accessibility • Smallest footprint on the market (96 H” x 24 W” x 60 D”) • Monoblock capacity for 2 sets CT’s on line & load • Arc-Resistant Rated Type 2 A and Type 2 B • UL and c. UL Listed, ANSI/IEEE Listed 10

Distribution and Lighting Panelboards • Flexibility to integrate a wide range of components including surge suppression equipment, custom metering, receptacles, and more • Up to 84 circuits in one panel • Vertically mounted main and sub-feed circuit breakers • Single phase and three phase • Complete line of UL Listed interiors with 200% rated neutrals for non-linear loads 11

Switchboards Exceeding Industry Standards • Devices can be individually (vertically) or group (panel/horizontally) mounted • Custom sheet metal and bus flexibility for busway and transformer connections • Rigid frame construction isolating bus and breaker assemblies from enclosure • Options include automatic transfer switches, TVSS, distribution transformers, and PLC or relay based transfer schemes • Voltage ranges 120 V to 600 V AC, 250 V DC, Ampacity 400 A to 12, 000 A 12

Low Voltage Switchgear • Industry leading power circuit breakers • Indoor, outdoor non walk-in and outdoor walk-in enclosures • Extensive variety of durable color finishes, using state-of-the-art electrostatic powder coat paint process • Power circuit breakers can be mounted in a fixed or draw-out configuration • Voltage ranges 240 V to 600 V; Ampacity 800 A to 5, 000 A 13

MV Metal-Clad Switchgear (Circuit Breaker Assemblies) • Voltage 2400 V to 27 k. V • Ampacity 1200 A to 3000 A • Available vacuum circuit breakers with optional choice of manufacturers • Multitude of relay and metering options • Rear access for load and incoming connections • Compartmentalized construction with breaker compartment for each device • Unit substation primaries • Indoor, outdoor non walk-in and outdoor walk-in enclosures 14

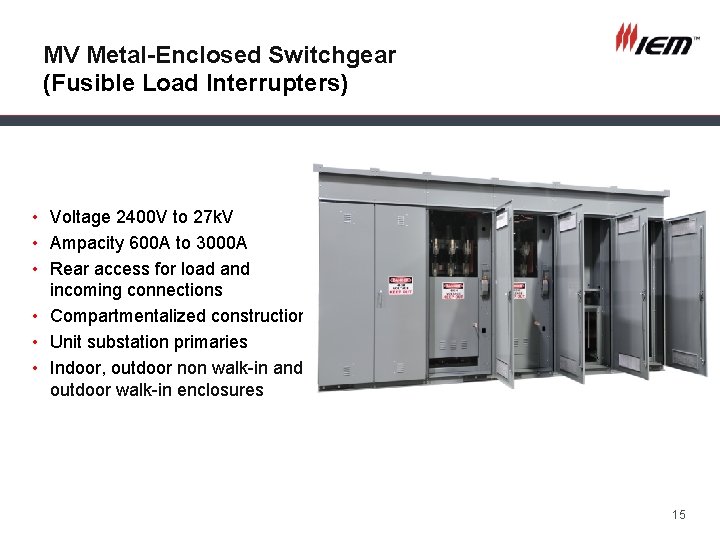

MV Metal-Enclosed Switchgear (Fusible Load Interrupters) • Voltage 2400 V to 27 k. V • Ampacity 600 A to 3000 A • Rear access for load and incoming connections • Compartmentalized construction • Unit substation primaries • Indoor, outdoor non walk-in and outdoor walk-in enclosures 15

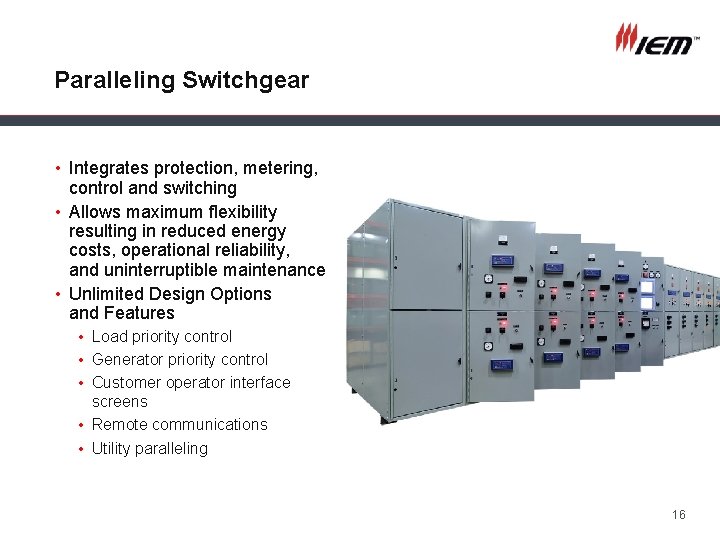

Paralleling Switchgear • Integrates protection, metering, control and switching • Allows maximum flexibility resulting in reduced energy costs, operational reliability, and uninterruptible maintenance • Unlimited Design Options and Features • Load priority control • Generator priority control • Customer operator interface screens • Remote communications • Utility paralleling 16

Unit Substations • Converts distribution voltages to utilization voltages in any configuration up to 27 k. V • Maximum flexibility with wide range of components and ratings • Indoor or outdoor assemblies/construction • Primary disconnect switch or circuit breaker up to 27 k. V • Configures to any transformer manufacturer available 17

Custom Assemblies Custom Distribution Centers enable the integration of components or products tailored to address a variety of unique system needs • Walk in enclosures • Shore Power Switchgear • Emergency Fused Coordination Panels • Generator Tap Cable Top Boxes • Integrated Switchboards 18

Systems Monitoring – Telegauge • Effectively monitor your facility with the most advanced, customizable trending and reporting system. • Users are able to effectively monitor and control the health of their facility with customized tools to store and export data for reporting, alarming and trending. • Speaks to all the major protocols (MODBUS, Profibus, DNP 3), all over the major interfaces (RS-485, RS-422, Ethernet), gathering relevant data from key devices, and storing them in an onsite database. 19

38 k. V Medium Voltage Metal-Clad Switchgear • • Voltage: 38 k. V Ampacity: 1200 A, 2000 A Rated voltage withstand (BIL): 150, 170 k. V peak Breaker interrupter ratings: Up to 40 k. A Dimensions: 42” W x 122” D x 95” H Advanced vacuum circuit breaker Compartmentalized construction with breaker compartment for each device • Rear access for load and incoming connections • Indoor or Outdoor applications Testing/Industry Standards • IEEE C 37. 20. 2 • CSA C 22. 2 No. 31 -M 89 • EEMAC G 8 -3. 2 • ANSI IEEE C 37. 04, C 37. 06, C 37. 09 20

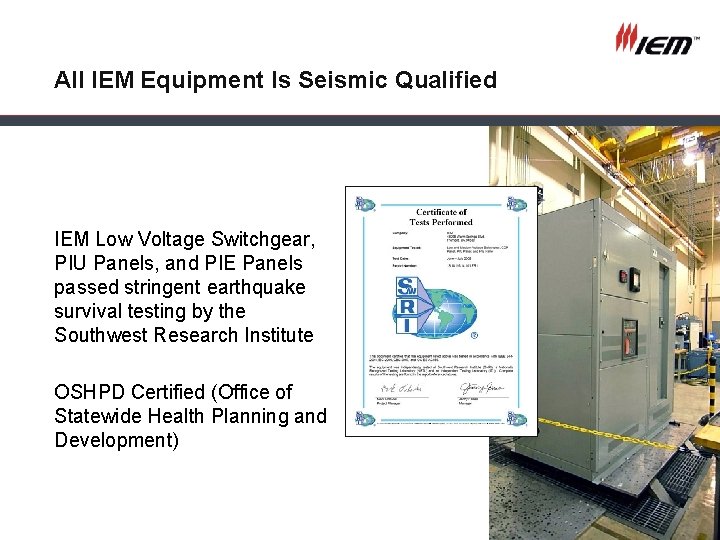

All IEM Equipment Is Seismic Qualified IEM Low Voltage Switchgear, PIU Panels, and PIE Panels passed stringent earthquake survival testing by the Southwest Research Institute OSHPD Certified (Office of Statewide Health Planning and Development) 21

Fully Rated Bus Superior Bussing • Fully rated based on density not temp rating • 1000 A/in 2 for copper • 750 A/in 2 for aluminum • In-house forming, bending and punching 22

Superior Enclosures • Each designed for a specific application • Rigid and square enclosure, limits distortion • Dimension flexibility • Aluminum, stainless, galvanized steel • Custom powder coating paint finish 23

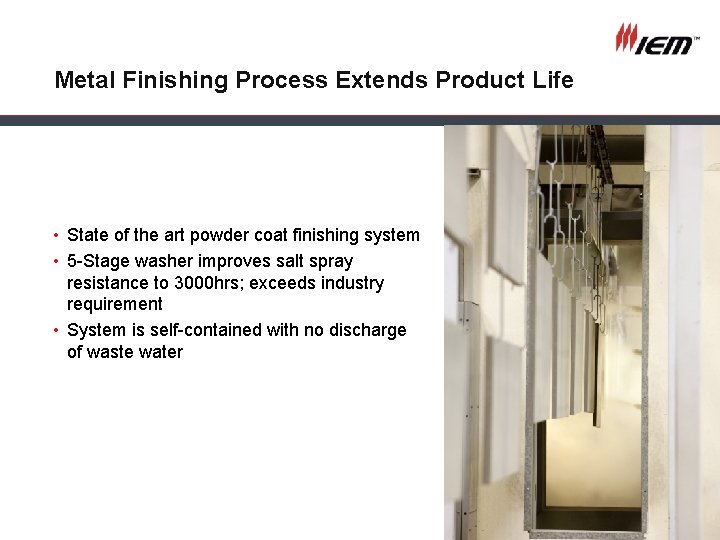

Metal Finishing Process Extends Product Life • State of the art powder coat finishing system • 5 -Stage washer improves salt spray resistance to 3000 hrs; exceeds industry requirement • System is self-contained with no discharge of waste water 24

The IEM Difference • Proven track record, responsive, experienced staff • Flexible, comprehensive solutions • Leading-edge CAD software and tech support • Components sourced from best manufacturers • Testing that exceeds industry standards 25

IEM Overview Video 26

IEM Power Systems, LLC IEMPS specializes in control system design for the Low and Medium Voltage Paralleling Switchgear industry. • Emergency Standby • Prime Power • Base Load • Peak Shaving • Co-Generation • Resource Recovery 27

IEM Power Systems, LLC IEMPS also designs and builds advanced electrically coupled rotary diesel UPS systems for critical applications where continuous and reliable power are requirements. 28

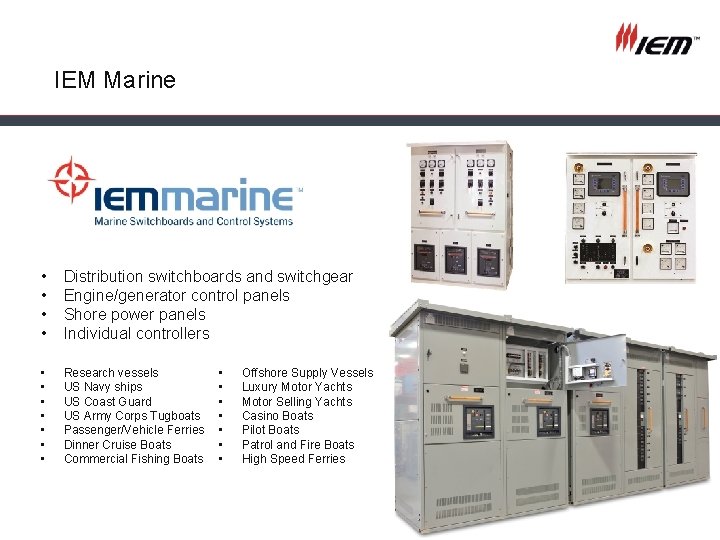

IEM Marine • • Distribution switchboards and switchgear Engine/generator control panels Shore power panels Individual controllers • • Research vessels US Navy ships US Coast Guard US Army Corps Tugboats Passenger/Vehicle Ferries Dinner Cruise Boats Commercial Fishing Boats • • Offshore Supply Vessels Luxury Motor Yachts Motor Selling Yachts Casino Boats Pilot Boats Patrol and Fire Boats High Speed Ferries 29
