DAY 6

DAY 6

STRESS • Stress is a measure of force per unit area within a body.

STRESS • Stress is a measure of force per unit area within a body. • It is a body's internal distribution of force per area that reacts to external applied loads. STRESS

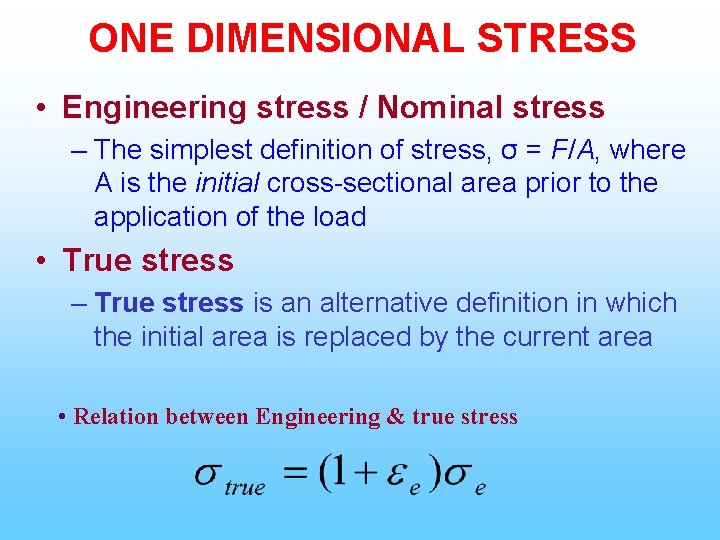

ONE DIMENSIONAL STRESS • Engineering stress / Nominal stress – The simplest definition of

ONE DIMENSIONAL STRESS • Engineering stress / Nominal stress – The simplest definition of stress, σ = F/A, where A is the initial cross-sectional area prior to the application of the load • True stress – True stress is an alternative definition in which the initial area is replaced by the current area • Relation between Engineering & true stress

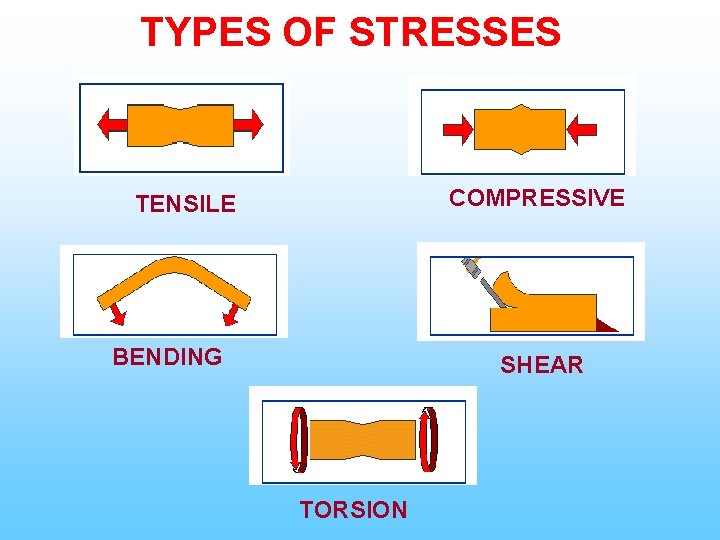

TYPES OF STRESSES COMPRESSIVE TENSILE BENDING SHEAR TORSION

TYPES OF STRESSES COMPRESSIVE TENSILE BENDING SHEAR TORSION

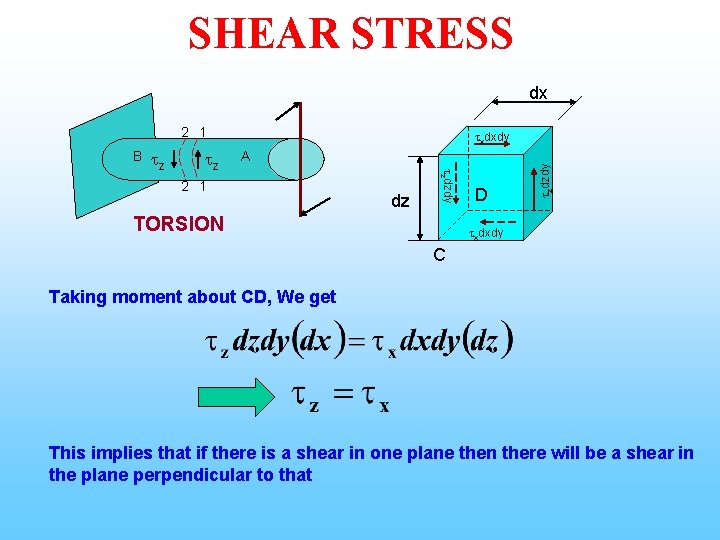

SHEAR STRESS dx 2 1 z A 2 1 dz zdzdy z TORSION D

SHEAR STRESS dx 2 1 z A 2 1 dz zdzdy z TORSION D zdzdy B xdxdy C Taking moment about CD, We get This implies that if there is a shear in one plane then there will be a shear in the plane perpendicular to that

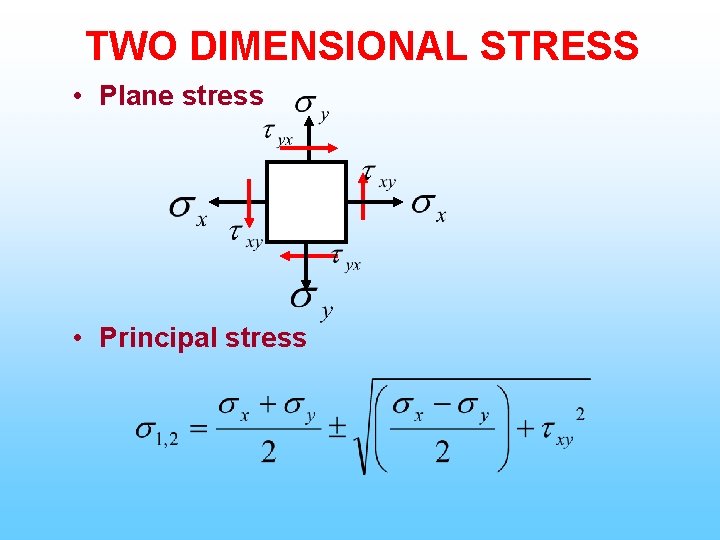

TWO DIMENSIONAL STRESS • Plane stress • Principal stress

TWO DIMENSIONAL STRESS • Plane stress • Principal stress

THREE DIMENSIONAL STRESS • Cauchy stress – Force per unit area in the deformed

THREE DIMENSIONAL STRESS • Cauchy stress – Force per unit area in the deformed geometry • Second Piola Kirchoff stress – Relates forces in the reference configuration to area in the reference configuration X – Deformation gradient

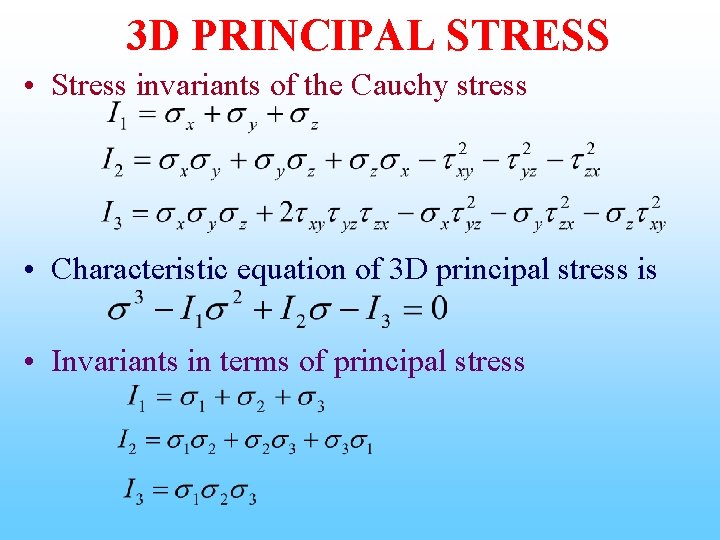

3 D PRINCIPAL STRESS • Stress invariants of the Cauchy stress • Characteristic equation

3 D PRINCIPAL STRESS • Stress invariants of the Cauchy stress • Characteristic equation of 3 D principal stress is • Invariants in terms of principal stress

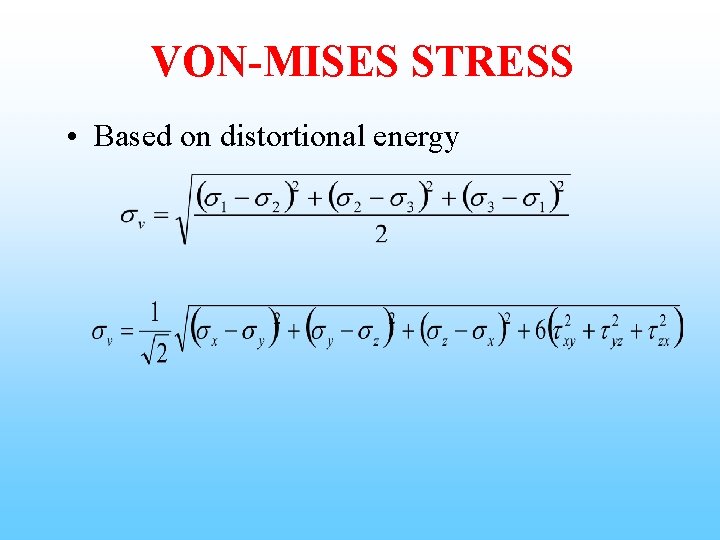

VON-MISES STRESS • Based on distortional energy

VON-MISES STRESS • Based on distortional energy

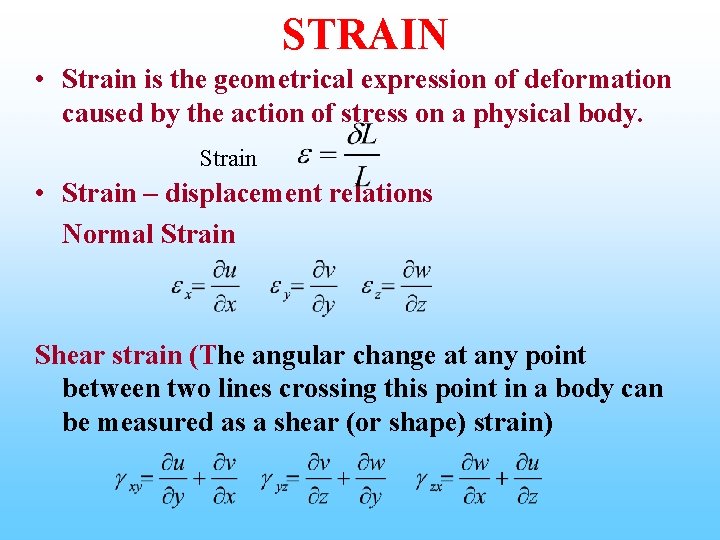

STRAIN • Strain is the geometrical expression of deformation caused by the action of

STRAIN • Strain is the geometrical expression of deformation caused by the action of stress on a physical body. Strain • Strain – displacement relations Normal Strain Shear strain (The angular change at any point between two lines crossing this point in a body can be measured as a shear (or shape) strain)

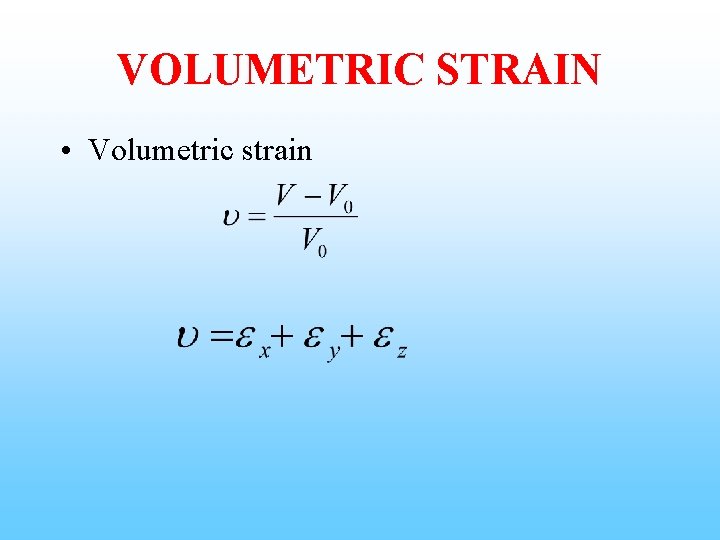

VOLUMETRIC STRAIN • Volumetric strain

VOLUMETRIC STRAIN • Volumetric strain

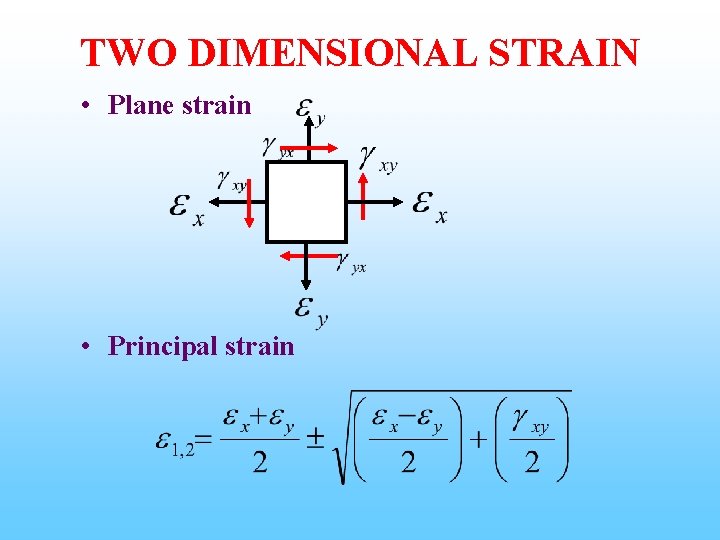

TWO DIMENSIONAL STRAIN • Plane strain • Principal strain

TWO DIMENSIONAL STRAIN • Plane strain • Principal strain

3 D STRAIN Strain tensor Green Lagrangian Strain tensor Almansi Strain tensor

3 D STRAIN Strain tensor Green Lagrangian Strain tensor Almansi Strain tensor

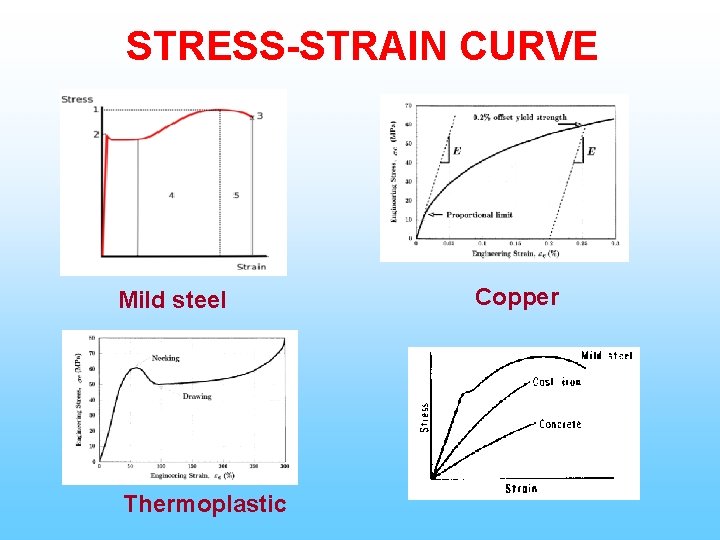

STRESS-STRAIN CURVE Mild steel Thermoplastic Copper

STRESS-STRAIN CURVE Mild steel Thermoplastic Copper

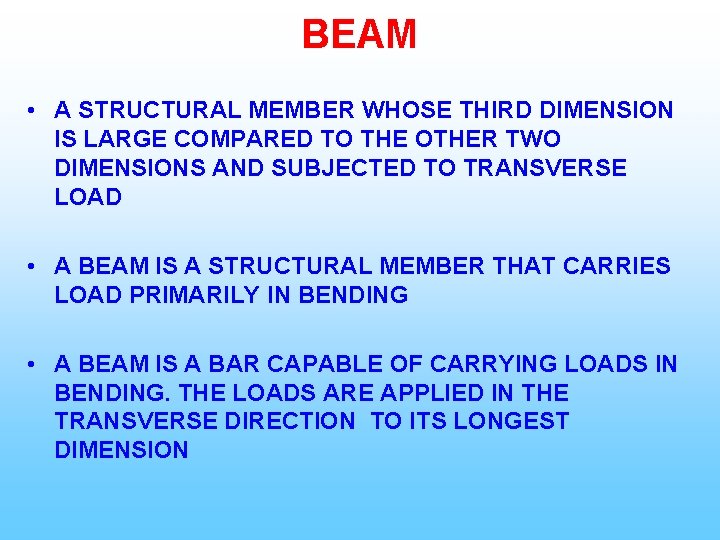

BEAM • A STRUCTURAL MEMBER WHOSE THIRD DIMENSION IS LARGE COMPARED TO THE OTHER

BEAM • A STRUCTURAL MEMBER WHOSE THIRD DIMENSION IS LARGE COMPARED TO THE OTHER TWO DIMENSIONS AND SUBJECTED TO TRANSVERSE LOAD • A BEAM IS A STRUCTURAL MEMBER THAT CARRIES LOAD PRIMARILY IN BENDING • A BEAM IS A BAR CAPABLE OF CARRYING LOADS IN BENDING. THE LOADS ARE APPLIED IN THE TRANSVERSE DIRECTION TO ITS LONGEST DIMENSION

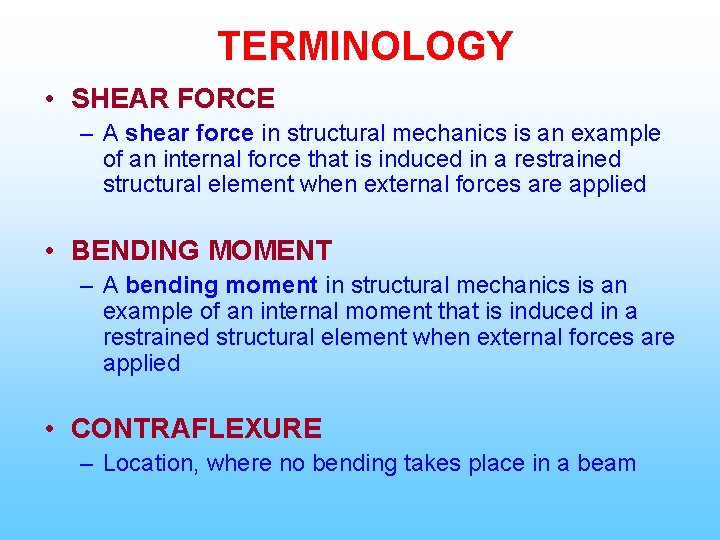

TERMINOLOGY • SHEAR FORCE – A shear force in structural mechanics is an example

TERMINOLOGY • SHEAR FORCE – A shear force in structural mechanics is an example of an internal force that is induced in a restrained structural element when external forces are applied • BENDING MOMENT – A bending moment in structural mechanics is an example of an internal moment that is induced in a restrained structural element when external forces are applied • CONTRAFLEXURE – Location, where no bending takes place in a beam

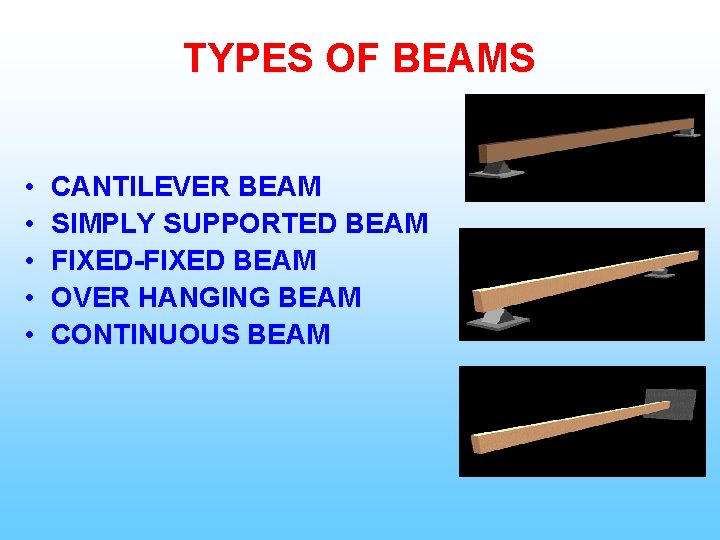

TYPES OF BEAMS • • • CANTILEVER BEAM SIMPLY SUPPORTED BEAM FIXED-FIXED BEAM OVER

TYPES OF BEAMS • • • CANTILEVER BEAM SIMPLY SUPPORTED BEAM FIXED-FIXED BEAM OVER HANGING BEAM CONTINUOUS BEAM

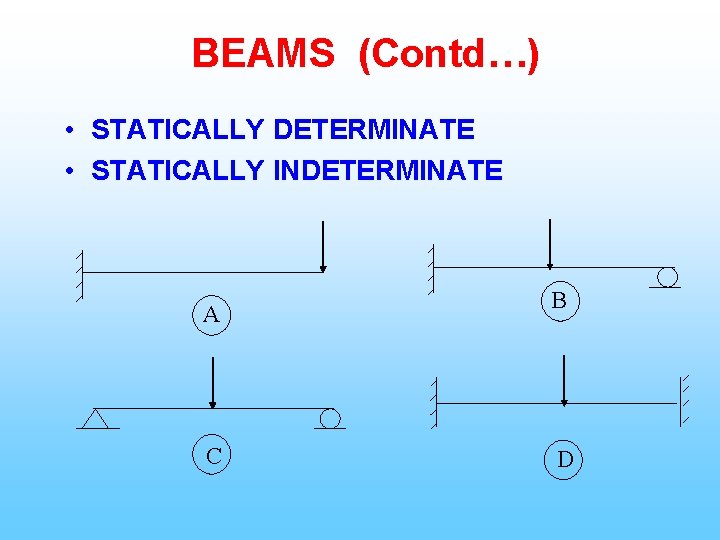

BEAMS (Contd…) • STATICALLY DETERMINATE • STATICALLY INDETERMINATE A C B D

BEAMS (Contd…) • STATICALLY DETERMINATE • STATICALLY INDETERMINATE A C B D

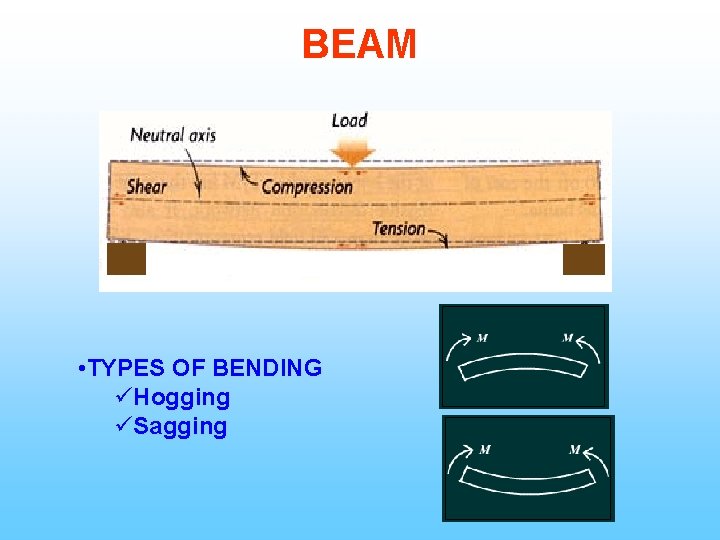

BEAM • TYPES OF BENDING üHogging üSagging

BEAM • TYPES OF BENDING üHogging üSagging

DEFLECTION OF BEAMS A loaded beam deflects by an amount that depends on several

DEFLECTION OF BEAMS A loaded beam deflects by an amount that depends on several factors including: üthe magnitude and type of loading üthe span of the beam üthe material properties of the beam (Modulus of Elasticity) üthe properties of the shape of the beam (Moment of Inertia) üthe beam type (simple, cantilever, overhanging, continuous)

DEFLECTION OF BEAMS Deflections of beam can be calculated using ØDouble integration method ØMoment

DEFLECTION OF BEAMS Deflections of beam can be calculated using ØDouble integration method ØMoment area method ØCastiglianos theorem ØStiffness method ØThree moment theorem (Continuous beam)

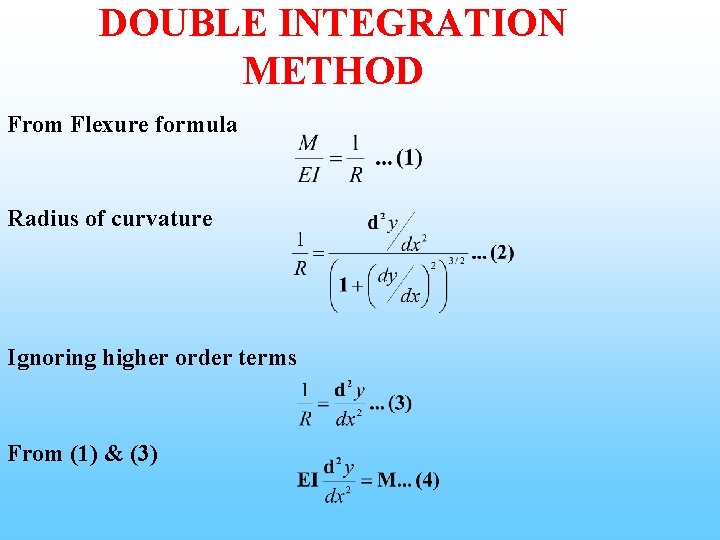

DOUBLE INTEGRATION METHOD From Flexure formula Radius of curvature Ignoring higher order terms From

DOUBLE INTEGRATION METHOD From Flexure formula Radius of curvature Ignoring higher order terms From (1) & (3)

DOUBLE INTEGRATION METHOD P Left of load L Right of load At x=L/2, dy/dx=0

DOUBLE INTEGRATION METHOD P Left of load L Right of load At x=L/2, dy/dx=0 At x=0, y=0 At x=L, y=0

MOMENT AREA METHOD • First method • Second method

MOMENT AREA METHOD • First method • Second method

MOMENT AREA METHOD P Area of the moment diagram (1/2 L) L P/2 Taking

MOMENT AREA METHOD P Area of the moment diagram (1/2 L) L P/2 Taking moments about the end PL/4

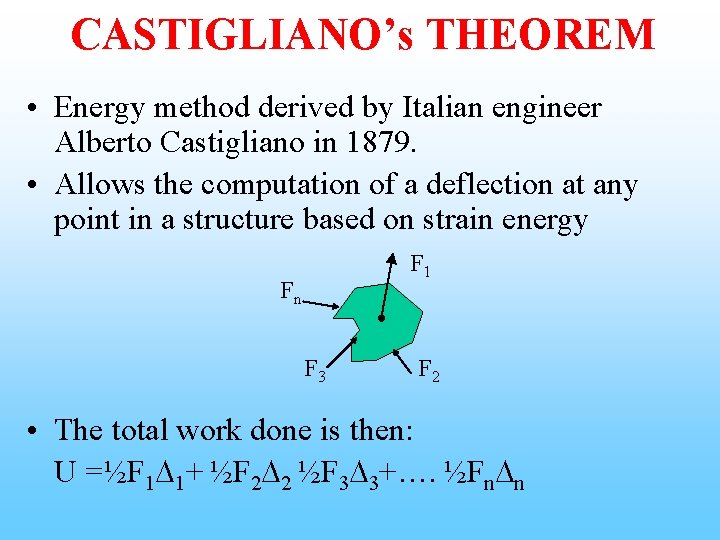

CASTIGLIANO’s THEOREM • Energy method derived by Italian engineer Alberto Castigliano in 1879. •

CASTIGLIANO’s THEOREM • Energy method derived by Italian engineer Alberto Castigliano in 1879. • Allows the computation of a deflection at any point in a structure based on strain energy F 1 Fn F 3 F 2 • The total work done is then: U =½F 1 D 1+ ½F 2 D 2 ½F 3 D 3+…. ½Fn. Dn

CASTIGLIANO’s THEOREM (Contd …) Increase force Fn by an amount d. F • This

CASTIGLIANO’s THEOREM (Contd …) Increase force Fn by an amount d. F • This changes the state of deformation and increases the total strain energy slightly: • Hence, the total strain energy after the increase in the nth force is:

CASTIGLIANO’s THEOREM (Contd …) Now suppose, the order of this process is reversed; •

CASTIGLIANO’s THEOREM (Contd …) Now suppose, the order of this process is reversed; • i. e. , Apply a small force d. Fn to this same body and observe a deformation d. Dn; then apply the forces, Fi=1 to n. • As these forces are being applied, d. Fn goes through displacement Dn. (Note d. Fnis constant) and does work: d. U = d. Fn. Dn • Hence the total work done is: U+ d. Fn. Dn

CASTIGLIANO’s THEOREM (Contd …) The end results are equal • Since the body is

CASTIGLIANO’s THEOREM (Contd …) The end results are equal • Since the body is linear elastic, all work is recoverable, and the two systems are identical and contain the same stored energy:

CASTIGLIANO’s THEOREM (Contd …) • The term “force” may be used in its most

CASTIGLIANO’s THEOREM (Contd …) • The term “force” may be used in its most fundamental sense and can refer for example to a Moment, M, producing a rotation, q, in the body. M q

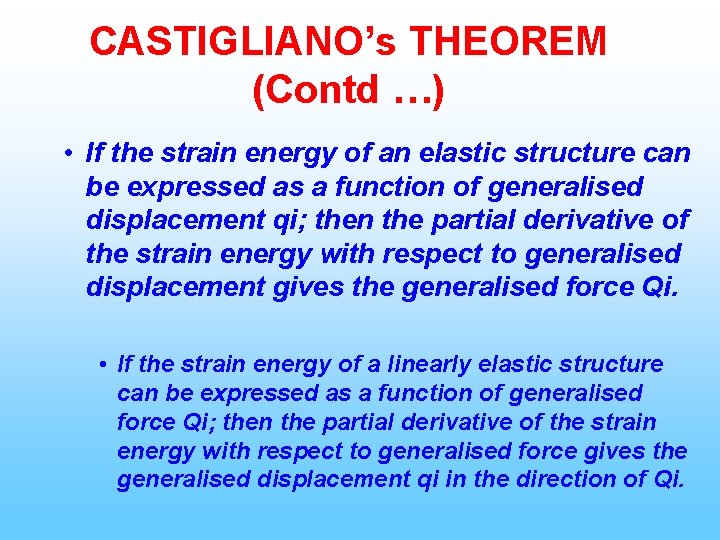

CASTIGLIANO’s THEOREM (Contd …) • If the strain energy of an elastic structure can

CASTIGLIANO’s THEOREM (Contd …) • If the strain energy of an elastic structure can be expressed as a function of generalised displacement qi; then the partial derivative of the strain energy with respect to generalised displacement gives the generalised force Qi. • If the strain energy of a linearly elastic structure can be expressed as a function of generalised force Qi; then the partial derivative of the strain energy with respect to generalised force gives the generalised displacement qi in the direction of Qi.

CASTIGLIANO’s THEOREM Strain energy P L P/2 According to Castigliano’s theorem PL/4

CASTIGLIANO’s THEOREM Strain energy P L P/2 According to Castigliano’s theorem PL/4

UNIT LOAD METHOD (VIRTUAL WORK METHOD) Deflection (Translation) at a point: Rotation at a

UNIT LOAD METHOD (VIRTUAL WORK METHOD) Deflection (Translation) at a point: Rotation at a point:

UNIT LOAD METHOD Unit load method Q=1 Area of the moment diagram (1/2 L)

UNIT LOAD METHOD Unit load method Q=1 Area of the moment diagram (1/2 L) L Q/2 QL/4 A 1 d 1 * * A 2 d 2

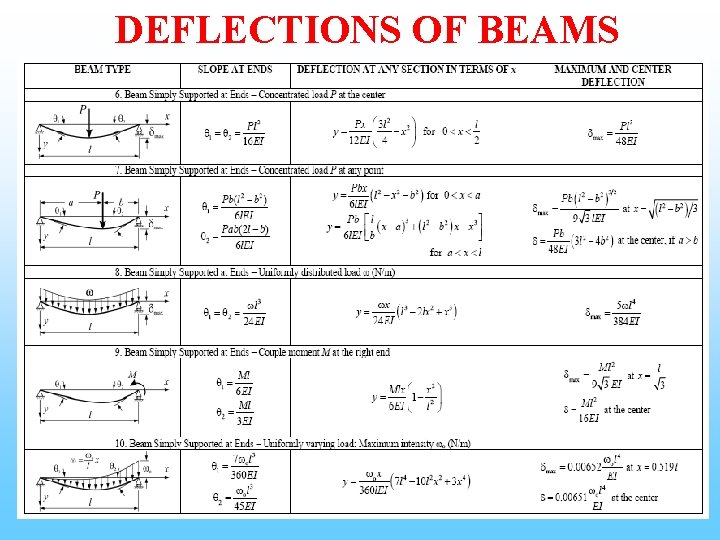

DEFLECTIONS OF BEAMS

DEFLECTIONS OF BEAMS

DEFLECTIONS OF BEAMS

DEFLECTIONS OF BEAMS

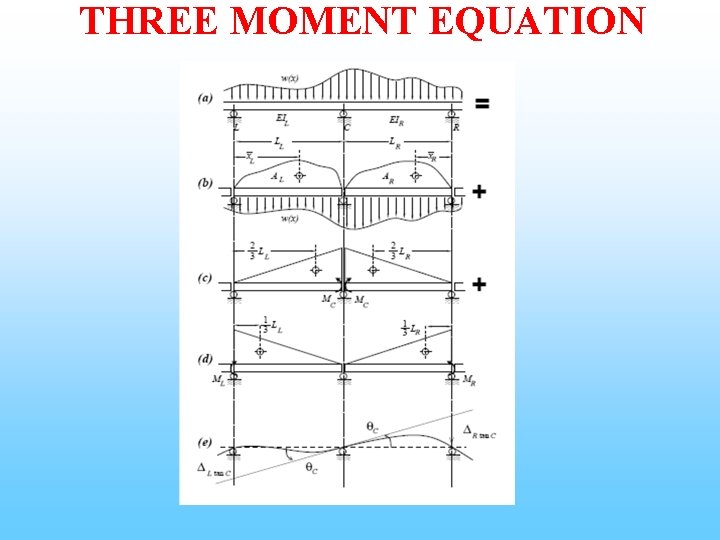

THREE MOMENT EQUATION

THREE MOMENT EQUATION

THREE MOMENT EQUATION (Developed by clapeyron) Continuity condition Using second moment-area theorem Equating the

THREE MOMENT EQUATION (Developed by clapeyron) Continuity condition Using second moment-area theorem Equating the above equations

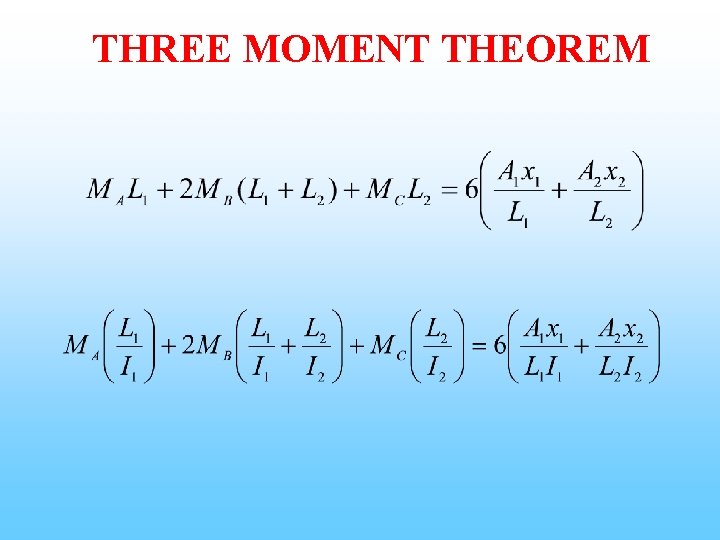

THREE MOMENT THEOREM

THREE MOMENT THEOREM
