Today is a great day to learn about your BRAIN!!! Growing New Brain Cells?

Today is a great day to learn about your BRAIN!!! Growing New Brain Cells?

How do we know about the brain? Brain Scans

How do we know about the brain? Brain Scans

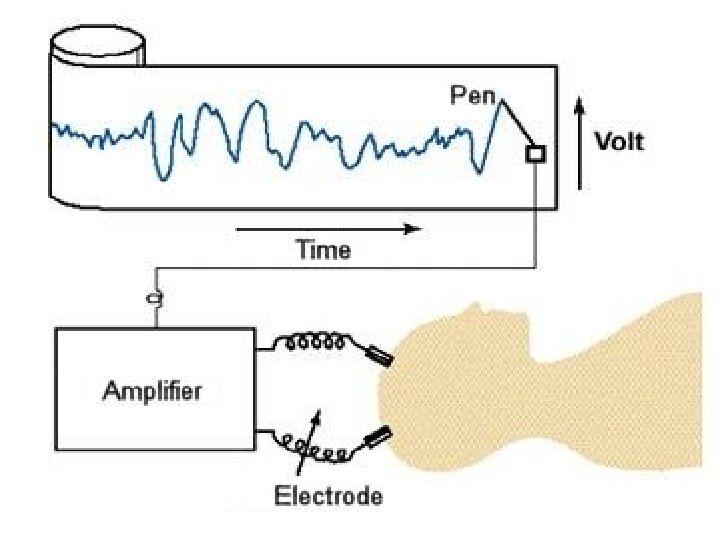

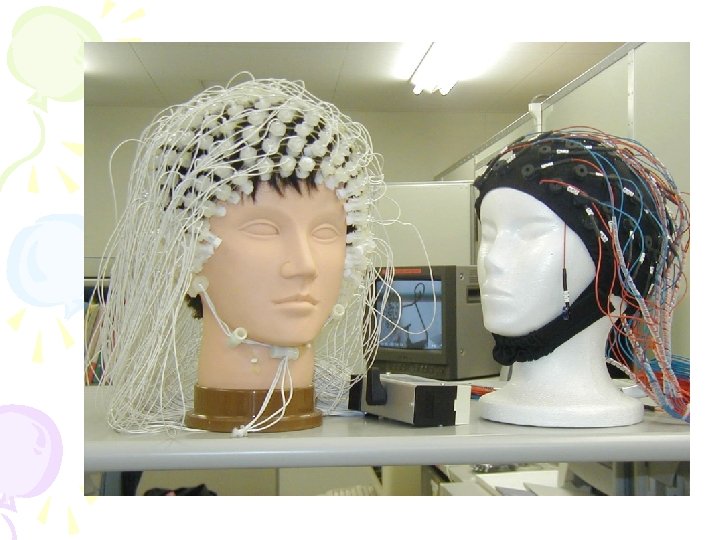

Electroencephalogram (EEG) • Electrodes are placed on the scalp that amplify recordings of the

Electroencephalogram (EEG) • Electrodes are placed on the scalp that amplify recordings of the waves of electrical activity across the brain’s surface

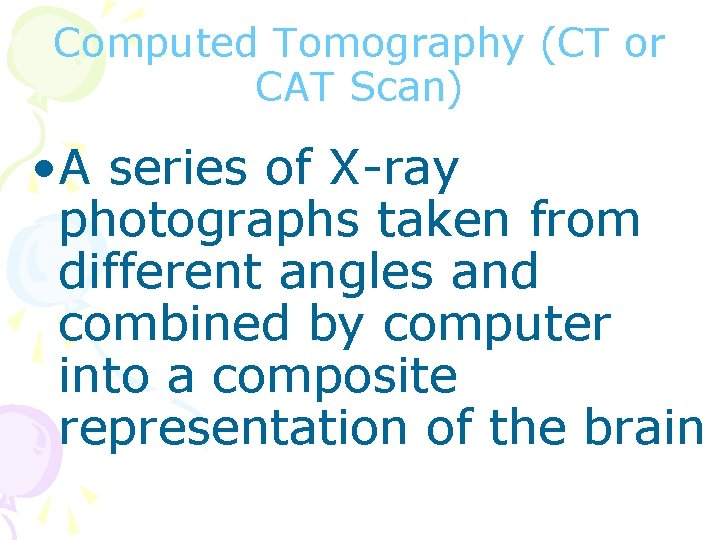

Computed Tomography (CT or CAT Scan) • A series of X-ray photographs taken from

Computed Tomography (CT or CAT Scan) • A series of X-ray photographs taken from different angles and combined by computer into a composite representation of the brain

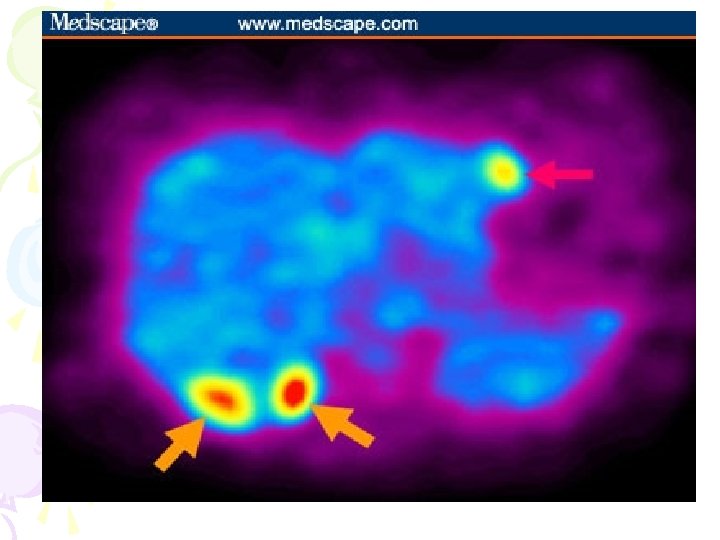

Position Emission Tomography (PET Scan) • A visual display of brain activity that detects

Position Emission Tomography (PET Scan) • A visual display of brain activity that detects where a radioactive form of glucose goes while the brain performs a given task Language Development and PET Scans

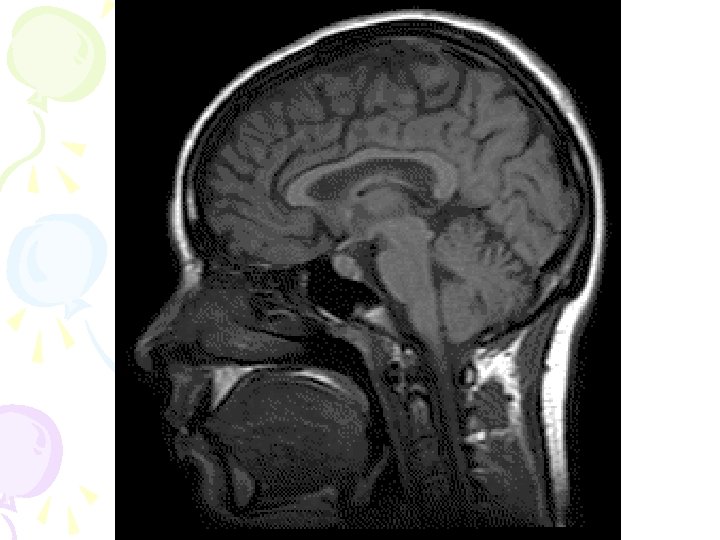

Magnetic Resonance Imaging (MRI) • A technique that uses magnetic fields and radio waves

Magnetic Resonance Imaging (MRI) • A technique that uses magnetic fields and radio waves to produce computer-generated images that allow us to see structures within the brain

 • Accidents • Case study analysis of victims of suffer from a brain

• Accidents • Case study analysis of victims of suffer from a brain injury, resulting in variations in normal behavior • Phineas Gage

Lesions • Lesioning is the removal or destruction of part of the brain. •

Lesions • Lesioning is the removal or destruction of part of the brain. • IE. Lobotomy

Parts of the Brain

Parts of the Brain

Cerebral Cortex • The body’s ultimate control and information processing center • Covers the

Cerebral Cortex • The body’s ultimate control and information processing center • Covers the brain’s lower level structures • Contains an estimated 30 billion nerve cells • Divided into two hemispheres and four lobes, connected by a thick band of nerve fibers called the corpus callosum

Top View of the Right and Left Hemispheres of the Brain Born With Only

Top View of the Right and Left Hemispheres of the Brain Born With Only Half of a Brain

Right Side - Left Side • The right side of the brain controls muscles

Right Side - Left Side • The right side of the brain controls muscles on the left side of the body • The left side of the brain controls muscles on the right side of the body. • Damage to one side of the brain will affect the opposite side of the body.

Hemispheric Differences

Hemispheric Differences

Hemispheric Differences • Both sides continually communicate via the corpus callosum.

Hemispheric Differences • Both sides continually communicate via the corpus callosum.

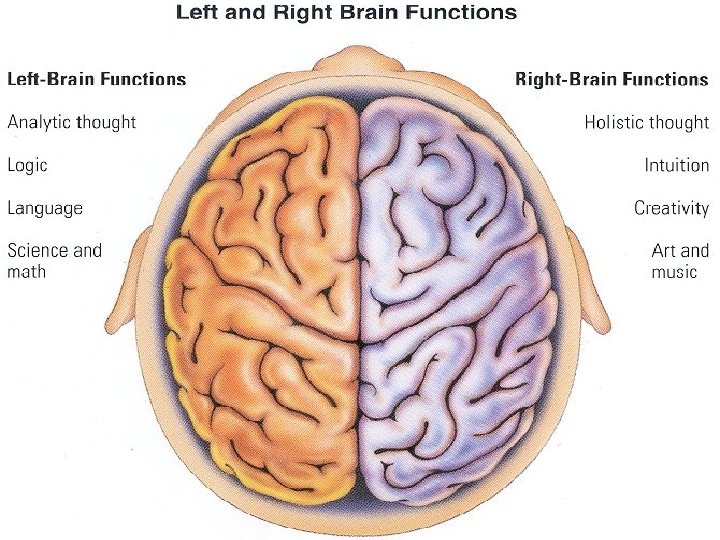

Hemispheric Differences: Language and Spatial Abilities

Hemispheric Differences: Language and Spatial Abilities

The Brain’s Left Hemisphere • Language • Math • Logic • Analytic Thought •

The Brain’s Left Hemisphere • Language • Math • Logic • Analytic Thought • Scientific Thought • Reasoning

The Brain’s Right Hemisphere • Spatial abilities • Face recognition • Visual imagery •

The Brain’s Right Hemisphere • Spatial abilities • Face recognition • Visual imagery • Music • Creativity • Emotional Instincts

Side View of the Left Hemisphere

Side View of the Left Hemisphere

Right and Left Frontal Lobes • The portion of the cerebral cortex lying just

Right and Left Frontal Lobes • The portion of the cerebral cortex lying just behind the forehead • Mostly involved in abstract thought, speaking, muscle movements, making plans, and judgments The Frontal Lobes Where is Morality? Pre-Frontal Lobe Development of Children

 • The motor cortex controls voluntary movements

• The motor cortex controls voluntary movements

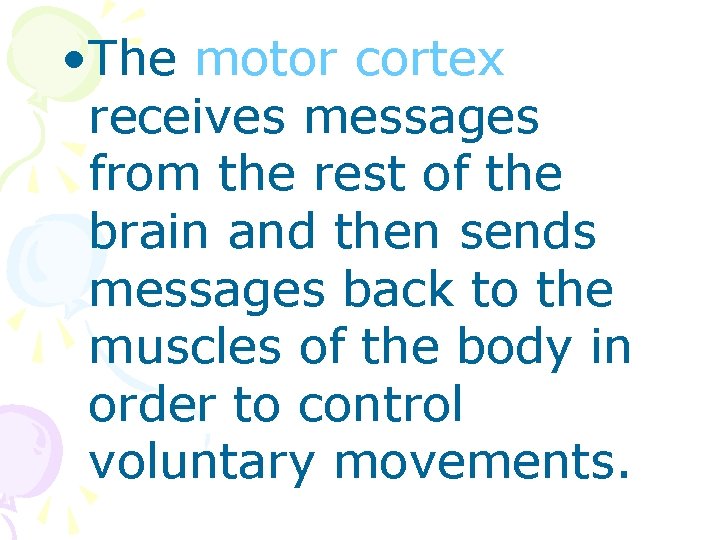

 • The motor cortex receives messages from the rest of the brain and

• The motor cortex receives messages from the rest of the brain and then sends messages back to the muscles of the body in order to control voluntary movements.

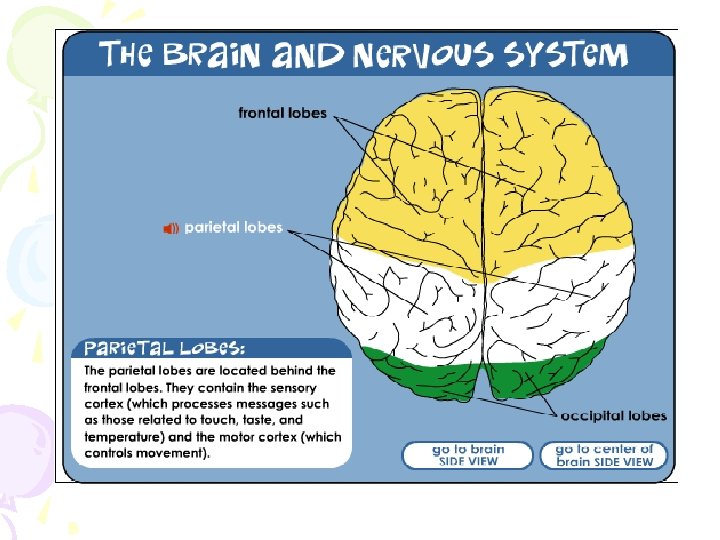

Right and Left Parietal Lobes • Regions available for general processing, including mathematical reasoning

Right and Left Parietal Lobes • Regions available for general processing, including mathematical reasoning • The parietal lobes play important roles in integrating sensory touch information, and in the handling and manipulation of objects. Sensory Motor Integration

 • The sensory cortex registers and processes touch sensations.

• The sensory cortex registers and processes touch sensations.

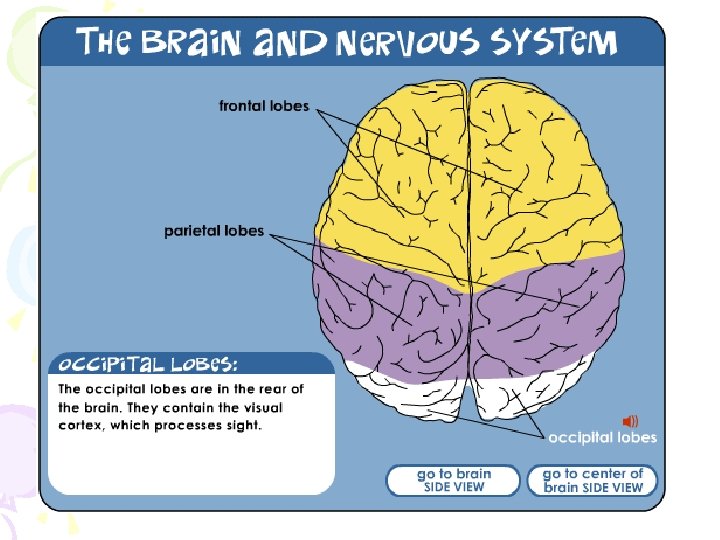

Right and Left Occipital Lobes • The primary visual processing area • Located in

Right and Left Occipital Lobes • The primary visual processing area • Located in the back of the head

Right and Left Temporal Lobes • Includes the auditory cortex where sound information is

Right and Left Temporal Lobes • Includes the auditory cortex where sound information is processed • Located roughly above the ears

The Inner Brain

The Inner Brain

Cerebellum • Latin for the “little brain” • Located in the rear of the

Cerebellum • Latin for the “little brain” • Located in the rear of the brain • Helps coordinate voluntary movements and balance • If damaged, the person could perform basic movements but would lose fine coordination skills.

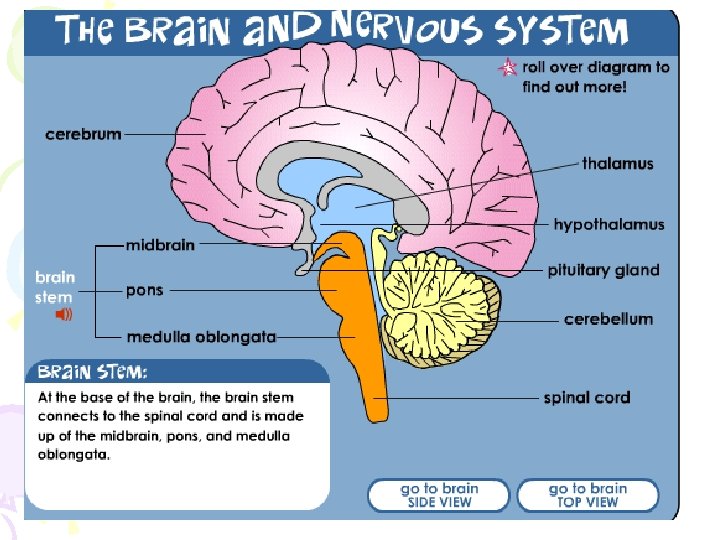

Brainstem • The oldest part of the brain – The Midbrain – Pons –

Brainstem • The oldest part of the brain – The Midbrain – Pons – Medulla • Is responsible for automatic survival functions • Located where the spinal cord swells and the brain just begins

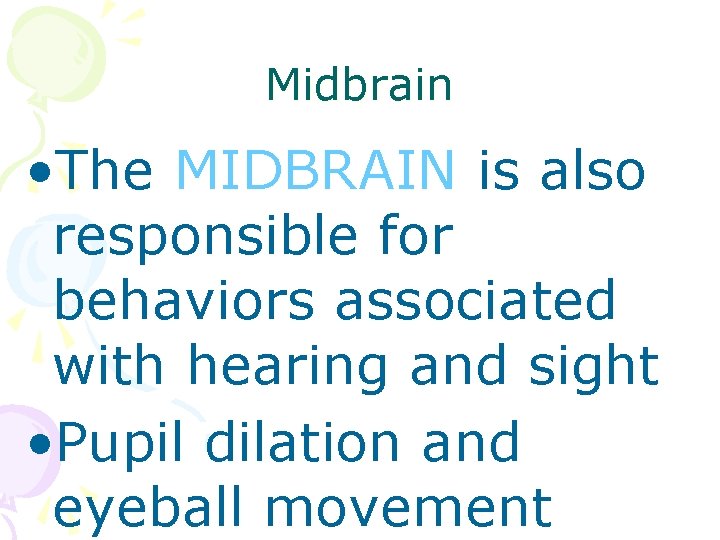

Midbrain • The MIDBRAIN is also responsible for behaviors associated with hearing and sight

Midbrain • The MIDBRAIN is also responsible for behaviors associated with hearing and sight • Pupil dilation and eyeball movement

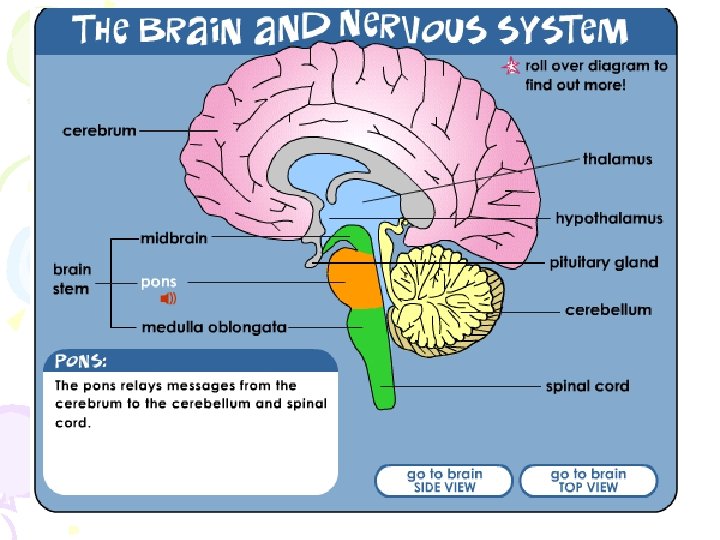

PONS • The PONS is responsible for helping to regulate breathing, to help with

PONS • The PONS is responsible for helping to regulate breathing, to help with sleep and wake cycles, and controls facial expressions

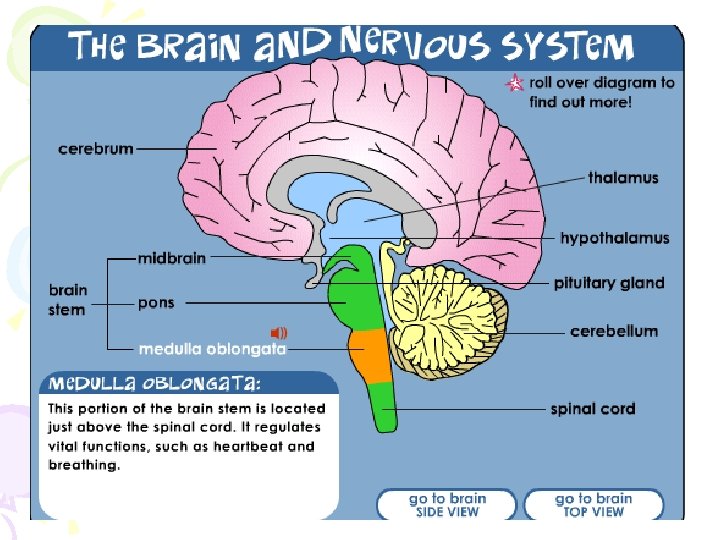

Medulla • The base of the brainstem • Controls life-supporting functions like heartbeat and

Medulla • The base of the brainstem • Controls life-supporting functions like heartbeat and breathing • Damage to this area can lead to death.

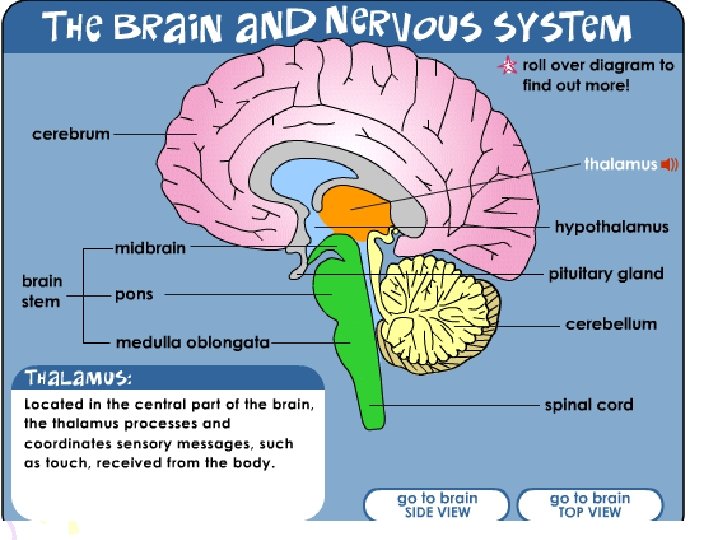

Thalamus • Sits atop the brainstem • The brain’s sensory switchboard – receives input

Thalamus • Sits atop the brainstem • The brain’s sensory switchboard – receives input and directs messages to the sensory processing areas in the cortex

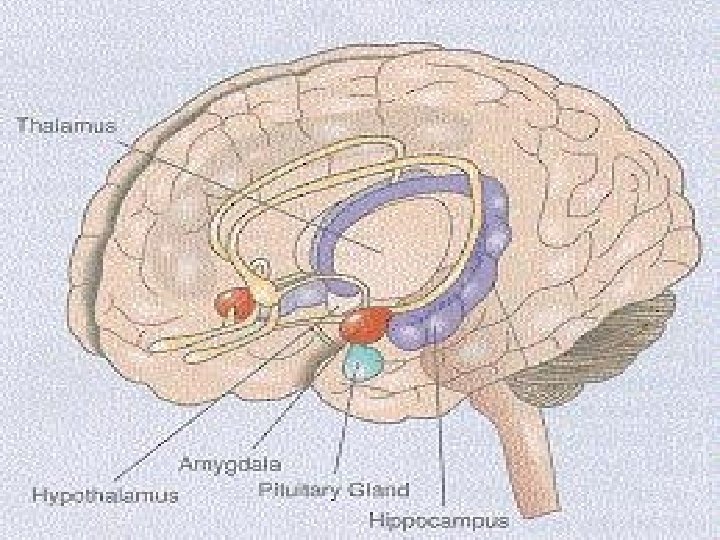

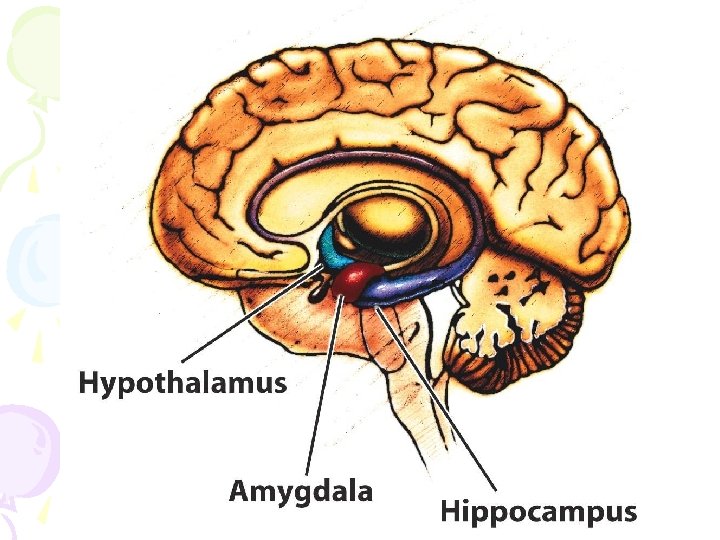

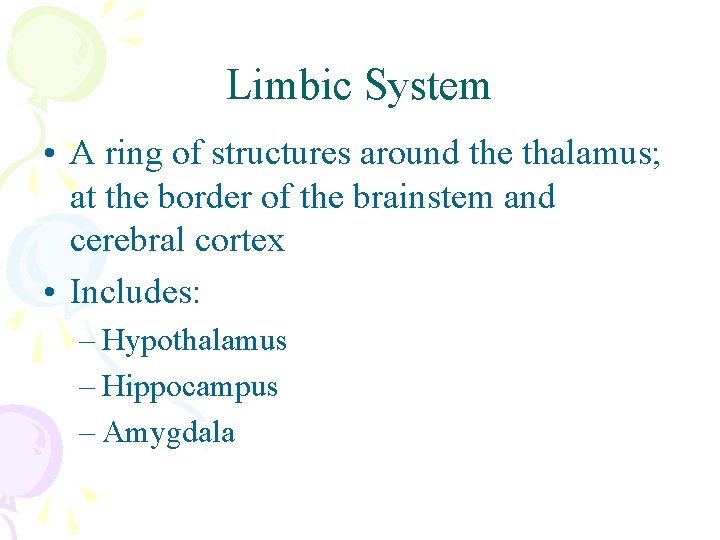

Limbic System • A ring of structures around the thalamus; at the border of

Limbic System • A ring of structures around the thalamus; at the border of the brainstem and cerebral cortex • Includes: – Hypothalamus – Hippocampus – Amygdala

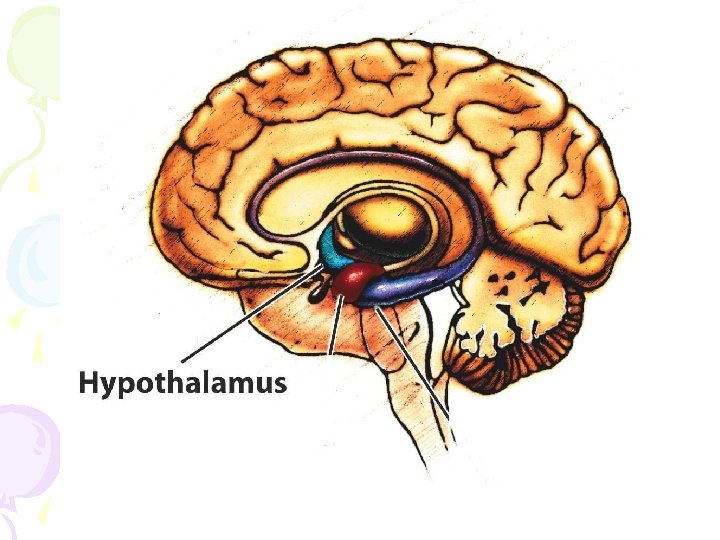

Hypothalamus • Located directly under the front of the thalamus • Regulates eating, drinking,

Hypothalamus • Located directly under the front of the thalamus • Regulates eating, drinking, body temperature, and the fight or flight reactions to stress • Plays a role in emotions, pleasure, and sexual function

Hippocampus • Wraps around the back of the thalamus • Plays a role in

Hippocampus • Wraps around the back of the thalamus • Plays a role in processing new memories for permanent storage • Looks something like a seahorse – Hippo is Greek for “horse. ”

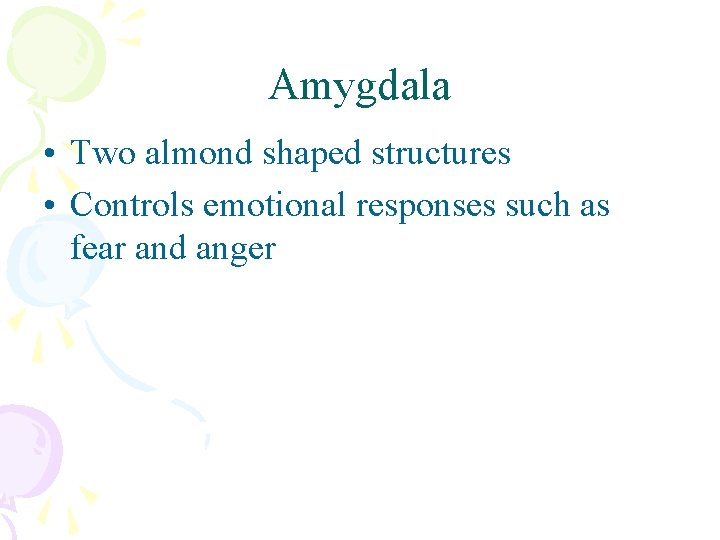

Amygdala • Two almond shaped structures • Controls emotional responses such as fear and

Amygdala • Two almond shaped structures • Controls emotional responses such as fear and anger

Module 8: The Brain Plasticity

Module 8: The Brain Plasticity

Plasticity • The ability of the brain tissue to take on new functions •

Plasticity • The ability of the brain tissue to take on new functions • Greatest in childhood • Important if parts of the brain are damaged or destroyed
