COSC 121: Computer Systems Jeremy Bolton, Ph. D Assistant Teaching Professor Constructed using materials: - Patt and Patel Introduction to Computing Systems (2 nd) - Patterson and Hennessy Computer Organization and Design (4 th) **A special thanks to Rich Squier

Notes • Programming in LC-3 and the Assembler – Read PP. 6 -PP. 7 – Complete HW #2 and HW#3 • Check out the SVN repos • Read Penn. Sim docs found in tools/LC 3 Assem Simulation …

Outline • Programming using LC-3 – Decomposing procedures into steps contained in ISA • Assembly Language • • Assembly for LC-3 Debugging 2 -pass assembly Linking and Loading

This week … our journey takes us … COSC 121: Computer Systems Application (Browser) Operating System (Win, Linux) Compiler Software Hardware Assembler Drivers Processor Memory I/O system COSC 255: Operating Systems Instruction Set Architecture Datapath & Control Digital Design Circuit Design transistors COSC 120: Computer Hardware

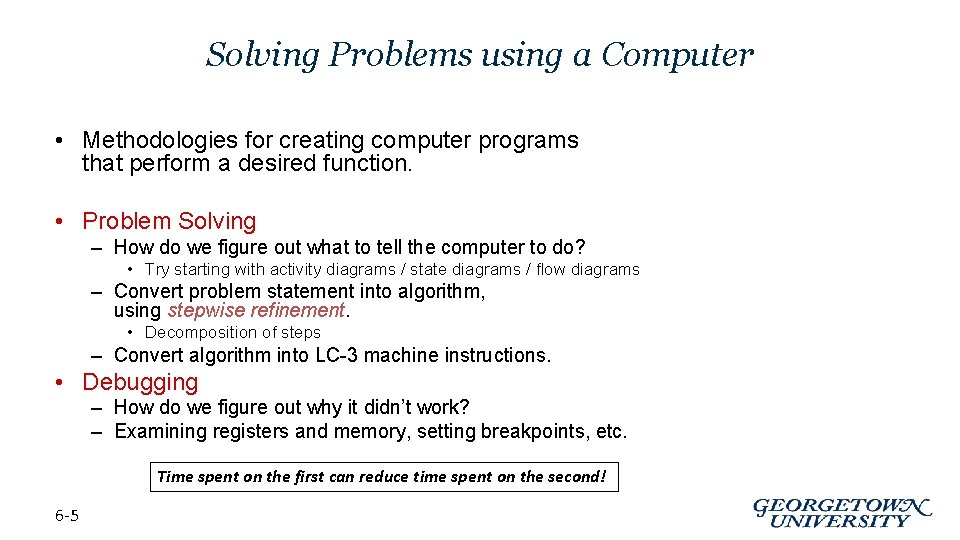

Solving Problems using a Computer • Methodologies for creating computer programs that perform a desired function. • Problem Solving – How do we figure out what to tell the computer to do? • Try starting with activity diagrams / state diagrams / flow diagrams – Convert problem statement into algorithm, using stepwise refinement. • Decomposition of steps – Convert algorithm into LC-3 machine instructions. • Debugging – How do we figure out why it didn’t work? – Examining registers and memory, setting breakpoints, etc. Time spent on the first can reduce time spent on the second! 6 -5

Stepwise Refinement • Also known as systematic decomposition. • Start with problem statement: “We wish to count the number of occurrences of a character in a file. The character in question is to be input from the keyboard; the result is to be displayed on the monitor. ” • Decompose task into a few simpler subtasks. • Decompose each subtask into smaller subtasks, and these into even smaller subtasks, etc. . until you get to the machine instruction level. 6 -6

Problem Statement • Because problem statements are written in English, they are sometimes ambiguous and/or incomplete. – Where is “file” located? How big is it, or how do I know when I’ve reached the end? – How should final count be printed? A decimal number? – If the character is a letter, should I count both upper-case and lower-case occurrences? • How do you resolve these issues? – Ask the person who wants the problem solved, or – Make a decision and document it. 6 -7

Three Basic Constructs • There are three basic ways to decompose a task: 6 -8

Problem Solving Skills • Learn to convert problem statement into step-by-step description of subtasks. – Like a puzzle, or a “word problem” from grammar school math. • What is the starting state of the system? • What is the desired ending state? • How do we move from one state to another? – Recognize English words that correlate to three basic constructs: • • 6 -9 “do A then do B” sequential “if G, then do H” conditional “for each X, do Y” iterative “do Z until W” iterative

LC-3 Control Instructions • How do we use LC-3 instructions to encode three basic constructs? • Sequential – Instructions naturally flow from one to the next, so no special instruction needed to go from one sequential subtask to the next. • Conditional and Iterative – Create code that converts condition into N, Z, or P. Example: Condition: “Is R 0 = R 1? ” Code: Subtract R 1 from R 0; if equal, Z bit will be set. – Then use BR instruction to transfer control to the proper subtask. 6 -10

Code for Conditional Exact bits depend on condition being tested Unconditional branch to Next Subtask 6 -11 Assuming all addresses are close enough that PC-relative branch can be used. PC offset to address C PC offset to address D

Code for Iteration Exact bits depend on condition being tested Unconditional branch to retest condition 6 -12 Assuming all addresses are on the same page. PC offset to address C PC offset to address A

Example: Counting Characters 6 -13 Initial refinement: Big task into three sequential subtasks.

Refining B into iterative construct. 6 -14

Refining B 1 into sequential subtasks. 6 -15

Refining B 2 and B 3 6 -16 Conditional (B 2) and sequential (B 3). Use of LC-2 registers and instructions.

The Last Step: LC-3 Instructions • Use comments to separate into modules and to document your code. ; Look at each char in file. 0001100001111100 ; is R 1 = EOT? 0000010 xxxxx ; if so, exit loop ; Check for match with R 0. 1001001001111111 ; R 1 = -char 000100100110000100100001 ; R 1 = R 0 – char 0000101 xxxxx ; no match, skip incr 00010100001 ; R 2 = R 2 + 1 ; Incr file ptr and get next char 0001011011100001 ; R 3 = R 3 + 1 0110001011000000 ; R 1 = M[R 3] 6 -17 Don’t know PCoffset bits until all the code is done

Debugging • You’ve written your program and it doesn’t work. • Now what? • What do you do when you’re lost in a city? Drive around randomly and hope you find it? PReturn to a known point and look at a map? In debugging, the equivalent to looking at a map is tracing your program. – Examine the sequence of instructions being executed. – Keep track of results being produced. – Compare result from each instruction to the expected result. 6 -18

Debugging Operations • Any debugging environment should provide means to: 1. 2. 3. 4. • Display values in memory and registers. Deposit values in memory and registers. Execute instruction sequence in a program. Stop execution when desired. Different programming levels offer different tools. – High-level languages (C, Java, . . . ) usually have source-code debugging tools. – For debugging at the machine instruction level: • • • 6 -19 simulators operating system “monitor” tools in-circuit emulators (ICE) – plug-in hardware replacements that give instruction-level control

LC-3 Simulator: Penn. Sim 6 -20

Types of Errors • Syntax Errors – You made a typing error that resulted in an illegal operation. – Not usually an issue with machine language, because almost any bit pattern corresponds to some legal instruction. – In high-level languages, these are often caught during the translation from language to machine code. • Logic Errors – Your program is legal, but wrong, so the results don’t match the problem statement. – Trace the program to see what’s really happening and determine how to get the proper behavior. • Data Errors 6 -21 – Input data is different than what you expected. – Test the program with a wide variety of inputs.

Tracing the Program • Execute the program one piece at a time, examining register and memory to see results at each step. • Single-Stepping – Execute one instruction at a time. – Tedious, but useful to help you verify each step of your program. • Breakpoints – Tell the simulator to stop executing when it reaches a specific instruction. – Check overall results at specific points in the program. • Lets you quickly execute sequences to get a high-level overview of the execution behavior. • Quickly execute sequences that your believe are correct. • Watchpoints – Tell the simulator to stop when a register or memory location changes or when it equals a specific value. – Useful when you don’t know where or when a value is changed. 6 -22

Example 1: Multiply • This program is supposed to multiply the two unsigned integers in R 4 and R 5. 1. Identify the main steps of the procedure: create activity or state diagram 1. 2. 3. 6 -23 Decompose these steps into steps performable by the target ISA Write the Assembly Test / Debug: Step through code using simulator

Example 1: Multiply • This program is supposed to multiply the two unsigned integers in R 4 and R 5. clear R 2 add R 4 to R 2 decrement R 5 No R 5 = 0? Yes HALT 6 -24

Example 1: Multiply • This program is supposed to multiply the two unsigned integers in R 4 and R 5. clear R 2 add R 4 to R 2 decrement R 5 No R 5 = 0? Yes HALT 6 -25 x 3200 x 3201 x 3202 x 3203 x 3204 01010100000 00010100100 0001101101111111 000001111101 1111000000100101 For example: Set R 4 = 10, R 5 =3. Run program. Result: R 2 = 40, not 30. AND R 2 x 0 ADD R 2 R 4 ADD R 5 -1 Branch zp HALT

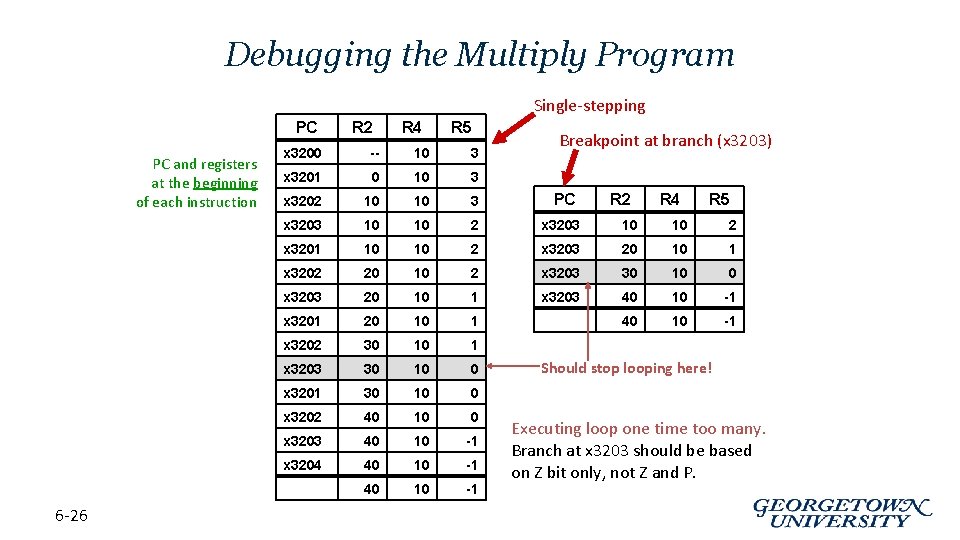

Debugging the Multiply Program Single-stepping PC PC and registers at the beginning of each instruction 6 -26 R 2 R 4 R 5 Breakpoint at branch (x 3203) x 3200 -- 10 3 x 3201 0 10 3 x 3202 10 10 3 PC x 3203 10 10 2 x 3201 10 10 2 x 3203 20 10 1 x 3202 20 10 2 x 3203 30 10 0 x 3203 20 10 1 x 3203 40 10 -1 x 3201 20 10 1 40 10 -1 x 3202 30 10 1 x 3203 30 10 0 x 3201 30 10 0 x 3202 40 10 0 x 3203 40 10 -1 x 3204 40 10 -1 R 2 R 4 R 5 Should stop looping here! Executing loop one time too many. Branch at x 3203 should be based on Z bit only, not Z and P.

Example 2: Summing an Array of Numbers • This program is supposed to sum the numbers stored in 10 locations beginning with x 3100, leaving the result in R 1 = 0 R 4 = 10 R 2 = x 3100 R 1 = R 1 + M[R 2] R 2 = R 2 + 1 R 4 = R 4 - 1 No R 4 = 0? Yes 6 -27 HALT x 3000 x 3001 x 3002 x 3003 x 3004 x 3005 x 3006 x 3007 x 3008 x 3009 0101001001100000 0101100100100000 0001100100101010 0010010011111100 011010000000 0001010000100100100001100100111111 0000001111111011 1111000000100101 R 2 = x 3100 R 3 = M[R 2] R 2 = R 2 + 1 R 1 = R 1 + R 3 R 4 = R 4 - 1

Debugging the Summing Program • Running the data below yields R 1 = x 0024, but the sum should be x 8135. What happened? 6 -28 Address Contents x 3100 x 3107 x 3101 x 2819 x 3102 x 0110 x 3000 -- -- -- x 3103 x 0310 x 3001 0 -- -- x 3104 x 0110 x 3002 0 -- 0 x 3105 x 1110 x 3003 0 -- 10 x 3004 0 x 3107 10 x 3106 x 11 B 1 x 3107 x 0019 x 3108 x 0007 x 3109 x 0004 Start single-stepping program. . . PC R 1 R 2 R 4 Should be x 3100! Loading contents of M[x 3100], not address. Change opcode of x 3003 from 0010 (LD) to 1110 (LEA).

Example 3: Looking for a 5 • This program is supposed to set R 0=1 if there’s a 5 in one of ten memory locations, starting at x 3100. • Else, it should set R 0 to 0. R 0 = 1, R 1 = -5, R 3 = 10 R 4 = x 3100, R 2 = M[R 4] R 2 = 5? No No R 3 = 0? R 4 = R 4 + 1 R 3 = R 3 -1 R 2 = M[R 4] Yes 6 -29 R 0 = 0 HALT Yes x 3000 x 3001 x 3002 x 3003 x 3004 x 3005 x 3006 x 3007 x 3008 x 3009 x 300 A x 300 B x 300 C x 300 D x 300 E x 300 F x 3010 010100000 R 0 = 1 000100001 0101001001100000 R 1 = -5 0001001001111011 0101011011100000 R 3 = 10 000101101010 0010100000001001 R 4 = x 3100 011001010000 R 2 = M[R 4] 0001010010000001 R 2 == 5? 0000010000000101 0001100100100001 R 4 = R 4 + 1 000101101111 R 3 = R 3 -1 011001010000 R 2 = M[R 4] 0000001111111010 R 3 == 0? 010100000 R 0 = 0 1111000000100101 HALT 001100000000

Debugging the Fives Program • Running the program with a 5 in location x 3108 results in R 0 = 0, not R 0 = 1. What happened? 6 -30 Perhaps we didn’t look at all the data? Put a breakpoint at x 300 D to see how many times we branch back. Address Contents x 3100 9 x 3101 7 x 3102 32 x 300 D 1 7 9 x 3101 x 3103 0 x 300 D 1 32 8 x 3102 x 3104 -8 x 300 D 1 0 7 x 3103 x 3105 19 0 0 7 x 3103 x 3106 6 x 3107 13 x 3108 5 x 3109 61 PC R 0 R 2 R 3 R 4 Didn’t branch back, even though R 3 > 0? Branch uses condition code set by loading R 2 with M[R 4], not by decrementing R 3. Swap x 300 B and x 300 C, or remove x 300 C and branch back to x 3007.

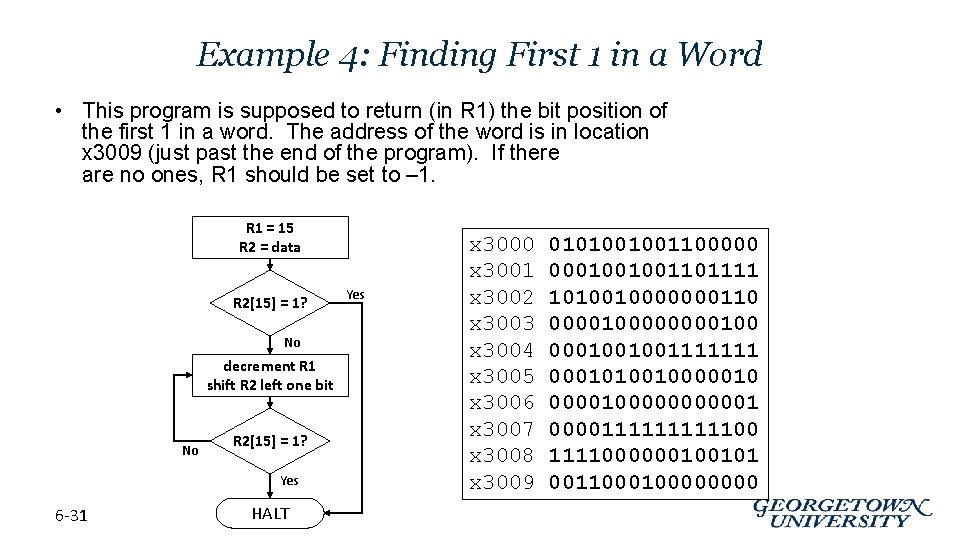

Example 4: Finding First 1 in a Word • This program is supposed to return (in R 1) the bit position of the first 1 in a word. The address of the word is in location x 3009 (just past the end of the program). If there are no ones, R 1 should be set to – 1. R 1 = 15 R 2 = data R 2[15] = 1? No decrement R 1 shift R 2 left one bit No R 2[15] = 1? Yes 6 -31 HALT Yes x 3000 x 3001 x 3002 x 3003 x 3004 x 3005 x 3006 x 3007 x 3008 x 3009 0101001001100000 0001001001101111 1010010000000110 0000100001001001111111 0001010010000010000011111000000100101 001100000000

Debugging the First-One Program • Program works most of the time, but if data is zero, it never seems to HALT. Breakpoint at backwards branch (x 3007) PC 6 -32 R 1 PC R 1 x 3007 14 x 3007 13 x 3007 12 x 3007 11 x 3007 10 x 3007 9 x 3007 -1 x 3007 8 x 3007 -2 x 3007 7 x 3007 -3 x 3007 6 x 3007 -4 x 3007 5 x 3007 -5 If no ones, then branch to HALT never occurs! This is called an “infinite loop. ” Must change algorithm to either (a) check for special case (R 2=0), or (b) exit loop if R 1 < 0.

Debugging: Lessons Learned • Trace program to see what’s going on. – Breakpoints, single-stepping • When tracing, make sure to notice what’s really happening, not what you think should happen. – In summing program, it would be easy to notice that address x 3107 was loaded instead of x 3100. • Test your program using a variety of input data. – In Examples 3 and 4, the program works for many data sets. – Be sure to test extreme cases (all ones, no ones, . . . ). 6 -33

PP. 7 Assembly Language

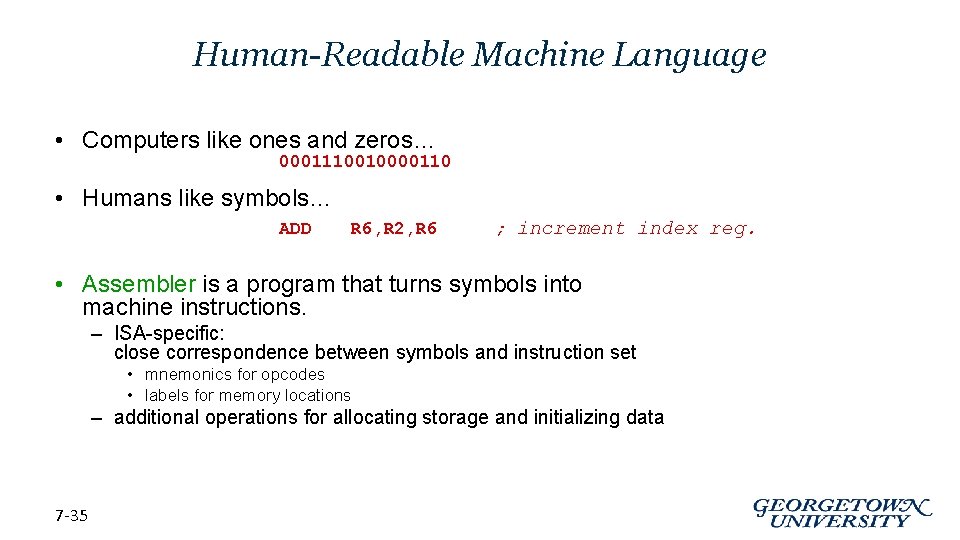

Human-Readable Machine Language • Computers like ones and zeros… 0001110010000110 • Humans like symbols… ADD R 6, R 2, R 6 ; increment index reg. • Assembler is a program that turns symbols into machine instructions. – ISA-specific: close correspondence between symbols and instruction set • mnemonics for opcodes • labels for memory locations – additional operations for allocating storage and initializing data 7 -35

An Assembly Language Program • • • • • 7 -36 ; ; Program to multiply a number by the constant 6 ; . ORIG x 3050 LD R 1, SIX LD R 2, NUMBER AND R 3, #0 ; Clear R 3. It will ; contain the product. ; The inner loop ; AGAIN ADD R 3, R 2 ADD R 1, #-1 ; R 1 keeps track of BRp AGAIN ; the iteration. ; HALT ; NUMBER. BLKW 1 SIX. FILL x 0006 ; . END

LC-3 Assembly Language Syntax • Each line of a program is one of the following: – an instruction – an assember directive (or pseudo-op) – a comment • Whitespace (between symbols) and case are ignored. • Comments (beginning with “; ”) are also ignored. • An instruction has the following format: LABEL OPCODE OPERANDS ; COMMENTS optional 7 -37 mandatory

Opcodes and Operands • Opcodes – reserved symbols that correspond to LC-3 instructions – listed in Appendix A • ex: ADD, AND, LDR, … • Operands – – – registers -- specified by Rn, where n is the register numbers -- indicated by # (decimal) or x (hex) label -- symbolic name of memory location separated by comma number, order, and type correspond to instruction format • ex: ADD LD BRz 7 -38 R 1, R 3 R 1, #3 R 6, NUMBER LOOP

Labels and Comments • Label – placed at the beginning of the line – assigns a symbolic name to the address corresponding to line • ex: LOOP ADD R 1, #-1 BRp LOOP • Comment – – anything after a semicolon is a comment ignored by assembler used by humans to document/understand programs tips for useful comments: • avoid restating the obvious, as “decrement R 1” • provide additional insight, as in “accumulate product in R 6” • use comments to separate pieces of program 7 -39

Assembler Directives • Pseudo-operations – do not refer to operations executed by program – used by assembler – look like instruction, but “opcode” starts with dot Opcode Operand Meaning . ORIG address starting address of program . END 7 -40 end of program . BLKW n allocate n words of storage . FILL n allocate one word, initialize with value n . STRINGZ n-character string allocate n+1 locations, initialize w/characters and null terminator

Trap Codes • LC-3 assembler provides “pseudo-instructions” for each trap code … so you don’t have to remember them. 7 -41 Code Equivalent Description HALT TRAP x 25 Halt execution and print message to console. IN TRAP x 23 Print prompt on console, read (and echo) one character from keybd. Character stored in R 0[7: 0]. OUT TRAP x 21 Write one character (in R 0[7: 0]) to console. GETC TRAP x 20 Read one character from keyboard. Character stored in R 0[7: 0]. PUTS TRAP x 22 Write null-terminated string to console. Address of string is in R 0.

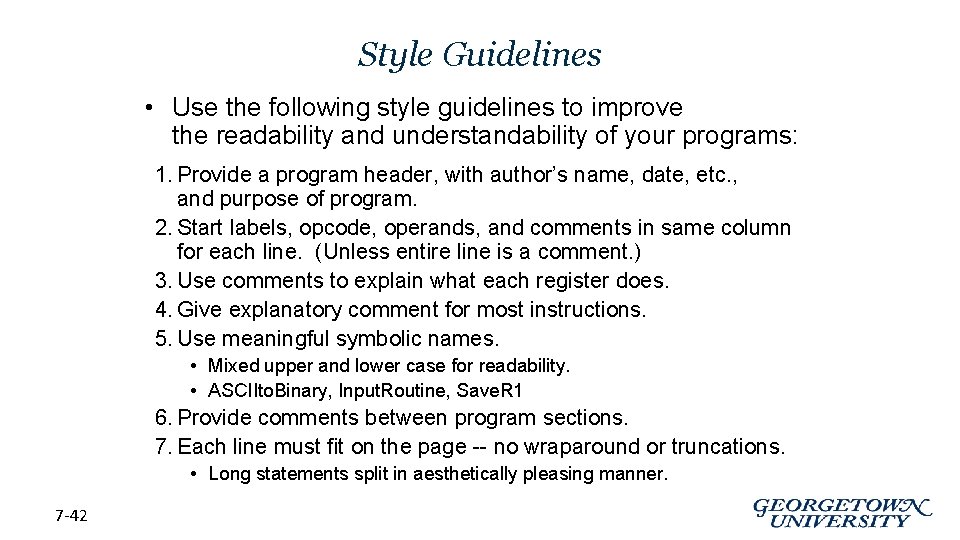

Style Guidelines • Use the following style guidelines to improve the readability and understandability of your programs: 1. Provide a program header, with author’s name, date, etc. , and purpose of program. 2. Start labels, opcode, operands, and comments in same column for each line. (Unless entire line is a comment. ) 3. Use comments to explain what each register does. 4. Give explanatory comment for most instructions. 5. Use meaningful symbolic names. • Mixed upper and lower case for readability. • ASCIIto. Binary, Input. Routine, Save. R 1 6. Provide comments between program sections. 7. Each line must fit on the page -- no wraparound or truncations. • Long statements split in aesthetically pleasing manner. 7 -42

Assembly Process • Convert assembly language file (. asm) into an executable file (. obj) for the LC-3 simulator. • First Pass: – scan program file – find all labels and calculate the corresponding addresses; this is called the symbol table • Second Pass: 7 -43 – convert instructions to machine language, using information from symbol table

First Pass: Constructing the Symbol Table 1. Find the. ORIG statement, which tells us the address of the first instruction. – Initialize location counter (LC), which keeps track of the current instruction. 2. For each non-empty line in the program: a) If line contains a label, add label and LC to symbol table. b) Increment LC. – NOTE: If statement is. BLKW or. STRINGZ, increment LC by the number of words allocated. 3. Stop when. END statement is reached. 7 -44 • NOTE: A line that contains only a comment is considered an empty line.

Practice • • • • • • • • • • • • • ; ; ; ; ; Construct the symbol table for the program below (See PP. 7) Program to count occurrences of a character in a file. Character to be input from the keyboard. Result to be displayed on the monitor. Program only works if no more than 9 occurrences are found. Initialization. ORIG AND LD GETC LDR ; ; Test character ; TEST ADD BRz x 3000 R 2, R 3, PTR R 1, R 3, for end R 4, R 1, OUTPUT #0 #0 of file #-4 ; ; R 2 R 3 R 0 R 1 is counter, initially 0 is pointer to characters gets character input gets first character ; Test for EOT (ASCII x 04) ; If done, prepare the output ; ; Test character for match. If a match, increment count. ; NOT R 1, R 1 ADD R 1, R 0 ; If match, R 1 = x. FFFF NOT R 1, R 1 ; If match, R 1 = x 0000 BRnp GETCHAR ; If no match, do not increment ADD R 2, #1 ; ; Get next character from file. ; GETCHAR ADD R 3, #1 ; Point to next character. LDR R 1, R 3, #0 ; R 1 gets next char to test BRnzp TEST ; ; Output the count. ; OUTPUT LD R 0, ASCII ; Load the ASCII template ADD R 0, R 2 ; Covert binary count to ASCII OUT ; ASCII code in R 0 is displayed. HALT ; Halt machine ; ; Storage for pointer and ASCII template ; ASCII. FILL x 0030 PTR. FILL x 4000 Symbol Address

Second Pass: Generating Machine Language • For each executable assembly language statement, generate the corresponding machine language instruction. – If operand is a label, look up the address from the symbol table. • Potential problems: – Improper number or type of arguments • ex: NOT ADD R 1, #7 R 1, R 2 R 3, NUMBER ; what? !? !? ; need more info? ; what is NUMBER? – Immediate argument too large • ex: ADD R 1, R 2, #1023 – Address (associated with label) more than 256 from instruction • can’t use PC-relative addressing mode 7 -46

Notes about labels (from Assembly to Machine) • Within the context of assembly, labels generally represent the target address. – This may not be intuitive given the ISA structure for an operation. – Example: Loads Load Type Syntax Semantics Load PC relative: LD Dreg 9’b. Offset; 0010_001_x_xxxx Dreg M[ PC + 9’b. Offset ] Load effective address: LEA Dreg 9’b. Offset; 1110_001_x_xxxx Dreg PC + 9’b. Offset Load Indirect: LDI Dreg 9’b. Offset; 1010_001_x_xxxx R 1 M[ M[PC + 9’b. Offset] ] Load Type Syntax Semantics Load PC relative: LD R 1 LABEL; R 1 M[LABEL] Load effective address: LEA R 1 LABEL; R 1 LABEL Load Indirect: LDI R 1 LABEL; R 1 M[M[LABEL]] NOTE: LABEL is NOT the offset. It is the “target” address. LABEL = PC + offset

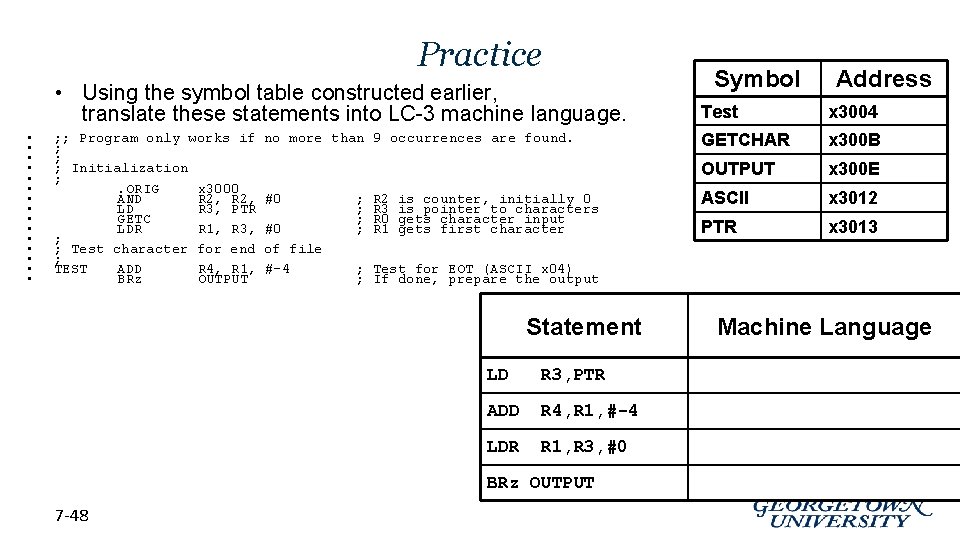

Practice • Using the symbol table constructed earlier, translate these statements into LC-3 machine language. • • • • ; ; Program only works if ; ; ; Initialization ; . ORIG x 3000 AND R 2, LD R 3, PTR GETC LDR R 1, R 3, ; ; Test character for end ; TEST ADD R 4, R 1, BRz OUTPUT no more than 9 occurrences are found. #0 #0 of file #-4 ; ; R 2 R 3 R 0 R 1 is counter, initially 0 is pointer to characters gets character input gets first character Address Test x 3004 GETCHAR x 300 B OUTPUT x 300 E ASCII x 3012 PTR x 3013 ; Test for EOT (ASCII x 04) ; If done, prepare the output Statement LD R 3, PTR ADD R 4, R 1, #-4 LDR R 1, R 3, #0 BRz OUTPUT 7 -48 Symbol Machine Language

LC-3 Assembler (Penn. Sim) • Using “assemble” (Unix) or LC 3 Edit (Windows), generates several different output files. Penn. Sim creates two. 7 -49 This one gets loaded into the simulator.

Object File Format • LC-3 object file contains – Starting address (location where program must be loaded), followed by… – Machine instructions • Example – Beginning of “count character” object file looks like this: 7 -50 0011000000 01010100000 001001100001 111100000011. . ORIG x 3000 AND R 2, #0 LD R 3, PTR TRAP x 23

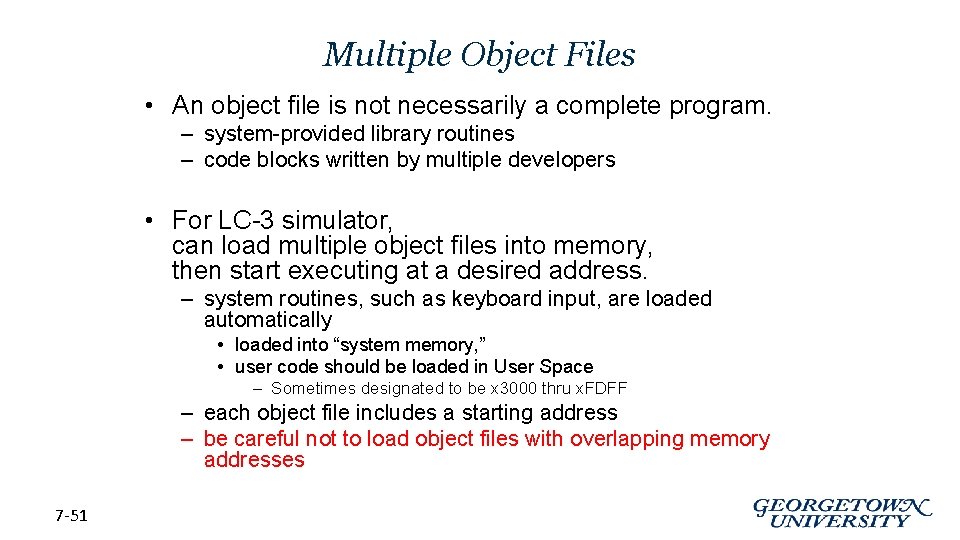

Multiple Object Files • An object file is not necessarily a complete program. – system-provided library routines – code blocks written by multiple developers • For LC-3 simulator, can load multiple object files into memory, then start executing at a desired address. – system routines, such as keyboard input, are loaded automatically • loaded into “system memory, ” • user code should be loaded in User Space – Sometimes designated to be x 3000 thru x. FDFF – each object file includes a starting address – be careful not to load object files with overlapping memory addresses 7 -51

Linking and Loading • Loading is the process of copying an executable image into memory. – more sophisticated loaders are able to relocate images to fit into available memory – must readjust branch targets, load/store addresses • Linking is the process of resolving symbols between independent object files. – suppose we define a symbol in one module, and want to use it in another – some notation, such as. EXTERNAL, is used to tell assembler that a symbol is defined in another module – linker will search symbol tables of other modules to resolve symbols and complete code generation before loading 7 -52

Linking and Loading • Penn. Sim does not have a linker … • We will manually perform the linking steps (usually performed by the linker) in Project #1. • Labels declared. EXTERNAL are given values at this time

Appendix Jeremy Bolton, Ph. D Assistant Teaching Professor Constructed using materials: - Patt and Patel Introduction to Computing Systems (2 nd) - Patterson and Hennessy Computer Organization and Design (4 th) **A special thanks to Rich Squier

Sample Program • Count the occurrences of a character in a file. Remember this? 7 -55

Char Count in Assembly Language (1 of 3) • • • • • ; ; ; ; ; Program to count occurrences of a character in a file. Character to be input from the keyboard. Result to be displayed on the monitor. Program only works if no more than 9 occurrences are found. Initialization. ORIG AND LD GETC LDR x 3000 R 2, #0 R 3, PTR R 1, R 3, #0 ; ; R 2 R 3 R 0 R 1 is counter, initially 0 is pointer to characters gets character input gets first character ; ; Test character for end of file ; TEST ADD R 4, R 1, #-4 ; Test for EOT (ASCII x 04) BRz OUTPUT ; If done, prepare the output 7 -56

Char Count in Assembly Language (2 of 3) • • • • • • ; ; Test character for match. If a match, increment count. ; NOT R 1, R 1 ADD R 1, R 0 ; If match, R 1 = x. FFFF NOT R 1, R 1 ; If match, R 1 = x 0000 BRnp GETCHAR ; If no match, do not increment ADD R 2, #1 ; ; Get next character from file. ; GETCHAR ADD R 3, #1; Point to next character. LDR R 1, R 3, #0 ; R 1 gets next char to test BRnzp TEST ; ; Output the count. ; OUTPUT LD R 0, ASCII ; Load the ASCII template ADD R 0, R 2 ; Covert binary count to ASCII OUT ; ASCII code in R 0 is displayed. HALT ; Halt machine 7 -57

Char Count in Assembly Language (3 of 3) • • • ; ; Storage for pointer and ASCII template ; ASCII. FILL x 0030 PTR. FILL x 4000. END 7 -58
