COMP 655 DistributedOperating Systems Summer 2011 Dr Chunbo
COMP 655: Distributed/Operating Systems Summer 2011 Dr. Chunbo Chu Week 11: System Examples 5/26/2021 Distributed Systems - COMP 655 1
Distributed system examples • Commercial middleware – J 2 EE Overview –. NET Overview • Web services: where middleware systems meet • Web service from Open Source middleware 5/26/2021 Distributed Systems - Comp 655 2
Java EE Overview • The problem Java EE attempts to solve: maximize the use of Java technologies by providing a suite of Java technology specifications that is – Integrated – Suitable for enterprise applications – Widely available – Includes all of the basic middleware capabilities for building distributed systems 5/26/2021 Distributed Systems - Comp 655 3
Enterprise applications require • High throughput – Load balancing – Efficient communications • • High availability Highly reliable communications Persistent, asynchronous communication option Distributed transactions High security Ability to interoperate with whatever Structured naming with de-centralized administration 5/26/2021 Distributed Systems - Comp 655 4
The Java™ Platform Java Technology Enabled Devices Java Technology Enabled Desktop Workgroup Server High-End Server
The 3 Cs of Java EE Components Containers Connectors 5/26/2021 Distributed Systems - Comp 655 6
J 2 EE Overview 5/26/2021 Distributed Systems - Comp 655 7
Key middleware services • • • Communication: RMI-IIOP, JMS Naming: JNDI (part of Java SE) Persistence: JPA, JDBC, JDO Transactions: JTA, JTS Security: (next page) 5/26/2021 Distributed Systems - Comp 655 8
Java SE 6 Security Features • JAAS – Java Authentication and Authorization Service • JCE – Java Cryptography Extension • JSSE – Java Secure Socket Extension • Java GSS-API – Kerberos V 5 secure communications • JSSE - Java Secure Socket Extension • More… 5/26/2021 Distributed Systems - Comp 655 9
Java EE for web services • • Java Architecture for XML Binding (JAXB) Java API for RESTful Services (JAX-RS) Java API for XML-Based Web Services (JAX-WS) SOAP with Attachments API for Java (SAAJ) Java API for XML Messaging (JAXM) Java API for XML Processing (JAXP) Java API for XML Registries (JAXR) Java API for XML-Based Remote Procedure Call (JAX-RPC) 5/26/2021 Distributed Systems - Comp 655 10
Enterprise Java Beans • A server-side component technology • Easy development and deployment of Java technology-based application that are: – Transactional, distributed, multi-tier, portable, scalable, secure, … 5/26/2021 Distributed Systems - Comp 655 11
Enterprise Java Beans • Session beans – Represent business processes and data about an interaction with a client – Two types: • Stateless • Stateful • Entity beans (FROZEN at EJB 2. 5) – Represent persistent data and data integrity rules – Two types of persistence: • Container-managed persistence • Bean-managed persistence 5/26/2021 Distributed Systems - Comp 655 12
Invoking an EJB method Home Object 3 Client 1 2 5 4 6 EJB Object JNDI NS, eg LDAP 5/26/2021 EJB Container 1. 2. 3. 4. 5. 6. 7. 7 Enterprise Bean(s) Request home object Return home object reference Request new EJB object Create EJB object Return EJB object reference Invoke method Delegate request to enterprise bean(s) Distributed Systems - Comp 655 13
Message-driven beans • MDB are stateless beans that – Listen for and handle JMS messages – Participate in transactions if necessary • MDB have no – Home interface – Remote interface – Interfaces directly callable by clients (clients just send messages) An MDB tutorial An MDB article 5/26/2021 Distributed Systems - Comp 655 14
If you remember one thing • Enterprise beans are – Single-threaded – Ignorant of security – Ignorant of transactions – Ignorant of networking • The container handles all that • Containers tend to be pricey 5/26/2021 Distributed Systems - Comp 655 15
Leading EJB containers • • • Oracle/BEA Weblogic IBM Websphere JBoss (open source) Glass. Fish (open source) Geronimo (open source) 5/26/2021 Distributed Systems - Comp 655 16
Deployment descriptors • Deferred binding for many of the things the bean developer need not worry about, including – Access control – Transaction requirements – Persistence parameters – Type of bean – Classes used for home and remote interfaces 5/26/2021 Distributed Systems - Comp 655 17
Deployment descriptor example <? xml version="1. 0" encoding="ISO-8859 -1"? > <!DOCTYPE ejb-jar PUBLIC "-//Sun Microsystems, Inc. //DTD Enterprise Java. Beans 2. 0//EN" "http: //java. sun. com/dtd/ejb-jar_2_0. dtd"> <ejb-jar> <description>Deployment descriptor for the samplemdb JOn. AS example</description> <display-name>samplemdb example</display-name> <enterprise-beans> <message-driven> <description>Describe here the message driven bean Mdb</description> <display-name>Message Driven Bean Mdb</display-name> <ejb-name>Mdb</ejb-name> <ejb-class>samplemdb. Mdb. Bean</ejb-class> <transaction-type>Container</transaction-type> <acknowledge-mode>Auto-acknowledge</acknowledge-mode> <message-driven-destination> <destination-type>javax. jms. Topic</destination-type> <subscription-durability>Non. Durable</subscription-durability> </message-driven-destination> </message-driven> </enterprise-beans> <assembly-descriptor> <container-transaction> <method> <ejb-name>Mdb</ejb-name> <method-name>*</method-name> </method> <trans-attribute>Required</trans-attribute> </container-transaction> </assembly-descriptor> </ejb-jar> 5/26/2021 Distributed Systems - Comp 655 18
Java EE 5/26/2021 Distributed Systems - Comp 655 19
Java EE 6 • Defined by JSR 316 • Adds – JAX-RS (JSR 311) – Web Beans (JSR 299) – Java Authentication SPI for containers (JSR 196) • Removes – EJB Container-managed persistence – JAX-RPC • And other changes • Approved over a variety of concerns and objections 5/26/2021 Distributed Systems - Comp 655 20
EJB 3 • Developer does not have to implement EJB interfaces • EJB interface implementations inferred from annotations (for example @Stateless) • In many cases, explicit deployment descriptors are not needed • In many cases, deployment information can be inferred from annotations (for example @Stateless) • Enterprise beans frozen at version 2. 5, replaced by Java Persistence API (JPA), based on Hibernate 5/26/2021 Distributed Systems - Comp 655 21
EJB 3, continued • In many cases, explicit JNDI lookups are not necessary • In many cases, system can infer the required lookup from annotations (for example, @EJB) 5/26/2021 Distributed Systems - Comp 655 22
Web sites (3 of thousands) Sun’s J 2 EE site: http: //java. sun. com/javaee/ Mastering EJB 3. 0 (downloadable) EJB design patterns (downloadable) J 2 EE Architect’s Handbook (downloadable) 5/26/2021 Distributed Systems - Comp 655 23
Connector • Defines standard API for integrating J 2 EE technology with EIS systems – CICS, SAP, People. Soft, etc. • Before Connector architecture, each App server has to provide an proprietary adaptor for each EIS system – m (# of App servers) x n (# of EIS's) Adaptors • With Connector architecture, same adaptor works with all J 2 EE compliant containers – 1 (common to all App servers) x n (# of EIS's) Adaptors
. NET Overview • The problem. NET tries to solve: maximize the sale of server-side licenses by providing a suite of Windows technologies that is – Integrated – Suitable for enterprise applications – Includes all of the basic capabilities for building distributed systems 5/26/2021 Distributed Systems - Comp 655 26
. NET Framework • Platform for running. NET managed code in a virtual machine • Provides a very good environment to develop networked applications and Web Services • Provides programming API and unified language-independent development framework . NET Application . NET Framework Operating System + Hardware
The Core of. NET Framework • Common Language Runtime – Garbage collection – Language integration – Multiple versioning support (no more DLL hell!) – Integrated security • Framework Class Library – Provides the core functionality: ASP. NET, Web Services, ADO. NET, Windows Forms, IO, XML, etc.
. NET Framework Common Language Runtime – CLR manages code execution at runtime – Memory management, thread management, etc. Common Language Runtime Operating System
. NET Framework Base Class Library – Object-oriented collection of reusable types – Collections, I/O, Strings, … . NET Framework (Base Class Library) Common Language Runtime Operating System
. NET Framework Data Access Layer – Access relational databases – Disconnected data model – Work with XML ADO. NET and XML. NET Framework (Base Class Library) Common Language Runtime Operating System
. NET Framework ASP. NET & Windows Forms – Create application’s front-end – Web-based user interface, Windows GUI, Web services, … ASP. NET Web Forms Web Services Mobile Internet Toolkit Windows Forms ADO. NET and XML. NET Framework (Base Class Library) Common Language Runtime Operating System
. NET Framework Programming Languages – Use your favorite language C++ C# VB. NET Perl J# ASP. NET Web Forms Web Services Mobile Internet Toolkit … Windows Forms ADO. NET and XML. NET Framework (Base Class Library) Common Language Runtime Operating System
. NET Framework Common Language Specification C++ VB Common Language C# Perl Specification J# … ASP. NET Web Forms Web Services Mobile Internet Toolkit Windows Forms ADO. NET and XML. NET Framework (Base Class Library) Common Language Runtime Operating System
. NET Framework Visual Studio. NET C++ C# VB Perl J# … Common Language Specification Web Forms Web Services Mobile Internet Toolkit Windows Forms ADO. NET and XML. NET Framework (Base Class Library) Common Language Runtime Operating System V i s u a l S tu d i o. N E T ASP. NET
. NET Framework Standards Compliance C++ C# VB Perl C# Language – Submitted to ECMA J# … Common Language Specification Web Services Web Forms Mobile Internet Toolkit Windows Web services – Forms XML, SOAP-based ADO. NET and XML. NET Framework (Base Class Library) Common Language Runtime Operating System V i s u a l S tu d i o. N E T ASP. NET Open Language Specification XML-based data access
. NET programming languages 5/26/2021 Distributed Systems - Comp 655 37
Key middleware services (. NET) • Communication: SOAP, http, ORPC • Naming: URI, DNS, COM+ Catalog, Windows Registry • Persistence: ADO, OLE-DB • Transactions: MTS • Security: SSL, Kerberos, NTLM 5/26/2021 Distributed Systems - Comp 655 38
J 2 EE vs. NET • Microsoft says: –. NET is faster – You write less code and easier code with. NET – www. gotdotnet. com/team/compare/default. aspx • Sun says: –. NET is a closed system –. NET is immature –. NET lacks community – java. sun. com/features/2002/07/rimapatel. html (NOTE: this is getting old) (Java in grade school? ) 5/26/2021 Distributed Systems - Comp 655 39
J 2 EE vs. Net continued • IBM says – Only 26% of mid-market companies have Windows only –. Net locks you into Windows – Microsoft competes with its partners – Our Web. Sphere-based J 2 EE platform is cheaper than a comparable server-side. Net platform – Read all about it 5/26/2021 Distributed Systems - Comp 655 40
Web Services • Where middleware systems meet • The idea: allow clients to find and interact with services over the web without regard to how the clients or services are built • How do you do that? With standards … • This is a MAJOR industry bandwagon, as you probably know 5/26/2021 Distributed Systems - Comp 655 41
SOAP overview Protocols include HTTP, SMTP, TCP, MSMQ, … What’s the difference between RPC and request/ response? 5/26/2021 Distributed Systems - Comp 655 42
SOAP intermediaries 5/26/2021 Distributed Systems - Comp 655 43
SOAP is (v 1. 2) SOAP is a lightweight protocol intended for exchanging structured information in a decentralized, distributed environment. SOAP uses XML technologies to define an extensible messaging framework, which provides a message construct that can be exchanged over a variety of underlying protocols. The framework has been designed to be independent of any particular programming model and other implementation specific semantics. msdn. microsoft. com/library/default. asp? url=/library/en-us/dnsoap/html/understandsoap. asp 5/26/2021 Distributed Systems - Comp 655 44
SOAP message structure <soap: Envelope xmlns: soap="http: //schemas. xmlsoap. org/soap/envelope/"> <soap: Header> <!-- optional --> <!-- header blocks go here. . . --> </soap: Header> <soap: Body> <!-- payload or Fault element goes here. . . --> </soap: Body> </soap: Envelope> 5/26/2021 Distributed Systems - Comp 655 45
SOAP message example <soap: Envelope xmlns: soap="http: //schemas. xmlsoap. org/soap/envelope/"> <soap: Body> <x: Transfer. Funds xmlns: x="urn: examples-org: banking"> <from>22 -342439</from> <to>98 -283843</to> <amount>100. 00</amount> </x: Transfer. Funds> </soap: Body> </soap: Envelope> 5/26/2021 Distributed Systems - Comp 655 46
SOAP response message example <soap: Envelope xmlns: soap="http: //schemas. xmlsoap. org/soap/envelope/"> <soap: Body> <x: Transfer. Funds. Response xmlns: x="urn: examples-org: banking"> <balances> <account> <id>22 -342439</id> <balance>33. 45</balance> </account> <id>98 -283843</id> <balance>932. 73</balance> </account> </balances> </x: Transfer. Funds. Response> </soap: Body> </soap: Envelope> 5/26/2021 Distributed Systems - Comp 655 47
SOAP error message example <soap: Envelope xmlns: soap="http: //schemas. xmlsoap. org/soap/envelope/"> <soap: Body> <soap: Fault> <faultcode>soap: Server</faultcode> <faultstring>Insufficient funds</faultstring> <detail> <x: Transfer. Error xmlns: x="urn: examples-org: banking"> <source. Account>22 -342439</source. Account> <transfer. Amount>100. 00</transfer. Amount> <current. Balance>89. 23</current. Balance> </x: Transfer. Error> </detail> </x: Transfer. Funds> </soap: Body> </soap: Envelope> 5/26/2021 Distributed Systems - Comp 655 48
SOAP extensibility example <soap: Envelope xmlns: soap="http: //schemas. xmlsoap. org/soap/envelope/"> <soap: Header> <!-- security credentials --> <s: credentials xmlns: s="urn: examples-org: security"> <username>dave</username> <password>evad</password> </s: credentials> </soap: Header> <soap: Body> <x: Transfer. Funds xmlns: x="urn: examples-org: banking"> <from>22 -342439</from> <to>98 -283843</to> <amount>100. 00</amount> </x: Transfer. Funds> </soap: Body> </soap: Envelope> 5/26/2021 Distributed Systems - Comp 655 49
Must-understand <soap: Envelope xmlns: soap="http: //schemas. xmlsoap. org/soap/envelope/" > <soap: Header> <!-- security credentials --> <s: credentials xmlns: s="urn: examples-org: security" soap: must. Understand="1" > <username>dave</username> <password>evad</password> </s: credentials> </soap: Header>. . . 5/26/2021 Distributed Systems - Comp 655 50
SOAP in HTTP 5/26/2021 Distributed Systems - Comp 655 51
SOAP in context • SOAP is an extensible way to encode requests and responses in XML • WSDL (Web Services Description Language) is a way to describe the requests and responses a web service uses • UDDI (Universal Description, Discovery and Integration) is a way of locating web services 5/26/2021 Distributed Systems - Comp 655 52
WSDL • WSDL is an XML format for describing network services as a set of endpoints operating on messages containing either document-oriented or procedureoriented information. • http: //www. w 3. org/TR/wsdl • Protocol bindings described: SOAP 1. 1, HTTP GET/POST, MIME 5/26/2021 Distributed Systems - Comp 655 53
UDDI • UDDI enables a business to – describe its business and its services – discover other businesses that offer desired services – integrate with these other businesses. • http: //www. uddi. org/ 5/26/2021 Distributed Systems - Comp 655 54
Dissent: REST • REST's proponents: the Web’s scalability and growth result directly from a few key design principles: – Application state and functionality are divided into resources – Every resource is uniquely addressable using a universal syntax for use in hypermedia links – All resources share a uniform interface for the transfer of state between client and resource: • Constrained set of well-defined operations • Constrained set of content types, optionally supporting code-ondemand • A protocol that is: – – 5/26/2021 Client/Server Stateless Cacheable Layered Distributed Systems - Comp 655 55
REST resources • The previous slide came from Wikipedia’s article • JAX-RS • Roy Fielding’s dissertation started the “movement” • Del. icio. us is a well-known (almost) example • Joe Gregorio on REST and WS-* • RESTful Web Services book 5/26/2021 Distributed Systems - Comp 655 56
Web service from open source • Two authors from HP – Chris Peltz – Claire Rogers • Goal: set up a weather-forecast web service on a laptop, using all Open Source infrastructure • http: //syscon. com/webservices/article. cfm? id=728 5/26/2021 Distributed Systems - Comp 655 57
Decisions, decisions … • • • Linux distribution DBMS Programming language Java runtime Java IDE Web container Web service container Build environment Testing 5/26/2021 Distributed Systems - Comp 655 58
Linux distribution • Red. Hat – closes the gap between Windows and Unix, good for Linux novices • Su. SE – good for existing Windows users • Debian – used by well-seasoned Linux developers [selected] Ø They also liked GNOME 5/26/2021 Distributed Systems - Comp 655 59
Open source database • Postgre. SQL – robust, full-featured • My. SQL – maximize Web application performance, but no stored procedures or triggers [selected] Ø It took several tries to get My. SQL installed, but it worked well once it was set up. 5/26/2021 Distributed Systems - Comp 655 60
Java SDK • J 2 SE SDK from Sun • Blackdown JDK • BEA’s JRockit [selected, primarily for performance reasons] • http: //www. spec. org/ • http: //www. theserverside. com/ecperf/ • They liked the “M x N” threading model 5/26/2021 Distributed Systems - Comp 655 61
Another industry benchmark • www. tpc. org • TPC is best known for TPC-C, which pioneered the $/tpm. C approach • www. tpc. org/tpcc/results/tpcc_perf_re sults. asp 5/26/2021 Distributed Systems - Comp 655 62
Java IDE • vi or emacs • Net. Beans (based on Swing, considered more platform-independent) • Eclipse (based on SWT, considered faster and more attractive on-screen) [selected] Ø They liked Eclipse’s plug-ins Ø HP is developing several plug-ins 5/26/2021 Distributed Systems - Comp 655 63
Web container • • Resin Jboss Jetty Tomcat [selected, for performance, stability, and because it’s the default web container for Apache Axis] Ø They were able to start and stop Tomcat from Eclipse, with the help of a plug-in 5/26/2021 Distributed Systems - Comp 655 64

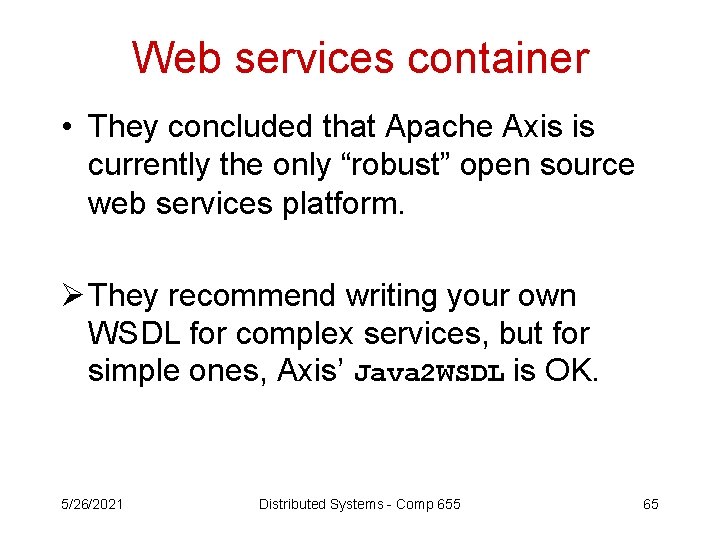

Web services container • They concluded that Apache Axis is currently the only “robust” open source web services platform. Ø They recommend writing your own WSDL for complex services, but for simple ones, Axis’ Java 2 WSDL is OK. 5/26/2021 Distributed Systems - Comp 655 65
More on Apache Axis Ø Some manual coding was needed to adapt their server-side code to the web service environment (example: had to make the Forecast class a Bean so it could be serialized) Ø The hardest part was figuring out what had to change. 5/26/2021 Distributed Systems - Comp 655 66
Build and test • Ant for building. • WSDL 2 Java from Axis generates a client proxy class from the WSDL. Handy for testing. • Axis tcpmon for monitoring SOAP traffic. • Web service testing tools – – JUnit Grinder Anteater Push. To. Test. Maker [selected] • Test. Maker scripts are written in Jython 5/26/2021 Distributed Systems - Comp 655 67
