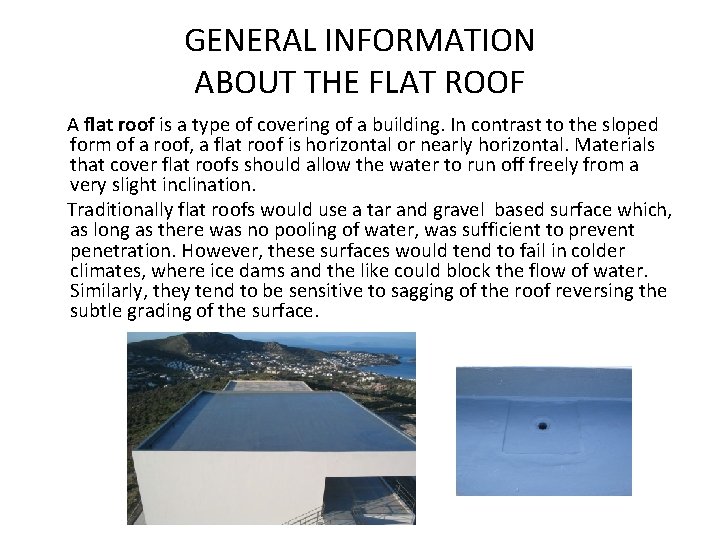

GENERAL INFORMATION ABOUT THE FLAT ROOF A flat roof is a type of covering of a building. In contrast to the sloped form of a roof, a flat roof is horizontal or nearly horizontal. Materials that cover flat roofs should allow the water to run off freely from a very slight inclination. Traditionally flat roofs would use a tar and gravel based surface which, as long as there was no pooling of water, was sufficient to prevent penetration. However, these surfaces would tend to fail in colder climates, where ice dams and the like could block the flow of water. Similarly, they tend to be sensitive to sagging of the roof reversing the subtle grading of the surface.

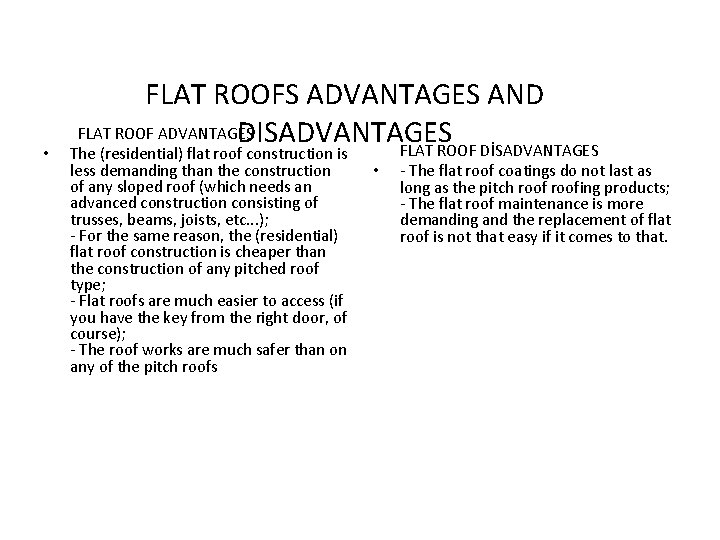

FLAT ROOFS ADVANTAGES AND FLAT ROOF ADVANTAGES DISADVANTAGES FLAT ROOF DİSADVANTAGES • The (residential) flat roof construction is less demanding than the construction of any sloped roof (which needs an advanced construction consisting of trusses, beams, joists, etc. . . ); - For the same reason, the (residential) flat roof construction is cheaper than the construction of any pitched roof type; - Flat roofs are much easier to access (if you have the key from the right door, of course); - The roof works are much safer than on any of the pitch roofs • - The flat roof coatings do not last as long as the pitch roofing products; - The flat roof maintenance is more demanding and the replacement of flat roof is not that easy if it comes to that.

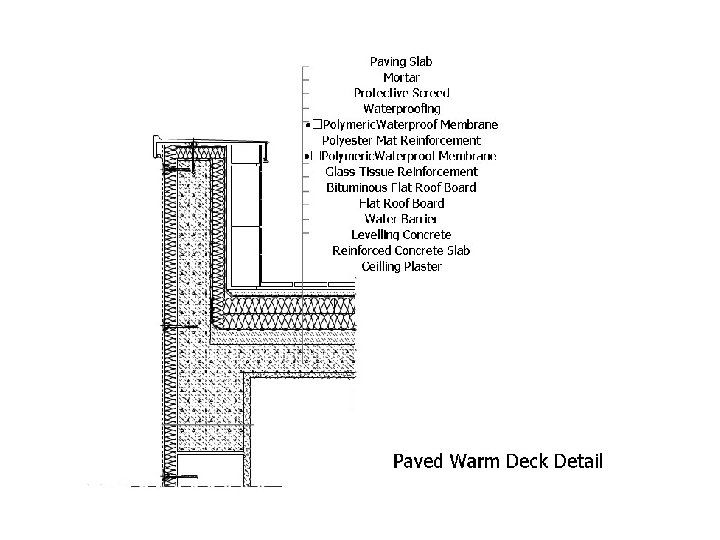

PAVED TERRACE ROOFS 1) FULLY ADHERED SYSTEM For economical reasons, adhered roofing systems are suited to new or refurbishment projects, projects with a high aesthetic requirement and the reproduction of the appearance of traditional systems, such as Lead and Copper.

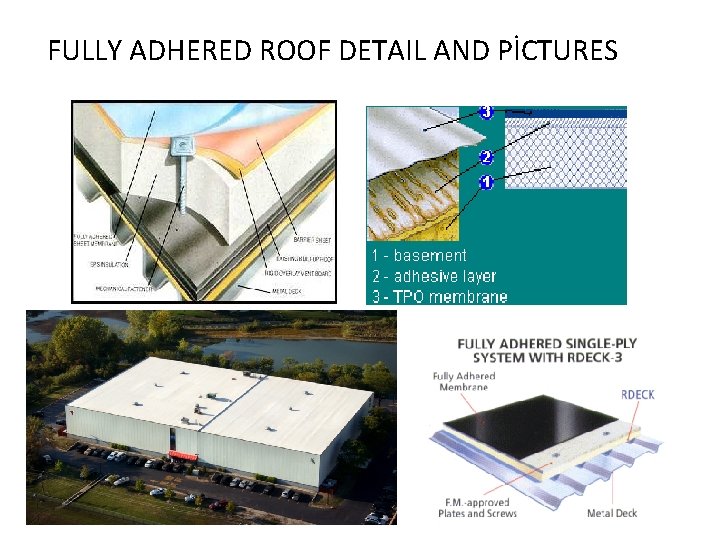

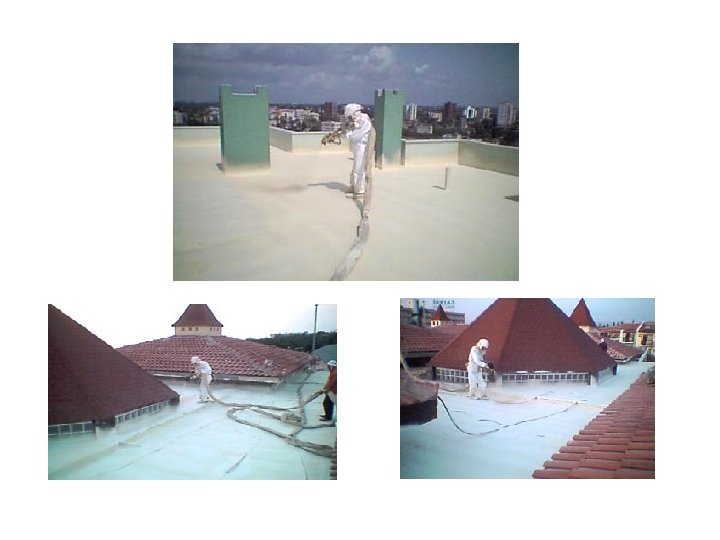

FULLY ADHERED ROOF DETAIL AND PİCTURES

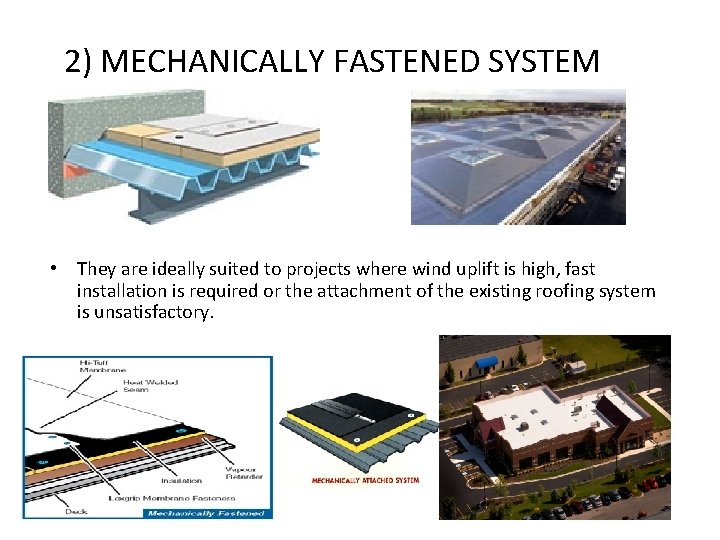

2) MECHANICALLY FASTENED SYSTEM • They are ideally suited to projects where wind uplift is high, fast installation is required or the attachment of the existing roofing system is unsatisfactory.

3) GREEN ROOF This is a typical example of this type of roofing being used for aesthetic reasons. More recently, green roofs have been used for both aesthetic and environmental reasons, with the green roof replacing the green ‘footprint’ lost by the erection of the building. Today, the significant contributions of green roof to Sustainable Drainage systems are increasingly being recognised. In Germany, in excess of 80 million m² of green roofing have been installed. DETAIL

4) BALLASTED ROOF SYSTEM • • System Benefits Low installation cost Use of large EPDM panels Fewer seams Fast installation Excellent fire rating Superior weathering resistance Large choice of compatible substrates

BALLASTED ROOF SYSTEM DETAILS AND PICTURES

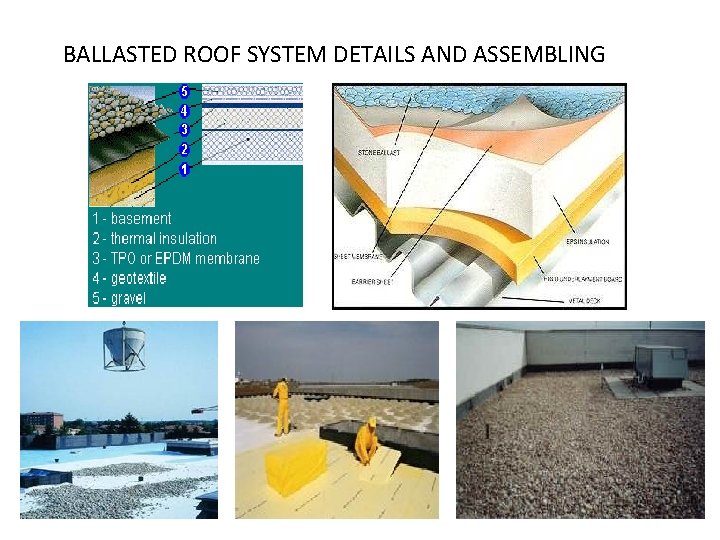

BALLASTED ROOF SYSTEM DETAILS AND ASSEMBLING

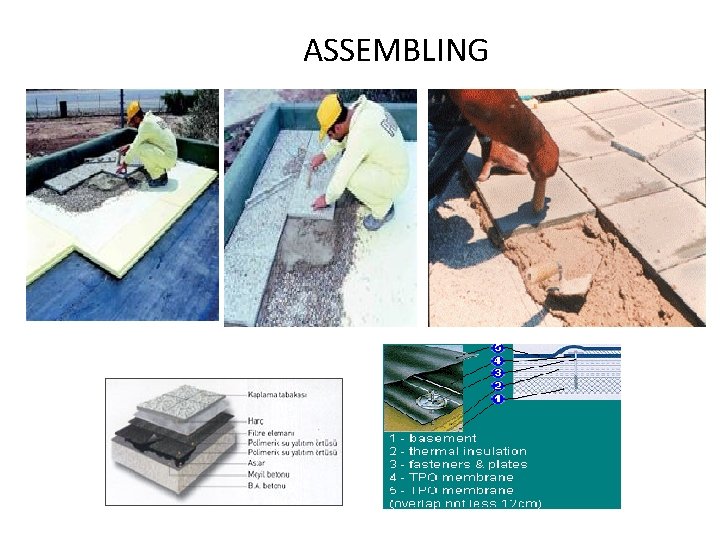

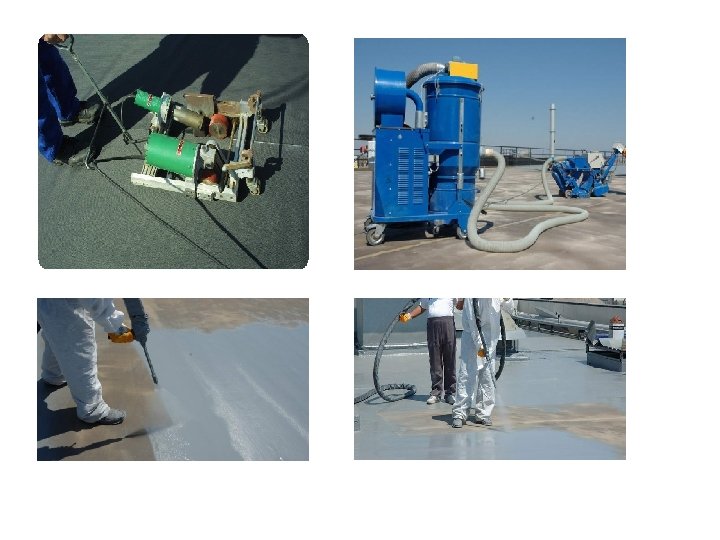

ASSEMBLING

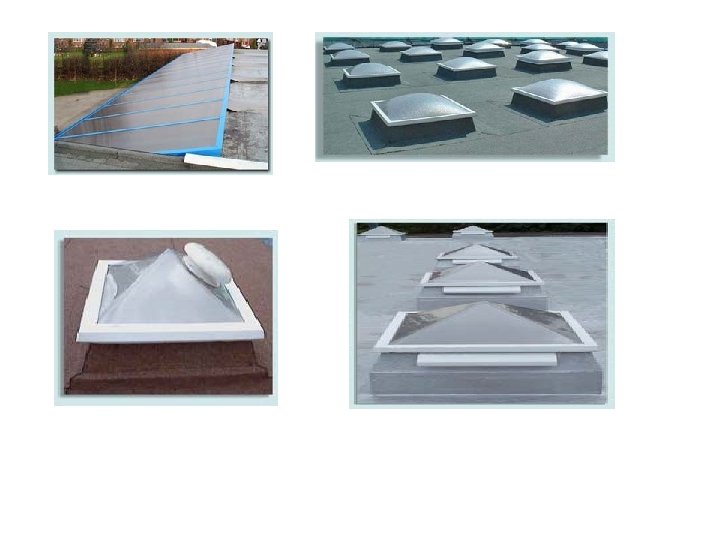

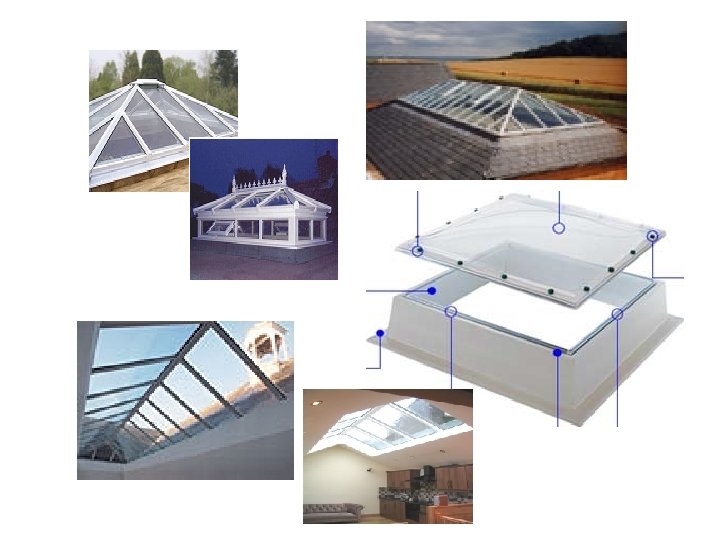

ROOF LIGTHINGS

METAL ROOF AND ADVANTAGES • A metal roof is a roofing system made from metal pieces or tiles. They are components of the building envelope. ADVANTAGES OF A METAL ROOF: Usually lasts about twice as long as an asphalt roof. Tends to reflect more heat away (saving energy in the summer in southern climates). Resistant to damage from hail, branches, wind and forest fires. Lightweight so less roof sag. Brighter smoother colors. Rainwater harvesting systems may use metal roofs in order to limit contamination of water that has flowed over it.

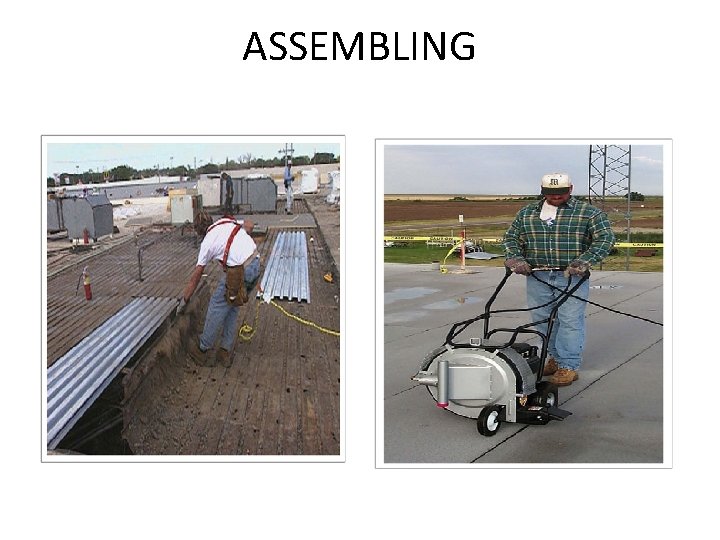

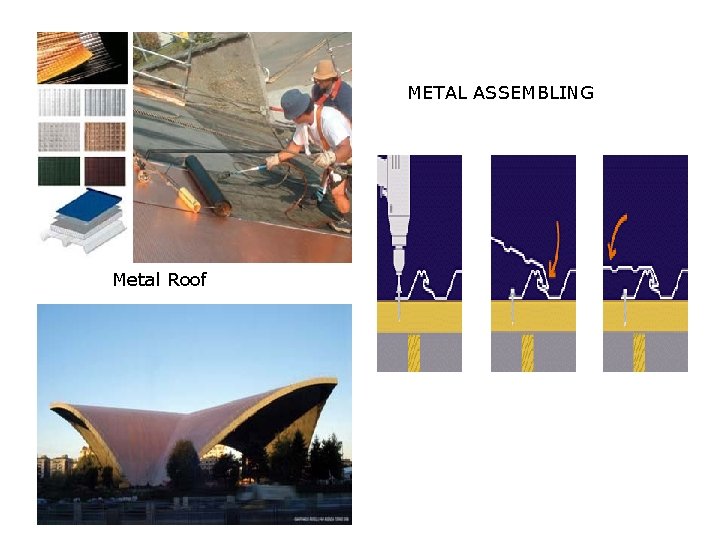

METAL ASSEMBLING Metal Roof

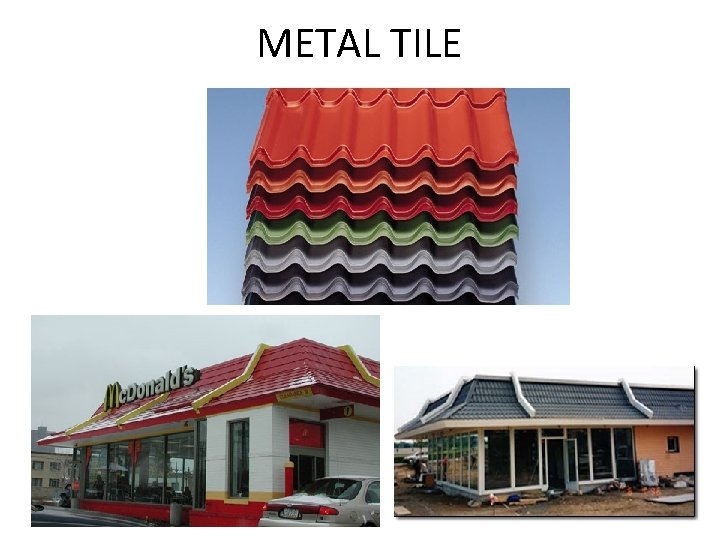

METAL TILE

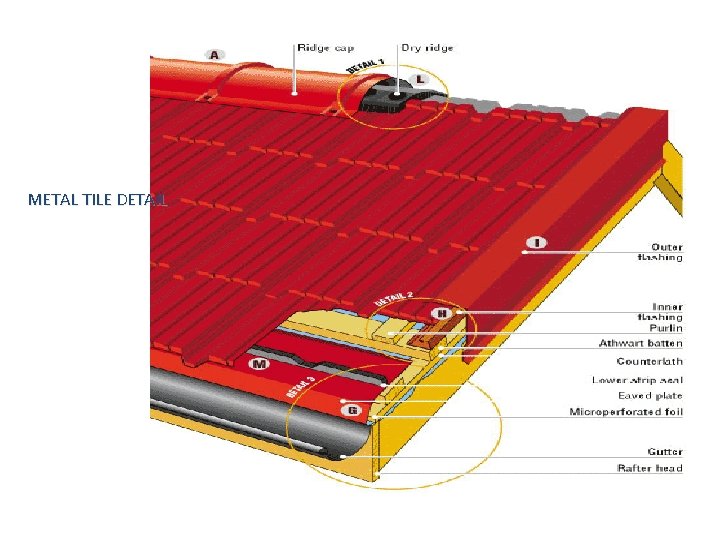

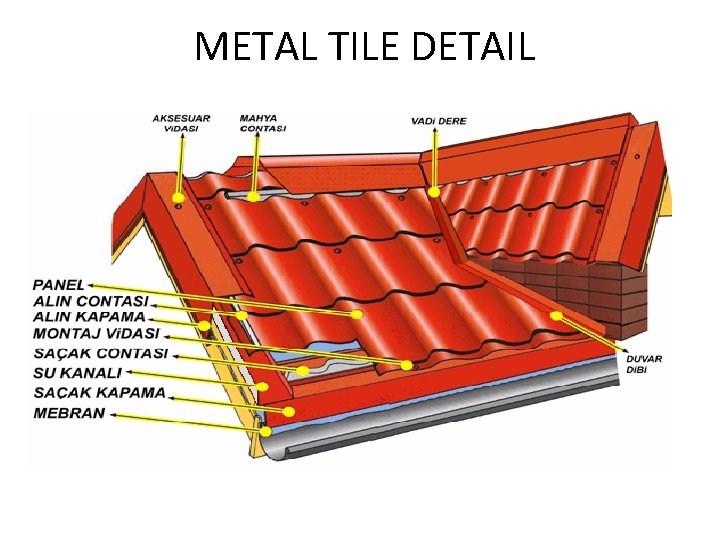

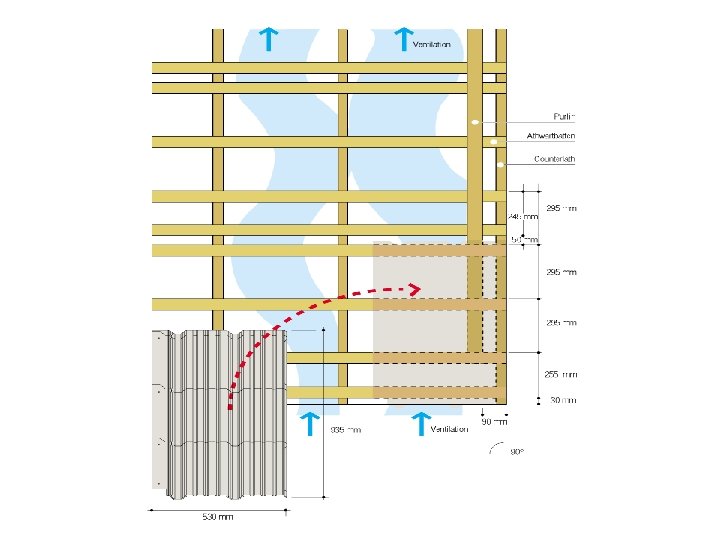

METAL TILE DETAIL

METAL TILE DETAIL

METAL TILE DETAIL

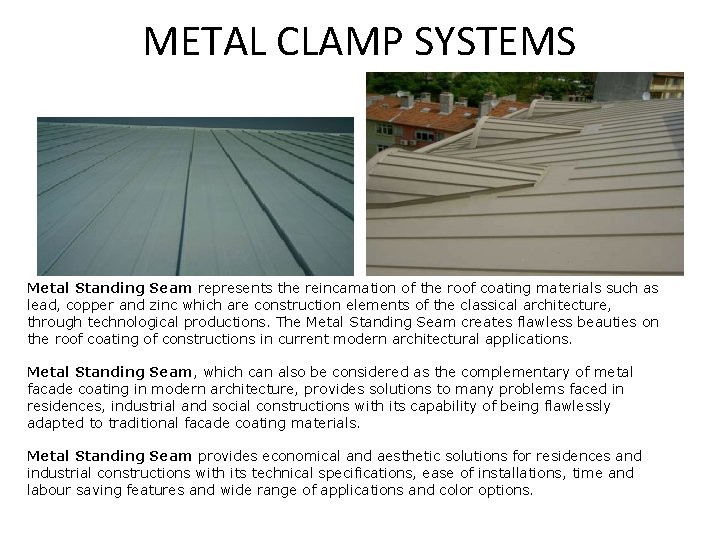

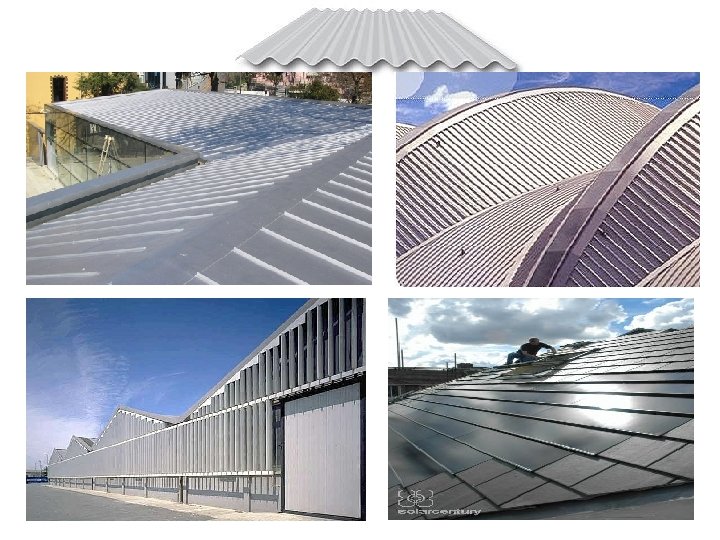

METAL CLAMP SYSTEMS Metal Standing Seam represents the reincamation of the roof coating materials such as lead, copper and zinc which are construction elements of the classical architecture, through technological productions. The Metal Standing Seam creates flawless beauties on the roof coating of constructions in current modern architectural applications. Metal Standing Seam, which can also be considered as the complementary of metal facade coating in modern architecture, provides solutions to many problems faced in residences, industrial and social constructions with its capability of being flawlessly adapted to traditional facade coating materials. Metal Standing Seam provides economical and aesthetic solutions for residences and industrial constructions with its technical specifications, ease of installations, time and labour saving features and wide range of applications and color options.

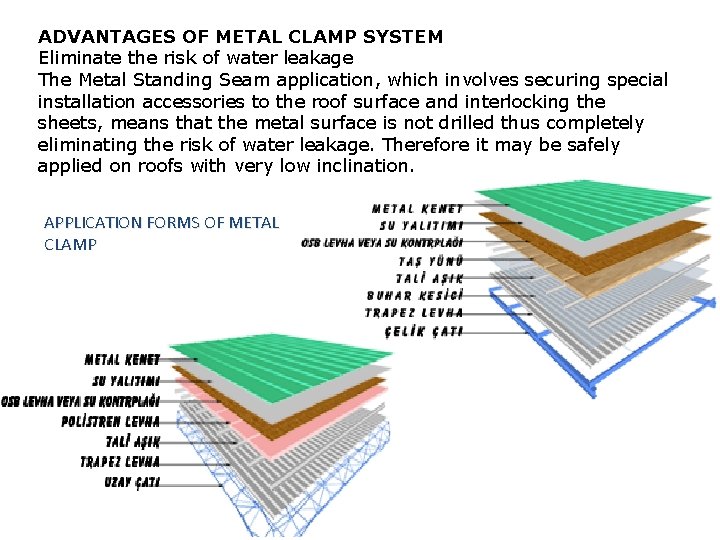

ADVANTAGES OF METAL CLAMP SYSTEM Eliminate the risk of water leakage The Metal Standing Seam application, which involves securing special installation accessories to the roof surface and interlocking the sheets, means that the metal surface is not drilled thus completely eliminating the risk of water leakage. Therefore it may be safely applied on roofs with very low inclination. APPLICATION FORMS OF METAL CLAMP

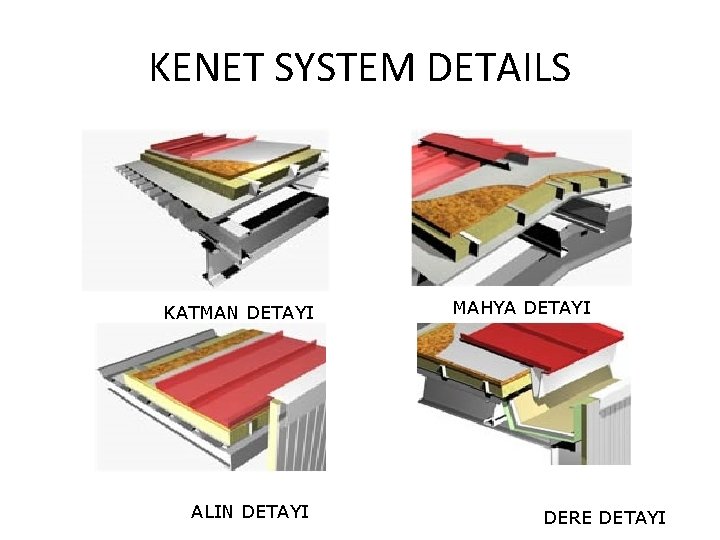

KENET SYSTEM DETAILS KATMAN DETAYI ALIN DETAYI MAHYA DETAYI DERE DETAYI

ALUMINIUM CLAMP SYSTEMS Aluminum is extremely lightweight, won't rust but must be painted or coated for appearance. Coatings are similar to those used on steel. Aluminum is a viable option for virtually any roof where steel or other materials are being considered, particularly in coastal environments where salt air can cause corrosion. Its natural properties of light weight, strength and longevity make it a desirable roofing material particularly for reroofing where aluminum does not require structural reinforcement. Aluminum is more malleable than steel and can generally be formed into more intricate and detailed product designs which allow the building of strength and beauty into a roof.

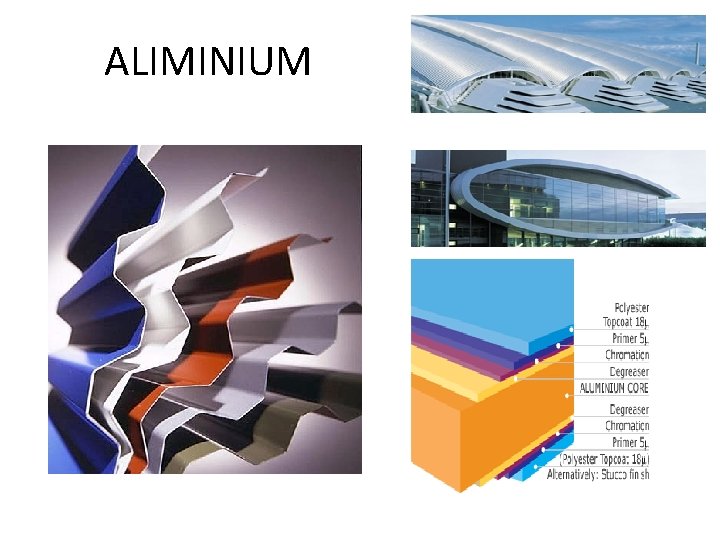

ALIMINIUM

GENERAL INFORMATION STEEL ROOF • Englert is the only company that offers its roll formed metal standing seam material in both Galvalume and Galvalume Plus. Galvalume steel is an ideal roofing material because of its strength, extraordinary outdoor corrosion resistance and longevity. Galvalume® and Galvalume Plus®, which Englert offers exclusively, are produced by coating steel with a special Aluminum-Zinc alloy that provides more than twice the corrosion resistance of galvanized steel. It delivers the optimum combination of the features of aluminum and zinc: the barrier protection and longterm durability of aluminum and the sacrificial or galvanic protection of sheared edges that is characteristic of zinc. • Galvalume Plus is the same bare Galvalume product with a thin, clear acrylic coating. Galvalume Plus can be roll formed dry without vanishing oil, making it much easier to form and install safely. • Galvalume Plus resists fingerprinting and smudging during handling and installation at the jobsite and has excellent resistance to storage stain and transit corrosion.

STEEL ROOF

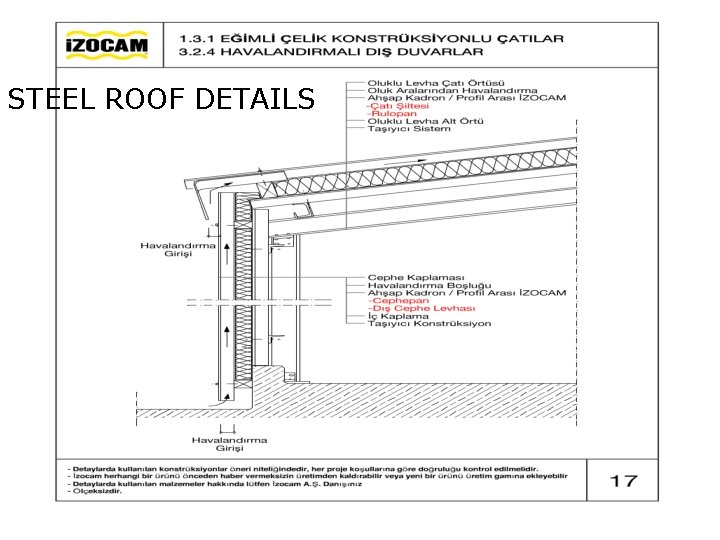

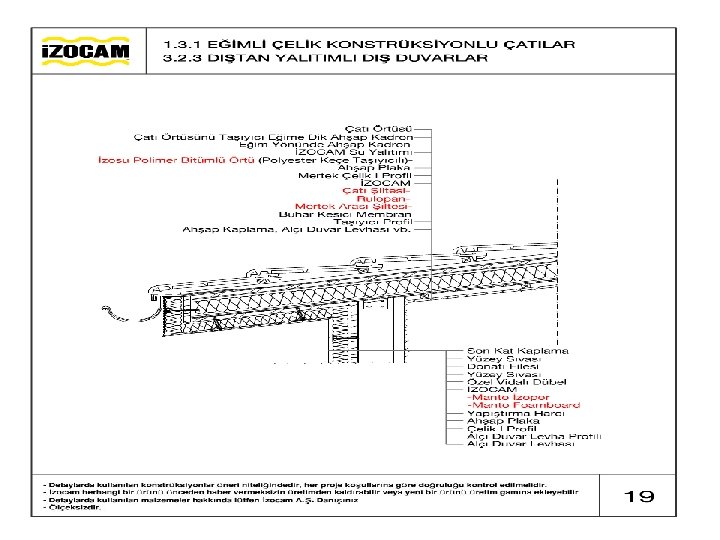

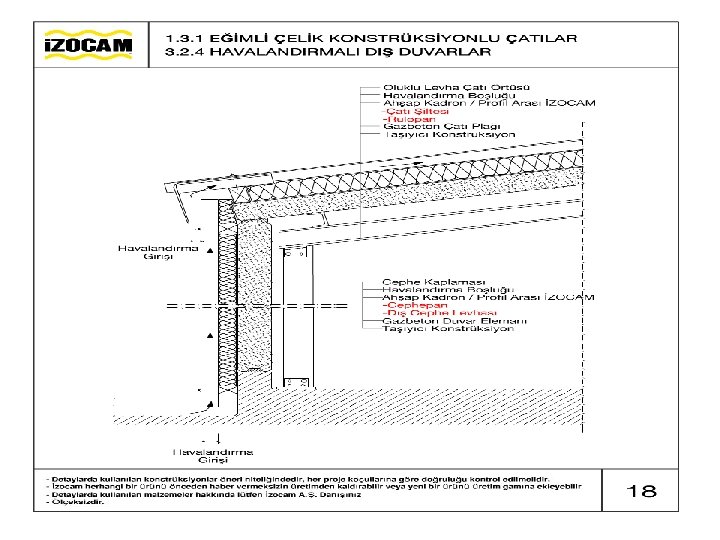

STEEL ROOF DETAILS

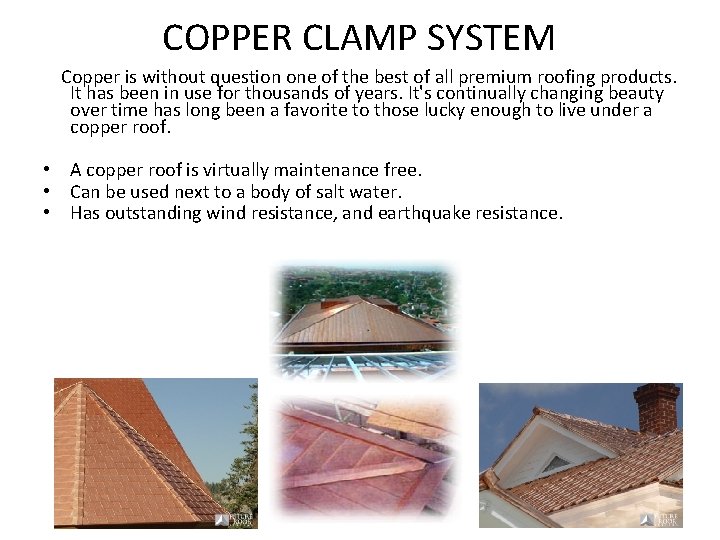

COPPER CLAMP SYSTEM Copper is without question one of the best of all premium roofing products. It has been in use for thousands of years. It's continually changing beauty over time has long been a favorite to those lucky enough to live under a copper roof. • A copper roof is virtually maintenance free. • Can be used next to a body of salt water. • Has outstanding wind resistance, and earthquake resistance.

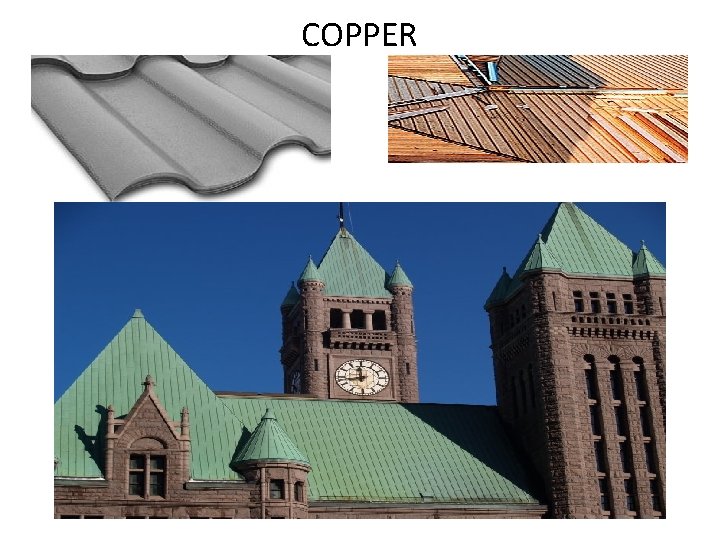

COPPER

SHEET IRON CLAMP SYSTEMS • • • SAC KENET SİSTEM ÖZELLİKLERİ : Boyalı galvanizli rulodan formlandırılarak, uygulama yerinde istenen uzunlukta imal edilir. Gizli klipslerle çatı alt yapısına tutturulan ve kenarları makine veya el aletleri ile kenetlenerek montajı yapılan, su geçirmeyen, bakım gerektirmeyen, uzun ömürlü ve geri dönüşümlü bir çatı/cephe malzemesidir. Teknik Özellikler. Rulo Genişliği: 400, 500 mm. Tava Genişliği : 320, 420 mm. Saç Kalınlığı: 0. 50 mm. Tava Boyu: İstenen uzunlukta. Saç Kalitesi : Fe PO 2Çekme Dayanımı: 500 N/mm 2 (max. )Uzama: 22 (min. )Galvaniz Özelliği (Sıcak daldırma ): 150 - 200 gr/m 2 Boya Cinsi: Coil Coating yöntemiyle Polyester boya. Boya Kalınlığı : 5 micron astar + 20 mikron son kat polyester boya. Parlaklık (60º): %40 (Ral 9002 için %30) %5 ’lik Na. Cl (Sodyum Klorür) solüsyonuna tabi tutulan sacın tuza dayanıklılığı ASTM B 117 standardına uygundur.

ZINC EXAMPLE AND ASSEMBLING

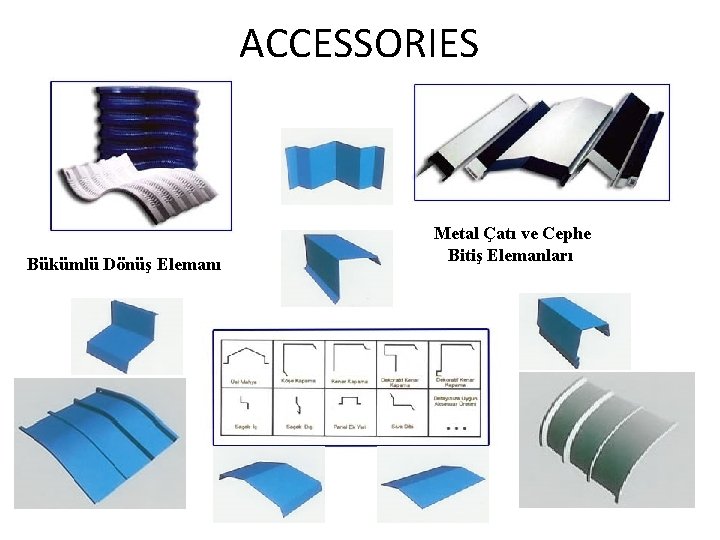

ACCESSORIES Bükümlü Dönüş Elemanı Metal Çatı ve Cephe Bitiş Elemanları

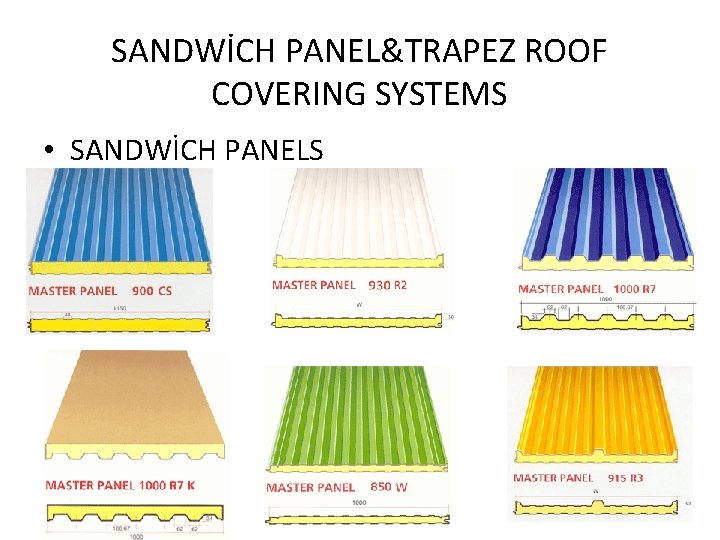

SANDWİCH PANEL&TRAPEZ ROOF COVERING SYSTEMS • SANDWİCH PANELS

SANDWİCH PANEL&TRAPEZ ROOF COVERING SYSTEMS • SINGLE TRAPEZES

PANEL ASSEMBLING PHASES

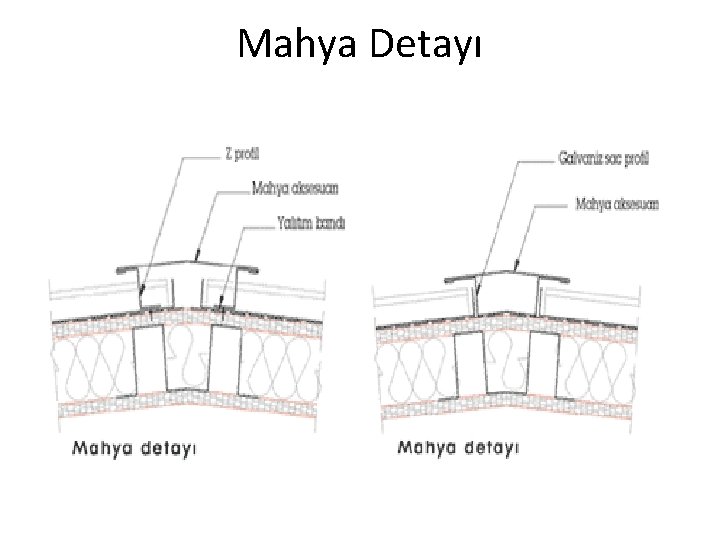

Mahya Detayı

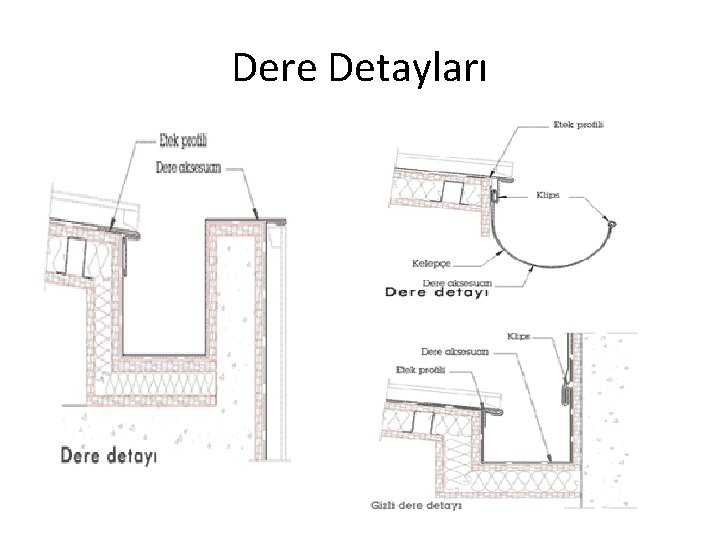

Dere Detayları

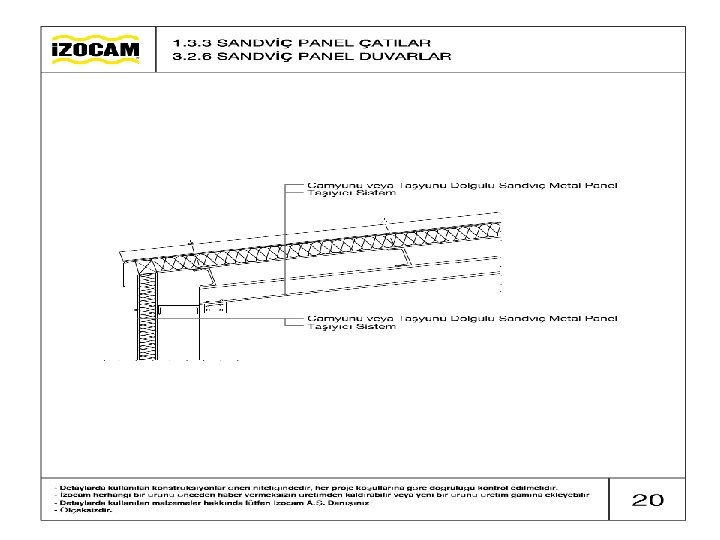

ASSEMBLING

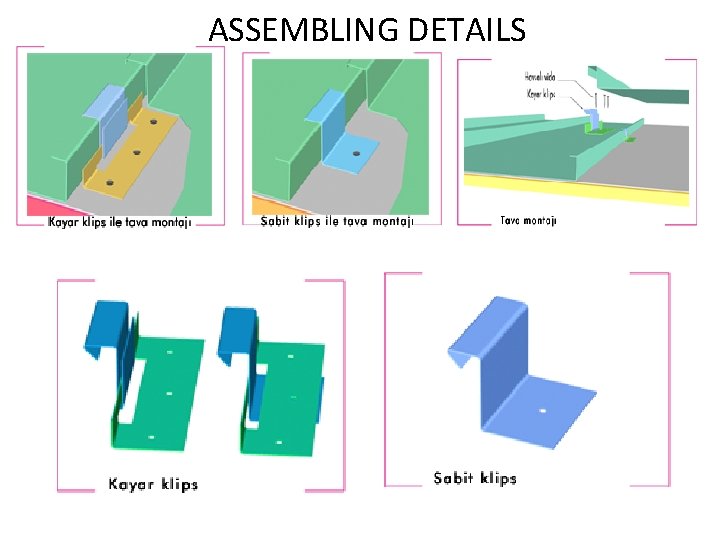

ASSEMBLING DETAILS

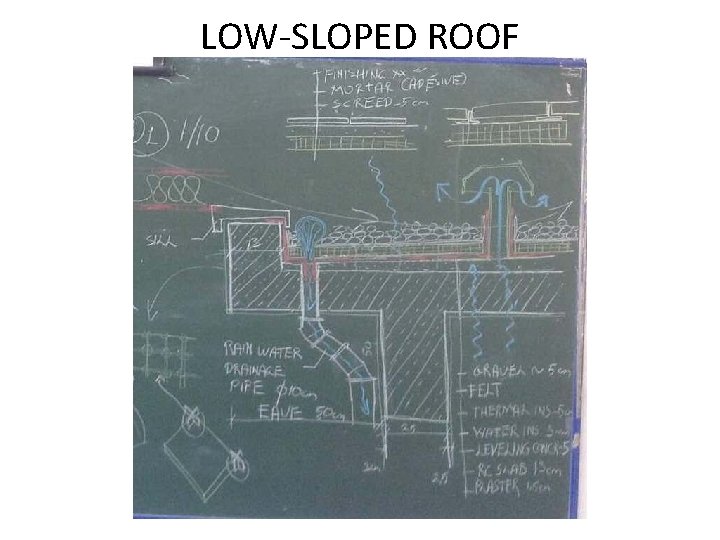

LOW-SLOPED ROOF

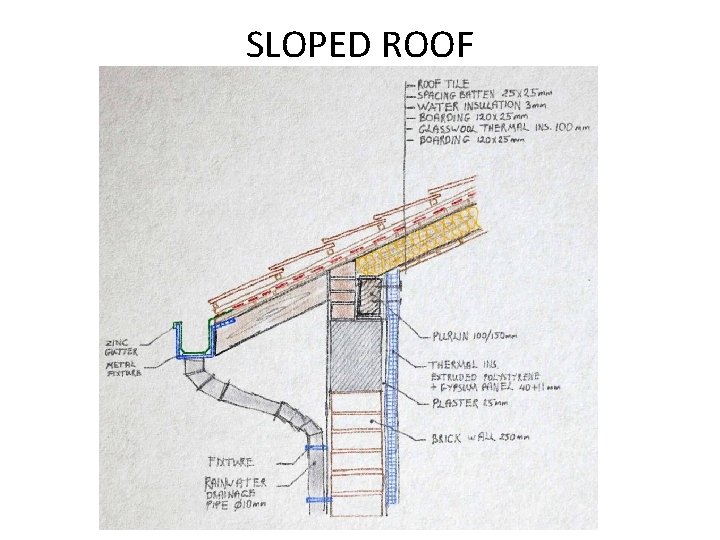

SLOPED ROOF
