CHAPTER 2 Decision Making Systems Modeling and Support

CHAPTER 2 Decision Making, Systems, Modeling, and Support 1

Decision Making, Systems, Modeling, and Support · · Conceptual Foundations of Decision Making The Systems Approach How Support is Provided Opening Vignette: How to Invest $10, 000 2 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

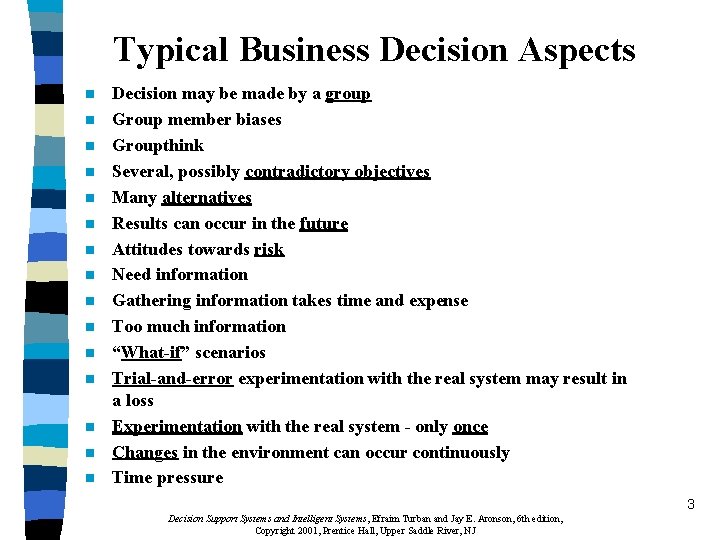

Typical Business Decision Aspects n n n n Decision may be made by a group Group member biases Groupthink Several, possibly contradictory objectives Many alternatives Results can occur in the future Attitudes towards risk Need information Gathering information takes time and expense Too much information “What-if” scenarios Trial-and-error experimentation with the real system may result in a loss Experimentation with the real system - only once Changes in the environment can occur continuously Time pressure 3 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

n How are decisions made? ? ? n What methodologies can be applied? n What is the role of information systems in supporting decision making? DSS n n n Decision Support Systems 4 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Decision Making n Decision Making: a process of choosing among alternative courses of action for the purpose of attaining a goal or goals n Managerial Decision Making is synonymous with the whole process of management (Simon, 1977) 5 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Decision Making versus Problem Solving Simon’s 4 Phases of Decision Making 1. Intelligence 2. Design 3. Choice 4. Implementation Decision making and problem solving are interchangeable 6 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Systems n A SYSTEM is a collection of objects such as people, resources, concepts, and procedures intended to perform an identifiable function or to serve a goal n System Levels (Hierarchy): All systems are subsystems interconnected through interfaces 7 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

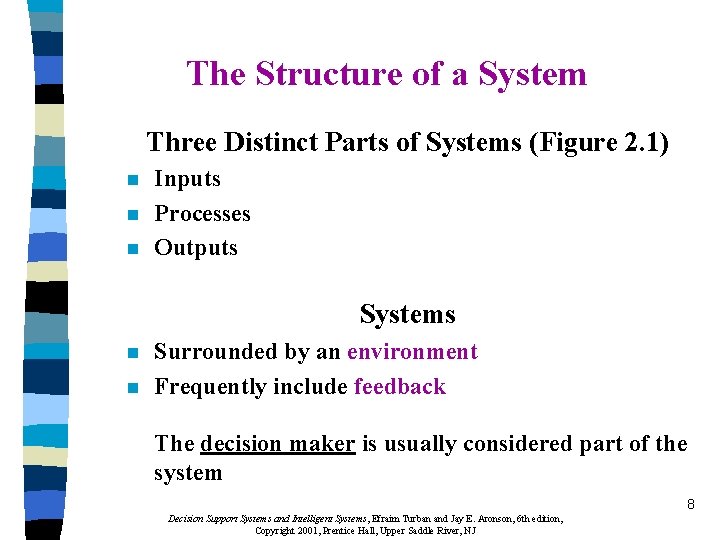

The Structure of a System Three Distinct Parts of Systems (Figure 2. 1) n n n Inputs Processes Outputs Systems n n Surrounded by an environment Frequently include feedback The decision maker is usually considered part of the system 8 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

System Environment Output(s) Input(s) Processes Feedback Boundary Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ 9

n Inputs are elements that enter the system n Processes convert or transform inputs into outputs n Outputs describe finished products or consequences of being in the system n Feedback is the flow of information from the output to the decision maker, who may modify the inputs or the processes (closed loop) n The Environment contains the elements that lie outside but impact the system's performance 10 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

How to Identify the Environment? Two Questions (Churchman, 1975) 1. Does the element matter relative to the system's goals? [YES] 2. Is it possible for the decision maker to significantly manipulate this element? [NO] 11 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Environmental Elements Can Be n n n Social Political Legal Physical Economical Often Other Systems 12 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

The Boundary Separates a System From Its Environment Boundaries may be physical or nonphysical (by definition of scope or time frame) Information system boundaries are usually by definition! 13 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Closed and Open Systems Defining manageable boundaries is closing the system n A Closed System is totally independent of other systems and subsystems n An Open System is very dependent on its environment 14 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

An Information System n Collects, processes, stores, analyzes, and disseminates information for a specific purpose n Is often at the heart of many organizations n Accepts inputs and processes data to provide information to decision makers and helps decision makers communicate their results 15 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

System Effectiveness and Efficiency Two Major Classes of Performance Measurement n Effectiveness is the degree to which goals are achieved Doing the right thing! n Efficiency is a measure of the use of inputs (or resources) to achieve outputs Doing the thing right! n MSS emphasize effectiveness Often: several non-quantifiable, conflicting goals 16 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Models n n n Major component of DSS Use models instead of experimenting on the real system A model is a simplified representation or abstraction of reality. Reality is generally too complex to copy exactly Much of the complexity is actually irrelevant in problem solving 17 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Degrees of Model Abstraction (Least to Most) n Iconic (Scale) Model: Physical replica of a system n Analog Model behaves like the real system but does not look like it (symbolic representation) n Mathematical (Quantitative) Models use mathematical relationships to represent complexity Used in most DSS analyses 18 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Benefits of Models 1. Time compression 2. Easy model manipulation 3. Low cost of construction 4. Low cost of execution (especially that of errors) 5. Can model risk and uncertainty 6. Can model large and extremely complex systems with possibly infinite solutions 7. Enhance and reinforce learning, and enhance training. Computer graphics advances: more iconic and analog models (visual simulation) 19 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

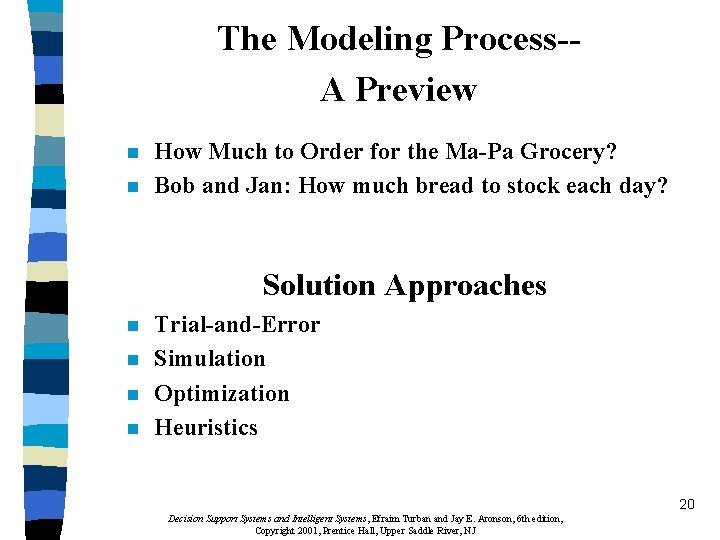

The Modeling Process-A Preview n n How Much to Order for the Ma-Pa Grocery? Bob and Jan: How much bread to stock each day? Solution Approaches n n Trial-and-Error Simulation Optimization Heuristics 20 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

The Decision-Making Process Systematic Decision-Making Process (Simon, 1977) n n Intelligence Design Choice Implementation (Figure 2. 2) Modeling is Essential to the Process 21 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

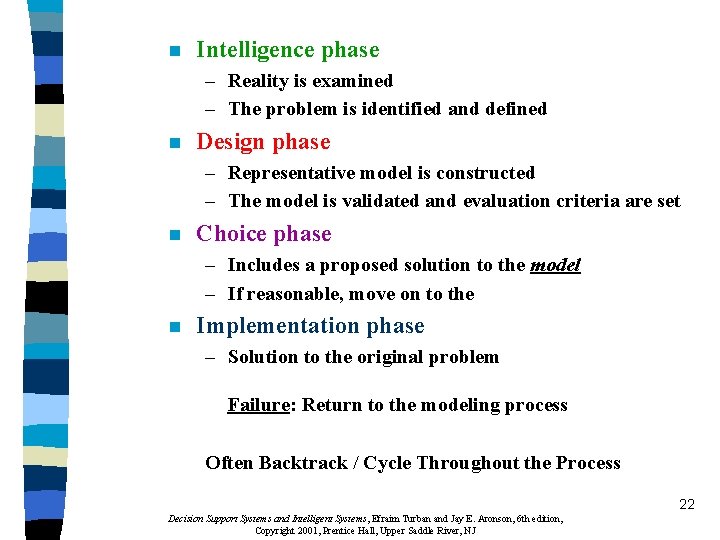

n Intelligence phase – Reality is examined – The problem is identified and defined n Design phase – Representative model is constructed – The model is validated and evaluation criteria are set n Choice phase – Includes a proposed solution to the model – If reasonable, move on to the n Implementation phase – Solution to the original problem Failure: Return to the modeling process Often Backtrack / Cycle Throughout the Process 22 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

The Intelligence Phase Scan the environment to identify problem situations or opportunities Find the Problem n n n Identify organizational goals and objectives Determine whether they are being met Explicitly define the problem 23 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Problem Classification Structured versus Unstructured Programmed versus Nonprogrammed Problems Simon (1977) Nonprogrammed Problems Programmed Problems 24 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

n Problem Decomposition: Divide a complex problem into (easier to solve) subproblems Chunking (Salami) n Some seemingly poorly structured problems may have some highly structured subproblems n Problem Ownership Outcome: Problem Statement 25 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

The Design Phase n Generating, developing, and analyzing possible courses of action Includes n n n Understanding the problem Testing solutions for feasibility A model is constructed, tested, and validated Modeling n n Conceptualization of the problem Abstraction to quantitative and/or qualitative forms 26 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

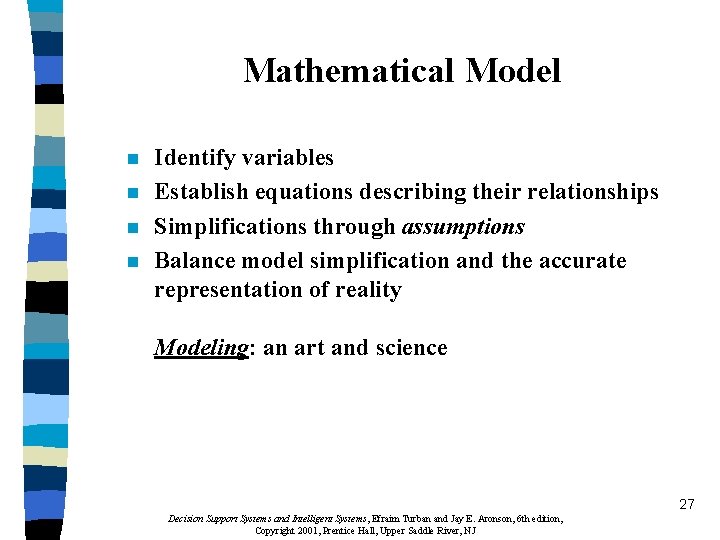

Mathematical Model n n Identify variables Establish equations describing their relationships Simplifications through assumptions Balance model simplification and the accurate representation of reality Modeling: an art and science 27 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Quantitative Modeling Topics n n n n Model Components Model Structure Selection of a Principle of Choice (Criteria for Evaluation) Developing (Generating) Alternatives Predicting Outcomes Measuring Outcomes Scenarios 28 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Components of Quantitative Models n n n Decision Variables Uncontrollable Variables (and/or Parameters) Result (Outcome) Variables Mathematical Relationships or Symbolic or Qualitative Relationships (Figure 2. 3) 29 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Results of Decisions are Determined by the n n n Decision Uncontrollable Factors Relationships among Variables 30 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Result Variables n n n Reflect the level of effectiveness of the system Dependent variables Examples - Table 2. 2 31 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Decision Variables n n n Describe alternative courses of action The decision maker controls them Examples - Table 2. 2 32 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Uncontrollable Variables or Parameters n n n Factors that affect the result variables Not under the control of the decision maker Generally part of the environment Some constrain the decision maker and are called constraints Examples - Table 2. 2 Intermediate Result Variables n Reflect intermediate outcomes 33 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

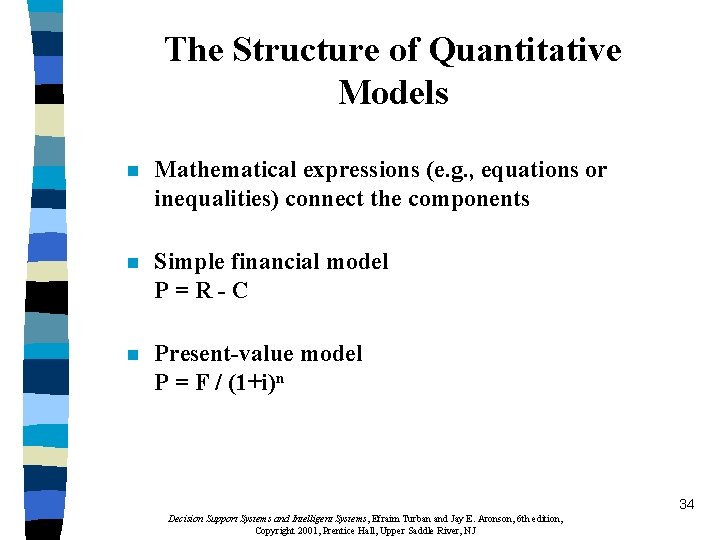

The Structure of Quantitative Models n Mathematical expressions (e. g. , equations or inequalities) connect the components n Simple financial model P=R-C n Present-value model P = F / (1+i)n 34 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

LP Example The Product-Mix Linear Programming Model n n n MBI Corporation Decision: How many computers to build next month? Two types of computers Labor limit Materials limit Marketing lower limits Constraint Labor (days) Materials $ Units Profit $ CC 7 300 10, 000 1 8, 000 CC 8 500 15, 000 1 12, 000 Rel <= <= >= >= Max Limit 200, 000 / mo 8, 000/mo 100 200 Objective: Maximize Total Profit / Month 35 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Linear Programming Model n Components Decision variables Result variable Uncontrollable variables (constraints) n Solution X 1 = 333. 33 X 2 = 200 Profit = $5, 066, 667 36 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

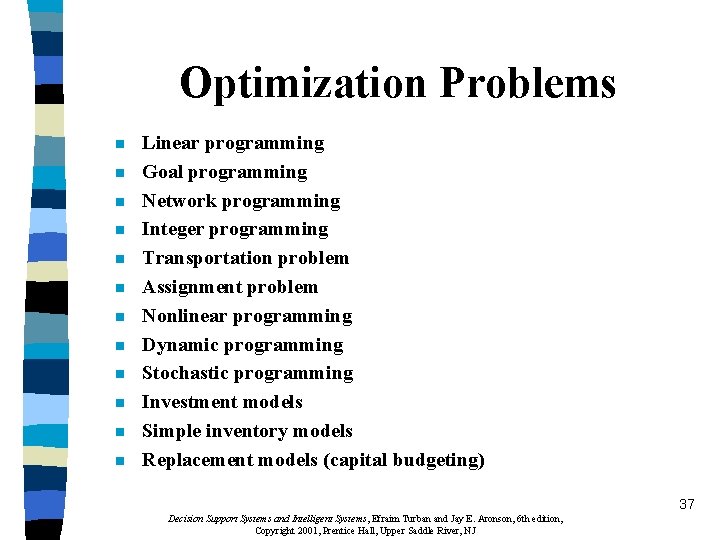

Optimization Problems n n n Linear programming Goal programming Network programming Integer programming Transportation problem Assignment problem Nonlinear programming Dynamic programming Stochastic programming Investment models Simple inventory models Replacement models (capital budgeting) 37 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

The Principle of Choice n n n What criteria to use? Best solution? Good enough solution? 38 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Selection of a Principle of Choice Not the choice phase A decision regarding the acceptability of a solution approach n n Normative Descriptive 39 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Normative Models n The chosen alternative is demonstrably the best of all (normally a good idea) n Optimization process n Normative decision theory based on rational decision makers 40 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Rationality Assumptions n Humans are economic beings whose objective is to maximize the attainment of goals; that is, the decision maker is rational n In a given decision situation, all viable alternative courses of action and their consequences, or at least the probability and the values of the consequences, are known n Decision makers have an order or preference that enables them to rank the desirability of all consequences of the analysis 41 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Suboptimization n Narrow the boundaries of a system n Consider a part of a complete system n Leads to (possibly very good, but) non-optimal solutions n Viable method 42 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Descriptive Models n n n Describe things as they are, or as they are believed to be Extremely useful in DSS for evaluating the consequences of decisions and scenarios No guarantee a solution is optimal Often a solution will be good enough Simulation: Descriptive modeling technique 43 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

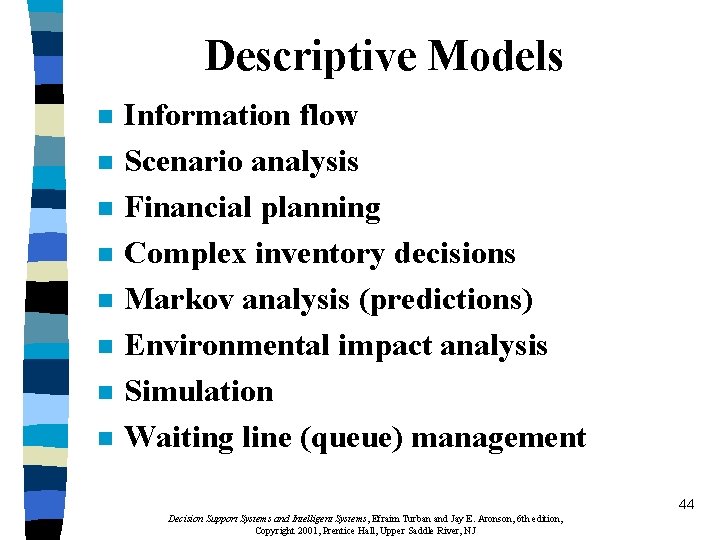

Descriptive Models n n n n Information flow Scenario analysis Financial planning Complex inventory decisions Markov analysis (predictions) Environmental impact analysis Simulation Waiting line (queue) management 44 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

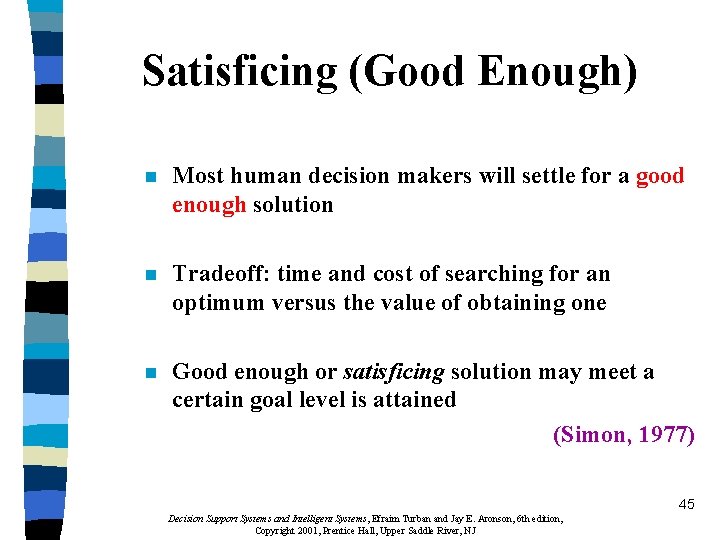

Satisficing (Good Enough) n Most human decision makers will settle for a good enough solution n Tradeoff: time and cost of searching for an optimum versus the value of obtaining one n Good enough or satisficing solution may meet a certain goal level is attained (Simon, 1977) 45 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Why Satisfice? Bounded Rationality (Simon) n n n Humans have a limited capacity for rational thinking Generally construct and analyze a simplified model Behavior to the simplified model may be rational But, the rational solution to the simplified model may NOT BE rational in the real-world situation Rationality is bounded by – limitations on human processing capacities – individual differences n Bounded rationality: why many models are descriptive, not normative 46 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Developing (Generating) Alternatives n In Optimization Models: Automatically by the Model! Not Always So! n Issue: When to Stop? 47 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Predicting the Outcome of Each Alternative n n n Must predict the future outcome of each proposed alternative Consider what the decision maker knows (or believes) about the forecasted results Classify Each Situation as Under – Certainty – Risk – Uncertainty 48 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Decision Making Under Certainty n n Assumes complete knowledge available (deterministic environment) Example: U. S. Treasury bill investment Typically for structured problems with short time horizons Sometimes DSS approach is needed for certainty situations 49 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Decision Making Under Risk (Risk Analysis) n n Probabilistic or stochastic decision situation Must consider several possible outcomes for each alternative, each with a probability Long-run probabilities of the occurrences of the given outcomes are assumed known or estimated Assess the (calculated) degree of risk associated with each alternative 50 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Risk Analysis n Calculate the expected value of each alternative n Select the alternative with the best expected value n Example: poker game with some cards face up (7 card game - 2 down, 4 up, 1 down) 51 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Decision Making Under Uncertainty n n n Several outcomes possible for each course of action BUT the decision maker does not know, or cannot estimate the probability of occurrence More difficult - insufficient information Assessing the decision maker's (and/or the organizational) attitude toward risk Example: poker game with no cards face up (5 card stud or draw) 52 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Measuring Outcomes n n n Goal attainment Maximize profit Minimize cost Customer satisfaction level (minimize number of complaints) Maximize quality or satisfaction ratings (surveys) 53 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Scenarios Useful in n n Simulation What-if analysis 54 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Importance of Scenarios in MSS n n n Help identify potential opportunities and/or problem areas Provide flexibility in planning Identify leading edges of changes that management should monitor Help validate major assumptions used in modeling Help check the sensitivity of proposed solutions to changes in scenarios 55 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Possible Scenarios n Worst possible (low demand, high cost) Best possible (high demand, high revenue, low cost) Most likely (median or average values) Many more n The scenario sets the stage for the analysis n n n 56 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

The Choice Phase n The CRITICAL act - decision made here! n Search, evaluation, and recommending an appropriate solution to the model n Specific set of values for the decision variables in a selected alternative The problem is considered solved only after the recommended solution to the model is successfully implemented 57 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

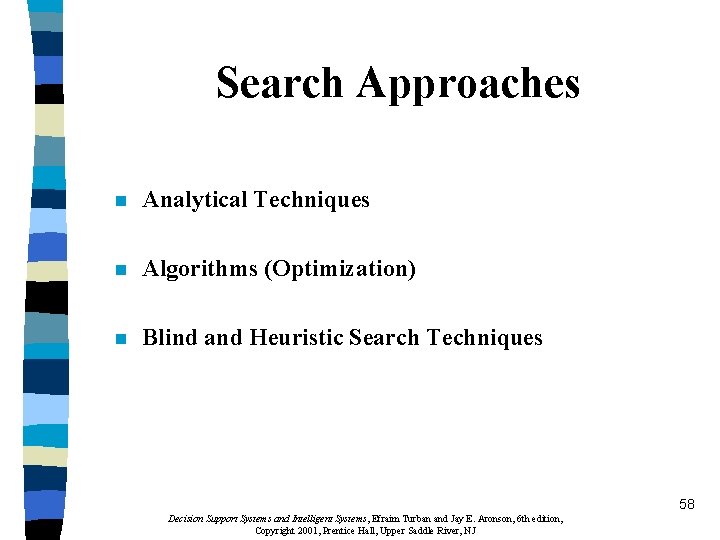

Search Approaches n Analytical Techniques n Algorithms (Optimization) n Blind and Heuristic Search Techniques 58 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Evaluation: Multiple Goals, Sensitivity Analysis, What-If, and Goal Seeking n n n Evaluation (with the search process) leads to a recommended solution Multiple goals Complex systems have multiple goals Some may conflict n Typically, quantitative models have a single goal n Can transform a multiple-goal problem into a singlegoal problem 59 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

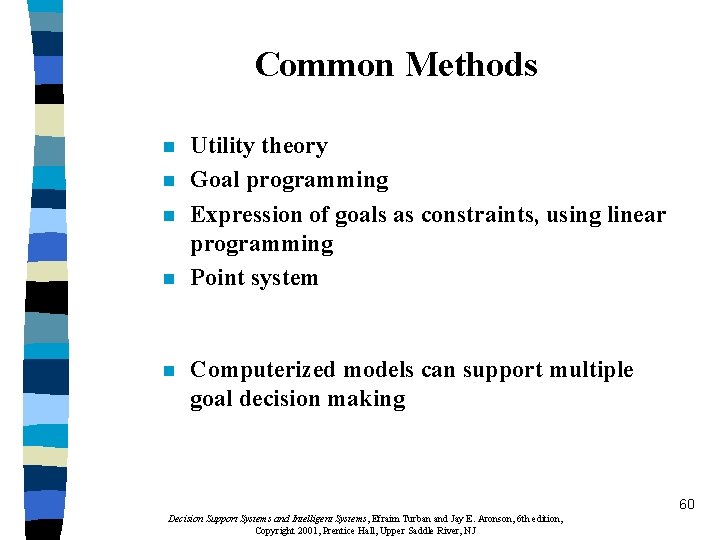

Common Methods n n n Utility theory Goal programming Expression of goals as constraints, using linear programming Point system Computerized models can support multiple goal decision making 60 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Sensitivity Analysis n Change inputs or parameters, look at model results Sensitivity analysis checks relationships Types of Sensitivity Analyses n n Automatic Trial and error 61 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Trial and Error n n n Change input data and re-solve the problem Better and better solutions can be discovered How to do? Easy in spreadsheets (Excel) – What-if – Goal seeking 62 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

What-If Analysis n Figure 2. 9 - Spreadsheet example of a what-if query for a cash flow problem 63 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

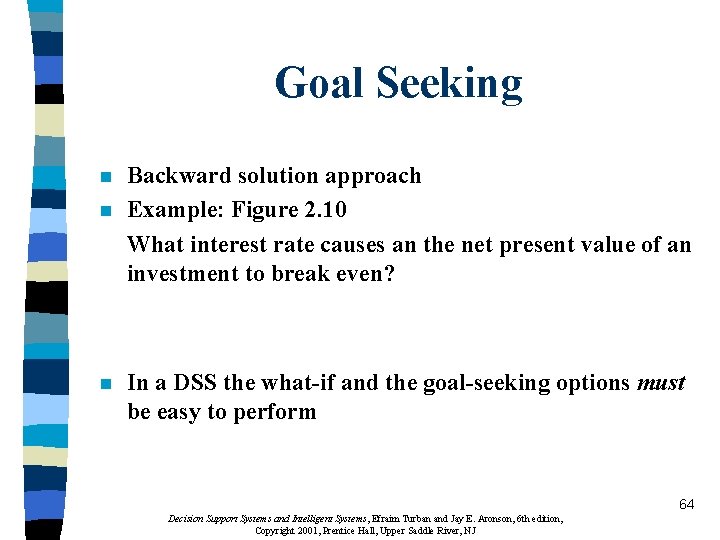

Goal Seeking n n n Backward solution approach Example: Figure 2. 10 What interest rate causes an the net present value of an investment to break even? In a DSS the what-if and the goal-seeking options must be easy to perform 64 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Goal Seeking 65 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

The Implementation Phase There is nothing more difficult to carry out, nor more doubtful of success, nor more dangerous to handle, than to initiate a new order of things (Machiavelli, 1500 s) *** The Introduction of a Change *** Important Issues n n Resistance to change Degree of top management support Users’ roles and involvement in system development Users’ training 66 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

How Decisions Are Supported Specific MSS technologies relationship to the decision making process (see Figure 2. 10) n n n Intelligence: DSS, ES, ANN, MIS, Data Mining, OLAP, EIS, GSS Design and Choice: DSS, ES, GSS, Management Science, ANN Implementation: DSS, ES, GSS 67 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Alternative Decision Making Models n n n n n Paterson decision-making process Kotter’s process model Pound’s flow chart of managerial behavior Kepner-Tregoe rational decision-making approach Hammond, Kenney, and Raiffa smart choice method Cougar’s creative problem solving concept and model Pokras problem-solving methodology Bazerman’s anatomy of a decision Harrison’s interdisciplinary approaches Beach’s naturalistic decision theories 68 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Naturalistic Decision Theories n n Focus on how decisions are made, not how they should be made Based on behavioral decision theory Recognition models Narrative-based models 69 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Recognition Models n n Policy Recognition-primed decision model 70 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Narrative-based Models (Descriptive) n n n Scenario model Story model Argument-driven action (ADA) model Incremental models Image theory 71 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Other Important Decision. Making Issues n n Personality types Gender Human cognition Decision styles 72 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Personality (Temperament) Types n n n Strong relationship between personality and decision making Type helps explain how to best attack a problem Type indicates how to relate to other types – important for team building n Influences cognitive style and decision style 73 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Temperament n n n Jung (1923): people are fundamentally different Hippocrates, too Myers-Briggs personality profile (DSS in Focus 2. 10) Keirsey and Bates: short Myers-Briggs test Birkman True Colors: Short test (DSS in Focus 2. 11) 74 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Myers-Briggs Dimensions n n Extraversion (E) to Intraversion (I) Sensation (S) to Intuition (N) Thinking (T) to Feeling (F) Perceiving (P) to Judging (J) 75 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Birkman True Colors Types Red Green Yellow Blue 76 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Gender n n Sometimes empirical testing indicates gender differences in decision making Results are overwhelmingly inconclusive 77 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Cognition n Cognition: Activities by which an individual resolves differences between an internalized view of the environment and what actually exists in that same environment n Ability to perceive and understand information n Cognitive models are attempts to explain or understand various human cognitive processes 78 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

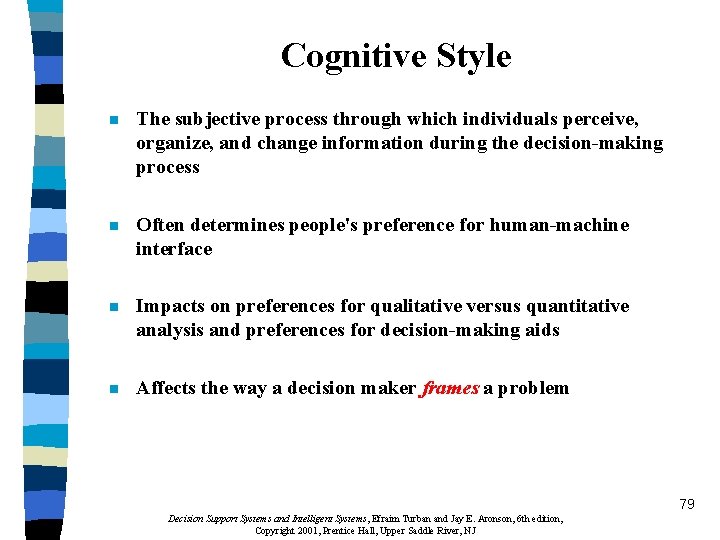

Cognitive Style n The subjective process through which individuals perceive, organize, and change information during the decision-making process n Often determines people's preference for human-machine interface n Impacts on preferences for qualitative versus quantitative analysis and preferences for decision-making aids n Affects the way a decision maker frames a problem 79 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Cognitive Style Research n n Impacts on the design of management information systems May be overemphasized Analytic decision maker Heuristic decision maker 80 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

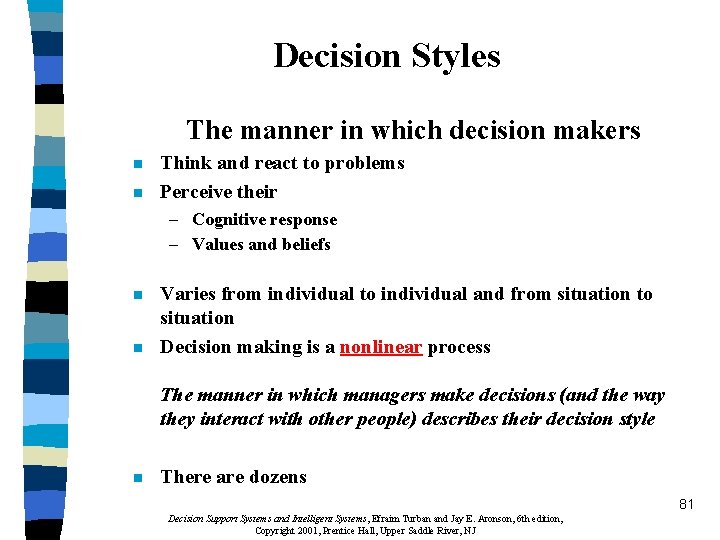

Decision Styles The manner in which decision makers n n Think and react to problems Perceive their – Cognitive response – Values and beliefs n n Varies from individual to individual and from situation to situation Decision making is a nonlinear process The manner in which managers make decisions (and the way they interact with other people) describes their decision style n There are dozens 81 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Some Decision Styles n n n n Heuristic Analytic Autocratic Democratic Consultative (with individuals or groups) Combinations and variations For successful decision-making support, an MSS must fit the – Decision situation – Decision style 82 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

n The system – – should be flexible and adaptable to different users have what-if and goal seeking have graphics have process flexibility n An MSS should help decision makers use and develop their own styles, skills, and knowledge n Different decision styles require different types of support n Major factor: individual or group decision maker 83 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

The Decision Makers n n Individuals Groups 84 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Individuals n n May still have conflicting objectives Decisions may be fully automated 85 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Groups n n n n Most major decisions made by groups Conflicting objectives are common Variable size People from different departments People from different organizations The group decision-making process can be very complicated Consider Group Support Systems (GSS) Organizational DSS can help in enterprise-wide decision-making situations 86 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

Summary n n n Managerial decision making is the whole process of management Problem solving also refers to opportunity's evaluation A system is a collection of objects such as people, resources, concepts, and procedures intended to perform an identifiable function or to serve a goal DSS deals primarily with open systems A model is a simplified representation or abstraction of reality Models enable fast and inexpensive experimentation with systems 87 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ

n n n n Modeling can employ optimization, heuristic, or simulation techniques Decision making involves four major phases: intelligence, design, choice, and implementation What-if and goal seeking are the two most common sensitivity analysis approaches Computers can support all phases of decision making by automating many required tasks Personality (temperament) influences decision making Gender impacts on decision making are inconclusive Human cognitive styles may influence human-machine interaction Human decision styles need to be recognized in designing MSS 88 Decision Support Systems and Intelligent Systems, Efraim Turban and Jay E. Aronson, 6 th edition, Copyright 2001, Prentice Hall, Upper Saddle River, NJ
