Decision Tables Modeling Logic with Decision Tables l

Decision Tables

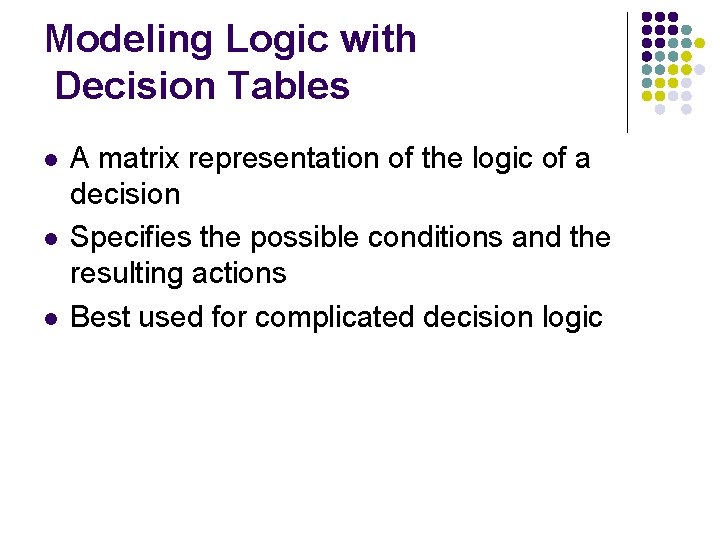

Modeling Logic with Decision Tables l l l A matrix representation of the logic of a decision Specifies the possible conditions and the resulting actions Best used for complicated decision logic

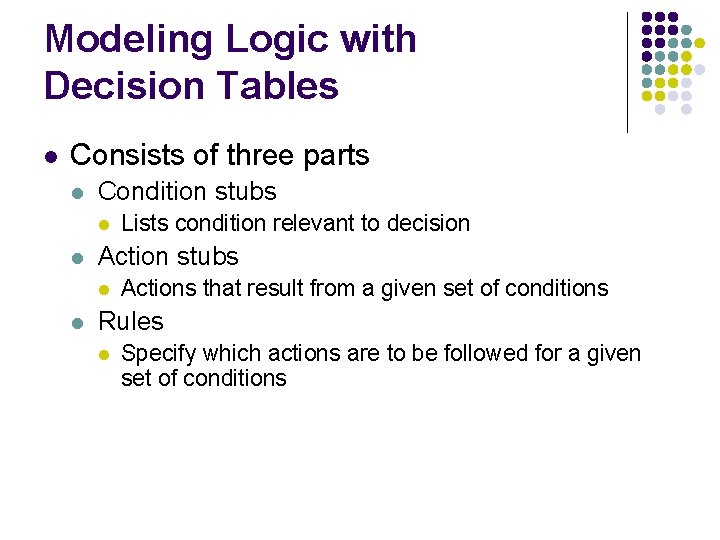

Modeling Logic with Decision Tables l Consists of three parts l Condition stubs l l Action stubs l l Lists condition relevant to decision Actions that result from a given set of conditions Rules l Specify which actions are to be followed for a given set of conditions

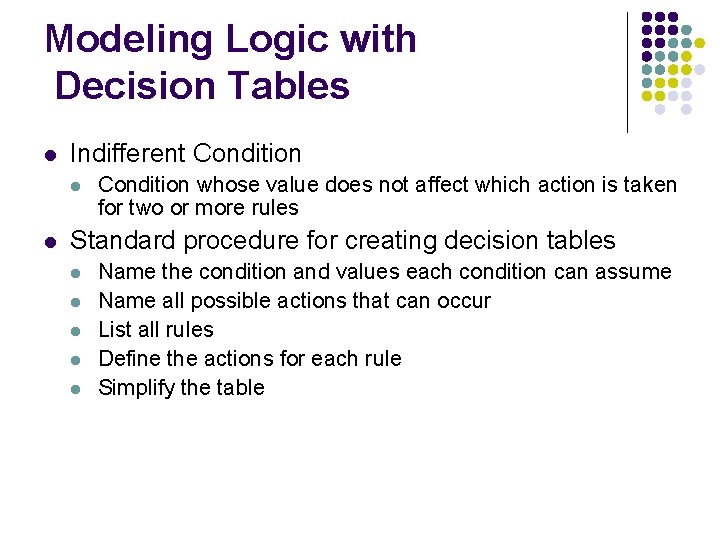

Modeling Logic with Decision Tables l Indifferent Condition l l Condition whose value does not affect which action is taken for two or more rules Standard procedure for creating decision tables l l l Name the condition and values each condition can assume Name all possible actions that can occur List all rules Define the actions for each rule Simplify the table

Figure 9 -4 Complete decision table for payroll system example 9. 5

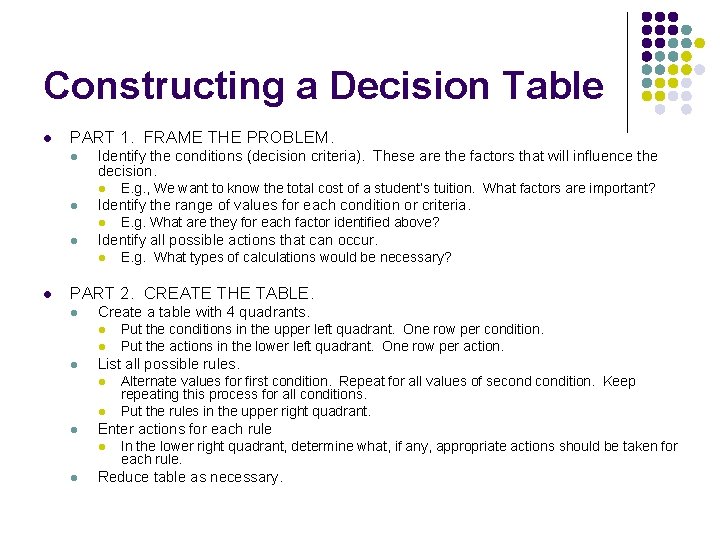

Constructing a Decision Table l PART 1. FRAME THE PROBLEM. l Identify the conditions (decision criteria). These are the factors that will influence the decision. l l Identify the range of values for each condition or criteria. l l E. g. What are they for each factor identified above? Identify all possible actions that can occur. l l E. g. , We want to know the total cost of a student’s tuition. What factors are important? E. g. What types of calculations would be necessary? PART 2. CREATE THE TABLE. l Create a table with 4 quadrants. l l l List all possible rules. l l l Alternate values for first condition. Repeat for all values of secondition. Keep repeating this process for all conditions. Put the rules in the upper right quadrant. Enter actions for each rule l l Put the conditions in the upper left quadrant. One row per condition. Put the actions in the lower left quadrant. One row per action. In the lower right quadrant, determine what, if any, appropriate actions should be taken for each rule. Reduce table as necessary.

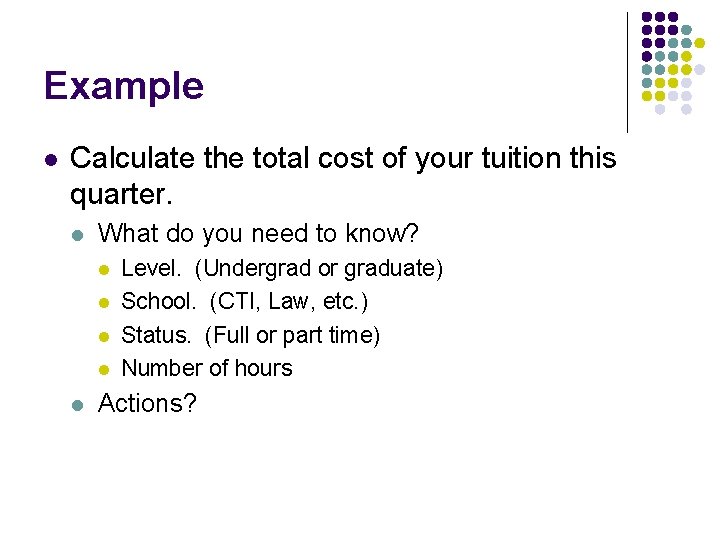

Example l Calculate the total cost of your tuition this quarter. l What do you need to know? l l l Level. (Undergrad or graduate) School. (CTI, Law, etc. ) Status. (Full or part time) Number of hours Actions?

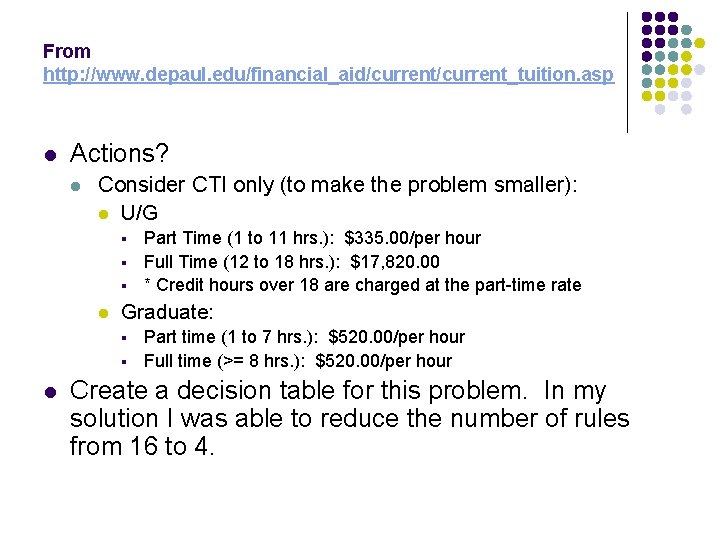

From http: //www. depaul. edu/financial_aid/current_tuition. asp l Actions? l Consider CTI only (to make the problem smaller): l U/G § § § l Graduate: § § l Part Time (1 to 11 hrs. ): $335. 00/per hour Full Time (12 to 18 hrs. ): $17, 820. 00 * Credit hours over 18 are charged at the part-time rate Part time (1 to 7 hrs. ): $520. 00/per hour Full time (>= 8 hrs. ): $520. 00/per hour Create a decision table for this problem. In my solution I was able to reduce the number of rules from 16 to 4.
