1 Which graph represents the motion of a

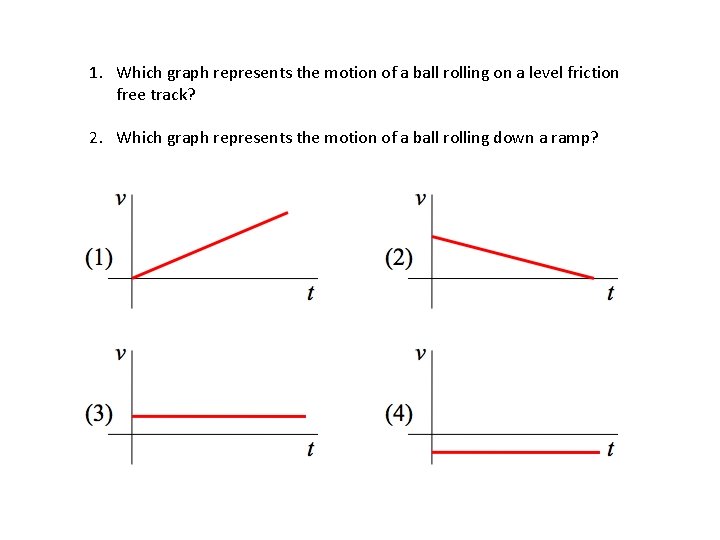

1. Which graph represents the motion of a ball rolling on a level friction free track? 2. Which graph represents the motion of a ball rolling down a ramp?

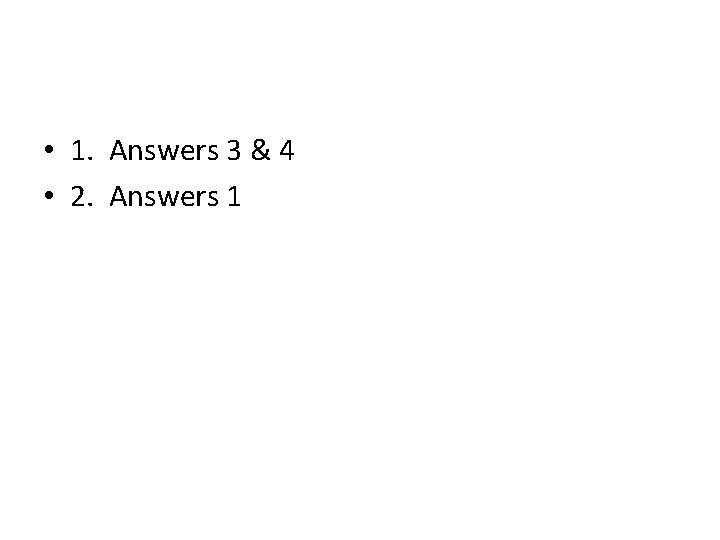

• 1. Answers 3 & 4 • 2. Answers 1

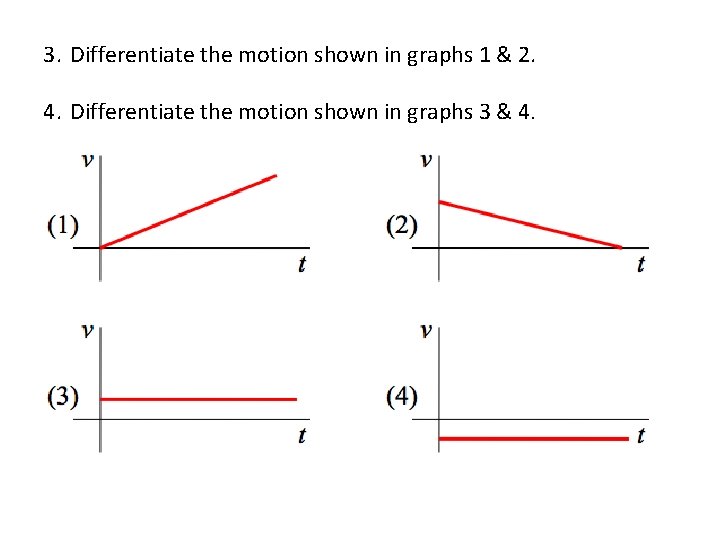

3. Differentiate the motion shown in graphs 1 & 2. 4. Differentiate the motion shown in graphs 3 & 4.

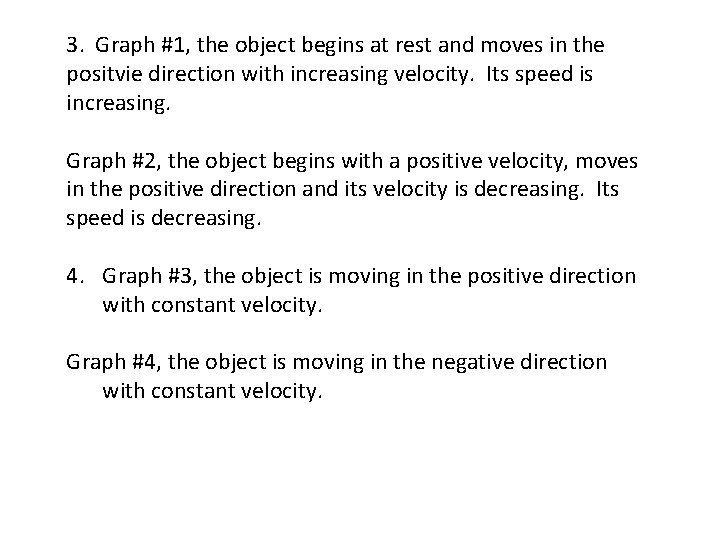

3. Graph #1, the object begins at rest and moves in the positvie direction with increasing velocity. Its speed is increasing. Graph #2, the object begins with a positive velocity, moves in the positive direction and its velocity is decreasing. Its speed is decreasing. 4. Graph #3, the object is moving in the positive direction with constant velocity. Graph #4, the object is moving in the negative direction with constant velocity.

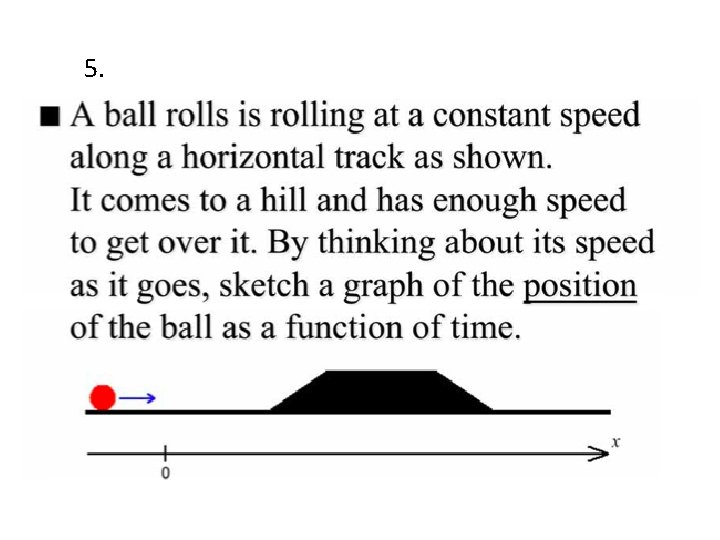

5.

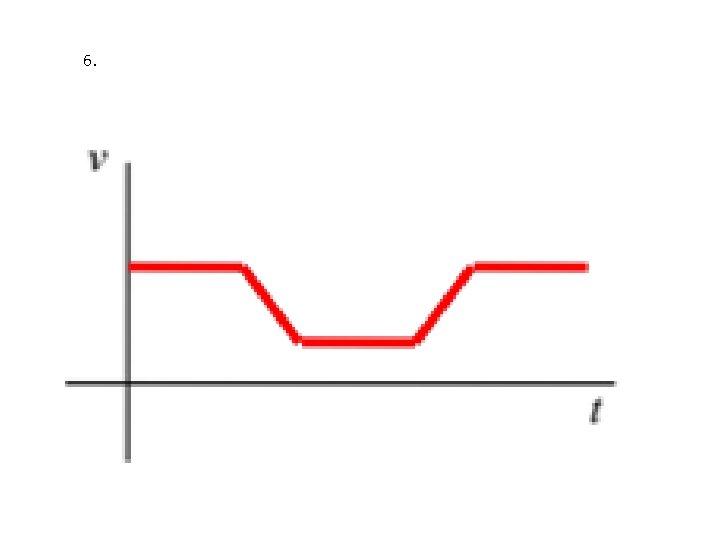

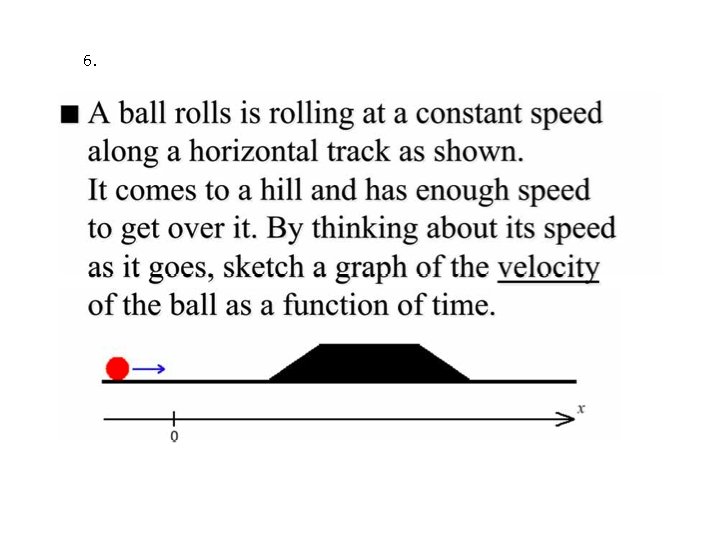

6.

6.

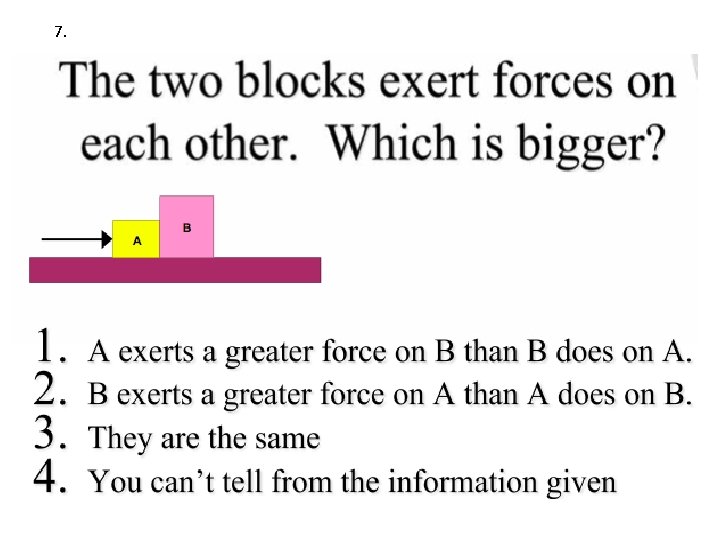

7.

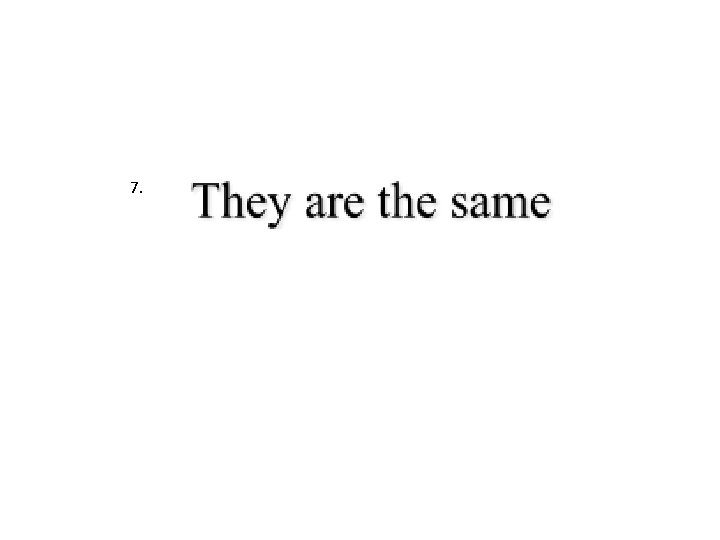

7.

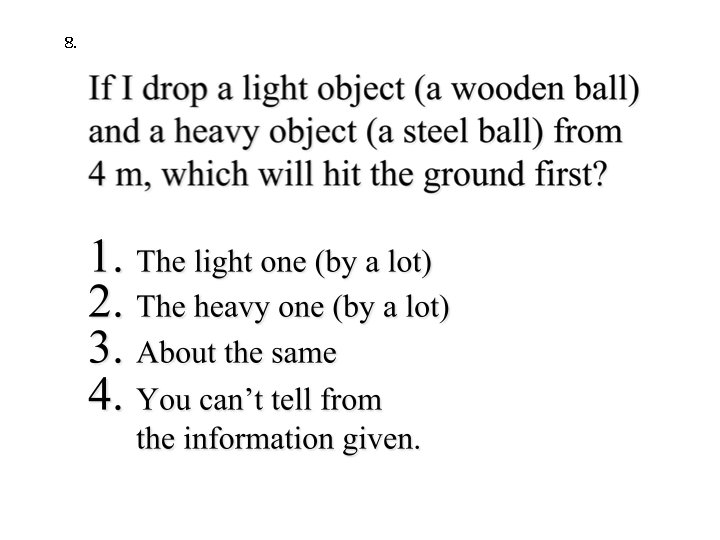

8.

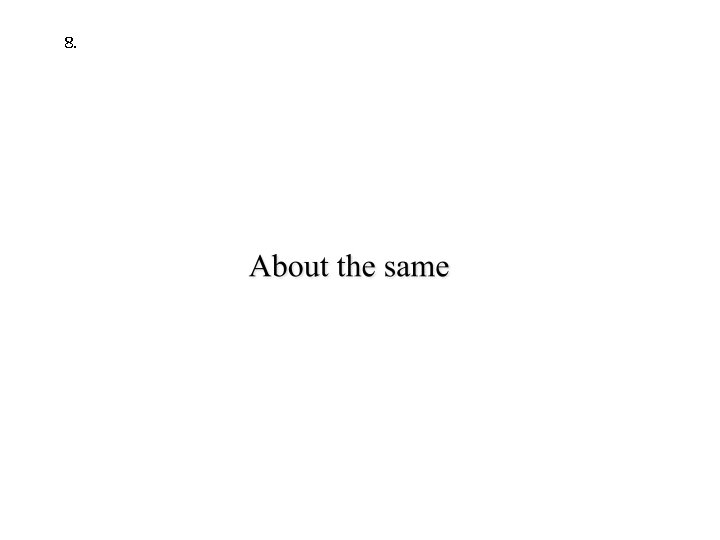

8.

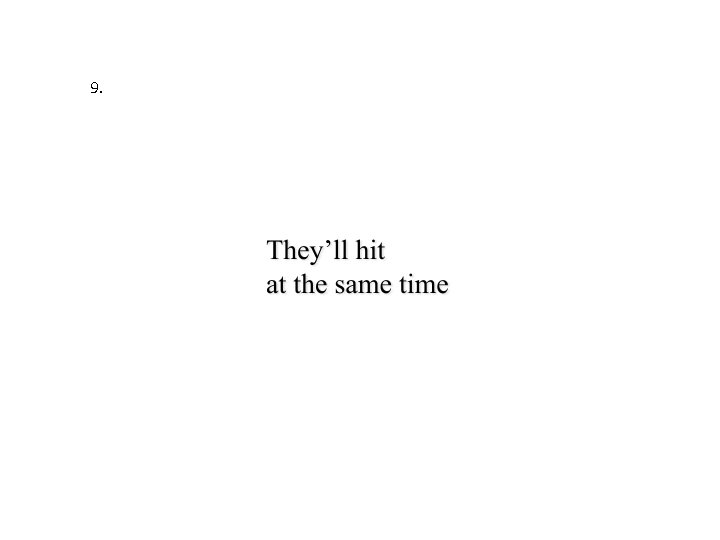

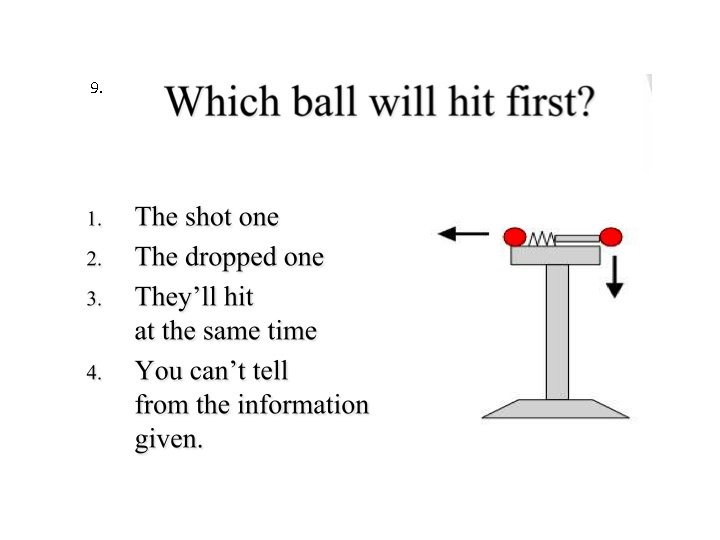

9.

9.

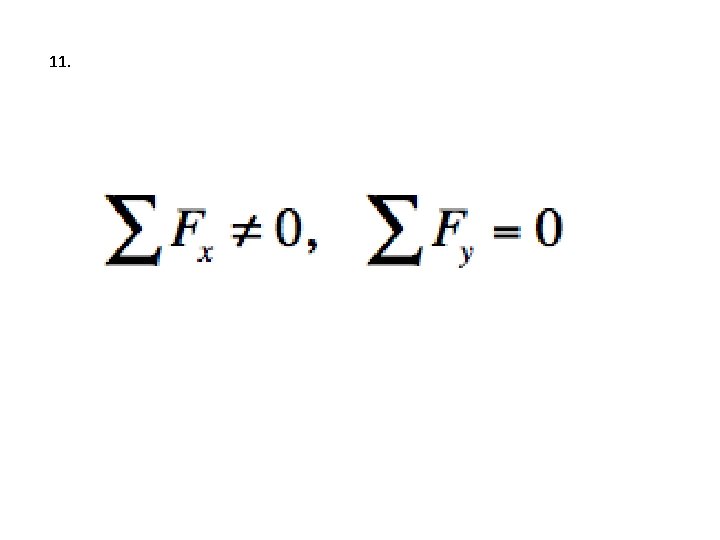

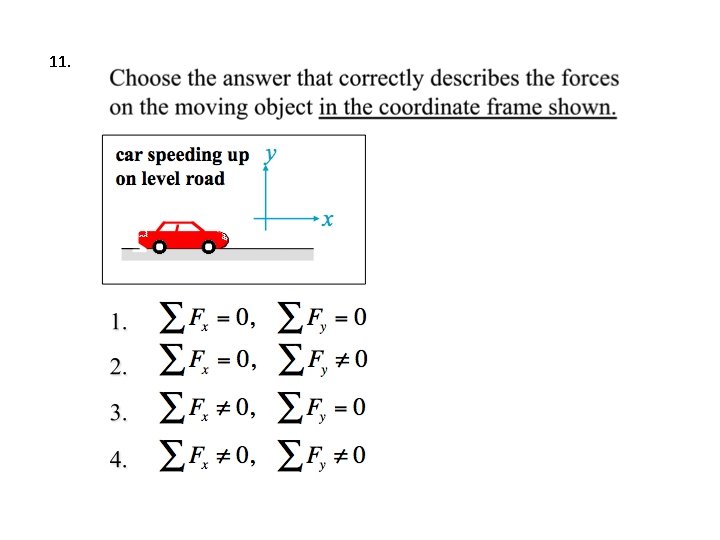

11.

11.

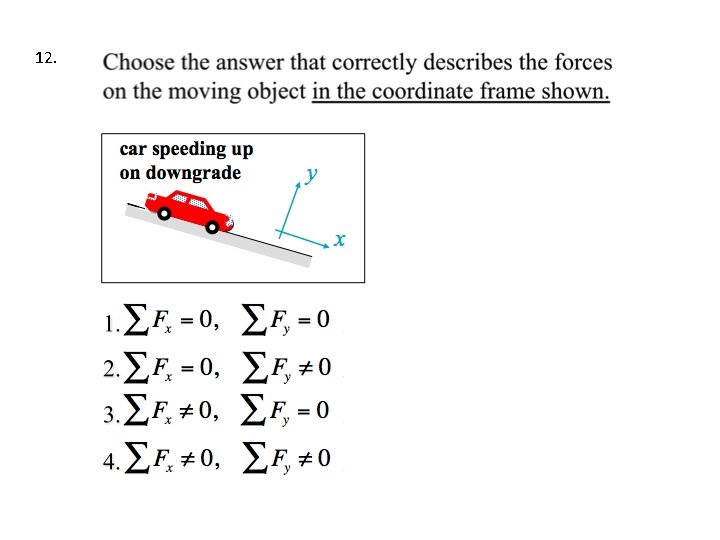

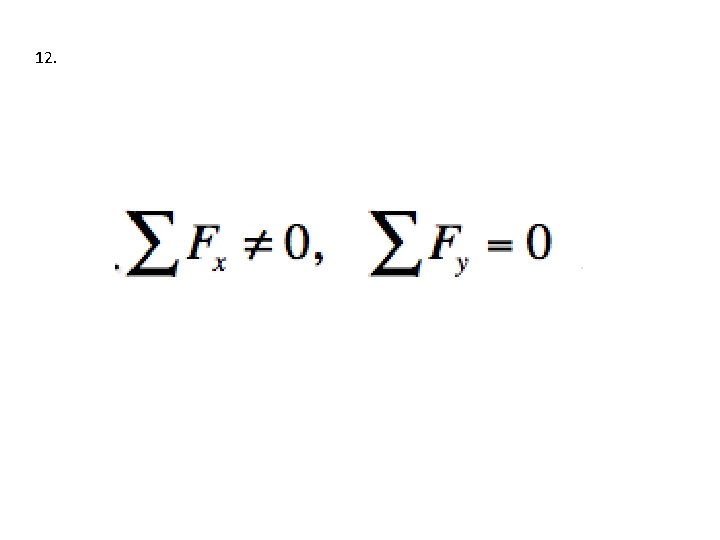

12.

12.

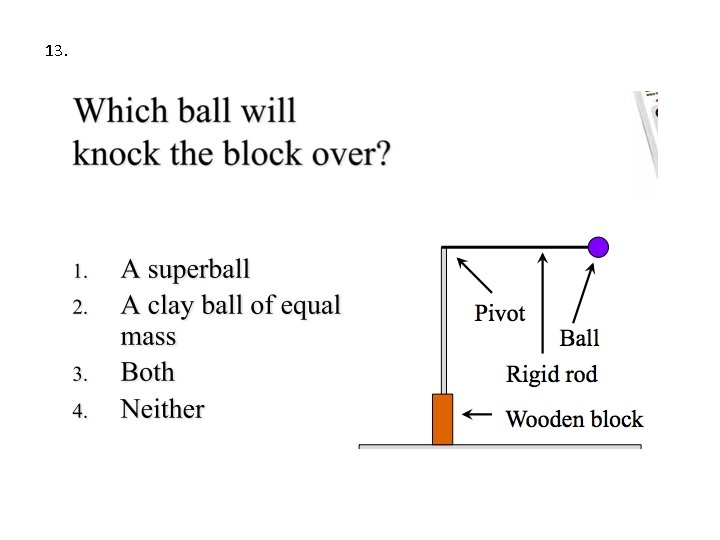

13.

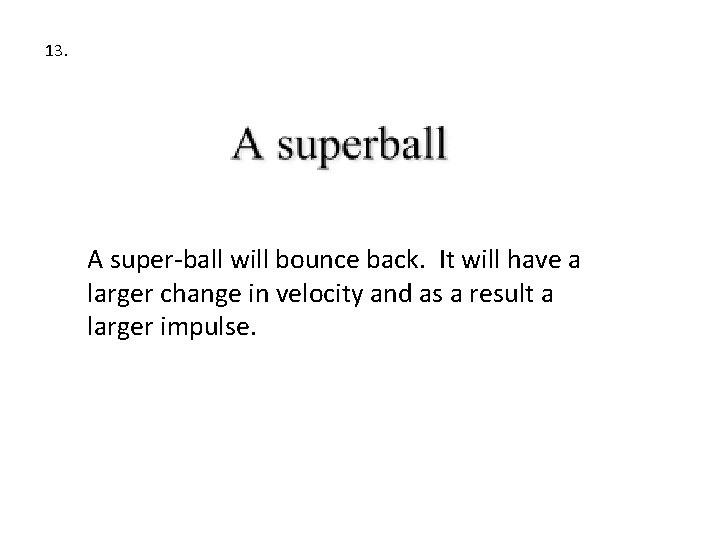

13. A super-ball will bounce back. It will have a larger change in velocity and as a result a larger impulse.

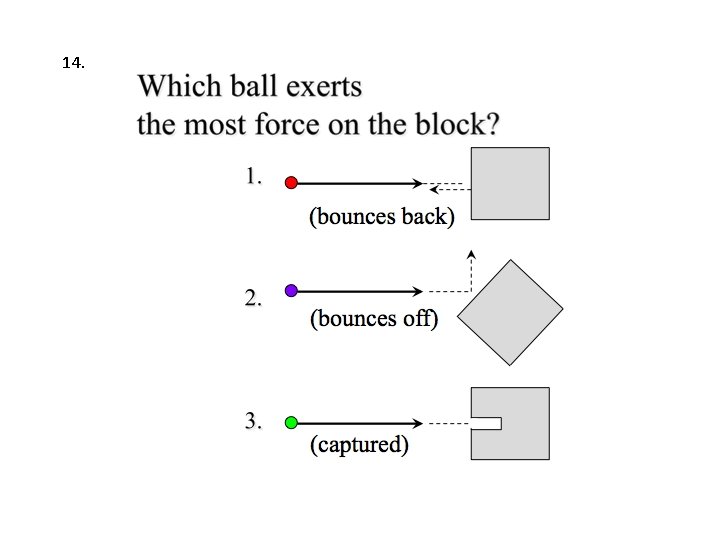

14.

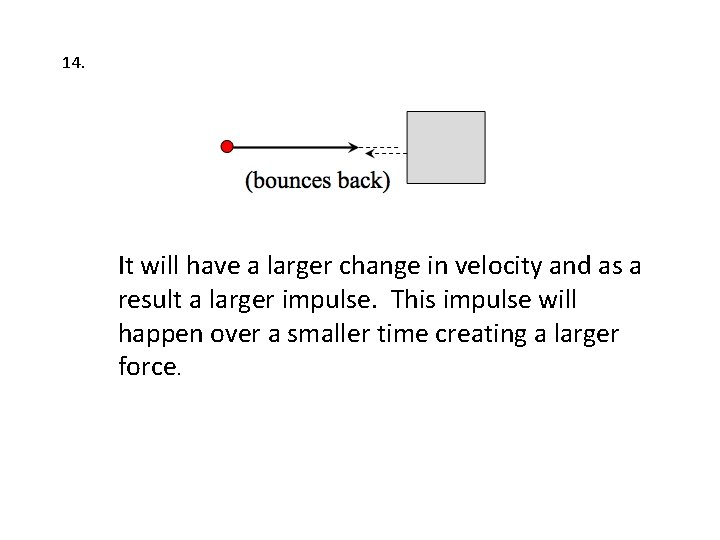

14. It will have a larger change in velocity and as a result a larger impulse. This impulse will happen over a smaller time creating a larger force.

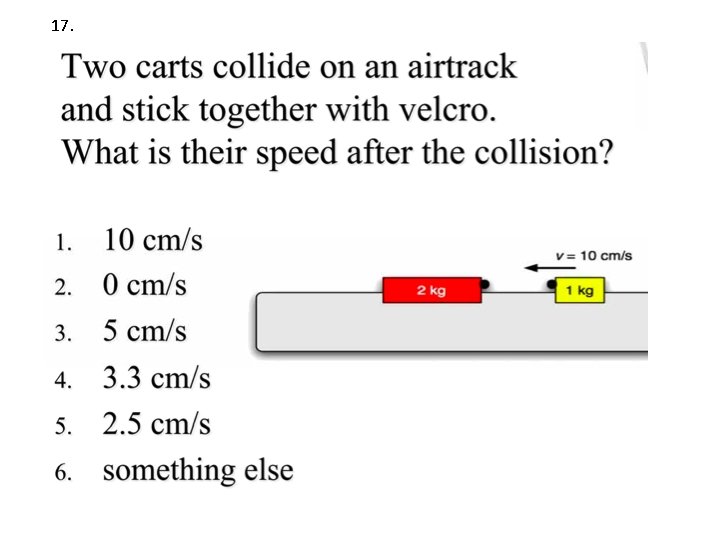

17.

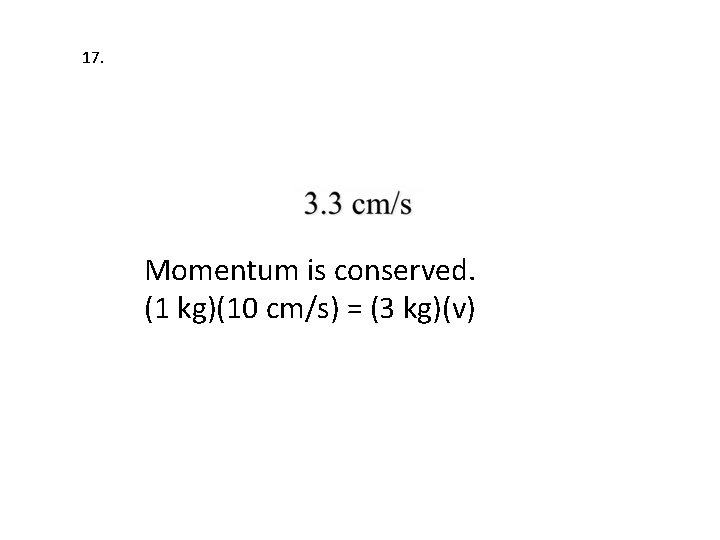

17. Momentum is conserved. (1 kg)(10 cm/s) = (3 kg)(v)

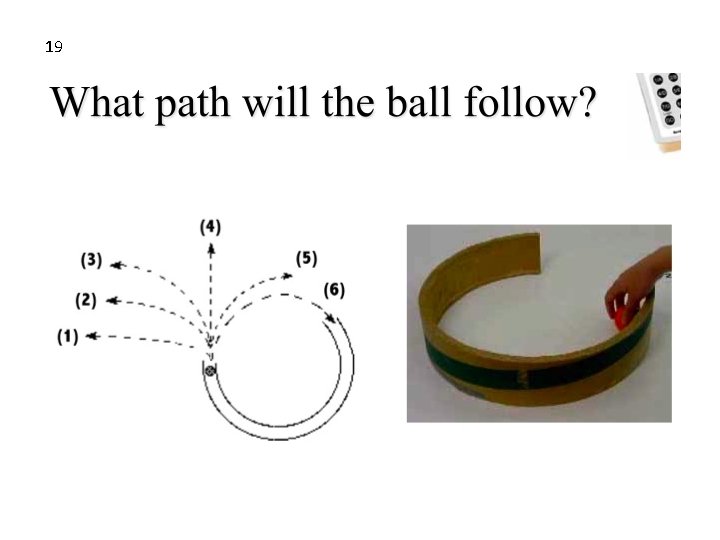

19

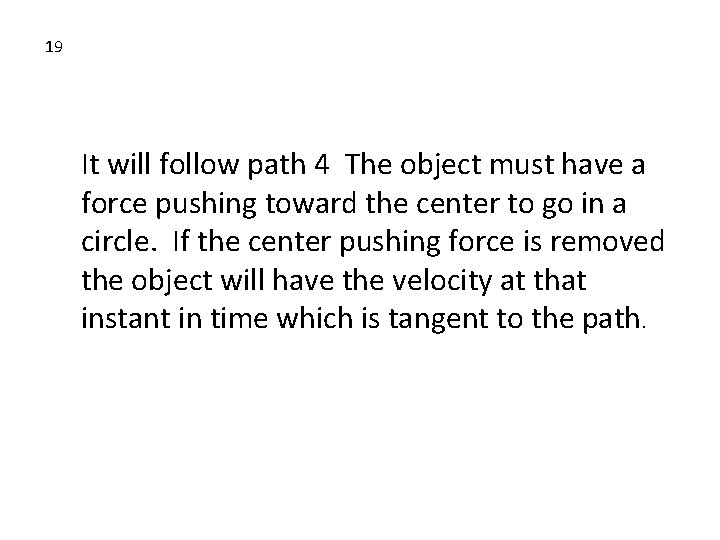

19 It will follow path 4 The object must have a force pushing toward the center to go in a circle. If the center pushing force is removed the object will have the velocity at that instant in time which is tangent to the path.

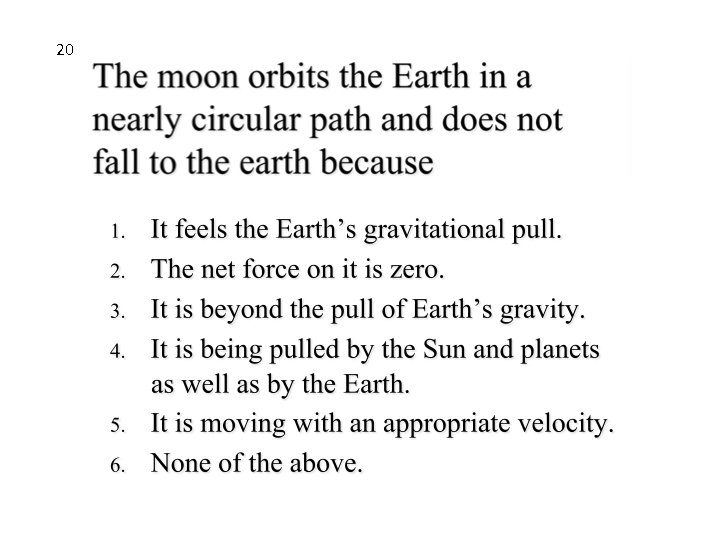

20

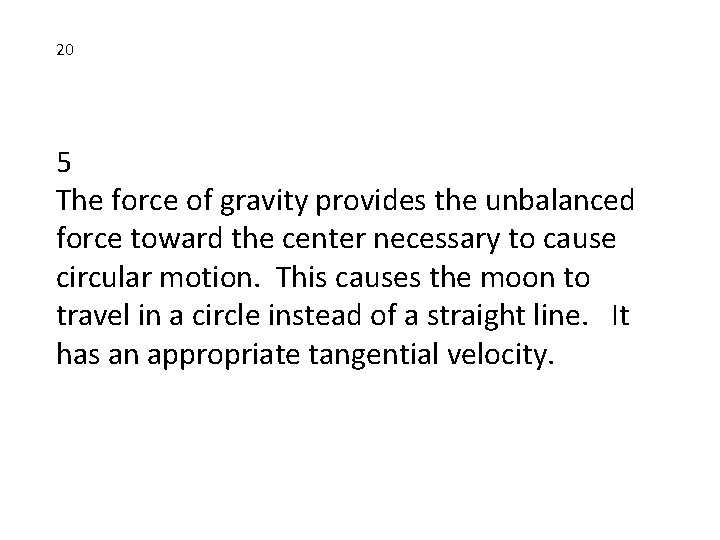

20 5 The force of gravity provides the unbalanced force toward the center necessary to cause circular motion. This causes the moon to travel in a circle instead of a straight line. It has an appropriate tangential velocity.

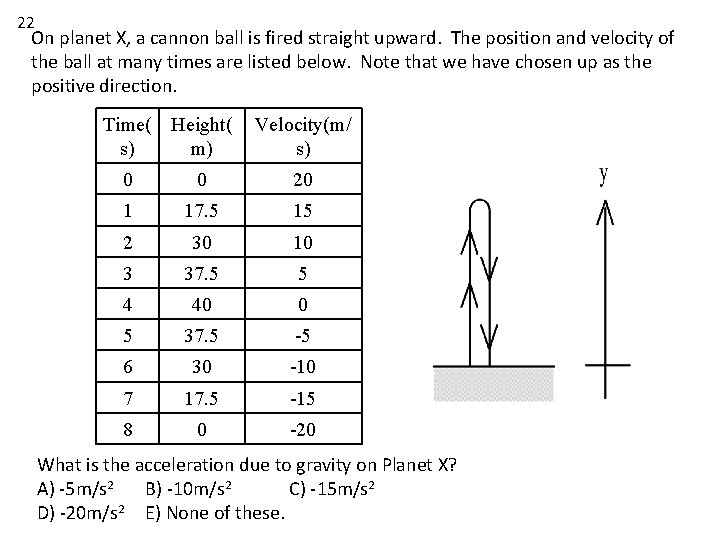

22 On planet X, a cannon ball is fired straight upward. The position and velocity of the ball at many times are listed below. Note that we have chosen up as the positive direction. Time( Height( s) m) Velocity(m/ s) 0 0 20 1 17. 5 15 2 30 10 3 37. 5 5 4 40 0 5 37. 5 -5 6 30 -10 7 17. 5 -15 8 0 -20 What is the acceleration due to gravity on Planet X? A) -5 m/s 2 B) -10 m/s 2 C) -15 m/s 2 D) -20 m/s 2 E) None of these.

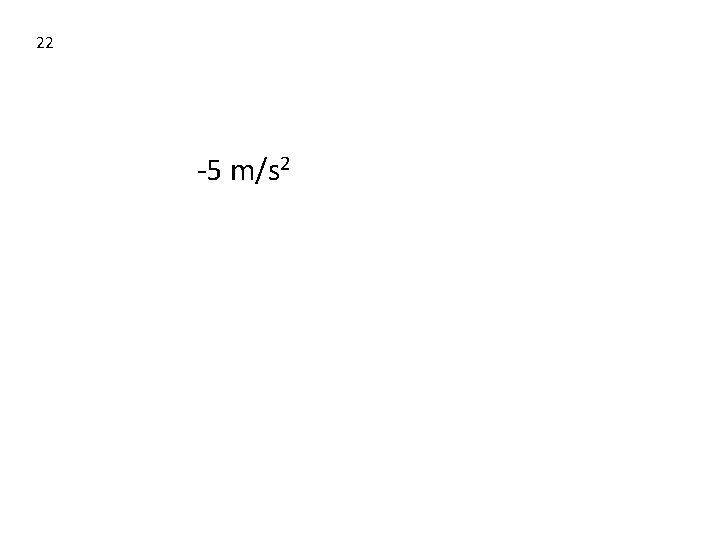

22 -5 m/s 2

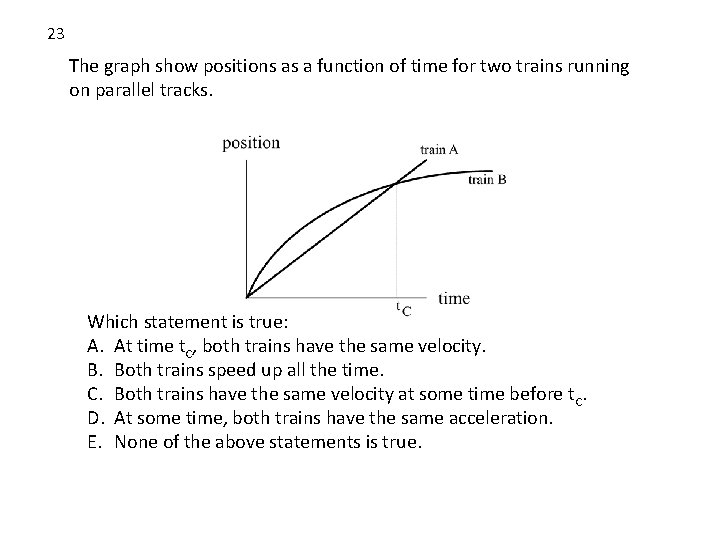

23 The graph show positions as a function of time for two trains running on parallel tracks. Which statement is true: A. At time t. C, both trains have the same velocity. B. Both trains speed up all the time. C. Both trains have the same velocity at some time before t. C. D. At some time, both trains have the same acceleration. E. None of the above statements is true.

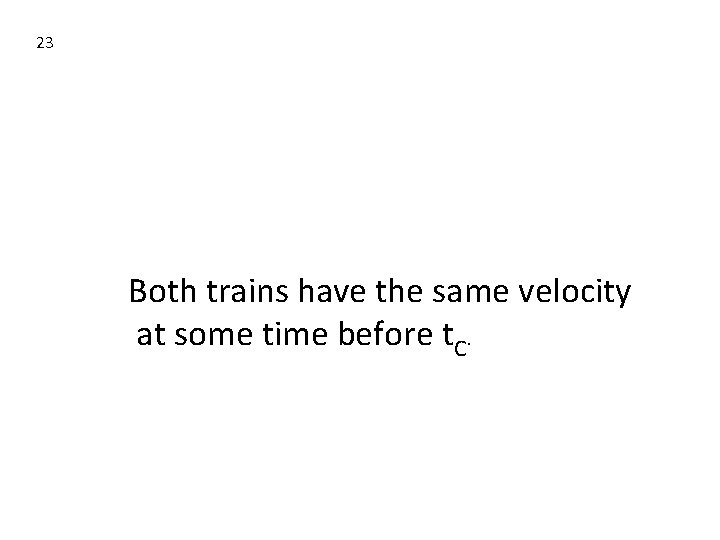

23 Both trains have the same velocity at some time before t. C.

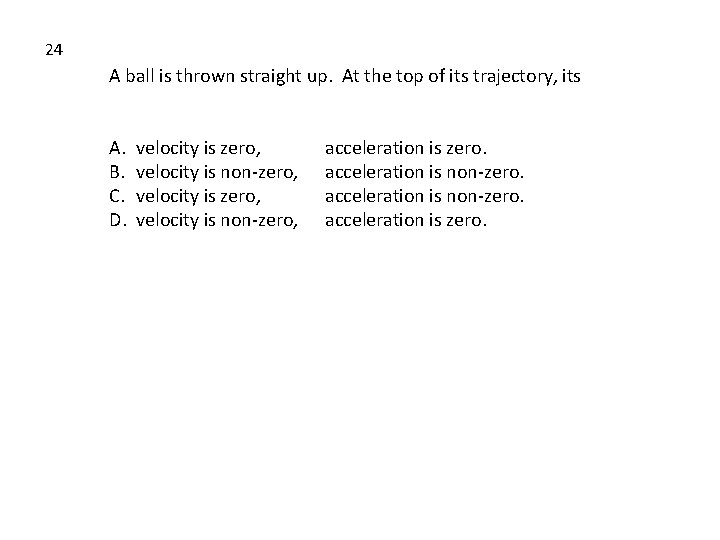

24 A ball is thrown straight up. At the top of its trajectory, its A. B. C. D. velocity is zero, velocity is non-zero, acceleration is zero. acceleration is non-zero. acceleration is zero.

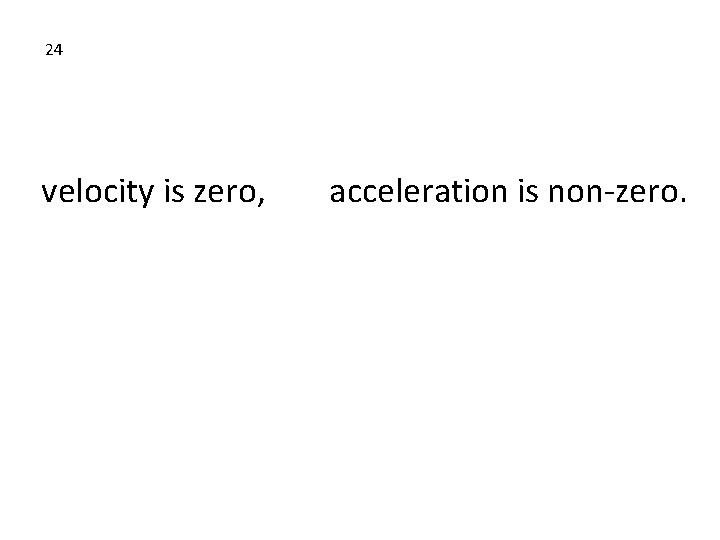

24 velocity is zero, acceleration is non-zero.

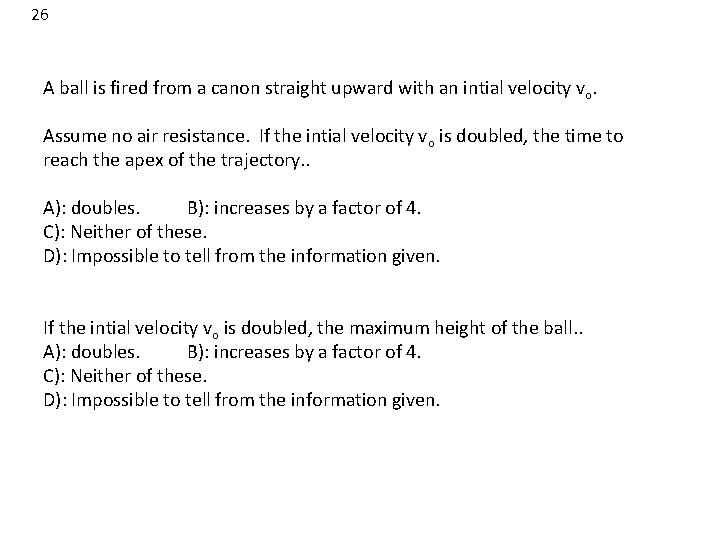

26 A ball is fired from a canon straight upward with an intial velocity vo. Assume no air resistance. If the intial velocity vo is doubled, the time to reach the apex of the trajectory. . A): doubles. B): increases by a factor of 4. C): Neither of these. D): Impossible to tell from the information given. If the intial velocity vo is doubled, the maximum height of the ball. . A): doubles. B): increases by a factor of 4. C): Neither of these. D): Impossible to tell from the information given.

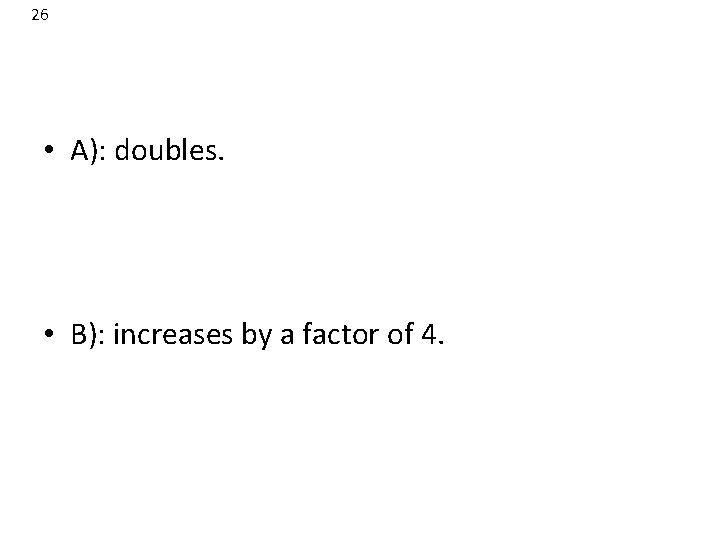

26 • A): doubles. • B): increases by a factor of 4.

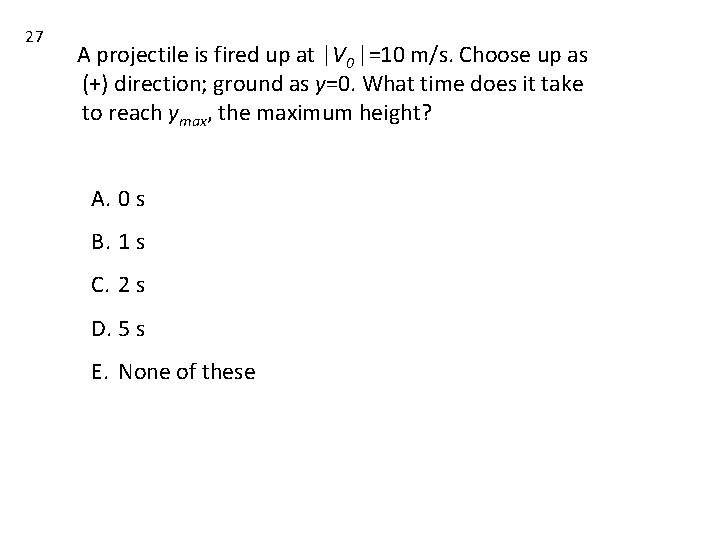

27 A projectile is fired up at |V 0 |=10 m/s. Choose up as (+) direction; ground as y=0. What time does it take to reach ymax, the maximum height? A. 0 s B. 1 s C. 2 s D. 5 s E. None of these

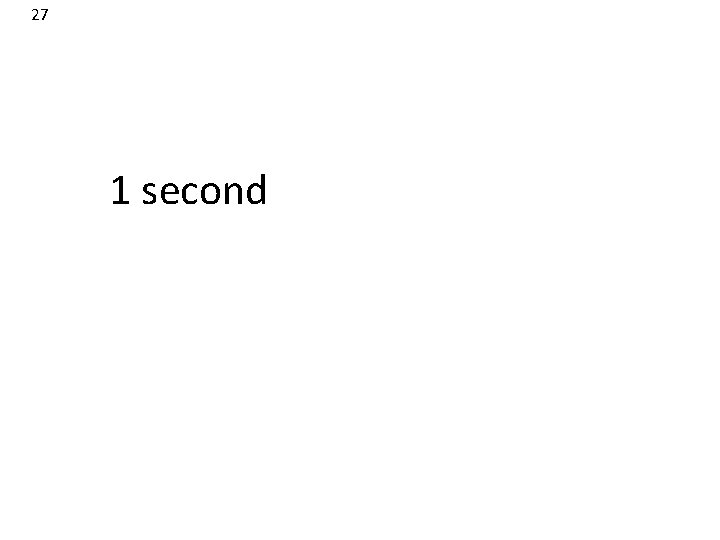

27 1 second

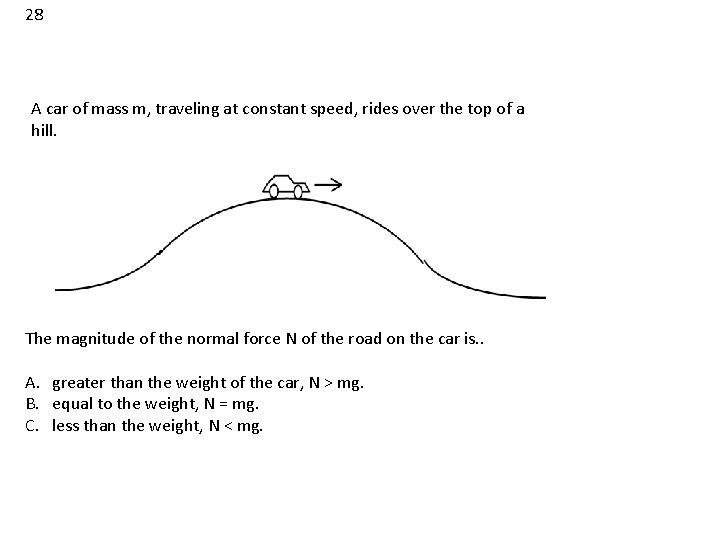

28 A car of mass m, traveling at constant speed, rides over the top of a hill. The magnitude of the normal force N of the road on the car is. . A. greater than the weight of the car, N > mg. B. equal to the weight, N = mg. C. less than the weight, N < mg.

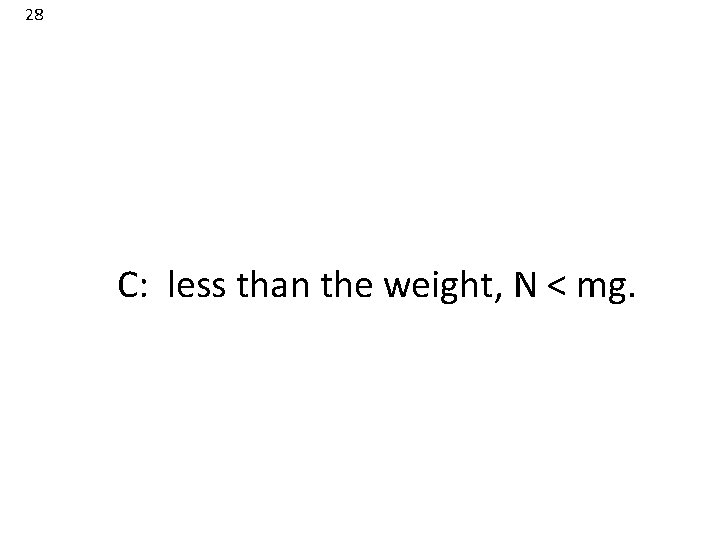

28 C: less than the weight, N < mg.

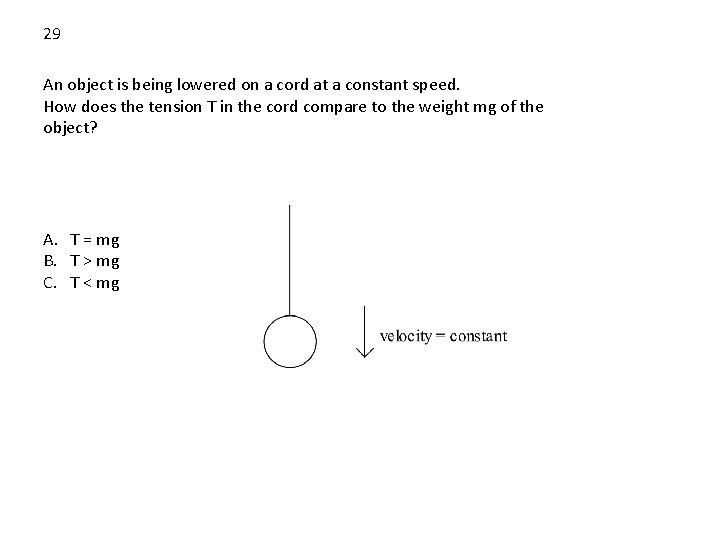

29 An object is being lowered on a cord at a constant speed. How does the tension T in the cord compare to the weight mg of the object? A. T = mg B. T > mg C. T < mg

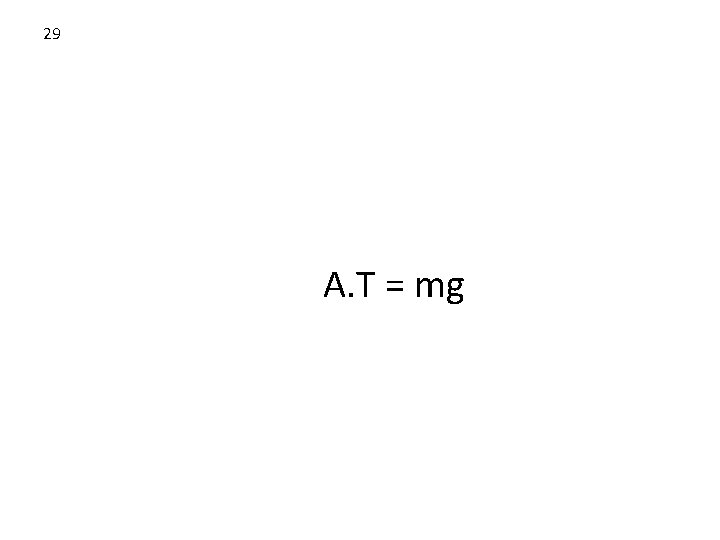

29 A. T = mg

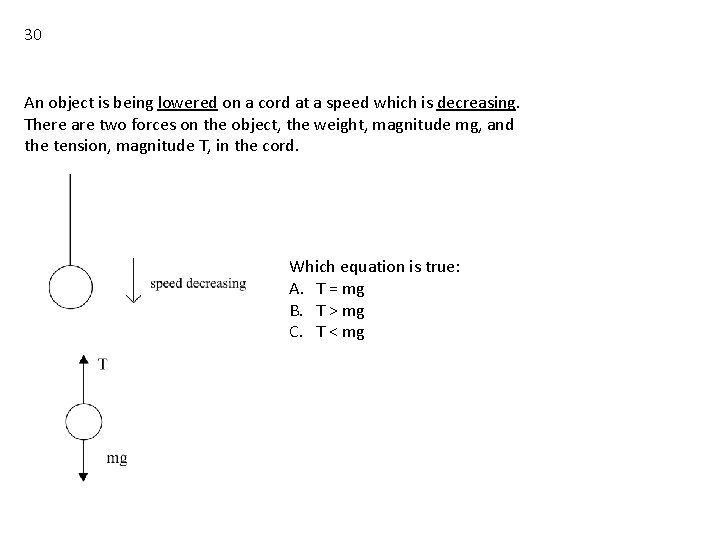

30 An object is being lowered on a cord at a speed which is decreasing. There are two forces on the object, the weight, magnitude mg, and the tension, magnitude T, in the cord. Which equation is true: A. T = mg B. T > mg C. T < mg

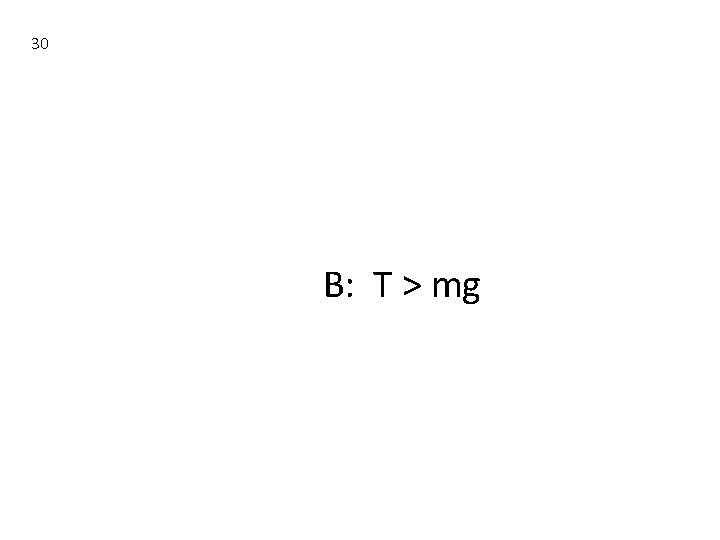

30 B: T > mg

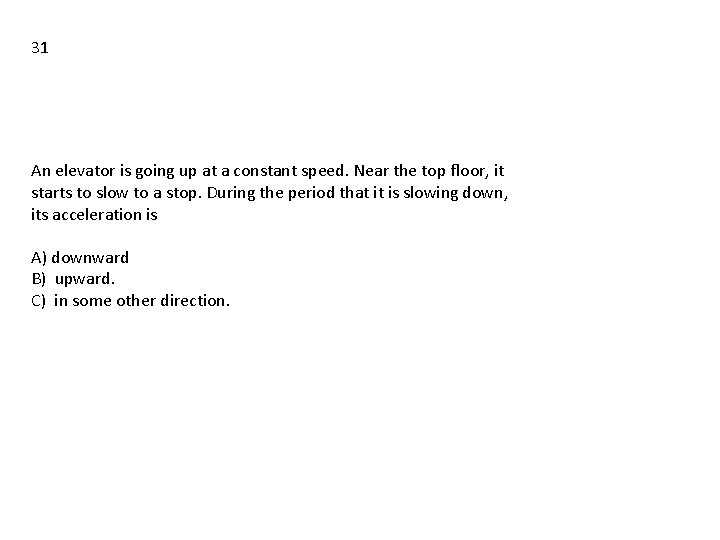

31 An elevator is going up at a constant speed. Near the top floor, it starts to slow to a stop. During the period that it is slowing down, its acceleration is A) downward B) upward. C) in some other direction.

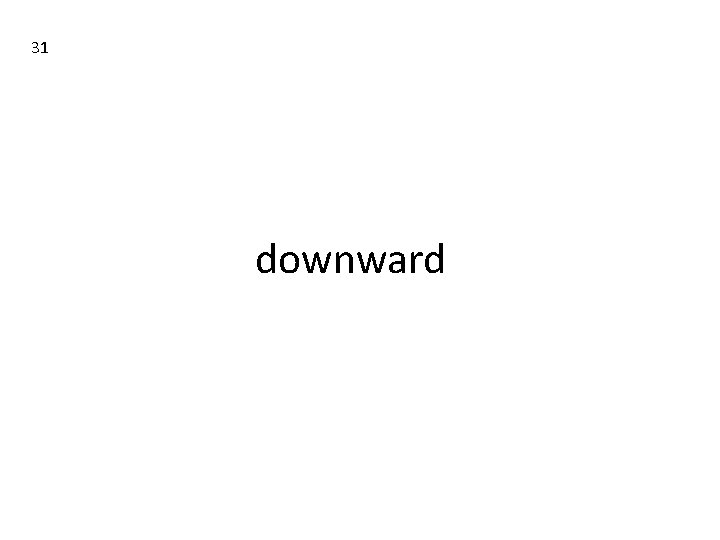

31 downward

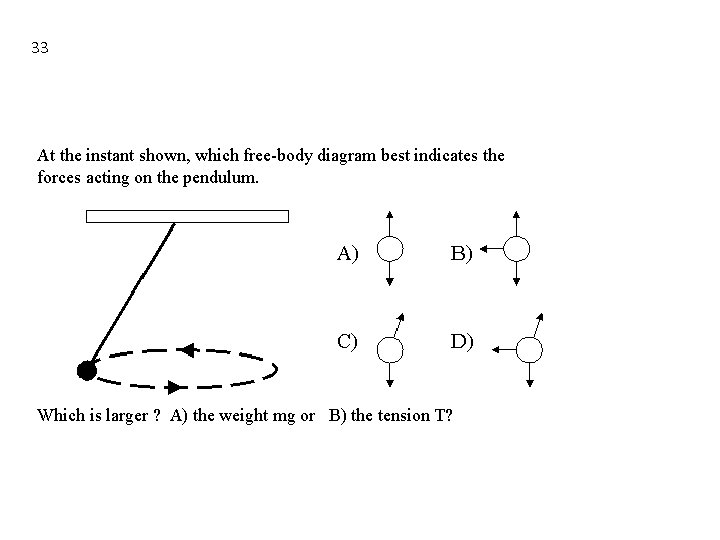

33 At the instant shown, which free-body diagram best indicates the forces acting on the pendulum. Which is larger ? A) the weight mg or B) the tension T?

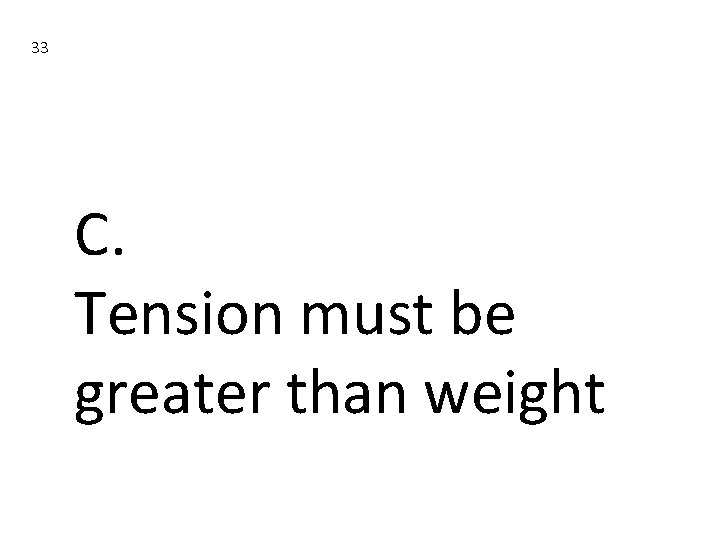

33 C. Tension must be greater than weight

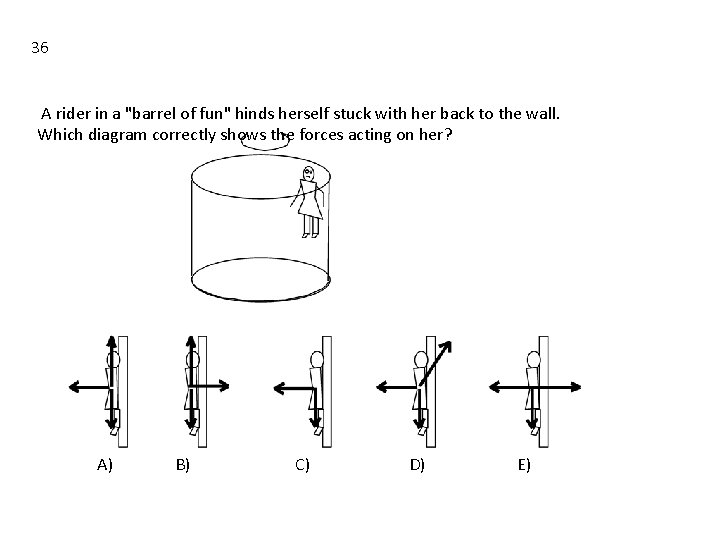

36 A rider in a "barrel of fun" hinds herself stuck with her back to the wall. Which diagram correctly shows the forces acting on her? A) B) C) D) E)

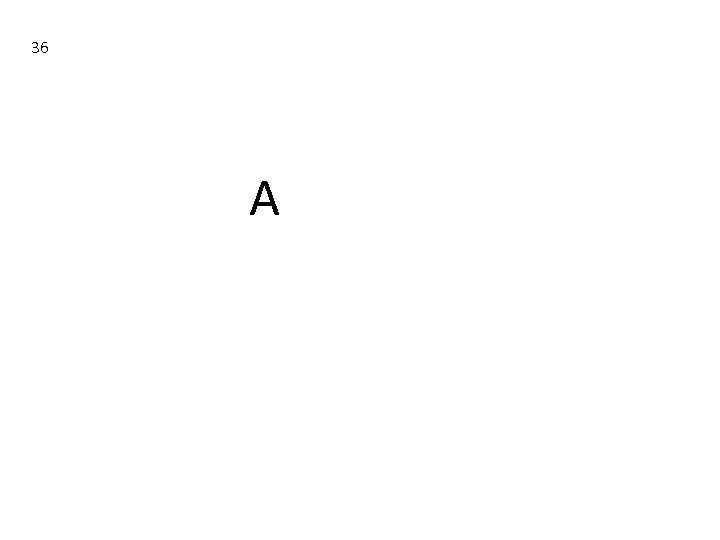

36 A

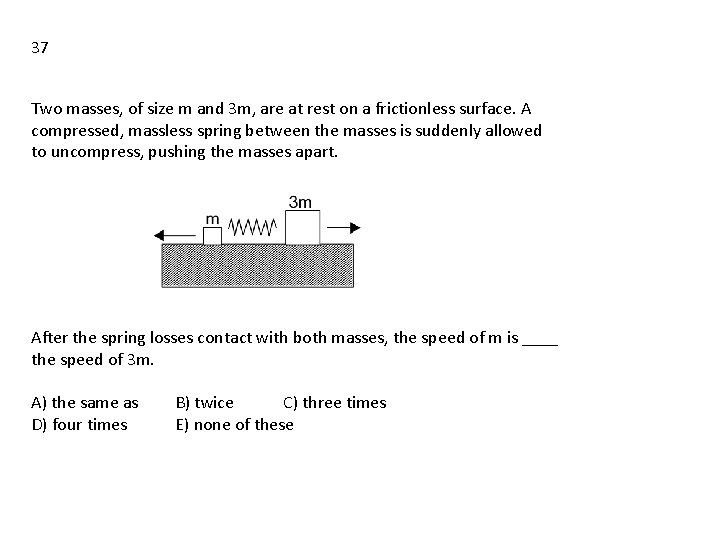

37 Two masses, of size m and 3 m, are at rest on a frictionless surface. A compressed, massless spring between the masses is suddenly allowed to uncompress, pushing the masses apart. After the spring losses contact with both masses, the speed of m is ____ the speed of 3 m. A) the same as D) four times B) twice C) three times E) none of these

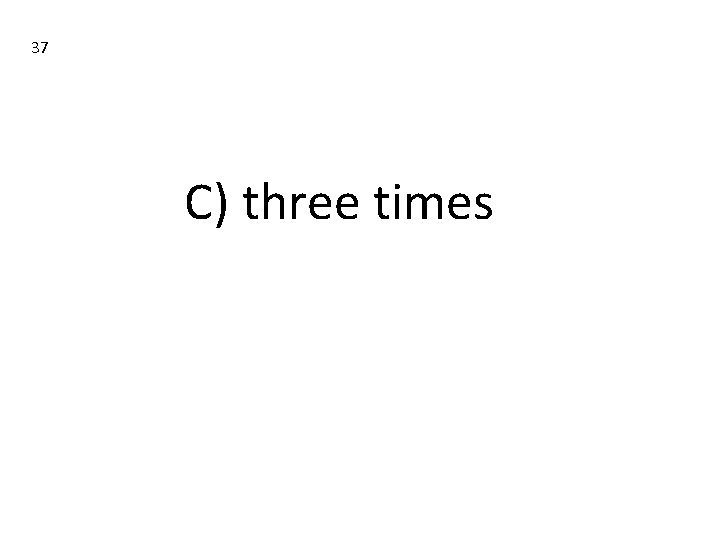

37 C) three times

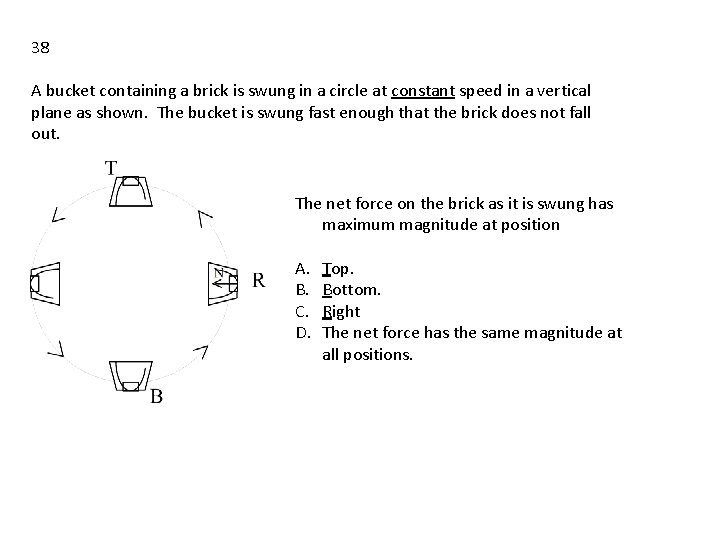

38 A bucket containing a brick is swung in a circle at constant speed in a vertical plane as shown. The bucket is swung fast enough that the brick does not fall out. The net force on the brick as it is swung has maximum magnitude at position A. B. C. D. Top. Bottom. Right The net force has the same magnitude at all positions.

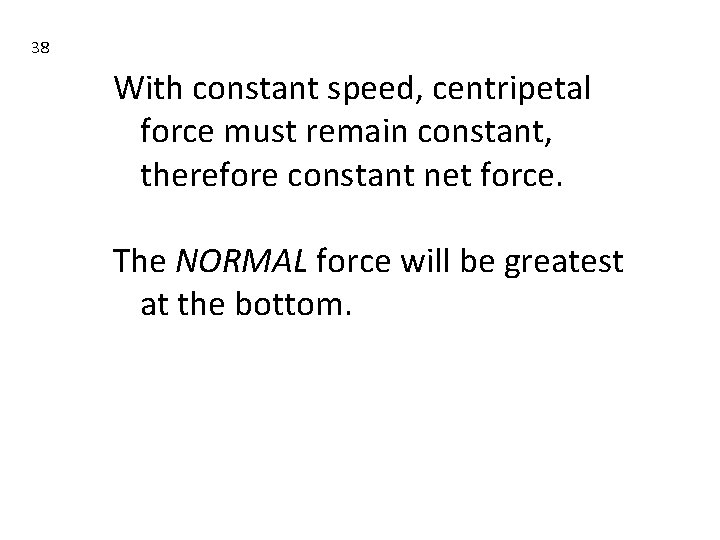

38 With constant speed, centripetal force must remain constant, therefore constant net force. The NORMAL force will be greatest at the bottom.

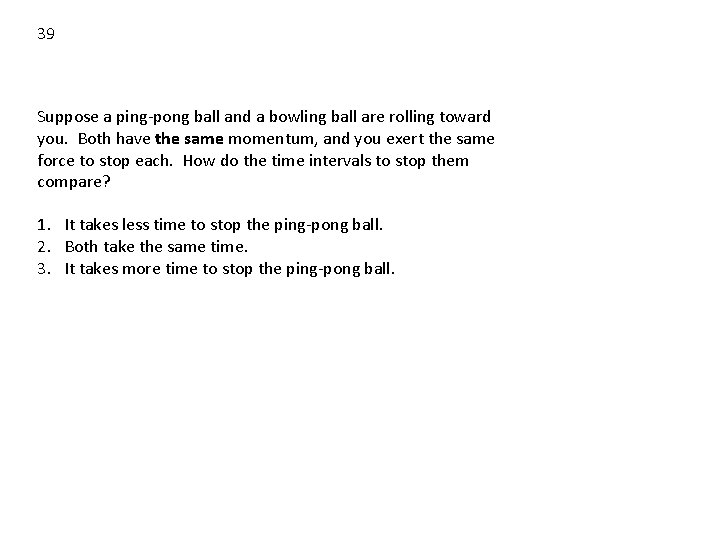

39 Suppose a ping-pong ball and a bowling ball are rolling toward you. Both have the same momentum, and you exert the same force to stop each. How do the time intervals to stop them compare? 1. It takes less time to stop the ping-pong ball. 2. Both take the same time. 3. It takes more time to stop the ping-pong ball.

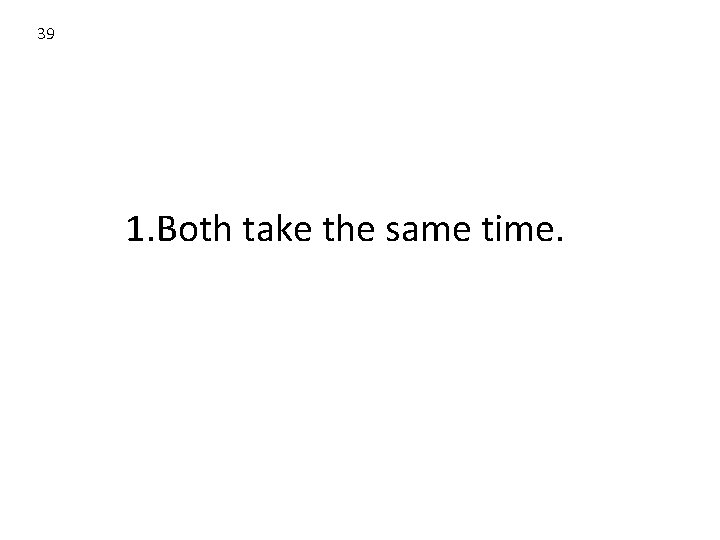

39 1. Both take the same time.

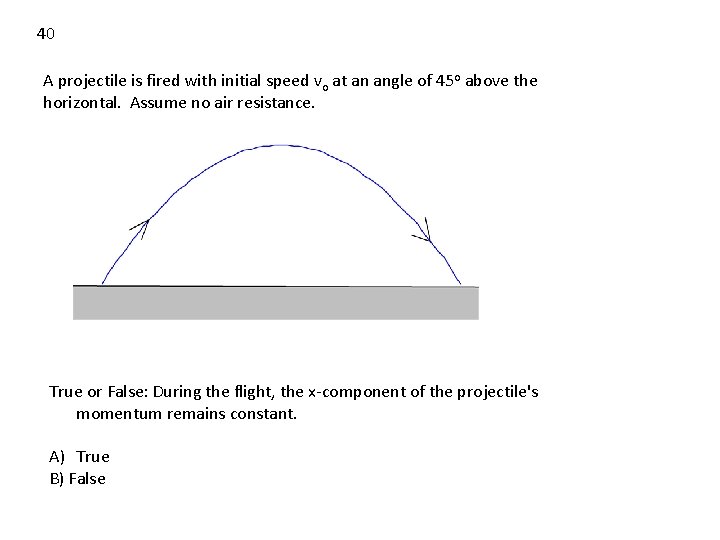

40 A projectile is fired with initial speed vo at an angle of 45 o above the horizontal. Assume no air resistance. True or False: During the flight, the x-component of the projectile's momentum remains constant. A) True B) False

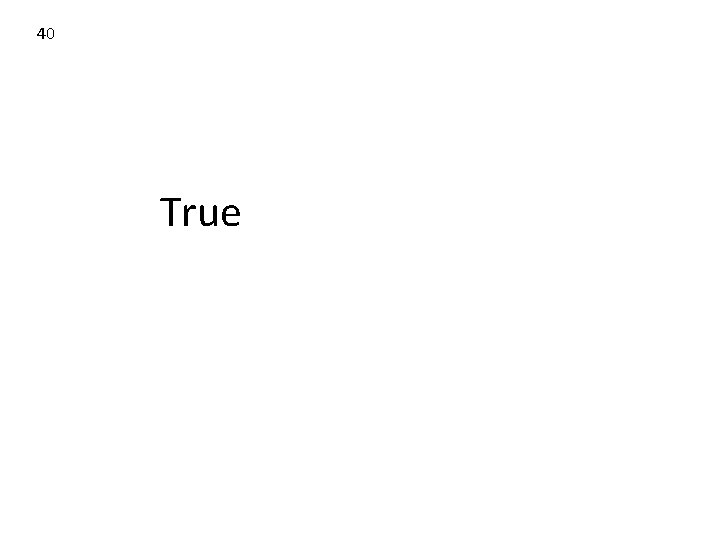

40 True

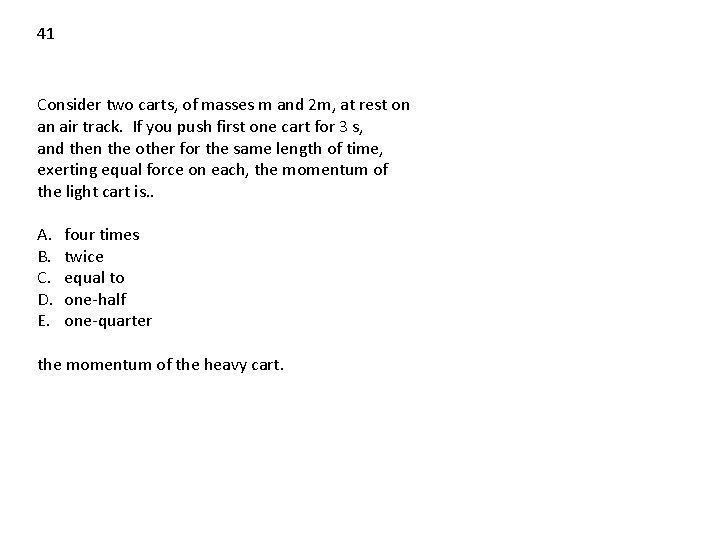

41 Consider two carts, of masses m and 2 m, at rest on an air track. If you push first one cart for 3 s, and then the other for the same length of time, exerting equal force on each, the momentum of the light cart is. . A. B. C. D. E. four times twice equal to one-half one-quarter the momentum of the heavy cart.

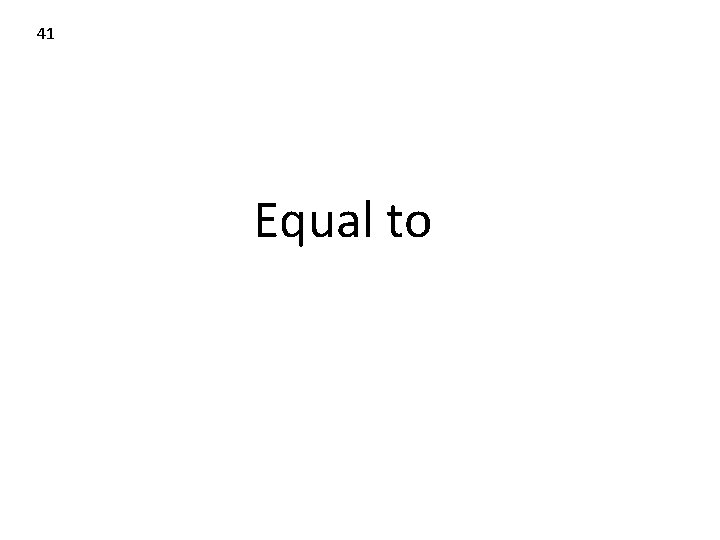

41 Equal to

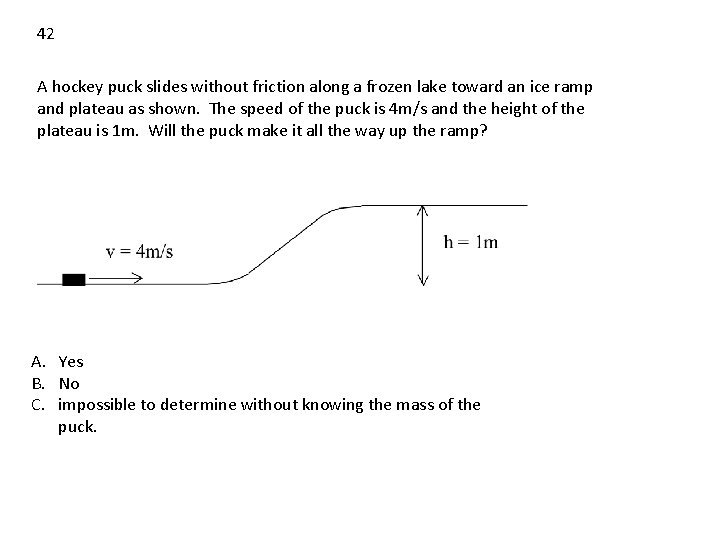

42 A hockey puck slides without friction along a frozen lake toward an ice ramp and plateau as shown. The speed of the puck is 4 m/s and the height of the plateau is 1 m. Will the puck make it all the way up the ramp? A. Yes B. No C. impossible to determine without knowing the mass of the puck.

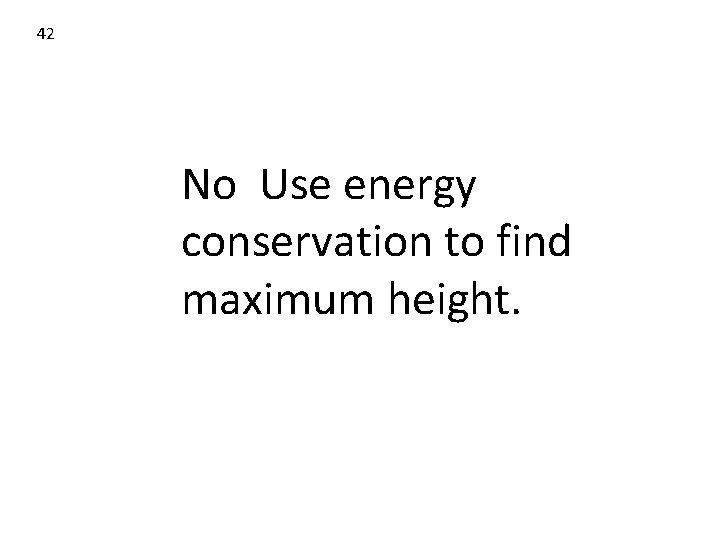

42 No Use energy conservation to find maximum height.
