KSWAN � Part of National E-Governance Plan � Supported by DIT, Govt. of India � Public – Private Partnership ◦ Government of Karnataka ◦ United Telecom Limited �Network Set up, Operation and Maintenance ◦ BSNL �Connectivity ◦ KPMG �Third Party Auditor Karnataka State Wide Area Network

Objectives of KSWAN � Creation of the “State Information Highway” � Provide “Data”, “Voice” and ‘Video” services across the State � High performance network ◦ Availability and Scalability � To improve access to computing facilities Karnataka State Wide Area Network

Infrastructure Facilities under KSWAN � Centralized Common Facilities State District and Taluka Levels � Departmental Remote Offices State District Taluka and below Karnataka State Wide Area Network

KSWAN Architecture 6 Mbp. S 2 Mbps Karnataka State Wide Area Network

24 x 7 Managed Services Network Operation Ø 24/7 Helpdesk support ØRound the clock monitoring from 176 POP Locations across the State Network Operation Center , Vikasa Soudha Karnataka State Wide Area Network

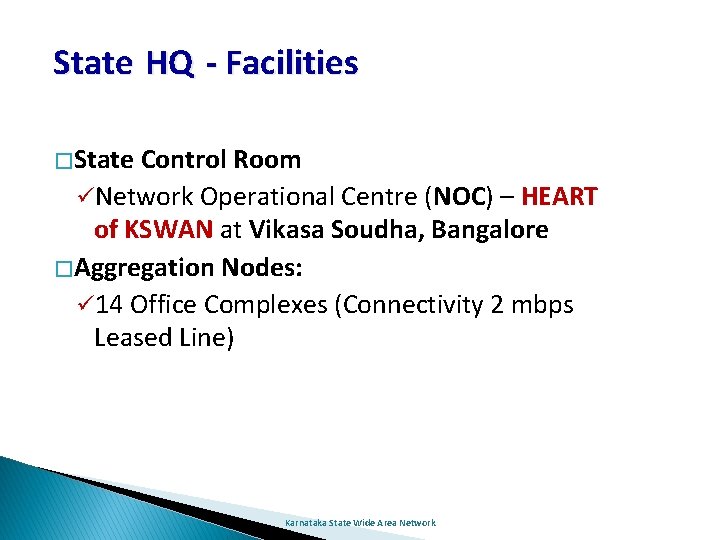

State HQ - Facilities � State Control Room Network Operational Centre (NOC) – HEART of KSWAN at Vikasa Soudha, Bangalore � Aggregation Nodes: 14 Office Complexes (Connectivity 2 mbps Leased Line) Karnataka State Wide Area Network

Facilities at District Level � Located in the Deputy Commissioner Offices District Control Room �HUB of Network IT Server Room �Secure, Controlled Environment for Servers Government Business Centers �IT Infrastructure – Computers, Printer, Scanner and connectivity provided for the use of Government Officials Video Conferencing Studio �Studio based video conference Karnataka State Wide Area Network

Facilities at Taluka Level � Located in the Tehsildar Offices Taluka Control Room �HUB of Network IT Server Room �Secure, Controlled Environment for Servers Government Business Centers �IT Infrastructure – Computers, Printer, Scanner and connectivity provided for the use of Government Officials Karnataka State Wide Area Network

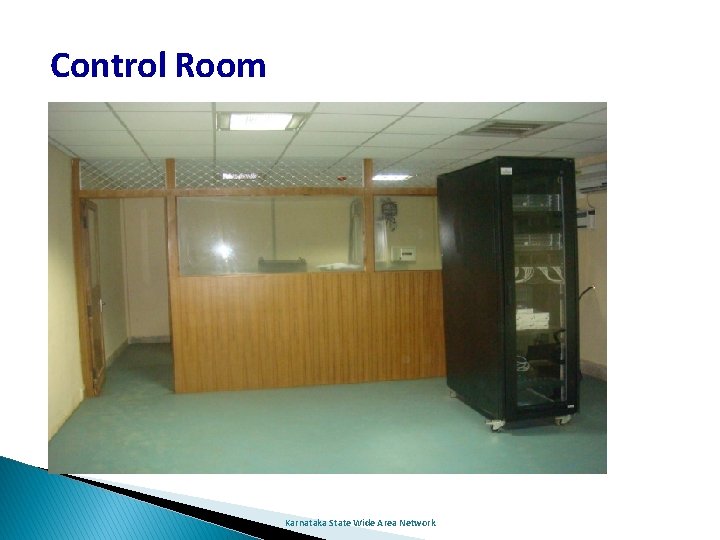

Control Room Karnataka State Wide Area Network

Govt. Business Centre Karnataka State Wide Area Network

IT Server Room Karnataka State Wide Area Network

Video Conference Room Karnataka State Wide Area Network

Key Services & Features of KSWAN � Data Services to the department users � Voice Services � Video Services � Computing facilities at all District and Taluka locations � Infrastructure Management Services Managed Security Services Helpdesk Services Karnataka State Wide Area Network

Data Services High Court Vikasa Soudha Mysore State Data Center Bijapur Nanjangud Indi Civil Judge Office RTO Office Karnataka State Wide Area Network

Voice Services Vikasa Soudha IGR Office Directorate of Treasuries Bijapur Mysore Nanjangud Indi Treasury Office Sub Registrar Office Karnataka State Wide Area Network

Video Services- Multiparty Vikasa Soudha Raj Bhavan High Court CM Residence Shimoga Raichur Mangalore Mysore Bidar Dharwad Karnataka State Wide Area Network Bijapur

Peer to Peer Video Conference DC Shimoga KSWAN Cloud DC Bijapur Karnataka State Wide Area Network

Video Services- Dept. of Judiciary High Court Central Prison KSWAN Cloud Bidar Court Prison Karnataka State Wide Area Network

Mobile Video Services Satellite Hub North Karnataka Vikasa Soudha South Karnataka Anywhere to Anywhere Karnataka State Wide Area Network

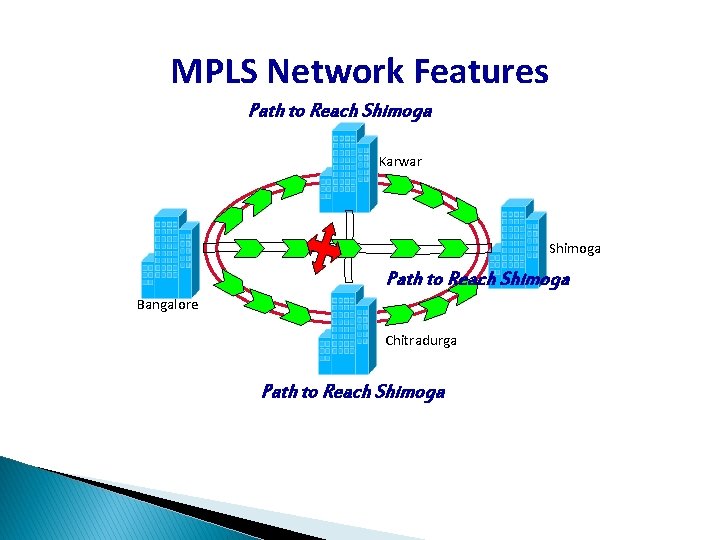

MPLS Network Features Path to Reach Shimoga Karwar Shimoga Path to Reach Shimoga Bangalore Chitradurga Path to Reach Shimoga

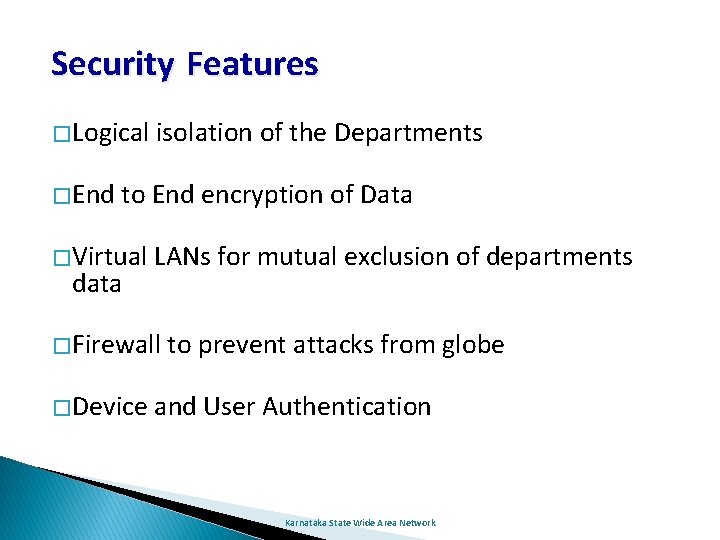

Security Features � Logical � End isolation of the Departments to End encryption of Data � Virtual data LANs for mutual exclusion of departments � Firewall � Device to prevent attacks from globe and User Authentication Karnataka State Wide Area Network

Major Departments Connected ◦ Revenue: � 176 Taluka Offices, 203 Bhoomi Offices ◦ Treasury: � 216 Treasuries ◦ Directorate of Municipal Administration: � 213 Urban Local Bodies ◦ Stamps and Registration: � 270 Registration Offices ◦ Transport: � 52 RTO & 15 Check Posts Karnataka State Wide Area Network

Major Departments Connected ◦ Public Works: � 245 up to Assistant Executive Engineers ◦ Food & Civil Supplies: �Up to Taluka Offices, 185 Offices ◦ Department of Information: � 27 District Information Offices ◦ Home Department: � 29 Prisons including Central Prison , Bangalore and District Prisons Karnataka State Wide Area Network

Major Departments Connected ◦ Judiciary: �High Court, District Courts and Subordinate Courts, a total of 159 Courts ◦ Agriculture: �Up to District Level 32 Offices ◦ Public Instructions: � 39 DDPI Offices ◦ Economics and Statistics: �Up to District Level, 27 Offices & Other Departments. Karnataka State Wide Area Network

Major Applications on KSWAN Ø Treasury Ø Nirmala Nagara Ø Bhoomi Ø Nemmadi Ø Kaveri Ø Vahan & Sarathi Ø HRMS Ø e-Procurement Karnataka State Wide Area Network

USING KSWAN SERVICES - HOW ? - DO’S AND DO NOT’S

Getting Ready to use KSWAN �Departments need to provide KSWAN User name and user-id to avail KSWAN services �Departments need to register GBC users �Username and Password should be given by the department for Dial-up connection

What is expected from Departments � Nominate a technical representative for coordination with Helpdesk for getting connected to KSWAN. � Provide proper UPS power to all KSWAN equipments. Karnataka State Wide Area Network

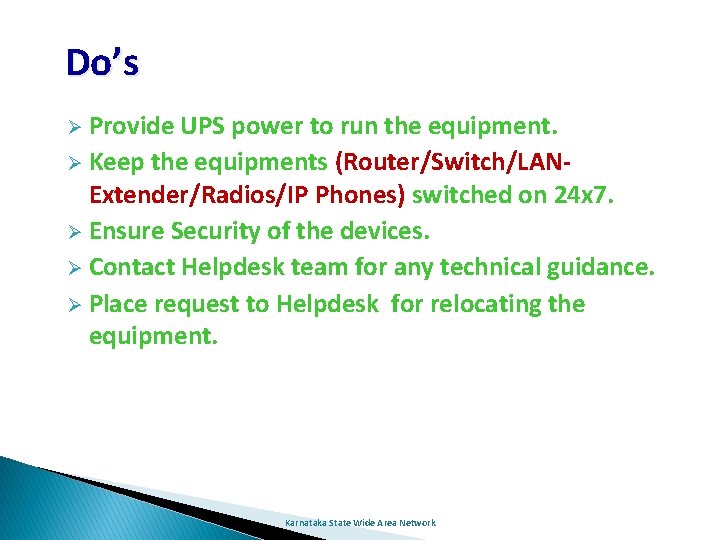

Do’s Ø Provide UPS power to run the equipment. Ø Keep the equipments (Router/Switch/LANExtender/Radios/IP Phones) switched on 24 x 7. Ø Ensure Security of the devices. Ø Contact Helpdesk team for any technical guidance. Ø Place request to Helpdesk for relocating the equipment. Karnataka State Wide Area Network

Do NOT Ø Switch off equipments. Ø Operate equipments without UPS Power. Ø Troubleshooting without proper guidance from Helpdesk Team. Ø Remove power plug or Data Cable. Ø Move the equipment from installed locations. Karnataka State Wide Area Network

How to Book VC � Use mentioned Link: http: //www. ktkswan. gov. in/videoconfscheduler. php � View availability of slot before scheduling VC � Send a mail to video@ktkswan. gov. in � Will get a return mail in confirmation Karnataka State Wide Area Network

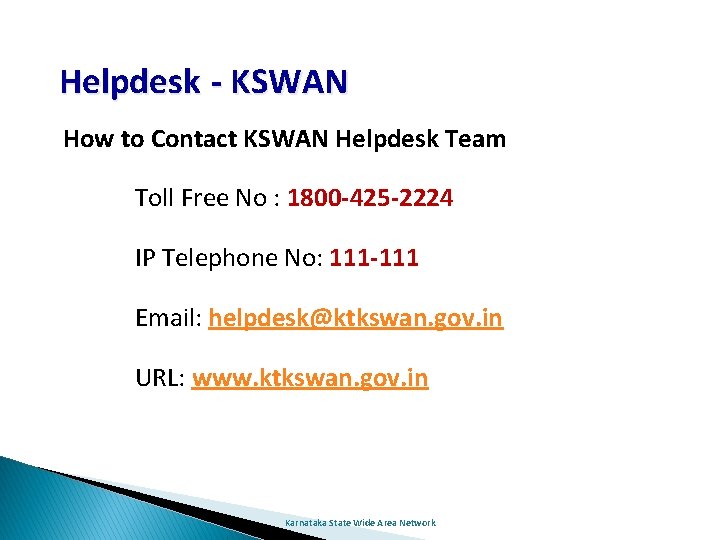

Helpdesk - KSWAN How to Contact KSWAN Helpdesk Team Toll Free No : 1800 -425 -2224 IP Telephone No: 111 -111 Email: helpdesk@ktkswan. gov. in URL: www. ktkswan. gov. in Karnataka State Wide Area Network

For Any Problems or Queries � Contact ◦ ◦ ◦ ◦ Project Director, KSWAN, Centre for e-Governance, Room Number-108, First Floor, M. S. Building, Gate No-2, Ambedkar Veedhi, Bangalore-560001 Email: pdkswan@karnataka. gov. in
