Visualization For analysis and communication Chen Gwen Shapira

Visualization For analysis and communication Chen “Gwen” Shapira

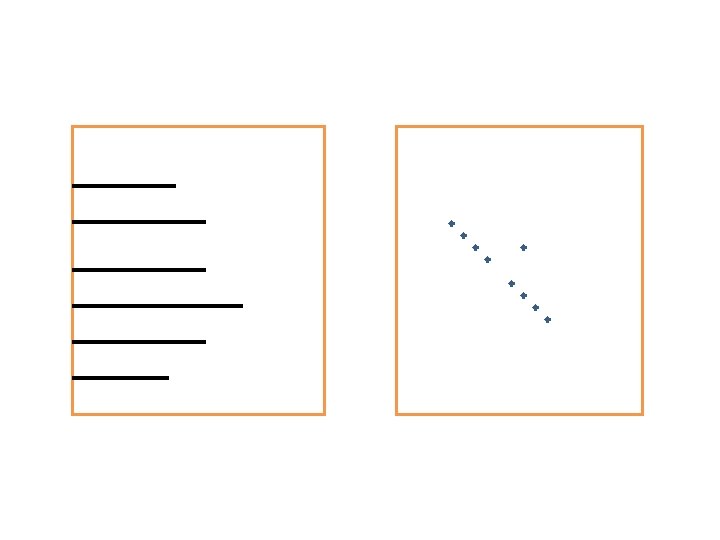

Reveal Structure in Data

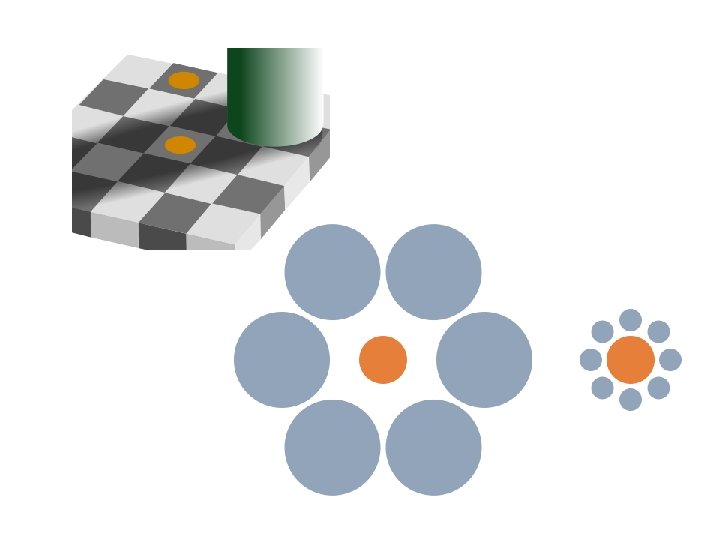

Verify Your Findings • Prior knowledge • Statistical tools • Graphs are only the starting point

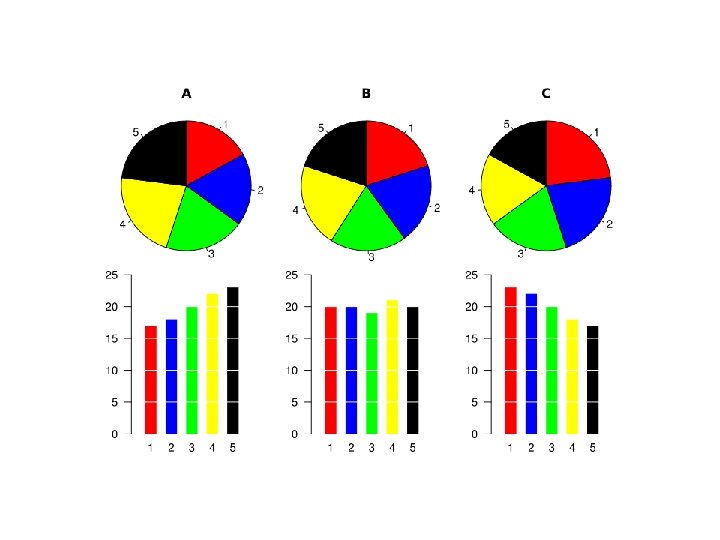

Not all visuals are created equal

Numerical quantities focus on expected values – graphical summaries on unexpected values – John Tukey

How long does it take to run full export on ITGDB 10?

5 Hours and 45 minutes. On average.

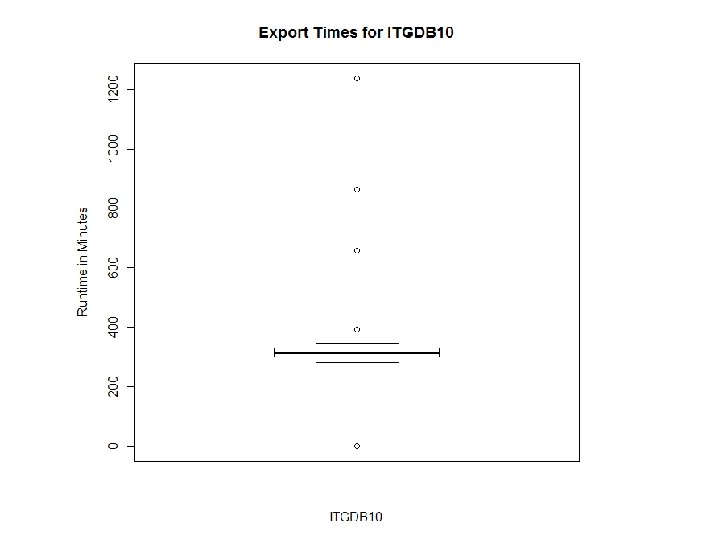

Most of the time it take 3 to 6. 5 hours. But it can take as long as 20 hours!

5 hours on average, when the storage works.

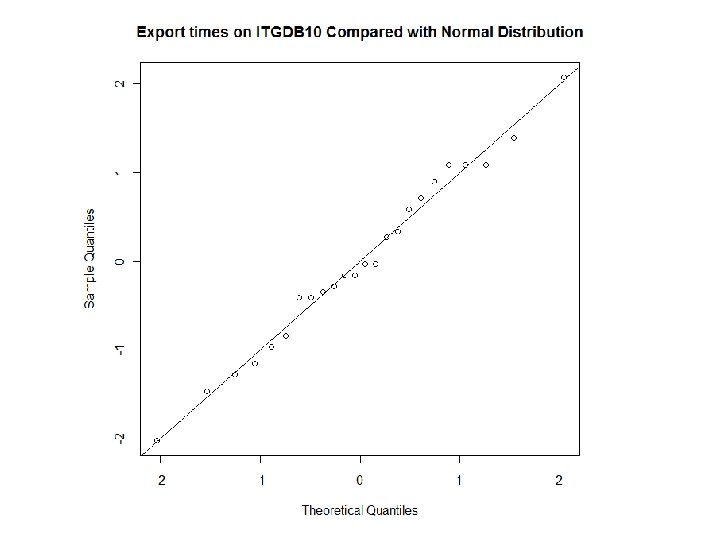

I got rid of the outliers. Am I normal now?

What about the rest of the servers?

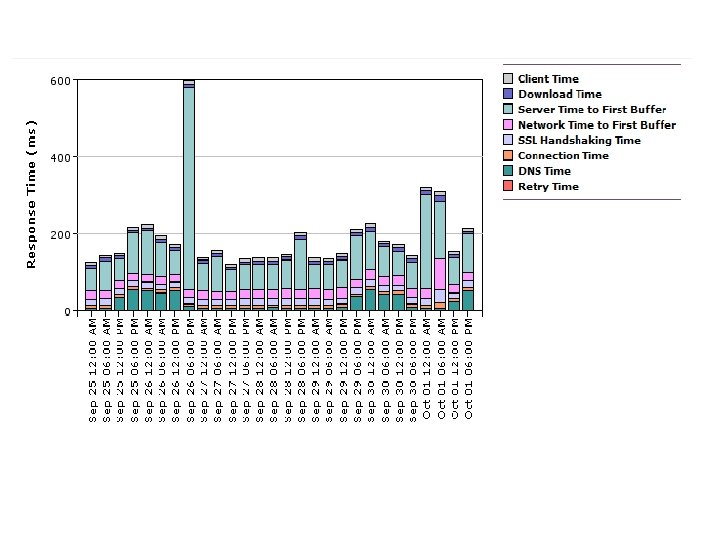

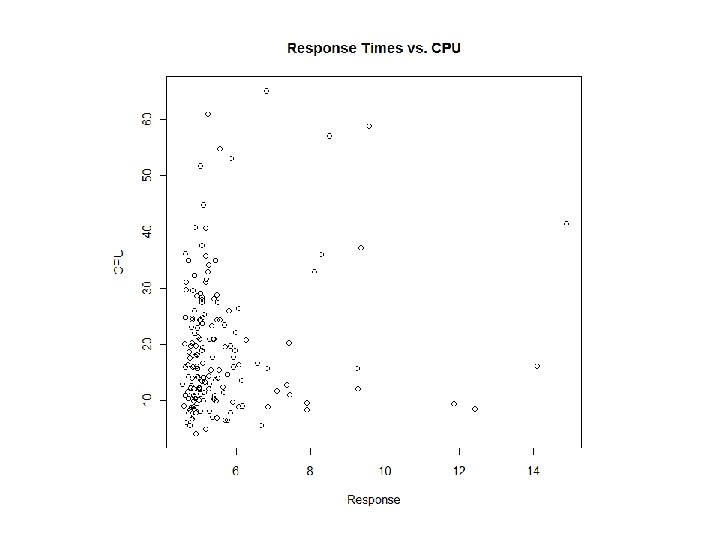

Does our maintenance have impact on response times?

Row Labels 24 -SEP-09 21. 00 25 -SEP-09 00. 00 25 -SEP-09 03. 00 25 -SEP-09 06. 00 25 -SEP-09 09. 00 25 -SEP-09 12. 00 25 -SEP-09 15. 00 25 -SEP-09 18. 00 25 -SEP-09 21. 00 26 -SEP-09 00. 00 26 -SEP-09 03. 00 26 -SEP-09 06. 00 26 -SEP-09 09. 00 26 -SEP-09 12. 00 26 -SEP-09 15. 00 26 -SEP-09 18. 00 26 -SEP-09 21. 00 27 -SEP-09 00. 00 27 -SEP-09 03. 00 27 -SEP-09 06. 00 27 -SEP-09 09. 00 27 -SEP-09 12. 00 27 -SEP-09 15. 00 27 -SEP-09 18. 00 27 -SEP-09 21. 00 28 -SEP-09 00. 00 28 -SEP-09 03. 00 28 -SEP-09 06. 00 28 -SEP-09 09. 00 28 -SEP-09 12. 00 28 -SEP-09 15. 00 28 -SEP-09 18. 00 28 -SEP-09 21. 00 29 -SEP-09 00. 00 29 -SEP-09 03. 00 29 -SEP-09 06. 00 29 -SEP-09 09. 00 29 -SEP-09 12. 00 29 -SEP-09 15. 00 29 -SEP-09 18. 00 29 -SEP-09 21. 00 30 -SEP-09 00. 00 30 -SEP-09 03. 00 30 -SEP-09 06. 00 30 -SEP-09 09. 00 30 -SEP-09 12. 00 30 -SEP-09 15. 00 30 -SEP-09 18. 00 30 -SEP-09 21. 00 01 -OCT-09 00. 00 01 -OCT-09 03. 00 01 -OCT-09 06. 00 01 -OCT-09 09. 00 01 -OCT-09 12. 00 01 -OCT-09 15. 00 01 -OCT-09 18. 00 14 12 10 8 6 4 2 0 Series 1 Series 2 Series 3

Communicating Information

India Singapore Sri Lanka Hong Kong Japan Jordan United Arab Emirates United States Costa Rica Russian Federation Czech Republic Estonia Philippines Romania Australia Latvia Indonesia Ireland Canada Ukraine Norway Belgium Hungary Brazil Netherlands Germany Egypt Spain Finland Argentina Thailand Viet Nam Bulgaria Iran Poland Turkey 100 90 80 70 60 oracle 50 40 30 oracle 20 10 0 oracle

India Singapore Sri Lanka Hong Kong Japan Jordan United Arab Emirates United States Costa Rica Russian Federation Czech Republic Estonia Philippines Romania Australia Latvia Indonesia Ireland Canada Ukraine Norway Belgium Hungary Brazil Netherlands Germany Egypt Spain Finland Argentina Thailand Viet Nam Bulgaria Iran Poland Turkey South Africa Czech Republic Kuwait Estonia oracle 120 100 80 60 40 20 0 Switzerland Philippines Tunisia Romania Malaysia Australia Colombia Latvia United Kingdom Indonesia Slovakia Ireland Greece Canada Saudi Arabia Ukraine Israel Norway Slovenia Belgium Croatia Hungary New Zealand Brazil Austria Netherlands

Oracle Google Searches - By Region, Normalized India Pakistan Singapore Sri Lanka Kenya Nigeria Hong Kong South Korea El Salvador Japan Jordan China Guatemala United States Taiwan United Arab Emirates Ecuador Costa Rica Russian Federation 0 20 40 60 80 100 120

Oracle Google Searches - By Region, Normalized India Pakistan Singapore Sri Lanka Kenya Nigeria Hong Kong South Korea El Salvador Japan Jordan China Guatemala United States Taiwan United Arab Emirates Ecuador Costa Rica Russian Federation 0 20 40 60 80 100 120
