THE LIFE CYCLE FOR FOG MANAGEMENT PROGRAMS STARTING

THE LIFE CYCLE FOR FOG MANAGEMENT PROGRAMS STARTING, DRIVING & FUNDING YOUR FOG PROGRAM PRESENTED BY JEFF HORN/ DIVERSIFIED SALES/203 -3149242

TERMS • GREASE (ALSO FOG): FATS, OILS, AND GREASE FROM FOODSERVICE OPERATIONS OR FOOD PRODUCTION. • YELLOW GREASE: GREASE THAT COMES PRIMARILY FROM FRY-O-LAYTORS • BROWN GREASE: WASTE FROM GREASE INTERCEPTORS AND GREASE TRAPS…

TERMS • FSE: FOOD SERVICE ESTABLISHMENT. ANY NONRESIDENTIAL FOOD PREPARATION FACILITY PREPARING FOOD FOR THE PUBLIC. RESTAURANTS, SCHOOLS, CHURCHES, COMMUNITY CENTERS, HOSPITALS, PRISONS, COMMISSARIES, NURSING HOMES. . • FOG Permit: DOCUMENTARY PROCESS ESTABLISHING RELATIONSHIP BETWEEN UTILITY AND FSE. CREATES INITIAL AND ON-GOING MECHANISM FOR: FUNDING, COMPLIANCE, EDUCATION AND ENFORCEMENT. • BMPs: BEST MANAGEMENT PRACTICES. GOOD OPERATING PRACTICES = LOW FOG EMISSIONS (DISPOSING OF FOOD INTO GARBAGE CANS, USE OF PRE-RINSE STATIONS, PROPER STORAGE OF

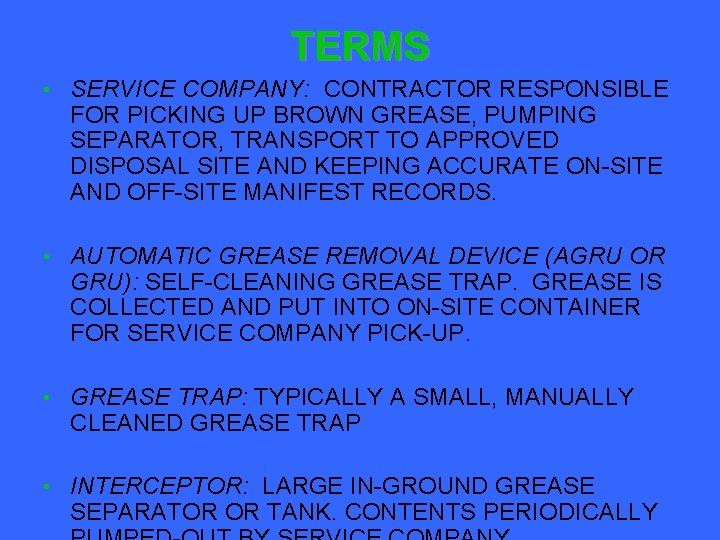

TERMS • SERVICE COMPANY: CONTRACTOR RESPONSIBLE FOR PICKING UP BROWN GREASE, PUMPING SEPARATOR, TRANSPORT TO APPROVED DISPOSAL SITE AND KEEPING ACCURATE ON-SITE AND OFF-SITE MANIFEST RECORDS. • AUTOMATIC GREASE REMOVAL DEVICE (AGRU OR GRU): SELF-CLEANING GREASE TRAP. GREASE IS COLLECTED AND PUT INTO ON-SITE CONTAINER FOR SERVICE COMPANY PICK-UP. • GREASE TRAP: TYPICALLY A SMALL, MANUALLY CLEANED GREASE TRAP • INTERCEPTOR: LARGE IN-GROUND GREASE SEPARATOR OR TANK. CONTENTS PERIODICALLY

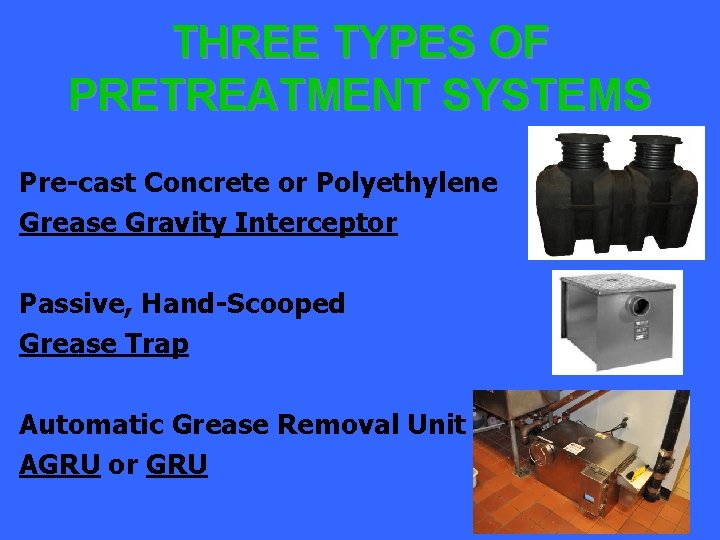

THREE TYPES OF PRETREATMENT SYSTEMS Pre-cast Concrete or Polyethylene Grease Gravity Interceptor Passive, Hand-Scooped Grease Trap Automatic Grease Removal Unit AGRU or GRU

TYPICAL KITCHEN LAYOUT

FOG PROGRAMS: THE BUCK STOPS HERE

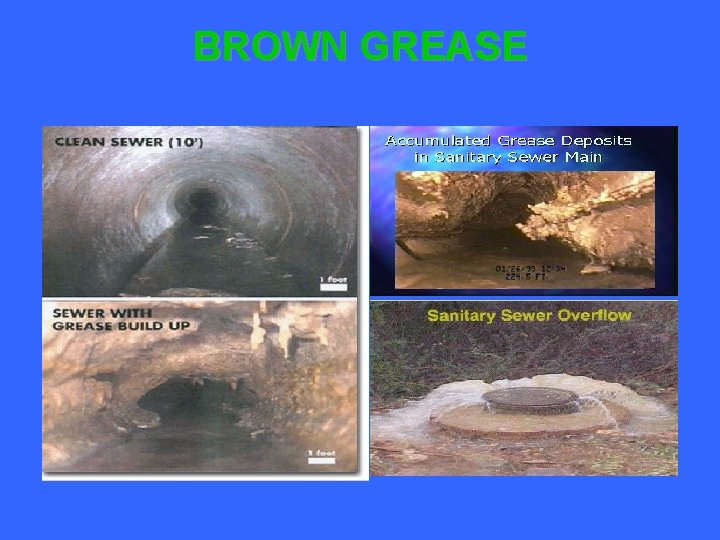

BROWN GREASE

NATIONALLY, WHAT FOG DOES TO THE COLLECTION SYSTEM FOG IS RECOGNIZED NATIONALLY AS A PROBLEM FOR WASTEWATER MANAGEMENT: • HIGH COST OF DISPOSAL FOR PRODUCERS • CLOGGED SANITARY SEWER SYSTEMS • IMPACTS ON SURFACE WATERS • PUBLIC HEALTH CONSEQUENCES • OVERTAXED WASTEWATER TREATMENT PLANTS • DISINTEGRATING WASTEWATER INFRASTRUCTURE • ECONOMIC COST? $20 BILLION/YEAR

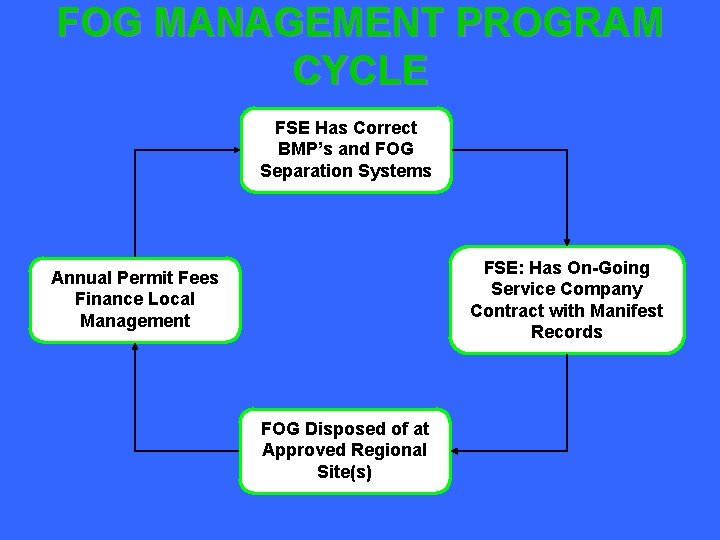

FOG MANAGEMENT PROGRAM CYCLE FSE Has Correct BMP’s and FOG Separation Systems FSE: Has On-Going Service Company Contract with Manifest Records Annual Permit Fees Finance Local Management FOG Disposed of at Approved Regional Site(s)

PERMIT FEES DRIVE YOUR FOG PROGRAM

CATEGORIZATION EXISTING OF FSES 12

STARTING & DRIVING YOUR FOG PROGRAM PERMIT PROCESS DRIVES PROGRA M ESTABLISHES RELATIONSHIP BETWEEN UTILITY OR BOH AND FSE PERMIT APPLICATI ON = SITE SURVEY APPLICATION AND PERMIT FEES FUND MANAGEMENT OF PROGRAM SITE SURVEY DETERMINES FSE CATEGORY OF FOG (1, 2, 3 OR 4 DISCHARGER. AGRU, TRAP AND/OR INTERCEPTOR REQUIREMENT IS DETERMINED PROVIDES BASIS FOR TIME LINE TO INSTALL FOG MANAGEMENT EQUIPMENT FEES STRUCTURED TO MATCH FSE CATEGORY

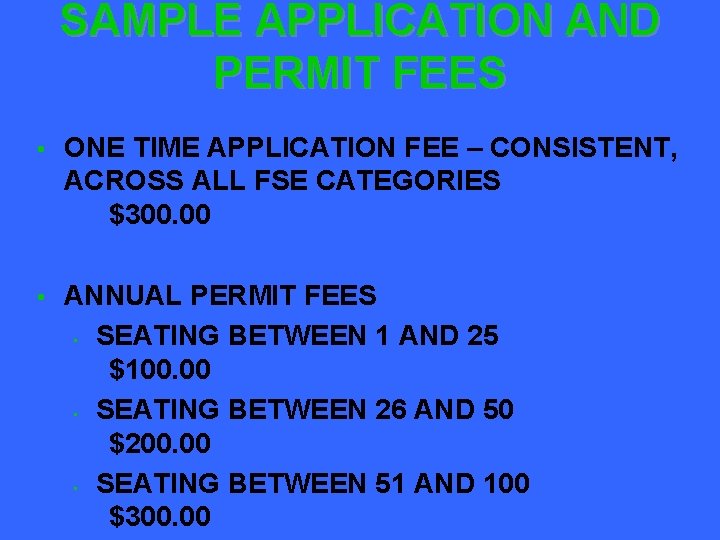

SAMPLE APPLICATION AND PERMIT FEES • ONE TIME APPLICATION FEE – CONSISTENT, ACROSS ALL FSE CATEGORIES $300. 00 • ANNUAL PERMIT FEES • SEATING BETWEEN 1 AND 25 $100. 00 • SEATING BETWEEN 26 AND 50 $200. 00 • SEATING BETWEEN 51 AND 100 $300. 00

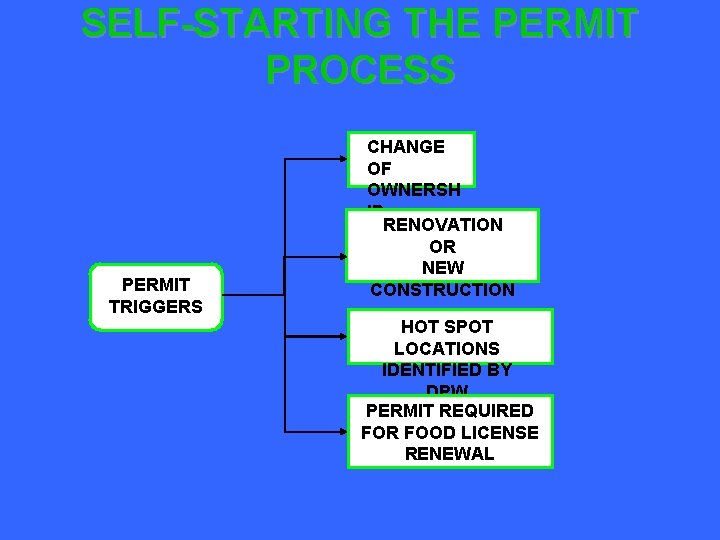

SELF-STARTING THE PERMIT PROCESS PERMIT TRIGGERS CHANGE OF OWNERSH IP RENOVATION OR NEW CONSTRUCTION HOT SPOT LOCATIONS IDENTIFIED BY DPW PERMIT REQUIRED FOR FOOD LICENSE RENEWAL

MAINTENANCE: THE KEY COMPONENT SERVICE COMPANY IS RECORD KEEPER RECOGNIZED SERVICE COMPANY FSE HAS ON-SITE RECORDS (MANIFEST ) SERVICE COMPANY HAS DUPLICATE RECORDS FSE VERIFIES ACTIVITIE S

SERVICE CO. MANIFEST IS THE WATCHDOG GREASE INTERCEPTOR PUMPING WATCHDOG: SERVICE COMPANY MANIFEST AND LOGBOOK SCHEDULED GREASE COLLECTION TIMES *SEASONAL POPULATION SWINGS NEED TO BE CONSIDERED AGRU GREASE PICK UP FSE VERIFICATI ON WARNING IF SITE GREASE COLLECTED DECREASES*

PARTNERING: A GOOD IDEA

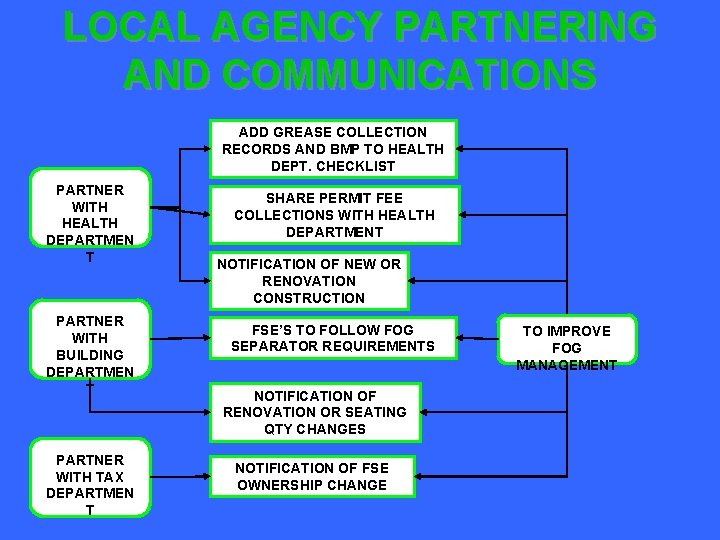

LOCAL AGENCY PARTNERING AND COMMUNICATIONS ADD GREASE COLLECTION RECORDS AND BMP TO HEALTH DEPT. CHECKLIST PARTNER WITH HEALTH DEPARTMEN T PARTNER WITH BUILDING DEPARTMEN T PARTNER WITH TAX DEPARTMEN T SHARE PERMIT FEE COLLECTIONS WITH HEALTH DEPARTMENT NOTIFICATION OF NEW OR RENOVATION CONSTRUCTION FSE’S TO FOLLOW FOG SEPARATOR REQUIREMENTS NOTIFICATION OF RENOVATION OR SEATING QTY CHANGES NOTIFICATION OF FSE OWNERSHIP CHANGE TO IMPROVE FOG MANAGEMENT

FOG MANAGEMENT PROGRAM CYCLE FSE HAS CORRECT BMP’S AND FOG SEPARATION SYSTEMS FSE: HAS ON-GOING SERVICE COMPANY CONTRACT WITH MANIFEST RECORDS ANNUAL PERMIT FEES FINANCE LOCAL MANAGEMENT FOG DISPOSED OF AT APPROVED REGIONAL SITE(S)

EQUIPMENT COMPARISON FROM SF WATER, POWER AND SEWER

HOW ABOUT GIVING THE FSES A BREAK / INCENTIVE? From the San Francisco FOG Management Program *** After you install grease capturing equipment, download this Installation and Verification Form to receive a 14. 2% reduction on the sewer service charge portion of your water/sewer bill.

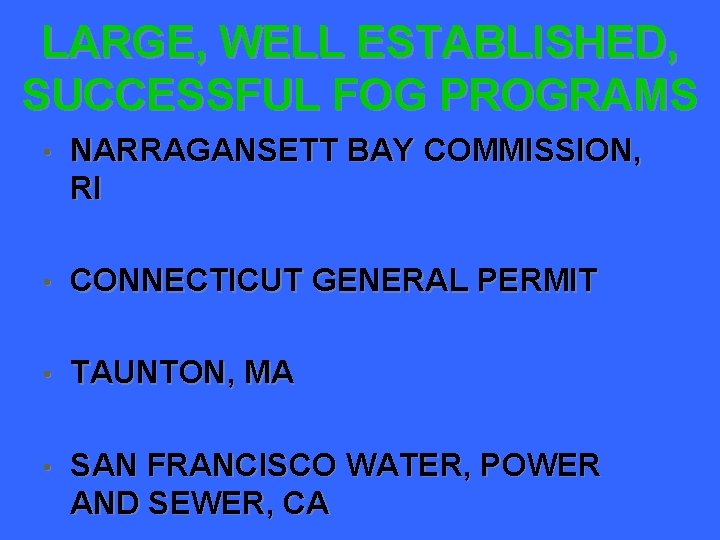

LARGE, WELL ESTABLISHED, SUCCESSFUL FOG PROGRAMS • NARRAGANSETT BAY COMMISSION, RI • CONNECTICUT GENERAL PERMIT • TAUNTON, MA • SAN FRANCISCO WATER, POWER AND SEWER, CA

THIS CONCLUDES THE FOG PROGRAM - FUNDING MODEL PRESENTATION MASSACHUSETTS UPDATE

NEW TECHNOLOGY

I KEEP GREASE OUT OF THE SEWER SYSTEM! I KEEP GREASE OUT OF THE FACILITIES PLUMBING SYSTEM! Isolation and Protection

ORANGE is the new BLACK

WHO ARE THEY? FM ENVIRONMENTAL INCORPORATES A GROUP OF BUSINESS OPERATIONS WHICH PROVIDE SPECIALIST SERVICES TO THE PUMPING AND WASTEWATER TREATMENT INDUSTRY. THE FM ENVIRONMENTAL RANGE OF SERVICES INCLUDE THE DESIGN & SUPPLY OF PUMPING STATIONS, SEWAGE AND INDUSTRIAL WASTEWATER TREATMENT SYSTEMS, WATER RECYCLING TECHNOLOGIES AS WELL AS FATS, OILS AND GREASE REMOVAL EQUIPMENT. WITH OVER THIRTY-FIVE YEARS OF EXPERIENCE IN THESE FIELDS, THE FM ENVIRONMENTAL PHILOSOPHY, WHICH MATCHES QUALITY AND INNOVATION WITH CUSTOMER SATISFACTION AND VALUE FOR MONEY, EXTENDS TO ALL ITS OPERATIONS THROUGHOUT THE WORLD, AS IT

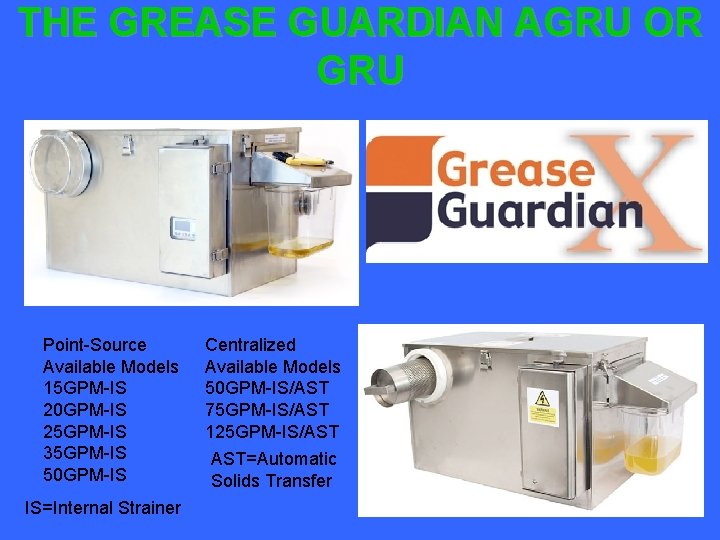

THE GREASE GUARDIAN AGRU OR GRU Point-Source Available Models 15 GPM-IS 20 GPM-IS 25 GPM-IS 35 GPM-IS 50 GPM-IS IS=Internal Strainer Centralized Available Models 50 GPM-IS/AST 75 GPM-IS/AST 125 GPM-IS/AST AST=Automatic Solids Transfer

Dry Basket Lid can remain closed Easy to maintain Smart controls • All Stainless Steel Construction • Sealed, Stainless Steel Top Lid • Programmable Logic Control • Bi-Directional Inlets and Outlets • Dry Solids Strainer! • 3 Year Warranty • Asset Management with • Grease Guardian World

POINT SOURCE AUTOMATIC GREASE GUARDIANS Installed in 30 countries!

SOLIDS STRAININ G GREASE SKIMMIN G 32

NEW FOG CONTAINMENT SYSTEMS (GREASE INTERCEPTORS) I KEEP GREASE OUT OF THE SEWER SYSTEM!

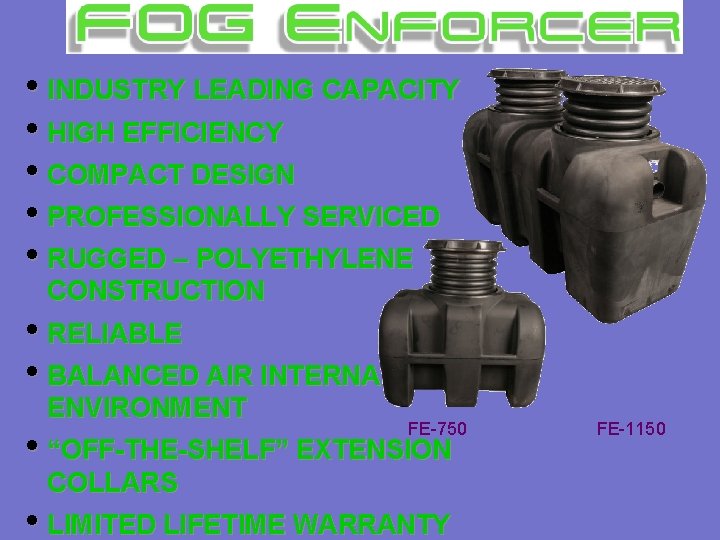

• INDUSTRY LEADING CAPACITY • HIGH EFFICIENCY • COMPACT DESIGN • PROFESSIONALLY SERVICED • RUGGED – POLYETHYLENE CONSTRUCTION • RELIABLE • BALANCED AIR INTERNAL ENVIRONMENT FE-750 • “OFF-THE-SHELF” EXTENSION COLLARS • LIMITED LIFETIME WARRANTY FE-1150

ULTRA CAPACITY GREASE INTERCEPTORS INSATIABLE APPETITE FOR GREASE WITH RUGGED CONSTRUCTION AND INDUSTRY LEADING CERTIFICATIONS TO MATCH

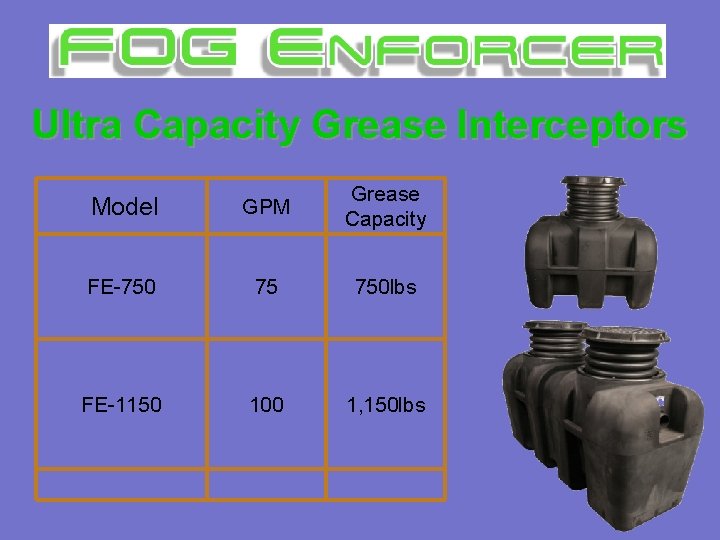

Ultra Capacity Grease Interceptors Model GPM Grease Capacity FE-750 75 750 lbs FE-1150 100 1, 150 lbs

USED IN CONJUNCTION WITH THE FOG ENFORCER (OPTIONAL) Model Solids Capacity SE-140 (75 GPM) 140 Gallons SE-300 (100 GPM) 300 Gallons

JEFF HORN – DIVERSIFIED SALES COMPANY 203 -314 -9242 JEFFREY. HORN@COMCAST. NET GREASE GUARDIAN – WWW. GREASEGUARDIANUSA. COM FOG ENFORCERWWW. FOGENFORCER. COM Graphics Source: http: //sfwater. org/index. aspx? page=480
