Security Level HUAWEI TP 3118 Telepresence System Connection

Security Level: HUAWEI TP 3118 Telepresence System Connection Diagrams Version: V 100 R 001 C 01 B 316 SP 07 2012. 08. 28 Videoconferencing Telepresence PDT HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential www. huawei. com

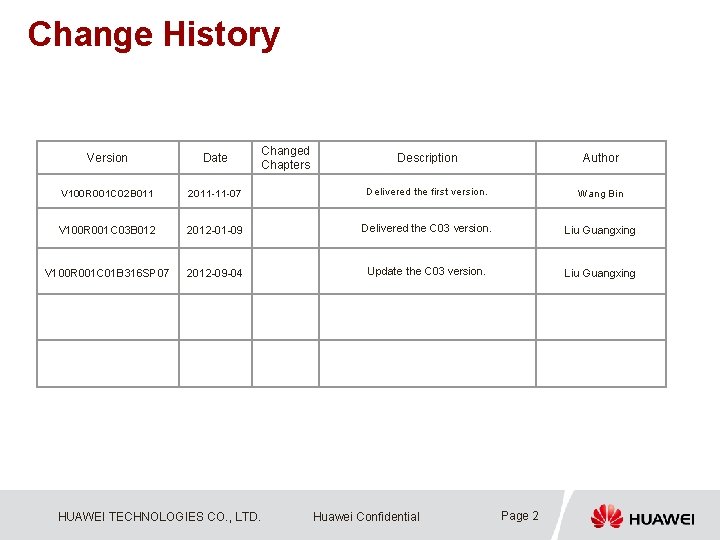

Change History Version Date V 100 R 001 C 02 B 011 Changed Chapters Description Author 2011 -11 -07 Delivered the first version. Wang Bin V 100 R 001 C 03 B 012 2012 -01 -09 Delivered the C 03 version. Liu Guangxing V 100 R 001 C 01 B 316 SP 07 2012 -09 -04 Update the C 03 version. Liu Guangxing HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Page 2

Contents p p 1. TP 3118 Telepresence System Overview p 1. 1 System Components p 1. 2 Device List p 1. 3 Device Placement p 1. 4 Cable List 2. TP 3118 Telepresence System Connection Diagrams HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Page 3

1. 1 System Components Stands Left HD display Left speaker Center HD display Telepresence camera Center speaker Right HD display Right speaker Front view Embedded microphones in the front row (6 PCS) Multi-functional sockets in the second row (3 PCS) Second-row right B Secondrow left A Second row of the multi-functional conference table Front row of the multi-functional conference table Secondrow left B Multi-functional sockets in the front row (2 PCS) Tabletop buttons in the second row (6 PCS) HUAWEI TECHNOLOGIES CO. , LTD. Second-row center B Second-row center A Tabletop buttons in the front row (3 PCS) Tabletop displays in the front row (3 PCS) Huawei Confidential Second-row right A Embedded microphones in the second row (10 PCS) Tabletop displays in the second row (6 PCS) Page 4

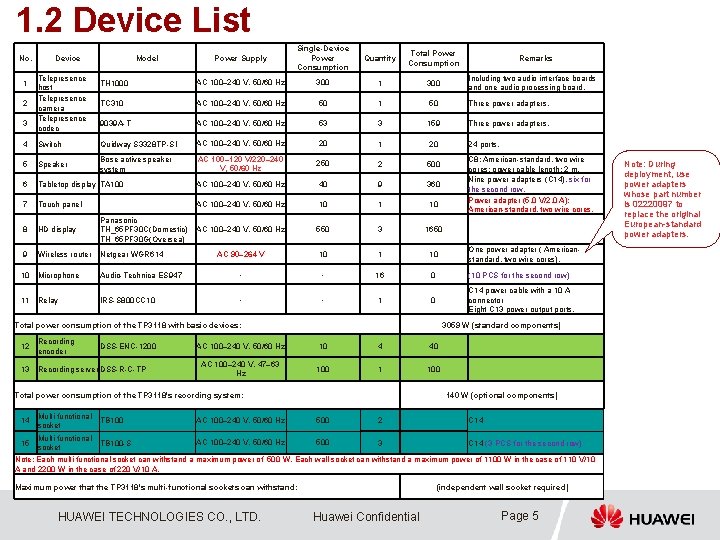

1. 2 Device List No. 1 2 3 Power Supply Single-Device Power Consumption Quantity Total Power Consumption TH 1000 AC 100– 240 V, 50/60 Hz 300 1 300 Including two audio interface boards and one audio processing board. TC 310 AC 100– 240 V, 50/60 Hz 50 1 50 Three power adapters. 9039 A-T AC 100– 240 V, 50/60 Hz 53 3 159 Three power adapters. 24 ports. Device Telepresence host Telepresence camera Telepresence codec Model Remarks 4 Switch Quidway S 3328 TP-SI AC 100– 240 V, 50/60 Hz 20 1 20 5 Speaker Bose active speaker system AC 100– 120 V/220– 240 V, 50/60 Hz 250 2 500 6 Tabletop display TA 100 AC 100– 240 V, 50/60 Hz 40 9 360 7 Touch panel 　 AC 100– 240 V, 50/60 Hz 10 1 10 8 HD display Panasonic TH_65 PF 30 C(Domestic) TH_65 PF 30 G(Oversea) AC 100– 240 V, 50/60 Hz 550 3 1650 9 Wireless router Netgear WGR 614 AC 90– 264 V 10 1 10 One power adapter ( Americanstandard, two wire cores). C 8; American-standard, two wire cores; power cable length: 2 m. Nine power adapters (C 14), six for the second row. Power adapter (5. 0 V/2. 0 A); American-standard, two wire cores. 10 Microphone Audio-Technica ES 947 - - 16 0 (10 PCS for the second row) 11 Relay IRS-S 800 CC 10 - - 1 0 C 14 power cable with a 10 A connector Eight C 13 power output ports. Total power consumption of the TP 3118 with basic devices: 12 Recording encoder DSS-ENC-1200 13 Recording server DSS-R-C-TP 3059 W (standard components) AC 100– 240 V, 50/60 Hz 10 4 40 AC 100– 240 V, 47– 63 Hz 100 1 100 Total power consumption of the TP 3118's recording system: 14 Multi-functional socket TB 100 AC 100– 240 V, 50/60 Hz 140 W (optional components) 500 2 C 14 Multi-functional AC 100– 240 V, 50/60 Hz 500 TB 100 -S 3 C 14 (3 PCS for the second row) socket Note: Each multi-functional socket can withstand a maximum power of 500 W. Each wall socket can withstand a maximum power of 1100 W in the case of 110 V/10 A and 2200 W in the case of 220 V/10 A. 15 Maximum power that the TP 3118's multi-functional sockets can withstand: HUAWEI TECHNOLOGIES CO. , LTD. (independent wall socket required) Huawei Confidential Page 5 Note: During deployment, use power adapters whose part number is 02220097 to replace the original European-standard power adapters.

1. 3 Device Placement Rear View The following figure shows the device placement viewed from the equipment cabinet, which is opposite to that viewed from the multi-functional conference table. Telepresence camera Right HD display Weakcurrent cable trough Right speaker Center speaker Left HD display Center speaker Left speaker Recording system Relay Switch PDU 3 Telepresence host PDU 2 PDU 6 Strong-current cable trough HUAWEI TECHNOLOGIES CO. , LTD. Left Bose speaker host PDU 1 Left 9039 A-T Center 9039 A-T PDU 4 Wireless router Right 9039 A-T Right Bose speaker host PDU 7 Center HD display PDU 5 1. Fix PDUs on the support, with their sockets facing outwards. 2. Orient the Bose active speaker systems' front sides outwards, at an angle towards conference participants. 3. Remove the right rack's tray, if any. 4. Place the Bose speaker hosts onto speaker supports (for example, steel chairs). Huawei Confidential Page 6

1. 4 Cable List (for China Markets–Excluding the Recording System) Type Video cable Audio cable Control cable Network cable Power cable Description Quantity DVI-DVI Part Number 04050192 15 Include one spare cable. DVI-DVI 04050094 7 Used for cascading tabletop display video (5 PCS for the second row). DVI-DVI 04050211 4 DVI-VGA 04050095 2 Used for connections between the tabletop displays and the telepresence host (1 PCS for the second row). Used for connections between the multi-functional sockets and the tabletop displays. VGA-VGA 04050242 2 Used for connections between computers and the multi-functional sockets. XLR 04044981 26 RCA 04040643 4 Used for connections between the microphones and the telepresence host (20 PCS for the second row). Used for connections between Bose speakers and the telepresence host. RCA 04050092 2 Used for connections between the multi-functional sockets and the telepresence host. RJ 45 -RJ 45 04046011 1 Used for connections between the telepresence codecs and the telepresence host. 3. 5 mm headset cable DB 9 -RJ 45 02450789 2 Used for connections between computers and the multi-functional sockets. 04042967 3 Used for connections between the telepresence host and the HD displays. RJ 45 -RJ 45 04046011 1 Used for connection between the telepresence host and the relay. Visca-RJ 45 04050175 6 Used for connections between the telepresence codecs and the telepresence camera. RJ 45 -RJ 45 04046011 14 Include one spare cable (5 PCS for the second row). RJ 45 -RJ 45 04040101 5 Used for the multi-functional sockets, tabletop displays, and switch (2 PCS for the second row). RJ 45 -RJ 45 04070184 3 Used for connections between the multi-functional sockets in the second row and the switch. RJ 45 -RJ 45 04045975 2 Used for connections between computers and the multi-functional sockets. RJ 45 -RJ 45 04046009 1 Provided with the wireless router. RJ 45 -RJ 45 04070006 3 Provided with the telepresence codecs. Chinese-standard 04050139 power cable 6 m power cable 04040705 23 Include one spare cable (5 PCS for the second row). 10 Include one spare cable (6 PCS for the second row). C 13 -C 14 power cable 5 Include one spare cable. 0415 G 005 HUAWEI TECHNOLOGIES CO. , LTD. Remarks Huawei Confidential Page 7

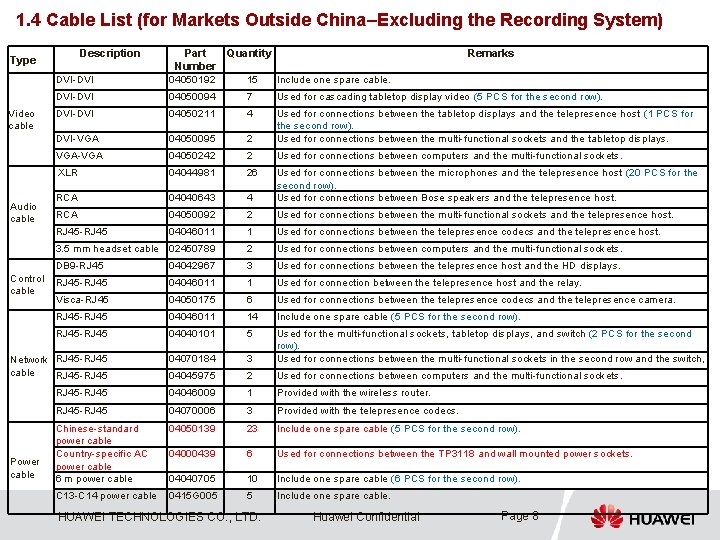

1. 4 Cable List (for Markets Outside China–Excluding the Recording System) Description DVI-DVI Part Quantity Number 04050192 15 Include one spare cable. DVI-DVI 04050094 7 Used for cascading tabletop display video (5 PCS for the second row). DVI-DVI 04050211 4 DVI-VGA 04050095 2 Used for connections between the tabletop displays and the telepresence host (1 PCS for the second row). Used for connections between the multi-functional sockets and the tabletop displays. VGA-VGA 04050242 2 Used for connections between computers and the multi-functional sockets. XLR 04044981 26 RCA 04040643 4 Used for connections between the microphones and the telepresence host (20 PCS for the second row). Used for connections between Bose speakers and the telepresence host. RCA 04050092 2 Used for connections between the multi-functional sockets and the telepresence host. RJ 45 -RJ 45 04046011 1 Used for connections between the telepresence codecs and the telepresence host. 3. 5 mm headset cable 02450789 2 Used for connections between computers and the multi-functional sockets. DB 9 -RJ 45 04042967 3 Used for connections between the telepresence host and the HD displays. RJ 45 -RJ 45 04046011 1 Used for connection between the telepresence host and the relay. Visca-RJ 45 04050175 6 Used for connections between the telepresence codecs and the telepresence camera. RJ 45 -RJ 45 04046011 14 Include one spare cable (5 PCS for the second row). RJ 45 -RJ 45 04040101 5 Network RJ 45 -RJ 45 cable RJ 45 -RJ 45 04070184 3 Used for the multi-functional sockets, tabletop displays, and switch (2 PCS for the second row). Used for connections between the multi-functional sockets in the second row and the switch, 04045975 2 Used for connections between computers and the multi-functional sockets. RJ 45 -RJ 45 04046009 1 Provided with the wireless router. RJ 45 -RJ 45 04070006 3 Provided with the telepresence codecs. Chinese-standard power cable Country-specific AC power cable 6 m power cable 04050139 23 Include one spare cable (5 PCS for the second row). 04000439 6 Used for connections between the TP 3118 and wall mounted power sockets. 04040705 10 Include one spare cable (6 PCS for the second row). C 13 -C 14 power cable 0415 G 005 5 Include one spare cable. Type Video cable Audio cable Control cable Power cable HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Remarks Page 8

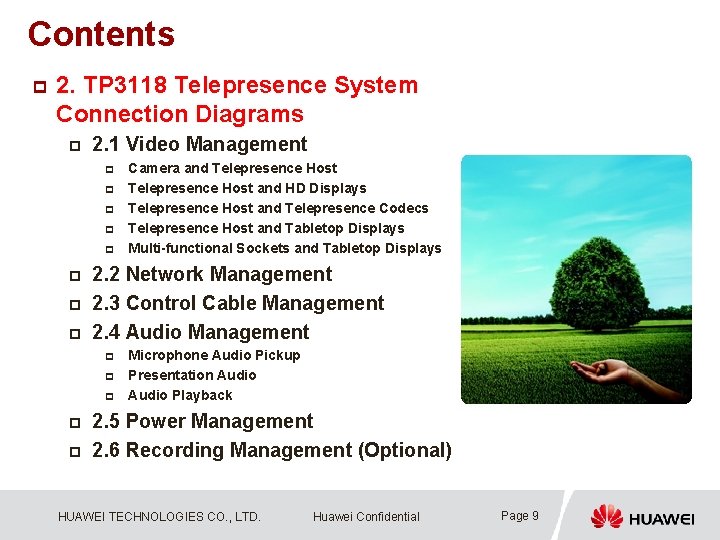

Contents p 2. TP 3118 Telepresence System Connection Diagrams p 2. 1 Video Management p p p p 2. 2 Network Management 2. 3 Control Cable Management 2. 4 Audio Management p p p Camera and Telepresence Host and HD Displays Telepresence Host and Telepresence Codecs Telepresence Host and Tabletop Displays Multi-functional Sockets and Tabletop Displays Microphone Audio Pickup Presentation Audio Playback 2. 5 Power Management 2. 6 Recording Management (Optional) HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Page 9

Notes • The left, center, and right directions referred to in this document are defined when you face the HD displays. • In telepresence host figures, # indicates slot number. For example, 10# indicates slot 10. • In the figures, different cables are represented by different types of lines (on one slide) in different colors, and each line is numbered. HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Page 10

2. 1 Video Management–Camera and Telepresence Host Telepresence host's port location Telepresence host 9# DVI IN 1 2 3 4 DVI OUT 1 2 3 4 [01] HD DVI [02] 3 2 [03] 1 Camera No. Type Huawei Part Number Length Connected Devices [01] DVI-DVI 04050192 4 m TC 310 #3 HD DVI (left lens) Telepresence host 9# DVI IN 1 [02] DVI-DVI 04050192 4 m TC 310 #2 HD DVI (center lens) Telepresence host 9# DVI IN 2 [03] DVI-DVI 04050192 4 m TC 310 #1 HD DVI (right lens) Telepresence host 9# DVI IN 3 HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Page 11 Remarks

2. 1 Video Management–Telepresence Host and HD Displays Telepresence host's port location Telepresence host 9# DVI IN 1 2 3 4 DVI OUT 1 2 3 4 [04] [05] [06] Left Center HD display (Face the HD displays) No. Type Right Huawei Part Number Length Connected Devices [04] DVI-DVI 04050192 4 m Telepresence host 9# DVI OUT 1 Left HD display [05] DVI-DVI 04050192 4 m Telepresence host 9# DVI OUT 2 Center HD display [06] DVI-DVI 04050192 4 m Telepresence host 9# DVI OUT 3 Right HD display HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Page 12 Remarks

2. 1 Video Management–Telepresence Host and Center Telepresence Codec Telepresence host's port location Telepresence host 10# DVI IN 1 2 3 4 DVI OUT 1 2 3 4 [10] [09] [07] [08] Center telepresence codec No. Type Huawei Part Number Length [07] DVI-DVI 04050192 [08] DVI-DVI 04050192 [09] DVI-DVI 04050192 4 m Center telepresence codec HD OUT 1 Telepresence host 10# DVI IN 1 [10] DVI-DVI 04050192 4 m Center telepresence codec HD OUT 2 Telepresence host 10# DVI IN 2 4 m 4 m HUAWEI TECHNOLOGIES CO. , LTD. Connected Devices Telepresence host 10# DVI OUT 1 Telepresence host 10# DVI OUT 2 Huawei Confidential Center telepresence codec HD IN 1 Center telepresence codec HD IN 2 Page 13 Remarks

2. 1 Video Management–Telepresence Host and Left & Right Telepresence Codecs Telepresence host [13] [14] 11# DVI IN 1 2 3 4 DVI OUT 1 2 3 4 [11] [12] Left telepresence codec No. Type [11] Right telepresence codec Huawei Part Number Length DVI-DVI 04050192 4 m [12] DVI-DVI 04050192 [13] DVI-DVI 04050192 4 m Left telepresence codec HD OUT 1 Telepresence host 11# DVI IN 1 [14] DVI-DVI 04050192 4 m Right telepresence codec HD OUT 1 Telepresence host 11# DVI IN 2 4 m HUAWEI TECHNOLOGIES CO. , LTD. Connected Devices Telepresence host 11# DVI OUT 1 Telepresence host 11# DVI OUT 2 Huawei Confidential Left telepresence codec HD IN 1 Right telepresence codec HD IN 1 Page 14 Remarks

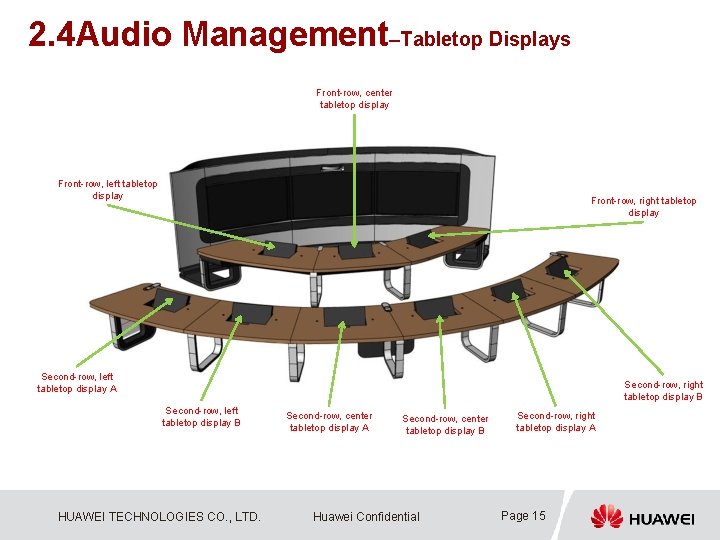

2. 4 Audio Management–Tabletop Displays Front-row, center tabletop display Front-row, left tabletop display Front-row, right tabletop display Second-row, left tabletop display A Second-row, right tabletop display B Second-row, left tabletop display B HUAWEI TECHNOLOGIES CO. , LTD. Second-row, center tabletop display A Second-row, center tabletop display B Huawei Confidential Second-row, right tabletop display A Page 15

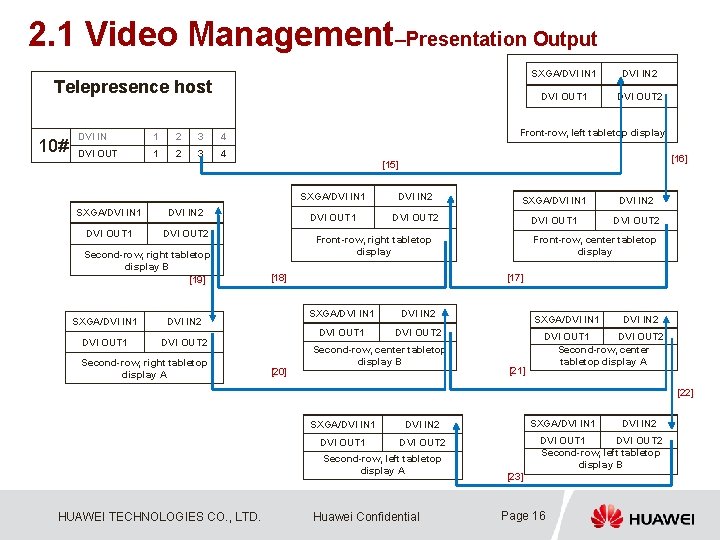

2. 1 Video Management–Presentation Output Telepresence host 10# DVI IN 1 2 3 4 DVI OUT 1 2 3 4 SXGA/DVI IN 1 DVI IN 2 DVI OUT 1 DVI OUT 2 Second-row, right tabletop display B [19] SXGA/DVI IN 1 DVI IN 2 DVI OUT 1 DVI OUT 2 Second-row, right tabletop display A SXGA/DVI IN 1 DVI IN 2 DVI OUT 1 DVI OUT 2 Front-row, left tabletop display [16] [15] SXGA/DVI IN 1 DVI IN 2 DVI OUT 1 DVI OUT 2 Front-row, center tabletop display Front-row, right tabletop display [18] [20] [17] SXGA/DVI IN 1 DVI IN 2 DVI OUT 1 DVI OUT 2 Second-row, center tabletop display B SXGA/DVI IN 1 [21] DVI IN 2 DVI OUT 1 DVI OUT 2 Second-row, center tabletop display A [22] SXGA/DVI IN 1 DVI IN 2 DVI OUT 1 DVI OUT 2 Second-row, left tabletop display A HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential SXGA/DVI IN 1 DVI IN 2 DVI OUT 1 DVI OUT 2 Second-row, left tabletop display B [23] Page 16

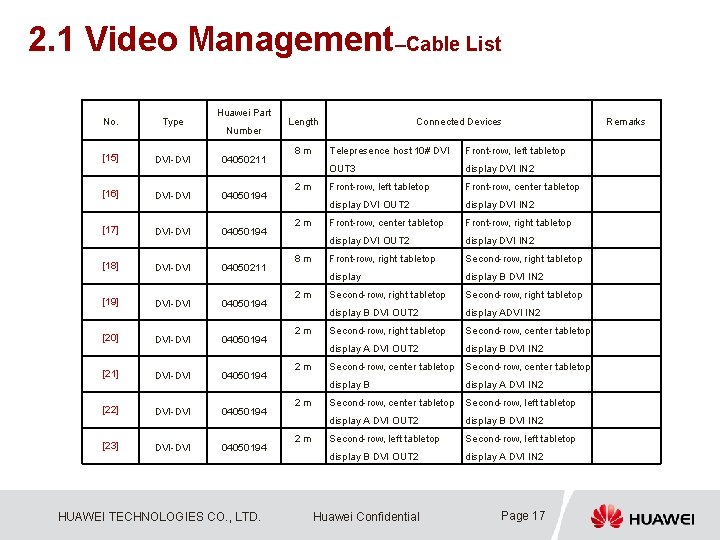

2. 1 Video Management–Cable List Huawei Part No. Type [15] DVI-DVI 04050211 [16] DVI-DVI 04050194 [17] DVI-DVI 04050194 [18] DVI-DVI 04050211 [19] DVI-DVI 04050194 [20] DVI-DVI 04050194 [21] DVI-DVI 04050194 [22] DVI-DVI 04050194 [23] DVI-DVI 04050194 Number HUAWEI TECHNOLOGIES CO. , LTD. Length 8 m 2 m 2 m 2 m Connected Devices Telepresence host 10# DVI Front-row, left tabletop OUT 3 display DVI IN 2 Front-row, left tabletop Front-row, center tabletop display DVI OUT 2 display DVI IN 2 Front-row, center tabletop Front-row, right tabletop display DVI OUT 2 display DVI IN 2 Front-row, right tabletop Second-row, right tabletop display B DVI IN 2 Second-row, right tabletop display B DVI OUT 2 display ADVI IN 2 Second-row, right tabletop Second-row, center tabletop display A DVI OUT 2 display B DVI IN 2 Second-row, center tabletop display B display A DVI IN 2 Second-row, center tabletop Second-row, left tabletop display A DVI OUT 2 display B DVI IN 2 Second-row, left tabletop display B DVI OUT 2 display A DVI IN 2 Huawei Confidential Page 17 Remarks

2. 1 Video Management–Presentation Input Front-row, left multifunctional socket [24] SXGA/DVI IN 1 DVI IN 2 DVI OUT 1 DVI OUT 2 [26] Telepresence host [28] Front-row, center tabletop display Front-row, right multifunctional socket Interface blow up picture [25] 10# DVI IN 1 2 3 4 DVI OUT 1 2 3 4 [27] SXGA/DVI IN 1 DVI IN 2 DVI OUT 1 DVI OUT 2 [29] Front-row, right tabletop display No. Type Huawei Part Number Length [24] VGA-DVI 04050095 2 m [25] VGA-DVI [26] DVI-DVI 04050211 [27] DVI-DVI 04050211 04050095 2 m Connected Devices Front-row, left multi-functional socket VGA Front-row, right multi-functional socket VGA 8 m Front-row, center tabletop display DVI OUT 1 8 m Front-row, right tabletop display DVI OUT 1 Front-row, center tabletop display SXGA/DVI IN 1 Front-row, right tabletop display SXGA/DVI IN 1 Telepresence host 10# DVI IN 3 Telepresence host 10# DVI IN 4 [28] Front-row, left multi-functional socket Front-row, center tabletop display [29] Front-row, right multi-functional socket Front-row, right tabletop display HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Page 18 Remarks

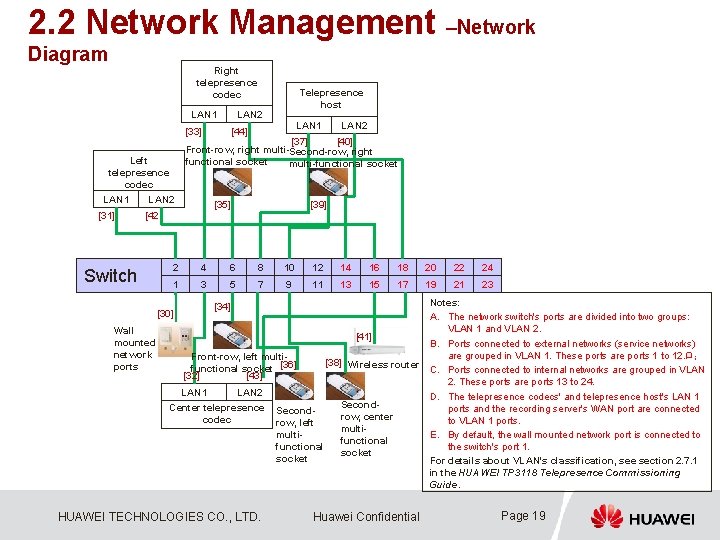

2. 2 Network Management –Network Diagram Right telepresence codec LAN 1 LAN 2 [33] Left telepresence codec LAN 1 LAN 2 [31] Telepresence host LAN 1 [44] LAN 2 [37] [40] Front-row, right multi-Second-row, right functional socket multi-functional socket [35] [39] [42 Switch 2 4 6 8 10 12 14 16 18 20 22 24 1 3 5 7 9 11 13 15 17 19 21 23 Notes: A. The network switch's ports are divided into two groups: VLAN 1 and VLAN 2. [41] B. Ports connected to external networks (service networks) are grouped in VLAN 1. These ports are ports 1 to 12. 口； Front-row, left multi[38] Wireless router functional socket [36] C. Ports connected to internal networks are grouped in VLAN [32] [43] 2. These ports are ports 13 to 24. LAN 1 LAN 2 D. The telepresence codecs' and telepresence host's LAN 1 Second. Center telepresence Secondports and the recording server's WAN port are connected row, center codec to VLAN 1 ports. row, left multi. E. By default, the wall mounted network port is connected to functional the switch's port 1. socket For details about VLAN's classification, see section 2. 7. 1 in the HUAWEI TP 3118 Telepresence Commissioning Guide. [30] Wall mounted network ports [34] HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Page 19

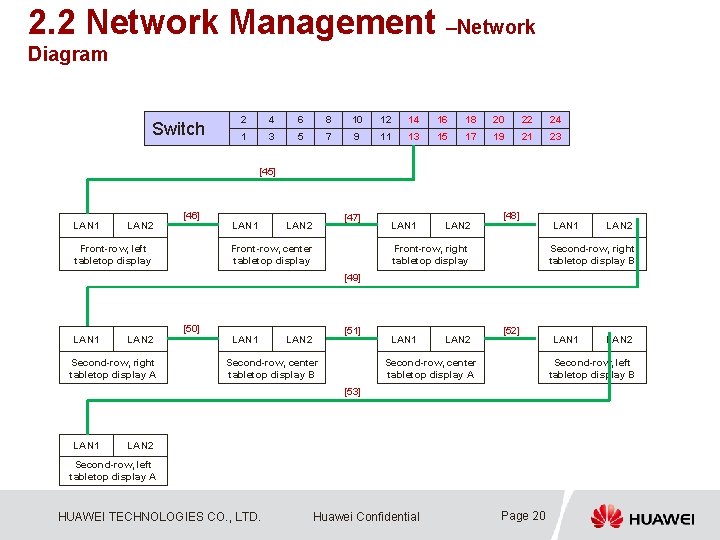

2. 2 Network Management –Network Diagram Switch 2 4 6 8 10 12 14 16 18 20 22 24 1 3 5 7 9 11 13 15 17 19 21 23 [45] LAN 1 LAN 2 [46] Front-row, left tabletop display LAN 1 [47] LAN 2 Front-row, center tabletop display LAN 1 LAN 2 [48] Front-row, right tabletop display LAN 1 LAN 2 Second-row, right tabletop display B [49] LAN 1 LAN 2 Second-row, right tabletop display A [50] LAN 1 [51] LAN 2 Second-row, center tabletop display B LAN 1 LAN 2 [52] Second-row, center tabletop display A LAN 2 Second-row, left tabletop display A HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential LAN 2 Second-row, left tabletop display B [53] LAN 1 Page 20

2. 2 Network Management–Cable List No. Type Huawei Part Number Length [30] RJ 45 -RJ 45 04046011 3 m Switch port 1 [31] RJ 45 -RJ 45 04070006 3 m Switch port 2 [32] RJ 45 -RJ 45 04070006 3 m Switch port 3 [33] RJ 45 -RJ 45 04070006 3 m Switch port 4 [34] RJ 45 -RJ 45 04040101 10 m Switch port 5 [35] RJ 45 -RJ 45 04040101 10 m Switch port 6 [36] RJ 45 -RJ 45 04070184 20 m Switch port 7 [37] RJ 45 -RJ 45 04046011 3 m Switch port 8 [38] RJ 45 -RJ 45 04070184 20 m Switch port 9 [39] RJ 45 -RJ 45 04070184 20 m Switch port 10 [40] RJ 45 -RJ 45 04046011 3 m Switch port 14 [41] RJ 45 -RJ 45 04046009 1 m Switch port 15 Wireless router [42] RJ 45 -RJ 45 04046011 3 m Switch port 16 Left telepresence codec LAN 2 HUAWEI TECHNOLOGIES CO. , LTD. Connected Devices Huawei Confidential Wall mounted network port Left telepresence codec LAN 1 Center telepresence codec LAN 1 Right telepresence codec LAN 1 Front-row, left multifunctional socket Front-row, right multifunctional socket Second-row, left multifunctional socket Telepresence host LAN 1 Second-row, center multi-functional socket Second-row, right multi-functional socket Telepresence host LAN 2 Page 21 Remarks Standard component

2. 2 Network Management–Cable List No. Type Huawei Part Number Length [43] RJ 45 -RJ 45 04046011 3 m Switch port 17 [44] RJ 45 -RJ 45 04046011 3 m Switch port 18 [45] RJ 45 -RJ 45 04040101 10 m Switch port 13 [46] RJ 45 -RJ 45 04046011 3 m [47] RJ 45 -RJ 45 04046011 3 m [48] RJ 45 -RJ 45 04040101 10 m [49] RJ 45 -RJ 45 04046011 3 m [50] RJ 45 -RJ 45 04046011 3 m [51] RJ 45 -RJ 45 04046011 3 m [52] RJ 45 -RJ 45 04046011 3 m [53] RJ 45 -RJ 45 04046011 3 m HUAWEI TECHNOLOGIES CO. , LTD. Connected Devices Front-row, left tabletop display LAN 2 Front-row, center tabletop display LAN 2 Front-row, right tabletop display right LAN 2 Second-row, right tabletop display B LAN 2 Second-row, right tabletop display A LAN 2 Second-row, center tabletop display B LAN 2 Second-row, center tabletop display A LAN 2 Second-row, left tabletop display B LAN 2 Huawei Confidential Center telepresence codec LAN 2 Right telepresence codec LAN 2 Front-row, left tabletop display LAN 1 Front-row, center tabletop display LAN 1 Front-row, right tabletop display LAN 1 Second-row, right tabletop display B LAN 1 Second-row, right tabletop display A LAN 1 Second-row, center tabletop display B LAN 1 Second-row, center tabletop display A LAN 1 Second-row, left tabletop display B LAN 1 Second-row, left tabletop display A LAN 2 Page 22 Remarks

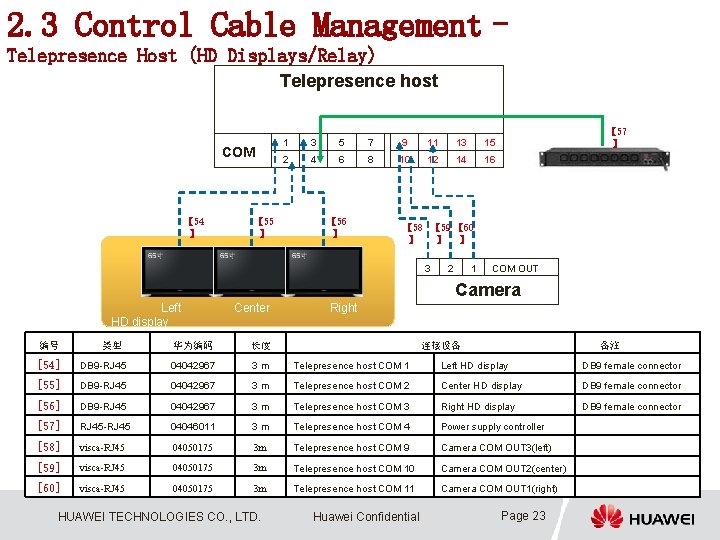

2. 3 Control Cable Management– Telepresence Host (HD Displays/Relay) Telepresence host COM 【 54 】 1 3 5 7 9 11 13 15 2 4 6 8 10 12 14 16 【 55 】 【 56 】 【 57 】 【 58 【 59 【 60 】 】 】 3 2 1 COM OUT Camera Left HD display 编号 类型 Center Right (Face the HD displays) 华为编码 长度 连接设备 备注 [54] DB 9 -RJ 45 04042967 3 m Telepresence host COM 1 Left HD display DB 9 female connector [55] DB 9 -RJ 45 04042967 3 m Telepresence host COM 2 Center HD display DB 9 female connector [56] DB 9 -RJ 45 04042967 3 m Telepresence host COM 3 Right HD display DB 9 female connector [57] RJ 45 -RJ 45 04046011 3 m Telepresence host COM 4 Power supply controller [58] visca-RJ 45 04050175 3 m Telepresence host COM 9 Camera COM OUT 3(left) [59] visca-RJ 45 04050175 3 m Telepresence host COM 10 Camera COM OUT 2(center) [60] visca-RJ 45 04050175 3 m Telepresence host COM 11 Camera COM OUT 1(right) HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Page 23

2. 3 Control Cable Management– Telepresence Codecs (Camera) Left telepresence codec Center telepresence codec COM 2 close-up view [61] COM IN 62] 1 2 Right telepresence codec [63] 3 Camera No. Type Huawei Part Number Length Connected Devices [61] Visca-RJ 45 04050175 3 m Left telepresence codec COM 2 [62] Visca-RJ 45 04050175 3 m Center telepresence codec COM 2 [63] Visca-RJ 45 04050175 3 m Right telepresence codec COM 2 HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Remarks Camera COM IN 1 (right) Camera COM IN 2(center) Camera COM IN 3 (left) Page 24 Visca male connector

2. 4 Audio Management–Microphones Front-row, left tabletop display right microphone Front-row, center tabletop display left microphone Front-row, center tabletop display right microphone Front-row, right tabletop display left microphone Front-row, right tabletop display right microphone Front-row, left tabletop display left microphone Second-row, left tabletop display A right microphone Second-row, left tabletop display B left microphone Second-row, left tabletop display B right microphone HUAWEI TECHNOLOGIES CO. , LTD. Second-row, center tabletop display A left microphone Second-row, center tabletop right tabletop display B right display A right microphone Second-row, center tabletop display A display B left right microphone Huawei Confidential Page 25 Second-row, right tabletop display B left microphone Second-row, right tabletop display A left microphone

2. 4 Audio Management–Microphone Audio Pickup Second-row, left tabletop Second-row, center tabletop display B right microphone display A left microphone display A right microphone display B left microphone [76] [79] Second-row, center tabletop. Second-row, right tabletop display B right microphone display Aleft microphone [83] [77] Telepresence host [87] 4# MIC IN 3# MIC IN 2# MIC IN 1# MIC IN [88] [80] [89] [82] Second-row, right tabletop display A right microphone display B left microphone [90] [92] [91] [93] 1 [78] 2 [81] 3 [83] 4 [85] 1 2 3 4 1 2 3 [65] [64] [66] [72] [71] [70] Front-row, left tabletop display left microphone 4 [67] [75] [74] [69] [68] Front-row, left tabletop display right microphone Front-row, right tabletop display left microphone HUAWEI TECHNOLOGIES CO. , LTD. [84] Front-row, center tabletop display left microphone [73] Front-row, center tabletop display right microphone Front-row, right tabletop Second-row, left tabletop display right microphone display A right display B left microphone Huawei Confidential Page 26

2. 4 Audio Management–Cable List Huawei Part No. Type [64] XLR 04044981 8 m Front-row, left tabletop display left Button microphone Telepresence host 1# MIC IN 1 [65] XLR 04044981 8 m Front-row, left tabletop display right Button microphone Telepresence host 1# MIC IN 2 [66] XLR 04044981 8 m Front-row, center tabletop display left Button microphone Telepresence host 1# MIC IN 3 [67] XLR 04044981 8 m [68] XLR 04044981 8 m Front-row, right tabletop display left Button microphone Telepresence host 2# MIC IN 1 [69] XLR 04044981 8 m Front-row, right tabletop display right Button microphone Telepresence host 2# MIC IN 2 [70] XLR 04044981 8 m [71] XLR 04044981 8 m 8 m microphone extension cable [72] XLR 04044981 8 m 8 m microphone extension cable Telepresence host 2# MIC IN 3 [73] XLR 04044981 8 m [74] XLR 04044981 8 m 8 m microphone extension cable [75] XLR 04044981 8 m 8 m microphone extension cable Telepresence host 2# MIC IN 4 [76] XLR 04044981 8 m [77] XLR 04044981 8 m 8 m microphone extension cable [78] XLR 04044981 8 m 8 m microphone extension cable Telepresence host 3# MIC IN 1 [79] XLR 04044981 8 m Number Length Connected Devices Front-row, center tabletop display right Button microphone Second-row, left tabletop display A right Button left tabletop display B left Button microphone Second-row, left tabletop display B right Button microphone Second-row, center tabletop display A left Button microphone HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Telepresence host 1# MIC IN 4 8 m microphone extension cable microphone Second-row, Remarks 8 m microphone extension cable Page 27

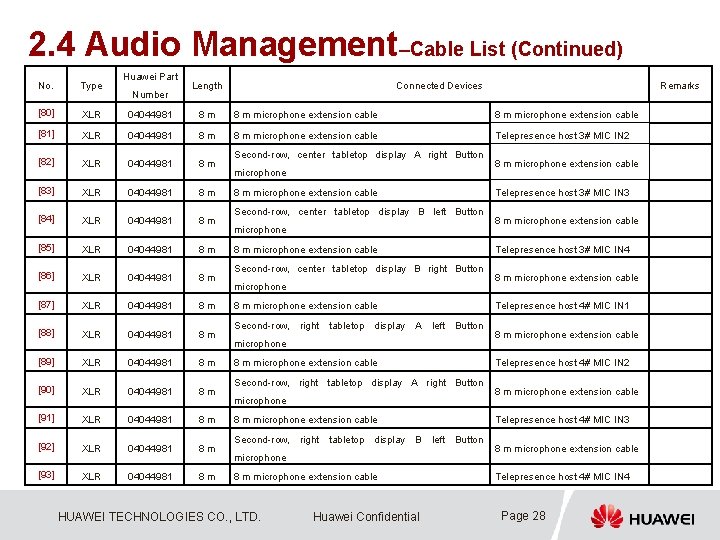

2. 4 Audio Management–Cable List (Continued) Huawei Part No. Type [80] XLR 04044981 8 m 8 m microphone extension cable [81] XLR 04044981 8 m 8 m microphone extension cable Telepresence host 3# MIC IN 2 [82] XLR 04044981 8 m [83] XLR 04044981 8 m [84] XLR 04044981 8 m [85] XLR 04044981 8 m [86] XLR 04044981 8 m [87] XLR 04044981 8 m [88] XLR 04044981 8 m [89] XLR 04044981 8 m [90] XLR 04044981 8 m [91] XLR 04044981 8 m [92] XLR 04044981 8 m [93] XLR 04044981 8 m Number Length Connected Devices Second-row, center tabletop display A right Button microphone 8 m microphone extension cable Second-row, center tabletop display B left Button microphone 8 m microphone extension cable Second-row, center tabletop display B right Button microphone 8 m microphone extension cable Second-row, right tabletop display A left Button microphone 8 m microphone extension cable Second-row, right tabletop display A right Button microphone 8 m microphone extension cable Second-row, right tabletop display B left Button microphone 8 m microphone extension cable HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Remarks 8 m microphone extension cable Telepresence host 3# MIC IN 3 8 m microphone extension cable Telepresence host 3# MIC IN 4 8 m microphone extension cable Telepresence host 4# MIC IN 1 8 m microphone extension cable Telepresence host 4# MIC IN 2 8 m microphone extension cable Telepresence host 4# MIC IN 3 8 m microphone extension cable Telepresence host 4# MIC IN 4 Page 28

2. 4 Audio Management–Presentation Audio Telepresence host's port location Right multifunctional socket Left audio Right audio channel Left multifunctional socket Telepresence host [92] 2# AUDIO IN 1 AUDIO OUT 1 AUDIO IN 2 AUDIO OUT 2 1# AUDIO IN 1 AUDIO OUT 1 AUDIO IN 2 AUDIO OUT 2 [94] Left audio Right audio channel No. Type Huawei Part Number Length [94] RCA 04050092 15 m [95] RCA 04050092 Connected Devices Remarks Left multi-functional socket's left audio channel Telepresence host 1# AUDIO IN 1 Left multi-functional socket's right audio channel Telepresence host 1# AUDIO IN 2 Right multi-functional socket's left audio channel Telepresence host 2# AUDIO IN 1 Right multi-functional socket'sright audio channel Telepresence host 2# AUDIO IN 2 1*2 15 m HUAWEI TECHNOLOGIES CO. , LTD. 1*2 Huawei Confidential Page 29

2. 4 Audio Management–Audio Playback (Network Diagram) Telepresence host Mother board Po. E AUDIO IN 1 AUDIO OUT 3 AUDIO IN 2 AUDIO OUT 4 [104] [96] [97] Center telepresence codec Left Bose speaker host [99] Right Bose speaker host AUDIO IN L R AUDIO OUT L R [100] [101] [102] LAN－Po. E close-up view Left speaker Centered underneath the left HD display HUAWEI TECHNOLOGIES CO. , LTD. [98] Huawei Confidential Right speaker Center speaker (left) Centered underneath the right HD display [103] Center speaker (right) Centered underneath the center HD display Page 30

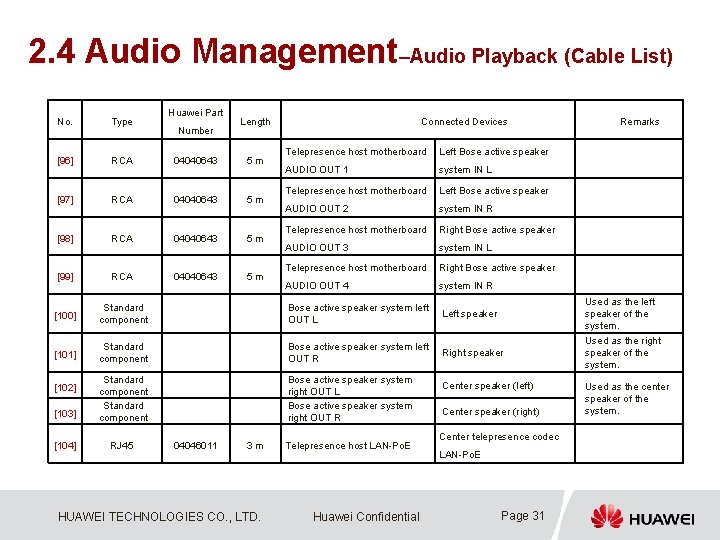

2. 4 Audio Management–Audio Playback (Cable List) Huawei Part No. Type [96] RCA 04040643 5 m [97] RCA 04040643 5 m [98] RCA 04040643 5 m [99] RCA 04040643 5 m [100] [101] Number Length Connected Devices Telepresence host motherboard Left Bose active speaker AUDIO OUT 1 system IN L Telepresence host motherboard Left Bose active speaker AUDIO OUT 2 system IN R Telepresence host motherboard Right Bose active speaker AUDIO OUT 3 system IN L Telepresence host motherboard Right Bose active speaker AUDIO OUT 4 system IN R Standard component Bose active speaker system left OUT L Left speaker Standard component Bose active speaker system left OUT R Right speaker [103] Standard component Bose active speaker system right OUT L Bose active speaker system right OUT R [104] RJ 45 [102] 04046011 3 m HUAWEI TECHNOLOGIES CO. , LTD. Telepresence host LAN-Po. E Huawei Confidential Center speaker (left) Center speaker (right) Center telepresence codec LAN-Po. E Page 31 Remarks Used as the left speaker of the system. Used as the right speaker of the system. Used as the center speaker of the system.

2. 5 Power Management–Standard Configuration (Part 1) Output 1 [104] Output 2 Wall socket 1: 739 W [102] [103] [108] Output 5 Relay [109] Output 6 [110] Output 8 Note 1: Two 2 m C 14 -C 13 power cables are provided with the relay. Use those cables as the power cable of the network switch. [111] PDU 1 PDU 2 [118/119/120] [121/122/123] [124] PDU 3 PDU 4 [125] [126] [127] [129] [130] Wall socket 3: 550 W [131] [132] Left HD display: 550 W [133] [134] Right HD display: 550 W HUAWEI TECHNOLOGIES CO. , LTD. Three telepresence codecs: 159 W TC 310 tri-lens camera: 50 W Network switch: 20 W Wall socket 2: 550 W Wall socket 4: 550 W [112/113/114] [115/116/117] Wireless router: 10 W PDU 5 [128] Left Bose system: 250 W Right Bose system: 250 W Center HD display: 550 W Huawei Confidential 1. Use extension cords (part number: 0415 G 005) to connect the three HD displays' power cables to wall sockets. 2. Place PDU 8 in the cable trough to the right of the front row of the multi-functional conference table. 3. Place PDU 10 in the cable trough to the right of the second row of the multi-functional conference table. 4. Place PDU 11 in the cable trough to the left of the second row of the multi-functional conference table. Page 32

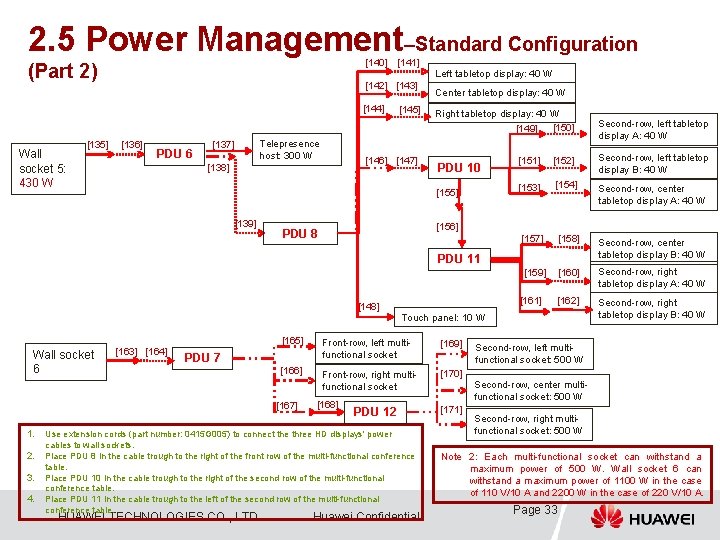

2. 5 Power Management–Standard Configuration [140] [141] (Part 2) [142] [143] [144] Wall socket 5: 430 W [135] [136] PDU 6 Telepresence host: 300 W [137] [145] [146] [147] [138] Left tabletop display: 40 W Center tabletop display: 40 W Right tabletop display: 40 W [149] [150] PDU 10 [155] [139] [151] [152] Second-row, left tabletop display B: 40 W [153] [154] Second-row, center tabletop display A: 40 W [157] [158] Second-row, center tabletop display B: 40 W [159] [160] Second-row, right tabletop display A: 40 W [162] Second-row, right tabletop display B: 40 W [156] PDU 8 PDU 11 [148] Wall socket 6 [163] [164] PDU 7 1. 2. 3. 4. [161] Touch panel: 10 W [165] Front-row, left multifunctional socket [169] [166] Front-row, right multifunctional socket [170] [167] [168] PDU 12 Use extension cords (part number: 0415 G 005) to connect the three HD displays' power cables to wall sockets. Place PDU 8 in the cable trough to the right of the front row of the multi-functional conference table. Place PDU 10 in the cable trough to the right of the second row of the multi-functional conference table. Place PDU 11 in the cable trough to the left of the second row of the multi-functional conference table. HUAWEI TECHNOLOGIES CO. , LTD. Second-row, left tabletop display A: 40 W Huawei Confidential Second-row, left multifunctional socket: 500 W Second-row, center multifunctional socket: 500 W [171] Second-row, right multifunctional socket: 500 W Note 2: Each multi-functional socket can withstand a maximum power of 500 W. Wall socket 6 can withstand a maximum power of 1100 W in the case of 110 V/10 A and 2200 W in the case of 220 V/10 A. Page 33

2. 5 Power Management–Standard Configuration (Cable List) No. [105] [106] [107] [108] [109] [110] [111] [112] [113] [114] [115] [116] [117] [118] [119] [120] [121] [122] [123] [124] [125] Type Chinese-standard power cable Power cable provided with the relay Power cable provided with the PDU C 13 -C 14 Power cable provided with the PDU Chinese-standard power cable Telepresence codec power adapter Chinese-standard power cable Camera power adapter Standard power cable Chinese-standard power cable Huawei Part Number 04050139 Length 3 m 3 m 3 m 0415 g 005 2 m 3 m 3 m 04050139 02130808 04050139 02220048 04050139 HUAWEI TECHNOLOGIES CO. , LTD. 3 m 3 m 3 m 1. 5 m 3 m 3 m 3 m 1. 2 m 3 m Connected Devices Wall socket 1 Chinese-standard power cable Relay input PDU 1 Relay port 1 PDU 2 Relay port 5 Network switch PDU 3 Relay port 6 PDU 4 Relay port 8 PDU 1 Left telepresence codec's power adapter Center telepresence codec's power adapter Right telepresence codec's power adapter Left telepresence codec Center telepresence codec Right telepresence codec PDU 2 Left camera lens' power adapter PDU 2 Center camera lens' power adapter PDU 2 Right camera lens' power adapter Left camera lens' power adapter Center camera lens' power adapter Right camera lens' power adapter Left camera lens(3) Center camera lens(2) Right camera lens(1) PDU 3 Wireless router PDU 4 Chinese-standard power cable Huawei Confidential Page 34 Remarks

2. 5 Power Management–Standard Configuration (Cable List-Continued) No. Type [126] [127] [128] [129] [130] [131] [132] [133] [134] [135] [136] [137] [138] [139] [140] [141] [142] [143] [144] [145] [146] [147] Power cable provided with the PDU Standard power cable Chinese-standard power cable C 13 -C 14 Chinese-standard power cable Power cable provided with the PDU Chinese-standard power cable 6 m power cable Power cable provided with the PDU Chinese-standard power cable Telepresence codec power adapter cable 6 m power cable Power cable provided with the PDU Huawei Part Number Length 3 m 04050139 0415 g 005 04050139 04040705 04050139 02130808 04040705 Remarks Chinese-standard power cable PDU 5 PDU 4 PDU 5 Right Bose speaker host Left Bose speaker host Wall socket 2 Chinese-standard power cable 2 m 3 m Center HD display Chinese-standard power cable Wall socket 3 Chinese-standard power cable 2 m 3 m Left HD display Chinese-standard power cable Wall socket 4 Chinese-standard power cable 2 m 3 m Right HD display Chinese-standard power cable Wall socket 5 Chinese-standard power cable PDU 6 Telepresence host PDU 6 6 m power cable PDU 8 Chinese-standard power cable Front-row, left tabletop display PDU 8 Front-row, center tabletop display Chinese-standard power cable Front-row, center tabletop display PDU 8 Front-row, right tabletop display Chinese-standard power cable Front-row, right tabletop display PDU 8 6 m power cable PDU 10 3 m 3 m 04050139 Connected Devices 3 m 6 m 3 m 3 m 1. 5 m 6 m 3 m HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Page 35 C 13 -C 14

2. 5 Power Management–Standard Configuration (Cable List-Continued) No. Type [148] [149] Standard power cable Chinese-standard power cable Telepresence codec power adapter cable Chinese-standard power cable Power cable provided with the PDU Chinese-standard power cable Telepresence codec power adapter cable Chinese-standard power cable Power cable provided with the PDU [150] [151] [152] [153] [154] [155] [156] [157] [158] [159] [160] [161] [162] [163] [164] Huawei Part Number Length 04040705 3 m 02130808 1. 5 m 04050139 3 m 02130808 1. 5 m Connected Devices PDU 8 PDU 10 Touch panel Chinese-standard power cable Second-row, left tabletop display A PDU 10 Chinese-standard power cable 6 m power cable Second-row, left tabletop display B PDU 10 3 m PDU 10 Chinese-standard power cable Second-row, center tabletop display A Chinese-standard power cable 3 m Chinese-standard power cable PDU 11 04050139 3 m PDU 11 02130808 1. 5 m 04050139 3 m Wall socket 6 Chinese-standard power cable Second-row, center tabletop display B Chinese-standard power cable Second-row, right tabletop display A Chinese-standard power cable Second-row, right tabletop display B Chinese-standard power cable 3 m Chinese-standard power cable PDU 7 04050139 Chinese-standard power cable PDU 11 Chinese-standard power cable [165] 6 m power cable 04040705 6 m PDU 7 [166] 6 m power cable 04040705 6 m PDU 7 [167] 6 m power cable Power cable provided with the PDU 04040705 6 m PDU 7 Front-row, left multi-functional socket Front-row, right multi-functional socket 6 m power cable 3 m 6 m power cable PDU 12 [169] 6 m power cable 04040705 6 m PDU 12 [170] 6 m power cable 04040705 6 m PDU 12 [171] 6 m power cable 04040705 6 m PDU 12 [168] HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Second-row, left multi-functional socket Second-row, center multi-functional socket Second-row, right multi-functional socket Page 36 Remarks

2. 6 Recording Management (Optional)–Network Diagram Left recording encoder Center recording encoder [173] [172] Right recording encoder Auxiliary recording encoder Recording server [174] [175] Telepresence host 1# AUDIO IN 1 AUDIO OUT 1 AUDIO IN 2 AUDIO OUT 2 [176] [177] Left audio Right audio channel Center recording encoder HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Page 37

2. 6 Recording Management (Optional)–Cable List Huawei Part No. Type [172] DVI-DVI 04050192 4 m Telepresence host 12# Out 1 Left recording encoder [173] DVI-DVI 04050192 4 m Telepresence host 12# Out 2 Center recording encoder [174] DVI-DVI 04050192 4 m Telepresence host 12# Out 3 Right recording encoder [175] DVI-DVI 04050192 4 m Telepresence host 12# Out 4 Auxiliary recording encoder No. Type Number Huawei Part Number [176] RCA 04050053 [177] RCA 04050053 HUAWEI TECHNOLOGIES CO. , LTD. Length Connected Devices Length 4 m Connected Devices Telepresence host 1＃ AUDIO OUT 1 4 m Remarks Telepresence host 1＃ AUDIO OUT 2 Huawei Confidential Remarks Center recording encoder In L Center recording encoder In R Page 38

2. 6 Recording Management (Optional)– Network Diagram (Ports 1– 12 are used for external networks, and ports 13– 14 are for internal networks. ) Right recording encoder Center recording encoder [182] [180] Switch 2 4 6 8 10 12 14 16 18 20 22 24 1 3 5 7 9 11 13 15 17 19 21 23 [178] [183] [181] Auxiliary recording encoder [179] Left recording encoder Recording server HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Page 39

2. 6 Recording Management (Optional)–Cable List No. Type Huawei Part Number Length Connected Devices [178] RJ 45 -RJ 45 04046011 3 m Switch port 11 Recording server WAN port [179] RJ 45 -RJ 45 04046011 3 m Switch port 19 Recording server LAN port [180] RJ 45 -RJ 45 04046011 3 m Switch port 20 Center recording encoder [181] RJ 45 -RJ 45 04046011 3 m Switch port 21 Left recording encoder [182] RJ 45 -RJ 45 04046011 3 m Switch port 22 Right recording encoder [183] RJ 45 -RJ 45 04046011 3 m Switch port 23 Auxiliary recording encoder HUAWEI TECHNOLOGIES CO. , LTD. Huawei Confidential Page 40 Remarks

2. 5 Power Management–Configuration with the Recording System Output 1 Output 2 Wall socket 1: 739 W PDU 1 Three telepresence codecs: 159 W PDU 2 TC 310 tri-lens camera: 50 W [184] Relay Output 5 Output 6 Note 1: Two 2 m C 14 -C 13 power cables are provided with the relay. Use those cables as the power cable of the network switch. Output 8 Network switch: 20 W Wireless router: 10 W PDU 4 PDU 5 Wall socket 3: 550 W Left tabletop display: 40 W Wall socket 4: 550 W Right HD display: 550 W PDU 6 Telepresence host: 300 W Wall socket 6 PDU 7 Use extension cords (part number: 0415 G 005) to connect the three HD displays' power cables to wall sockets. Place PDU 8 in the cable trough to the right of the front row of the multi-functional conference table. Place PDU 10 in the cable trough to the right of the second row of the multi-functional conference table. Place PDU 11 in the cable trough to the left of the second row of. HUAWEI the multi-functional conference table. TECHNOLOGIES CO. , LTD. Front-row, right multifunctional socket PDU 12 Huawei Confidential Second-row, left tabletop display A: 40 W Center tabletop display: 40 W Second-row, left tabletop display B: 40 W Right tabletop display: 40 W Second-row, center tabletop display A: 40 W Second-row, center tabletop display B: 40 W PDU 10 Front-row, left multifunctional socket Recording server: 100 W Left Bose system: 250 W Left HD display: 550 W Note 2: Each multi-functional socket can withstand a maximum power of 500 W. Wall socket 6 can withstand a maximum power of 1100 W in the case of 110 V/10 A and 2200 W in the case of 220 V/10 A. 4. [190] PDU 3 PDU 8 3. [186/187/188/189] Recording encoders: 10 W x 4 = 40 W Right Bose system: 250 W Wall socket 5: 430 W 2. PDU 9 Center HD display: 550 W Wall socket 2: 550 W 1. [185] Touch panel: 10 W Second-row, right tabletop display A: 40 W Second-row, right tabletop display B: 40 W Second-row, left multifunctional socket: 500 W Second-row, center multifunctional socket: 500 W Second-row, right multifunctional socket: 500 W Page 41

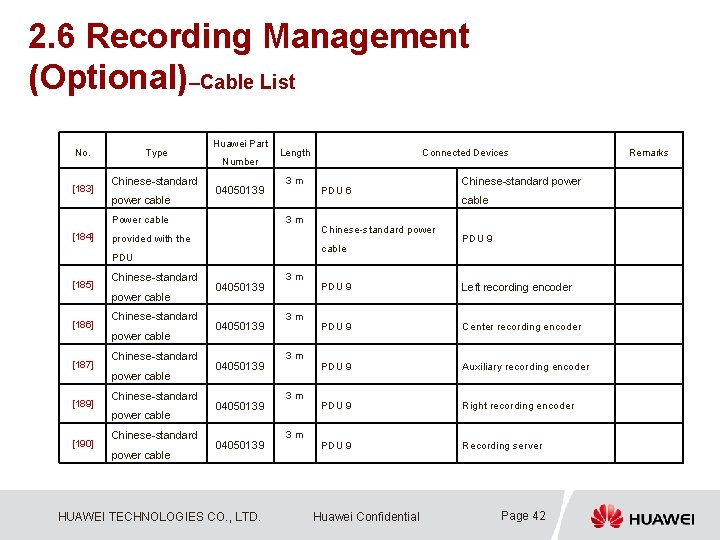

2. 6 Recording Management (Optional)–Cable List No. [183] Type Chinese-standard power cable Huawei Part Number 04050139 Power cable [184] Length 3 m 3 m provided with the Chinese-standard power cable [186] Chinese-standard power cable [187] Chinese-standard power cable [189] Chinese-standard power cable [190] Chinese-standard power cable PDU 6 Chinese-standard power cable PDU [185] Connected Devices 04050139 04050139 HUAWEI TECHNOLOGIES CO. , LTD. 3 m 3 m 3 m Chinese-standard power cable PDU 9 Left recording encoder PDU 9 Center recording encoder PDU 9 Auxiliary recording encoder PDU 9 Right recording encoder PDU 9 Recording server Huawei Confidential Page 42 Remarks

2. 7 PSTN Management PSTN port Wall mounted telephone port 【 191 】 No. [191] Type Phone Cable Huawei Part Number Length 04050420 HUAWEI TECHNOLOGIES CO. , LTD. 3 m Connected Devices Telepresence host PSTN Huawei Confidential Remarks Wall mounted telephone ports Page 43
