WBB Speed Up Broadband Development Households broadband penetration 100% Developed 80% Developing Use WBB to increase broadband penetration 60% 40% Sparse & rural areas Dense area in developing countries Special terrains: desert, island Historical cultural heritage 20% 0% 2005 2010 2015 Developed country: high FBB penetration, low growth rate. Demanding new broadband to cover more scenarios. Developing country: low FBB penetration, demanding quick available and low cost broadband. Source: ITU ICT database 2014 2
Wireless Broadband is Valuable for All ISP Wired + Wireless Fixed ISP • • • Increase penetration Fulfill national broadband mission Less TCO than wired Fast TTM Quick ROI Wireless Broadband Mobile ISP 3 Mobile + Fixed, Personal + Family • • Bundled packages for competition Increase ARPU Higher loyalty, lower churn rate Feature enterprise services New ISP
Wireless Broadband Targets Fast Deployment Reduce TCO Good Management 4 Fiber-class speed Fast Return of Investment Rich Services
Contents 5 1 Wireless Broadband: Essential and Valuable 2 A New Era of Wireless Broadband: Huawei e. LTE 3 e. LTE Powers Up High Value Services 4 e. LTE Brings You Business Success
e. LTE: New Era of Wireless Broadband Super WTTx xxx Mbps WTTx xx Mbps FTTx x Mbps x. DSL Cable Modem <1 Mbps WLL Dial-up Wi. MAX/3 GPP R 8/R 9 10~20 MHz 2 x 2 MIMO LTE-A R 10/R 11 40 MHz 2 CC CA 4 x 4 MIMO LTE-A and Evolution Enables Wireless Broadband Comparable to FTTx 2 G/3 G <5 MHz SISO 2000 6 BWA 4. 5 G/5 G R 12+ 80 MHz+ Massive CA Massive MIMO 2010 2015 2020
Huawei e. LTE Broadband Access Solution Architecture Access Terminals Vo. IP e. Node. B Core Network LTE OSS & Applications e. CNS 600 Application Server &Platform RRU Video Data Outdoor CPE e. A 660/e. A 360 BBU LTE Data Indoor CPE e. A 260 Vo. IP 7 IP Network DBS 3900 distributed base station e. CNS 610 Network Management System (U 2000/e. Sight)
Key Feature 1: e. LTE For Various Deployment Scenarios 4 x 4 Wi. MAX Evolution FTTx Alternative Peak Rate > 400 Mbps User Rate 50 Mbps* Advanced antiinterference technologies 10 x Capacity National Broadband Coverage 10 km* • Assume: LOS 2. 5 GHz, 2 x 20 MHz, 4 x 4 MIMO, 300 users, 1/10 of user rate @ busy hour, service active ratio: 20% 8
Key Feature 2: Professional Network, Industry Dedicated Multi-band for different industry applications Flexible networking for different network sizes Large-scale network 2. 3 G 1. 8 -9 G 2. 5 -6 G LTE 1. 4 G TDD frequency FDD frequency 700 M 9 One 14 U Core Network Max. 1500 Base Station Max. 200, 000 users, 40 Gbps 3. 7 G 3. 5 G Small or Medium-scale network One 2 U Core Network <50 Base Station Max. 5000 users, 4 Gbps
Key Feature 3: Reliable Network, Secure Critical Communications 99. 999% Availability Active Standby Failure Active NE-level backup Board-level backup 10 Board backup for base station Board backup for CN
Key Feature 4: Lightweight Network, Reduced CAPEX and OPEX 14 U CN, All-In-One Box MME PGW SGW 2 U Micro CN for Low Cost Unified NMS, Simplify Operation HSS e. CNS 600 e. CNS 610 Village Hospital Shopping mall DBS 3900 Micro CN for SME Tech. Campus CPE e. A 660/e. A 360/e. A 260 SOHO Single Cabinet • Compact design and space saving, From 4 cabinets to • CAPEX Saving 11 1 cabinet 20% • Web. UI, based standard PC-server • Smallest LTE core network • Unified NMS, centralized manage all (2 U), Cost-effective for SMEs NE(core network, base station, • Suitable for rural areas, hospital, terminals campus, SOHO, etc • OPEX reduced by 50%
Other Features: Qo. S Control Per Service Qo. S Control Per User Default Bearer Golden User Silver User Bronze User • Without Qo. S control, all services carried by default bearer • Resources are fairly shared Default Bearer Throughput e. LTE Dedicated Bearer • With Qo. S control, critical services carried by dedicated bearer, throughput and performance are guaranteed Customer Benefits : Optimizes the use of bandwidth and Improves quality of online services 12

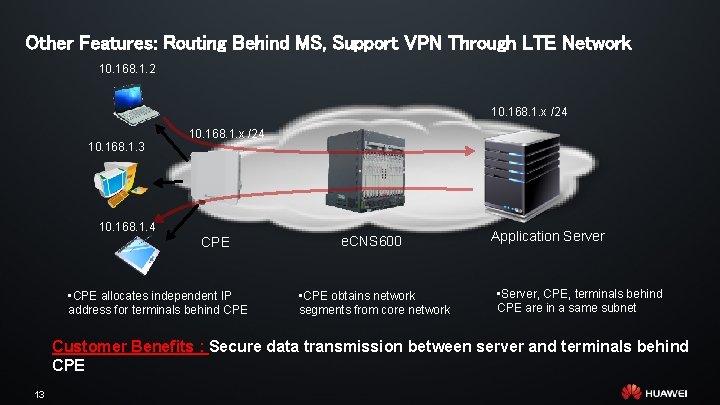

Other Features: Routing Behind MS, Support VPN Through LTE Network 10. 168. 1. 2 10. 168. 1. x /24 10. 168. 1. 3 10. 168. 1. 4 CPE • CPE allocates independent IP address for terminals behind CPE e. CNS 600 • CPE obtains network segments from core network Application Server • Server, CPE, terminals behind CPE are in a same subnet Customer Benefits : Secure data transmission between server and terminals behind CPE 13
Other Features: Offline Charging with Standard Interface to BS Interface: Ga Protocol: GTPv 2 Interface: Bi Protocol: FTP/SFTP Raw CDR Core Network e. CNS 600 • Record all data traffic • Output raw CDR (charging data record) to charging gateway • CDR includes user ID, time, duration, Converted CDR Charging Gateway • Collecting raw CDR from core network • Sort, merge, filter CDR • Convert CDR format according to operator’s rule • Store all CDR files for retrieve Billing System • Account & Balance management • Generate billing Customer Benefits : Help enterprises to analyze and manage user online behaviors and habits 14
Other Features: Core Network Interoperability with Open Architecture Internet Router e. CNS 600 Internet Router e. CNS 610 230 KM AREA 3 HQ Internet Router 100 KM e. CNS 610 AREA 3 Internet Router e. CNS 610 User authentication 120 KM Internet data flow AREA 3 Customer Benefits : Local dataflow breakout, saving fiber rental expenses among cities 15
Other Features: Unique Compact RAN for Low Budget w. ISP Operators Terminals Applications Networks Compact RAN HSS Router UGW MME Firewall O&M Customer Benefits : • No EPC required, great reduce CAPEX • Supporting simple authentication & provisioning in Compact RAN • Fast deployment & roll out 16 Internet
Product Portfolio OSS Application Platform OSS & Application e. Sight-e. WL U 2000 e. Space U 2980 14 U CN Meeting AS Call AS 2 U CN Core Network e. CNS 600 e. CNS 610 BBU RRU Base Station BBU 3900 RRU 3251 CPE Access Terminals 17 e. A 660 (Outdoor CPE e. A 360 (Outdoor CPE) RRU 3232 RRU 3252/3256 Application Terminals LTE Mini-PCIe Module e. A 260 (indoor CPE) e. M 100 RRU 3268/3220 e. Space 7950 TE 30 Camera
Contents 18 1 Wireless Broadband: Essential and Valuable 2 A New Era of Wireless Broadband 3 e. LTE Powers Up High Value Services 4 e. LTE Brings You Business Success
e. LTE Powers Up High Value Services Internet + Vo. IP Home Entertainment Basic Revenue of WBB High Value Add-on Packages • Fiber speed internet access 10~50 Mbps per line • Voice Over IP • OTT Video / IPTV SD: 1. 5~2. 5 Mbps HD: 2. 5~4 Mbps FHD: 7~8 Mbps • Video broadcasting Typical 4~22 SD channels @ 40 MHz 19 Small/Medium Enterprises High ARPU Users • Fiber speed internet access • Guaranteed Qo. S • L 2/L 3 VPN
Smart City and Io. T Connectivity Broad Capacity Volume of Connections Instant Communication Smart Security Smart Meter Smart Sensors Smart Transportation Everything goes mobile and connected 20

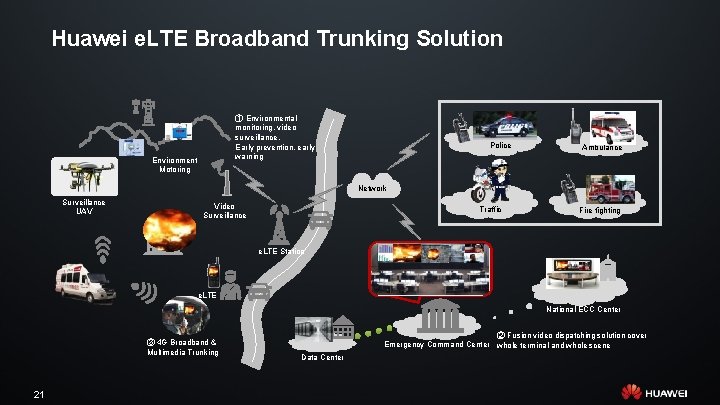

Huawei e. LTE Broadband Trunking Solution ① Environmental monitoring, video surveillance, Early prevention, early warning Environment Motoring Police Ambulance Network Surveillance UAV Video Surveillance Traffic Fire fighting e. LTE Station e. LTE National ECC Center ③ 4 G Broadband & Multimedia Trunking 21 ② Fusion video dispatching solution cover Emergency Command Center whole terminal and whole scene Data Center

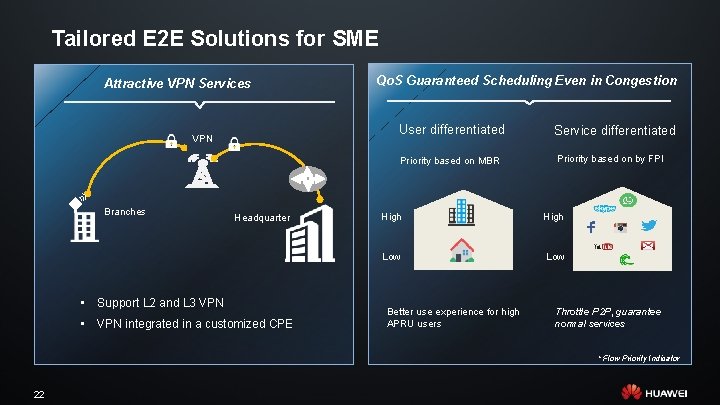

Tailored E 2 E Solutions for SME Attractive VPN Services Qo. S Guaranteed Scheduling Even in Congestion User differentiated VPN Priority based on MBR Branches Headquarter • Support L 2 and L 3 VPN • VPN integrated in a customized CPE Service differentiated Priority based on by FPI High Low Better use experience for high APRU users Throttle P 2 P, guarantee normal services * Flow Priority Indicator 22
e. LTE Lower Per Bit Cost Brings Shorter ROI Fiber-Class Performance & Services $ (Cost / Revenue) Fiber Speed Internet Access Typical ROI < 2 Years Less Cost, Fast TTM Add-on Video Packages High ARPU Enterprise Users OPEX Spectrum Cost CAPEX Revenue Quick launch Cost Time 23
Contents 24 1 Wireless Broadband: Essential and Valuable 2 A New Era of Wireless Broadband 3 e. LTE Powers Up High Value Services 4 e. LTE Brings You Business Success
Sky. TV grows with Huawei LTE Technology orientated *100 Brazilian Real = 37. 08 USD 25 4 g 14 Se p 14 O ct -1 4 N ov -1 4 D ec -1 4 Ja n 15 Ju M ay -1 4 2 Tariff packages Au 2015 H 1 l-1 2014 Q 3 Ju 2014 Q 2 82, 000 67, 000 55, 000 45, 000 34, 500 25, 500 20, 500 15, 000 12, 000 14 Dualcarriers 48 K 82 K users @ 412 sites 1 year ROI n- 8 T 8 R BF a. ICIC CSPC e. ICIC Avg site revenue: $ User development
Luis Eduardo Magalhães-BA, a primeira cidade do País a disponibilizar 4 G público em rede própria Solução l Implantação de rede de comunicação de dados banda larga, sem fio através da tecnologia 4 G (e. LTE) l Conexão de todos os orgãos e locais públicos l E-Education l Safe-City: videovigilância e mobilidade para forças de segurança Benefícios 26 l Aumentar a eficiência da gestão l Melhorar o controle sobre os recursos públicos l Criar sistema de Televigilância l Ampliar o acesso da população a internet l Estimular as empresas, provedores a oferecer serviços l Melhorar a qualificação profissional l Inclusão Digital
