Huawei SX 7 Campus Switches Configuration Quotation Guide (Overseas)

Huawei SX 7 Campus Switches Configuration Quotation Guide (Overseas)

Tools l l Uni. STAR e. CFG p Customized p Description: Offline quotation tool

Tools l l Uni. STAR e. CFG p Customized p Description: Offline quotation tool p Training material (channel) Uni. STAR SCT p Web-based p Description: Simplified online quotation tool (only this tool will be provided in future) p SCT p Training material * The underlined content indicates the material links. 1

Contents 1. Campus Switch SX 7 Series Family 2. Chassis Switch Configuration Guide 3.

Contents 1. Campus Switch SX 7 Series Family 2. Chassis Switch Configuration Guide 3. Box Switch Configuration Guide 2

Sx 7 Series Switches Product Type Core switch Aggregation switch 1000 M access switch

Sx 7 Series Switches Product Type Core switch Aggregation switch 1000 M access switch 100 M access switch SMB switch Product Name Description S 12700 Agile chassis switch S 9700 Chassis T-bit core routing switch, which can be upgraded to an agile switch S 7700 Chassis aggregation switch, which can be upgraded to an agile switch S 6700 Data center 10 GE switch 5720 HI Agile box switch S 5700 HI/S 5710 EI MPLS multi-service switch S 5700 EI Enhanced Layer 3 switch S 5700 SI Standard Layer 3 switch S 5700 LI Simplified Layer 2 switch S 3700 EI Enhanced Layer 3 switch S 3700 SI Standard Layer 3 switch S 2700 EI/S 2720 EI/S 2750 EI Enhanced 100 M Layer 2 switch S 2700 SI Standard 100 M Layer 2 switch S 1700/S 1720 3 SMB switch

Product Orientation S 12700 S 9700 S 7700 S 6700 Core of small- Core

Product Orientation S 12700 S 9700 S 7700 S 6700 Core of small- Core and middle- 10 GE sized networks aggregation Aggregation of Data center large-sized access networks S 5720 -HI S 5700 SI/EI/HI S 5700 LI Branch Access core Aggregation Access/ag S 3700 S 2700 Aggregation Access of small- and (distributor, gregation middle-sized low price) of campus networks 100 M/ 10 G/40 G/10 0 G 100/ 1000 M/ 10 G/40 G/100 G 100/1000 M / 10 G/40 G/100 G 10 G/1000 M L 2/L 3 L 3 L 2 Chassis Box Box Box 4 1000 M/100 M 1000 M/ 100 M

Contents 1. Campus Switch SX 7 Series Family 2. Chassis Switch Configuration Guide 3.

Contents 1. Campus Switch SX 7 Series Family 2. Chassis Switch Configuration Guide 3. Box Switch Configuration Guide 5

Contents l S 12700 Configuration Guide l S 9700 Configuration Guide l S 7700

Contents l S 12700 Configuration Guide l S 9700 Configuration Guide l S 7700 Configuration Guide 6

S 12700 Configuration l Chassis l LPU l Optical module l Software and license

S 12700 Configuration l Chassis l LPU l Optical module l Software and license l Cluster cable l Installation auxiliaries l Others S 12712 7 S 12708

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Others Uni. STAR

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Others Uni. STAR e. CFG l l Basic configuration p Chassis p Installation suite MPU p l SFU p Uni. STAR SCT l SFUA, SFUC, SFUD CMU p l MPUA CMU Power supply When a product is added to Uni. STAR SCT, the chassis type is determined. You can select one from multiple options. 8

Chassis LPU Integrated Chassis Optical module Software and license Cluster cable Installation auxiliaries Others

Chassis LPU Integrated Chassis Optical module Software and license Cluster cable Installation auxiliaries Others Configuration Tips l l S 12708 Description S 12708 chassis S 12712 chassis MPU 1+1 The integrated chassis can be installed in a 19 -inch cabinet or not installed in a cabinet. The power module is located in bottom of the debugging integrated equipment. It is the mandatory component of the S 12700 chassis. All components support redundancy and hot-swapping. AC and DC power supplies are supported, but only the power supplies of the same type can be installed on the same device. The AC and DC power supplies cannot be installed on a device. Po. E is not supported. S 12712 LPUs SFUs Power Slots 8 4 6 12 4 6 9 CMU 1+1 Max Power Consumption Dimensions <= 4400 W 442 mm x 489 mm x 663. 95 mm (15 U) <= 6600 W 442 mm x 489 mm x 841. 75 mm (19 U)

Chassis LPU New MPU: MPUA Optical module Software and license Cluster cable Installation auxiliaries

Chassis LPU New MPU: MPUA Optical module Software and license Cluster cable Installation auxiliaries Others MPUA Overview n MPUs of S 12700 series are interchangeable n Function overview USB port Clock port Management port Combo port: Mini USB or RJ 45 Cluster Combo port CSS Master indicator: If the indicator is on, the card is active; if the indicator is off, the card is standby. CSS ID: Eight indicators. If the indicator is on, it indicates the chassis ID in CSS. n CSS Combo port supports long-distance CSS through control plane. n Hardware OAM/BFD n Layered traffic shaping n USB-based deployment during which indicators show system status Function S 12700 Competitor Hardware BFD (50 ms failover) Supported Not supported CSS status indicator Supported Not supported CSS ID indicator Supported Not supported USB deployment Supported Not supported Control plan CSS Supported Not supported Configuration tips: The dual control boards in 1+1 hot standby mode are recommended to improve system reliability. 10

Chassis New SFU LPU Optical module Software and license SFUA Cluster cable Installation auxiliaries

Chassis New SFU LPU Optical module Software and license SFUA Cluster cable Installation auxiliaries Others SFU Overview n Universal SFU of S 12700 series n Card overview Three types, SFUA, SFUC, and SFUD are provided. When cards are fully configured, each slot delivers 160 -640 Gbps bandwidth, which can reach 1. 28 Tbps. n The SFUs are selected according to switching bandwidth. SFUs are not interchangeable. n The CSS bandwidth is 640 Gbps, which can be upgraded to 1. 92 Tbps. n OFL button CSS card slot SFUD ★ Note: When SFUA cards are fully configured on an S 12708, a golden bandwidth of 480 Gbps is delivered. ★ Note: S 12712 does not support SFUC. n Design highlights OFL button: Press the OFL button to switch traffic to the other SFUs to ensure uninterrupted traffic forwarding. n Dual control channels: The system automatically detects faults and performs failover. n CSS card slot OFL button Configuration tips: 1. 2. S 12708 supports SFUA, SFUC, and SFUD. S 12712 supports SFUA and SFUD. The SFUs of different types cannot be installed on the same chassis. Each chassis can have at least one SFU and at most four SFUs installed. 11

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Others Independent CMU

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Others Independent CMU Provides Uniform and Dynamic Monitoring CMU Four Major Functions Intelligent diagnosis and location n Detects voltage and temperature of LPUs n Detects faults in LPU clock Assets management n Manages component status n Manages component types Independent service monitoring n Records power-on time of LPUs n Monitors service plane environment changes independently Dynamic power control n Controls power of LPUs n Controls fan speed based on areas, to reduce noise and power consumption Configuration tips: The chassis contains a CMU. A redundant CMU can be selected to improve system reliability. 12

Chassis LPU Power Supply Optical module Software and license Cluster cable Installation auxiliaries Others

Chassis LPU Power Supply Optical module Software and license Cluster cable Installation auxiliaries Others S 12700 supports 2200 W AC and DC power supplies. The power supplies can be configured in N+M mode. Each of S 12708 and S 12712 supports six power supplies. The S 12700 chassis does not support Po. E. The following table describes the power supply specifications of S 12700. Power Configuration Chassis Model Chassis Specifications 1. S 12708 chassis 2. 3. 4. 1. S 12712 chassis 2. 3. 4. Maximum Output Power (Rated Voltage: -48 V DC, 220 V AC Input) 15 U, 442 mm x 489 mm x 663. 95 mm (width x depth x height) MPUs in 1+1 mode CMUs in 1+1 mode, one CMU included by default A maximum of 4400 W power consumption of the entire chassis 2200 W DC 1+1: 2200 W output 2+2: 4400 W output 2200 W AC 1+1: 2200 W output 2+2: 4400 W output 19 U, 442 mm x 489 mm x 841. 75 mm (width x depth x height) MPUs in 1+1 mode CMUs in 1+1 mode, one CMU included by default A maximum of 6600 W power consumption of the entire chassis 2200 W DC 1+1: 2200 W output 2+2: 4400 W output 3+3: 6600 W output Po. E Power 1. Not supported 1+1: 2200 W output 2+2: 4400 W output 3+3: 6600 W output 2. 3. 1. Not supported 2200 W AC Remarks 2. 3. 110 V AC input, output power reduced by a half Six power supplies in N+M mode (1+1, 2+2, 3+1, 3+2, 3+3) 4400 W power consumption in V 2 R 5, N+1 power backup recommended 110 V AC input, output power reduced by a half Six power supplies in N+M mode (1+1, 2+2, 3+1, 3+2, 3+3) 6600 W power consumption in V 2 R 5, N+1 power backup recommended Configuration tips: • S 12708/S 12712 has the SFUA configured. The total number of LPUs and SFUAs should be greater than or equivalent to 2 and smaller than or equivalent to 16. It is recommended to configure two power supplies. • S 12708/S 12712 has the SFUC/SFUD configured. The total number of LPUs and SFUCs should be greater than or equivalent to 2 and smaller than or equivalent to 8. It is recommended to configure two power supplies. The total number of LPUs and SFUDs should be greater than or equivalent to 8 and smaller than or equivalent to 16. It is recommended to configure three power supplies. • To obtain detailed power consumption data, use the S 12700 Power Consumption Calculator. The calculated power consumption includes the power consumption of optical modules. 13

S 12700 Configuration l Chassis l LPU l Optical module l Software and license

S 12700 Configuration l Chassis l LPU l Optical module l Software and license l Cluster cable l Installation auxiliaries l Others S 12712 14 S 12708

Chassis LPU S 12700 LPU Optical module Software and license Cluster cable Installation auxiliaries

Chassis LPU S 12700 LPU Optical module Software and license Cluster cable Installation auxiliaries Others LPUs are selected based on interface types, MAC addresses, whether MPLS and unicast are supported, multicast routing table size, and whether cluster is supported. Card Type MAC MPLS Interface Type X 1 E 1 M Y 48*GE electrical/optical 4*10 GE(SFP+)+24 GE optical+8 combo 8*10 GE(SFP+)+8 GE optical+8 combo SA 32 K N EA 32 K Y EC 128 K SC 128 K FIB ARP 256 K by default 256 K 12*10 GE optical (SFP+) 12 K 8 K 48*GE electrical/optical 36*GE electrical+12*GE optical 4*10 GE optical (XFP( 16 K Y 48*GE electrical/optical 4*10 GE optical (XF) 24*GE optical 48*10 GE optical (SFP+) 128 K 16 K Y 16*10 GE (SFP+) 2*40 GE (QSFP+) 8*40 GE (QSFP+) 16 K 8 K (16*10 GE) 16 K (2*40 GE, 8*40 GE) Remarks This card provides agile features. The card implements native AC, unified user management, i. PCA, large buffer, large table, and Net. Stream. The service cards are installed in the LPU slots, and can be used by both models of S 12700. A maximum of 12 LPUs can be configured for S 12712 and 8 LPUs can be configured for S 12708. You can select LPUs according to your service requirements and LPUs' features. Enter the number of required LPUs in the list. 15

Chassis LPU Optical module S 12700 Special LPUs Software and license Cluster cable Installation

Chassis LPU Optical module S 12700 Special LPUs Software and license Cluster cable Installation auxiliaries Others S 12700 provides multiple special LPUs for your selection. Part Number/Model Type Function Monitors and manages the power in the S 912708/12712 supports CMUs in 1+1 chassis mode. The chassis includes one CMU. Monitors and manages fans You can configure a redundant CMU. Firewall NAT IPSec VPN Load Balance IPS protection 03030 NWB/ EH 1 D 200 CMU 00 CMU ET 1 D 2 FW 00 S 00 Firewall board-10 G ET 1 D 2 FW 00 S 01 Firewall board-20 G ET 1 D 2 FW 00 S 02 Firewall board-40 G EH 1 D 2 IPS 0 S 00 IPS board 03021 UWH /EH 1 D 2 VS 08000 8 -Port 10 G Cluster Switching System Service Unit (SFP+) S 12700 cluster subcard 03022 HXD/LE 2 D 2 FW 00 W 02 Wireless access control board (ACU 2) Supports WLAN AC 16 Remarks Used together with SFU

S 12700 Configuration l Chassis l LPU l Optical module l Software and license

S 12700 Configuration l Chassis l LPU l Optical module l Software and license l Cluster cable l Installation auxiliaries l Others S 12712 17 S 12708

Chassis LPU Optical Module Type SFP Optical Module Optical module Software and license l

Chassis LPU Optical Module Type SFP Optical Module Optical module Software and license l The optical modules on two ends must have three identical parameters: GE Peer port (onsite survey required) LC/PC SC/PC FC/PC ST/PC GE BIDI POS GE CWDM (not supported) GE DWDM (not supported) GE • Electrical port module • FE • If transmission distance is • Transmission distance • Mode: single or dual • Center wavelength 10 GE l BIDI: wavelengths on two ends match TX 1490/ RX 1310 TX 1310/ RX 1490 l 10 GE CWDM 10 GE DWDM QSFP+ l Interpretability: SFP+ XFP l All FE and GE optical cards are hot swappable. l When a cluster is set up through fibers, the QSFP+ modules need to be configured. longer than 40 km, XFP is recommended. 10 GE XFP Others FE FE BIDI SFP+ Installation auxiliaries Precautions Connector FE e. SFP Cluster cable MPO <300 m multi-mode LC < 10 Km Single-mode 40 GE 18 CWDM optical module Connects switches to WDM Supports all 10 G XFP LPUs, but does not support SFP+ LPU *BIDI –single-core bidirectional

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Others S 12700

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Others S 12700 Optical Module Use Precautions 1. Pay attention to three specifications when selecting optical modules: transmission distance, connection attributes (such as singlemode/multimode of fibers and optical modules), and center wavelength. When two devices are connected, ensure that interfaces on both devices have the same indexes, such as the transmission distance, interconnection attributes, and center wavelength. 2. Most single-mode optical modules configured for the S 12700 support the "wide range receiving" feature. That is, optical signals, with the center wavelength of either 1310 nm or 1550 nm, can be received normally, but some optical modules can work normally only within a narrow range of center wavelength. Therefore, it is recommended that the center wavelengths of the optical modules on both devices be the same. When the S 12700 is connected to a non-Huawei device, note that the optical modules of non-Huawei device may not support the "wide range receiving" feature. 3. If the transmission distances of the optical modules on the connected devices differ greatly, the receiver of the optical module with the shorter transmission distance may be overloaded. This affects signal transmission reliability. Avoid this situation. If this situation cannot be avoided, configure an optical attenuator on the receiver with the shorter transmission distance. In addition, it is recommended to design for optical transmission during the networking to ensure reliable interoperation between devices. 4. The optical interface boards of S 12700 support hot swappable CWDM optical modules must use the same wavelengths; otherwise, they cannot communicate with each other. When the switch is connected to WDM, the CWDM optical modules need to be used. The wavelengths and quantity of optical modules depend on the contract. To connect Ethernet devices, common optical modules are preferred. 5. The single-fiber bidirectional optical modules must be used in pairs. Tx indicates the transmit wavelength and Rx indicates the receive wavelength. An optical module has the following wavelengths: Optical Transceiver-SFP-Tx 1310/Rx 1490 -1. 25 Gb/s--3 d. Bm--9 d. Bm--19. 5 d. Bm-LC-Single-mode-10 km Optical Transceiver-SFP-Tx 1490/Rx 1310 -1. 25 Gb/s--3 d. Bm--9 d. Bm--19. 5 d. Bm-LC-Single-mode-10 km 19

S 12700 Configuration l Chassis l LPU l Optical module l Software and license

S 12700 Configuration l Chassis l LPU l Optical module l Software and license l Cluster cable l Installation auxiliaries l Others S 12712 20 S 12708

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Others Software and

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Others Software and License Configuration Part Number Description Configuration 05160692 S 12700 V 200 R 005 C 00 Software Package 81400500 MPLS Function License Select a software package according to customer needs. By default, the mainstream software package in the supply chain is delivered. Configured according to customer needs. 81400501 NQA Function License Configured according to customer needs. 81400502 IPV 6 Function License 82400519 X-series LPU FIB Resource License-128 K 82400520 X-series LPU FIB Resource License-512 K Configured according to customer needs. 256 K by default Configured according to customer needs. When more licenses are purchased, resources are accumulated. 82400503 82400504 82400505 82400506 WLAN Access Controller (with the X-series LPU used) 21 AP Resource License-512 AP AP Resource License-128 AP 16 APs by default Configured according to customer needs. AP Resource License-64 AP When more licenses are purchased, resources are accumulated. AP Resource License-16 AP

S 12700 Configuration l Chassis l LPU l Optical module l Software and license

S 12700 Configuration l Chassis l LPU l Optical module l Software and license l Cluster cable l Installation auxiliaries l Others S 12712 22 S 12708

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Others Cluster Cable:

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Others Cluster Cable: The Only Hardware-based CSS 2 in Industry S 12700 switches form a cluster through CSS 2 technique. Two switches are logically connected to form a large-capacity switch. Currently, cluster is implemented through the cluster subcards. Control channel Power bus MPUininactive MPU chassis CMU SFU LPU Cluster cable Power bus MPUininstandby chassis CMU SFU Hardware cluster at the control plane Control channel + MPU in active chassis MPU in standby chassis CMU SFU LPU Cluster cable Power bus SFU LPU = Hardware cluster at dual planes Hardware cluster at the switching plane n High reliability: Industry-leading switch fabric hardware clustering technology. Control packets and data packets of a cluster only need to be forwarded once by the SFUs. Control packets can be transmitted through specialized hardware channels. When the control link is faulty, services can be switched from the control plane to the forwarding plane. The dual-plane hardware clustering is more reliable. n Easy-to-use: Any interface on one chassis in the forwarding plane can establish a cluster with interfaces on any cluster card of the other chassis, and any interface on one chassis in the control plane can establish a cluster with interfaces on the other chassis, without occupying service slots. n Innovation: 1+N backup of control boards, implementing single-MPU cluster n Low-delay, high-bandwidth: reduces inter-chassis forwarding latency to 21 us, which is 58% lower than industry average. Cluster bandwidth can reach 1. 92 Tbps. ★CSS 2: Cluster Switch System Generation 2 23

Chassis LPU Optical module Software and license Cluster Cable Configuration CSS 2 forwarding model

Chassis LPU Optical module Software and license Cluster Cable Configuration CSS 2 forwarding model Data packets SFU LPU Chassis 1 Cluster cable SFU LPU LPU Chassis 2 Cluster cable Installation auxiliaries Others When VS 08 is installed on the SFU of S 12712/S 12708 as a cluster subcard (the cables of cluster subcards need to be configured independently), a maximum of four cluster subcards can be configured. The cluster subcard is installed on SFU. A cluster subcard provides eight SFP+ interfaces. CSS 2 configuration scheme: Cluster subcards: 1 -4 Cable cluster: A maximum of 32 SFP+ cables can be included. There are three cable lengths for selection: 1 m, 3 m, and 10 m. Fiber cluster: The SFP+ optical modules can be used. A maximum of 80 km distance is supported. For short-distance transmission, the low-cost SFP+ AOC module which is equipped with fibers can be used. The transmission distance of this module is 10 m. The CSS 2 can be implemented using cables or fibers. SFP+ cables, SFP+ optical modules, and AOC cables are supported. Description Part Number 02310 MUN 02310 MUP 02310 MUQ SFP+, 10 G, High Speed Direct-attach Cables, 1 m, SFP+20 M, CC 8 P 0. 254 B(S), SFP+20 M, Used indoor SFP+, 10 G, High Speed Direct-attach Cables, 3 m, SFP+20 M, CC 8 P 0. 254 B(S), SFP+20 M, Used indoor SFP+, 10 G, Active High Speed Cables, 10 m, SFP+20 M, CC 8 P 0. 32 B(S), SFP+20 M, Used indoor Remarks 1 m: SFP+<->SFP+, high-speed cable 3 m: SFP+<->SFP+, high-speed cable (not support 12 GE ports) 10 m: SFP+<->SFP+, high-speed cable 02310 QWG AOC Optical Transceiver, SFP+, 850 nm, 1 G~10 G, 0. 003 km 3 m, connects 10 G SFP+ port to 10 G SFP+ port 02310 QWH AOC Optical Transceiver, SFP+, 850 nm, 1 G~10 G, 0. 01 km 10 m, connects 10 G SFP+ port to 10 G SFP+ port 24

Chassis LPU Optical module Software and license Cluster Cable Configuration Cluster cable Installation auxiliaries

Chassis LPU Optical module Software and license Cluster Cable Configuration Cluster cable Installation auxiliaries Precautions CSS 2 Connection Rule Assume that 8 ports on a cluster subcard belong to a group. The cluster subcards are connected according to the following rules: • The 8 ports on one cluster subcard must be connected to the 8 ports on another subcard. It is recommended to connect the ports with the same port number together. • When a cluster has only one cluster subcard, at least one SFP+ port can be used. 25 Others

S 12700 Configuration l Chassis l LPU l Optical module l Software and license

S 12700 Configuration l Chassis l LPU l Optical module l Software and license l Cluster cable l Installation auxiliaries l Others S 12712 26 S 12708

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Installation Auxiliaries Configuration

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Installation Auxiliaries Configuration Select fibers To configure fibers for a non-BIDI optical module, configure a Tx optical fiber and an Rx optical fiber of the same type for each optical interface. To configure fibers for a BIDI optical module, configure only one optical fiber. If singlemode optical modules are used, configure single-mode fibers. If multimode optical modules are used, configure multimode fibers. You can select fibers of different lengths. Huawei provides fibers of 10 m, 20 m, and 30 m. Select network cables Each network cable has two RJ 45 connectors configured (part number: 14080082). You can select cable length according to customer requirements. The length of network cables is determined according to user requirements. The price increases for every 1 m increase in length (part number 25050014). 27 Select cables • External cables used for assemble chassis (desk installation) üa. No cabinet is used. The assembly chassis obtains power from customer's PDF. • External cables used for assemble cabinet (with a power distribution box) üb. The cabinet and power distribution box obtain power from the customer's PDF, and provide power to the power modules. Others

Chassis LPU Software and license Optical module Cable Configuration Cluster cable Installation auxiliaries Others

Chassis LPU Software and license Optical module Cable Configuration Cluster cable Installation auxiliaries Others Desktop installation Maximum air breaker current Power cable 2200 W DC (02270117) 60 A The cables are quoted. When the maximum input current of power module is 60 A, the cables are selected based on the distance between the chassis and PDF: 1. Within 14 meters: 10 mm blue and black power cables 2. Within 23 meters: 16 mm blue and black power cables 3. Within 36 meters: 25 mm blue and black power cables 3. Longer than 36 meters: notify the customer that a power distribution box is required 2200 W AC (02131120) 15. 5 A Delivered according to contract: (04000207) External Suite, Power Cords All Over The World, Class I Equipment With Connector C 19, External Cable Set. One cable is delivered for each power module. By default, the 3 m cable is delivered. Power module Note: l. The price of cables is included in the quotation of DC power module. By default, Huawei provides blue (-48 V) and black (GND) cables. If the customer needs other cables, the requirement should be added to the contract, and the cables may be purchased locally or from Huawei headquarters. l. If the customer has not chosen cabinet and power distribution box, Huawei delivers a 3 m AC power cable for the AC power module. The power cable model is selected by Huawei according to standards in the corresponding country. Power distribution box Cabinet model N 68 - AC Assembly Rack (02113563) N 68 - DC Assembly Rack (02113562) Power distribution box specifications Input/output: 2 inputs, 4 outputs Matching power modules 4 PCS (2200 W AC) Air breaker: 16 A x 4 Input and output: 8 inputs, 8 outputs (4 inputs, 8 outputs implemented by using copper bar) Air breaker: 63 A x 8 28 8 PCS (2200 W DC) External power cable Select the AC power cable with black PVC color (three core colors: blue, brown, and yellow/green) according to the distance between cabinet and PDF: 1. Within 13 meters: 6 mm AC power cables 2. Within 35 meters: 16 mm AC power cables The maximum input power of the power distribution box is 63 A in the case of 8 inputs and 8 outputs. The cables are selected based on the distance between the chassis and PDF: 1. Within 18 meters: 16 mm blue and black power cables 2. Within 29 meters: 25 mm blue and black power cables 3. Within 41 meters: 35 mm blue and black power cables Note: If the air breaker current must reach 126 A in the case of 4 inputs and 8 outputs, only 35 mm blue and black power cable can be used and the powering distance is within 20 meters.

S 12700 Configuration l Chassis l LPU l Optical module l Software and license

S 12700 Configuration l Chassis l LPU l Optical module l Software and license l Cluster cable l Installation auxiliaries l Others S 12712 29 S 12708

Chassis LPU Optical module Cabinet: N 66 E S 12712 one chassis in one

Chassis LPU Optical module Cabinet: N 66 E S 12712 one chassis in one cabinet Software and license Cluster cable Installation auxiliaries Others S 12708 one chassis in one cabinet Precautions l l l l ESD floor installation suite 21150568 EN 6 XUSM 01 Mount Kit I Adjustable height 296 -465 mm 21150569 EN 6 XUSM 02 Mount Kit II (Height >= 150 mm) 30 Installation height in the equipment room where ESD floor is installed: distance between floor and cabinet l l Standard 19 -inch cabinet N 66 E D*W*H: 600 x 2200 mm Two enhanced cabinets: DC enhanced cabinet and AC enhanced cabinet DC cabinet provides 8 -channel 60 A output. Each channel provides 2200 W output. The power distribution box provides 8 -input-8 -output or 4 -input-8 -output. AC cabinet provides 4 -channel 16 A output. Each channel provides 2500 W output. By default, the power distribution box provides 2 -input-4 -output. The cabinet has a power distribution box equipped. Each channel of the power distribution box serves a power supply. If the number of power supplies is larger than the channels of a power distribution box, more power distribution boxes need to be configured. When the N 68 E cabinet (applicable to NE 40 E) is used, the power distribution box and external cables need to be configured. Installed on concrete floor or ESD floor. When the cabinet is installed on the ESD floor, the installation suite is required.

Chassis LPU Optical module Power Distribution Box l Software and license Cluster cable Installation

Chassis LPU Optical module Power Distribution Box l Software and license Cluster cable Installation auxiliaries The power distribution box is an important part of a cabinet. It implements centralized power management, and is a mandatory component of the assembly cabinet. 1. 2200 W DC power distribution box The 2200 W DC power distribution box provides 8 -channel DC inputs (4 -channel DC inputs can be implemented by adding copper fitting. The maximum input current should reach 120 A. ). The 8 -channel circuit breakers control 8 -channel power outputs (each circuit breaker controls 1 -channel output). The air breaker current is 63 A. 31 Others

Chassis LPU Optical module Power Distribution Box l Software and license Cluster cable Installation

Chassis LPU Optical module Power Distribution Box l Software and license Cluster cable Installation auxiliaries The power distribution box is an important part of a cabinet. It implements centralized power management, and is a mandatory component of the assembly cabinet. 2. 2200 W AC power distribution box The 2200 W AC power distribution box provides 2 -channel AC inputs (4 -channel AC inputs can be implemented by removing copper fitting). The 4 -channel circuit breakers control 4 -channel power outputs (each circuit breaker controls 1 -channel output). The air breaker current is 16 A. 32 Others

Contents l S 12700 Configuration l S 9700 Configuration l S 7700 Configuration 33

Contents l S 12700 Configuration l S 9700 Configuration l S 7700 Configuration 33

S 9700 Configuration l Chassis l LPU l Optical module l Software and license

S 9700 Configuration l Chassis l LPU l Optical module l Software and license l Installation auxiliaries l S 7700 S 9703 34 S 9706 S 9712

Chassis Uni. STAR e. CFG LPU Optical module Software and license l l p

Chassis Uni. STAR e. CFG LPU Optical module Software and license l l p Cabinet p Chassis p Installation suite MPU l SRU/MCU CMU p Uni. STAR SCT Installation auxiliaries Basic configuration p l Cluster cable CMU Power supply When a product is added to Uni. STAR SCT, the chassis type is determined. You can select one from multiple options. 35 Others

Chassis Cabinet: N 66 E S 9712 one chassis in one cabinet LPU Optical

Chassis Cabinet: N 66 E S 9712 one chassis in one cabinet LPU Optical module Software and license Cluster cable Installation auxiliaries Others S 9706 two chassis in one cabinet Precautions l Standard 19 -inch rack N 66 E l l D*W*H: 600 x 2200 mm l ESD floor installation suite 21150568 EN 6 XUSM 01 Mount Kit I Adjustable height 296 -465 mm 21150569 EN 6 XUSM 02 Mount Kit II 150 -296 mm OR > 465 mm 36 Installation height in the equipment room where ESD floor is installed: distance between floor and cabinet No recommended configuration for S 9703. A maximum of four S 9703 chassis can be installed in a cabinet. When the number of quoted 800 W AC power modules exceeds 8, one more power distribution box needs to be configured. l Three models are available: one standard and two enhanced. They differ in power. The models can be selected. . l When the N 68 E cabinet (applicable to NE 40 E) is used, the power distribution box and external cables need to be quoted for power distribution. l The cabinet can be installed on the concrete floor or ESD floor. * When the cabinet is installed on the ESD floor, the installation suite is required. •

Chassis LPU Integrated Chassis Optical module Software and license Cluster cable Installation auxiliaries Others

Chassis LPU Integrated Chassis Optical module Software and license Cluster cable Installation auxiliaries Others Configuration tips l l l Item MPUs S 9703 chassis S 9706 chassis S 9712 chassis 1+1 backup The integrated chassis can be installed in a 19 -inch cabinet or not installed in a cabinet. All components support redundancy and hot-swapping. AC and DC power supplies are supported, but only the power supplies of the same type can be installed on the same device. The AC and DC power supplies cannot be installed on a device. Po. E is not supported. LPUs Power Slots CMUs Max Power Consumption Dimensions 3 2 CMU is integrated within the cabinet. No independent CMU card is available <=2200 W 442 x 476 x 175 mm (4 U) 6 4 <=4400 W 442 x 476 x 441. 7 mm (10 U) <=6600 W 442 x 476 x 663. 95 mm (15 U) 12 6 37 1+1 backup

Chassis LPU Power Supply Optical module Recommended Configuration Software and license Cluster cable Installation

Chassis LPU Power Supply Optical module Recommended Configuration Software and license Cluster cable Installation auxiliaries Others Remarks Po. E is not supported Rated voltage: -48 V DC or 220 V AC input Three types of power supplies are not interchangeable 110 V AC input, output power reduced by a half lies p up ion soutput 1+1: 800 W r pt we W output 1+1: o 2200 m p u ns. W output red 2+2: 4400 2200 W DC S 9703 chassis 1+1: 2200 W output 2200 W AC 1+1: 2200 W output 800 W AC 2200 W DC o W output ui 1+1: c 2200 q r e 2200 W AC r S 9706 chassis we 2+2: 4400 W output of o y t 2+1: 1600 W output n. Wti. AC rd p 800 a u a 3+1: 2400 W output q c he tal t 1+1: 2200 W output o e 2200 W DC t t 2+2: 4400 W output ula g to c l 1+1: 2200 W output Ca ordin 2200 W AC 2+2: 4400 W output c S 9712 ac chassis 3+1: 2400 W output 4+1: 3200 W output 800 W AC 5+1: 4000 W output 38 Max power consumption of the entire chassis: 1100 W One system power supply: supports 1+1 backup Max power consumption of the entire chassis: 2200 W Four system power supplies: support M+N backup Max power consumption of the entire chassis: 4400 W Six system power supplies: support M+N backup: 1+1, 2+2, 3+1, 3+2, 3+3

Chassis LPU Optical module Software and license MPU: SRUC/SRUD/MCU Cluster cable Installation auxiliaries Others

Chassis LPU Optical module Software and license MPU: SRUC/SRUD/MCU Cluster cable Installation auxiliaries Others S 9703 MPU-MCU S 9706/S 9712 MPU-SRUD/SRUC l. Hardware-based EOAM/BFD engine l. Max power consumption 180 W l. Integrated SFU Clock Ethernet port -SRUD synchronization Console port (2) Clock synchronization RS 485 port (2) l. Max power consumption 132 W l. Integrated SFU Ethernet port USB port BITS port (2) Subcard slot -SRUC Console port Configuration tips Recommended configuration: MPUs in 1+1 mode l The chassis includes a clock subcard (installed on the MPU) l 39 l. No MON SFU l. Integrated monitoring module l. Max power consumption 26 W Ethernet port Console port

Chassis LPU Optical module Software and license CMU – Center Manage Unit SR UC

Chassis LPU Optical module Software and license CMU – Center Manage Unit SR UC R 3 Q 3 2 SRUC + CSS Installation auxiliaries Others CSS configuration tips is V 2 avai l 20 1 Cluster cable ab le in l l Only applicable to dual-MPU mode l A cluster consisting of two chassis, stack cable required: 4 CSS cards * 2 = 8 cables 3 stack scenarios: • 2 S 9706 • 2 S 9712 • 1 S 9706 vs 1 S 9712 CMU configuration tips l l CMU functions: l Manages power supplies and fans to implement intelligent energy-saving and reduce noise. 40 CMU l l S 9703 MCUA with a CMU integrated S 9706 /12 with one CMU configured One more CMU can be configured to implement 1+1 backup Suggestion: not needed CMU faults do not affect service

S 9700 Configuration l Chassis l LPU l Optical module l Software and license

S 9700 Configuration l Chassis l LPU l Optical module l Software and license l Installation auxiliaries l S 7700 S 9703 41 S 9706 S 9712

Chassis Optical module LPU - S/F/E/B Type High-end (Super-large specification) Series Sub-series Software and

Chassis Optical module LPU - S/F/E/B Type High-end (Super-large specification) Series Sub-series Software and license Main Features Native AC X 1 E series Unified user management i. PCA Cluster cable Installation auxiliaries Others Orientation Suggestion: Aggregation of campus and data center With an X 1 E card, an S 9700 can be upgraded to an agile switch. Netstream/MPLS s. Flow S series SA LPU Not support MPLS Not support external TCAM Standard (Low specification) FA LPU F series FC LPU EA LPU E series Enhanced (High specification) EC LPU ED LPU s. Flow MPLS Not support external TCAM Netstream MPLS External TCAM 1. 25 GB large buffer B series BC LPU Other specifications are the same as those of EC series 1. 2. 3. Suggestion: Access of campus and data center Suggestion: Aggregation of campus and data center Suggestion: Data center and video scenario Series: S/ E / F /B: function extension Sub-series (default): A: 32 K MAC C: 128 K MAC D: 512 K MAC (The number of MAC address entries, FIB entries, and ACL entries is modified in different scenarios) 42 X 1 E: MAC 1 MB, FIB: 1 MB (256 K by default, which can be expanded using License)

Special LPUs S 9700 provides multiple special LPUs for your selection. Type Functions Remarks

Special LPUs S 9700 provides multiple special LPUs for your selection. Type Functions Remarks S 9703 does not need CMU S 9706/9712 supports CMUs in 1+1 mode. The chassis includes one CMU. You can configure a redundant CMU Monitors and manages the power in the chassis Monitors and manages fans WLAN ACU 2 wireless access control card (128 AP) WLAN AC This card is available for S 12700, S 9700, and S 7700. 8 -port 10 GE cluster subcard (SFP+) S 9700 cluster subcard This card is installed on SRUC. 43

Special LPUs Type NGFW-10 G NGFW B-20 G NGFW C-40 G Intrusion defense and

Special LPUs Type NGFW-10 G NGFW B-20 G NGFW C-40 G Intrusion defense and detection card A-12 G Functions Firewall NAT SLB IPSec Net. Stream SSL VPN/DVPN/GRE/L 2 TP) Anti-DDos IPS IDS Remarks The NGFW card provides multiple functions, which can be enabled simultaneously. This card is available for S 12700, S 9700, and S 7700. The NGFW card provides multiple functions, which can be enabled simultaneously. This card is available for S 12700 and S 9700. This card is available for S 12700, S 9700, and S 7700. 44

Chassis Cluster SR UC SFU cluster: supported by S 9706 /12 SFU LPU Optical

Chassis Cluster SR UC SFU cluster: supported by S 9706 /12 SFU LPU Optical module Software and license Cluster cable Installation auxiliaries Others V is V av (2 2 R aila 01 3 b le 3 Q 2 ) in Service port cluster: supported by S 9706 /12 Intra-rack/inter-site SFU Fibers between cities an 2 R ve d l 2 rs ate io r ns Intra-rack Site 1 S 7700 LPU … LPU Chassis 1 LPU … LPU Cluster/stack cable Site 2 80 km per hop S 5700 S 9700 City A City B Chassis 2 Packets Configuration tips: n CSS bandwidth: 320 Gbit/s non-blocking cluster bandwidth n Upgraded to 640 Gbit/s n Only supported by V 2 R 3 SRUC Not supported by S 9703/S 7703 clusters 45 Configuration tips: n Cluster bandwidth: 1280 Gbit/s, load balancing supported n LPUs on the two chassis: n 1: 1 or 2: 2; 2: 1 not supported n Identical port rates n Stack cable or fiber S 5700

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Others Service Port

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Others Service Port Cluster: LPU + Stack Cable V 200 R 002 and later versions support service port cluster. A cluster can be set up through cables or fibers. Service port clustering has the following constraints: • A service port cluster can be set up using only one LPU in the local chassis (one LPU in the peer chassis) or two LPUs in the local chassis (two LPUs in the peer chassis). However, two cluster cards cannot be connected to the same cluster card. • The 10 G service port cluster can be set up through 1 m passive SFP+ cables, 3 m passive SFP+ cables (not supported by X 12 S), 10 m active SFP+ cables, and SFP+ optical modules plus fibers. • The 40 G service port cluster can be set up through 1 m passive QSFP+ cables, 3 m passive QSFP+ cables, 5 m passive QSFP+ cables, and QSFP+ optical modules plus fibers. • The S 9706/S 9712 supports service port clustering. Only ports working at the same rate can be configured as cluster ports. The following table lists the cards supporting service port clustering. • The 10 GE and 40 GE ports on the S 9700 can be used to set up cluster. You can select SFP+ optical modules and matching fibers to set up clusters through service ports. Alternatively, you can select the following cluster cables. Port Type Number of Ports Software Version 12*10 G SFP+ 12 V 2 R 1 C 01, V 2 R 2 and later versions 1 m passive SFP+ 10 m active SFP+ 40*10 G 16*10 G 8*10 G Two available in V 2 R 2 2*40 GE SFP+ 40 16 V 2 R 2 and later versions SFP+ 8 1 m passive SFP+ 3 m passive SFP+ 10 m active SFP+ QSFP+ 2 V 2 R 2 and later versions 1 m passive QSFP+ 3 m passive QSFP+ 5 m passive QSFP+ Card 8*40 GE QSFP+ 8 46 Cable Fiber Optical module: 10 G SFP+ highspeed optical module Fiber: LC interface Optical module: 02310 MHQ Fiber: MPO interface

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Others SFU Cluster:

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Others SFU Cluster: Cables for CSS Cards – S 77/S 97 The CSS card is installed on the SRUCs of S 9712/S 9706, and is optional (The cluster cables are not delivered with cluster cards, and need to be configured independently. ) The CSS cards need to be configured in pairs. When the cluster cards are configured (cluster cables are not delivered with cluster cards), the cluster can be set up through SFP+ cables, SFP+ optical modules, or AOC cables. The cluster connection scheme is as follows: • Cable: 16 high-speed SFP+ cables, 1 m, 3 m, and 10 m • Fiber: used together with SFP+ optical modules Cluster connection rule is shown in the following figure: On a cluster card, ports 1 -4 belong to group 1 and ports 5 -8 belong to group 2. The connections between cluster cards must meet the following requirements: • Ports in group 1 on one card must connect to ports in group 1 on another card. This rule also applies to ports in group 2. • A port in group 1 on one card can connect to any port in group 1 on another card. This rule also applies to ports in group 2. • Ports in group 1 and group 2 on one card must connect to different cards. 47

S 9700 Configuration l Chassis l LPU SFP/e. SFP+ l Optical module l Software

S 9700 Configuration l Chassis l LPU SFP/e. SFP+ l Optical module l Software and license l Installation auxiliaries l S 7700 QSFP+ 48 XFP 10 GE CWDM DWDM

Chassis LPU Optical module Software and license Optical Module Overview Type SFP Optical Module

Chassis LPU Optical module Software and license Optical Module Overview Type SFP Optical Module FE FE FE BIDI GE BIDI e. SFP POS GE CWDM (not supported) GE DWDM (not supported) GE SFP+ 10 GE XFP 10 GE CWDM S 9700 supports LC/PC l The optical modules on two ends must have three identical parameters: 10 GE DWDM QSFP+ MPO <150 m multi-mode LC < 10 Km single-mode 40 GE 49 Others Precautions • If transmission distance is longer than 40 km, XFP is recommended. • Currently, SFP+ standard is not mature for the distance longer than 40 km. • Electrical port module • FE Installation auxiliaries Connector Peer port (onsite survey required) LC/PC SC/PC FC/PC ST/PC GE Cluster cable • Transmission distance • Mode: single or dual • Center wavelength l Interpretability: SFP+ XFP l BIDI: wavelengths on two ends match TX 1490/ RX 1310 TX 1310/ RX 1490 l CWDM optical module Connects switches to WDM Supports all 10 G XFP LPUs, but does not support SFP+ LPU *BIDI –single-core bidirectional Fiber configuration

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Others Optical Module

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Others Optical Module Special Configuration Optical Module 02310 CNF OSX 040 N 01 LPU SFP+, 10 G, Single-mode Module 12 x 10 GE (1550 nm, 40 km, LC) 8 x 10 GE Precautions LRM optical module l Replacing old devices: OM 1/2 fibers need to be deployed, and the old fibers are also required. 02310 JFE LE 2 MXSC 80 FF 0 SFP+, 10 G, Single-mode Module 8 x 10 GE (1550 nm, 80 km, LC) l The new fibers are OM 3 fibers. l Only 16*10 G and 40*10 G are supported. 02310 CRM OSXD 22 N 00 SFP+, 10 G, Multi-mode Module (1310 nm, 0. 22 km, LC, LRM) 50 40 x 10 GE 16 x 10 GE l OM 3 fibers can be used together with OM 1 and OM 2 fibers.

S 9700 Configuration l Chassis l LPU l Optical module l Software and license

S 9700 Configuration l Chassis l LPU l Optical module l Software and license l Installation auxiliaries l S 7700 S 9703 51 S 9706 S 9712

Chassis LPU Optical module Software and License Software and license Cluster cable Installation auxiliaries

Chassis LPU Optical module Software and License Software and license Cluster cable Installation auxiliaries Others Configuration Item Software fee-S 9700 basic software, V 200 R 001 Software fee-S 9700 basic software, V 200 R 002 Software fee-S 9700 basic software, V 200 R 003 S 9700 basic software, V 200 R 005 MPLS NQA IPV 6 X-series LPU FIB Resource License-128 K Select a software package according to customer needs. By default, the mainstream software package in the supply chain is delivered. Used together with X 1 E cards, and installed on MPUs. Customers can purchase multiple licenses. The number of resources used by all X 1 E cards cannot exceed the total number of resources supported by all purchased licenses. X-series LPU FIB Resource License-512 K WLAN Access Controller AP Resource License-512 AP (with the X-series LPU used) Used together with X 1 E cards, and installed on MPUs. Customers can purchase WLAN Access Controller AP Resource License-128 AP (with the X-series multiple licenses. The number of resources used by all X 1 E cards cannot exceed LPU used) WLAN Access Controller AP Resource License-64 AP (with the X-series LPU the total number of resources supported by all purchased licenses. used) WLAN Access Controller AP Resource License-16 AP (with the X-series LPU used) Used together with ACU 2 cards, and installed on ACU 2. Customers can purchase multiple licenses. The number of resources used by all ACU 2 cards cannot exceed the total number of resources supported by all purchased licenses. ACU 2 Wireless Access Controller AP Resource License(128 AP) This AP license is used separately with the AP license of X 1 E card. ACU 2 cannot use the AP license of X 1 E card, and the X 1 E card cannot use the AP license of ACU 2. 52

S 9700 Configuration l Chassis l LPU l Optical module l Software and license

S 9700 Configuration l Chassis l LPU l Optical module l Software and license l Installation auxiliaries l S 7700 Single mode (Orange) QSFP+ && 4 SFP + Fiber 53 Multi-mode (Green) QSFP + && QSFP + Fiber

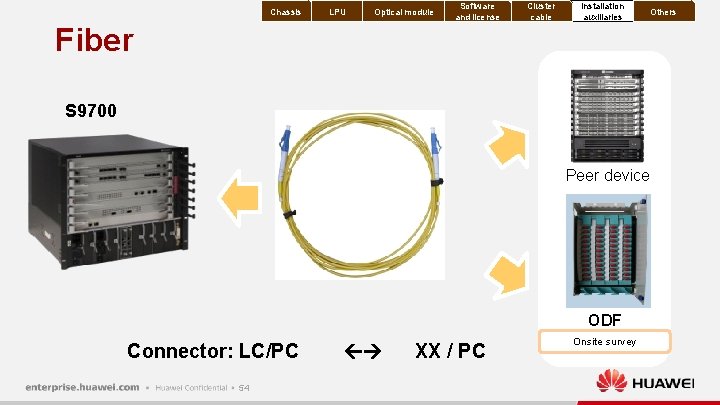

Chassis LPU Optical module Fiber Software and license Cluster cable Installation auxiliaries Others S

Chassis LPU Optical module Fiber Software and license Cluster cable Installation auxiliaries Others S 9700 Peer device ODF Connector: LC/PC 54 XX / PC Onsite survey

Chassis LPU Optical module Jumper Connector Software and license Cluster cable Installation auxiliaries Others

Chassis LPU Optical module Jumper Connector Software and license Cluster cable Installation auxiliaries Others Fiber Connector SC/PC LC/PC FC/PC ST/PC MTRJ/PC MPO Square Circle LC/PC - LC/PC Jumper Precautions l. One end connects to the S 9700 and the other end connects to ODF or peer device. l S 9700 uses LC/PC. The peer port type is determined after onsite survey. LC/PC pigtail 55

S 9700 Configuration l Chassis l LPU l Optical module l Software and license

S 9700 Configuration l Chassis l LPU l Optical module l Software and license l Installation auxiliaries l S 7700 (The configuration principle of S 7700 is the same as that of S 9700. Only the differences are listed here. ) 56

Chassis MPU – SRUA LPU Optical module Software and license Console port Ethernet port

Chassis MPU – SRUA LPU Optical module Software and license Console port Ethernet port 512 Gbps switching capacity l Max power consumption 81 W l Integrated SFU l Installation auxiliaries Others SRUB MCUA S 7706/S 7712 -SRUA/SRUB SRUA Cluster cable SRUB Clock synchronization Ethernet port Console port (2) 1 Tbps switching capacity l Max power consumption 105 W l Integrated SFU l S 7703 -MCUA MON RS 485 l l SRU tips FSUA: supports hardware OAM/BFD CSS (VSTSA) subcard: supports SFU cluster l FSUA and VSTSA use the same SRU slot, so they cannot be installed in the same chassis. l MPUs in 1+1 mode are recommended. l The chassis contains a clock subcard (installed on MPU) l l 57 Ethernet port Console port Integrated monitoring unit Max power consumption 18 W No FSUA or VSTSA No SFU Functions of SRUA SRUB MCUA: l Processes protocols and controls forwarding. l Monitors component status. l Performs management and maintenance according to user instructions.

CSS & FSU CSS unit SRU + l. High CSS cluster bandwidth forwarding l.

CSS & FSU CSS unit SRU + l. High CSS cluster bandwidth forwarding l. High reliability l. Non-block FSU l. Ethernet SRU 58 + l. CPU FSU OAM, MPLS OAM, BFD anti-Do. S l. Network Quality Analysis (NQA)

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Po. E Card

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Po. E Card -- Powering PDs Scenario Po. E card • Provides forty-eight GE electrical ports for data access and line-speed switching. • Provides data signals and DC power for the directly connected devices such as IP phones, APs, and network cameras. Item Specification Powering capacity on one port A maximum of 30 W The maximum power can be provided for 293 ports. Standards compliance 802. 3 af and 802. 3 at MAC 32 K IP IPv 4: 32 K, IPv 6: 16 K ARP 16 K ACL Inbound: 6000 MPLS VPN MPLS L 2 VPN, MPLS L 3 VPN 59 Others

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Others Po. E

Chassis LPU Optical module Software and license Cluster cable Installation auxiliaries Others Po. E and Powering Mode 800 W AC 2200 W AC Operating voltage: 90 V-290 V Output: 400 W @110 V 800 W @220 V Output: 1100 W @110 V 2200 W @220 V Note: 2200 W AC and 800 W AC cannot be installed in the same chassis. Chassis S 7703 S 7706 S 7712 Po. E AC Power Supply (220 V) Backup Max Power 2200 W No 2200 W 800 W No 800 W 2200 W 1+1, 2+2, 3+1, 4+0 8800 W 1+1, 2+2, 3+1, 4+0 3200 W 60 Tips l POE function must: POE power + POE LPU l System power and Po. E power need to be configured at the same time. * Huawei unprecedentedly separates system power and Po. E power, facilitating maintenance and lowering CAPEX.

Contents 1. Campus Switch SX 7 Series Family 2. Chassis Switch Configuration Guide 3.

Contents 1. Campus Switch SX 7 Series Family 2. Chassis Switch Configuration Guide 3. Box Switch Configuration Guide 61

Box Switch: S 5700 l S 5700 Chassis l LPU l Stack l Power

Box Switch: S 5700 l S 5700 Chassis l LPU l Stack l Power Supply l Auxiliaries 62

Overview S 5700 Cards Stack Power Auxiliaries S 5700 Configuration Overview Precautions Product model

Overview S 5700 Cards Stack Power Auxiliaries S 5700 Configuration Overview Precautions Product model • LI SI EI HI Subcard (includes stack card) Power supply Auxiliaries Fiber Optical module 63 l Model l Series l Whether PWR is supported l Whether stack is supported l Port types l Some models have built-in power supplies. You need to configure power supplies for the models without built-in power supplies. l Some models support subcards, and some do not. l The configuration principles of the following components are the same as those of S 9700: l Optical module l Jumper l Cable

Overview S 5700 Cards S 5700 Orientation u Qo. S: RR, DRR, PQ, WRR+PQ,

Overview S 5700 Cards S 5700 Orientation u Qo. S: RR, DRR, PQ, WRR+PQ, DRR+PQ u Security: IPSG, DAI, DCHP snooping u Reliability: G. 8032, SEP, LACP u O&M Automatic configuration and upgrade 5720 -HI Box agile switch HI Advanced GE switch EI Enhanced GE switch SI Standard GE switch LI Simplified GE switch 64 Stack Auxiliaries SDN, integrated AC capability, i. PCA, unified user management, 1. 5 GB buffer, 1 MB FIB MPLS, Net. Stream, hardware Ethernet OAM/BFD OSPF, BGP, 32 K MAC, PIM, MPLS, Net. Stream RIP, RIPng, 16 K MAC Power

S 5700 Chassis Product MAC VLANIF ARP IP Routing Protocol MPLS Stack NMS 5720

S 5700 Chassis Product MAC VLANIF ARP IP Routing Protocol MPLS Stack NMS 5720 -HI 128 M 1024 128 K 1 M RIP/OSPF/BGP/ISIS and RIPv 6/OSPFv 6/BGPv 6/ISISv 6 Yes Roadmap SNMP/WEB/CLI/ TELNET S 5710 HI 456 K 1024 60 K 16 K RIP/OSPF/BGP/ISIS and RIPv 6/OSPFv 6/BGPv 6/ISISv 6 Yes Roadmap SNMP/WEB/CLI/ TELNET RIP/OSPF/BGP/ISIS and RIPv 6/OSPFv 6/BGPv 6/ISISv 6 Yes 5700 HI 32 K 1024 16 K IPv 4: 12 K IPv 6: 6 K 5710 -EI 32 K 256 16 K IPv 4: 16 K IPv 6: 8 K RIP/OSPF/BGP/ISIS and RIPv 6/OSPFv 6/BGPv 6/ISISv 6 Yes 5700 -EI 32 K 256 8 K IPv 4: 16 K IPv 6: 8 K RIP/OSPF/BGP/ISIS and RIPv 6/OSPFv 6/BGPv 6/ISISv 6 No 5700 -SI 16 K 256 8 K IPv 4: 4 K IPv 6: 2 K IPv 4: RIP IPv 6: RIPng No 5700 -LI 16 K 1 256 IPv 4: 16 IPv 6: 16 65 Static route No Supported by V 2 R 3; long-distance stack; a maximum of 80 Gbps bidirectional bandwidth Long-distance stack; a maximum of 160 Gbps bidirectional bandwidth 1 m/3 m distance; a maximum of 48 Gbps bidirectional bandwidth 20 Gbps/40 Gbps bidirectional bandwidth, depending on stack cables (not supported by some models) SNMP/WEB/CLI/ TELNET SNMP/WEB/CLI/ TELNET

S 5700 Chassis Product Model S 5700 S-LI series S 5700 S-28 P-LI-AC S

S 5700 Chassis Product Model S 5700 S-LI series S 5700 S-28 P-LI-AC S 5700 S-52 P-LI-AC S 5700 -P-LI common S 5700 -10 P-LI-AC S 5700 -28 P-LI-DC S 5700 -52 P-LI-AC S 5700 -52 P-LI-DC S 5700 -10 P-PWR-LI-AC S 5700 -28 P-PWR-LI-AC S 5700 -52 P-PWR-LI-AC S 5700 -X-LI common S 5700 -28 X-LI-AC S 5700 -28 X-LI-DC S 5700 -52 X-LI-AC S 5700 -52 X-LI-DC S 5700 -28 X-LI-24 S-AC S 5700 -28 X-LI-24 S-DC S 5700 -28 X-PWR-LI-AC S 5700 -52 X-PWR-LI-AC Battery switch S 5700 -28 P-LI-BAT S 5700 -28 P-LI-4 AH S 5700 -28 P-LI-24 S-BAT S 5700 -28 P-LI-24 S-4 AH MAC 8 K Sleep Mode Stack N Y Power Redundancy Depth Management Port RPS 220 mm RJ 45 interface, console (mini USB) USB RPS S 5700 -10 P-LI-AC: 180 mm S 5700 -28 P-LI-AC: 220 mm S 5700 -28 P-LI-DC: 220 mm S 5700 -52 P-LI-AC: 310 mm S 5700 -52 P-LI-DC: 310 mm S 5700 -10 P-PWR-LI-AC: 220 mm S 5700 -28 P-PWR-LI-AC: 310 mm S 5700 -52 P-PWR-LI-AC: 310 mm RJ 45 interface, console (mini USB) USB Y (except 10 P mode) Y (except Po. E models) 16 K Y Y (except Po. E models and models providing optical ports) RPS S 5700 -28 X-LI-AC: 220 mm S 5700 -28 X-LI-DC: 220 mm S 5700 -52 X-LI-AC: 310 mm S 5700 -52 X-LI-DC: 310 mm S 5700 -28 X-LI-24 S-AC: 220 mm S 5700 -28 X-LI-24 S-DC: 220 mm S 5700 -28 X-PWR-LI-AC: 310 mm S 5700 -52 X-PWR-LI-AC: 310 mm 16 K N N Battery 310 mm RJ 45 interface RPS 220 mm RJ 45 interface, console (mini USB) USB 16 k Power-prepositive switches S 5701 -28 X-LI-AC S 5701 -28 X-LI-24 S-AC 16 K Y Y (except the models providing optical ports) CSFP switch S 5700 -52 X-LI-48 CS-AC 16 K Y N 66

Overview S 5700 Cards Stack Power Auxiliaries S 5700 Service Card ES 5 D

Overview S 5700 Cards Stack Power Auxiliaries S 5700 Service Card ES 5 D 000 X 4 S 00 ES 5 D 000 X 2 S 00 ES 5 D 000 G 4 S 00 ES 5 D 00 G 4 SA 00 l 4*10 GE SFP+ 2*10 GE SFP+ Applied to S 5700 SI; adaptive to GE optical/electrical modules • Applied to S 5700 EI; not adaptive to GE • For 5700 EI/SI/LI 4*10 GE SFP+ 2*10 GE SFP+ For 5700 EI/SI/LI 2*10 GE SFP+ 8*GE SFP For EI For LI/SI 4*GE SFP 8*GE Base-T 67 l Only applied to 5710 -EI l 10 GE SFP+ subcard, adaptive to GE optical/electrical modules

Overview S 5700 Cards Stack Power Auxiliaries S 5700 Service Card l Only applied

Overview S 5700 Cards Stack Power Auxiliaries S 5700 Service Card l Only applied to 5700 -HI 10 GE SFP+ sub-card, adaptive to GE optical/electrical modules l 4*10 GE SFP+ 2*10 GE SFP+ 4*GE SFP Only applied to 5720 -HI l. Adaptive to GE optical/electrical modules 4*10 GE SFP+ 68 16*GE SFP 16*GE Base-T Only applied to 5710 -HI l 10 GE SFP+ sub-card, adaptive to GE 4*40 GE QSFP+ optical/electrical modules 4*10 GE SFP+ l

Overview S 5700 Stack Overview Stack Card Stack Service Port Stack S 5700 Cards

Overview S 5700 Stack Overview Stack Card Stack Service Port Stack S 5700 Cards Stack Power Auxiliaries Stack Mode Stack Card Stack Service Port Stack Models S 5700 -SI S 5700 -EI S 5710 -LI S 5700 -LI S 5710 -EI S 5700 -HI Stacks 9 9 Stack distance 1 m (LI/ SI /EI) 3 m (EI) * Stack cable is delivered with stack card. 5710 -EI&S 5700 -HI supports long-distance (<=80 km) stack using fibers. 5700 X-LI&5710 -EI support 1 m, 3 m, and 10 m stacks using SFP+ cables. 5700 P-LI supports 1 m and 10 m stacks using SFP+ cables Stack bandwidth Two stack ports 48 Gbps bidirectional bandwidth S 5700 -LI: 20 Gbps (1 m cable)/40 Gbps (10 m cable) bidirectional S 5710 -EI: 160 Gbps bidirectional S 5700 -HI: 80 Gbps bidirectional Structure Chain or ring Dual-active detection Supported Redundancy 1: N Configuration management A logical device: unified configuration (CLI), IP address, SNMP and system log After stack setup Unified routing table and MAC address table Configuration tips: (1) A stack is set up using either service ports or stack cards. (2) Different models cannot set up a stack (for example, SI and EI cannot set up a stack). (3) 5700 -X-LI and 5700 -P-LI cannot set up a stack. (4) The stack consisting of S 5710 -HI and S 5720 -HI will be supported in later versions. 69

Overview S 5700 Cards Stack Power Auxiliaries Stack Card List Product Stack Mode S

Overview S 5700 Cards Stack Power Auxiliaries Stack Card List Product Stack Mode S 5700 -SI Stack card S 5700 -EI S 5700 -LI S 5710 -EI Stack card Service port Description Ethernet stack interface card (delivered with 100 cm cable) Ethernet stack interface card (delivered with 300 cm cable) Ethernet stack interface card (delivered with 100 cm cable) Service port A maximum of nine S 5700 switches can be added Ethernet stack interface card (delivered with 300 cm cable) to a stack. The switches are stacked through stack SFP+ stack cable (100 cm, two stack modules) cards or service ports. The stack card can be SFP+ stack cable (300 cm, two stack modules) installed in only the rear slot. To set up a stack SFP+ active high-speed cable (1000 cm, two stack modules) through service ports, select SFP+ optical 3 m AOC stack fiber 10 m AOC stack fiber modules and matching fibers, or stack cables of SFP+ stack cable (100 cm, two stack modules) different lengths. SFP+ stack cable (300 cm, two stack modules) Note: SFP+ active high-speed cable (1000 cm, two stack modules) If stack cards are used, only the 2*10 GE card can 3 m AOC stack fiber 10 m AOC stack fiber be installed in the front slot. S 5700 SI and S 5700 EI SFP+ stack cable (100 cm, two stack modules) S 5700 -HI Remarks support 3 m stack cables. S 5700 LI, S 5710 EI, and SFP+ stack cable (300 cm, two stack modules) S 5700 HI can set up long-distance stack using SFP+ active high-speed cable (1000 cm, two stack modules) SFP+ optical modules. 3 m AOC stack fiber 10 m AOC stack fiber 70

Overview S 5700 Cards Power Configuration Overview Plan 2: Dual power supplies on Po.

Overview S 5700 Cards Power Configuration Overview Plan 2: Dual power supplies on Po. E model Plan 1: Dual power supplies on non-Po. E model Stack Power Auxiliaries Plan 3: Built-in power and external RPS ØHot swapping ØA maximum of 30 W power on each port ØA single built-in power supply provides 370 W Po. E power Ø Hot swapping ØA maximum of 30 W power on each port ØAC or DC power supply Ø 250 W and 500 W Po. E power supplies Ø AC and DC power supplies Ø 1+1 backup or share mode RPS is used ØA maximum of 740 W Po. E power provided after backup power supply is used ØApplied to all models except the Po. E Note: Share mode is not supported. That is, 740 models of S 5700 -LI W + 370 W = 1110 W Po. E power is not supported. cannot be installed on the same S 5700 -C. Ø AC and DC power supplies can be installed on the same S 5710 -E. Ø 740 W Po. E power provided after external Ø Applied to Po. E models of S 5700 -LI 71

Overview S 5700 Cards Stack Power RPS 1800: External Redundant Power of S 5700(P/X/S)-LI

Overview S 5700 Cards Stack Power RPS 1800: External Redundant Power of S 5700(P/X/S)-LI Non-Po. E Auxiliaries Po. E 800 W power module l l Support a maximum of 5 devices Seamless power system switching when the built-in power supply is faulty l External Po. E: • Support 2 Po. E devices • 740 W Po. E power provided for each device • Each RPS device requires a 800 W power supply RPS and the built-in 370 W Po. E power supply back up each other: l • 740 W Po. E power provided by each device Two 800 W power supplies required to provide Po. E power for another device. • 72

Box Switch Power Configuration Guide l Various power supplies are available for box switches.

Box Switch Power Configuration Guide l Various power supplies are available for box switches. Configure power according to the following document: 73

Overview S 5700 Auxiliaries- S 2700&3700&5700 Component Parameter Port protection unit Power Auxiliaries Remarks

Overview S 5700 Auxiliaries- S 2700&3700&5700 Component Parameter Port protection unit Power Auxiliaries Remarks S 27&37&57 (1) Need to be configured if power surge protection is required (2) One module for each RJ 45 interface (3) Must be grounded S 27&37&57 (1) Need to be configured if power surge protection is required (2) Only applied to AC power supply (3) One for each AC power supply (4) Must be grounded Shared by multiple devices USB flash drive 1 GB / USB 2. 0 S 27&37&57 SFP stack card 150 cm, including two stack modules S 3700 Ethernet stack card Includes 100 cm and 300 cm stack cables S 5700 74 Stack Product     Power surge protection module Cards (1) One card for each device (2) S 3700 s cannot set up stacks with other models (3) S 3700 -EI cannot set up stacks with S 3700 -SI (1) One card for each device (2) Cannot be installed on the same chassis with 4 x. GE or 4 x 10 GE (3) S 5700 s cannot set up stacks with other models (4) S 5700 -EI cannot set up stacks with S 5700 -SI
