68402 Structural Design of Buildings II Design of

68402: Structural Design of Buildings II Design of Connections Monther Dwaikat Assistant Professor Department of Building Engineering An-Najah National University 68402/61420 Slide # 1

Bolted Connections l l l l Types of Connections Simple Bolted Shear Connections Bearing and Slip Critical Connections Eccentric Bolted Connections Moment Resisting Bolted Connections Simple Welded Connections Eccentric Welded Connections Moment Resisting Welded Connections 68402/61420 2

Types of Connections Simple Connections Bolted Connections Common Bolts Eccentric Connections Welded Connections High Strength Bolts Slip Critical Filet Weld Groove Weld Bearing Type 68402/61420 3

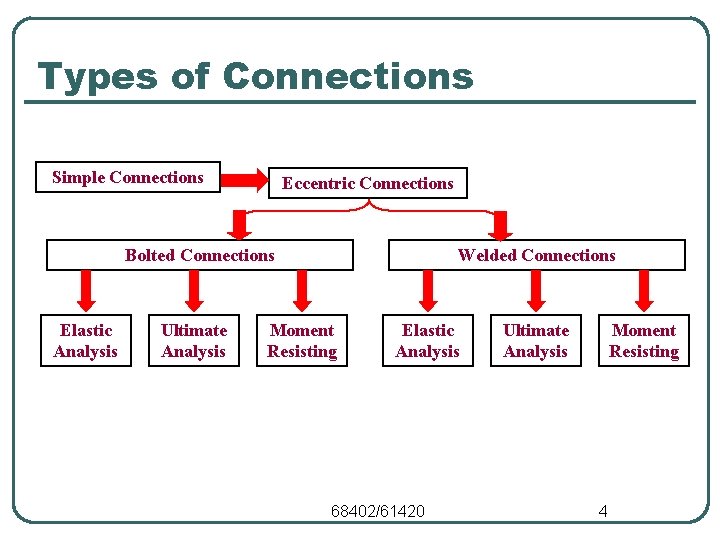

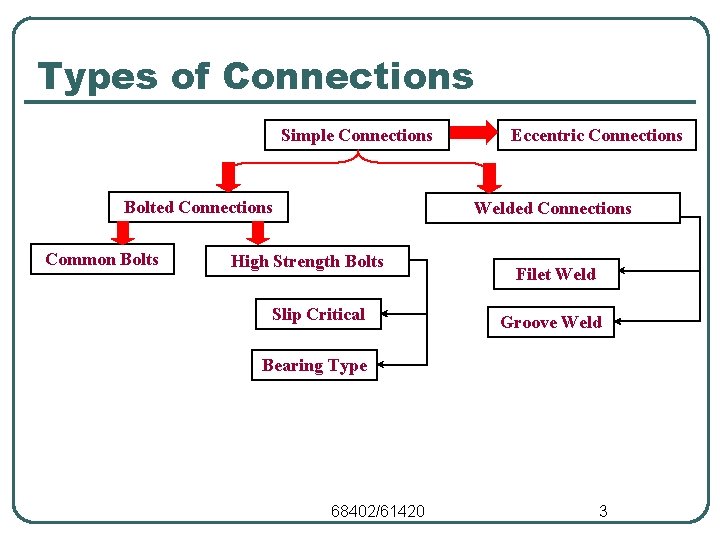

Types of Connections Simple Connections Eccentric Connections Bolted Connections Elastic Analysis Ultimate Analysis Welded Connections Moment Resisting Elastic Analysis 68402/61420 Ultimate Analysis Moment Resisting 4

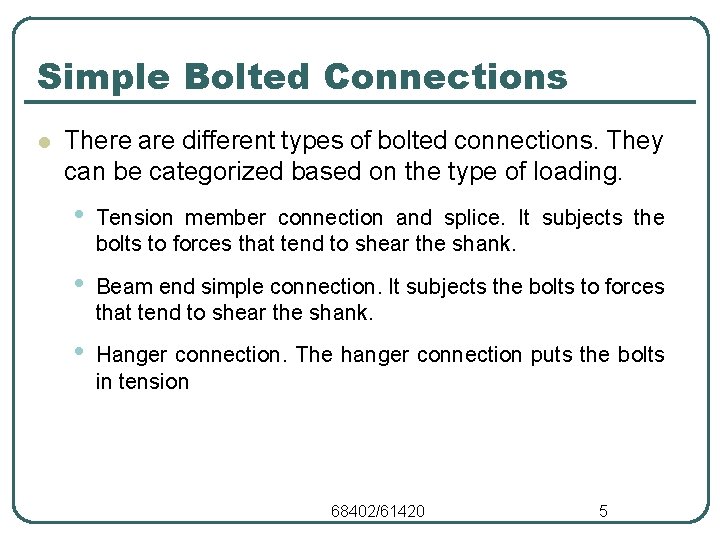

Simple Bolted Connections l There are different types of bolted connections. They can be categorized based on the type of loading. • Tension member connection and splice. It subjects the bolts to forces that tend to shear the shank. • Beam end simple connection. It subjects the bolts to forces that tend to shear the shank. • Hanger connection. The hanger connection puts the bolts in tension 68402/61420 5

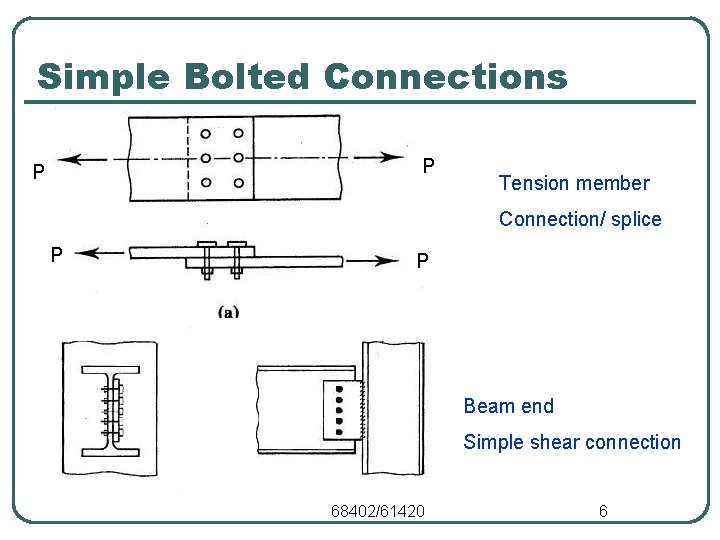

Simple Bolted Connections P P Tension member Connection/ splice P P Beam end Simple shear connection 68402/61420 6

Simple Bolted Connections P P P Hanger connection (Tension) Moment resisting connection 68402/61420 7

Simple Bolted Connections The bolts are subjected to shear or tension loading. l • • • In most bolted connection, the bolts are subjected to shear. Bolts can fail in shear or in tension. You can calculate the shear strength or the tensile strength of a bolt l Simple connection: If the line of action of the force acting on the connection passes through the center of gravity of the connection, then each bolt can be assumed to resist an equal share of the load. l The strength of the simple connection will be equal to the sum of the strengths of the individual bolts in the connection. 68402/61420 8

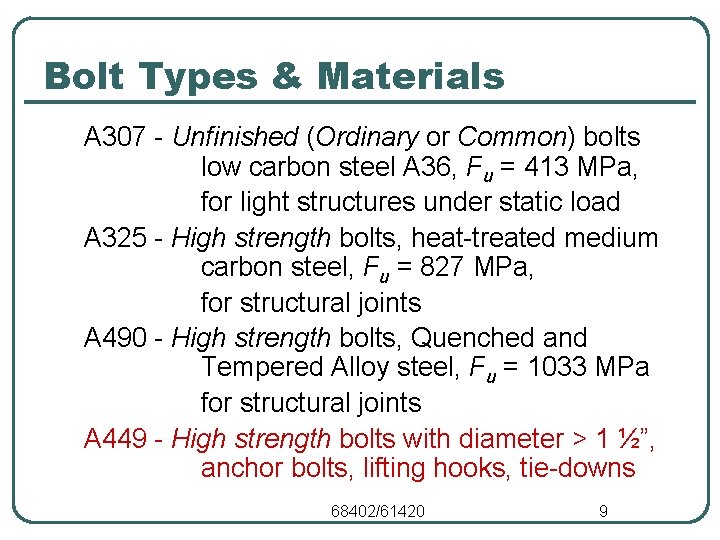

Bolt Types & Materials A 307 - Unfinished (Ordinary or Common) bolts low carbon steel A 36, Fu = 413 MPa, for light structures under static load A 325 - High strength bolts, heat-treated medium carbon steel, Fu = 827 MPa, for structural joints A 490 - High strength bolts, Quenched and Tempered Alloy steel, Fu = 1033 MPa for structural joints A 449 - High strength bolts with diameter > 1 ½”, anchor bolts, lifting hooks, tie-downs 68402/61420 9

Common Bolts l l ASTM A 307 bolts Common bolts are no longer common for current structural design but are still available 68402/61420 10

High Strength Bolts l High strength bolts (HSB) are available as ASTM A 325 and ASTM A 490 Courtesy of Kao Wang Screw Co. , Ltd. Slip Critical q Advantages of HSB over A 307 bolts Bearing Type n Fewer bolts will be used compared to 307 ècheaper connection! n Smaller workman force required compared to 307 n Higher fatigue strength n Ease of bolt removal èchanging connection 68402/61420 11

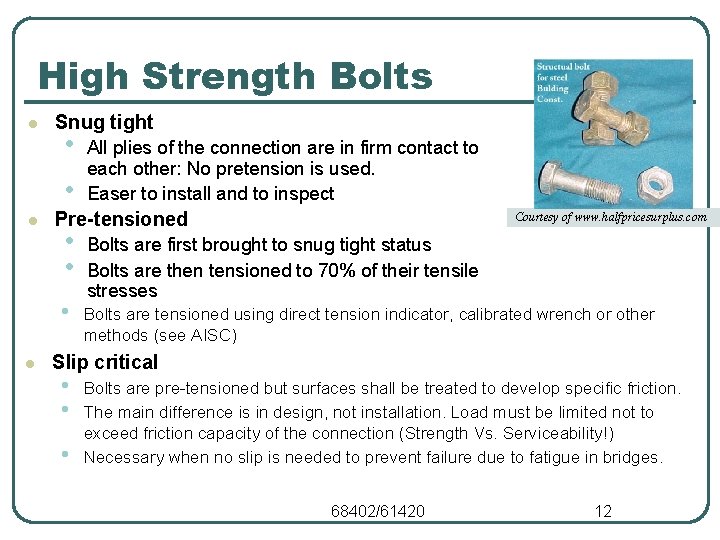

High Strength Bolts l Snug tight • • l Pre-tensioned • • • l All plies of the connection are in firm contact to each other: No pretension is used. Easer to install and to inspect Courtesy of www. halfpricesurplus. com Bolts are first brought to snug tight status Bolts are then tensioned to 70% of their tensile stresses Bolts are tensioned using direct tension indicator, calibrated wrench or other methods (see AISC) Slip critical • • • Bolts are pre-tensioned but surfaces shall be treated to develop specific friction. The main difference is in design, not installation. Load must be limited not to exceed friction capacity of the connection (Strength Vs. Serviceability!) Necessary when no slip is needed to prevent failure due to fatigue in bridges. 68402/61420 12

HSB – Bearing Type Connections l The shear strength of bolts shall be determined as follows AISC Table J 3. 2 The table bellow shows the values of fv (MPa) for different types of bolts • Type N Thread Type X Thread A 325 330 413 A 490 413 517 If the level of threads is not known, it is conservative to assume that the threads are type N. 68402/61420 13

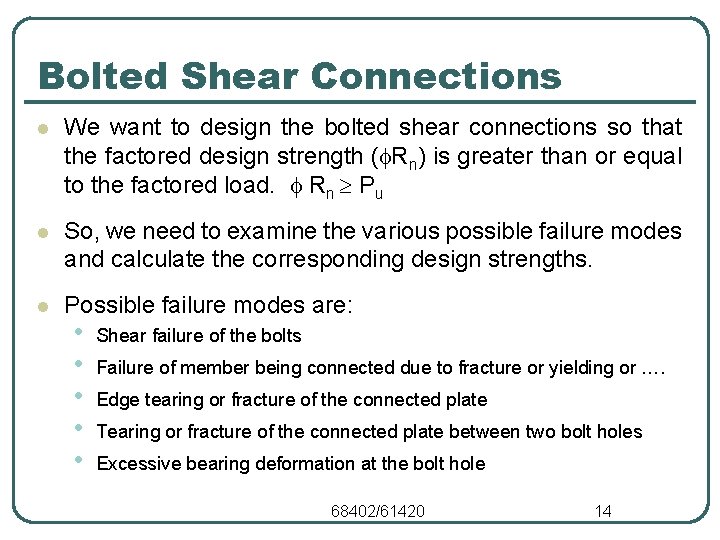

Bolted Shear Connections l We want to design the bolted shear connections so that the factored design strength ( Rn) is greater than or equal to the factored load. Rn Pu l So, we need to examine the various possible failure modes and calculate the corresponding design strengths. l Possible failure modes are: • • • Shear failure of the bolts Failure of member being connected due to fracture or yielding or …. Edge tearing or fracture of the connected plate Tearing or fracture of the connected plate between two bolt holes Excessive bearing deformation at the bolt hole 68402/61420 14

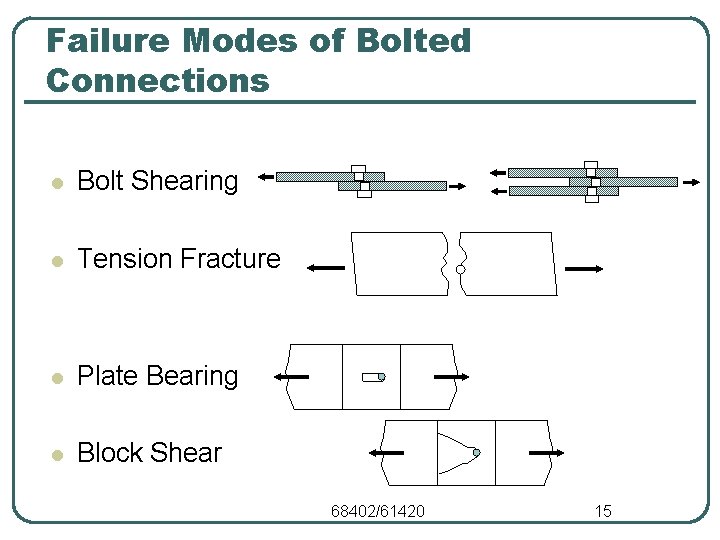

Failure Modes of Bolted Connections l Bolt Shearing l Tension Fracture l Plate Bearing l Block Shear 68402/61420 15

Actions on Bolt Shear, bearing, bending P P P Lap Joint P Bearing and single plane Shear P P Bending Butt Joint P/2 P Bearing and double plane Shear P/2 P P/2 68402/61420 16

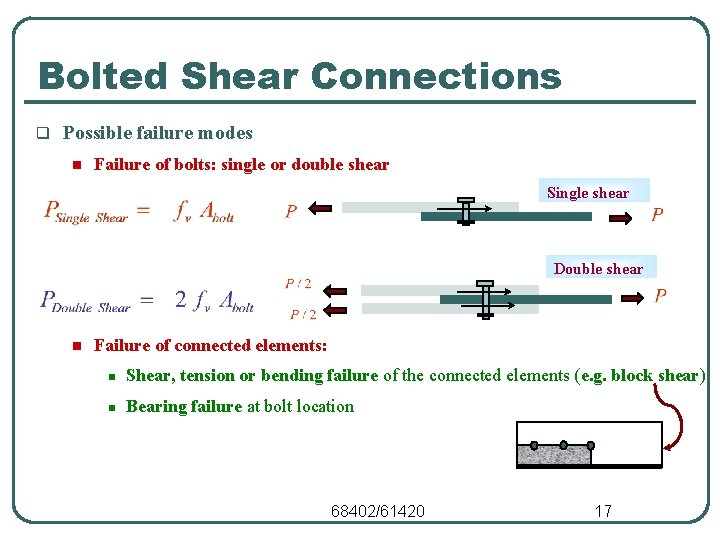

Bolted Shear Connections q Possible failure modes n Failure of bolts: single or double shear Single shear Double shear n Failure of connected elements: n Shear, tension or bending failure of the connected elements (e. g. block shear) n Bearing failure at bolt location 68402/61420 17

Bolted Shear Connections l Shear failure of bolts • • Average shearing stress in the bolt = fv = P/A = P/( db 2/4) • • Bolts can be in single shear or double shear as shown above. P is the load acting on an individual bolt A is the area of the bolt and db is its diameter Strength of the bolt = P = fv x ( db 2/4) stress = 0. 6 Fy where fv = shear yield When the bolt is in double shear, two cross-sections are effective in resisting the load. The bolt in double shear will have the twice the shear strength of a bolt in single shear. 68402/61420 18

Bolted Shear Connections 68402/61420 19

Bolted Shear Connections l Failure of connected member • • l We have covered this in detail in this course on tension members Member can fail due to tension fracture or yielding. Bearing failure of connected/connecting part due to bearing from bolt holes • Hole is slightly larger than the fastener and the fastener is loosely placed in hole • Contact between the fastener and the connected part over approximately half the circumference of the fastener • As such the stress will be highest at the radial contact point (A). However, the average stress can be calculated as the applied force divided by the projected area of contact 68402/61420 20

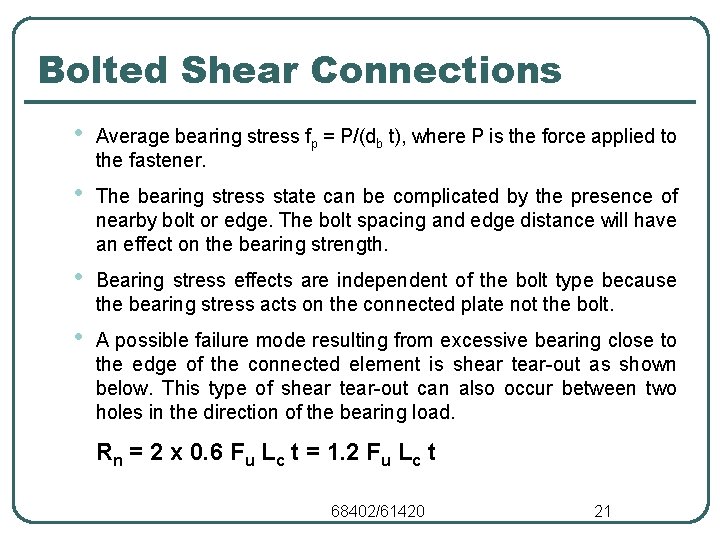

Bolted Shear Connections • Average bearing stress fp = P/(db t), where P is the force applied to the fastener. • The bearing stress state can be complicated by the presence of nearby bolt or edge. The bolt spacing and edge distance will have an effect on the bearing strength. • Bearing stress effects are independent of the bolt type because the bearing stress acts on the connected plate not the bolt. • A possible failure mode resulting from excessive bearing close to the edge of the connected element is shear tear-out as shown below. This type of shear tear-out can also occur between two holes in the direction of the bearing load. Rn = 2 x 0. 6 Fu Lc t = 1. 2 Fu Lc t 68402/61420 21

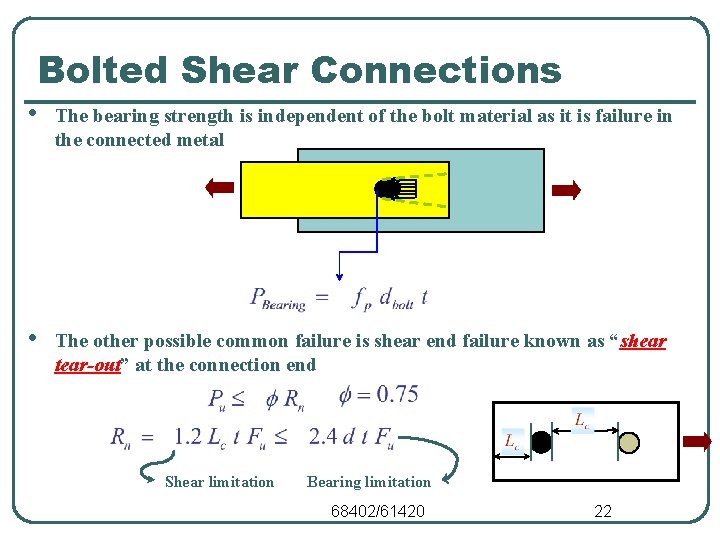

Bolted Shear Connections • The bearing strength is independent of the bolt material as it is failure in the connected metal • The other possible common failure is shear end failure known as “shear tear-out” at the connection end Shear limitation Bearing limitation 68402/61420 22

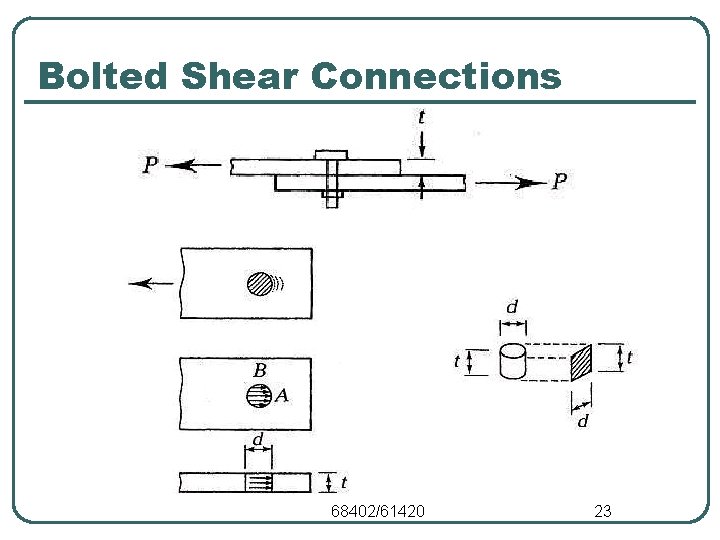

Bolted Shear Connections 68402/61420 23

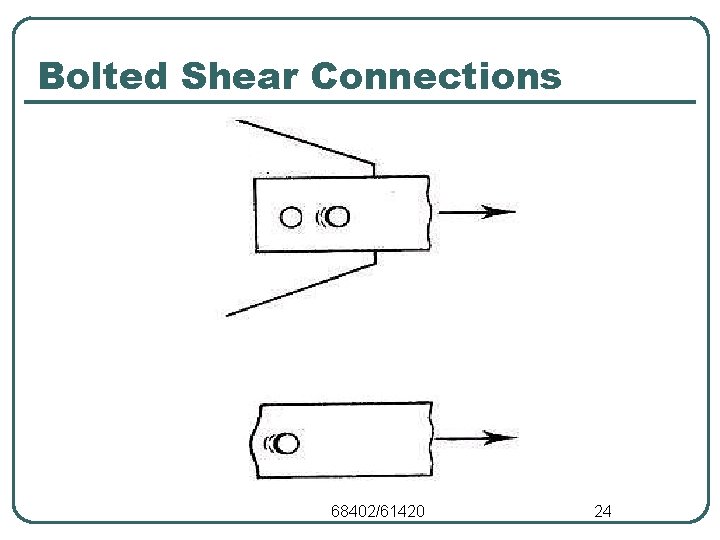

Bolted Shear Connections 68402/61420 24

Spacing and Edge-distance requirements l The AISC code gives guidance for edge distance and spacing to avoid tear out shear AISC Table J 3. 4 NOTE: The actual hole diameter is 1. 6 mm bigger than the bolt, we use another 1. 6 mm for tolerance when we calculate net area. Here use 1. 6 mm only not 3. 2 q Bolt spacing is a function of the bolt diameter n Common we assume n The AISC minimum spacing is 68402/61420 25

Bolt Spacings & Edge Distances l Bolt Spacings - Painted members or members not subject to corrosion: 2 2/3 d ≤ Bolt Spacings ≤ 24 t or 305 mm (LRFD J 3. 3) (LRFD J 3. 5) - Unpainted members subject to corrosion: 3 d ≤ Bolt Spacings ≤ 14 t or 178 mm l Edge Distance Values in Table J 3. 4 M ≤ Edge Distance ≤ 12 t or 152 mm (LRFD J 3. 4) (LRFD J 3. 5) d - bolt diameter t - thickness of thinner plate 68402/61420 26

Bolted Shear Connections • To prevent excessive deformation of the hole, an upper limit is placed on the bearing load. This upper limit is proportional to the fracture stress times the projected bearing area Rn = C x Fu x bearing area = C Fu db t • If deformation is not a concern then C = 3, If deformation is a concern then C = 2. 4 • • C = 2. 4 corresponds to a deformation of 6. 3 mm. • • where, = 0. 75 and Rn = 1. 2 Lc t Fu < 2. 4 db t Fu Finally, the equation for the bearing strength of a single bolts is Rn Lc is the clear distance in the load direction, from the edge of the bolt hole to the edge of the adjacent hole or to the edge of the material 68402/61420 27

Bolted Shear Connections • This relationship can be simplified as follows: The upper limit will become effective when 1. 2 Lc t Fu > 2. 4 db t Fu i. e. , the upper limit will become effective when Lc > 2 db If Lc < 2 db, Rn = 1. 2 Lc t Fu If Lc > 2 db, Rn = 2. 4 db t Fu Fu - specified tensile strength of the connected material Lc - clear distance, in the direction of the force, between the edge of the hole and the edge of the adjacent hole or edge of the material. t - thickness of connected material 68402/61420 28

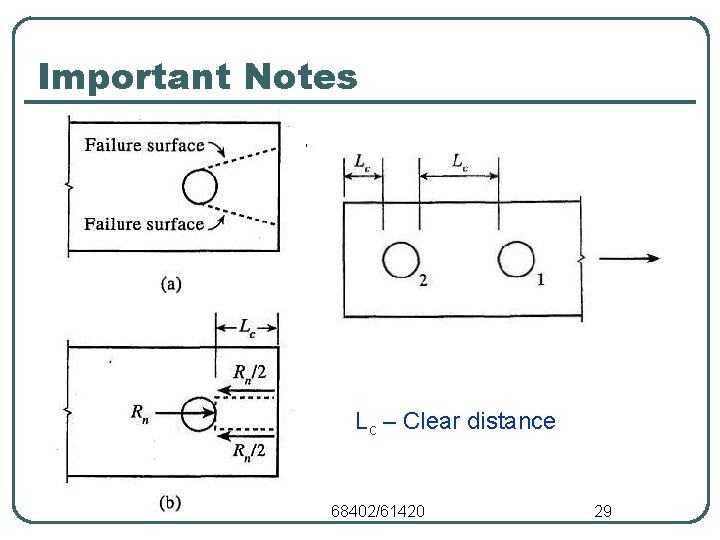

Important Notes Lc – Clear distance 68402/61420 29

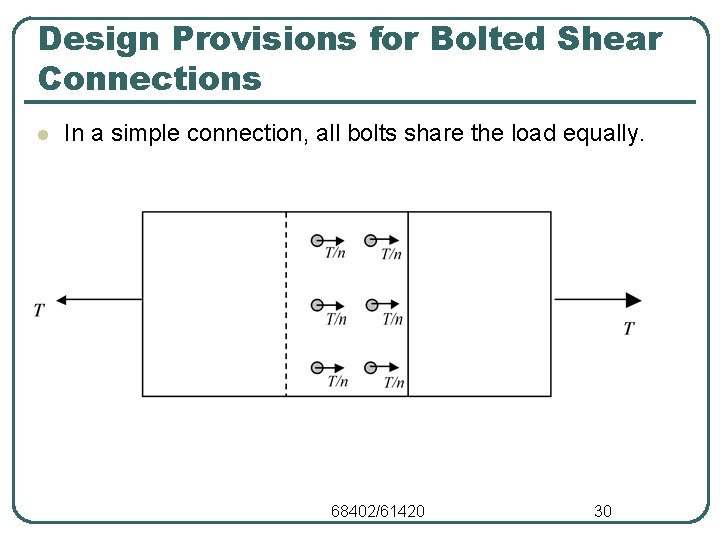

Design Provisions for Bolted Shear Connections l In a simple connection, all bolts share the load equally. 68402/61420 30

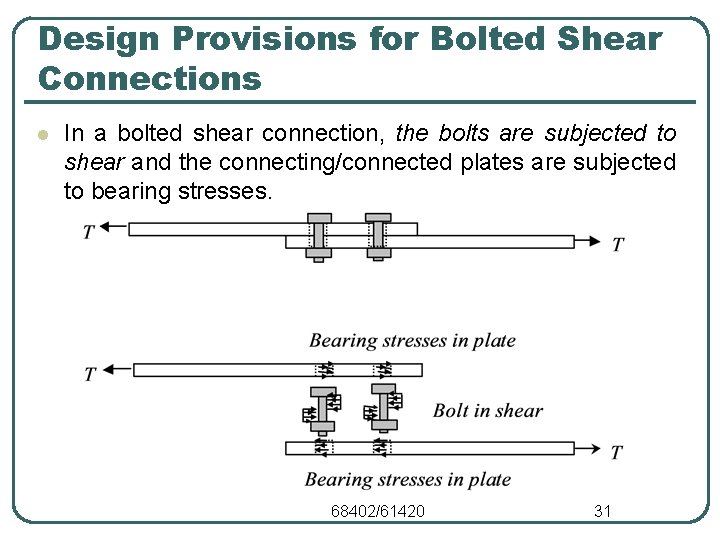

Design Provisions for Bolted Shear Connections l In a bolted shear connection, the bolts are subjected to shear and the connecting/connected plates are subjected to bearing stresses. 68402/61420 31

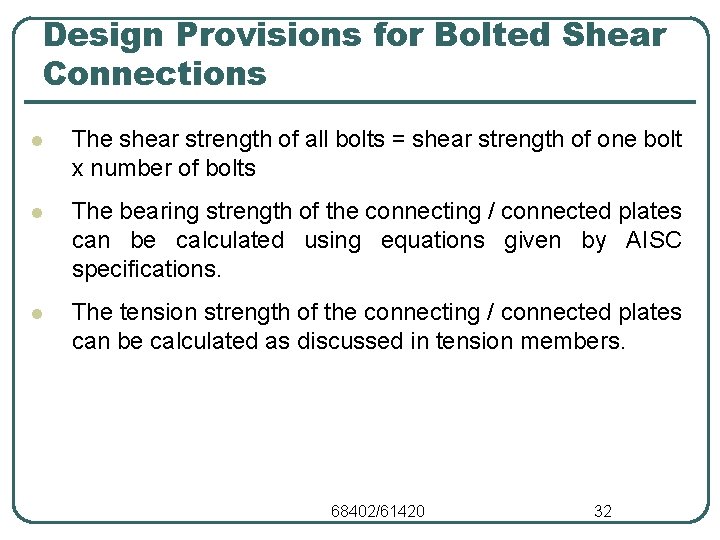

Design Provisions for Bolted Shear Connections l The shear strength of all bolts = shear strength of one bolt x number of bolts l The bearing strength of the connecting / connected plates can be calculated using equations given by AISC specifications. l The tension strength of the connecting / connected plates can be calculated as discussed in tension members. 68402/61420 32

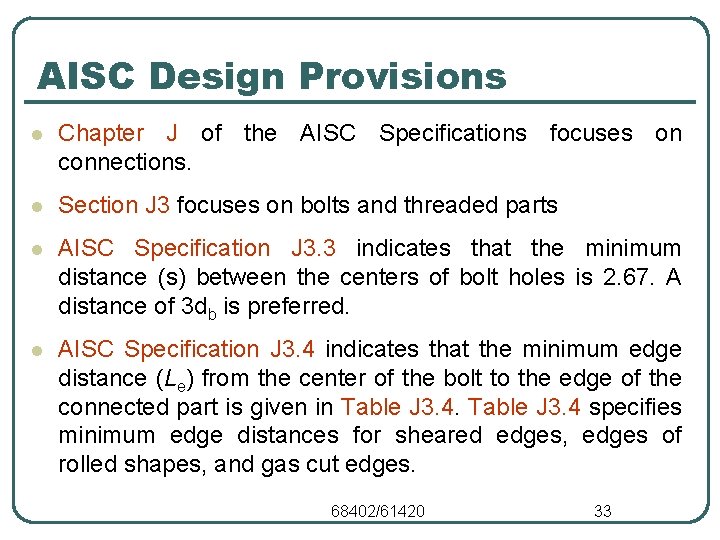

AISC Design Provisions l Chapter J of the AISC Specifications focuses on connections. l Section J 3 focuses on bolts and threaded parts l AISC Specification J 3. 3 indicates that the minimum distance (s) between the centers of bolt holes is 2. 67. A distance of 3 db is preferred. l AISC Specification J 3. 4 indicates that the minimum edge distance (Le) from the center of the bolt to the edge of the connected part is given in Table J 3. 4 specifies minimum edge distances for sheared edges, edges of rolled shapes, and gas cut edges. 68402/61420 33

AISC Design Provisions l AISC Specification indicates that the maximum edge distance for bolt holes is 12 times the thickness of the connected part (but not more than 152 mm). The maximum spacing for bolt holes is 24 times the thickness of the thinner part (but not more than 305 mm). l Specification J 3. 6 indicates that the design tension or shear strength of bolts is Fn. Ab • • = 0. 75 Table J 3. 2, gives the values of Fn Ab is the unthreaded area of bolt. In Table J 3. 2, there are different types of bolts A 325 and A 490. 68402/61420 34

AISC Design Provisions • The shear strength of the bolts depends on whether threads are included or excluded from the shear planes. If threads are included in the shear planes then the strength is lower. l We will always assume that threads are included in the shear plane, therefore less strength to be conservative. l We will look at specifications J 3. 7 – J 3. 9 later. • AISC Specification J 3. 10 indicates the bearing strength of plates at bolt holes. • • The design bearing strength at bolt holes is Rn Rn = 1. 2 Lc t Fu ≤ 2. 4 db t Fu design consideration - deformation at the bolt holes is a 68402/61420 35

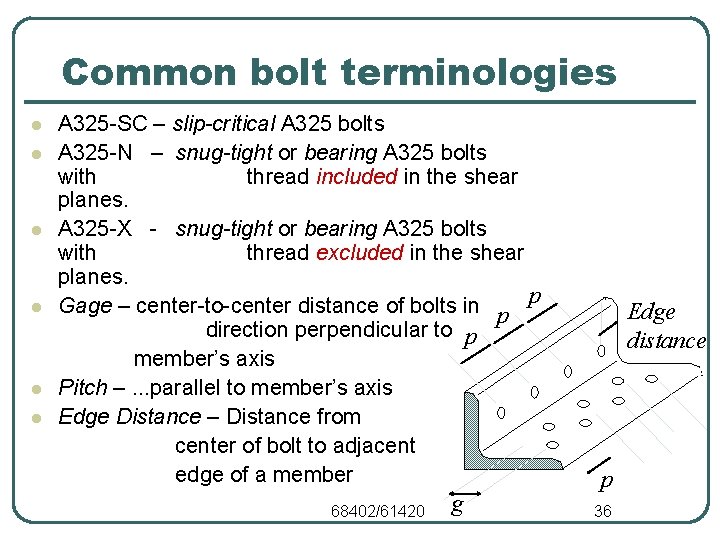

Common bolt terminologies l l l A 325 -SC – slip-critical A 325 bolts A 325 -N – snug-tight or bearing A 325 bolts with thread included in the shear planes. A 325 -X - snug-tight or bearing A 325 bolts with thread excluded in the shear planes. Gage – center-to-center distance of bolts in p p direction perpendicular to p member’s axis Pitch –. . . parallel to member’s axis Edge Distance – Distance from center of bolt to adjacent edge of a member 68402/61420 g Edge distance p 36

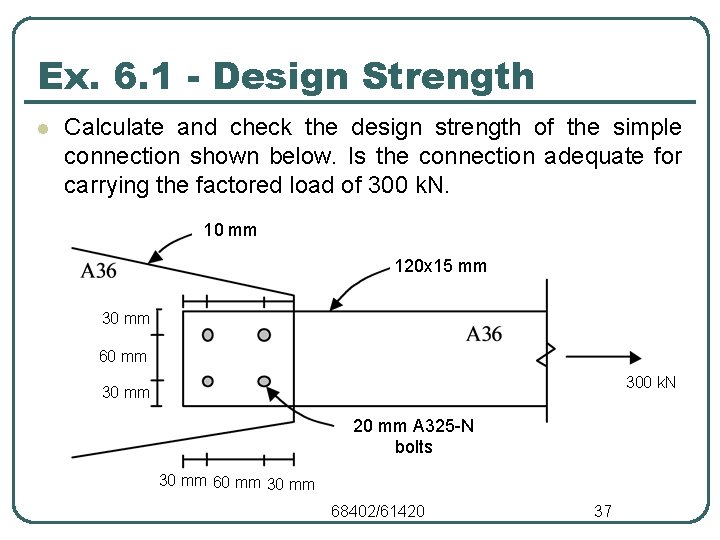

Ex. 6. 1 - Design Strength l Calculate and check the design strength of the simple connection shown below. Is the connection adequate for carrying the factored load of 300 k. N. 10 mm 120 x 15 mm 30 mm 60 mm 300 63 k. N k 30 mm 20 mm A 325 -N bolts 30 mm 60 mm 30 mm 68402/61420 37

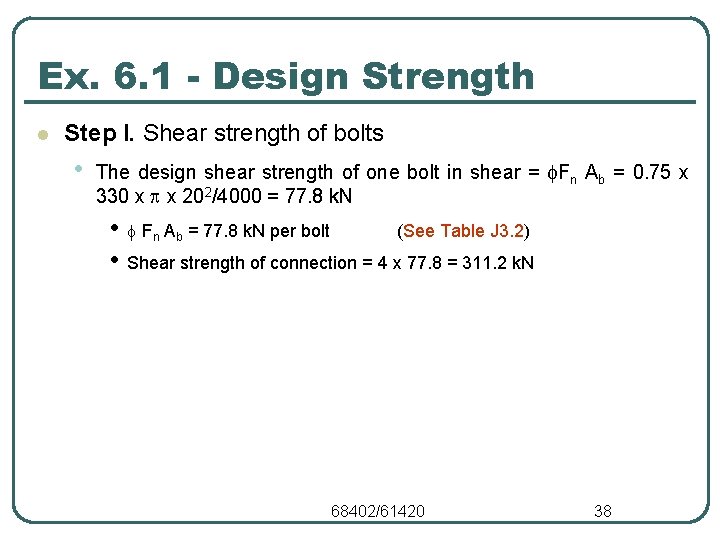

Ex. 6. 1 - Design Strength l Step I. Shear strength of bolts • The design shear strength of one bolt in shear = Fn Ab = 0. 75 x 330 x x 202/4000 = 77. 8 k. N • • Fn Ab = 77. 8 k. N per bolt (See Table J 3. 2) Shear strength of connection = 4 x 77. 8 = 311. 2 k. N 68402/61420 38

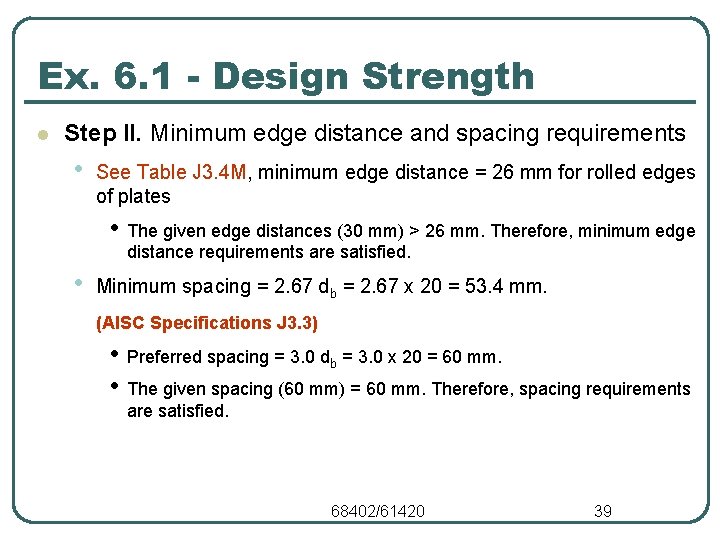

Ex. 6. 1 - Design Strength l Step II. Minimum edge distance and spacing requirements • See Table J 3. 4 M, minimum edge distance = 26 mm for rolled edges of plates • • The given edge distances (30 mm) > 26 mm. Therefore, minimum edge distance requirements are satisfied. Minimum spacing = 2. 67 db = 2. 67 x 20 = 53. 4 mm. (AISC Specifications J 3. 3) • • Preferred spacing = 3. 0 db = 3. 0 x 20 = 60 mm. The given spacing (60 mm) = 60 mm. Therefore, spacing requirements are satisfied. 68402/61420 39

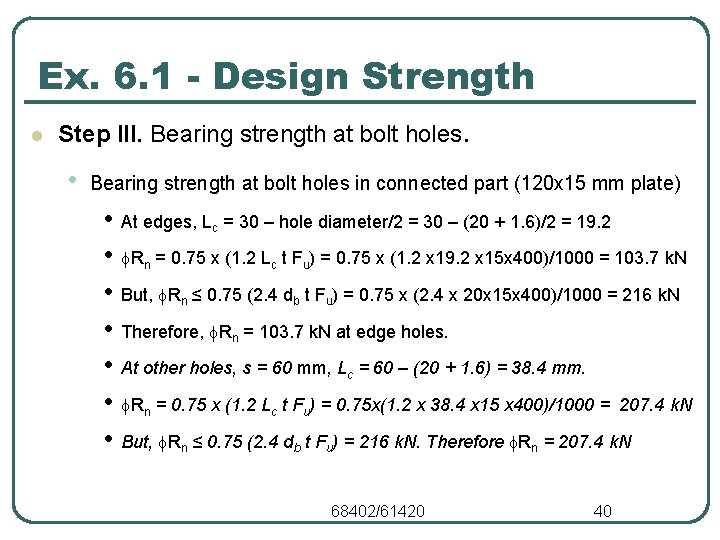

Ex. 6. 1 - Design Strength l Step III. Bearing strength at bolt holes. • Bearing strength at bolt holes in connected part (120 x 15 mm plate) • • At edges, Lc = 30 – hole diameter/2 = 30 – (20 + 1. 6)/2 = 19. 2 Rn = 0. 75 x (1. 2 Lc t Fu) = 0. 75 x (1. 2 x 19. 2 x 15 x 400)/1000 = 103. 7 k. N But, Rn ≤ 0. 75 (2. 4 db t Fu) = 0. 75 x (2. 4 x 20 x 15 x 400)/1000 = 216 k. N Therefore, Rn = 103. 7 k. N at edge holes. At other holes, s = 60 mm, Lc = 60 – (20 + 1. 6) = 38. 4 mm. Rn = 0. 75 x (1. 2 Lc t Fu) = 0. 75 x(1. 2 x 38. 4 x 15 x 400)/1000 = 207. 4 k. N But, Rn ≤ 0. 75 (2. 4 db t Fu) = 216 k. N. Therefore Rn = 207. 4 k. N 68402/61420 40

Ex. 6. 1 - Design Strength • • • Therefore, Rn = 216 k. N at other holes Therefore, bearing strength at holes = 2 x 103. 7 + 2 x 207. 4 = 622. 2 k. N Bearing strength at bolt holes in gusset plate (10 mm plate) • • At edges, Lc = 30 – hole diameter/2 = 30 – (20 + 1. 6)/2 = 19. 2 mm. • But, Rn ≤ 0. 75 (2. 4 db t Fu) = 0. 75 x (2. 4 x 20 x 10 x 400)/1000 = 144 k. N. • Therefore, Rn = 69. 1 k. N at edge holes. Rn = 0. 75 x (1. 2 Lc t Fu) = 0. 75 x (1. 2 x 19. 2 x 10 x 400)/1000 = 69. 1 k. N 68402/61420 41

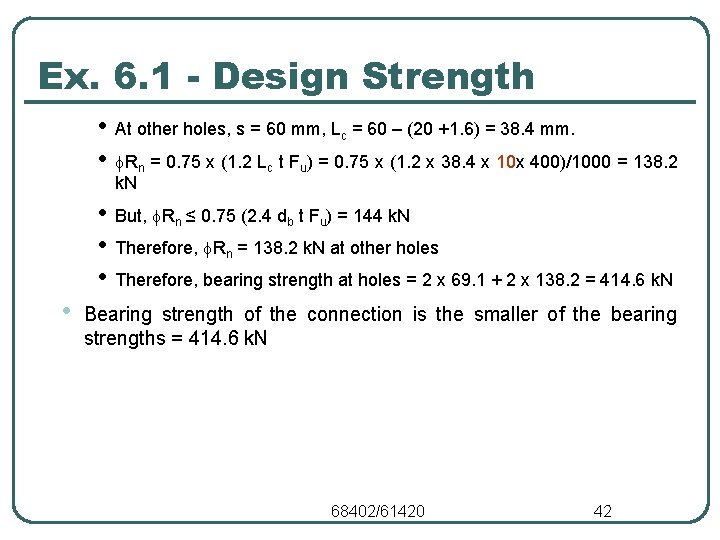

Ex. 6. 1 - Design Strength • • • At other holes, s = 60 mm, Lc = 60 – (20 +1. 6) = 38. 4 mm. • • • But, Rn ≤ 0. 75 (2. 4 db t Fu) = 144 k. N Rn = 0. 75 x (1. 2 Lc t Fu) = 0. 75 x (1. 2 x 38. 4 x 10 x 400)/1000 = 138. 2 k. N Therefore, Rn = 138. 2 k. N at other holes Therefore, bearing strength at holes = 2 x 69. 1 + 2 x 138. 2 = 414. 6 k. N Bearing strength of the connection is the smaller of the bearing strengths = 414. 6 k. N 68402/61420 42

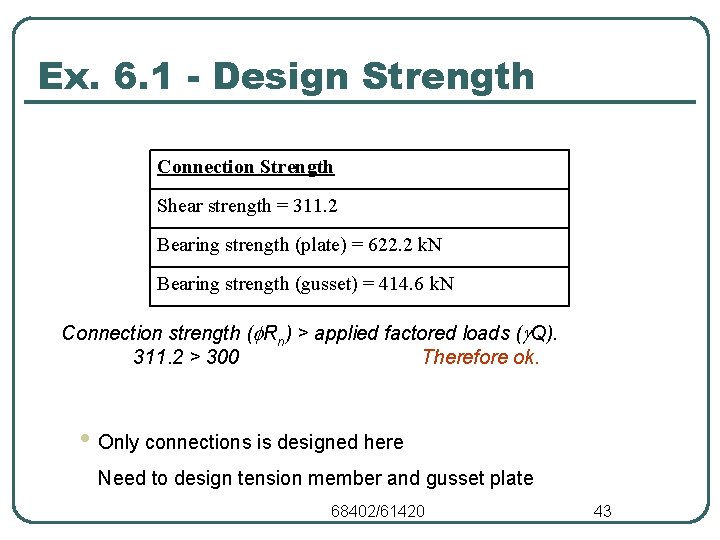

Ex. 6. 1 - Design Strength Connection Strength Shear strength = 311. 2 Bearing strength (plate) = 622. 2 k. N Bearing strength (gusset) = 414. 6 k. N Connection strength ( Rn) > applied factored loads (g. Q). 311. 2 > 300 Therefore ok. • Only connections is designed here Need to design tension member and gusset plate 68402/61420 43

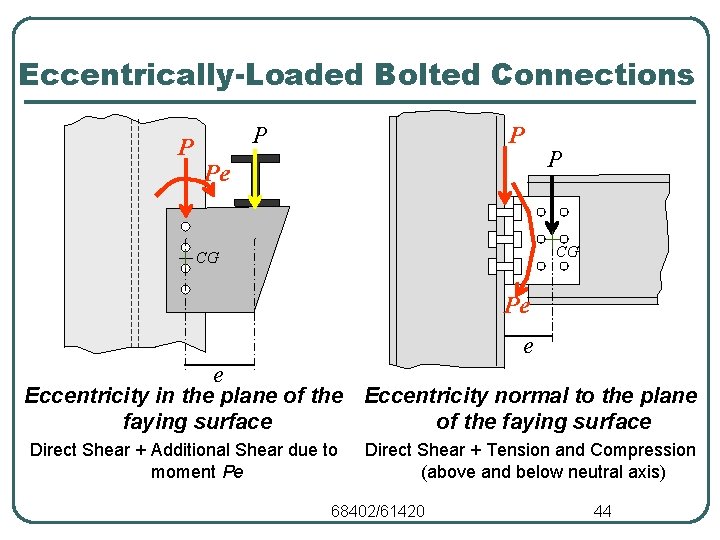

Eccentrically-Loaded Bolted Connections P Pe P CG CG Pe e e Eccentricity in the plane of the Eccentricity normal to the plane faying surface of the faying surface Direct Shear + Additional Shear due to moment Pe Direct Shear + Tension and Compression (above and below neutral axis) 68402/61420 44

Forces on Eccentrically-Loaded Bolts Eccentricity in the plane of the faying surface LRFD Spec. presents values for computing design strengths of individual bolt only. To compute forces on group of bolts that are eccentrically loaded, there are two common methods: - Elastic Method: Conservative. Connected parts assumed rigid. Slip resistance between connected parts neglected. Ultimate Strength Method (or Instantaneous Center of Gravity Method): Most realistic but tedious to apply 68402/61420 45

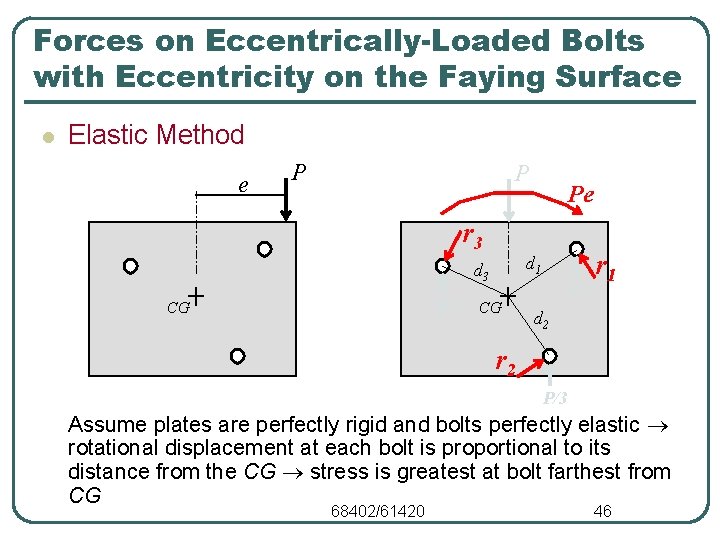

Forces on Eccentrically-Loaded Bolts with Eccentricity on the Faying Surface l Elastic Method e P P Pe r 3 d 1 d 3 P/3 CG CG P/3 r 1 d 2 r 2 P/3 Assume plates are perfectly rigid and bolts perfectly elastic rotational displacement at each bolt is proportional to its distance from the CG stress is greatest at bolt farthest from CG 68402/61420 46

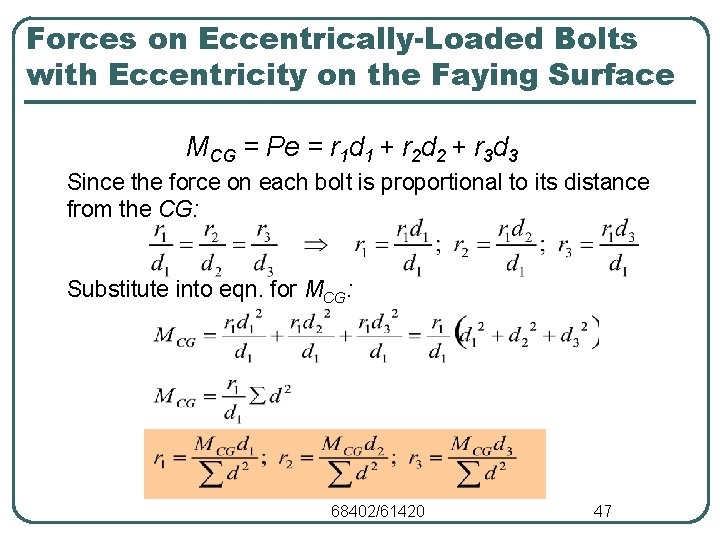

Forces on Eccentrically-Loaded Bolts with Eccentricity on the Faying Surface MCG = Pe = r 1 d 1 + r 2 d 2 + r 3 d 3 Since the force on each bolt is proportional to its distance from the CG: Substitute into eqn. for MCG: 68402/61420 47

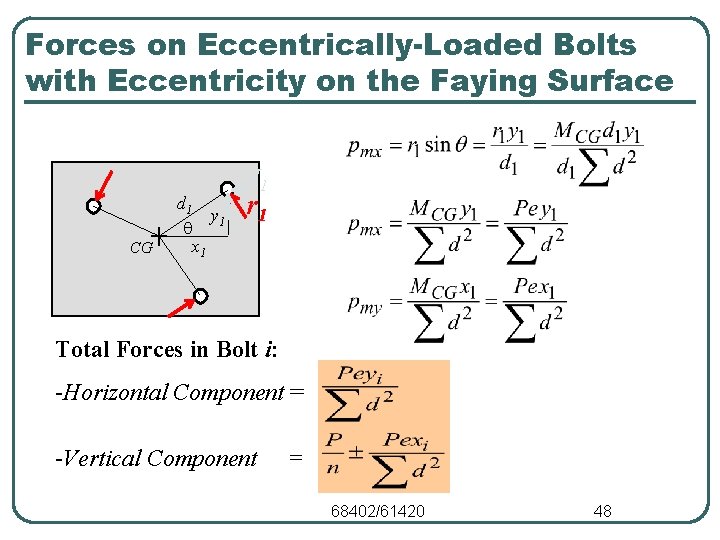

Forces on Eccentrically-Loaded Bolts with Eccentricity on the Faying Surface H 1 CG d 1 y 1 r 1 V 1 x 1 Total Forces in Bolt i: -Horizontal Component = -Vertical Component = 68402/61420 48

Ex. 6. 3 – Eccentric Connections – Elastic Method Determine the force in the most stressed bolt of the group using elastic method e 125 mm 100 mm CG 100 mm P=140 k. N Eccentricity wrt CG: e = 125 + 50 = 175 mm Direct Shear in each bolt: P/n = 140/8 = 17. 5 k. N Note that the upper right-hand the lower right-hand bolts are the most stressed (farthest from CG and consider direction of forces) 68402/61420 49

Ex. 6. 3 – Eccentric Connections – Elastic Method Additional Shear in the upper and lower right-hand bolts due to moment M = Pe = 140 x 175 = 24500 k. N. mm: The forces acting on the upper right-hand bolt are as follows: The resultant force on this bolt is: 30. 6 k. N 10. 2 k. N 17. 5 k. N 68402/61420 50

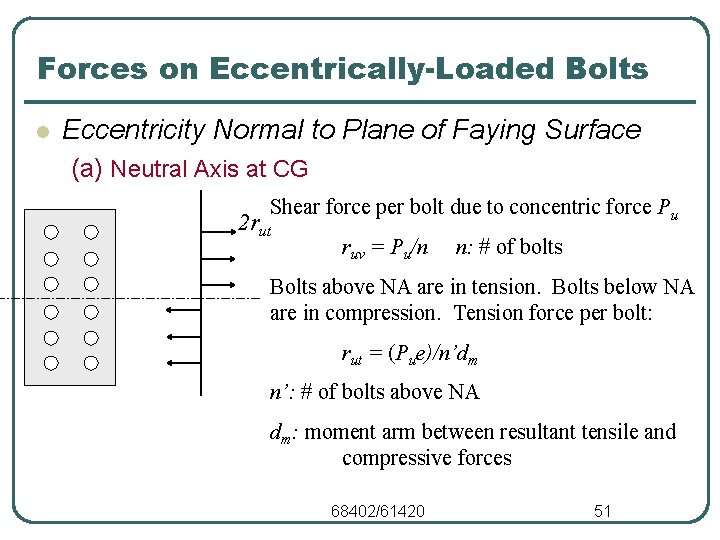

Forces on Eccentrically-Loaded Bolts l Eccentricity Normal to Plane of Faying Surface (a) Neutral Axis at CG Shear force per bolt due to concentric force Pu 2 rut ruv = Pu/n n: # of bolts Bolts above NA are in tension. Bolts below NA are in compression. Tension force per bolt: rut = (Pue)/n’dm n’: # of bolts above NA dm: moment arm between resultant tensile and compressive forces 68402/61420 51

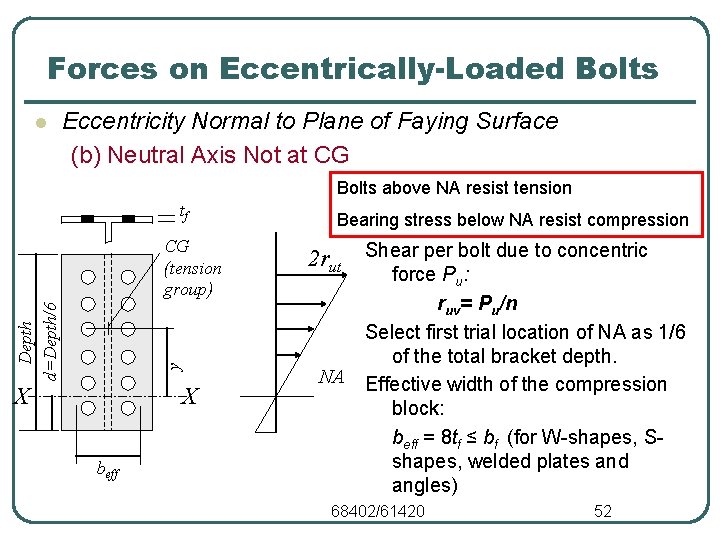

Forces on Eccentrically-Loaded Bolts l Eccentricity Normal to Plane of Faying Surface (b) Neutral Axis Not at CG Bolts above NA resist tension tf y Depth d=Depth/6 CG (tension group) X X beff Bearing stress below NA resist compression 2 rut Shear per bolt due to concentric NA force Pu: ruv= Pu/n Select first trial location of NA as 1/6 of the total bracket depth. Effective width of the compression block: beff = 8 tf ≤ bf (for W-shapes, Sshapes, welded plates and angles) 68402/61420 52

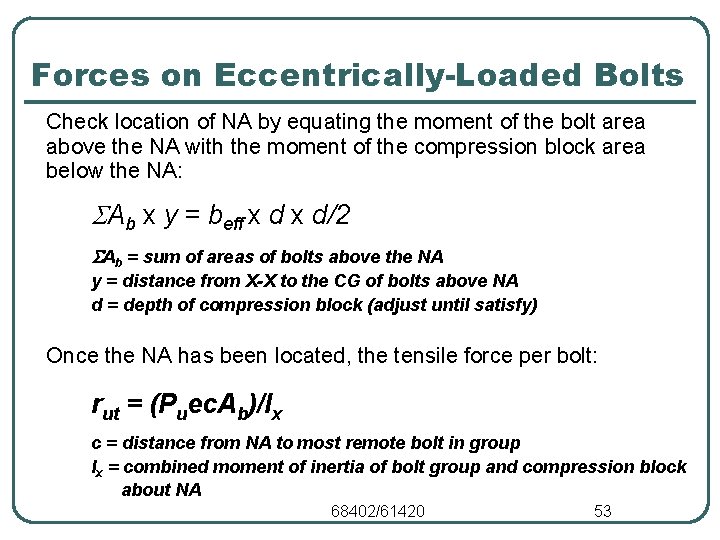

Forces on Eccentrically-Loaded Bolts Check location of NA by equating the moment of the bolt area above the NA with the moment of the compression block area below the NA: Ab x y = beff x d/2 Ab = sum of areas of bolts above the NA y = distance from X-X to the CG of bolts above NA d = depth of compression block (adjust until satisfy) Once the NA has been located, the tensile force per bolt: rut = (Puec. Ab)/Ix c = distance from NA to most remote bolt in group Ix = combined moment of inertia of bolt group and compression block about NA 68402/61420 53

Bolts Subjected to Shear and Tension • Nominal Tension Stress Ft of a bolt subjected to combined factored shear stress (fv =Vu/Nb. Ab) and factored tension stress (ft = Tu/Nb. Ab) can be computed as functions of fv as: • • • = 0. 75 F’nt = nominal tensile strength modified to include the effect of shear Fnt = nominal tensile strength from Table J 3. 2 in (AISC Spec. ) Fnv = nominal shear strength from Table J 3. 2 in (AISC Spec. ) fv = the required shear stress Bolt Type Fnt (MPa) A 325 A 490 620 780 68402/61420 54

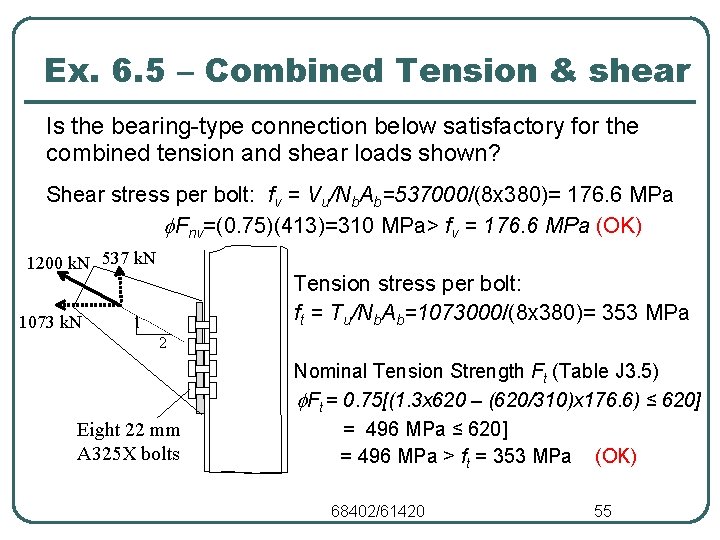

Ex. 6. 5 – Combined Tension & shear Is the bearing-type connection below satisfactory for the combined tension and shear loads shown? Shear stress per bolt: fv = Vu/Nb. Ab=537000/(8 x 380)= 176. 6 MPa Fnv=(0. 75)(413)=310 MPa> fv = 176. 6 MPa (OK) 1200 k. N 537 k. N 1073 k. N Tension stress per bolt: ft = Tu/Nb. Ab=1073000/(8 x 380)= 353 MPa 1 2 Eight 22 mm A 325 X bolts Nominal Tension Strength Ft (Table J 3. 5) Ft = 0. 75[(1. 3 x 620 – (620/310)x 176. 6) ≤ 620] = 496 MPa > ft = 353 MPa (OK) 68402/61420 55

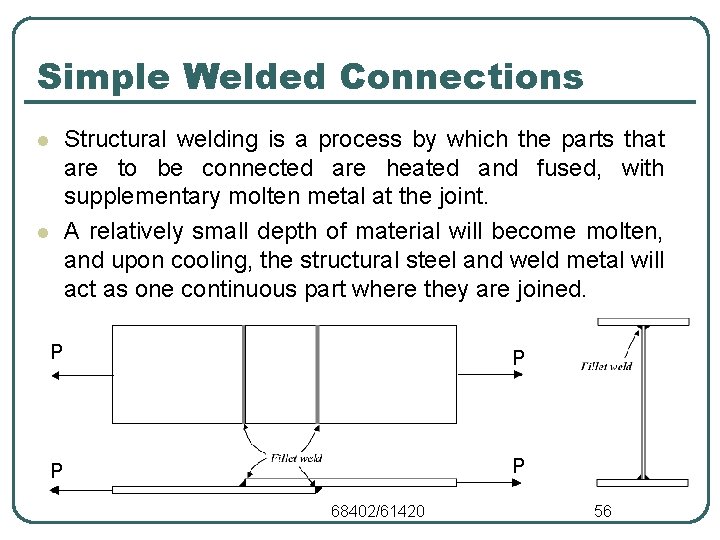

Simple Welded Connections Structural welding is a process by which the parts that are to be connected are heated and fused, with supplementary molten metal at the joint. A relatively small depth of material will become molten, and upon cooling, the structural steel and weld metal will act as one continuous part where they are joined. l l P P 68402/61420 56

Introductory Concepts Welding Process – Fillet Weld 68402/61420 57

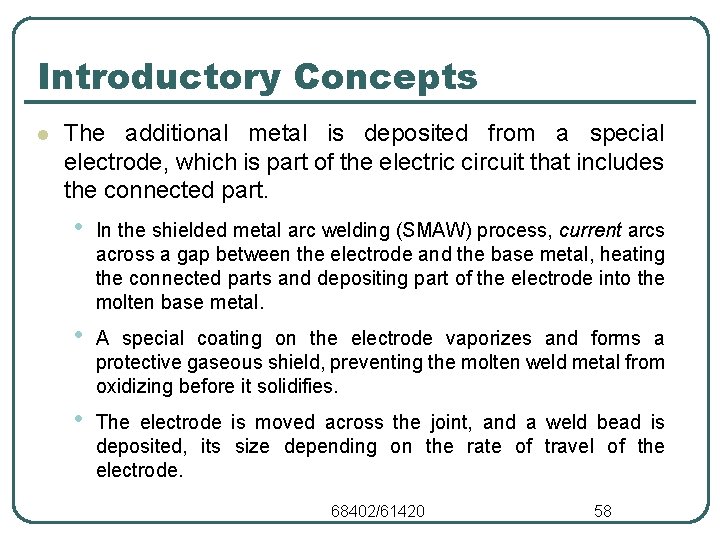

Introductory Concepts l The additional metal is deposited from a special electrode, which is part of the electric circuit that includes the connected part. • In the shielded metal arc welding (SMAW) process, current arcs across a gap between the electrode and the base metal, heating the connected parts and depositing part of the electrode into the molten base metal. • A special coating on the electrode vaporizes and forms a protective gaseous shield, preventing the molten weld metal from oxidizing before it solidifies. • The electrode is moved across the joint, and a weld bead is deposited, its size depending on the rate of travel of the electrode. 68402/61420 58

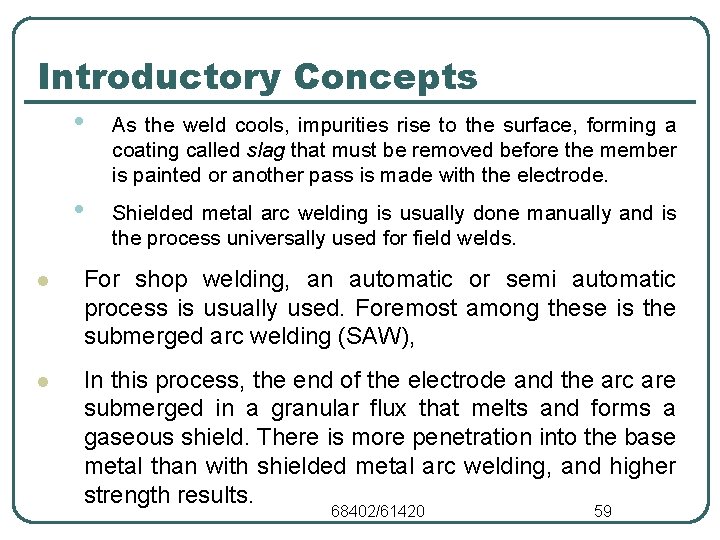

Introductory Concepts • As the weld cools, impurities rise to the surface, forming a coating called slag that must be removed before the member is painted or another pass is made with the electrode. • Shielded metal arc welding is usually done manually and is the process universally used for field welds. l For shop welding, an automatic or semi automatic process is usually used. Foremost among these is the submerged arc welding (SAW), l In this process, the end of the electrode and the arc are submerged in a granular flux that melts and forms a gaseous shield. There is more penetration into the base metal than with shielded metal arc welding, and higher strength results. 68402/61420 59

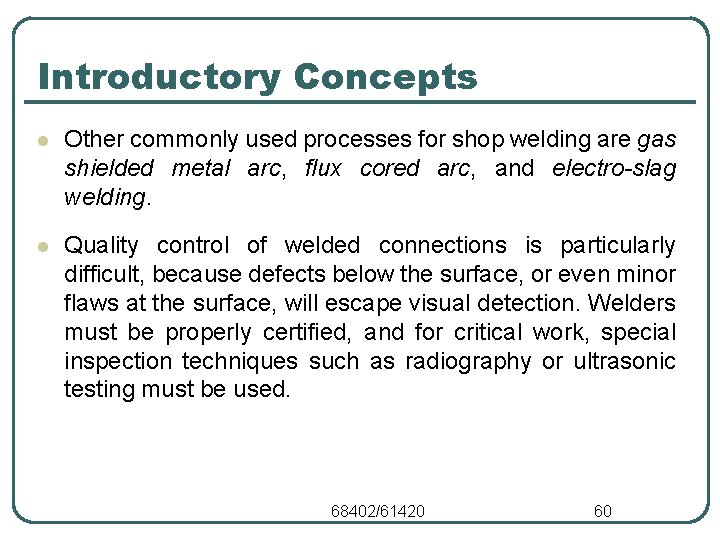

Introductory Concepts l Other commonly used processes for shop welding are gas shielded metal arc, flux cored arc, and electro-slag welding. l Quality control of welded connections is particularly difficult, because defects below the surface, or even minor flaws at the surface, will escape visual detection. Welders must be properly certified, and for critical work, special inspection techniques such as radiography or ultrasonic testing must be used. 68402/61420 60

Introductory Concepts l The two most common types of welds are the fillet weld and the groove weld. Fillet weld examples: lap joint – fillet welds placed in the corner formed by two plates Tee joint – fillet welds placed at the intersection of two plates. l Groove welds – deposited in a gap or groove between two parts to be connected e. g. , butt, tee, and corner joints with beveled (prepared) edges l Partial penetration groove welds can be made from one or both sides with or without edge preparation. 68402/61420 61

Welded Connections l Classification of welds • According to type of weld Groove weld Fillet weld • According to weld position Flat, Horizontal, vertical or overhead weld • According to type of joint • Butt, lap, tee, edge or corner • According to the weld process • SMAW, SAW 68402/61420 62

Introductory Concepts 68402/61420 63

Weld Limit States The only limit state of the weld metal in a connection is that of fracture Yielding is not a factor since any deformation that might take place will occur over such a short distance that it will not influence the performance of the structure 68402/61420 64

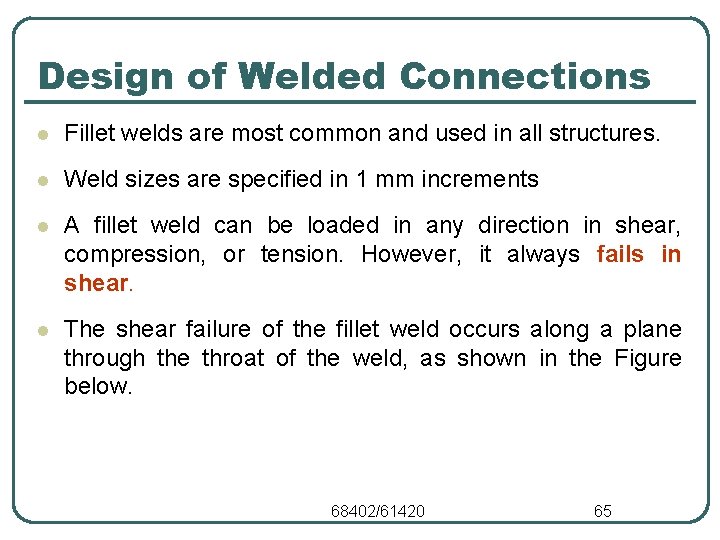

Design of Welded Connections l Fillet welds are most common and used in all structures. l Weld sizes are specified in 1 mm increments l A fillet weld can be loaded in any direction in shear, compression, or tension. However, it always fails in shear. l The shear failure of the fillet weld occurs along a plane through the throat of the weld, as shown in the Figure below. 68402/61420 65

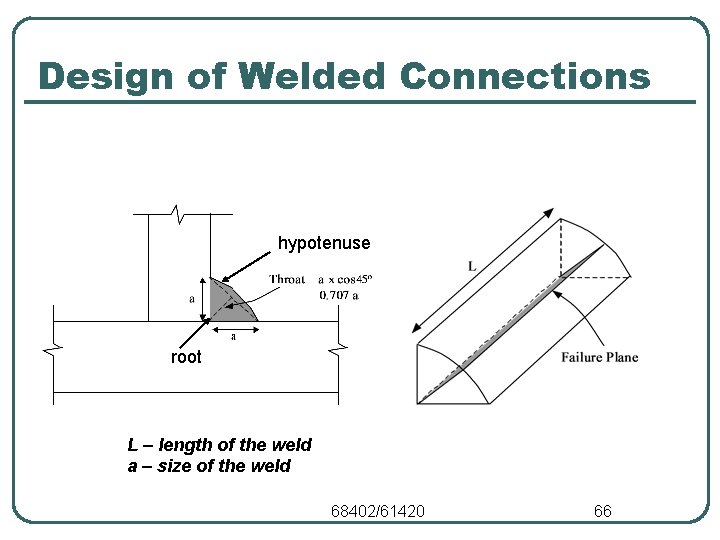

Design of Welded Connections hypotenuse root L – length of the weld a – size of the weld 68402/61420 66

Design of Welded Connections l Shear stress in fillet weld of length L subjected to load P = fv = If the ultimate shear strength of the weld = fw l Rn = l fw = shear strength of the weld metal is a function of the electrode used in the SMAW process. • • i. e. , factor = 0. 75 The tensile strength of the weld electrode can be 413, 482, 551, 620, 688, 758, or 827 MPa. The corresponding electrodes are specified using the nomenclature E 60 XX, E 70 XX, E 80 XX, and so on. This is the standard terminology for weld electrodes. 68402/61420 67

Design of Welded Connections • l l The two digits "XX" denote the type of coating. The strength of the electrode should match the strength of the base metal. • If yield stress ( y) of the base metal is 413 - 448 MPa, use E 70 XX electrode. • If yield stress ( y) of the base metal is 413 - 448 MPa, use E 80 XX electrode. E 70 XX is the most popular electrode used for fillet welds made by the SMAW method. E – electrode 70 – tensile strength of electrode (ksi) = 482 MPa XX – type of coating 68402/61420 68

Fillet Weld l Stronger in tension and compression than in shear Concave Surface Convex Surface Leg Throat l Unequal leg fillet weld Leg Throat Leg Fillet weld designations: 12 mm SMAW E 70 XX: fillet weld with equal leg size of 12 mm, formed using Shielded Metal Arc Welding Process, with filler metal electrodes having a minimum weld tensile strength of 70 ksi. 9 mm-by-12 mm SAW E 110 XX: fillet weld with unequal leg sizes, formed by using Submerged Arc Metal process, with filler metal electrodes having a minimum weld tensile strength of 758 MPa. 68402/61420 69

Fillet Weld Strength Stress in fillet weld = factored load/eff. throat area Limit state of Fillet Weld is shear fracture through the throat, regardless of how it is loaded Design Strength: For equal leg fillet weld: 68402/61420 70

Design of Welded Connections l Table J 2. 5 in the AISC Specifications gives the weld design strength • • l fw = 0. 60 FEXX For E 70 XX, fw = 0. 75 x 0. 60 x 482 = 217 MPa Additionally, the shear strength of the base metal must also be considered: • • Rn = 0. 9 x 0. 6 Fy x area of base metal subjected to shear where, Fy is the yield strength of the base metal. 68402/61420 71

Design of Welded Connections l For example Strength of weld in shear = 0. 75 x 0. 707 x a x Lw x fw l In weld design problems it is advantageous to work with strength per unit length of the weld or base metal. 68402/61420 72

Limitations on Weld Dimensions l l l Minimum size (amin) • • Function of the thickness of the thinnest connected plate Given in Table J 2. 4 in the AISC specifications Maximum size (amax) • • • function of the thickness of the thinnest connected plate: for plates with thickness 6 mm, amax = 6 mm. for plates with thickness 6 mm, amax = t – 2 mm. Minimum length (Lw) • • • Length (Lw) 4 a otherwise, aeff = Lw / 4 a = weld size Read J 2. 2 b page 16. 1 -95 Intermittent fillet welds: Lw-min = 4 a and 38 mm. 68402/61420 73

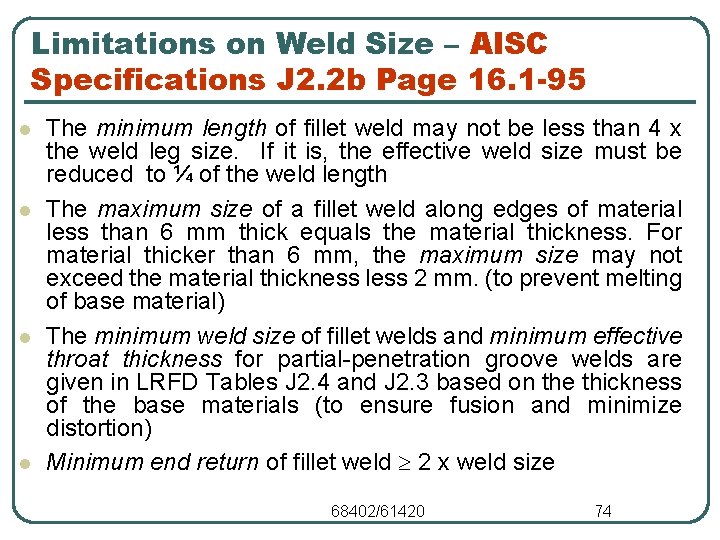

Limitations on Weld Size – AISC Specifications J 2. 2 b Page 16. 1 -95 l l The minimum length of fillet weld may not be less than 4 x the weld leg size. If it is, the effective weld size must be reduced to ¼ of the weld length The maximum size of a fillet weld along edges of material less than 6 mm thick equals the material thickness. For material thicker than 6 mm, the maximum size may not exceed the material thickness less 2 mm. (to prevent melting of base material) The minimum weld size of fillet welds and minimum effective throat thickness for partial-penetration groove welds are given in LRFD Tables J 2. 4 and J 2. 3 based on the thickness of the base materials (to ensure fusion and minimize distortion) Minimum end return of fillet weld 2 x weld size 68402/61420 74

Limitations on Weld Dimensions l l Maximum effective length - read AISC J 2. 2 b • • • If weld length Lw < 100 a, then effective weld length (Lw-eff) = Lw If Lw < 300 a, then effective weld length (Lw-eff) = Lw (1. 2 – 0. 002 Lw/a) If Lw > 300 a, the effective weld length (Lw-eff) = 0. 6 Lw Weld Terminations - read AISC J 2. 2 b • • Lap joint – fillet welds terminate at a distance > a from edge. Weld returns around corners must be > 2 a 68402/61420 75

Guidelines for Fillet Weld design l Two types of fillet welds can be used re u il fa r a ne e Sh pla • Shielded Metal Arc Welding (SMAW) • Automatic Submerged Arc Welding (SAW) AISC – Section J 2. 2 68402/61420 76

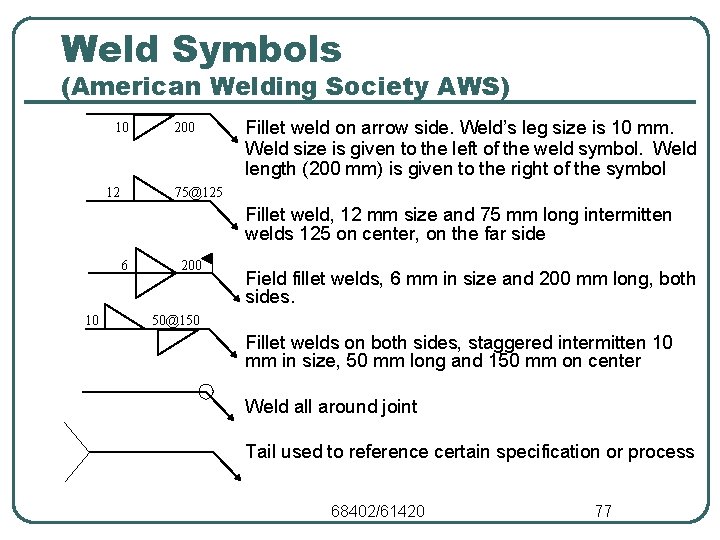

Weld Symbols (American Welding Society AWS) 10 12 200 Fillet weld on arrow side. Weld’s leg size is 10 mm. Weld size is given to the left of the weld symbol. Weld length (200 mm) is given to the right of the symbol 75@125 Fillet weld, 12 mm size and 75 mm long intermitten welds 125 on center, on the far side 6 10 200 Field fillet welds, 6 mm in size and 200 mm long, both sides. 50@150 Fillet welds on both sides, staggered intermitten 10 mm in size, 50 mm long and 150 mm on center Weld all around joint Tail used to reference certain specification or process 68402/61420 77

Guidelines for Fillet Weld design l Fillet weld design can be governed by the smaller value of • Weld material strength & • Electrode FEXX (MPa) E 70 XX 482 E 80 XX 551 Base Metal Strength AISC Table J 2. 5 Yield Limit State 68402/61420 78

Guidelines for Fillet Weld design l The weld strength will increase if the force is not parallel to the weld & l Maximum weld size l Minimum weld size AISC Table J 2. 4 68402/61420 79

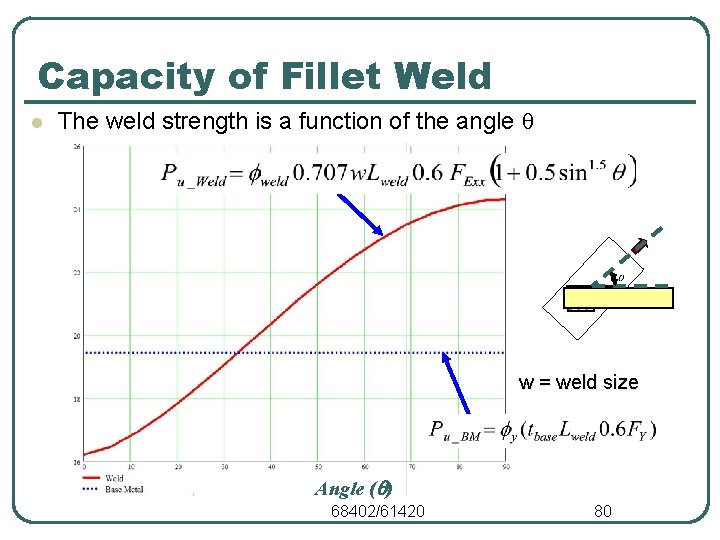

Capacity of Fillet Weld The weld strength is a function of the angle Strength l Weld governs w = weld size Base metal governs Angle (q) 68402/61420 80

Ex. 7. 6 – Design Strength of Welded Connection l Determine the design strength of the tension member and connection system shown below. The tension member is a 100 mm x 10 mm thick rectangular bar. It is welded to a 15 mm thick gusset plate using E 70 XX electrode. Consider the yielding and fracture of the tension member. Consider the shear strength of the weld metal and the t = 15 mm surrounding base metal. a = 6 mm 100 mm x 10 mm 125 mm 125 mm 68402/61420 81

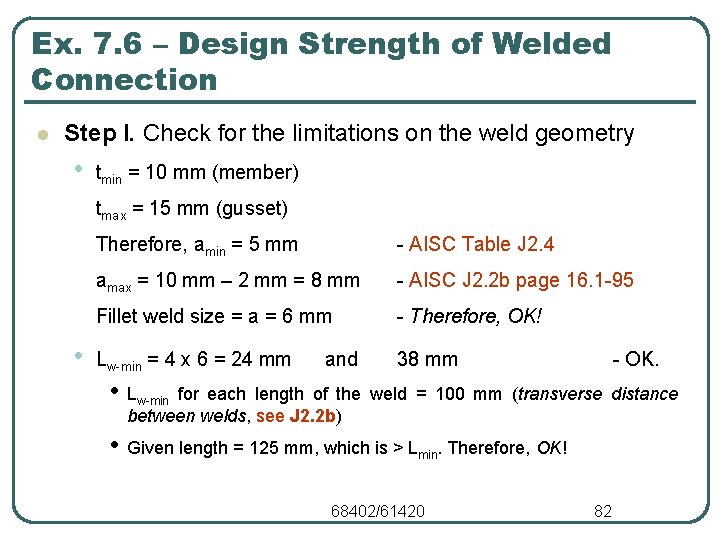

Ex. 7. 6 – Design Strength of Welded Connection l Step I. Check for the limitations on the weld geometry • tmin = 10 mm (member) tmax = 15 mm (gusset) • Therefore, amin = 5 mm - AISC Table J 2. 4 amax = 10 mm – 2 mm = 8 mm - AISC J 2. 2 b page 16. 1 -95 Fillet weld size = a = 6 mm - Therefore, OK! Lw-min = 4 x 6 = 24 mm 38 mm and - OK. • Lw-min for each length of the weld = 100 mm (transverse distance between welds, see J 2. 2 b) • Given length = 125 mm, which is > Lmin. Therefore, OK! 68402/61420 82

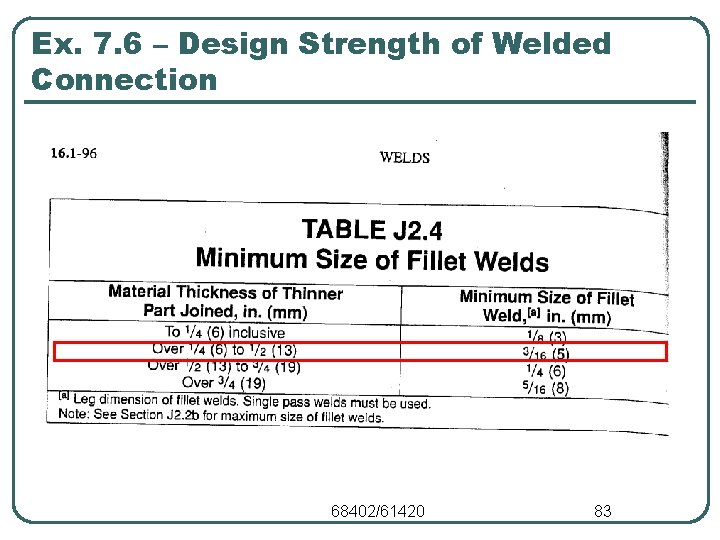

Ex. 7. 6 – Design Strength of Welded Connection 68402/61420 83

Ex. 7. 6 – Design Strength of Welded Connection l • Length/weld size = 125/6 = 20. 8 - Therefore, maximum effective length J 2. 2 b satisfied. • End returns at the edge corner size - minimum = 2 a = 12 mm -Therefore, OK! Step II. Design strength of the weld • Weld strength = x 0. 707 x a x 0. 60 x FEXX x Lw = 0. 75 x 0. 707 x 6 x 0. 60 x 482 x 250/1000 = 230 k. N l Step III. Tension strength of the member • Rn = 0. 9 x 344 x 100 x 10/1000 = 310 k. N 68402/61420 - tension yield 84

Ex. 7. 6 – Design Strength of Welded Connection • Rn = 0. 75 x Ae x 448 • • - tension fracture Ae = U A Ae = Ag = 100 x 10 = 1000 mm Therefore, Rn = 336 k. N The design strength of the member-connection system = 230 k. N. Weld strength governs. The end returns at the corners were not included in the calculations. 68402/61420 85

Elastic Analysis of Eccentric Welded Connections q It is assumed here that the rotation of the weld at failure occur around the elastic centre (EC) of the weld. The only difference from bolts is we are dealing with unit length of weld instead of a bolt q q AISC Manual Part 8 The shear stress in weld due to torsion moment M is the moment, d is the distance from the centroid of the weld to the weld point where we evaluate the stress, J is the polar moment of inertia of the weld 68402/61420 86

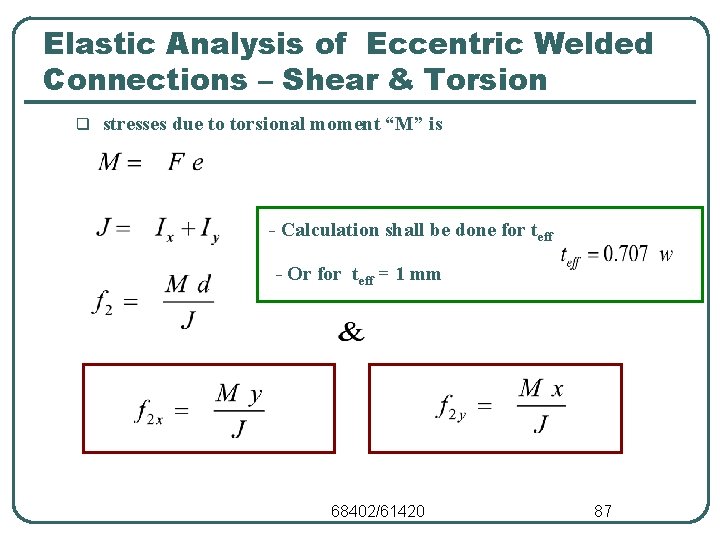

Elastic Analysis of Eccentric Welded Connections – Shear & Torsion q stresses due to torsional moment “M” is - Calculation shall be done for teff - Or for teff = 1 mm 68402/61420 87

Elastic Analysis of Eccentric Welded Connections – Shear & Torsion q q Forces due to direct applied force is Total stress in the weld is 68402/61420 88

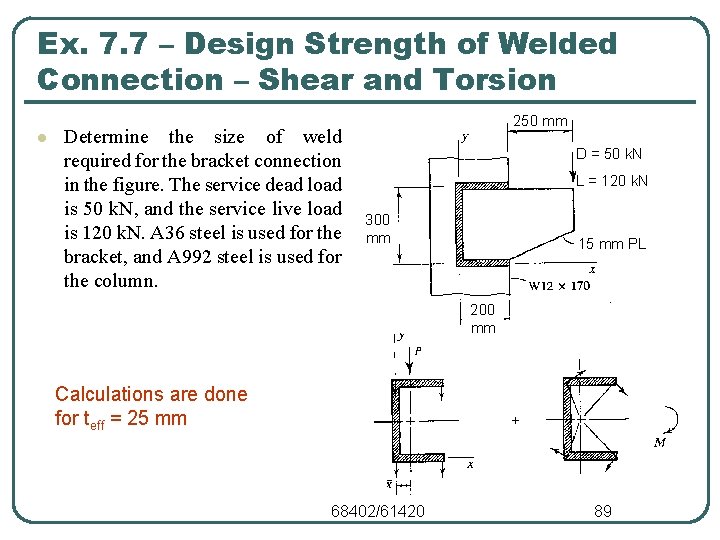

Ex. 7. 7 – Design Strength of Welded Connection – Shear and Torsion l Determine the size of weld required for the bracket connection in the figure. The service dead load is 50 k. N, and the service live load is 120 k. N. A 36 steel is used for the bracket, and A 992 steel is used for the column. 250 mm D = 50 k. N L = 120 k. N 300 mm 15 mm PL 200 mm Calculations are done for teff = 25 mm 68402/61420 89

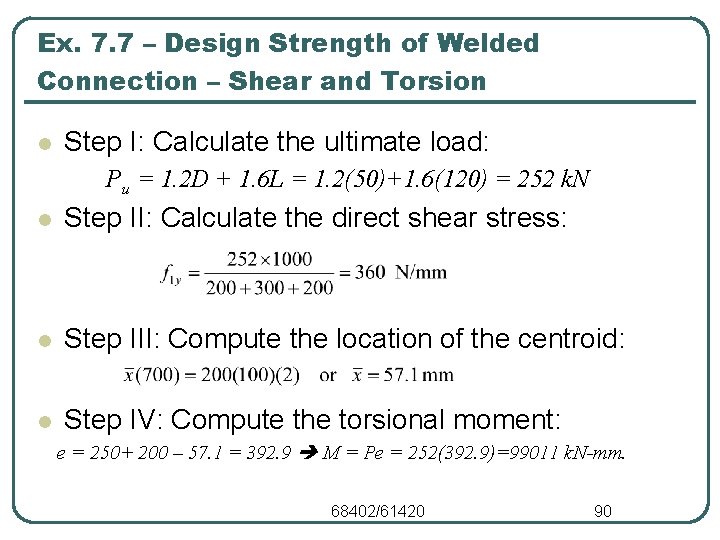

Ex. 7. 7 – Design Strength of Welded Connection – Shear and Torsion l Step I: Calculate the ultimate load: Pu = 1. 2 D + 1. 6 L = 1. 2(50)+1. 6(120) = 252 k. N l Step II: Calculate the direct shear stress: l Step III: Compute the location of the centroid: l Step IV: Compute the torsional moment: e = 250+ 200 – 57. 1 = 392. 9 M = Pe = 252(392. 9)=99011 k. N-mm. 68402/61420 90

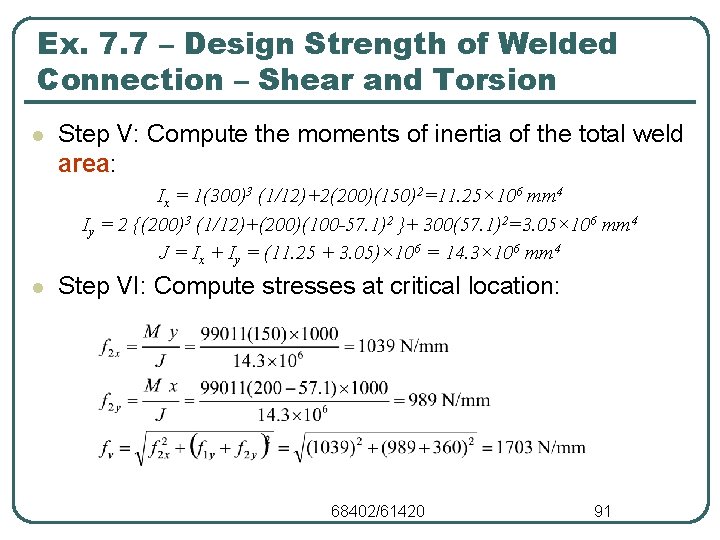

Ex. 7. 7 – Design Strength of Welded Connection – Shear and Torsion l Step V: Compute the moments of inertia of the total weld area: Ix = 1(300)3 (1/12)+2(200)(150)2=11. 25× 106 mm 4 Iy = 2 {(200)3 (1/12)+(200)(100 -57. 1)2 }+ 300(57. 1)2=3. 05× 106 mm 4 J = Ix + Iy = (11. 25 + 3. 05)× 106 = 14. 3× 106 mm 4 l Step VI: Compute stresses at critical location: 68402/61420 91

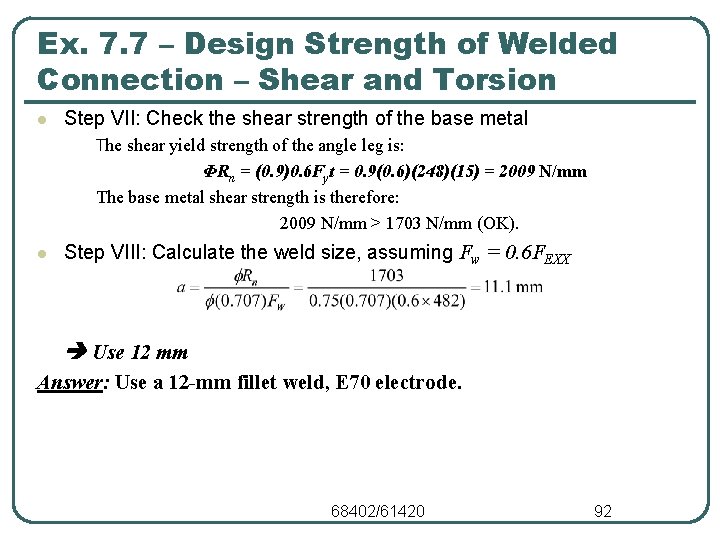

Ex. 7. 7 – Design Strength of Welded Connection – Shear and Torsion l Step VII: Check the shear strength of the base metal The shear yield strength of the angle leg is: ΦRn = (0. 9)0. 6 Fyt = 0. 9(0. 6)(248)(15) = 2009 N/mm The base metal shear strength is therefore: 2009 N/mm > 1703 N/mm (OK). l Step VIII: Calculate the weld size, assuming Fw = 0. 6 FEXX Use 12 mm Answer: Use a 12 -mm fillet weld, E 70 electrode. 68402/61420 92

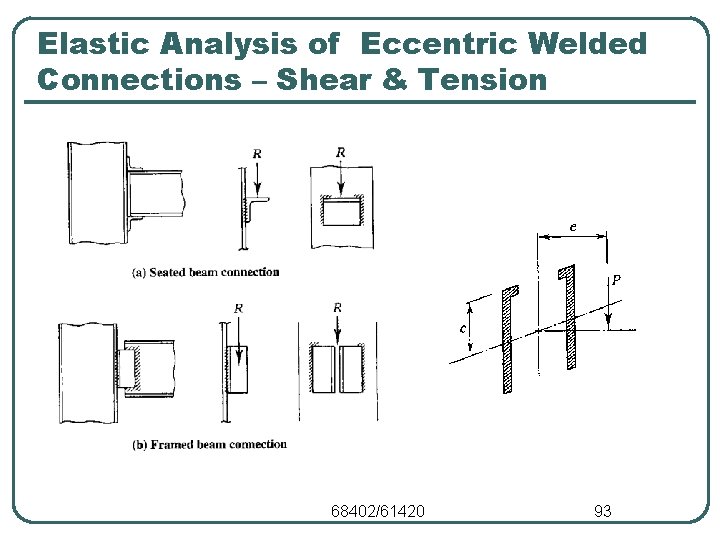

Elastic Analysis of Eccentric Welded Connections – Shear & Tension 68402/61420 93

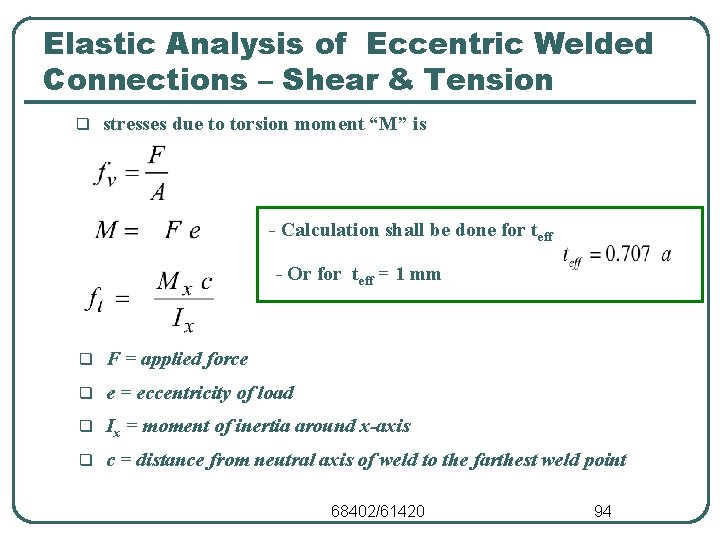

Elastic Analysis of Eccentric Welded Connections – Shear & Tension q stresses due to torsion moment “M” is - Calculation shall be done for teff - Or for teff = 1 mm q F = applied force q e = eccentricity of load q Ix = moment of inertia around x-axis q c = distance from neutral axis of weld to the farthest weld point 68402/61420 94

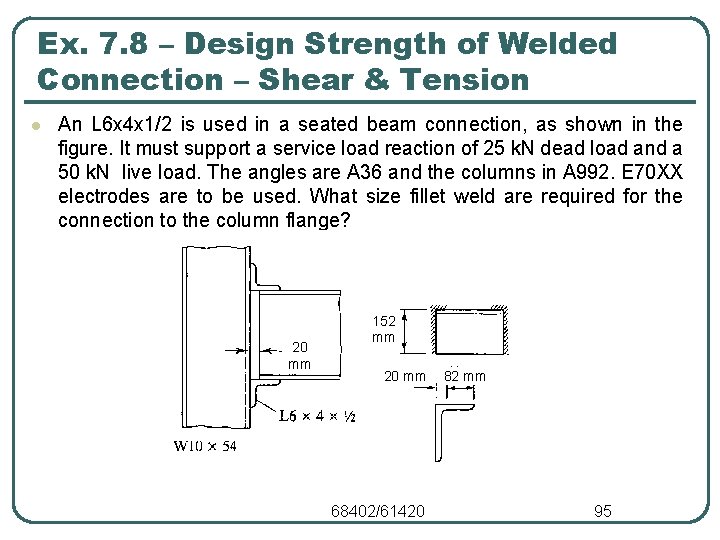

Ex. 7. 8 – Design Strength of Welded Connection – Shear & Tension l An L 6 x 4 x 1/2 is used in a seated beam connection, as shown in the figure. It must support a service load reaction of 25 k. N dead load and a 50 k. N live load. The angles are A 36 and the columns in A 992. E 70 XX electrodes are to be used. What size fillet weld are required for the connection to the column flange? 20 mm 152 mm 20 mm 68402/61420 82 mm 95

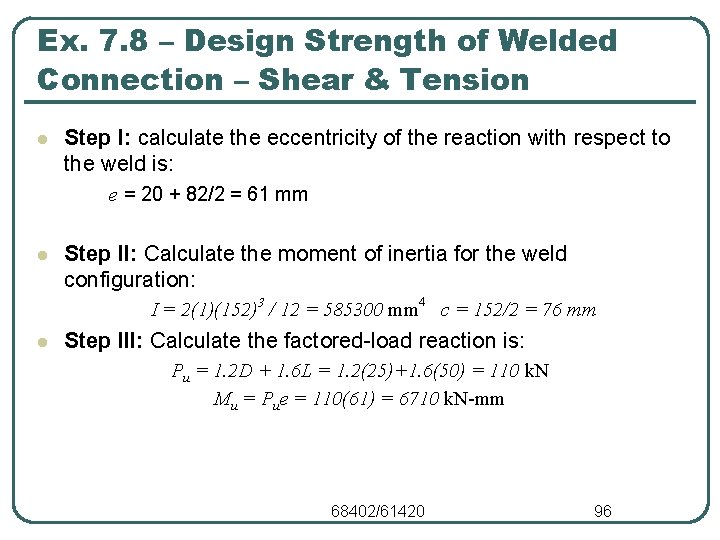

Ex. 7. 8 – Design Strength of Welded Connection – Shear & Tension l Step I: calculate the eccentricity of the reaction with respect to the weld is: e = 20 + 82/2 = 61 mm l Step II: Calculate the moment of inertia for the weld configuration: I = 2(1)(152)3 / 12 = 585300 mm 4 c = 152/2 = 76 mm l Step III: Calculate the factored-load reaction is: Pu = 1. 2 D + 1. 6 L = 1. 2(25)+1. 6(50) = 110 k. N Mu = Pue = 110(61) = 6710 k. N-mm 68402/61420 96

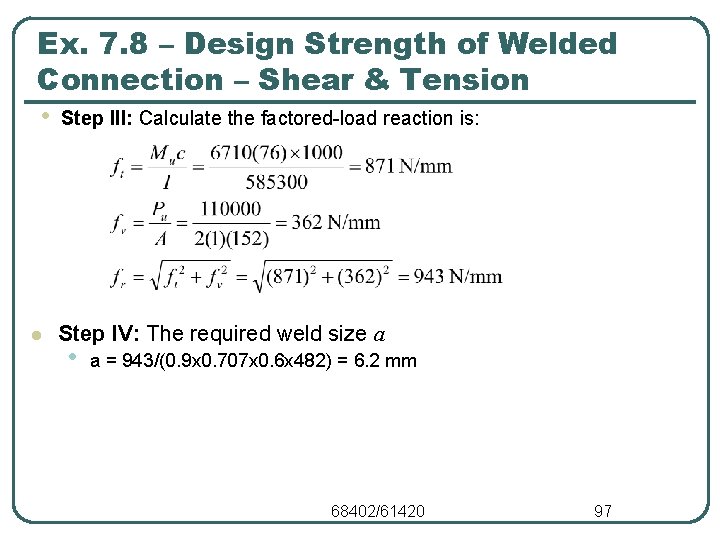

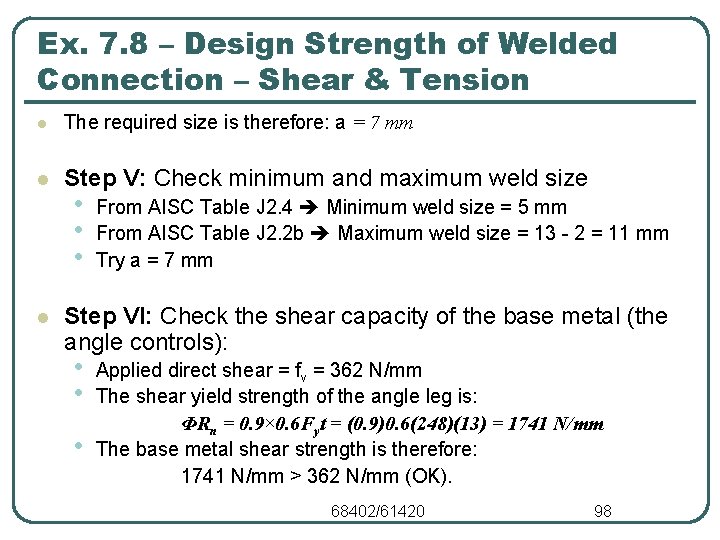

Ex. 7. 8 – Design Strength of Welded Connection – Shear & Tension • l Step III: Calculate the factored-load reaction is: Step IV: The required weld size a • a = 943/(0. 9 x 0. 707 x 0. 6 x 482) = 6. 2 mm 68402/61420 97

Ex. 7. 8 – Design Strength of Welded Connection – Shear & Tension l The required size is therefore: a = 7 mm l Step V: Check minimum and maximum weld size l • • • From AISC Table J 2. 4 Minimum weld size = 5 mm From AISC Table J 2. 2 b Maximum weld size = 13 - 2 = 11 mm Try a = 7 mm Step VI: Check the shear capacity of the base metal (the angle controls): • • • Applied direct shear = fv = 362 N/mm The shear yield strength of the angle leg is: ΦRn = 0. 9× 0. 6 Fyt = (0. 9)0. 6(248)(13) = 1741 N/mm The base metal shear strength is therefore: 1741 N/mm > 362 N/mm (OK). 68402/61420 98

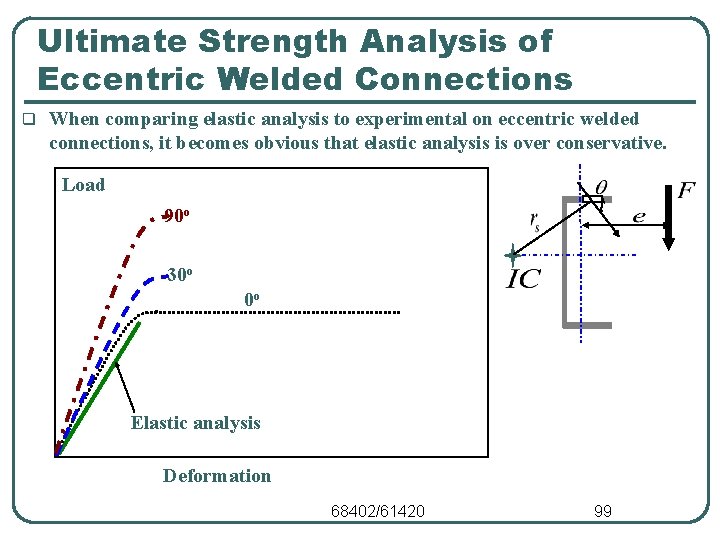

Ultimate Strength Analysis of Eccentric Welded Connections q When comparing elastic analysis to experimental on eccentric welded connections, it becomes obvious that elastic analysis is over conservative. Load 90 o 30 o 0 o Elastic analysis Deformation 68402/61420 99

Ultimate Strength Analysis of Eccentric Welded Connections q Similar to bolts, weld can be divided into segments which rotate about an instantaneous centre (IC) q Instead of summing the forces we can integrate over the length of the weld to get the basic equations of equilibrium: Thus 68402/61420 100

Ultimate Strength Analysis of Eccentric Welded Connections q However, in weld: The force in each segment “R” is also function of the angle q between the force direction and the weld. Deformation of the segment at max stress - Similar to bolts, the far weld element might have a higher proportion of force. 68402/61420 101

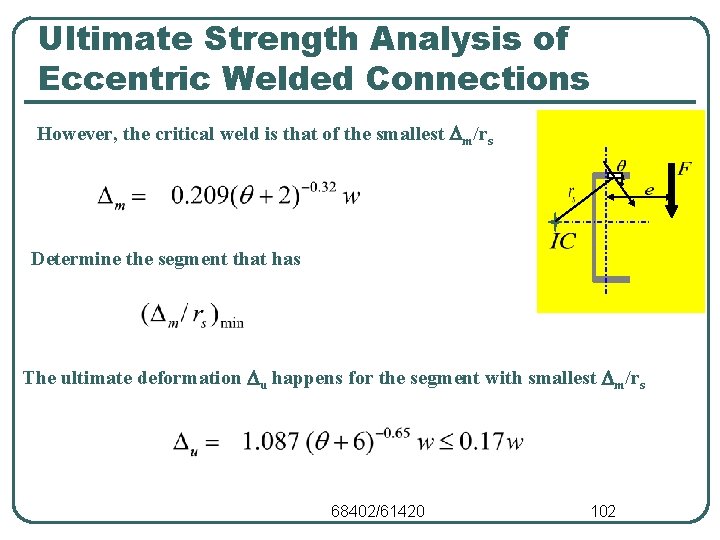

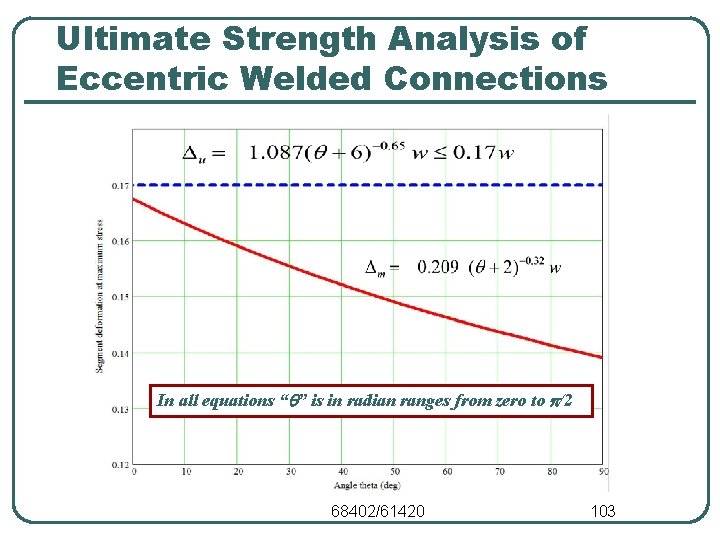

Ultimate Strength Analysis of Eccentric Welded Connections However, the critical weld is that of the smallest Dm/rs Determine the segment that has The ultimate deformation Du happens for the segment with smallest Dm/rs 68402/61420 102

Ultimate Strength Analysis of Eccentric Welded Connections In all equations “q” is in radian ranges from zero to p/2 68402/61420 103

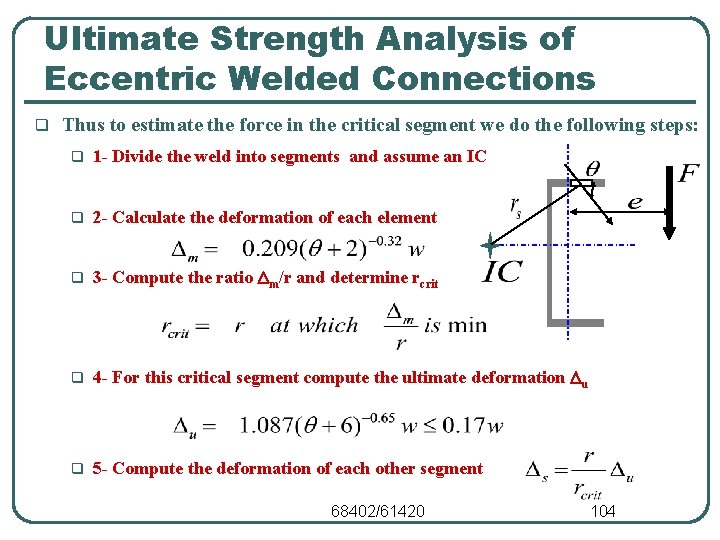

Ultimate Strength Analysis of Eccentric Welded Connections q Thus to estimate the force in the critical segment we do the following steps: q 1 - Divide the weld into segments and assume an IC q 2 - Calculate the deformation of each element q 3 - Compute the ratio Dm/r and determine rcrit q 4 - For this critical segment compute the ultimate deformation Du q 5 - Compute the deformation of each other segment 68402/61420 104

Ultimate Strength Analysis of Eccentric Welded Connections q Steps continued: q 6 - Compute the stress in each segment q 7 - Check equilibrium equations ≡ Eqn (1) ≡ Eqn (2) ≡ Eqn (3) 68402/61420 105

Extra Slides 68402/61420 106

Slip-critical Bolted Connections l l High strength (A 325 and A 490) bolts can be installed with such a degree of tightness that they are subject to large tensile forces. These large tensile forces in the bolt clamp the connected plates together. The shear force applied to such a tightened connection will be resisted by friction as shown in the Figure below. 68402/61420 107

Slip-critical Bolted Connections 68402/61420 108

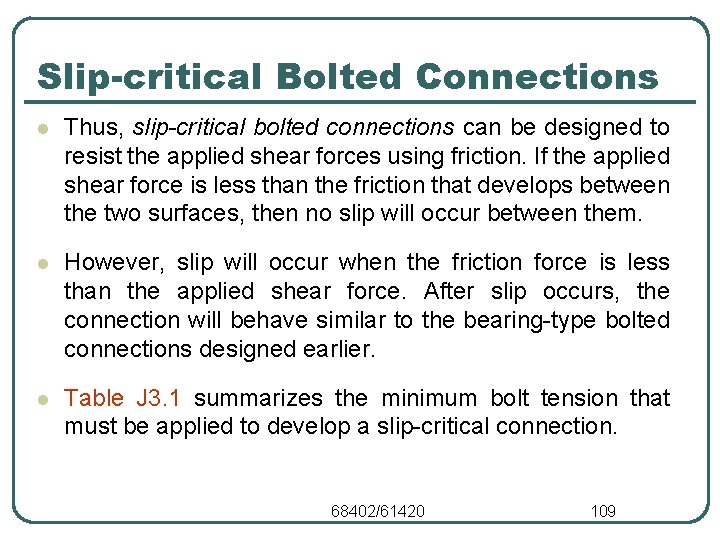

Slip-critical Bolted Connections l Thus, slip-critical bolted connections can be designed to resist the applied shear forces using friction. If the applied shear force is less than the friction that develops between the two surfaces, then no slip will occur between them. l However, slip will occur when the friction force is less than the applied shear force. After slip occurs, the connection will behave similar to the bearing-type bolted connections designed earlier. l Table J 3. 1 summarizes the minimum bolt tension that must be applied to develop a slip-critical connection. 68402/61420 109

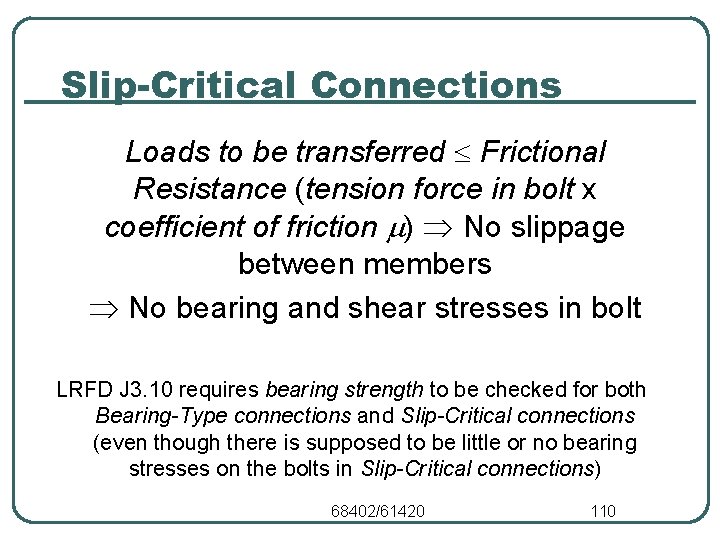

Slip-Critical Connections Loads to be transferred Frictional Resistance (tension force in bolt x coefficient of friction ) No slippage between members No bearing and shear stresses in bolt LRFD J 3. 10 requires bearing strength to be checked for both Bearing-Type connections and Slip-Critical connections (even though there is supposed to be little or no bearing stresses on the bolts in Slip-Critical connections) 68402/61420 110

Slip-critical Bolted Connections l The shear resistance of fully tensioned bolts to slip at factored loads & service loads is given by AISC Specification J 3. 8 Shear resistance at factored load = Rn = (1. 13 hsc. Tb Ns) - 0. 85 for factored loads & 1. 00 for service loads - friction coefficient Tb - minimum bolt tension given in Table J 3. 1 hsc – hole factor determined as: For standrad size holes For oversized and short-slotted holes For long-slotted holes hsc = 1. 0 hsc = 0. 85 hsc = 0. 7 Ns - number of slip planes 68402/61420 111

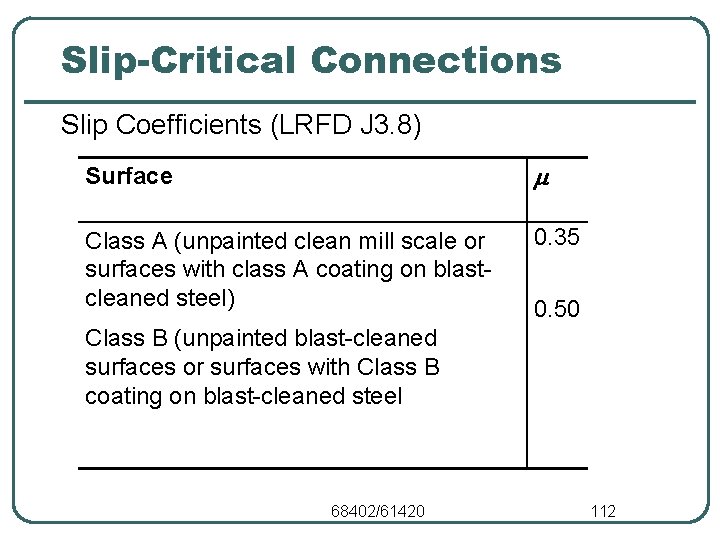

Slip-Critical Connections Slip Coefficients (LRFD J 3. 8) Surface Class A (unpainted clean mill scale or surfaces with class A coating on blastcleaned steel) 0. 35 0. 50 Class B (unpainted blast-cleaned surfaces or surfaces with Class B coating on blast-cleaned steel 68402/61420 112

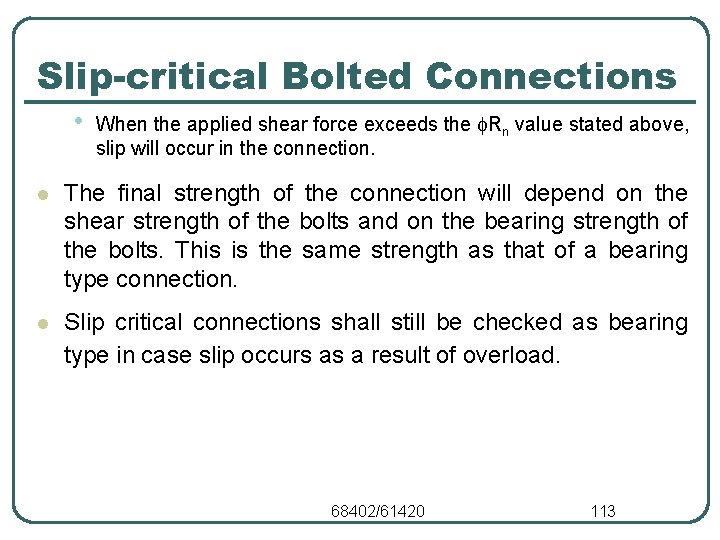

Slip-critical Bolted Connections • When the applied shear force exceeds the Rn value stated above, slip will occur in the connection. l The final strength of the connection will depend on the shear strength of the bolts and on the bearing strength of the bolts. This is the same strength as that of a bearing type connection. l Slip critical connections shall still be checked as bearing type in case slip occurs as a result of overload. 68402/61420 113

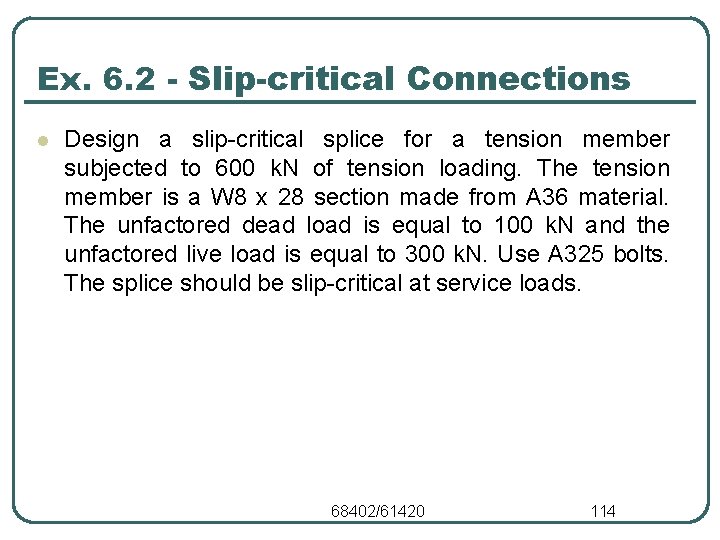

Ex. 6. 2 - Slip-critical Connections l Design a slip-critical splice for a tension member subjected to 600 k. N of tension loading. The tension member is a W 8 x 28 section made from A 36 material. The unfactored dead load is equal to 100 k. N and the unfactored live load is equal to 300 k. N. Use A 325 bolts. The splice should be slip-critical at service loads. 68402/61420 114

Ex. 6. 2 - Slip-critical Connections l Step I. Service and factored loads • • • l Service Load = D + L = 400 k. N. Factored design load = 1. 2 D + 1. 6 L = 600 k. N Tension member is W 8 x 28 section made from A 36 steel. The tension splice must be slip critical (i. e. , it must not slip) at service loads. Step II. Slip-critical splice connection (service load) • Rn of one fully-tensioned slip-critical bolt = (1. 13 hsc. Tb Ns) (See Spec. J 3. 8) 68402/61420 115

Ex. 6. 2 - Slip-critical Connections • Assume db = 20 mm. • Rn of one bolt = 1. 0 x 1. 13 x 0. 35 x 1. 0 x 142 x 1 = 56. 2 k. N • Note, Tb = 142 k. N from Table J 3. 1 M • Rn of n bolts = 56. 2 x n > 400 k. N (splice must be slip-critical at service) • Therefore, n > 7. 12 68402/61420 116

Ex. 6. 2 - Slip-critical Connections l Step III. Layout of splice connection • Flange-plate splice connection 68402/61420 117

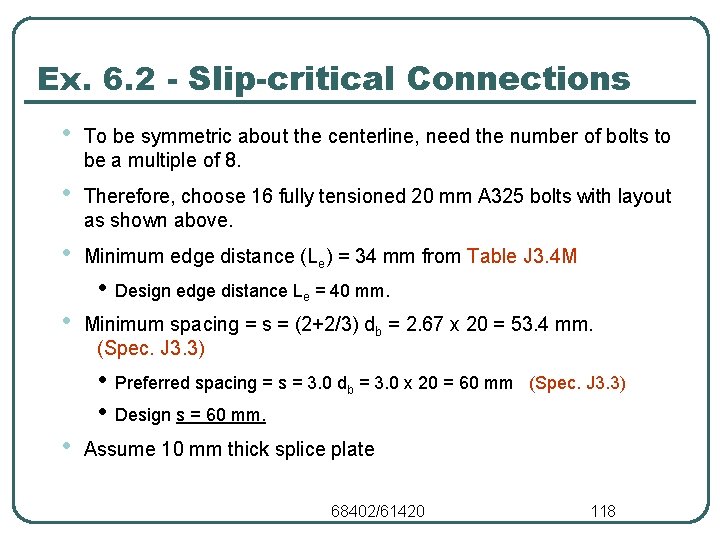

Ex. 6. 2 - Slip-critical Connections • To be symmetric about the centerline, need the number of bolts to be a multiple of 8. • Therefore, choose 16 fully tensioned 20 mm A 325 bolts with layout as shown above. • Minimum edge distance (Le) = 34 mm from Table J 3. 4 M • • Minimum spacing = s = (2+2/3) db = 2. 67 x 20 = 53. 4 mm. (Spec. J 3. 3) • • • Design edge distance Le = 40 mm. Preferred spacing = s = 3. 0 db = 3. 0 x 20 = 60 mm (Spec. J 3. 3) Design s = 60 mm. Assume 10 mm thick splice plate 68402/61420 118

Ex. 6. 2 - Slip-critical Connections l Step IV. Connection strength at factored loads • The splice connection should be designed as a normal shear/bearing connection beyond this point for the factored load of 600 k. N. • • • Shear strength of a bolt = 77. 8 k. N (see Example 7. 1) • Bearing strength of 20 mm bolts at non-edge holes (s = 60 mm) = 138. 2 k. N (see Example 7. 1) • • Bearing strength of bolt holes in flanges of wide flange section The shear strength of bolts = 77. 8 k. N/bolt x 8 = 622. 4 k. N Bearing strength of 20 mm bolts at edge holes (Le = 30 mm) = 69. 1 k. N (see Example 7. 1) = 4 x 69. 1 + 4 x 138. 2 = 829. 2 k. N > 600 k. N 68402/61420 OK 119

Ex. 6. 2 - Slip-critical Connections l Step V. Design the splice plate • • • l Tension yielding: 0. 9 Ag Fy > 300 k. N; Therefore, Ag > 1344 mm 2 Tension fracture: 0. 75 An Fu > 300 k. N Therefore, An =Ag - 2 x (20 +3. 2) x 10 > 1000 mm 2 Beam flange width = 166 mm Assume plate width 160 mm x 10 mm which has Ag = 1660 mm 2 Step VI. Check member strength • Student on his/her own. 68402/61420 120

Ultimate Strength Analysis of Eccentric Bolted Connections q Experimental study by Crawford and Kulak (1971) showed: - The load-deformation relationship of any bolt is non-linear AISC Manual Part 7 68402/61420 121

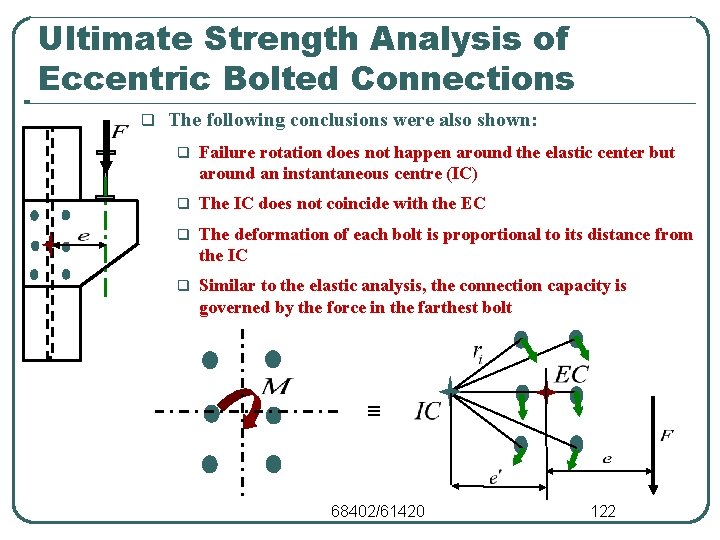

Ultimate Strength Analysis of Eccentric Bolted Connections q The following conclusions were also shown: q Failure rotation does not happen around the elastic center but around an instantaneous centre (IC) q The IC does not coincide with the EC q The deformation of each bolt is proportional to its distance from the IC q Similar to the elastic analysis, the connection capacity is governed by the force in the farthest bolt ≡ 68402/61420 122

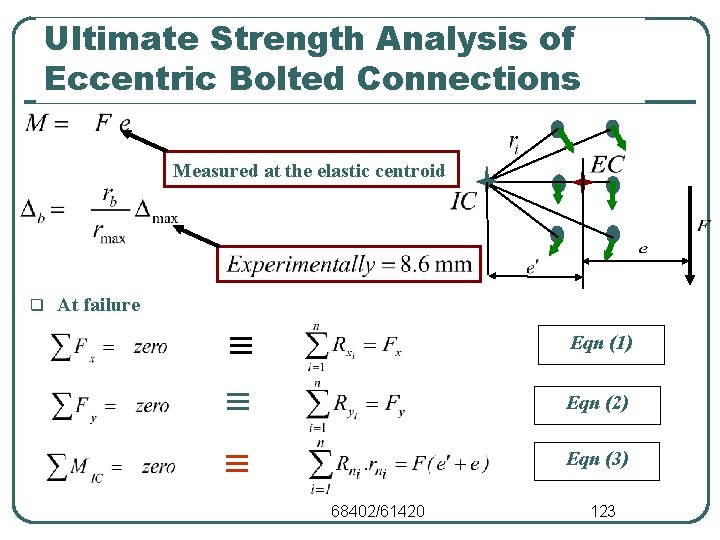

Ultimate Strength Analysis of Eccentric Bolted Connections Measured at the elastic centroid q At failure ≡ ≡ Eqn (1) Eqn (2) ≡ Eqn (3) 68402/61420 123

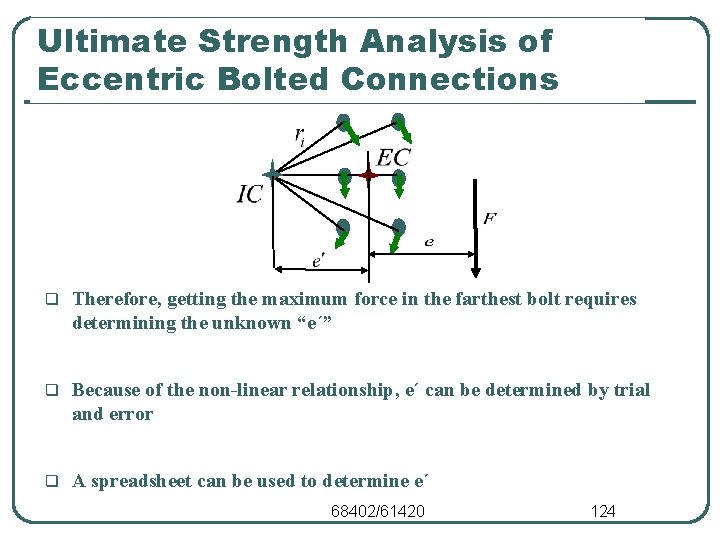

Ultimate Strength Analysis of Eccentric Bolted Connections q Therefore, getting the maximum force in the farthest bolt requires determining the unknown “e´” q Because of the non-linear relationship, e´ can be determined by trial and error q A spreadsheet can be used to determine e´ 68402/61420 124

Forces on Eccentrically-Loaded Bolts with Eccentricity on the Faying Surface Ultimate Strength Method (Instantaneous Center of Rotation Method) l 1 d 1 R 1 d 2 R 3 3 d 3 R = Nominal shear strength of 1 bolt at a deformation , k Rult= Ultimate shear strength of 1 bolt, k. N 2 R 2 CG IC d 4 Pu e e’ R = Rult(1 – e-0. 394 )0. 55 4 R 4 = Total deformation, including shear, bearing and bending deformation in the bolt and bearing deformation of the connected elements, in. ( max = 8. 6 mm for 20 mm ASTM A 325 bolt) 1/d 1 = 2/d 2 = … = max/dmax e = 2. 718…base of the natural logarithm 68402/61420 125

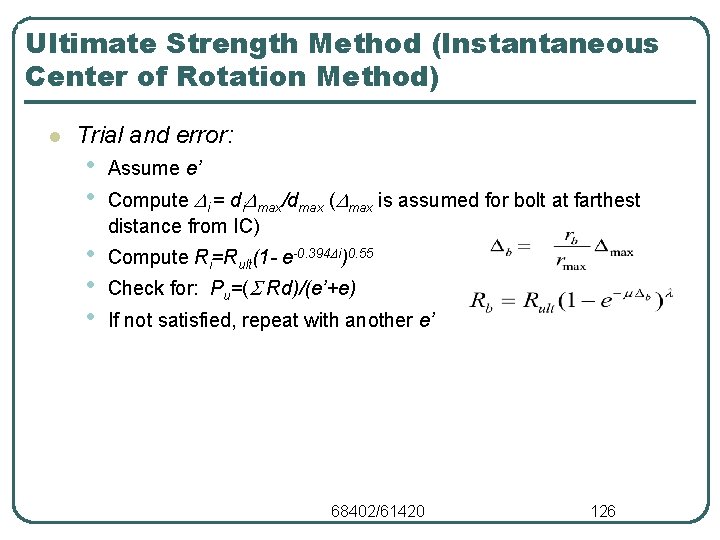

Ultimate Strength Method (Instantaneous Center of Rotation Method) l Trial and error: • • Assume e’ • • • Compute Ri=Rult(1 - e-0. 394 i)0. 55 Compute i = di max/dmax ( max is assumed for bolt at farthest distance from IC) Check for: Pu=( Rd)/(e’+e) If not satisfied, repeat with another e’ 68402/61420 126

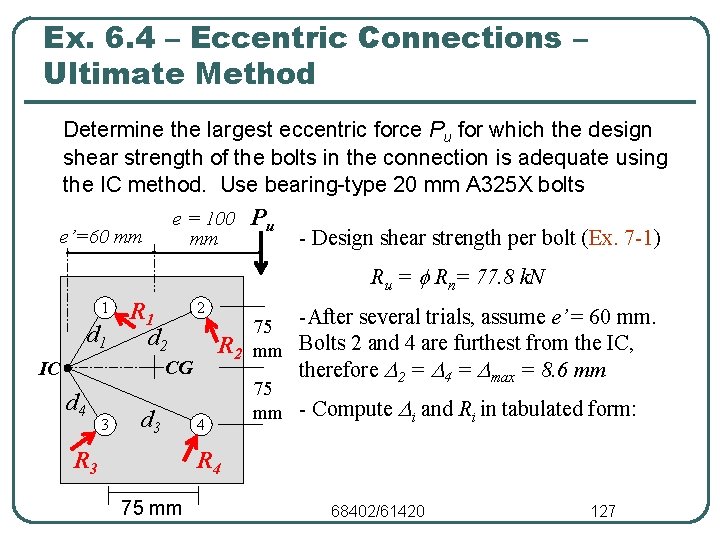

Ex. 6. 4 – Eccentric Connections – Ultimate Method Determine the largest eccentric force Pu for which the design shear strength of the bolts in the connection is adequate using the IC method. Use bearing-type 20 mm A 325 X bolts e = 100 mm e’=60 mm Pu - Design shear strength per bolt (Ex. 7 -1) Ru = Rn= 77. 8 k. N 1 d 1 R 1 d 2 2 R 2 CG IC d 4 3 d 3 R 3 4 75 -After several trials, assume e’= 60 mm. mm Bolts 2 and 4 are furthest from the IC, therefore 2 = 4 = max = 8. 6 mm 75 mm - Compute i and Ri in tabulated form: R 4 75 mm 68402/61420 127

Ex. 6. 4 – Eccentric Connections – Ultimate Method Bolt # h v (mm) d (mm) R (k. N) Ry (k. N) Rd (k. N. mm) 1 22. 5 75 78. 3 5. 47 72. 7 20. 9 5692 2 97. 5 75 123 8. 6 77. 8 61. 67 7585 3 22. 5 75 78. 3 5. 47 72. 7 20. 9 5692 4 97. 5 75 123 8. 6 77. 8 61. 67 7585 = 165. 14 = 26554 Check: Pu= ( Rd)/(e’+e) = (26554/(60+100)) = 166 k. N ~ Ry = 165. 14 k. N (OK) 68402/61420 128
