Securing Java applets Erik Poll Security of Systems

Securing Java applets Erik Poll Security of Systems (SOS) group University of Nijmegen www. cs. kun. nl/~erikpoll Erik Poll Securing Java applets

Overview • Security problems of Java Card applets or any other piece of software, for that matter • Work in the EU-IST project Verifi. Card • Work on formal techniques for applet verification in Nijmegen Erik Poll Securing Java applets 2

Java applet Java application (piece of software) that is deployed independently on some platform, with some operating system (OS), eg – Java Card smart card applet – mobile phone (eg midlet on MIDP phone) – PDA – web browser – PC – airplane Erik Poll Securing Java applets 3

Old vs new smart cards • one program (applet) • written in machine-code, specific to chip and OS • burnt into ROM • Applet written in high-level language (Java Card) • compiled into bytecode • stored in EEPROM • interpreted on card Options: • multi-application: several applets on one card • post-issuance: adding or deleting applets on card Erik Poll Securing Java applets 4

applet Java Card architecture JC Java Virtual Card platform JC Global (JCRE) Machine - miniature API OS Platform smart card hardware Erik Poll Securing Java applets 5

Production of a Java Card applet bytecode verifier source code compiler byte code cap generator Options: • only pre-loaded applets • only digitally signed applets (using Global Platform) Remaining issue: how do we certify these pre-loaded or signed applets? Erik Poll Securing Java applets cap file download 6

Security questions 1. Is my applet correct and secure? “correct” is necessary precondition for “secure” 2. Is the platform correct and secure ? 3. Is someone else’s applet is not malicious ie. will it not – annoy users, – interfere with other applets, or – damage the platform ? Erik Poll Securing Java applets 7

Java applet security 1. language level security – basic guarantees (no buffer overflows) 2. platform level security – imposes additional restrictions to protect platform & other applets (firewall/sandbox) 3. application level security – applet responsible for own specific correctness & security needs Erik Poll Securing Java applets 8

Buffer overflows Example • Application asks for 4 -digit PIN code • User supplies a 5 -digit PIN code 12345 • What happens in the memory ? 0 Erik Poll 0 1 0 2 0 3 0 4 5 e Securing Java applets r i k 9

Buffer overflows • Single biggest cause of bugs & security holes – 30 -70% of all security alerts www. cert. org/advisories – 36% of all bugs at Microsoft • Possible - and frequent - in C, C++ although there are good tools to detect them. . . • Impossible in modern languages: Java, C# • Conclusion: don’t use C(++), use Java or C# Erik Poll Securing Java applets 10

Java applet security 1. language level security – basic guarantees (no buffer overflows) 2. platform level security – imposes additional restrictions to protect platform & other applets (firewall/sandbox) 3. application level security – applet responsible for own specific correctness & security needs Erik Poll Securing Java applets 11

Security questions 1. Is my applet correct and secure? “correct” is necessary precondition for “secure” 2. Is the platform correct and secure ? 3. Is someone else’s applet is not malicious ie. will it not – annoy users, – interfere with other applets, or – damage the platform ? Security evaluations must answer these questions Erik Poll Securing Java applets 12

• NB Even perfectly secure applet running on perfectly secure platform may suffer from malicious applets • For example – a malicious applet on mobile phone could simply ask user to type in the PIN code • Protection against such Trojan Horses will require human source code inspection of untrusted, potentially hostile, applets ? Erik Poll Securing Java applets 13

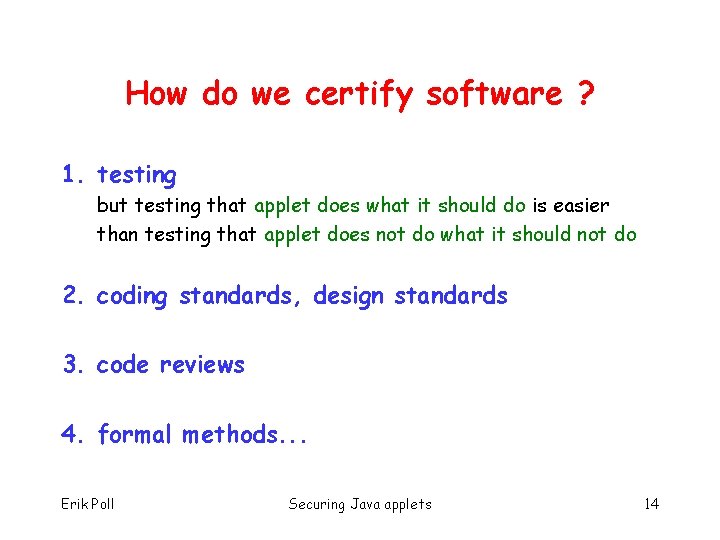

How do we certify software ? 1. testing but testing that applet does what it should do is easier than testing that applet does not do what it should not do 2. coding standards, design standards 3. code reviews 4. formal methods. . . Erik Poll Securing Java applets 14

Verifi. Card Erik Poll Securing Java applets 15

Verifi. Card • EU-funded project for developing and applying formal methods for the specification and verification of the Java Card – platform and – applets • Partners: universities, research institutes, smart card manufacturers • www. verificard. org Erik Poll Securing Java applets 16

Why formal methods ? (I) required by highest levels of certification in Common Criteria and there are increasing demands for higher levels of CC security evaluation Erik Poll Securing Java applets 17

Why formal methods ? (II) Central problem in ensuring that software is correct or secure: – We have long documents in English giving functional specs, security requirements, . . . – How to ensure that • these specs are consistent & complete ? • our implementations actually meet them ? – If we can express parts of these documents in formal languages, we have more options. . . Erik Poll Securing Java applets 18

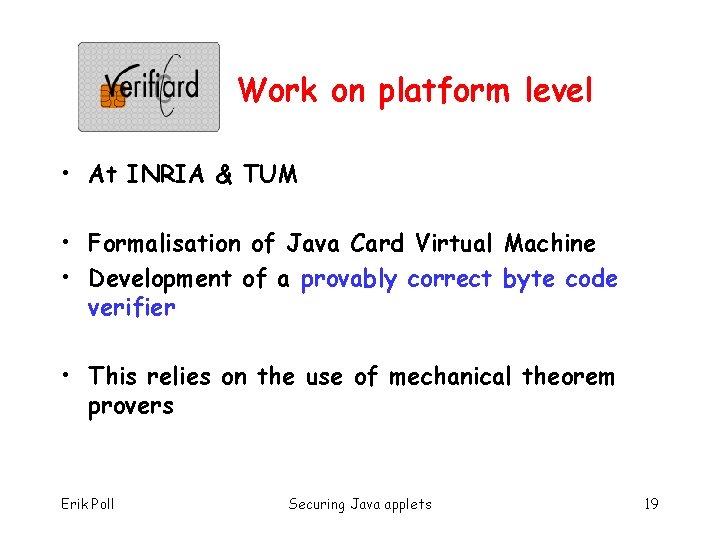

Work on platform level • At INRIA & TUM • Formalisation of Java Card Virtual Machine • Development of a provably correct byte code verifier • This relies on the use of mechanical theorem provers Erik Poll Securing Java applets 19

Work on applet level • At INRIA, SICS, Kaiserslautern, Nijmegen • Formal specification and verification of Java Card applets, in particular using JML Erik Poll Securing Java applets 20

Java Card applet specification and verification using JML Erik Poll Securing Java applets 21

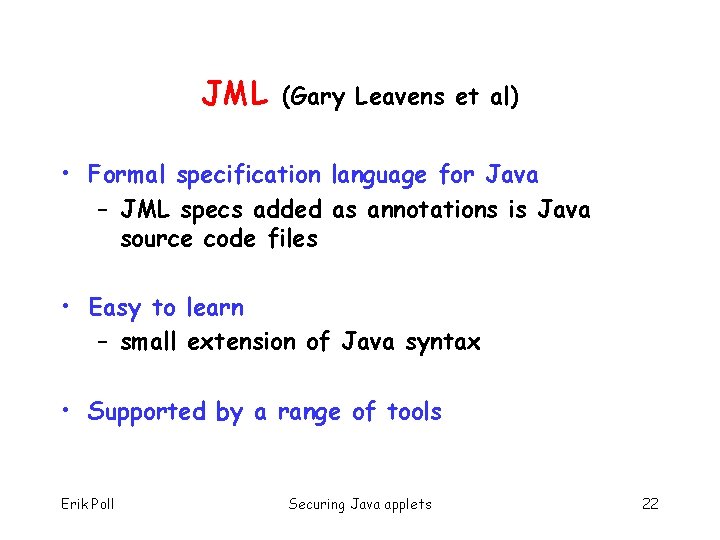

JML (Gary Leavens et al) • Formal specification language for Java – JML specs added as annotations is Java source code files • Easy to learn – small extension of Java syntax • Supported by a range of tools Erik Poll Securing Java applets 22

JML Example Java compiler but JML tools ignores will line parse it this //@ requires amount >= 0; public void debit(int amount) {. . } this precondition makes an assumption explicit 19% of bugs are due to lack of input validation Erik Poll Securing Java applets 23

JML Example //@ requires amount >= 0; ensures balance == old(balance) – amount; signals (Purse. Exception) balanace == old(balance); @*/ this precondition makes an assumption explicit public void debit(int amount) { 19% of bugs are due to lack of input validation. . } Erik Poll Securing Java applets 24

JML Example private int balance; final static int MAX_BALANCE; /*@ invariant 0 <= balance && balance < MAX_BALANCE; @*/ Erik Poll Securing Java applets 25

JML Example private byte[] pin; /*@ invariant pin != null && pin. length == 4 && (forall int i; 0 <= i && i < 4 ; 0 <= pin[i] && pin[i] <= 9); @*/ Erik Poll Securing Java applets 26

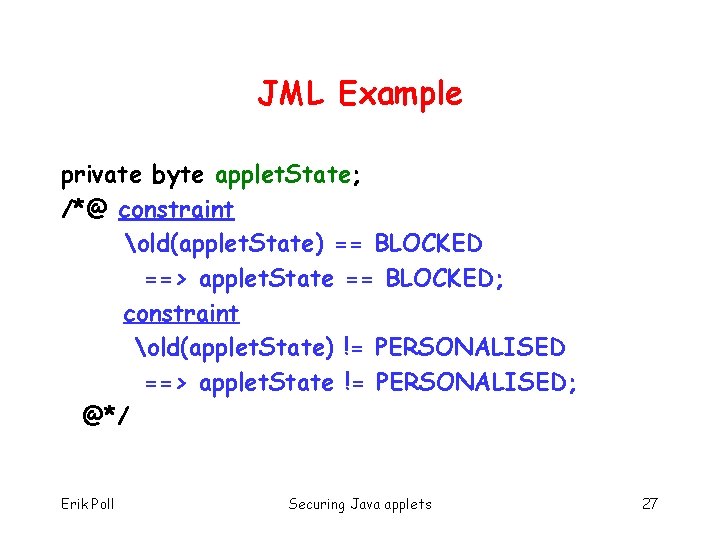

JML Example private byte applet. State; /*@ constraint old(applet. State) == BLOCKED ==> applet. State == BLOCKED; constraint old(applet. State) != PERSONALISED ==> applet. State != PERSONALISED; @*/ Erik Poll Securing Java applets 27

Using JML • Many “soundness/safety” properties of Java (Card) program can be easily specified in JML • Such properties help in understanding code • For such properties we can use tools to check that implementations satisfy them • There are different tools, offering different levels of assurance at different costs. . . Erik Poll Securing Java applets 28

Tools for JML • parser & type-checker – no typos in specs • runtime assertion checker (Iowa State, Gary Leavens) – tests if any specs are violated at runtime • static checker ESC/Java (Compaq, Rustan Leino et al. ) – automatic verification of simple properties • interactive program verifier LOOP (Nijmegen) – interactive verification of any property Erik Poll Securing Java applets 29

Testing & verification • Testing considers a limited set of inputs • Verification covers all possible inputs • Testing is easier with a formal (JML) spec that we can test against Erik Poll Securing Java applets 30

Applet verification: achievements • Verification of real industrial smart card applet (EMV applet) • Verification revealed uncaught exceptions that were not detected during normal testing • Gemplus has developed JACK tool supporting JML, integrated in IDE their developers use Erik Poll Securing Java applets 31

Conclusions about applet verification • Formal specification languages and tools can help when doing a code review • Interactive program verification probably still too costly, but automated program verification seems to provide good return-on-investment • How far can we push level of automation ? – Will Moore’s law rescue us here ? Erik Poll Securing Java applets 32

Conclusions Erik Poll Securing Java applets 33

Old vs new generation smart cards Some points to note: • some security concerns are the same, eg – is the smart card OS correct and secure ? – is our application correct and secure ? • possible advantages of Java Card: – Java Card OS better studied than others – our knowledge of and tools for Java may allow better & cheaper security evaluations Erik Poll Securing Java applets 34

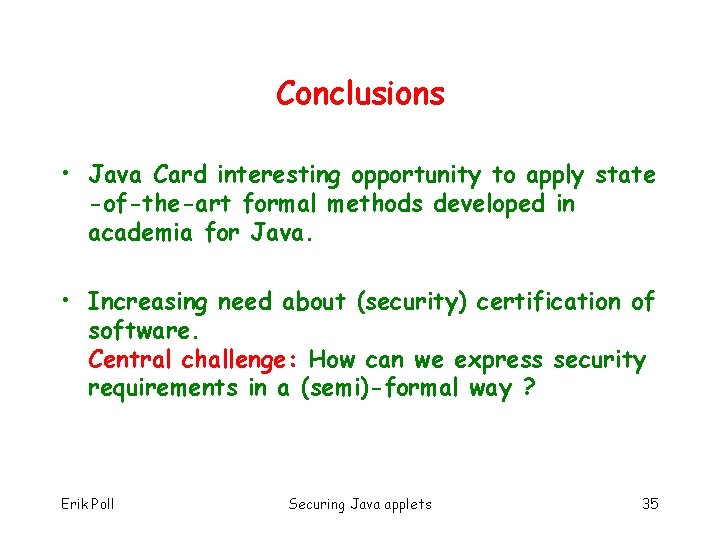

Conclusions • Java Card interesting opportunity to apply state -of-the-art formal methods developed in academia for Java. • Increasing need about (security) certification of software. Central challenge: How can we express security requirements in a (semi)-formal way ? Erik Poll Securing Java applets 35
