Propositional Satisfiability and Constraint Programming Lucas Bordeaux Microsoft

Propositional Satisfiability and Constraint Programming Lucas Bordeaux Microsoft Research, Cambridge

Acknowledgements My views on SAT have been shaped by discussions along the last weeks or years with: Joao Marques-Silva – Lakhdar Sais – David Mitchell – Marco Benedetti – Sathiamoorthy Subbarayan – Fabien Corblin – Horst Samulowitz – Claude-Guy Quimper – Lintao Zhang – Youssef Hamadi – Ines Lynce – Madan Musuvathi – Daniel Le Berre – Marco Cadoli – Robert Nieuwenhuis – Cedric Piette – Byron Cook – Laurent Simon – Toni Mancini. . .

Goals of the Course • See some tricks used by modern SAT solvers • Discuss what lessons CP can learn from them • Suggest why research in SAT was, is still, and will remain exciting and diverse • Expose you some working knowledge on many interesting results that are part of folklore, but rarely exposed at once • Connect to various areas of CP and AI

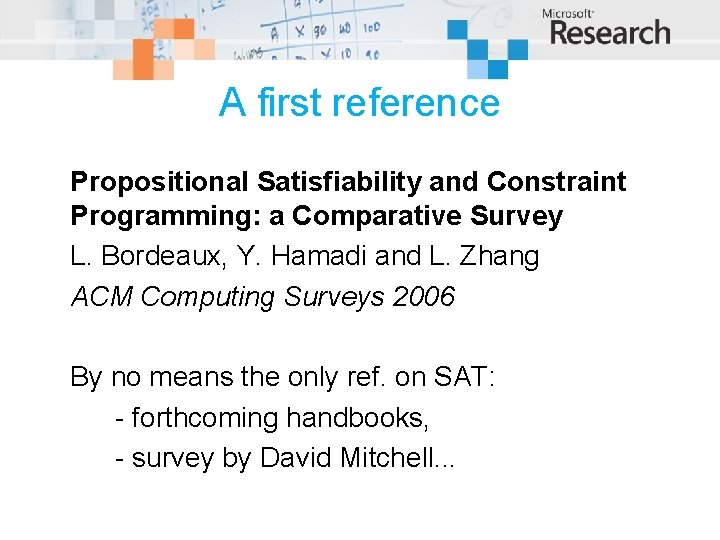

A first reference Propositional Satisfiability and Constraint Programming: a Comparative Survey L. Bordeaux, Y. Hamadi and L. Zhang ACM Computing Surveys 2006 By no means the only ref. on SAT: - forthcoming handbooks, - survey by David Mitchell. . .

Outline • A few things to know about propositional logic • SAT solvers

Outline • A few things to know about propositional logic – – Basic definitions Encoding problems in SAT Deduction in propositional logic Easy and hard classes of propositional formulae • SAT solvers

Basic definitions Encoding problems in SAT Easy and hard classes of propositional formulae Deduction in propositional logic PART I – A FEW THINGS TO KNOW ABOUT PROPOSITIONAL LOGIC

A few things to know about SAT • SAT means “propositional satisfiability” – Given a Boolean circuit, find an input for which the circuit evaluates to true. 0 0 0 AND 0 OR NOT 1 1

A few things to know about SAT • An interesting restriction of SAT is Conjunctive Normal Form (CNF) A literal A clause • Note that a clause is a no-good: it forbids a partial assignment

A few things to know about SAT • SAT Instances can be put in CNF -Add variables for each intermediate result a=(x. y), b=(-z) c=(a+b) x y z a AND OR NOT b c -Express the relations between these vars by clauses (!a + x), (!a + y) (!x + !y + a). . . -Constrain output to be true (c) • We obtain a formula that is equi-satisfiable

A few things to know about SAT • Incidentally Conjunctive Normal Form provides a convenient format in which SAT instances can be represented DEMO! Have a look at the instance encoding used in SAT competitions

A few things to know about SAT • SAT is NP-complete QUIZZ 0 0 0 1 1 1 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 State as input at every step Non-deterministic case: “guessed” bits as extra input There is a famous statement that 3 SAT (i. e. Clauses of size 3 max) is NP-complete; why is it so?

Cultural Interlude I QUIZZ Who is the gentleman on the left? Who is the gentleman on the right?

Basic definitions Encoding problems in SAT Easy and hard classes of propositional formulae Deduction in propositional logic PART I – A FEW THINGS TO KNOW ABOUT PROPOSITIONAL LOGIC

Encoding Problems in Prop. Logic • Clearly, variables with arbitrary finitelyrepresentable domains can be represented by sequences of Boolean variables • Relations over these variables can be represented as relations over {0, 1}n, a. k. a. Boolean functions from {0, 1}n → {0, 1}. • Among these relations, which ones can be concisely encoded as Boolean circuits?

Encoding Problems in Prop. Logic Answer 1: • The overwhelming majority of Boolean functions cannot be represented concisely in SAT (i. e. any circuit is super-polynomial) • This is Shannon’s theorem (for Boolean circuits) QUIZZ Do you see why Shannon’s theorem holds?

Encoding Problems in Prop. Logic Answer 2: • Think of Cook’s theorem – If the membership of a 0/1 vector to the relation can be checked efficiently, then we can encode the relation into SAT • “The assembly language of Constraints” – Even though it is a minimalistic language, “everything representable” at all can be represented concisely in propositional logic

Encoding Problems in Prop. Logic • There is an area of AI that studies knowledge representation formalisms – Circuits are “optimally concise” representation formalism for Boolean functions – This comes at a price: we cannot efficiently find a solution, count the solutions, make projections, etc. – Other formalisms exist that offer different tradeoffs between conciseness and functionality (e. g. Binary Decision Diagrams, d-DNNF)

(detour: Binary Decision Diagrams) Decision tree 0 1 1 0 0 0 1 1

(detour: Binary Decision Diagrams) (we can join terminal nodes) 0 1

(detour: Binary Decision Diagrams) Merge isomorphic branches 0 1

(detour: Binary Decision Diagrams) 0 1

(detour: Binary Decision Diagrams) 0 1

(detour: Binary Decision Diagrams) Different variants exist (0 -suppressed, etc. ) 0 1

Problems typically encoded in SAT • Circuit equivalence XOR Solution gives Counter-example to equivalence A B

Problems typically encoded in SAT • Finite-State Transition Systems (toy example) We have a system whose state is encoded by two bits X and Y The following transitions are possible: • Swap the values of X and Y • Flip the value of X – possible only when Y=1

Finite-State Transition Systems Example of problem: Starting from state (0, 0), can the system reach state (1, 1)? X 0 1 Y 0 0 • Swap the values of X and Y– possible only when X=1 • Flip the value of X

Finite-State Transition Systems Example of problem: Starting from state (0, 0), can the system reach state (1, 1)? X 0 1 0 Y 0 0 1 • Swap the values of X and Y– possible only when X=1 • Flip the value of X

Finite-State Transition Systems Example of problem: Starting from state (0, 0), can the system reach state (1, 1)? X 0 1 Y 0 0 1 1 • Swap the values of X and Y– possible only when X=1 • Flip the value of X ! Done

Finite-State Transition Systems SAT encoding: • We bound to a given length • The value of a component A of the system at each step i is denoted by a different variable Ai • We put constraints between each consecutive pairs of states to guarantee correct transitions X 1 Y 1 X 2 C 1 Y 2 X 3 C 2 y 3 x 4 C 3 Y 4 A solution encodes a path between initial and terminal states

Finite-State Transition Systems • Swap the values of X and Y– possible only when X=1 • Flip the value of X X 1 X 2 X 3 x 4 Y 1 Y 2 y 3 Y 4

Finite-State Transition Systems • Many applications of “bounded analysis of finitestate transition systems”, of which the two most famous are: AF(end)? – “Bounded Model Checking” – “Planning as satisfiability” system (define (domain-summer-school) (: action swap : parameters (. . . ) : precondition () : effect ()) (. . . ) )

Encoding Problems in Prop. Logic • Part of things typically studied at border between SAT and CP is encodings CSP ↔ SAT. • Let’s see two simple cases: X 0, X 1, X 2, each Xi meaning “X=i” X Y 0 1 0 2 1 1 2 0 Exactly one of the Xi’s is true: (alternative: logarithmic encoding)

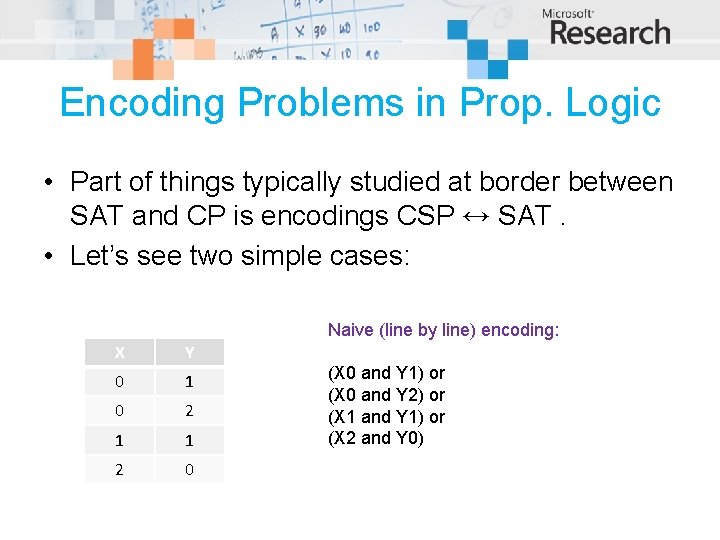

Encoding Problems in Prop. Logic • Part of things typically studied at border between SAT and CP is encodings CSP ↔ SAT. • Let’s see two simple cases: Naive (line by line) encoding: X Y 0 1 0 2 1 1 2 0 (X 0 and Y 1) or (X 0 and Y 2) or (X 1 and Y 1) or (X 2 and Y 0)

Encoding Problems in Prop. Logic • Part of things typically studied at border between SAT and CP is encodings CSP ↔ SAT. • Let’s see two simple cases: Support encoding: X Y 0 1 0 2 1 1 2 0 Y 1 → (X 0 or X 1) Y 2 → (X 0 or X 2) X 0 → (Y 1 or Y 2) X 1 → (Y 1) X 2 → (Y 2)

Encoding Problems in Prop. Logic • Part of things typically studied at border between SAT and CP is encodings CSP ↔ SAT. • Let’s see two simple cases: QUIZZ Support encoding: X Y 0 1 0 2 1 1 2 0 not Y 1 or X 0 or X 1 not Y 2 or X 0 or X 2 not X 0 or Y 1 or Y 2 not X 1 or Y 1 not X 2 or Y 0 Not all encodings are equivalent. . . Do you see any advantage of the support encoding over the naive one?

Basic definitions Encoding problems in SAT Easy and hard classes of propositional formulae Deduction in propositional logic PART I – A FEW THINGS TO KNOW ABOUT PROPOSITIONAL LOGIC

Classes of SAT • Exponential worst-case complexity result does not say much about “non-worst-case” instances – What about instances picked at random? – What about instances appearing in real-life? – What about instances that obey some restrictions?

Random instances • What do we mean, random instance? – Typically pure “homogeneous” versions of SAT instances, e. g. all clauses with same size (k-SAT) – Typically (to best of my knowledge) generated from trivial distributions – e. g. uniform • There is every reason to believe that random instances from a properly chosen distribution are absolutely intractable (and in a sense not so different from worst case)

Random instances • One well-known result emerging from the study of random instances is the phase transition phenomenon, first observed empirically and then proved/explained analytically Percent of satisfiable instances (in %) Resolution time (typically in logscale)

“Real-Life” Instances • Warning: although it would sound like “picked at random” is much closer to your typical instance than “worst-case”, it probably isn’t – Instances appearing in applications have regularities and highly non-random patterns (“structure”) – (A possible definition of “real-life” or “structured” may indeed very well be “non-random”) What is a real-life instance (e. g. What is structure)? Research Question Why are some solvers so good at exploring structure?

Special classes of SAT • Restrictions on type of constraints allowed – Basic result: Schaefer’s classification of Boolean constraint languages • • • Trivial 0 Trivial 1 Horn Anti-Horn 2 -SAT Affine These 6 “languages are polynomial; any constraint language not falling within the 6 categories is NPcomplete

Special classes of SAT • Restrictions on structure of constraint graph – Typical results: difficulty to solve instance exponential not in number of variables but in tree-width

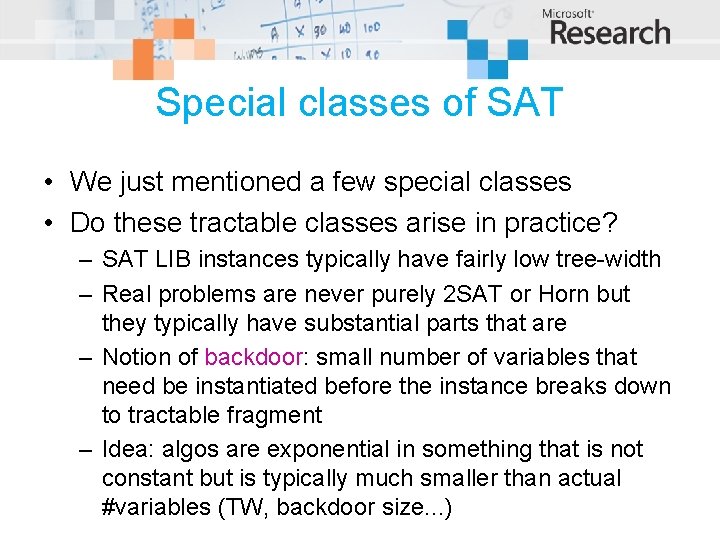

Special classes of SAT • We just mentioned a few special classes • Do these tractable classes arise in practice? – SAT LIB instances typically have fairly low tree-width – Real problems are never purely 2 SAT or Horn but they typically have substantial parts that are – Notion of backdoor: small number of variables that need be instantiated before the instance breaks down to tractable fragment – Idea: algos are exponential in something that is not constant but is typically much smaller than actual #variables (TW, backdoor size. . . )

Very special classes of Instance • Some instances constructed to exhibit special features (e. g. to be hard for given proof system) – Pigeon-Hole Principle (PHP) – Parity • Interesting problems related to generation of particular instances have received solutions – generating satisfiable instances – generating instances with unique solution –. . . How do you write the PHP QUIZZ formulae?

Classes of SAT a = not x YES NOPE QUIZZ Are these instances Horn? Hor le ab m a n n-re

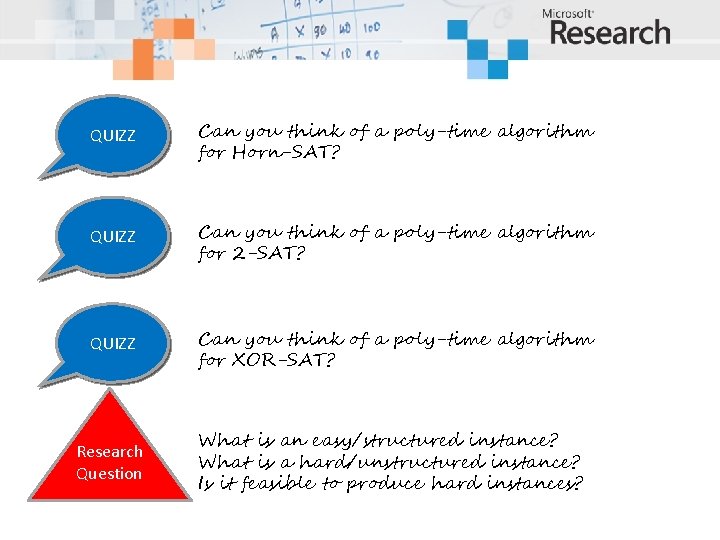

QUIZZ Can you think of a poly-time algorithm for Horn-SAT? QUIZZ Can you think of a poly-time algorithm for 2 -SAT? QUIZZ Can you think of a poly-time algorithm for XOR-SAT? Research Question What is an easy/structured instance? What is a hard/unstructured instance? Is it feasible to produce hard instances?

Basic definitions Encoding problems in SAT Easy and hard classes of propositional formulae Deduction in propositional logic PART I – A FEW THINGS TO KNOW ABOUT PROPOSITIONAL LOGIC

Deductions in SAT • If an instance is satisfiable, how do we know? – Well, by exhibiting a solution • If an instance is unsatisfiable, how do we know? – That’s a non-trivial, fundamental question…

Deductions in SAT • Enumeration is but one type of proof, many proof systems exist. • Textbook example (Sequent calculus, fragment):

Deductions in SAT • Let’s be open-minded: many proof systems exist: e. g. Cutting Plane proof Systems • The notion of proof system is not proper to SAT (or Tautologies) but to any other co. NP-complete language, i. e. 3 -colouring

Propositional Resolution • The proof system that has received most interest in practice (by far) is resolution: (What do we mean “this rule is a proof system”? Essentially: it is complete: any unsat instance has a proof or, seen the other way, it generates all unsat formulae)

Propositional Resolution • Example of resolution proof

Proof Search • Proof systems capture the types of deductions that can be performed mechanically by one or another type of solvers • They are not algorithms in the sense that they leave open how (in which order) these deductions should be made • Said otherwise a proof system is a nondeterministic algorithm. • The next question (not an easy one either ) is how to search for proofs deterministically

Proof Complexity in 1 slide • In proof complexity – A proof is a sequence of bits – A proof system is a syntax for these bits, e. g. a polytime predicate check(instance, proof) • Comparison between proof systems – There is a notion of polynomial reduction (“simulation”) between proof systems – E. g. Sequent calculus simulates resolution. The converse is not true • Notion of automatizability of proofs

Proof Complexity • Proof complexity results are interesting because they help understand the limits of some solvers, in particular resolution-based solvers • Examples of results: – Resolution proofs for PHP grow exponentially – Many proof systems are strictly more powerful than resolution (e. g. Sequent calculus) – Resolution is not automatizable (“unless W[P] is tractable”) – Computing the resolution width of a formula is EXPTIME-complete

Proof Systems QUIZZ Can you think of a proof system for CSP?

Proof Complexity • Deep questions : Is there an optimal proof system? Research Question B. T. W. Is there an optimal algorithm? Or an optimal semi-decision algorithm? Or a practical, optimal, semi-decision algorithm?

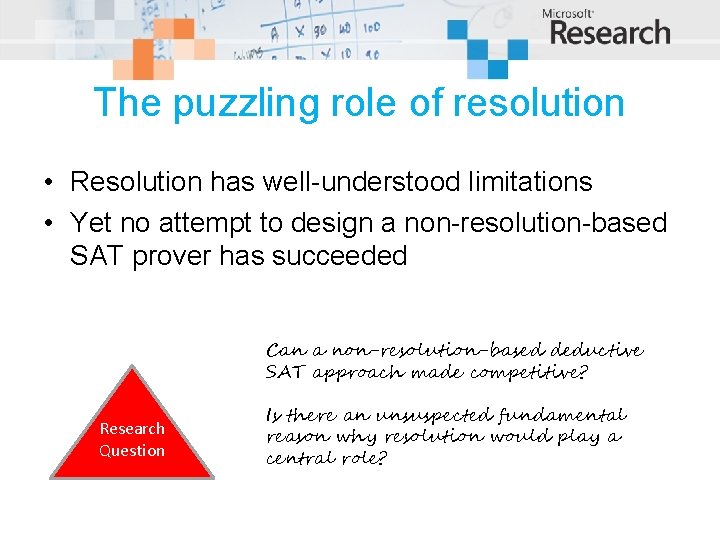

The puzzling role of resolution • Resolution has well-understood limitations • Yet no attempt to design a non-resolution-based SAT prover has succeeded Can a non-resolution-based deductive SAT approach made competitive? Research Question Is there an unsuspected fundamental reason why resolution would play a central role?

Why is SAT interesting? • Although “minimal”, SAT can encode many cool things • SAT has a rich theory • Modern SAT solvers are very good DEMO! Plus 2 anecdotes!
