![PRINSIP DASAR DESAIN INTERAKSI PRINSIP DASAR DESAIN INTERAKSI](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-1.jpg)
PRINSIP DASAR DESAIN INTERAKSI
![Prinsip desain antar muka Prinsip desain merupakan serangkaian panduan yang akan membantu desainer mengambil Prinsip desain antar muka Prinsip desain merupakan serangkaian panduan yang akan membantu desainer mengambil](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-2.jpg)
Prinsip desain antar muka Prinsip desain merupakan serangkaian panduan yang akan membantu desainer mengambil keputusan perancangan selama proses tersebut berjalan. Prinsip desain juga merupakan petunjuk secara umum yang dihasilkan dari para pakar desain.
![Beberapa prinsip antar muka 1 Ben Shneidermans dengan Eight Golden Rules of Dialog Design Beberapa prinsip antar muka 1. Ben Shneiderman’s dengan “Eight Golden Rules of Dialog Design”](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-3.jpg)
Beberapa prinsip antar muka 1. Ben Shneiderman’s dengan “Eight Golden Rules of Dialog Design” 2. Deborah J. Mayhew’s dengan “General Principles of User Interface Design” 3. IBM’s dengan “Design Principels for Tomorrow”
![Eight Golden Rules of Dialog Design 1 Upayakan untuk tetap konsisten 2 Gunakan short Eight Golden Rules of Dialog Design 1. Upayakan untuk tetap konsisten. 2. Gunakan short](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-4.jpg)

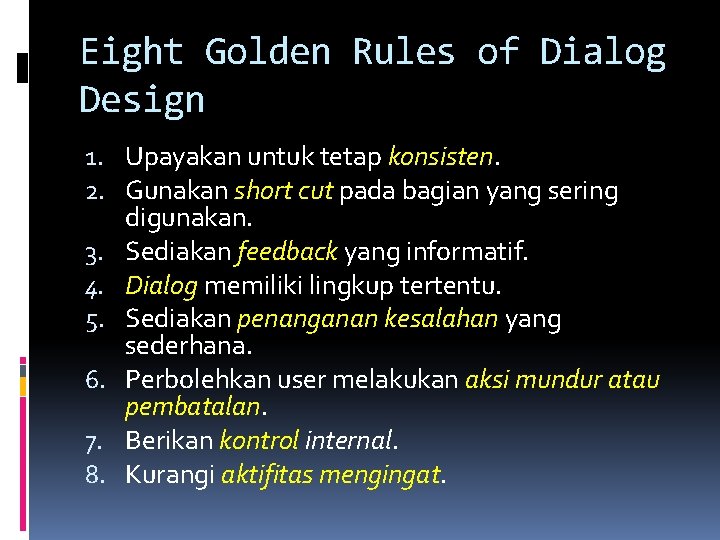

Eight Golden Rules of Dialog Design 1. Upayakan untuk tetap konsisten. 2. Gunakan short cut pada bagian yang sering digunakan. 3. Sediakan feedback yang informatif. 4. Dialog memiliki lingkup tertentu. 5. Sediakan penanganan kesalahan yang sederhana. 6. Perbolehkan user melakukan aksi mundur atau pembatalan. 7. Berikan kontrol internal. 8. Kurangi aktifitas mengingat.
![General Principles of User Interface Design 1 User compatibility 10 WYSIWYG 2 Product compatibility General Principles of User Interface Design 1. User compatibility 10. WYSIWYG 2. Product compatibility](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-5.jpg)

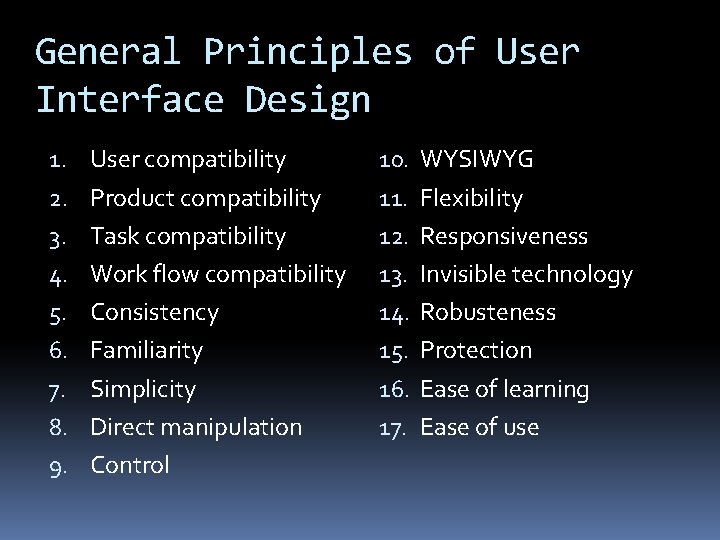

General Principles of User Interface Design 1. User compatibility 10. WYSIWYG 2. Product compatibility 11. Flexibility 3. Task compatibility 12. Responsiveness 4. Work flow compatibility 13. Invisible technology 5. Consistency 14. Robusteness 6. Familiarity 15. Protection 7. Simplicity 16. Ease of learning 8. Direct manipulation 17. Ease of use 9. Control
![Design Principels for Tomorrow 1 Kesederhanaan tidak mengabaikan usability demi fungsionalitas tertentu 2 Design Principels for Tomorrow 1. Kesederhanaan : tidak mengabaikan usability demi fungsionalitas tertentu 2.](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-6.jpg)

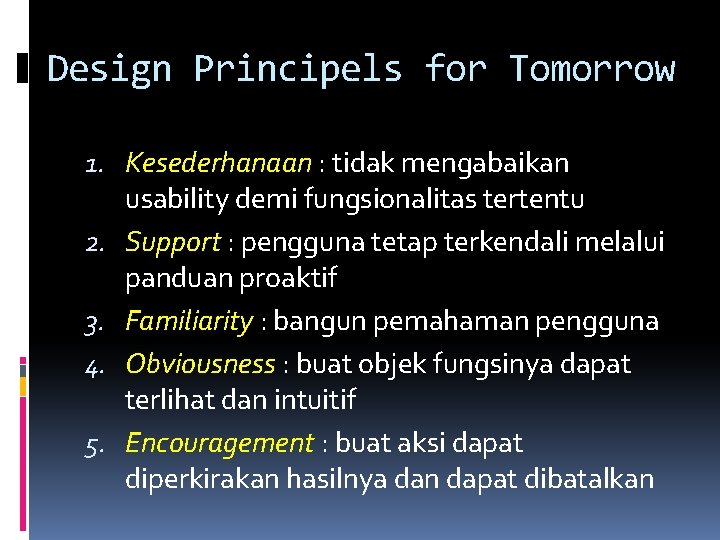

Design Principels for Tomorrow 1. Kesederhanaan : tidak mengabaikan usability demi fungsionalitas tertentu 2. Support : pengguna tetap terkendali melalui panduan proaktif 3. Familiarity : bangun pemahaman pengguna 4. Obviousness : buat objek fungsinya dapat terlihat dan intuitif 5. Encouragement : buat aksi dapat diperkirakan hasilnya dan dapat dibatalkan
![Design Principels for Tomorrow 6 Satisfaction berikan pencapaian progress 7 Accessibility buat Design Principels for Tomorrow 6. Satisfaction : berikan pencapaian progress 7. Accessibility : buat](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-7.jpg)
Design Principels for Tomorrow 6. Satisfaction : berikan pencapaian progress 7. Accessibility : buat semua object dapat di akses setiap saat 8. Safety : pastikan pengguna terbebas dari masalah 9. Versatility : berikan alternatif teknik interaksi 10. Personalization : berikan kesempatan pengguna untuk kustomisasi 11. Affinity : sesuaikan objek dengan kehidupan nyata melalui desain visual.
![Fokus Dari Sistem the user Fokus Dari Sistem the user](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-8.jpg)
Fokus Dari Sistem the user
![Proses Desain what is wanted interviews ethnography scenarios task analysis guidelines principles analysis precise Proses Desain what is wanted interviews ethnography scenarios task analysis guidelines principles analysis precise](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-9.jpg)
Proses Desain what is wanted interviews ethnography scenarios task analysis guidelines principles analysis precise specification design what is there vs. what is wanted dialogue notations evaluation heuristics prototype implement and deploy architectures documentation help
![Fokus ke User Ketahui siapa pemakainya Persona karakter Cari tahu kebiasaanbudayanya Fokus ke User Ketahui siapa pemakainya Persona (karakter) Cari tahu kebiasaan/budayanya](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-10.jpg)

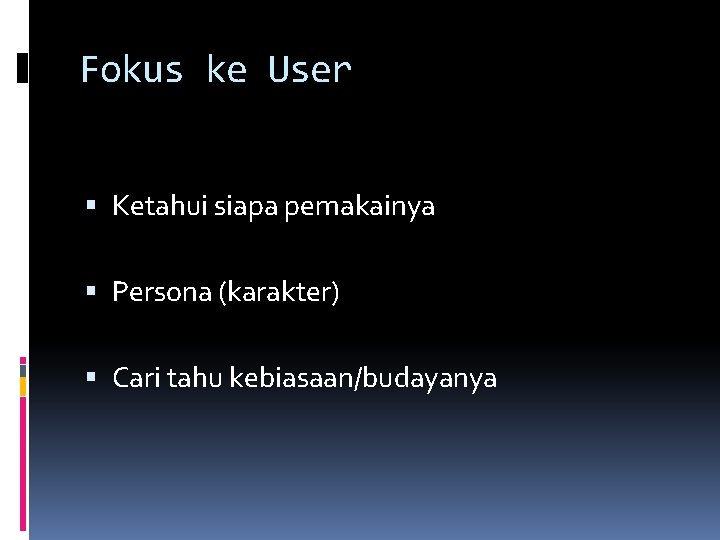

Fokus ke User Ketahui siapa pemakainya Persona (karakter) Cari tahu kebiasaan/budayanya
![Ketahui Siapa Pemakainya siapa mereka mungkin dia tidak seperti Anda berbicara dengan mereka mengawasi Ketahui Siapa Pemakainya siapa mereka? mungkin dia tidak seperti Anda! berbicara dengan mereka mengawasi](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-11.jpg)
Ketahui Siapa Pemakainya siapa mereka? mungkin dia tidak seperti Anda! berbicara dengan mereka mengawasi mereka menggunakan imajinasi Anda
![Cari tahu KebiasaanBudayanya Mencari tahu kebiasaan user bisa dengan melakukan pengamatan langsung Pengamatan seperti Cari tahu Kebiasaan/Budayanya Mencari tahu kebiasaan user bisa dengan melakukan pengamatan langsung. Pengamatan seperti](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-12.jpg)

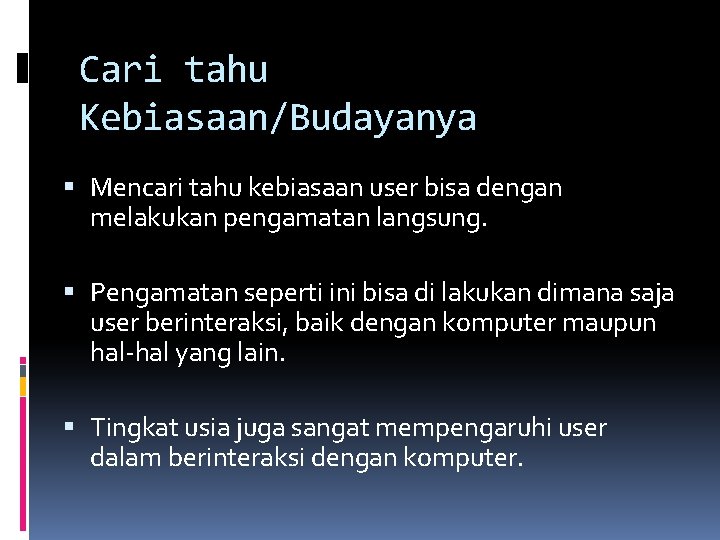

Cari tahu Kebiasaan/Budayanya Mencari tahu kebiasaan user bisa dengan melakukan pengamatan langsung. Pengamatan seperti ini bisa di lakukan dimana saja user berinteraksi, baik dengan komputer maupun hal-hal yang lain. Tingkat usia juga sangat mempengaruhi user dalam berinteraksi dengan komputer.
![Persona karakter Menjelaskan contoh user Tidak diperlukan user yang nyata Digunakan sebagai pengganti user Persona (karakter) Menjelaskan contoh user Tidak diperlukan user yang nyata Digunakan sebagai pengganti user](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-13.jpg)

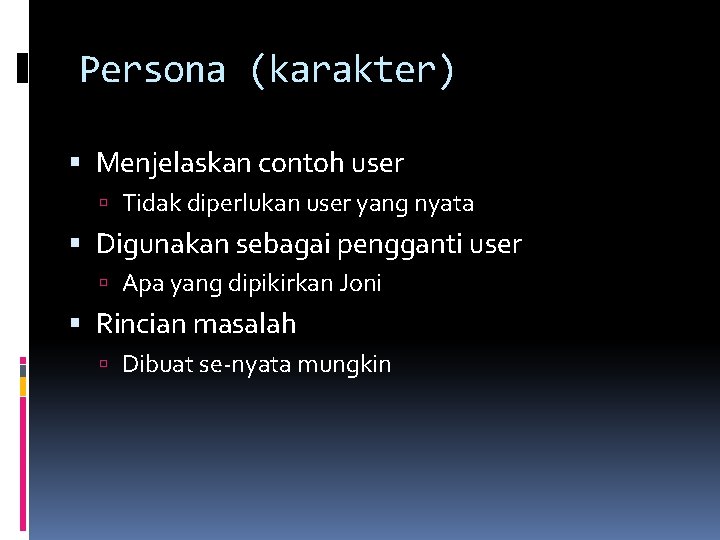

Persona (karakter) Menjelaskan contoh user Tidak diperlukan user yang nyata Digunakan sebagai pengganti user Apa yang dipikirkan Joni Rincian masalah Dibuat se-nyata mungkin
![Proses Desain Interaksi Membuat Persona adalah suatu karakteristik yang diamati oleh orang lain atau Proses Desain Interaksi Membuat Persona adalah suatu karakteristik yang diamati oleh orang lain atau](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-14.jpg)
Proses Desain Interaksi Membuat Persona adalah suatu karakteristik yang diamati oleh orang lain atau disebut juga dengan prototypical user, seperti : Imajinasi khusus, contohnya adalah user dengan tipe tertentu Tidak real tetapi hipotesis Digunakan sebagai rule play melalui desain interface Contoh persona adalah perusahaan mobil yang mendesain produknya. 14
![Proses Desain Interaksi Membuat Persona Kriteria pemrogram yang memiliki persona yang baik adalah Proses Desain Interaksi Membuat Persona Kriteria pemrogram yang memiliki persona yang baik adalah :](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-15.jpg)
Proses Desain Interaksi Membuat Persona Kriteria pemrogram yang memiliki persona yang baik adalah : Membuat program untuk rata-rata user, tidak hanya end user dengan tujuan agar user baru selalu mempelajarinya. Sifat user selalu elastis yang didefinisikan sebagai penampung ide-ide si pemrogram Pemrogram juga harus memperhatikan semua latar belakang user yang akan menggunakan program yang akan dibuat karena setiap individu memiliki persona yang berbeda. 15
![Proses Desain Interaksi Kekuatan Persona Sebagai Suatu Alat Desain Persona membantu para perancang untuk Proses Desain Interaksi Kekuatan Persona Sebagai Suatu Alat Desain Persona membantu para perancang untuk](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-16.jpg)

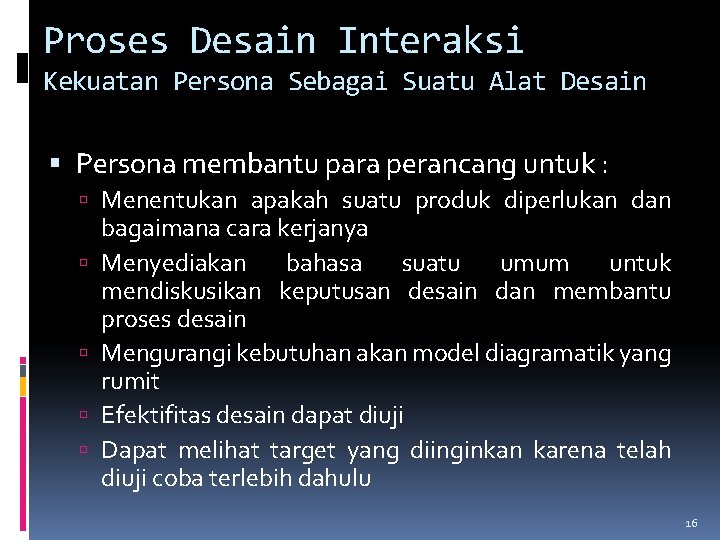

Proses Desain Interaksi Kekuatan Persona Sebagai Suatu Alat Desain Persona membantu para perancang untuk : Menentukan apakah suatu produk diperlukan dan bagaimana cara kerjanya Menyediakan bahasa suatu umum untuk mendiskusikan keputusan desain dan membantu proses desain Mengurangi kebutuhan akan model diagramatik yang rumit Efektifitas desain dapat diuji Dapat melihat target yang diinginkan karena telah diuji coba terlebih dahulu 16
![Proses Desain Interaksi Kekuatan Persona Sebagai Suatu Alat Desain Masalah yang dapat timbul pengembangan Proses Desain Interaksi Kekuatan Persona Sebagai Suatu Alat Desain Masalah yang dapat timbul pengembangan](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-17.jpg)
Proses Desain Interaksi Kekuatan Persona Sebagai Suatu Alat Desain Masalah yang dapat timbul pengembangan suatu produk : selama User bersifat elastis, meski hari ini user telah puas dengan produk yang digunakan belum tentu esok hari juga merasa puas. Oleh sebab itu masih ada tahap selanjutnya yaitu pengembangan produk yang telah jadi Percaya diri, karena jika ragu-ragu untuk meluncurkan produknya maka produk tersebut tidak akan pernah ada di pasaran 17
![Proses Desain Interaksi Kekuatan Persona Sebagai Suatu Alat Desain Solusi yang baik untuk suatu Proses Desain Interaksi Kekuatan Persona Sebagai Suatu Alat Desain Solusi yang baik untuk suatu](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-18.jpg)
Proses Desain Interaksi Kekuatan Persona Sebagai Suatu Alat Desain Solusi yang baik untuk suatu rekayasa interface : Parallel design : Melibatkan banyak rekayasa bentuk paralel. Memberi peluang untuk memilih rekayasa bentuk awal dari berbagai alternatif pengembangan Brainstorming : Brainstorming dengan suatu tim, misal ahli mesin, desainer grafik, penulis dan sebagainya Menggunakan kertas hasil desain yang banyak dan menempelkannya di dinding Menggambar, coret-coret dengan pulpen berwarna Bersifat masa bodoh Berkhayal untuk membangun suatu yang sulit dan berpikir jauh ke depan Semua ide yang berhasil dikumpulkan kemudian diorganisasikan dan 18 dipilih salah satu yang terbaik dan diimplementasikan
![Proses Desain Interaksi Kekuatan Persona Sebagai Suatu Alat Desain 19 Proses Desain Interaksi Kekuatan Persona Sebagai Suatu Alat Desain 19](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-19.jpg)

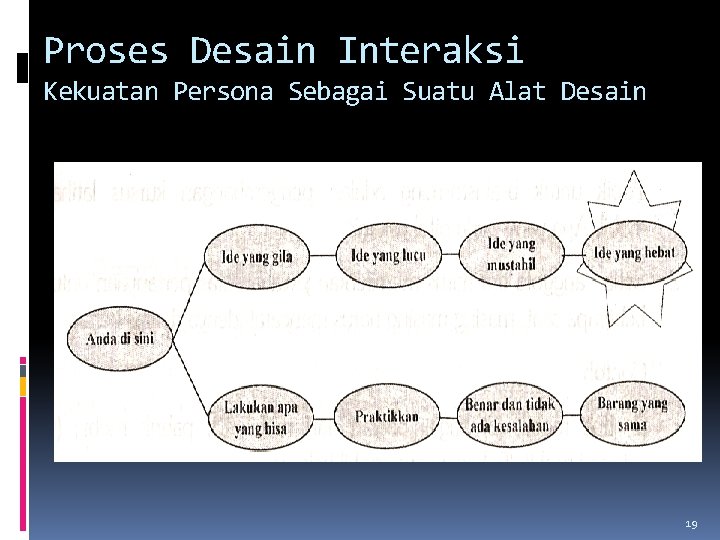

Proses Desain Interaksi Kekuatan Persona Sebagai Suatu Alat Desain 19
![Proses Desain Interaksi Kekuatan Persona Sebagai Suatu Alat Desain Urutan dalam brainstorming Salah Proses Desain Interaksi Kekuatan Persona Sebagai Suatu Alat Desain Urutan dalam brainstorming : Salah](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-20.jpg)

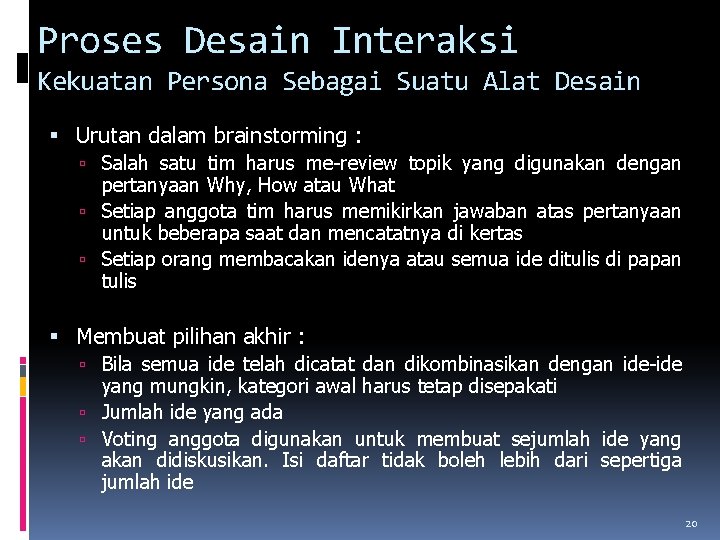

Proses Desain Interaksi Kekuatan Persona Sebagai Suatu Alat Desain Urutan dalam brainstorming : Salah satu tim harus me-review topik yang digunakan dengan pertanyaan Why, How atau What Setiap anggota tim harus memikirkan jawaban atas pertanyaan untuk beberapa saat dan mencatatnya di kertas Setiap orang membacakan idenya atau semua ide ditulis di papan tulis Membuat pilihan akhir : Bila semua ide telah dicatat dan dikombinasikan dengan ide-ide yang mungkin, kategori awal harus tetap disepakati Jumlah ide yang ada Voting anggota digunakan untuk membuat sejumlah ide yang akan didiskusikan. Isi daftar tidak boleh lebih dari sepertiga jumlah ide 20
![Evaluasi antar muka Penilaian terhadap sebuah aplikasi adalah tidak sama antar user User yang Evaluasi antar muka Penilaian terhadap sebuah aplikasi adalah tidak sama antar user. User yang](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-21.jpg)

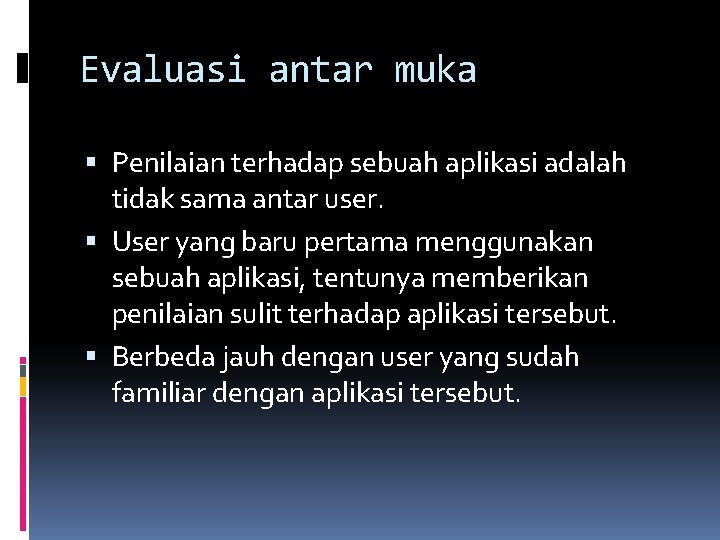

Evaluasi antar muka Penilaian terhadap sebuah aplikasi adalah tidak sama antar user. User yang baru pertama menggunakan sebuah aplikasi, tentunya memberikan penilaian sulit terhadap aplikasi tersebut. Berbeda jauh dengan user yang sudah familiar dengan aplikasi tersebut.
![Penilaian user Kasus pada aplikasi Microsoft Word Ada beberapa hal yang berpengaruh terhadap penilaian Penilaian user Kasus pada aplikasi Microsoft Word Ada beberapa hal yang berpengaruh terhadap penilaian](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-22.jpg)
Penilaian user Kasus pada aplikasi Microsoft Word Ada beberapa hal yang berpengaruh terhadap penilaian user kepada Microsoft Word : Pengalaman Kebiasaan Lama belajar Kemudahan panduan
![design design](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-23.jpg)
design
![beware the big button trap things other things more things the thing from outer beware the big button trap things other things more things the thing from outer](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-24.jpg)

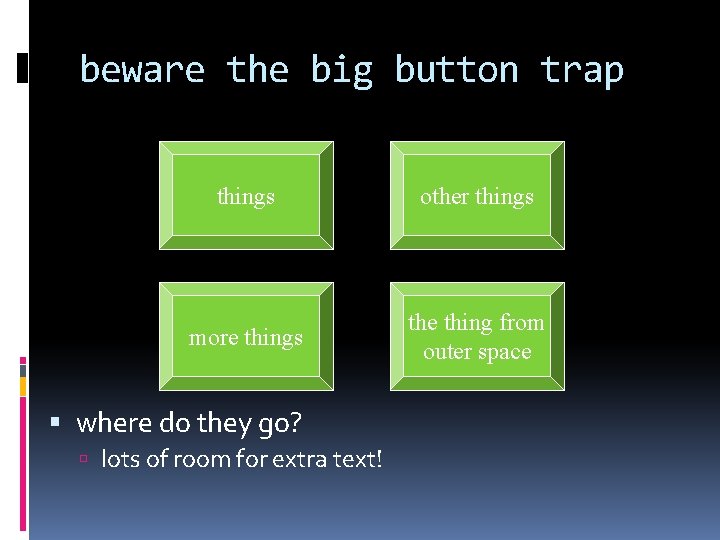

beware the big button trap things other things more things the thing from outer space where do they go? lots of room for extra text!
![modes lock to prevent accidental use remove lock c yes to modes lock to prevent accidental use … remove lock - ‘c’ + ‘yes’ to](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-25.jpg)
modes lock to prevent accidental use … remove lock - ‘c’ + ‘yes’ to confirm frequent practiced action if lock forgotten in pocket ‘yes’ gets pressed goes to phone book in phone book … ‘c’ – delete entry ‘yes’ – confirm … oops !
![Dix Alan Finlay Janet Abowd Gregory Beale Russell SCREEN DESIGN AND LAYOUT Dix , Alan Finlay, Janet Abowd, Gregory Beale, Russell SCREEN DESIGN AND LAYOUT](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-26.jpg)

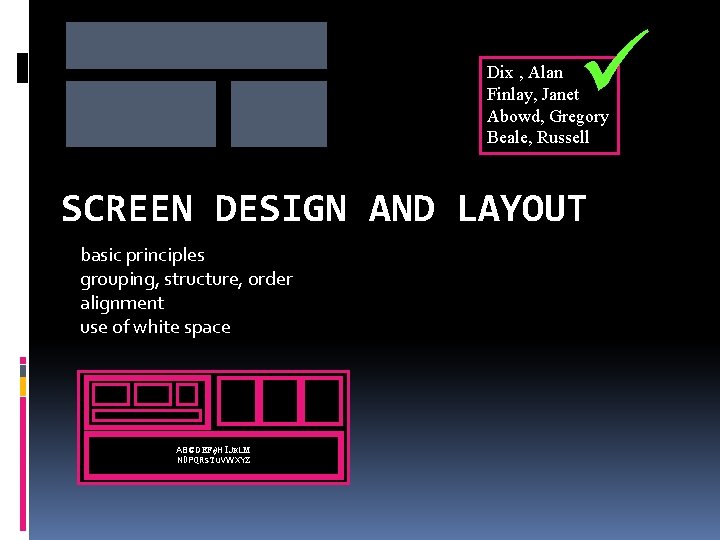

Dix , Alan Finlay, Janet Abowd, Gregory Beale, Russell SCREEN DESIGN AND LAYOUT basic principles grouping, structure, order alignment use of white space ABCDEFGHIJKLM NOPQRSTUVWXYZ
![basic principles ask what is the user doing think what information comparisons order design basic principles ask what is the user doing? think what information, comparisons, order design](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-27.jpg)
basic principles ask what is the user doing? think what information, comparisons, order design form follows function
![available tools grouping of items order of items decoration fonts boxes etc alignment available tools grouping of items order of items decoration - fonts, boxes etc. alignment](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-28.jpg)
available tools grouping of items order of items decoration - fonts, boxes etc. alignment of items white space between items
![grouping and structure logically together physically together Billing details Name Address Credit card grouping and structure logically together physically together Billing details: Name Address: … Credit card](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-29.jpg)

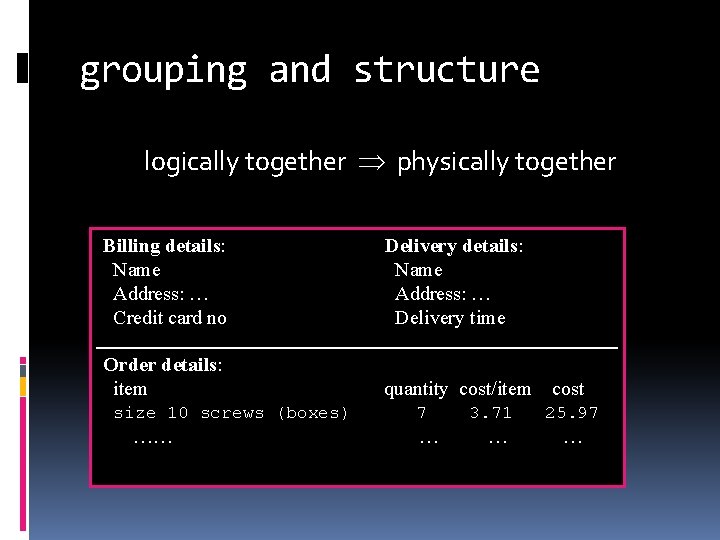

grouping and structure logically together physically together Billing details: Name Address: … Credit card no Delivery details: Name Address: … Delivery time Order details: item quantity cost/item size 10 screws (boxes) …… 7 … 3. 71 … cost 25. 97 …
![decoration use boxes to group logical items use fonts for emphasis headings but not decoration use boxes to group logical items use fonts for emphasis, headings but not](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-30.jpg)
decoration use boxes to group logical items use fonts for emphasis, headings but not too many!! ABCDEFGHIJKLM NOPQRSTUVWXYZ
![alignment text you read from left to right English and European align left alignment - text you read from left to right (English and European) align left](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-31.jpg)

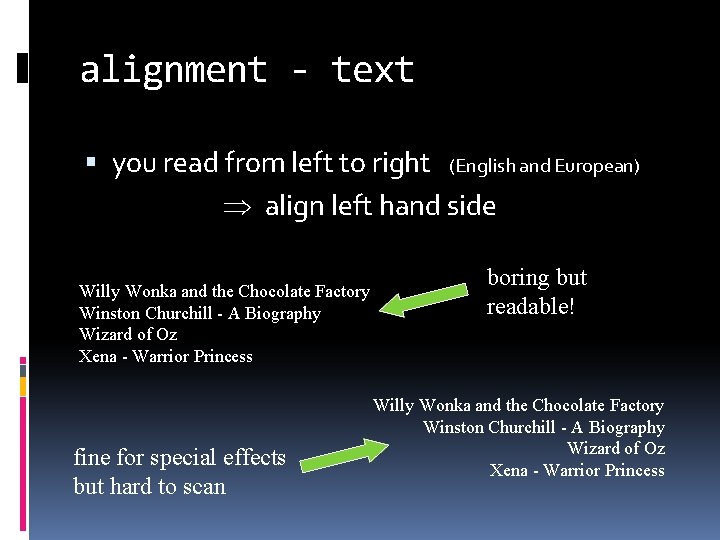

alignment - text you read from left to right (English and European) align left hand side Willy Wonka and the Chocolate Factory Winston Churchill - A Biography Wizard of Oz Xena - Warrior Princess fine for special effects but hard to scan boring but readable! Willy Wonka and the Chocolate Factory Winston Churchill - A Biography Wizard of Oz Xena - Warrior Princess
![alignment names Usually scanning for surnames make it easy Alan Dix Janet Finlay alignment - names Usually scanning for surnames make it easy! Alan Dix Janet Finlay](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-32.jpg)

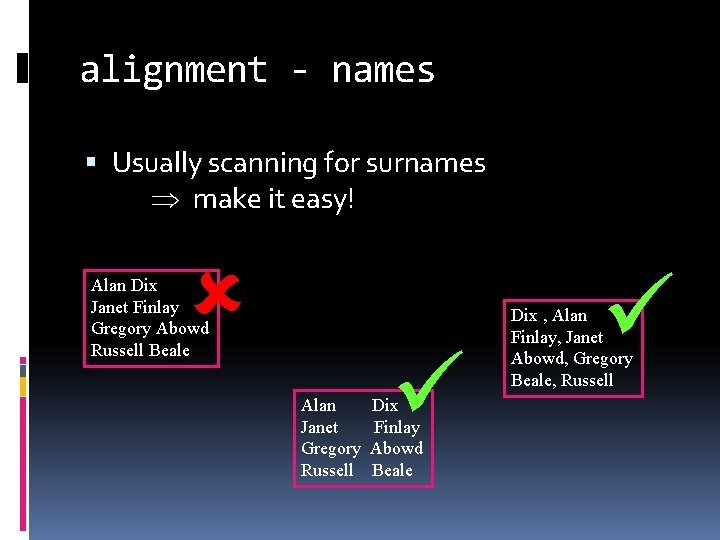

alignment - names Usually scanning for surnames make it easy! Alan Dix Janet Finlay Gregory Abowd Russell Beale Alan Janet Gregory Russell Dix Finlay Abowd Beale Dix , Alan Finlay, Janet Abowd, Gregory Beale, Russell
![alignment numbers think purpose which is biggest 532 56 179 3 256 317 alignment - numbers think purpose! which is biggest? 532. 56 179. 3 256. 317](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-33.jpg)
alignment - numbers think purpose! which is biggest? 532. 56 179. 3 256. 317 15 73. 948 1035 3. 142 497. 6256
![alignment numbers visually long number big number align decimal points or right alignment - numbers visually: long number = big number align decimal points or right](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-34.jpg)
alignment - numbers visually: long number = big number align decimal points or right align integers 627. 865 1. 005763 382. 583 2502. 56 432. 935 2. 0175 652. 87 56. 34
![multiple columns scanning across gaps hard often hard to avoid with large data base multiple columns scanning across gaps hard: (often hard to avoid with large data base](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-35.jpg)
multiple columns scanning across gaps hard: (often hard to avoid with large data base fields) sherbert toffee chocolate fruit gums coconut dreams 75 120 35 27 85
![multiple columns 2 use leaders sherbert toffee chocolate fruit gums coconut dreams 75 multiple columns - 2 use leaders sherbert toffee chocolate fruit gums coconut dreams 75](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-36.jpg)
multiple columns - 2 use leaders sherbert toffee chocolate fruit gums coconut dreams 75 120 35 27 85
![multiple columns 3 or greying vertical too sherbert toffee chocolate fruit gums coconut multiple columns - 3 or greying (vertical too) sherbert toffee chocolate fruit gums coconut](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-37.jpg)

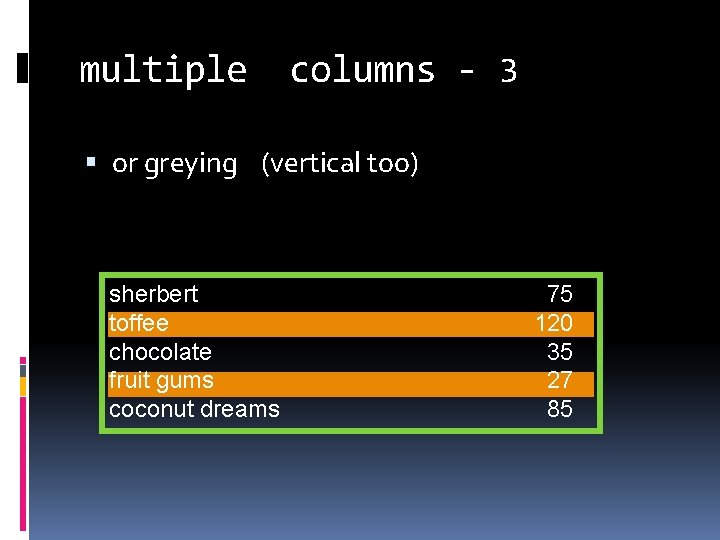

multiple columns - 3 or greying (vertical too) sherbert toffee chocolate fruit gums coconut dreams 75 120 35 27 85
![multiple columns 4 or even with care bad alignment sherbert 75 toffee 120 multiple columns - 4 or even (with care!) ‘bad’ alignment sherbert 75 toffee 120](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-38.jpg)

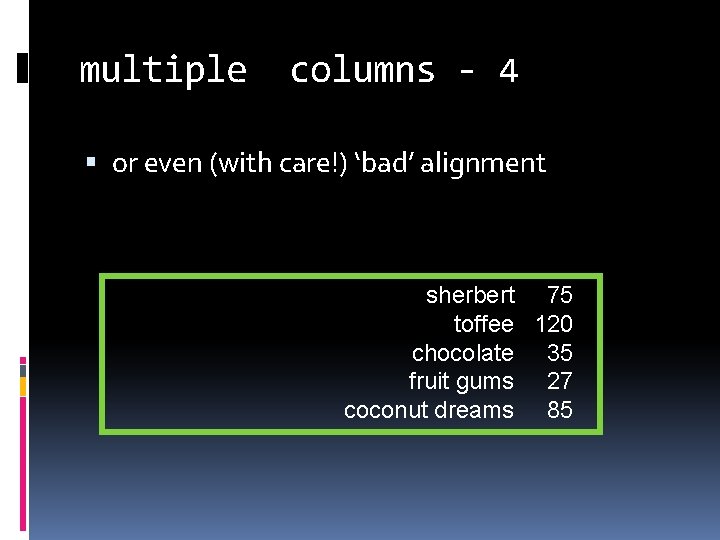

multiple columns - 4 or even (with care!) ‘bad’ alignment sherbert 75 toffee 120 chocolate 35 fruit gums 27 coconut dreams 85
![white space the counter WHAT YOU SEE THE GAPS BETWEEN white space - the counter WHAT YOU SEE THE GAPS BETWEEN](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-39.jpg)
white space - the counter WHAT YOU SEE THE GAPS BETWEEN
![space to separate pemisahan space to separate (pemisahan)](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-40.jpg)
space to separate (pemisahan)
![space to structure space to structure](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-41.jpg)
space to structure
![space to highlight menyorot space to highlight (menyorot)](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-42.jpg)
space to highlight (menyorot)
![physical controls grouping of items defrost settings type of food time to cook physical controls grouping of items defrost settings type of food time to cook](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-43.jpg)
physical controls grouping of items defrost settings type of food time to cook
![physical controls grouping of items order of items type of heating 1 1 type physical controls grouping of items order of items type of heating 1) 1) type](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-44.jpg)

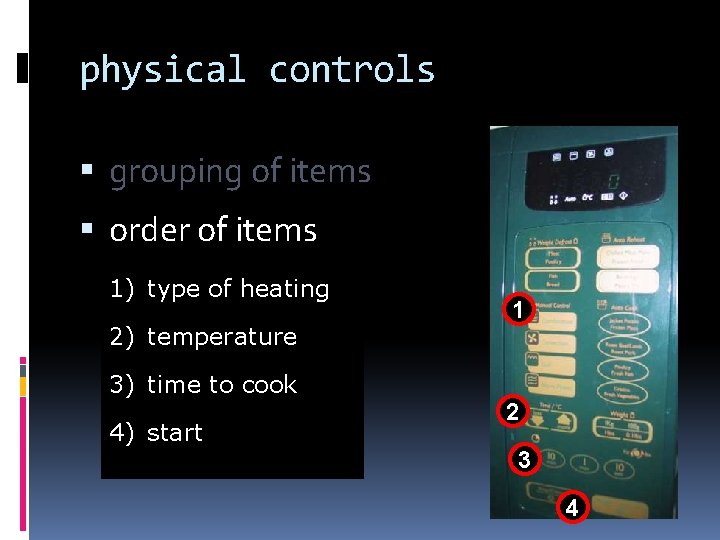

physical controls grouping of items order of items type of heating 1) 1) type of heating temperature 2) 2) temperature 1 time to cook 3) 3) time to cook start 4) 4) start 2 3 4
![physical controls grouping of items order of items decoration different colours for different functions physical controls grouping of items order of items decoration different colours for different functions](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-45.jpg)
physical controls grouping of items order of items decoration different colours for different functions lines around related buttons (temp up/down) buttons
![physical controls grouping of items order of items decoration alignment centered text in buttons physical controls grouping of items order of items decoration alignment centered text in buttons](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-46.jpg)
physical controls grouping of items order of items decoration alignment centered text in buttons centred text in buttons ? easy to scan ?
![physical controls grouping of items order of items decoration hiasan alignment white space gaps physical controls grouping of items order of items decoration (hiasan) alignment white space gaps](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-47.jpg)
physical controls grouping of items order of items decoration (hiasan) alignment white space gaps to aid grouping
![memasukkan informasi Name forms dialogue boxes Address Lancaster presentation data input masalah tata memasukkan informasi Name: forms, dialogue boxes Address: Lancaster presentation + data input masalah tata](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-48.jpg)
memasukkan informasi Name: forms, dialogue boxes Address: Lancaster presentation + data input masalah tata letak yang sama alignment - N. B. different label lengths Layout yang Logis Alan Dix ? Name: Alan Dix Address: Lancaster Name: Alan Dix Address: Lancaster Menggunakan analisis tugas Pengelompokan natural order for entering information top-bottom, left-right (depending on culture) set tab order for keyboard entry N. B. see extra slides for widget choice
![Kemampuan affordances psychological term Untuk obyek fisik shape and size suggest actions mug handle Kemampuan (affordances) psychological term Untuk obyek fisik shape and size suggest actions mug handle](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-49.jpg)
Kemampuan (affordances) psychological term Untuk obyek fisik shape and size suggest actions mug handle ‘affords’ grasping (genggaman) pick up, twist, throw also cultural – buttons ‘afford’ pushing Untuk obyek layar button–like object ‘affords’ mouse click physical-like objects suggest use culture of computer use icons ‘afford’ clicking or even double clicking … not like real buttons!
![menyajikan informasi purpose matters sort urutan yang kolom abjad numerik text vs diagram menyebarkan menyajikan informasi purpose matters sort urutan (yang kolom, abjad numerik) text vs. diagram menyebarkan](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-50.jpg)

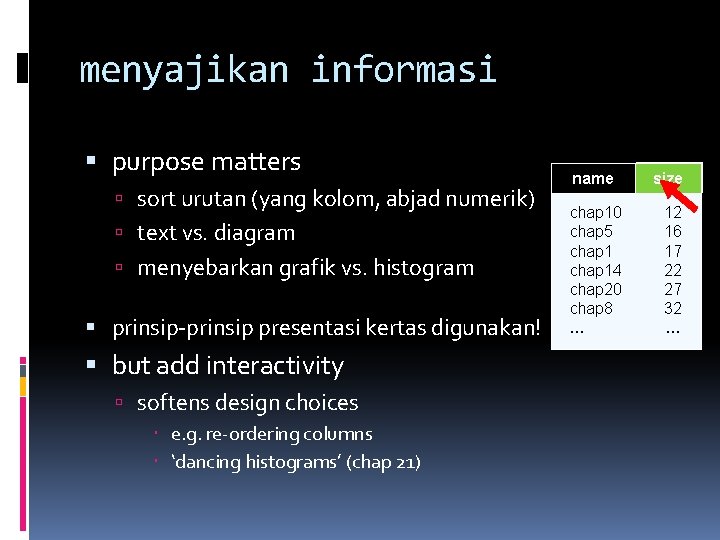

menyajikan informasi purpose matters sort urutan (yang kolom, abjad numerik) text vs. diagram menyebarkan grafik vs. histogram prinsip-prinsip presentasi kertas digunakan! but add interactivity softens design choices e. g. re-ordering columns ‘dancing histograms’ (chap 21) name size chap 10 chap 1 chap 5 chap 10 chap 11 chap 14 chap 12 chap 20 chap 13 chap 8 chap 14 …… 12 17 16 12 17 51 22 262 27 83 32 22 …
![estetika dan utilitas desain estetika meningkatkan kepuasan pengguna dan meningkatkan produktivitas keindahan dan utilitas estetika dan utilitas desain estetika meningkatkan kepuasan pengguna dan meningkatkan produktivitas keindahan dan utilitas](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-51.jpg)
estetika dan utilitas desain estetika meningkatkan kepuasan pengguna dan meningkatkan produktivitas keindahan dan utilitas mungkin bertentangan gaya visual terlibat mudah untuk membedakan desain yang bersih– sedikit perbedaan membingungkan latar belakang di balik teks … baik untuk melihat, tapi sulit untuk membaca tetapi dapat bekerja sama misalnya desain meja dalam produk konsumen– pembeda utama (misalnya i. Mac)
![estetika dan utilitas desain estetika meningkatkan kepuasan pengguna dan meningkatkan produktivitas keindahan dan utilitas estetika dan utilitas desain estetika meningkatkan kepuasan pengguna dan meningkatkan produktivitas keindahan dan utilitas](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-52.jpg)
estetika dan utilitas desain estetika meningkatkan kepuasan pengguna dan meningkatkan produktivitas keindahan dan utilitas mungkin bertentangan gaya visual terlibat mudah untuk membedakan desain yang bersih– sedikit perbedaan membingungkan latar belakang di balik teks … baik untuk melihat, tapi sulit untuk membaca tetapi dapat bekerja sama misalnya desain meja dalam produk konsumen– pembeda utama (misalnya i. Mac)
![bad use of colour over use without very good reason e g kids bad use of colour over use - without very good reason (e. g. kids’](https://slidetodoc.com/presentation_image/118363af72ce48dfaf6e9815b0d5db68/image-53.jpg)
bad use of colour over use - without very good reason (e. g. kids’ site) colour blindness poor use of contrast do adjust your set! adjust your monitor to greys only can you still read your screen?
Interaction design principles
Prinsip prinsip komunikasi antar budaya
Perancangan antar muka (user interface)
Pengertian tegangan antar muka
Komponen antarmuka pengguna
Contoh list box
Panduan merancang antar muka
Soal pilihan ganda user interface
Interaksi antar individu
Konsep esensial dasar-dasar desain grafis
Prinsip dasar kompetensi
Prinsip-prinsip dasar nirmana
Hakikat teori belajar
Yang termasuk model antarmuka objek-aksi
Prinsip interaksi
Prinsip-prinsip komunikasi interpersonal
Pengetahuan tentang perangkat jaringan komputer
Memahami pengetahuan dasar konsep desain jaringan
Pengetahuan dasar konsep desain jaringan
Dasar dasar manajemen
Dasar dasar penelitian sejarah
Dasar dasar kuliner
Dasar dasar korespondensi bisnis
Konsep dasar bk
Operasi dasar suatu cpu adalah
Dasar dasar advokasi
Dasar dasar pengambilan keputusan menurut george r terry
Konsep dasar unit pemrosesan dan dasar datapath
Dasar dasar prosedur pembukuan
Dasar perlaksanaan kegiatan kokurikulum
Konsep dasar perangkat lunak
Dasar dasar manajemen
Dasar-dasar komunikasi dalam pembelajaran
Etika relasi karyawan dan perlakuan adil di tempat kerja
Konsep pengorganisasian
Datapath
Dasar dasar prosedur pembukuan
Dasar dasar pengujian perangkat lunak
Pertanyaan mengenai korespondensi
Plc omron
Teori pembentukan kelompok sosial
Teori pengukuran fisika
Definisi fonem dan jenisnya
Materi dasar-dasar agronomi ipb
Dasar dasar pemrosesan komputer
Peta minda aplikasi komputer
Prinsip dasar user interface
Prinsip desain antarmuka
Prinsip analisis dan desain
Prinsip rekayasa dan desain
Prinsip desain formulir
Prinsip desain web
Prinsip dasar jaringan
Kendala implementasi crm
