Motor Vehicles Mechanized Equipment for Construction Signs and

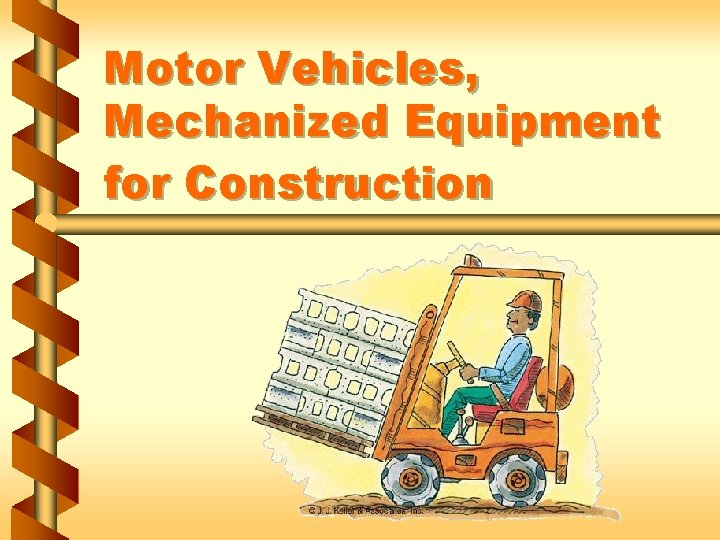

Motor Vehicles, Mechanized Equipment for Construction

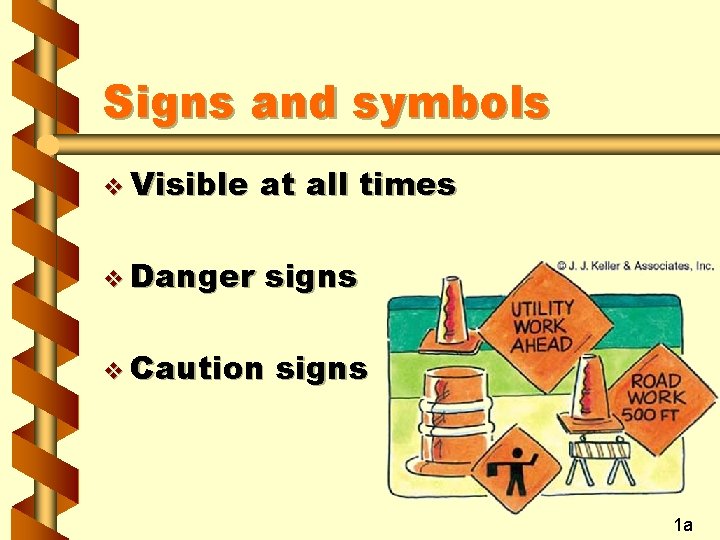

Signs and symbols v Visible at all times v Danger signs v Caution signs 1 a

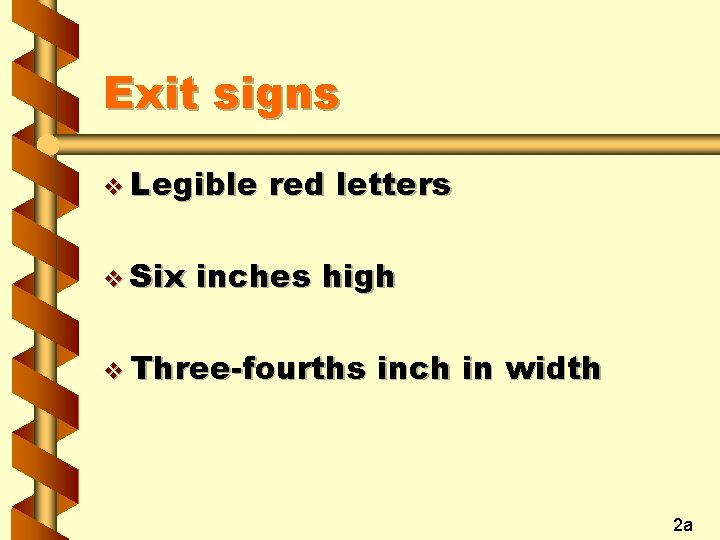

Exit signs v Legible v Six red letters inches high v Three-fourths inch in width 2 a

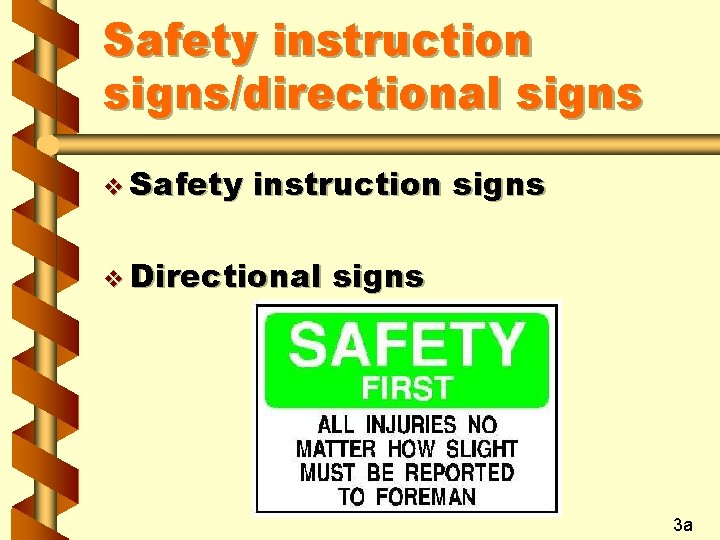

Safety instruction signs/directional signs v Safety instruction signs v Directional signs 3 a

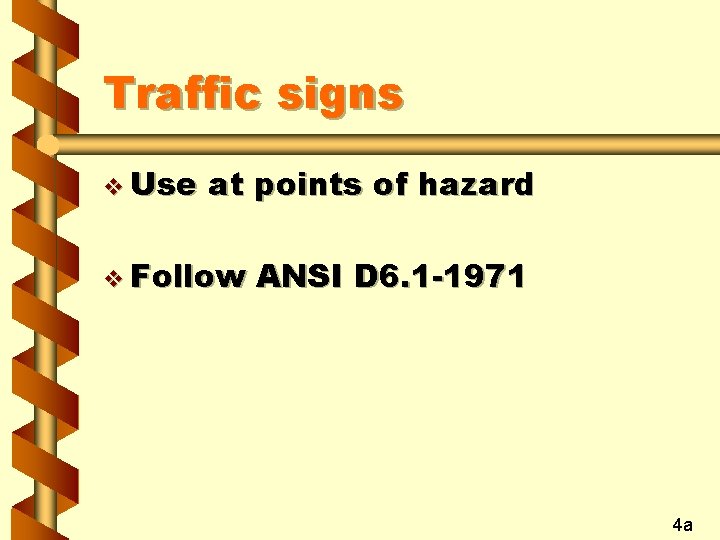

Traffic signs v Use at points of hazard v Follow ANSI D 6. 1 -1971 4 a

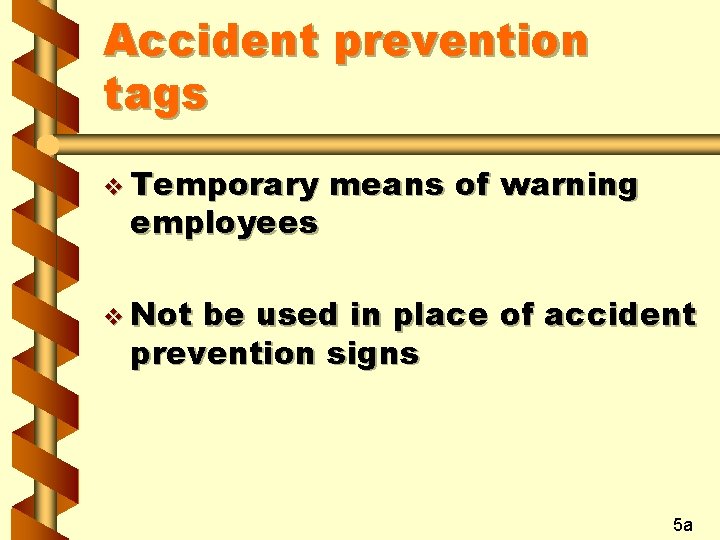

Accident prevention tags v Temporary employees means of warning v Not be used in place of accident prevention signs 5 a

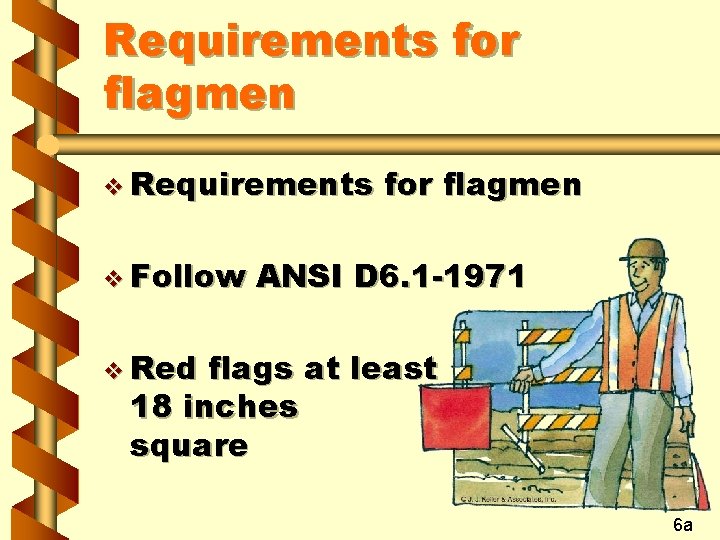

Requirements for flagmen v Requirements v Follow for flagmen ANSI D 6. 1 -1971 v Red flags at least 18 inches square 6 a

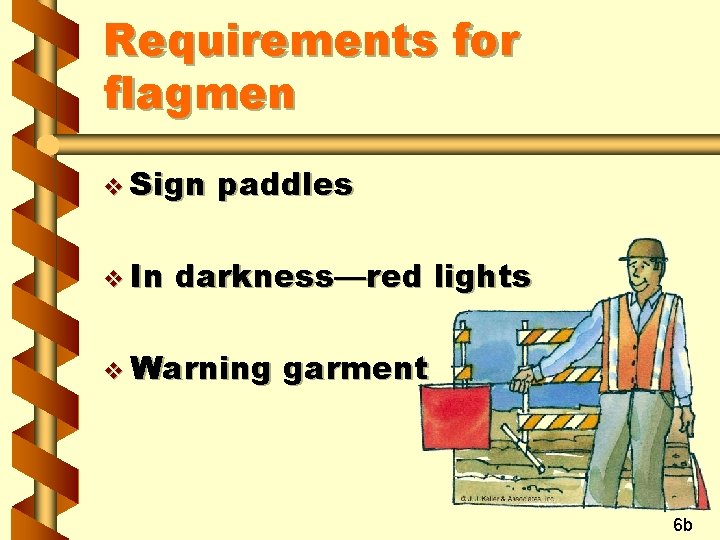

Requirements for flagmen v Sign v In paddles darkness—red lights v Warning garment 6 b

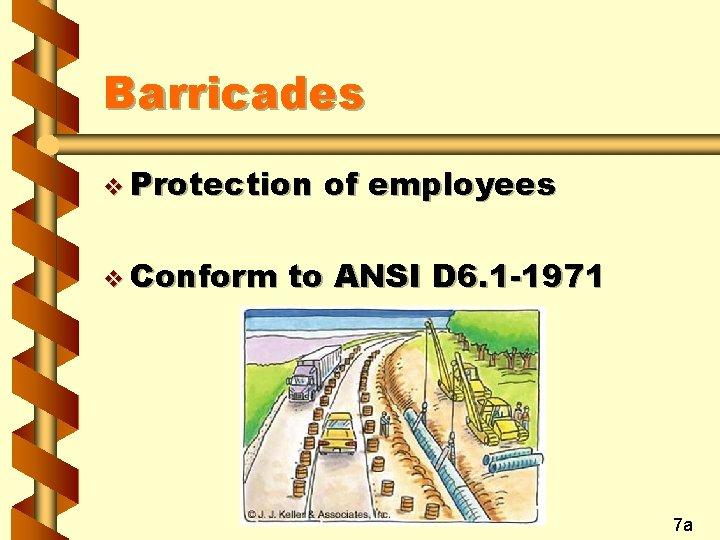

Barricades v Protection v Conform of employees to ANSI D 6. 1 -1971 7 a

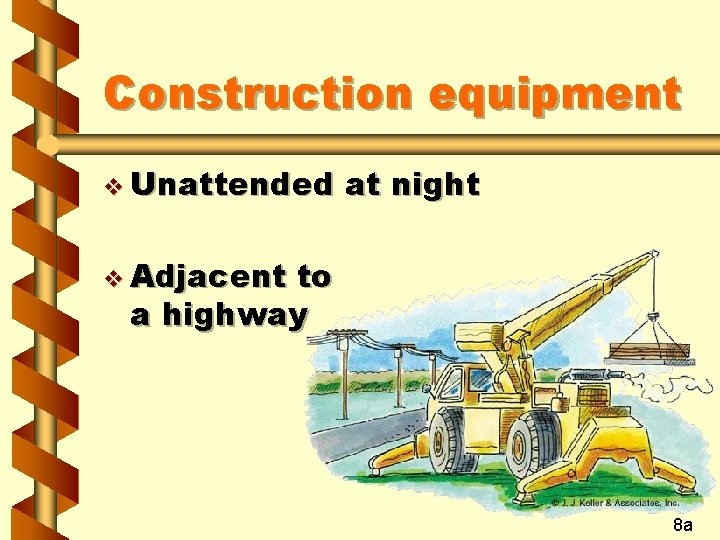

Construction equipment v Unattended at night v Adjacent to a highway 8 a

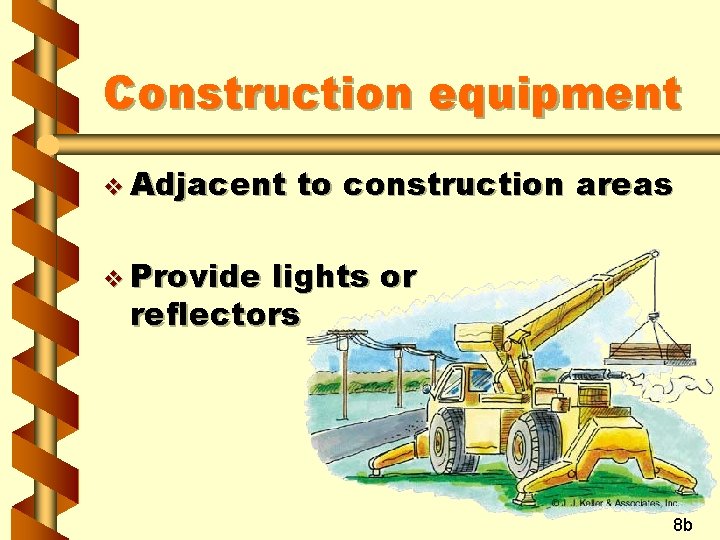

Construction equipment v Adjacent to construction areas v Provide lights or reflectors 8 b

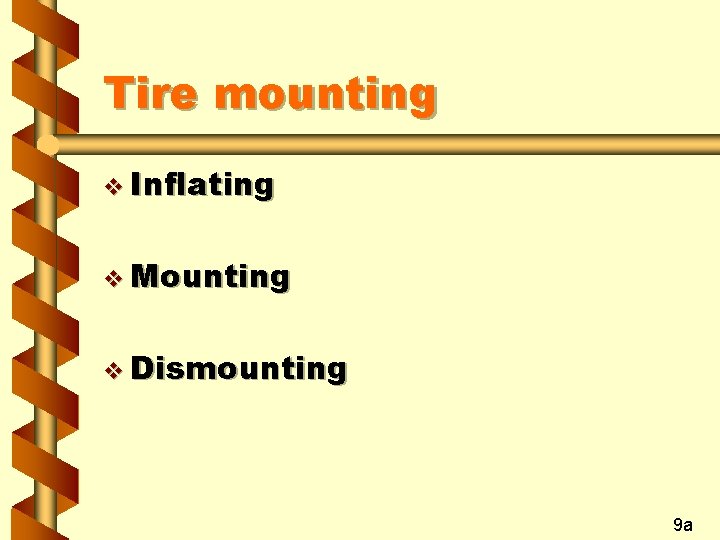

Tire mounting v Inflating v Mounting v Dismounting 9 a

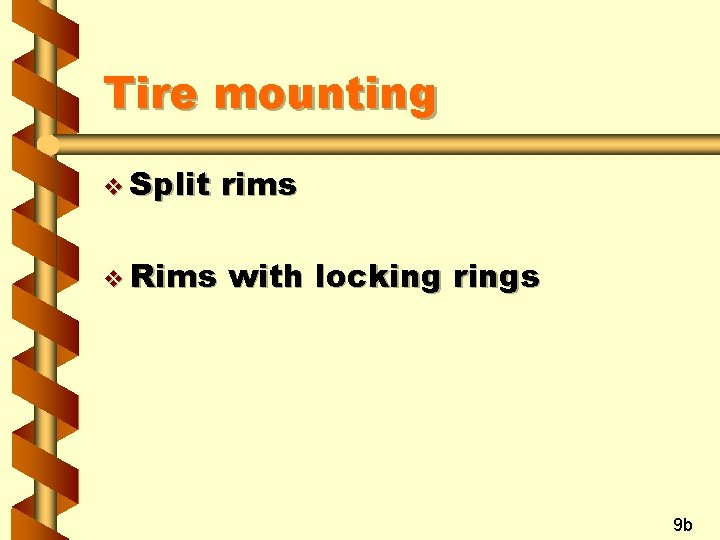

Tire mounting v Split rims v Rims with locking rings 9 b

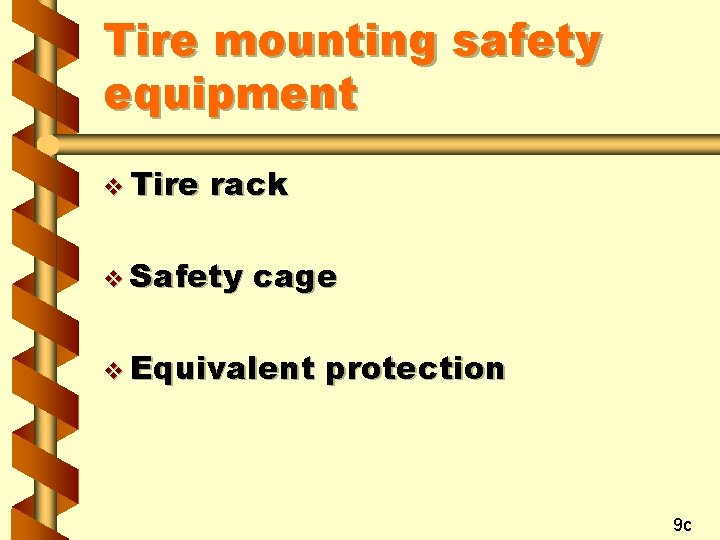

Tire mounting safety equipment v Tire rack v Safety cage v Equivalent protection 9 c

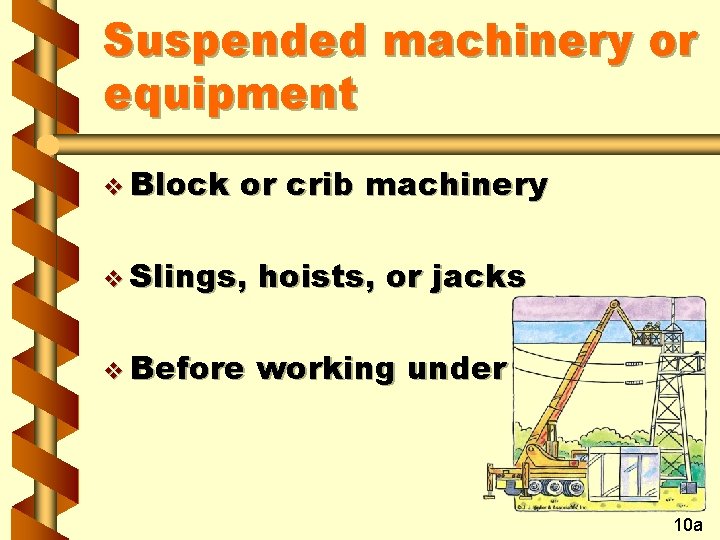

Suspended machinery or equipment v Block or crib machinery v Slings, hoists, or jacks v Before working under 10 a

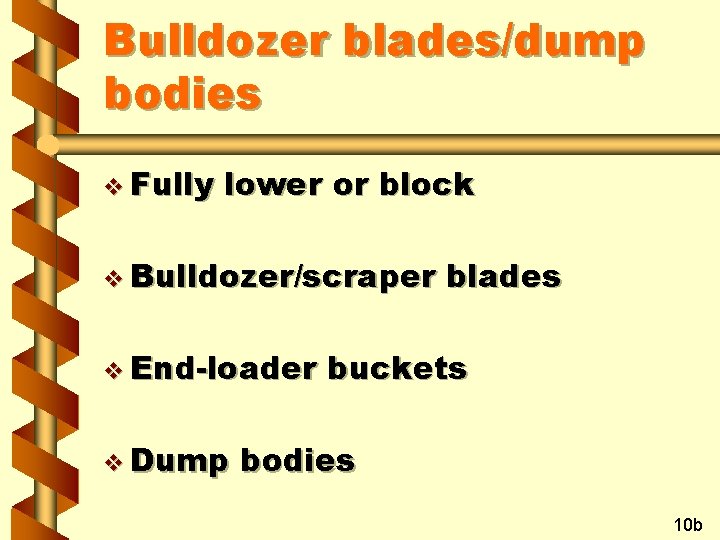

Bulldozer blades/dump bodies v Fully lower or block v Bulldozer/scraper v End-loader v Dump blades buckets bodies 10 b

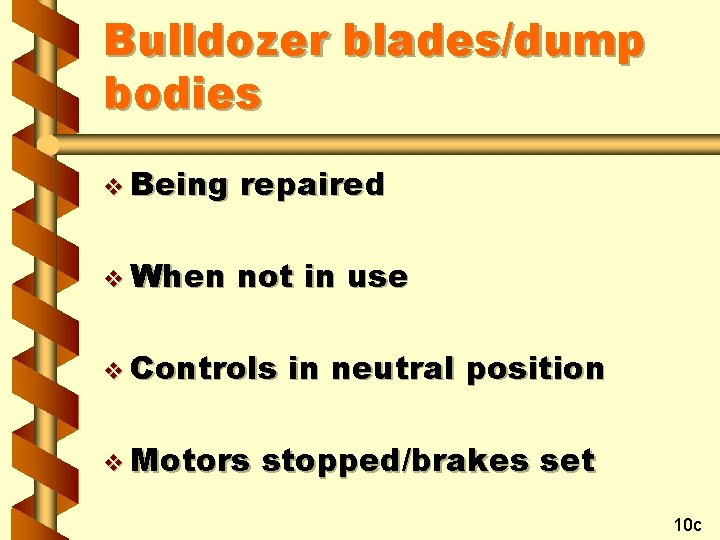

Bulldozer blades/dump bodies v Being repaired v When not in use v Controls v Motors in neutral position stopped/brakes set 10 c

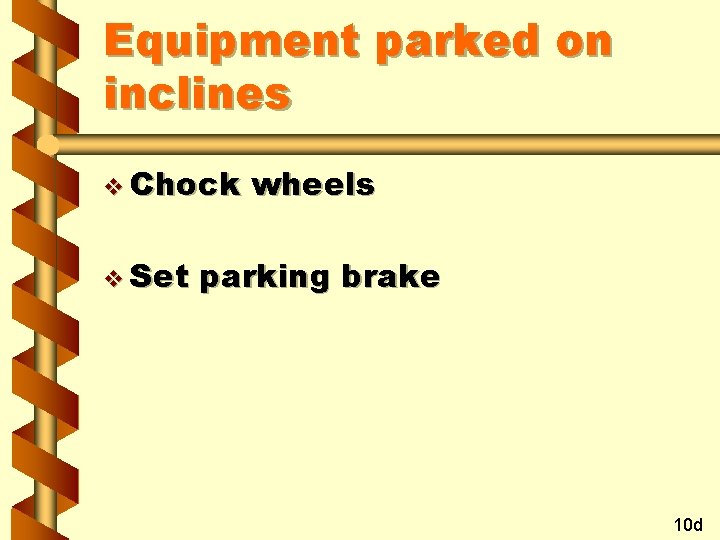

Equipment parked on inclines v Chock v Set wheels parking brake 10 d

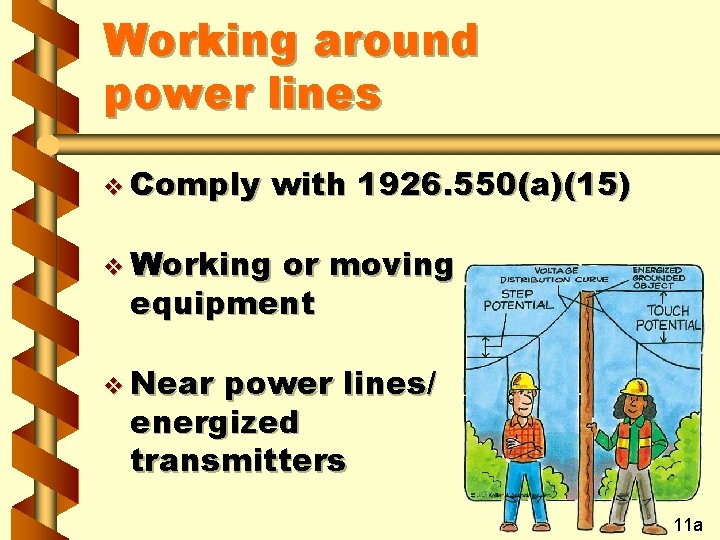

Working around power lines v Comply with 1926. 550(a)(15) v Working or moving equipment v Near power lines/ energized transmitters 11 a

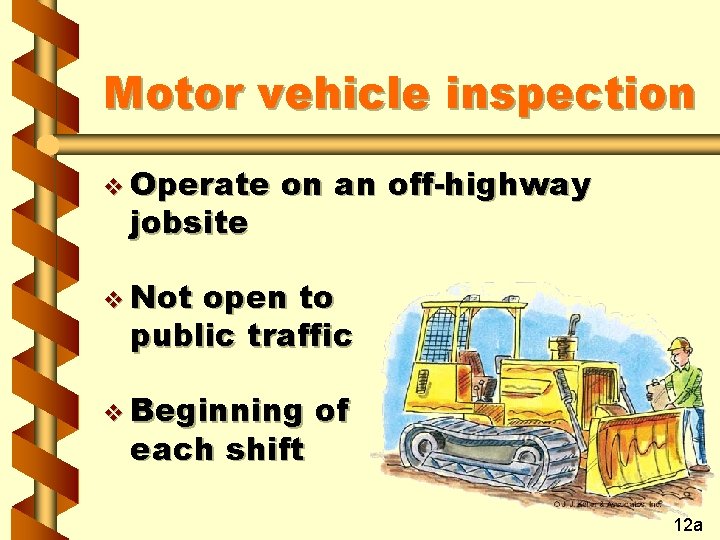

Motor vehicle inspection v Operate jobsite on an off-highway v Not open to public traffic v Beginning each shift of 12 a

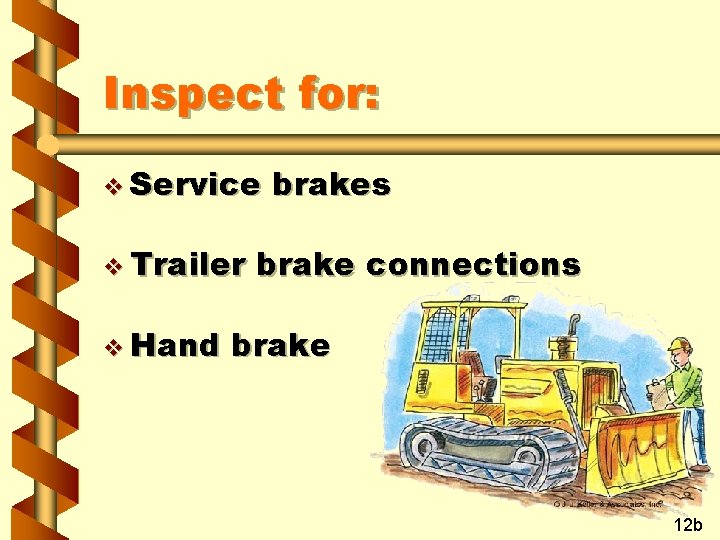

Inspect for: v Service v Trailer v Hand brakes brake connections brake 12 b

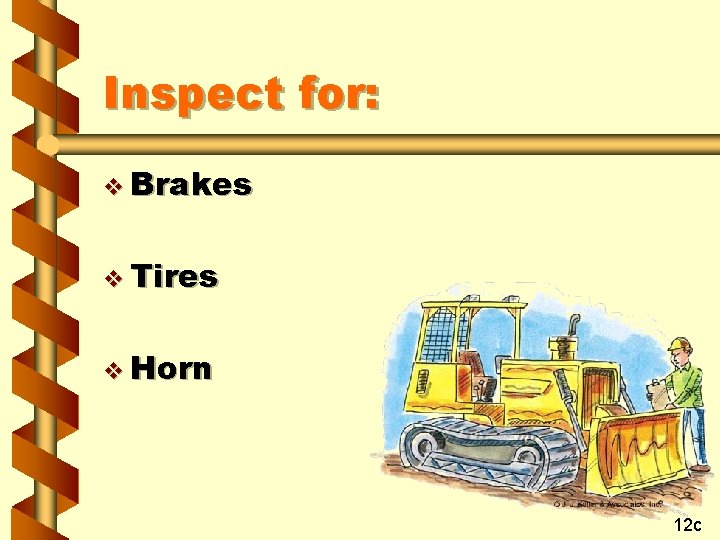

Inspect for: v Brakes v Tires v Horn 12 c

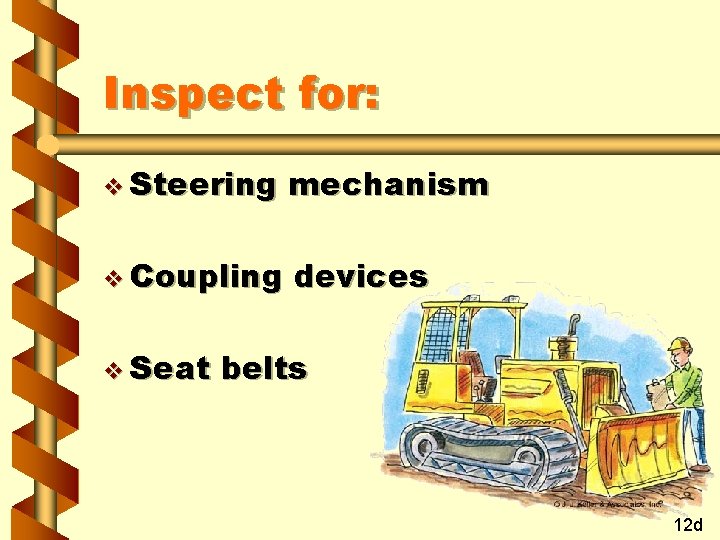

Inspect for: v Steering mechanism v Coupling devices v Seat belts 12 d

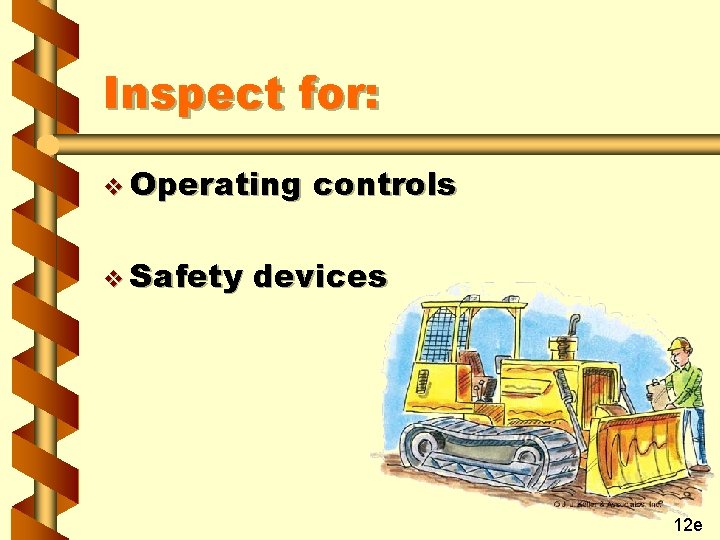

Inspect for: v Operating v Safety controls devices 12 e

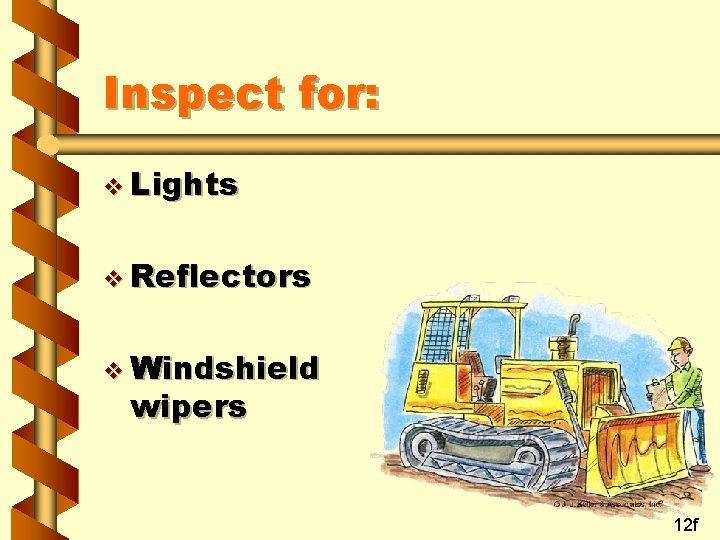

Inspect for: v Lights v Reflectors v Windshield wipers 12 f

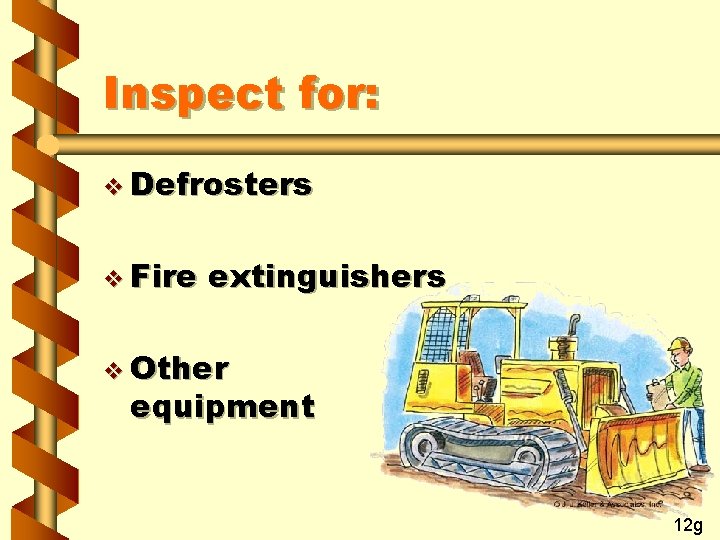

Inspect for: v Defrosters v Fire extinguishers v Other equipment 12 g

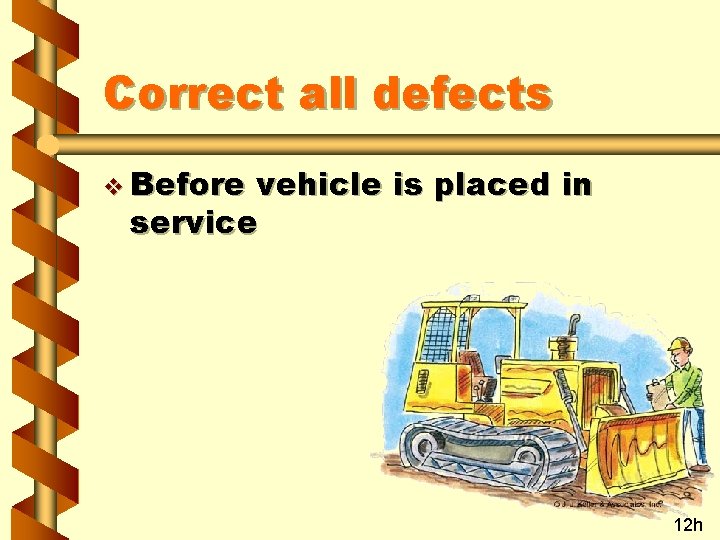

Correct all defects v Before vehicle is placed in service 12 h

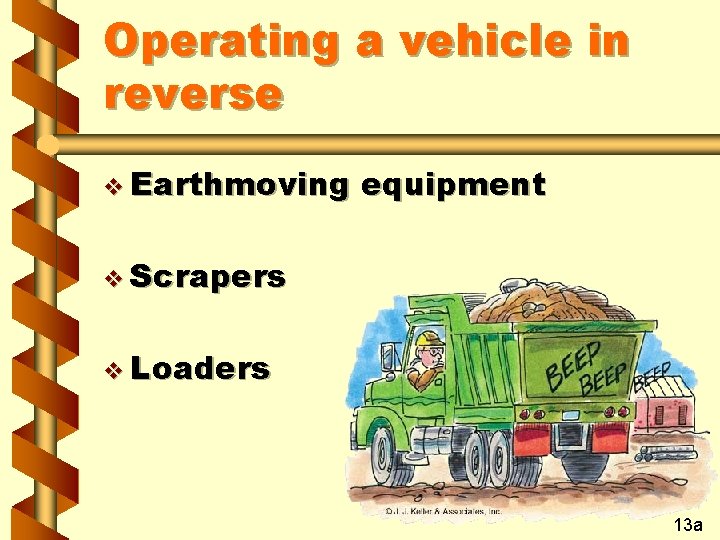

Operating a vehicle in reverse v Earthmoving equipment v Scrapers v Loaders 13 a

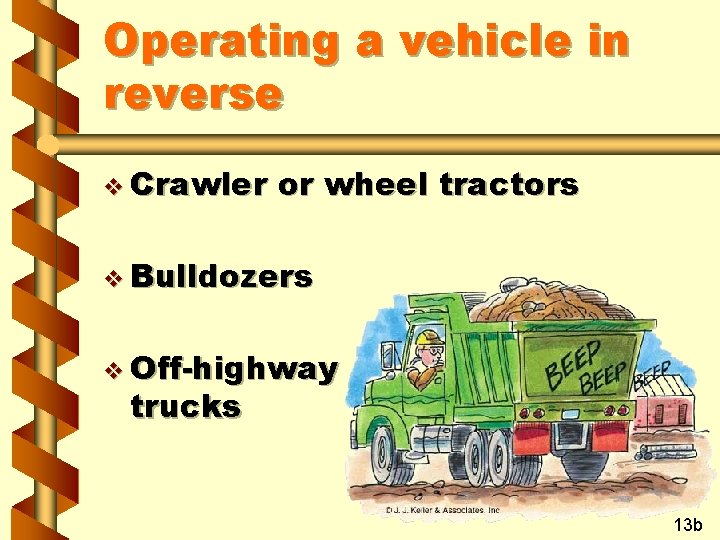

Operating a vehicle in reverse v Crawler or wheel tractors v Bulldozers v Off-highway trucks 13 b

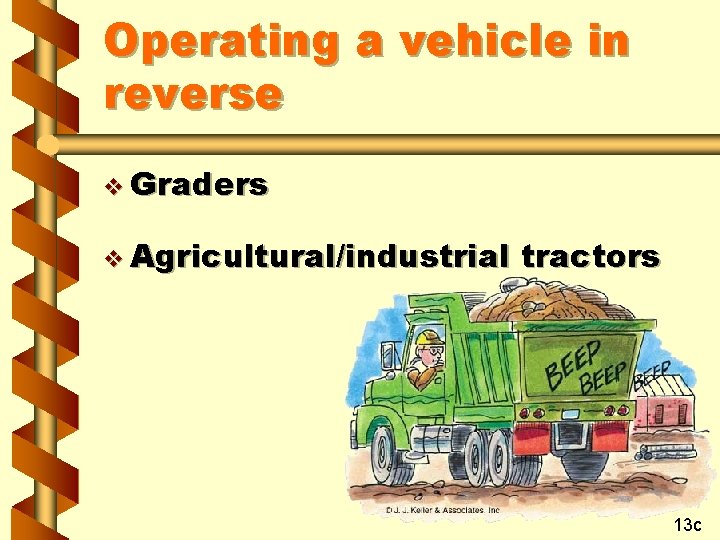

Operating a vehicle in reverse v Graders v Agricultural/industrial tractors 13 c

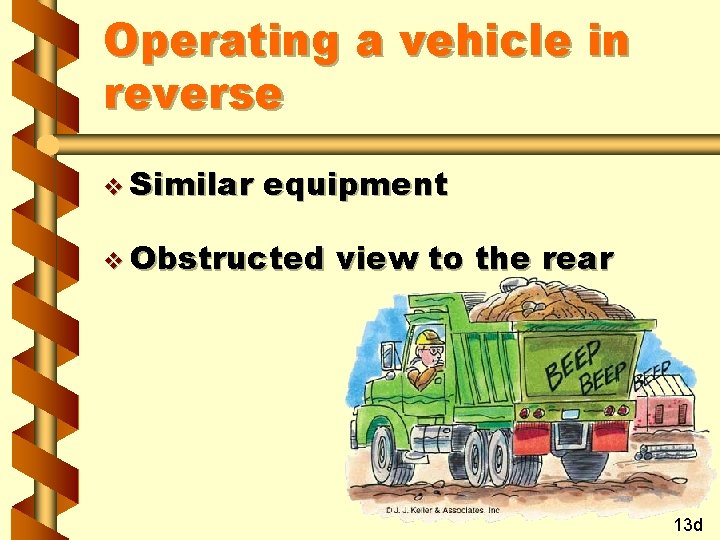

Operating a vehicle in reverse v Similar equipment v Obstructed view to the rear 13 d

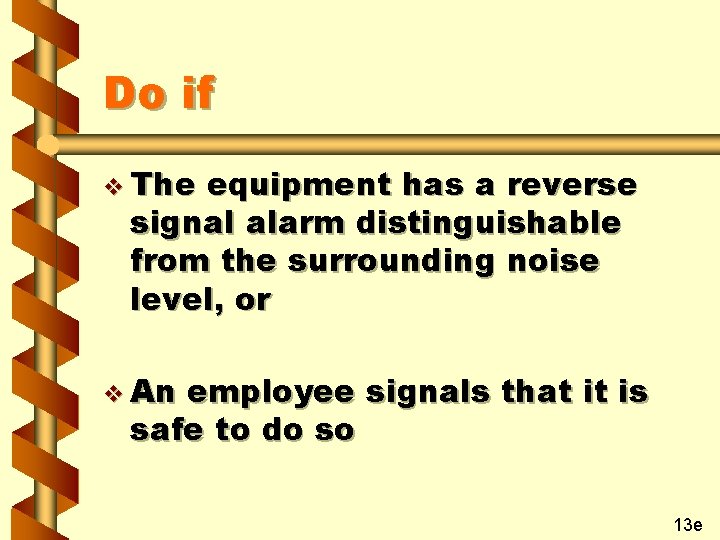

Do if v The equipment has a reverse signal alarm distinguishable from the surrounding noise level, or v An employee signals that it is safe to do so 13 e

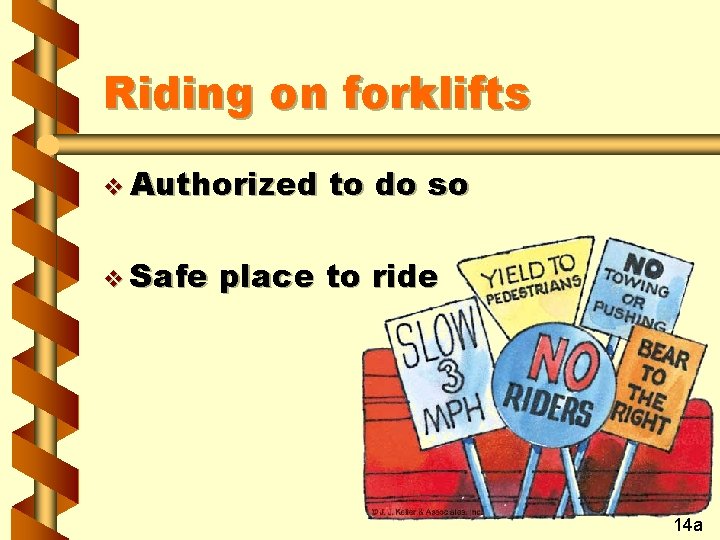

Riding on forklifts v Authorized v Safe to do so place to ride 14 a

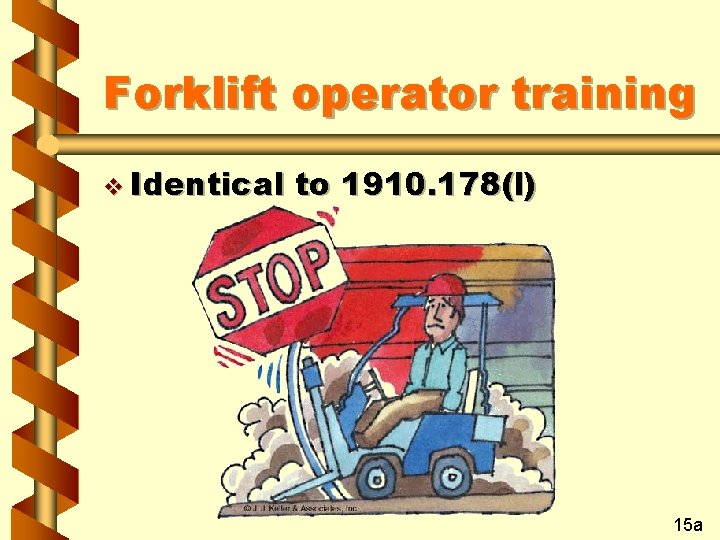

Forklift operator training v Identical to 1910. 178(l) 15 a

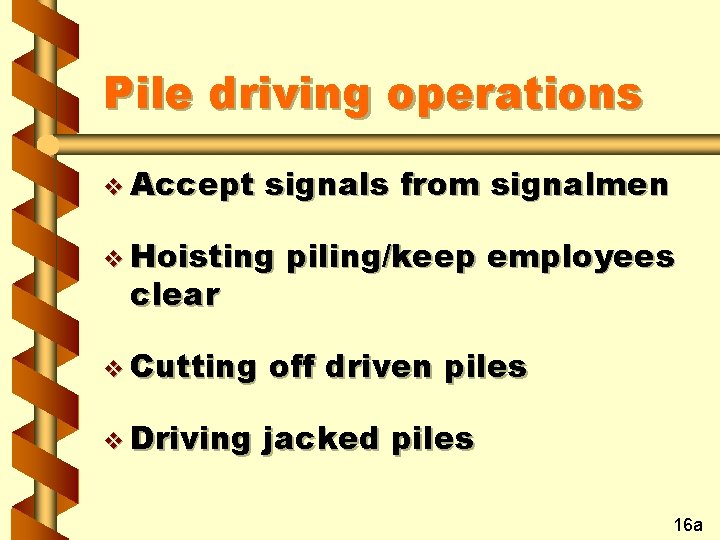

Pile driving operations v Accept signals from signalmen v Hoisting clear piling/keep employees v Cutting off driven piles v Driving jacked piles 16 a

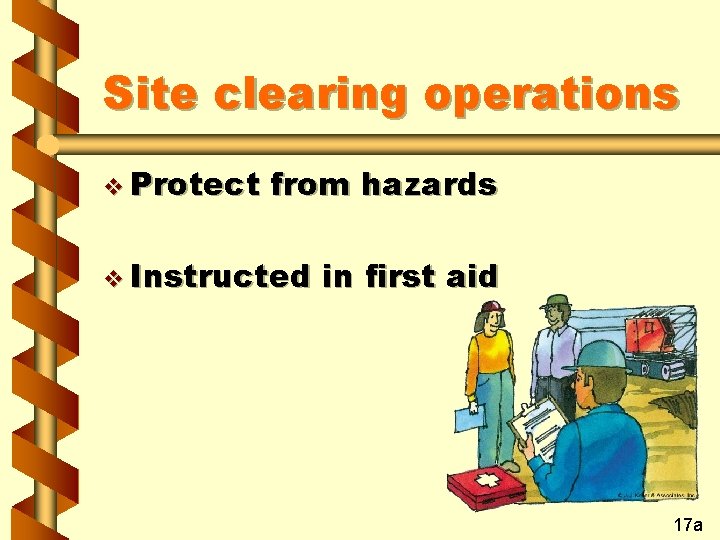

Site clearing operations v Protect from hazards v Instructed in first aid 17 a

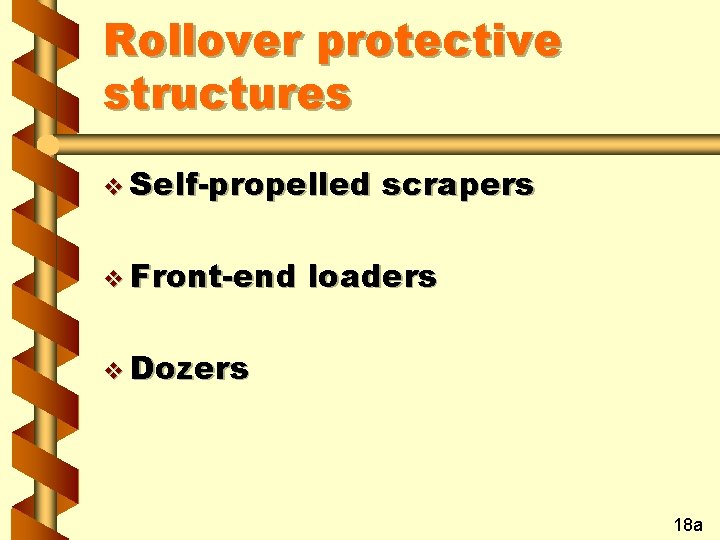

Rollover protective structures v Self-propelled v Front-end scrapers loaders v Dozers 18 a

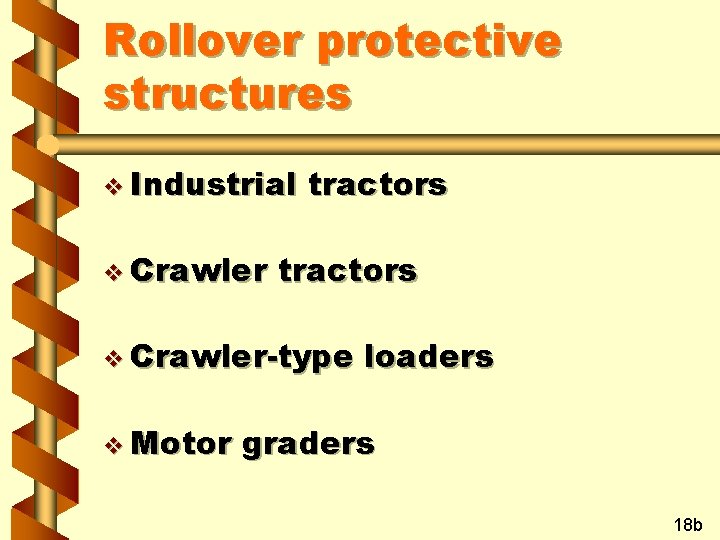

Rollover protective structures v Industrial v Crawler tractors v Crawler-type v Motor loaders graders 18 b

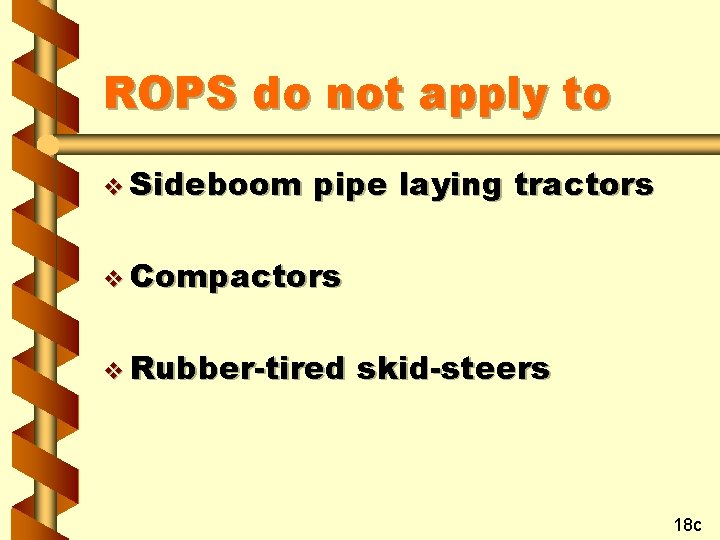

ROPS do not apply to v Sideboom pipe laying tractors v Compactors v Rubber-tired skid-steers 18 c

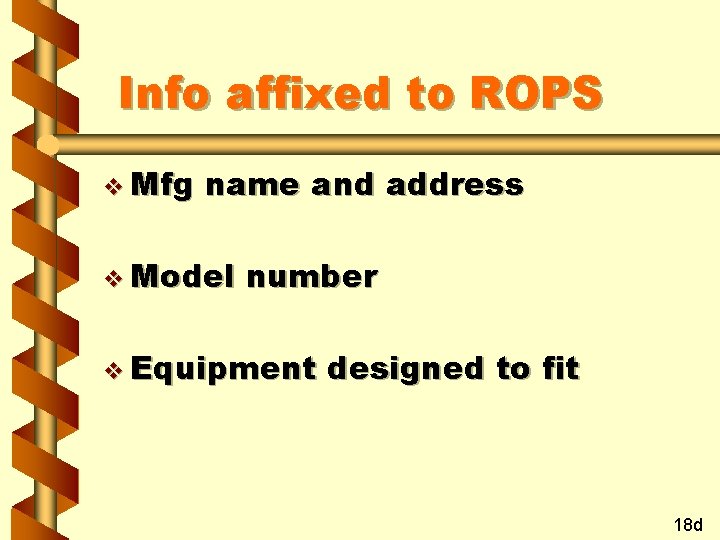

Info affixed to ROPS v Mfg name and address v Model number v Equipment designed to fit 18 d

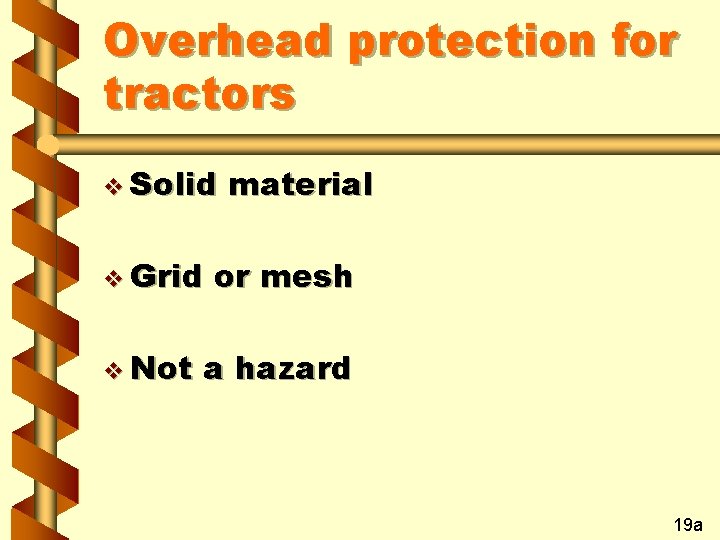

Overhead protection for tractors v Solid v Grid v Not material or mesh a hazard 19 a
