SEATING SYSTEMS TRACTOR CONSTRUCTION EQUIPMENT TWO WHEELERS SEATS

SEATING SYSTEMS – TRACTOR , CONSTRUCTION EQUIPMENT & TWO WHEELERS SEATS Sietz discussion document for Shigeru Kogyo visit v 6. pptx 0

SEATING SYSTEMS – TRACTOR , CONSTRUCTION EQUIPMENT & TWO WHEELERS SEAT SPECIFICATIONS TRACTOR & CONSTRUCTION EQUIPMENT SEATS Sietz discussion document for Shigeru Kogyo visit v 6. pptx • Suspension weight range from 50 – 120 KG • Longitudinal adjustment with guide rail 150 mm • Vertical travel 75 mm • Vacuum Foaming • Suspension with double acting shock absorber • SIP range from 200 – 300 mm • Seat types – Fixed, Sliding with nylon guide, Sliding with channel guide, Scissor type suspension, Fixed Arm, Adjustable Arm, Bucket type pan • Surface Treatment • C. E. D Coating / Primer after phosphating thickness from 20 – 30 microns • Powder Coating thickness from 60 – 80 microns 1

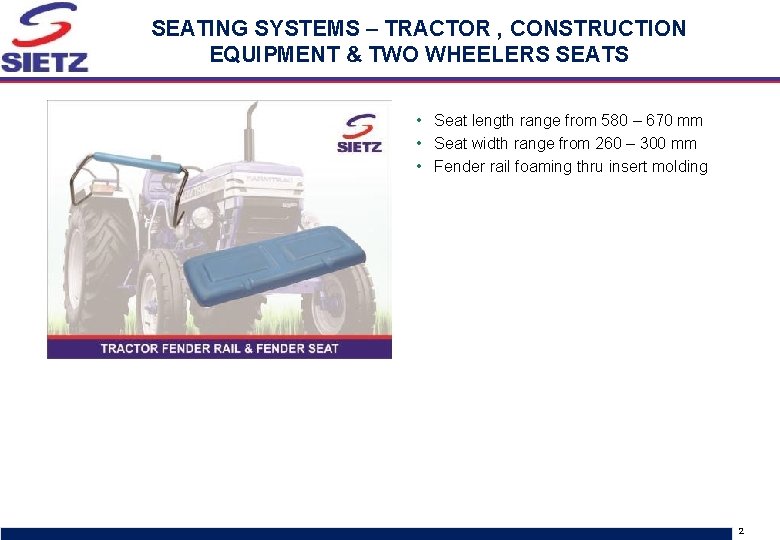

SEATING SYSTEMS – TRACTOR , CONSTRUCTION EQUIPMENT & TWO WHEELERS SEATS • Seat length range from 580 – 670 mm • Seat width range from 260 – 300 mm • Fender rail foaming thru insert molding Sietz discussion document for Shigeru Kogyo visit v 6. pptx 2

SEATING SYSTEMS – TRACTOR , CONSTRUCTION EQUIPMENT & TWO WHEELERS SEATS • PU Foam – Dow Chemicals (MDI / TM) • Foam Hardness range from 12 – 40 kgf • Density range from 55 – 95 kg/m 3 • Resilience Test – Min. 100 mm rebound • Permanent Compression Test – 10% max of foam height • Trim / Seat Cover • Breaking Load range from 15 – 45 kg/3 cms (MD) & 8 - 20 kg/3 cms (TD) • Elongation range from 45 – 100% (MD) & 170 – 300% (TD) • Thickness from 0. 8 – 1. 00 mm • GSM range from 525 – 750 gms Sietz discussion document for Shigeru Kogyo visit v 6. pptx 3

SEATING SYSTEMS – TWO WHEELERS SEATS (YAMAHA) ENTICER BASE & BACK Sietz discussion document for Shigeru Kogyo visit v 6. pptx 4

SEATING SYSTEMS – TWO WHEELERS SEATS (YAMAHA) CRUX Sietz discussion document for Shigeru Kogyo visit v 6. pptx 5

SEATING SYSTEMS – TWO WHEELERS SEATS (YAMAHA) GLADIATOR Sietz discussion document for Shigeru Kogyo visit v 6. pptx 6

SEATING SYSTEMS – TWO WHEELERS SEATS (YAMAHA) YBR Sietz discussion document for Shigeru Kogyo visit v 6. pptx 7

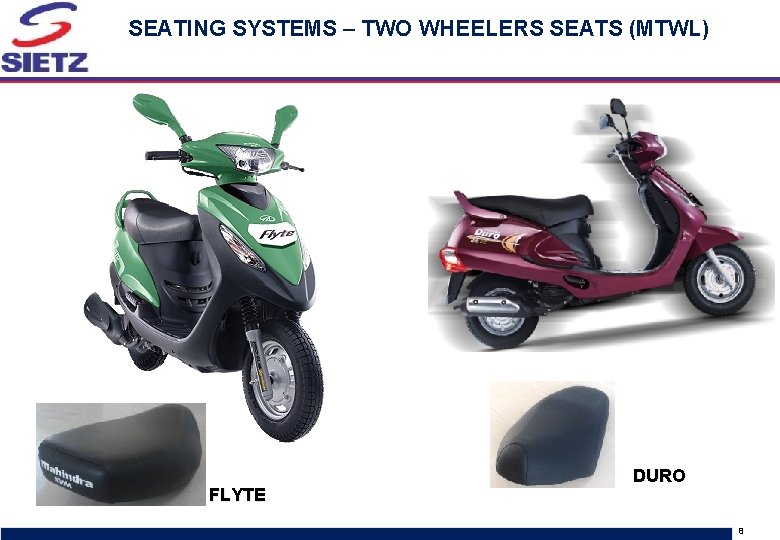

SEATING SYSTEMS – TWO WHEELERS SEATS (MTWL) FLYTE Sietz discussion document for Shigeru Kogyo visit v 6. pptx DURO 8

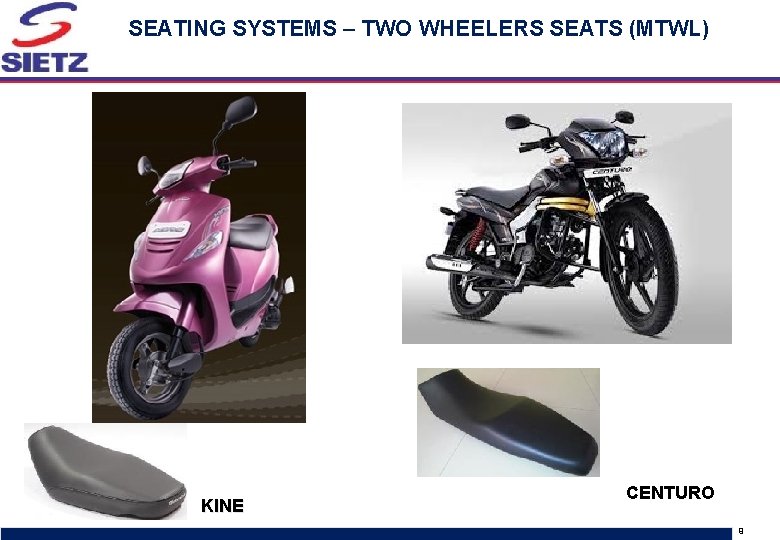

SEATING SYSTEMS – TWO WHEELERS SEATS (MTWL) KINE Sietz discussion document for Shigeru Kogyo visit v 6. pptx CENTURO 9

SEATING SYSTEMS – TWO WHEELERS SEATS (EXPORTS) PIAGGIO X 8 PIAGGIO X 9 MBK FRANCE Sietz discussion document for Shigeru Kogyo visit v 6. pptx PIAGGIO NRG POWER 10

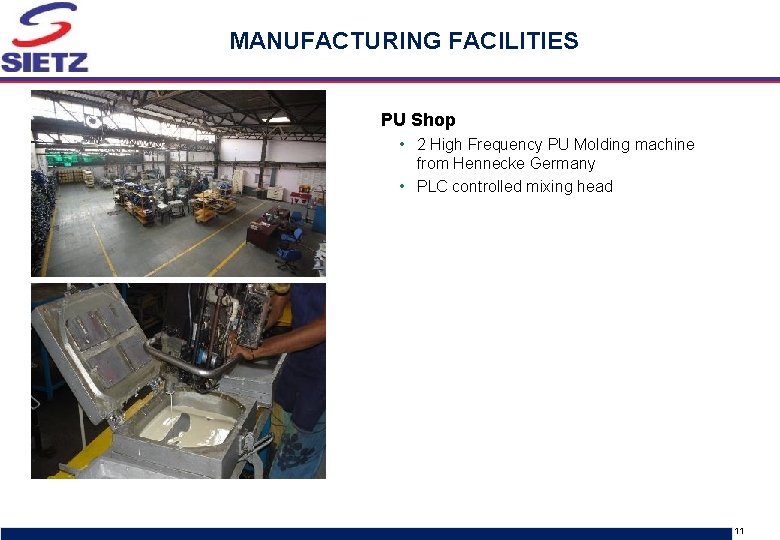

MANUFACTURING FACILITIES PU Shop • 2 High Frequency PU Molding machine from Hennecke Germany • PLC controlled mixing head Sietz discussion document for Shigeru Kogyo visit v 6. pptx 11

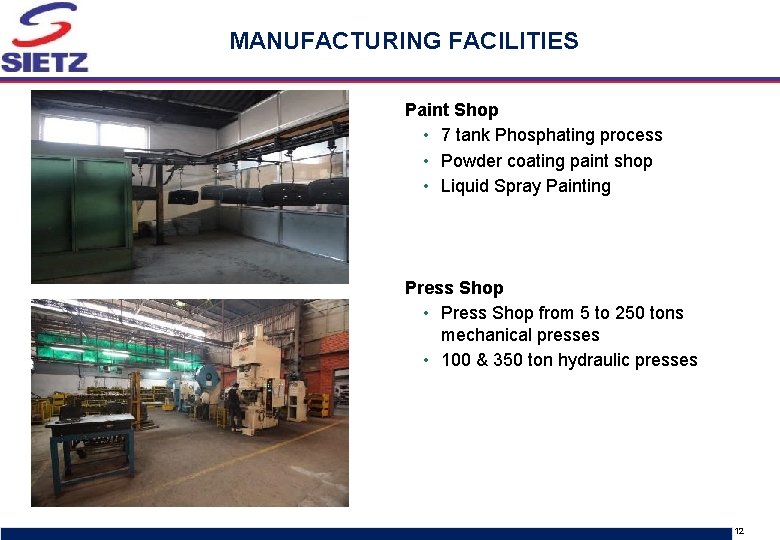

MANUFACTURING FACILITIES Paint Shop • 7 tank Phosphating process • Powder coating paint shop • Liquid Spray Painting Press Shop • Press Shop from 5 to 250 tons mechanical presses • 100 & 350 ton hydraulic presses Sietz discussion document for Shigeru Kogyo visit v 6. pptx 12

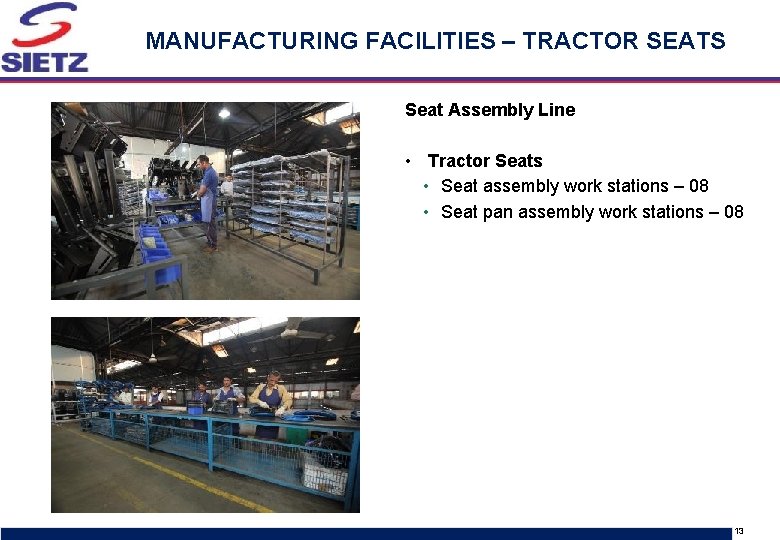

MANUFACTURING FACILITIES – TRACTOR SEATS Seat Assembly Line • Tractor Seats • Seat assembly work stations – 08 • Seat pan assembly work stations – 08 Sietz discussion document for Shigeru Kogyo visit v 6. pptx 13

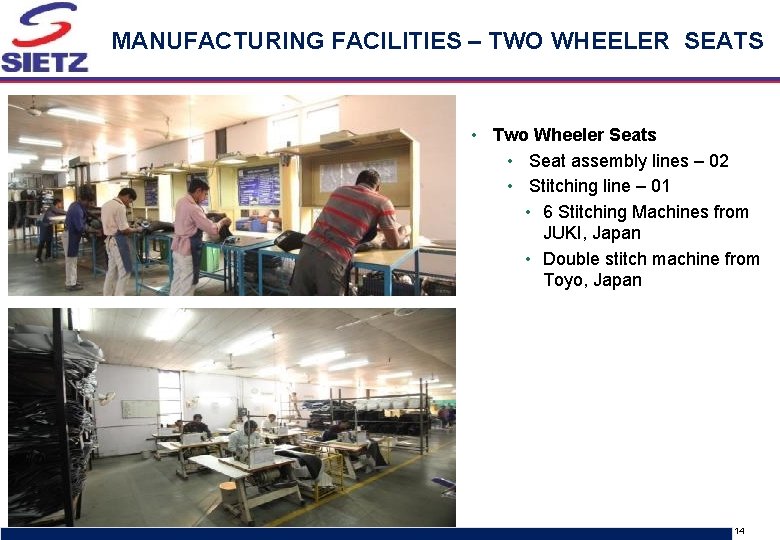

MANUFACTURING FACILITIES – TWO WHEELER SEATS • Two Wheeler Seats • Seat assembly lines – 02 • Stitching line – 01 • 6 Stitching Machines from JUKI, Japan • Double stitch machine from Toyo, Japan Sietz discussion document for Shigeru Kogyo visit v 6. pptx 14

TESTING FACILITIES – TRACTOR SEATS Seat Testing Rig • Cam based testing rig – 01 • Testing cycle – 1. 0 lac cycles Sietz discussion document for Shigeru Kogyo visit v 6. pptx 15

TESTING FACILITIES – TWO WHEELER SEATS Seat Fitment Frames • 100% inspection on fitment frames before packing Foam Hardness Testing Machine • Fully computerized foam hardness testing machine with hysteresis graph Sietz discussion document for Shigeru Kogyo visit v 6. pptx 16
