CHAPTER 10 SYNCHRONOUS MOTOR Electrical Machines 1 INTRODUCTION
![CHAPTER 10 SYNCHRONOUS MOTOR Electrical Machines 1 CHAPTER 10 SYNCHRONOUS MOTOR Electrical Machines 1](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-1.jpg)
![INTRODUCTION Synchronous motors are widely used in the industry for high-precision applications. This motor INTRODUCTION Synchronous motors are widely used in the industry for high-precision applications. This motor](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-2.jpg)
![INTRODUCTION Synchronous motor is a doubly fed motor; three-phase power is given to the INTRODUCTION Synchronous motor is a doubly fed motor; three-phase power is given to the](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-3.jpg)
![CONSTRUCTION • There is no constructional difference between synchronous motor and synchronous generator Electrical CONSTRUCTION • There is no constructional difference between synchronous motor and synchronous generator Electrical](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-4.jpg)
![CONSTRUCTION • The stator has a laminated core with slots to hold the three-phase CONSTRUCTION • The stator has a laminated core with slots to hold the three-phase](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-5.jpg)
![PRINCIPLE OF OPERATION OF SYNCHRONOUS MOTOR • When a three phase-supply is given to PRINCIPLE OF OPERATION OF SYNCHRONOUS MOTOR • When a three phase-supply is given to](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-6.jpg)
![PRINCIPLE OF OPERATION OF SYNCHRONOUS MOTOR • DC supply on the rotor will also PRINCIPLE OF OPERATION OF SYNCHRONOUS MOTOR • DC supply on the rotor will also](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-7.jpg)
![PRINCIPLE OF OPERATION OF SYNCHRONOUS MOTOR • DC supply on the rotor will also PRINCIPLE OF OPERATION OF SYNCHRONOUS MOTOR • DC supply on the rotor will also](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-8.jpg)
![PRINCIPLE OF OPERATION OF SYNCHRONOUS MOTOR • This is called magnetic locking. • Once PRINCIPLE OF OPERATION OF SYNCHRONOUS MOTOR • This is called magnetic locking. • Once](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-9.jpg)
![STARTING METHODS FOR SYNCHRONOUS MOTOR The different methods that are generally followed to start STARTING METHODS FOR SYNCHRONOUS MOTOR The different methods that are generally followed to start](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-10.jpg)
![STARTING METHODS FOR SYNCHRONOUS MOTOR By using a pony motor (Small induction motor) In STARTING METHODS FOR SYNCHRONOUS MOTOR By using a pony motor (Small induction motor) In](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-11.jpg)
![STARTING METHODS FOR SYNCHRONOUS MOTOR By using a damper winding • The damper windings STARTING METHODS FOR SYNCHRONOUS MOTOR By using a damper winding • The damper windings](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-12.jpg)
![STARTING METHODS FOR SYNCHRONOUS MOTOR By using a damper winding • Now, when a STARTING METHODS FOR SYNCHRONOUS MOTOR By using a damper winding • Now, when a](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-13.jpg)
![STARTING METHODS FOR SYNCHRONOUS MOTOR • By using DC motor In this method of STARTING METHODS FOR SYNCHRONOUS MOTOR • By using DC motor In this method of](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-14.jpg)
![STARTING METHODS FOR SYNCHRONOUS MOTOR • Starting as an induction motor The synchronous motor STARTING METHODS FOR SYNCHRONOUS MOTOR • Starting as an induction motor The synchronous motor](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-15.jpg)
![POWER ANGLE OF SYNCHRONOUS MOTOR The synchronous motor rotates at synchronous speed. But increase POWER ANGLE OF SYNCHRONOUS MOTOR The synchronous motor rotates at synchronous speed. But increase](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-16.jpg)
![SYNCHRONOUS MOTOR ON LOAD Electrical Machines 17 SYNCHRONOUS MOTOR ON LOAD Electrical Machines 17](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-17.jpg)
![Synchronous Motor at No-load Under no-load condition, the magnetic axis of the stator and Synchronous Motor at No-load Under no-load condition, the magnetic axis of the stator and](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-18.jpg)
![Synchronous Motor at No-load • Not let us see the performance of synchronous motor Synchronous Motor at No-load • Not let us see the performance of synchronous motor](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-19.jpg)
![Synchronous Motor at No-load • The phasor diagram will be Electrical Machines 20 Synchronous Motor at No-load • The phasor diagram will be Electrical Machines 20](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-20.jpg)
![EFFECT OF CHANGE IN EXCITATION ON SYNCHRONOUS MOTOR Synchronous motor with 100% excitation Electrical EFFECT OF CHANGE IN EXCITATION ON SYNCHRONOUS MOTOR Synchronous motor with 100% excitation Electrical](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-21.jpg)
![EFFECT OF CHANGE IN EXCITATION ON SYNCHRONOUS MOTOR Synchronous motor with 100% excitation Electrical EFFECT OF CHANGE IN EXCITATION ON SYNCHRONOUS MOTOR Synchronous motor with 100% excitation Electrical](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-22.jpg)
![EFFECT OF CHANGE IN EXCITATION ON SYNCHRONOUS MOTOR Synchronous motor with less than 100% EFFECT OF CHANGE IN EXCITATION ON SYNCHRONOUS MOTOR Synchronous motor with less than 100%](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-23.jpg)
![EFFECT OF CHANGE IN EXCITATION ON SYNCHRONOUS MOTOR Synchronous motor with more than 100% EFFECT OF CHANGE IN EXCITATION ON SYNCHRONOUS MOTOR Synchronous motor with more than 100%](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-24.jpg)
![V-Curve The plot between armature current and field current of synchronous motor is called V-Curve The plot between armature current and field current of synchronous motor is called](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-25.jpg)
![Inverted V-Curve The plot between power factor and field current of synchronous motor is Inverted V-Curve The plot between power factor and field current of synchronous motor is](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-26.jpg)
![Hunting in Synchronous Motor At no-load, the magnetic axis of the stator and rotor Hunting in Synchronous Motor At no-load, the magnetic axis of the stator and rotor](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-27.jpg)
![Causes of Hunting in Synchronous Motor 1. Sudden change in load 2. Sudden change Causes of Hunting in Synchronous Motor 1. Sudden change in load 2. Sudden change](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-28.jpg)
![Effects of Hunting in Synchronous Motor 1. It may lead to loss of synchronism. Effects of Hunting in Synchronous Motor 1. It may lead to loss of synchronism.](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-29.jpg)
![Reduction of Hunting in Synchronous Motor i) By using damper winding: Damper winding damps Reduction of Hunting in Synchronous Motor i) By using damper winding: Damper winding damps](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-30.jpg)
![Application of Synchronous Motor 1. Synchronous motor having no load connected to its shaft Application of Synchronous Motor 1. Synchronous motor having no load connected to its shaft](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-31.jpg)
![Application of Synchronous Motor 3. As synchronous motor is capable of operating under either Application of Synchronous Motor 3. As synchronous motor is capable of operating under either](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-32.jpg)
![Application of Synchronous Motor 4. It is used where high power at low speed Application of Synchronous Motor 4. It is used where high power at low speed](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-33.jpg)
- Slides: 33
![CHAPTER 10 SYNCHRONOUS MOTOR Electrical Machines 1 CHAPTER 10 SYNCHRONOUS MOTOR Electrical Machines 1](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-1.jpg)
CHAPTER 10 SYNCHRONOUS MOTOR Electrical Machines 1
![INTRODUCTION Synchronous motors are widely used in the industry for highprecision applications This motor INTRODUCTION Synchronous motors are widely used in the industry for high-precision applications. This motor](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-2.jpg)
INTRODUCTION Synchronous motors are widely used in the industry for high-precision applications. This motor runs at constant speed and it does not depend on the torque acting on it. So it has a constant-speed torque characteristic. The efficiency of synchronous motor is around 90%– 93%. Electrical Machines 2
![INTRODUCTION Synchronous motor is a doubly fed motor threephase power is given to the INTRODUCTION Synchronous motor is a doubly fed motor; three-phase power is given to the](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-3.jpg)
INTRODUCTION Synchronous motor is a doubly fed motor; three-phase power is given to the stator while the rotor is fed from a DC source for excitation of the field winding. Electrical Machines 3
![CONSTRUCTION There is no constructional difference between synchronous motor and synchronous generator Electrical CONSTRUCTION • There is no constructional difference between synchronous motor and synchronous generator Electrical](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-4.jpg)
CONSTRUCTION • There is no constructional difference between synchronous motor and synchronous generator Electrical Machines 4
![CONSTRUCTION The stator has a laminated core with slots to hold the threephase CONSTRUCTION • The stator has a laminated core with slots to hold the three-phase](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-5.jpg)
CONSTRUCTION • The stator has a laminated core with slots to hold the three-phase windings. • Rotor holds the field winding. The rotor can be of salient-pole type or cylindrical type. • Synchronous motor is likely to hunt and so damper windings are also provided in the rotor poles. Electrical Machines 5
![PRINCIPLE OF OPERATION OF SYNCHRONOUS MOTOR When a three phasesupply is given to PRINCIPLE OF OPERATION OF SYNCHRONOUS MOTOR • When a three phase-supply is given to](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-6.jpg)
PRINCIPLE OF OPERATION OF SYNCHRONOUS MOTOR • When a three phase-supply is given to the stator of the synchronous motor, it produces a rotating magnetic flux of constant magnitude, rotating at synchronous speed. Electrical Machines 6
![PRINCIPLE OF OPERATION OF SYNCHRONOUS MOTOR DC supply on the rotor will also PRINCIPLE OF OPERATION OF SYNCHRONOUS MOTOR • DC supply on the rotor will also](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-7.jpg)
PRINCIPLE OF OPERATION OF SYNCHRONOUS MOTOR • DC supply on the rotor will also produce a flux of constant magnitude. • A three phase synchronous motor is not self-starting. • If the rotor of the synchronous motor is rotated by some external means at the start. Electrical Machines 7
![PRINCIPLE OF OPERATION OF SYNCHRONOUS MOTOR DC supply on the rotor will also PRINCIPLE OF OPERATION OF SYNCHRONOUS MOTOR • DC supply on the rotor will also](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-8.jpg)
PRINCIPLE OF OPERATION OF SYNCHRONOUS MOTOR • DC supply on the rotor will also produce a flux of constant magnitude. • A three-phase synchronous motor is not self-starting. If the rotor of the synchronous motor is rotated by some external means at the start, there will be a continuous force of attraction between the stator and the rotor. Electrical Machines 8
![PRINCIPLE OF OPERATION OF SYNCHRONOUS MOTOR This is called magnetic locking Once PRINCIPLE OF OPERATION OF SYNCHRONOUS MOTOR • This is called magnetic locking. • Once](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-9.jpg)
PRINCIPLE OF OPERATION OF SYNCHRONOUS MOTOR • This is called magnetic locking. • Once this stage is reached, the rotor pole is dragged by the revolving stator field and thus the rotor will continue to rotate. Electrical Machines 9
![STARTING METHODS FOR SYNCHRONOUS MOTOR The different methods that are generally followed to start STARTING METHODS FOR SYNCHRONOUS MOTOR The different methods that are generally followed to start](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-10.jpg)
STARTING METHODS FOR SYNCHRONOUS MOTOR The different methods that are generally followed to start the synchronous motor are i) By using a pony motor (Small induction motor) ii) By using a damper winding iii) By using DC motor iv) Starting as an induction motor Electrical Machines 10
![STARTING METHODS FOR SYNCHRONOUS MOTOR By using a pony motor Small induction motor In STARTING METHODS FOR SYNCHRONOUS MOTOR By using a pony motor (Small induction motor) In](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-11.jpg)
STARTING METHODS FOR SYNCHRONOUS MOTOR By using a pony motor (Small induction motor) In this method, the rotor of the synchronous motor is brought to its synchronous speed with the help of an external induction motor. This external motor is called the pony motor. Electrical Machines 11
![STARTING METHODS FOR SYNCHRONOUS MOTOR By using a damper winding The damper windings STARTING METHODS FOR SYNCHRONOUS MOTOR By using a damper winding • The damper windings](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-12.jpg)
STARTING METHODS FOR SYNCHRONOUS MOTOR By using a damper winding • The damper windings are provided on the pole face slots in the fields. • These windings are short-circuited at both ends with the help of end rings, thus forming a squirrel-cage system. Electrical Machines 12
![STARTING METHODS FOR SYNCHRONOUS MOTOR By using a damper winding Now when a STARTING METHODS FOR SYNCHRONOUS MOTOR By using a damper winding • Now, when a](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-13.jpg)
STARTING METHODS FOR SYNCHRONOUS MOTOR By using a damper winding • Now, when a three-phase supply is given to the stator of a synchronous motor, it will start as a three-phase induction motor. Electrical Machines 13
![STARTING METHODS FOR SYNCHRONOUS MOTOR By using DC motor In this method of STARTING METHODS FOR SYNCHRONOUS MOTOR • By using DC motor In this method of](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-14.jpg)
STARTING METHODS FOR SYNCHRONOUS MOTOR • By using DC motor In this method of starting, the synchronous motor is brought to its synchronous speed with the help of a DC motor coupled to it. Once the rotor of the synchronous motor attains synchronous speed, the DC excitation to the rotor is switched on. Electrical Machines 14
![STARTING METHODS FOR SYNCHRONOUS MOTOR Starting as an induction motor The synchronous motor STARTING METHODS FOR SYNCHRONOUS MOTOR • Starting as an induction motor The synchronous motor](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-15.jpg)
STARTING METHODS FOR SYNCHRONOUS MOTOR • Starting as an induction motor The synchronous motor is started as a squirrel-cage induction motor. • When the synchronous motor is started as a slip-ring induction motor, the three ends of the windings are connected to an external resistance in series through slip-rings. Electrical Machines 15
![POWER ANGLE OF SYNCHRONOUS MOTOR The synchronous motor rotates at synchronous speed But increase POWER ANGLE OF SYNCHRONOUS MOTOR The synchronous motor rotates at synchronous speed. But increase](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-16.jpg)
POWER ANGLE OF SYNCHRONOUS MOTOR The synchronous motor rotates at synchronous speed. But increase in shaft load causes the rotor magnet to change its angular position with respect to the rotating flux of the stator by an electrical angle δ. This angle is called the power angle or load angle or torque angle. Electrical Machines 16
![SYNCHRONOUS MOTOR ON LOAD Electrical Machines 17 SYNCHRONOUS MOTOR ON LOAD Electrical Machines 17](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-17.jpg)
SYNCHRONOUS MOTOR ON LOAD Electrical Machines 17
![Synchronous Motor at Noload Under noload condition the magnetic axis of the stator and Synchronous Motor at No-load Under no-load condition, the magnetic axis of the stator and](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-18.jpg)
Synchronous Motor at No-load Under no-load condition, the magnetic axis of the stator and the rotor will coincide with each other. Electrical Machines 18
![Synchronous Motor at Noload Not let us see the performance of synchronous motor Synchronous Motor at No-load • Not let us see the performance of synchronous motor](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-19.jpg)
Synchronous Motor at No-load • Not let us see the performance of synchronous motor at no-load after considering the losses in the motor. • When the magnetic locking between the stator and the rotor takes place, the magnetic axis of the stator and the rotor do not coincide. There will be some angular difference (δ) between the stator and the rotor magnetic axis. Electrical Machines 19
![Synchronous Motor at Noload The phasor diagram will be Electrical Machines 20 Synchronous Motor at No-load • The phasor diagram will be Electrical Machines 20](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-20.jpg)
Synchronous Motor at No-load • The phasor diagram will be Electrical Machines 20

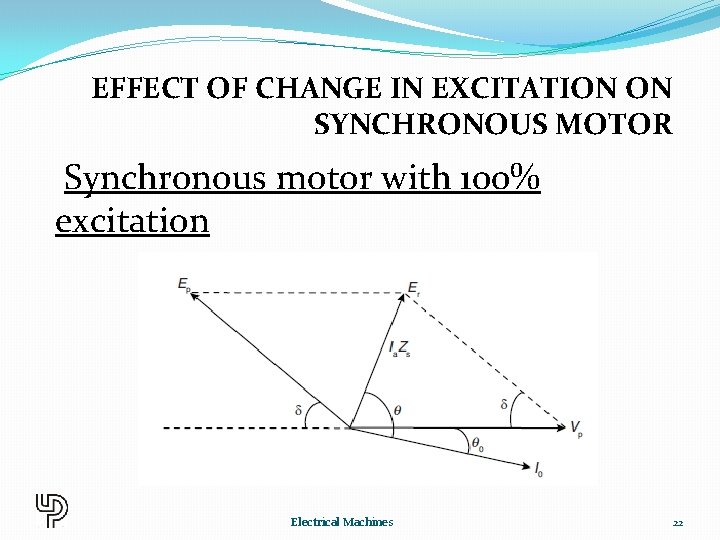

![EFFECT OF CHANGE IN EXCITATION ON SYNCHRONOUS MOTOR Synchronous motor with 100 excitation Electrical EFFECT OF CHANGE IN EXCITATION ON SYNCHRONOUS MOTOR Synchronous motor with 100% excitation Electrical](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-21.jpg)
EFFECT OF CHANGE IN EXCITATION ON SYNCHRONOUS MOTOR Synchronous motor with 100% excitation Electrical Machines 21
![EFFECT OF CHANGE IN EXCITATION ON SYNCHRONOUS MOTOR Synchronous motor with 100 excitation Electrical EFFECT OF CHANGE IN EXCITATION ON SYNCHRONOUS MOTOR Synchronous motor with 100% excitation Electrical](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-22.jpg)
EFFECT OF CHANGE IN EXCITATION ON SYNCHRONOUS MOTOR Synchronous motor with 100% excitation Electrical Machines 22
![EFFECT OF CHANGE IN EXCITATION ON SYNCHRONOUS MOTOR Synchronous motor with less than 100 EFFECT OF CHANGE IN EXCITATION ON SYNCHRONOUS MOTOR Synchronous motor with less than 100%](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-23.jpg)
EFFECT OF CHANGE IN EXCITATION ON SYNCHRONOUS MOTOR Synchronous motor with less than 100% excitation Electrical Machines 23
![EFFECT OF CHANGE IN EXCITATION ON SYNCHRONOUS MOTOR Synchronous motor with more than 100 EFFECT OF CHANGE IN EXCITATION ON SYNCHRONOUS MOTOR Synchronous motor with more than 100%](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-24.jpg)
EFFECT OF CHANGE IN EXCITATION ON SYNCHRONOUS MOTOR Synchronous motor with more than 100% excitation Electrical Machines 24
![VCurve The plot between armature current and field current of synchronous motor is called V-Curve The plot between armature current and field current of synchronous motor is called](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-25.jpg)
V-Curve The plot between armature current and field current of synchronous motor is called the Vcurve Electrical Machines 25
![Inverted VCurve The plot between power factor and field current of synchronous motor is Inverted V-Curve The plot between power factor and field current of synchronous motor is](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-26.jpg)
Inverted V-Curve The plot between power factor and field current of synchronous motor is called the inverted V-curve Electrical Machines 26
![Hunting in Synchronous Motor At noload the magnetic axis of the stator and rotor Hunting in Synchronous Motor At no-load, the magnetic axis of the stator and rotor](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-27.jpg)
Hunting in Synchronous Motor At no-load, the magnetic axis of the stator and rotor coincides as the load angle δ = 0. However, when the motor is loaded, the rotor axis lags the stator axis by an angle δ. If the load is suddenly changed, the rotor will not immediately attain its equilibrium position but pass beyond it producing more torque than required. The rotor will now swing in the opposite direction to reduce the load angle. This periodic swing of the rotor to either side before stopping at the equilibrium position is called Hunting of the rotor. Electrical Machines 27
![Causes of Hunting in Synchronous Motor 1 Sudden change in load 2 Sudden change Causes of Hunting in Synchronous Motor 1. Sudden change in load 2. Sudden change](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-28.jpg)
Causes of Hunting in Synchronous Motor 1. Sudden change in load 2. Sudden change in field current 3. A load containing harmonic torque 4. Fault in supply system. Electrical Machines 28
![Effects of Hunting in Synchronous Motor 1 It may lead to loss of synchronism Effects of Hunting in Synchronous Motor 1. It may lead to loss of synchronism.](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-29.jpg)
Effects of Hunting in Synchronous Motor 1. It may lead to loss of synchronism. 2. It produces mechanical stresses. 3. Increases machine loss and causes temperature rise. 4. Causes greater surges in current and power flow. Electrical Machines 29
![Reduction of Hunting in Synchronous Motor i By using damper winding Damper winding damps Reduction of Hunting in Synchronous Motor i) By using damper winding: Damper winding damps](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-30.jpg)
Reduction of Hunting in Synchronous Motor i) By using damper winding: Damper winding damps out hunting by producing torque opposite to slip of rotor. The magnitude of damping torque is proportional to the slip speed. ii) By using Flywheels: By providing large and heavy flywheel to the prime mover, its inertia can be increased, which in turn, helps in maintaining the rotor speed constant. Electrical Machines 30
![Application of Synchronous Motor 1 Synchronous motor having no load connected to its shaft Application of Synchronous Motor 1. Synchronous motor having no load connected to its shaft](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-31.jpg)
Application of Synchronous Motor 1. Synchronous motor having no load connected to its shaft is used for power factor improvement. 2. Synchronous motor finds application where operating speed is less and high power is required. Electrical Machines 31
![Application of Synchronous Motor 3 As synchronous motor is capable of operating under either Application of Synchronous Motor 3. As synchronous motor is capable of operating under either](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-32.jpg)
Application of Synchronous Motor 3. As synchronous motor is capable of operating under either leading or lagging power factor, it can be used for power factor improvement. A synchronous motor under no-load with leading power factor is connected in a power system where static capacitors cannot be used. Electrical Machines 32
![Application of Synchronous Motor 4 It is used where high power at low speed Application of Synchronous Motor 4. It is used where high power at low speed](https://slidetodoc.com/presentation_image_h/f540eee3b62f0e39c63bc8c0d3aa2d5c/image-33.jpg)
Application of Synchronous Motor 4. It is used where high power at low speed is required such as rolling mills, chippers, mixers, pumps, compressors etc. Electrical Machines 33
