Induction Motor Review By Mr. M. Kaliamoorthy Department of Electrical & Electronics Engineering PSNA College of Engineering and Technology 1

Outline �Introduction �Construction �Concept �Per-Phase Equivalent Circuit �Power Flow �Torque Equation �T- Characteristics �Starting and Braking �References 2

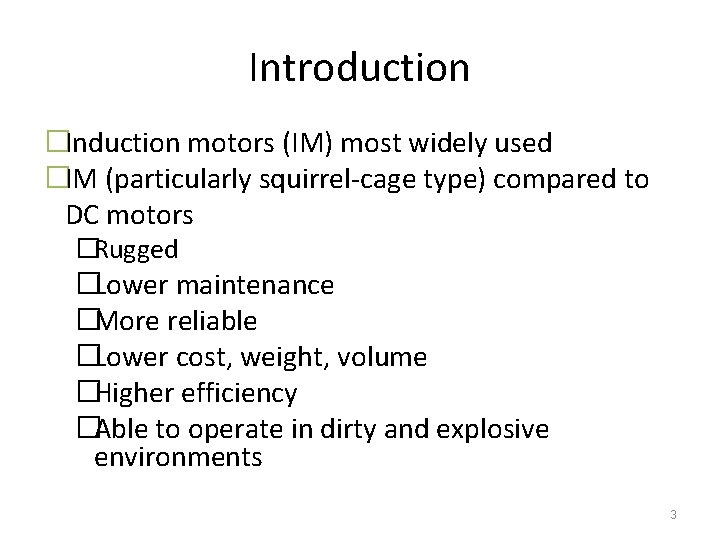

Introduction �Induction motors (IM) most widely used �IM (particularly squirrel-cage type) compared to DC motors �Rugged �Lower maintenance �More reliable �Lower cost, weight, volume �Higher efficiency �Able to operate in dirty and explosive environments 3

Introduction • IM mainly used in applications requiring constant speed – Conventional speed control of IM expensive or highly inefficient • IM drives replacing DC drives in a number of variable speed applications due to – Improvement in power devices capabilities – Reduction in cost of power devices 4

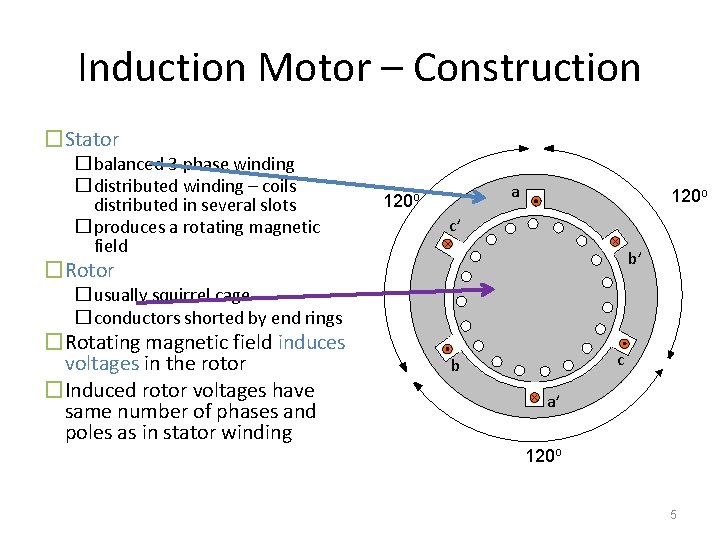

Induction Motor – Construction �Stator �balanced 3 -phase winding �distributed winding – coils distributed in several slots �produces a rotating magnetic field a 120 o c’ b’ �Rotor �usually squirrel cage �conductors shorted by end rings �Rotating magnetic field induces voltages in the rotor �Induced rotor voltages have same number of phases and poles as in stator winding c b a’ 120 o 5

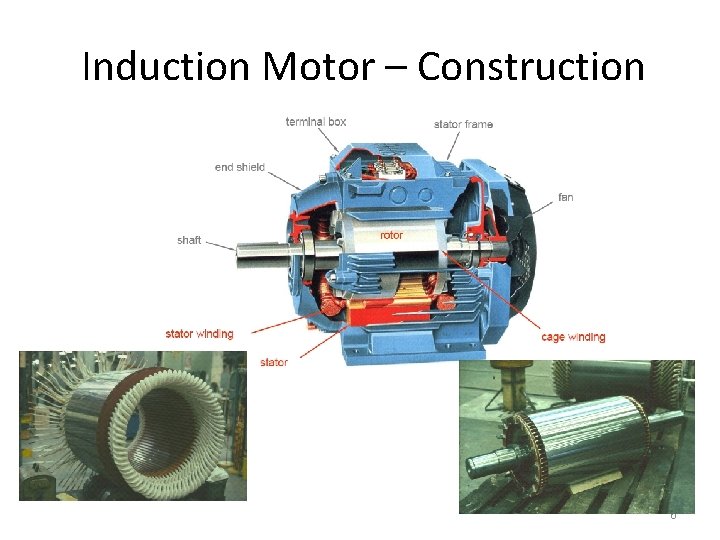

Induction Motor – Construction 6

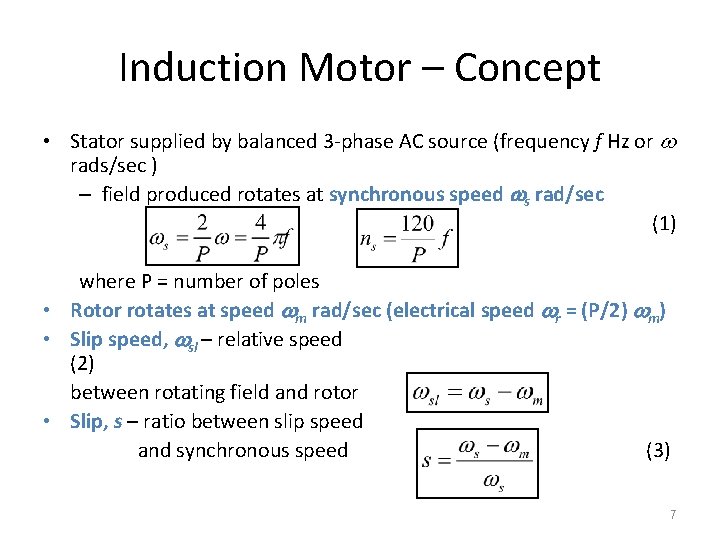

Induction Motor – Concept • Stator supplied by balanced 3 -phase AC source (frequency f Hz or rads/sec ) – field produced rotates at synchronous speed s rad/sec (1) where P = number of poles • Rotor rotates at speed m rad/sec (electrical speed r = (P/2) m) • Slip speed, sl – relative speed (2) between rotating field and rotor • Slip, s – ratio between slip speed and synchronous speed (3) 7

Induction Motor – Concept • Relative speed between stator rotating field and rotor induces: – emf in stator winding (known as back emf), E 1 – emf in rotor winding, Er • Frequency of rotor voltages and currents: (4) • Torque produced due to interaction between induced rotor currents and stator field • Stator voltage equation: • Rotor voltage equation: 8

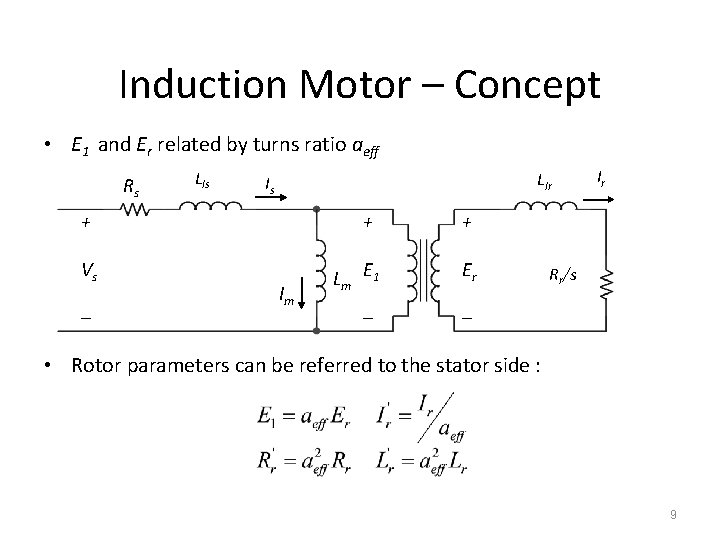

Induction Motor – Concept • E 1 and Er related by turns ratio aeff Rs Llr Is + Vs – + Im L m E 1 – Ir + Er Rr/s – • Rotor parameters can be referred to the stator side : 9

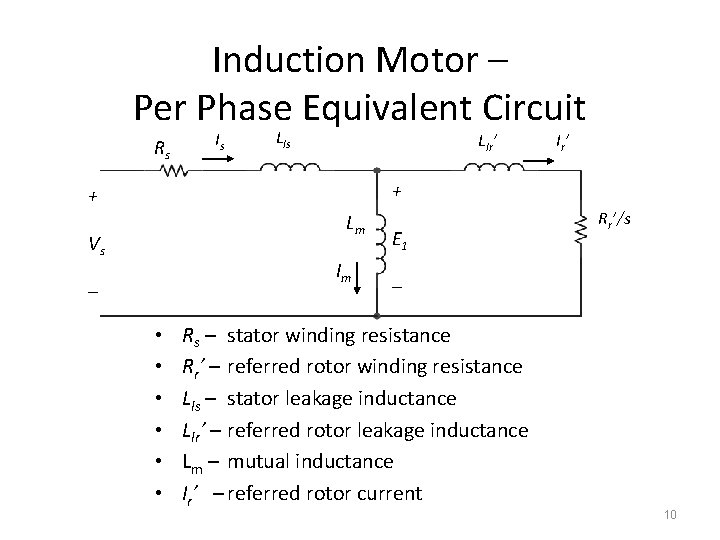

Induction Motor – Per Phase Equivalent Circuit Rs Is Llr’ Ir ’ + + Lm Vs Im – • • • E 1 Rr’/s – Rs – stator winding resistance Rr’ – referred rotor winding resistance Lls – stator leakage inductance Llr’ – referred rotor leakage inductance Lm – mutual inductance Ir’ – referred rotor current 10

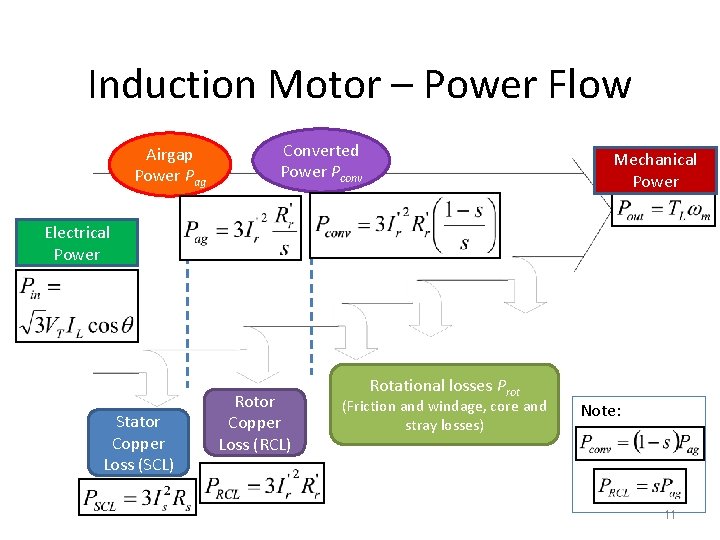

Induction Motor – Power Flow Airgap Power Pag Converted Power Pconv Mechanical Power Electrical Power Stator Copper Loss (SCL) Rotor Copper Loss (RCL) Rotational losses Prot (Friction and windage, core and stray losses) Note: 11

Induction Motor – Torque Equation • Motor induced torque is related to converted power by: (5) • Since and , hence (6) • Substituting for Ir’ from the equivalent circuit: (7) 12

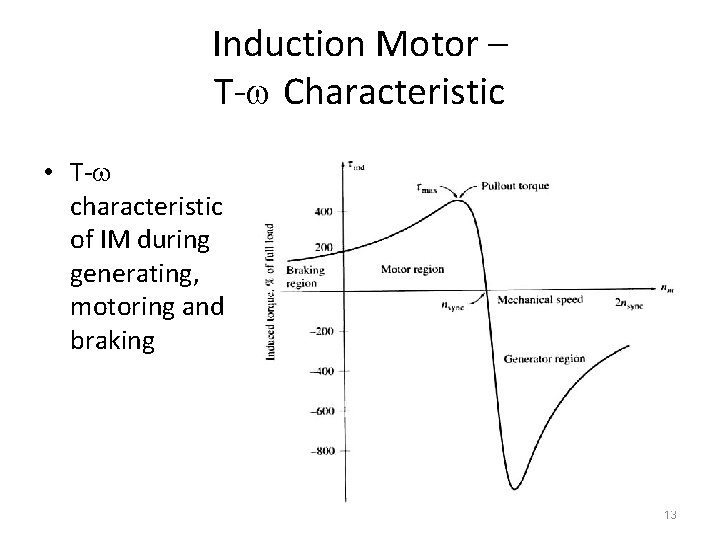

Induction Motor – T- Characteristic • T- characteristic of IM during generating, motoring and braking 13

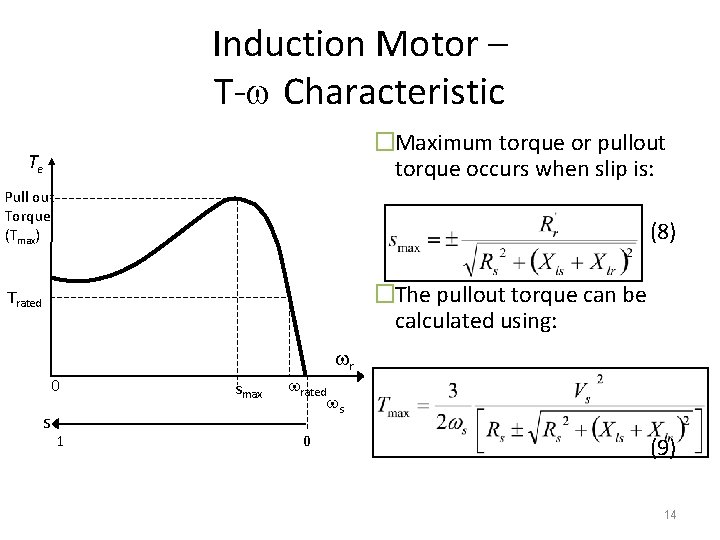

Induction Motor – T- Characteristic �Maximum torque or pullout torque occurs when slip is: Te Pull out Torque (Tmax) (8) �The pullout torque can be calculated using: Trated 0 s 1 smax rated 0 r s (9) 14

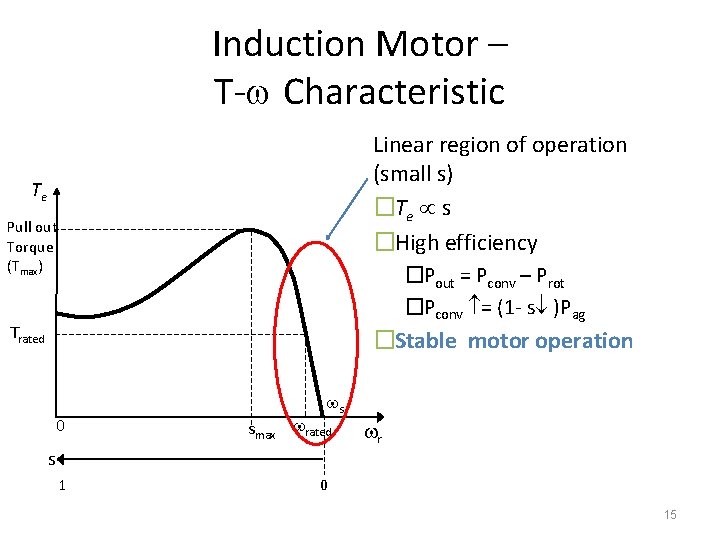

Induction Motor – T- Characteristic Linear region of operation (small s) �Te s �High efficiency Te Pull out Torque (Tmax) �Pout = Pconv – Prot �Pconv = (1 - s )Pag Trated �Stable motor operation s 0 smax rated 1 0 r s 15

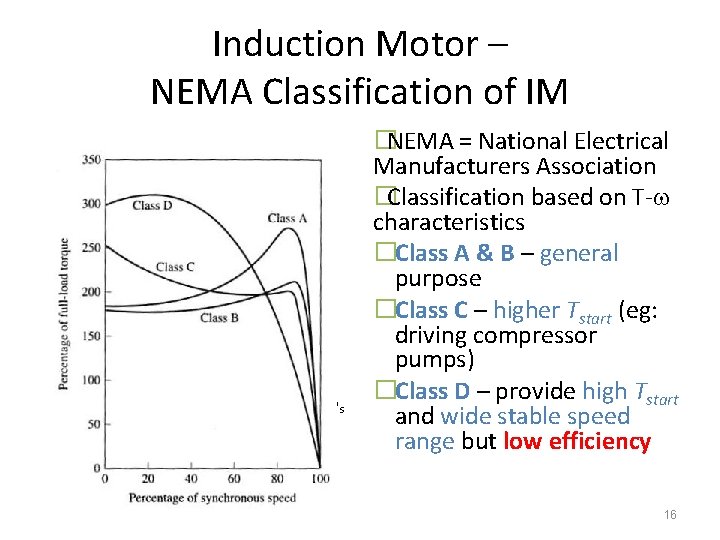

Induction Motor – NEMA Classification of IM s �NEMA = National Electrical Manufacturers Association �Classification based on T- characteristics �Class A & B – general purpose �Class C – higher Tstart (eg: driving compressor pumps) �Class D – provide high Tstart and wide stable speed range but low efficiency 16

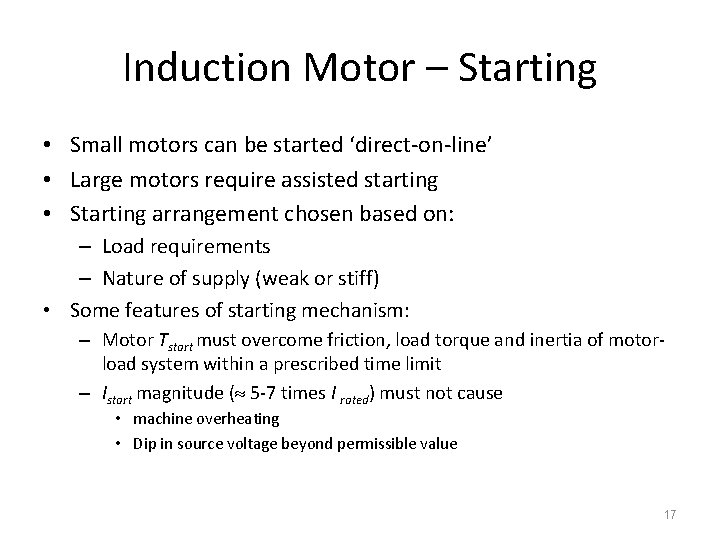

Induction Motor – Starting • Small motors can be started ‘direct-on-line’ • Large motors require assisted starting • Starting arrangement chosen based on: – Load requirements – Nature of supply (weak or stiff) • Some features of starting mechanism: – Motor Tstart must overcome friction, load torque and inertia of motorload system within a prescribed time limit – Istart magnitude ( 5 -7 times I rated) must not cause • machine overheating • Dip in source voltage beyond permissible value 17

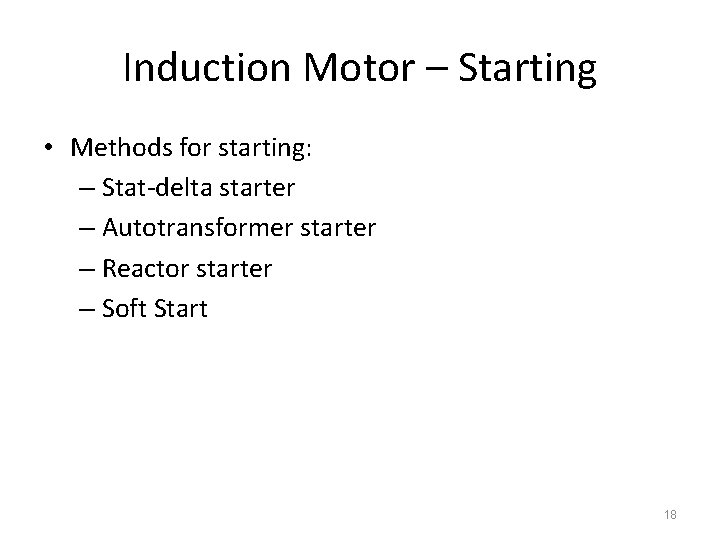

Induction Motor – Starting • Methods for starting: – Stat-delta starter – Autotransformer starter – Reactor starter – Soft Start 18

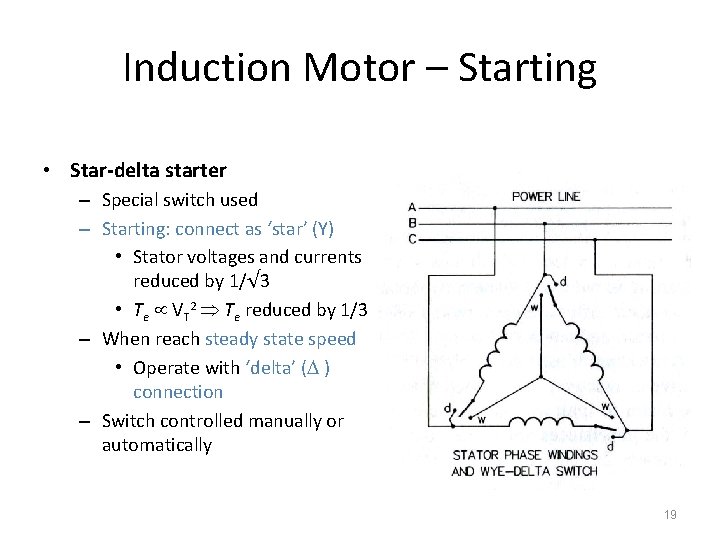

Induction Motor – Starting • Star-delta starter – Special switch used – Starting: connect as ‘star’ (Y) • Stator voltages and currents reduced by 1/√ 3 • Te VT 2 Te reduced by 1/3 – When reach steady state speed • Operate with ‘delta’ ( ) connection – Switch controlled manually or automatically 19

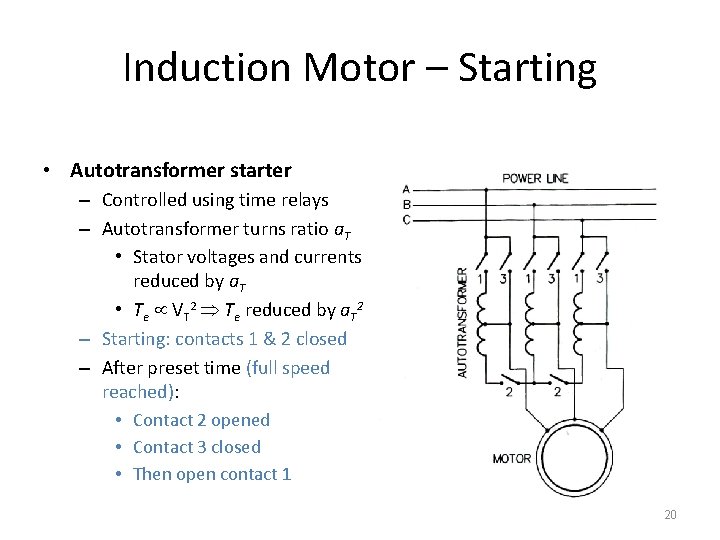

Induction Motor – Starting • Autotransformer starter – Controlled using time relays – Autotransformer turns ratio a. T • Stator voltages and currents reduced by a. T • Te VT 2 Te reduced by a. T 2 – Starting: contacts 1 & 2 closed – After preset time (full speed reached): • Contact 2 opened • Contact 3 closed • Then open contact 1 20

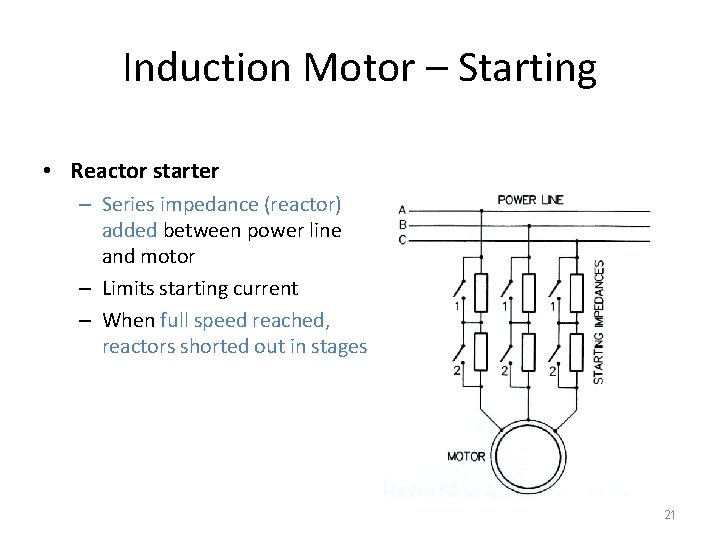

Induction Motor – Starting • Reactor starter – Series impedance (reactor) added between power line and motor – Limits starting current – When full speed reached, reactors shorted out in stages 21

Induction Motor – Starting • Soft Start – For applications which require stepless control of Tstart – Semiconductor power switches (e. g. thyristor voltage controller scheme) employed • Part of voltage waveform applied • Distorted voltage and current waveforms (creates harmonics) – When full speed reached, motor connected directly to line 22

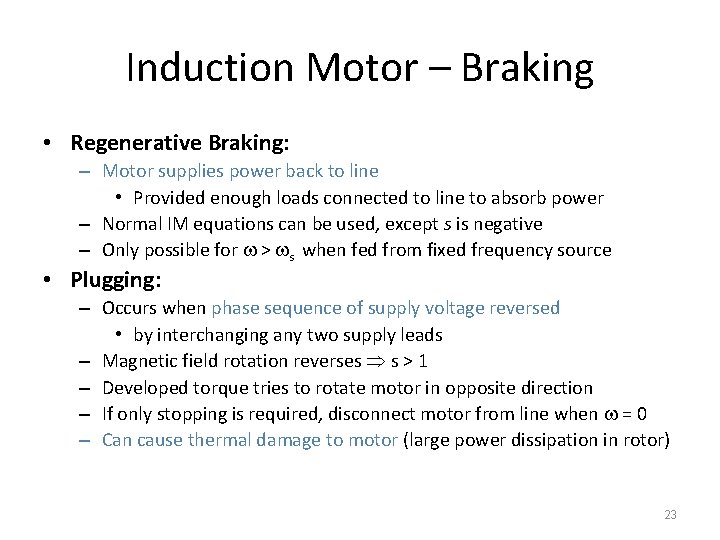

Induction Motor – Braking • Regenerative Braking: – Motor supplies power back to line • Provided enough loads connected to line to absorb power – Normal IM equations can be used, except s is negative – Only possible for > s when fed from fixed frequency source • Plugging: – Occurs when phase sequence of supply voltage reversed • by interchanging any two supply leads – Magnetic field rotation reverses s > 1 – Developed torque tries to rotate motor in opposite direction – If only stopping is required, disconnect motor from line when = 0 – Can cause thermal damage to motor (large power dissipation in rotor) 23

Induction Motor – Braking • Dynamic Braking: – Step-down transformer and rectifier provides dc supply – Normal: contacts 1 closed, 2 & 3 opened – During braking: Contacts 1 opened, contacts 2 & 3 closed – Two motor phases connected to dc supply - produces stationary field – Rotor voltages induced – Energy dissipated in rotor resistance – dynamic braking 24

References • Chapman, S. J. , Electric Machinery Fundamentals, Mc. Graw Hill, New York, 2005. • Rashid, M. H, Power Electronics: Circuit, Devices and Applictions, 3 rd ed. , Pearson, New-Jersey, 2004. • Trzynadlowski, Andrzej M. , Control of Induction Motors, Academic Press, 2001. • Nik Idris, N. R. , Short Course Notes on Electrical Drives, UNITEN/UTM, 2008. • Ahmad Azli, N. , Short Course Notes on Electrical Drives, UNITEN/UTM, 2008. 25
