Model MC 600 Introducing the Total Monitoring Solution

Model MC 600 Introducing the Total Monitoring Solution for Hydrocarbon, H 2 S and Toxic Gases in Wastewater Plants

Overview…. • An Introduction to General Monitors • One Stop Customer Shopping • 24 -Hour Global Service & Support • MC 600 Introduction – System Capability & Flexibility – Compatible Field Devices – Available Gases – Key Features – Accessories – Menu & Programming – On-line Specifications and Support – Applications – Summary & Questions

General Monitors – A Worldwide Leader • Established in 1961 by Dr. Frank Linville • Two Manufacturing facilities and R&D Sites - Lake Forest, CA and Ireland • The Best Service & Sales Support • World Class Automated SMT Manufacturing • Total Quality Management • JIT Purchasing & ISO-9001: 2000 Status • Worldwide Distribution Channels • Advanced Proprietary Catalytic

One Stop Customer Shopping • • • S 4000/S 4100 Series Intelligent Sensors for HC’s and H 2 S Integrated Fire and Gas Detection Systems IR 400/IR 5000 Infrared Point/Open Path Detectors for HC’s FL 3100 Series Flame Detectors Toxic Gas Detectors, both EC Cell and Infrared plus MC 600 Gassonic Ultrasonic Gas Leak Detectors

Global Service Anytime, Anywhere North America 18 Rep Firms South America 4 Rep Firms Pacifica 11 Rep Firms Middle East 7 Rep Firms Eurafrica 8 Rep Firms North American Mining 14 Offices

MC 600 Introduction • The MC 600 Multi-Channel Controller from General Monitors sets a new industry standard for flexibility, and economy in toxic and combustible gas monitoring systems • The 6 -channel MC 600 offers continuous gas monitoring with either basic HC and H 2 S sensors, Smart and Intelligent Sensors, IR 400/IR 7000 Infrared Point Gas Detectors, TS-Series toxic gas detectors, Gassonic ultrasonic gas detectors

MC 600 System Capability & Flexibility Alarm LED’s Back-lit LCD Display’s Keypad RS 485 Serial Communications output via Dual Redundant MODBUS Optional Sounder General Monitors Sensor Inputs IR 400/IR 7000 TS-Series S 4000/S 4100 C S 4000/S 410 0 T HC/H 2 S Sensors Gassonic

Compatible Field Devices • S 4000 CH/S 4100 C Intelligent Transmitters • HC & H 2 S Sensors • IR 400 Point Infrared Detector • S 4000 TH/S 4100 T Intelligent Transmitters • IR 7000 CO 2 Infrared Detector • TS 400/TS 420 Toxic Gas Detectors • TS 4000 H Intelligent Toxic Gas Detector • Gassonic Observer/Surveyor Ultrasonic Gas Detectors

Available Toxic and Combustible Gases • Ammonia 0 -50, 0 -100 ppm • Combustible Gases/Vapors 0 -100% LEL • Carbon Monoxide 0 -100, 0 -500 ppm • Chlorine 0 -10, 0 -20 ppm • Chlorine Dioxide 0 -3 ppm • Hydrogen Sulfide 0 -20, 0 -50 & 0 -100 ppm • Hydrogen Chloride 0 -20 ppm • Nitric Oxide 0 -100 ppm • Nitrogen Dioxide 0 -20 ppm • Oxygen Deficiency 0 -25% by Volume • Ozone 0 -1 ppm

MC 600 Key Features • Six (6) channels of continuous gas detection – Will accept General Monitors’ HC sensors, H 2 S sensors, S 4000 CH/TH, S 4100 C/T, TS-Series, IR 400, IR 7000, Gassonic Observer, Gassonic Surveyor gas detectors – No limits to the combination type of gas detector inputs • Fiberglass Type 4 X enclosure with 316 SS trim – Excellent resistance to sun, rain and corrosion. • Six (6) individual displays, one for each input with 2 lines of 8 characters per line – Detailed information provided per input condition

MC 600 Key Features Ready, Fault, Warn, Alarm LED’s are daylight readable so you can see what’s going on. User-friendly interface panel allows for setup, calibration and gas reading functions to be performed at your fingertips. Optional 95 db sounder can be integrated into the system – no need for external sounder Up to six channels of continuous monitoring for combustible, toxic and oxygen deficiency. Display Setup allows you to adjust the intensity of the LCD and LED displays

MC 600 Key Features Optional 115/230 VAC power supply – no need for external power supply Six 8 -amp relays are user configurable with full zoning and voting capability Removable terminal blocks provide ease of installation and wiring. Dual redundant MODBUS communications provides complete status and control capability. Plug-in signal cards allow for various configurations, system expandability and simplified maintenance. 8 -amp fault relay provides two user selectable options – activated/deactivated during

MC 600 Key Features 4 mounting holes for simple installation. Optional remote connecto r Removable board makes it easier to pull in wires during installation Conduit holes can also be used to mount detectors directly to Lockable stainless steel latches for extra security.

MC 600 Key Features • Six (6) SPDT relays at 8 amps for Warn, Low Alarm and High Alarms. They can be configured for three (3) different Zoning capabilities – Many combinations of relay outputs to accommodate alarm capabilities and direct wiring to external horns or alarm lights • One (1) fault relay – Used to indicate all faults • Dual redundant MODBUS communications – Allows 2 wire communication of MC 600 readings, relay actions, etc. to PLC’s and DCS systems

MC 600 Key Features • Remaining Sensor life Indication on the HC and H 2 S direct input sensors – Tells the customer when it is time to prepare to replace the sensors. • Self-calibration of the HC and H 2 S direct input sensors – Allows simple, fast calibration of the sensors. • Removable terminal blocks – Allows for easy wiring, installation and maintenance – No need to re-wire when replacing card

MC 600 Accessories • Optional 115 VAC to 24 VDC internal power supply – No need to purchase an external power supply • Optional 95 db sounder on the front panel – No need for external local horn • Optional remote location of the front display – Allows separation of the electronics in the field to the display in a control room, etc. (distance limited)

MC 600 Menu Overview

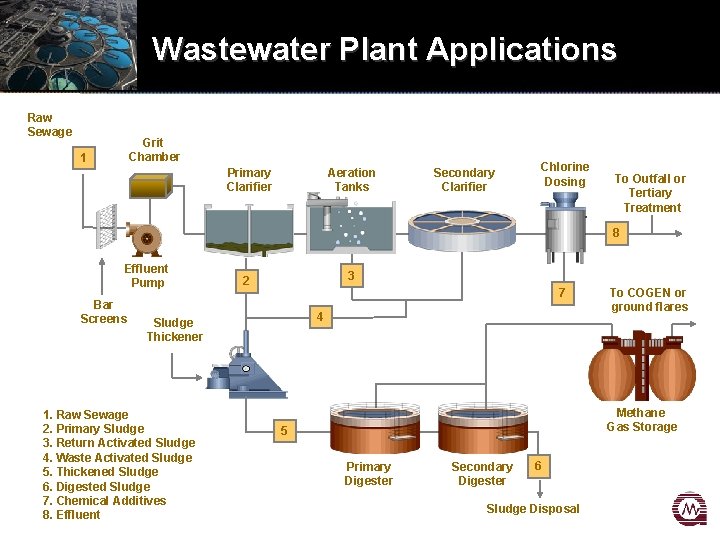

Wastewater Plant Applications Raw Sewage Grit Chamber 1 Primary Clarifier Aeration Tanks Secondary Clarifier Chlorine Dosing To Outfall or Tertiary Treatment 8 Effluent Pump Bar Screens 3 2 7 4 Sludge Thickener 1. Raw Sewage 2. Primary Sludge 3. Return Activated Sludge 4. Waste Activated Sludge 5. Thickened Sludge 6. Digested Sludge 7. Chemical Additives 8. Effluent To COGEN or ground flares Methane Gas Storage 5 Primary Digester Secondary Digester 6 Sludge Disposal

Gases/Products used by Process Area 1. 2. 3. 4. 5. 6. 7. 8. Gases Products Raw Sewage H 2 S, HC, O 2 S 4000 CH/TH, TSSeries Primary Sludge H 2 S, HC, O 2 S 4000 CH/TH, TS-Series Return Activated Sludge H 2 S, HC, O 2 S 4000 CH/TH, TS-Series Waste Activated Sludge H 2 S, HC, O 2 S 4000 CH/TH, TS-Series Thickened Sludge H 2 S, HC, O 2 S 4000 CH/TH, TSSeries Digested Sludge HC, O 2 S 4000 CH/TH, TS-Series Chemical Additives SO 2, Cl 2 TS-Series Effluent Cl 2 TS-Series

Digester Gas Monitoring Ground Flare S 4000 CH Gas Detector Sludge Digester Tank Gas Flowmeter Methane (CH 4) gas generated from anaerobic digesters also contains hydrogen sulfide (H 2 S) resulting from decomposing sludge. The H 2 S gas is usually removed. Methane gas is used to fuel compressors, boilers and engines. Any unused gas is then flared off to the atmosphere. Applications exist for Models S 4000 CH/TH and IR 2100 Infrared Point Gas Detector because of high O 2. The Model IR 5000 is also used for CH 4 detection in large waste treatment plants.

Sludge Dewatering Outgoing Sludge to Incinerator De-watering System Model S 4000 TH Intelligent Sensors are positioned both sides of the compressor Incoming Sludge Incoming sludge from waste treatment facilities contains hydrogen sulfide and methane gas. The sludge is transported through a spiral conveyor into the de-watering system where the water is removed. The outgoing conveyor transports the remaining solids to an incinerator. Model S 4000 TH Intelligent Sensors are positioned so that during operation of the compressor any escaping H 2 S will be detected.

Wet/Dry Wells & Lift Stations S 4000 CH/TH and TS 4000 Manhole Sewer or Vault Wet wells and dry wells are confined spaces which can develop a build-up of H 2 S and CH 4. This gas concentration can become explosive and/or toxic to the level of personnel danger. Because personnel are required to service these areas, O 2 deficiency monitors are installed to ensure that oxygen levels do not drop below the regulated levels needed to sustain life. Models TS 420/TS 4000 H, S 4000 CH/TH’s can all be used for these applications.

Chlorine Storage Room - Remote Mounting Cl 2 Gas Pipe Cl 2 Ton Containers Control Panel TS 4000 H Interface Module with J-Box TS 4000 H Base Unit with LED Display, Remote Mounted Outside Cl 2 Storage Room

Landfill Vapor Recovery Scrubber S 4000 CH Gas Detector Control Valve Gas Compressor Landfill Gas Well Gas Pipeline Landfills produce Methane and H 2 S gas generated from decomposing materials. The recovered methane is used to fuel compressors, engines and co-generation plants. These facilities provide an excellent opportunity for Model S 4000 CH Intelligent Sensors to detect the methane gas.

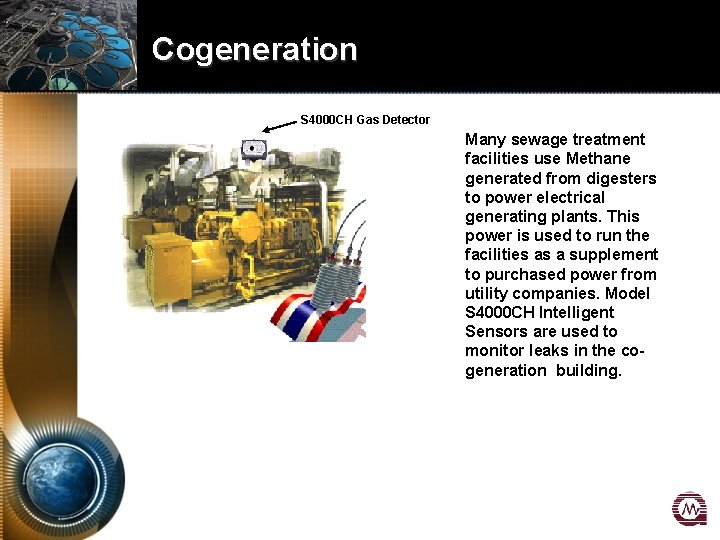

Cogeneration S 4000 CH Gas Detector Many sewage treatment facilities use Methane generated from digesters to power electrical generating plants. This power is used to run the facilities as a supplement to purchased power from utility companies. Model S 4000 CH Intelligent Sensors are used to monitor leaks in the cogeneration building.

Low Cost Per Point Safety • The MC 600 when configured with our Highly Reliable Combustible Gas, MOS/H 2 S, Toxic Gas and Ultrasonic Sensors, provides a breakthrough in economical safety monitoring systems. • The result is a high performance, low cost per point safety monitoring system that is easy to install with long life, reducing safety system life cycle costs, and offering an attractive return on investment.

MC 600 Summary • The MC 600 meets most plant safety requirements and can be easily scaled to suit the changing needs of tomorrow • When configured with our Highly Reliable Combustible Gas/HC, MOS/H 2 S, Toxic Gas and Ultrasonic Gas Detectors, the MC 600 provides a breakthrough in economical safety monitoring systems • Included in its design criteria are: – Control and annunciation of a wide range of combustible/toxic gases – Ease of use – Advanced non-volatile digital logic microprocessor design – Modularity for easy access, testing and service

QUESTIONS • Call us at 1 -800 -330 -9161 for any questions • You can obtain data sheets, interactive demo, brochure, instruction manual, specifications by visiting the following websites: – www. MC 600. com – www. generalmonitors. com – www. gassonic. com
