Industrial Ethernet Solution 1 Total Industrial Ethernet Solution

Industrial Ethernet Solution 1

Total Industrial Ethernet Solution Po. E Fiber Gigabit Harden Video / Serial over Ethernet Metro Switch Po. E Solar Power Media Converter Extender Wireless Surveillance 2

Robust Management ERPS Ring for Network Redundancy ü Strong rapid self-recovery capability ü Fault recovery times less than 50 ms ü Spanning Tree Protocol (802. 1 w RSTP) ü Redundant power supply system Outdoor Po. E IP Camera 1000 Base SX/LX Fiber optic 1000 Base-T UTP with Po. E 3

Intelligent Po. E Management u Po. E System Management ü ü u Po. E Budget Overloading Protection Po. E Temperature Threshold Po. E Power Usage Threshold Power Feeding Status Monitoring Po. E Port Configuration ü ü ü 802. 3 af mode control Power feeding On/Off/schedulable and priority configuration Power Limit function for Po. E power management Auto detect powered device and consumption levels Classify connected powered devices u PD (Powered Device) Alive Check u Schedule Po. E Power Recycle 4

Digital Diagnostic Monitor (DDM) u Efficient management by real-time monitoring of the SFP status ü Optical output power ü Optical input power ü Temperature ü Laser bias current ü Transceiver supply voltage 5

IEEE 1588 Protocol (PTP) ü MEF service delivery ü Timing over packet PTP (Precision Time Protocol ) Transparent Configuration ü Synchronous Ethernet PT P 6

Product Features Layer 3 / Metro Industrial Switch 7

Industrial Rack-mount Layer 3 Managed Switch IGS-6330 -24 T 4 S u Layer 3 static routing and RIP / OSPF dynamic routing u -40 ~ 75 degrees C operating temperature u IP 30 case with the fan-less cooling system u 12 ~ 48 V DC redundant power design u Full Management: Web interface; Console; SNMP v 1, v 2 c and v 3; SSH and SSL management u IEEE 802. 1 Q VLAN / Q-in-Q / Protocol-based VLAN u IGMP Snooping v 1, v 2 and v 3 / ACL / Port-based 802. 1 x 8

Industrial Managed Switch u 16 -port Gigabit + 4 extra Gigabit SFP interfaces with DDM (Digital Diagnostic Monitor) support u Layer 3 static routing, L 2/L 4 traffic follow control u IPv 4 / IPv 6 Full Management u ITU-T G. 8032 ERPS function, recovery time at 20 ~ 50 ms u IEEE 1588 v 2 Precision Time Protocol (PTP) u 2 Digital Input / 2 Digital Output u DIN-rail type, IP 30 aluminum housing u -40 ~ 75 degrees C operating temperature IGS-20040 MT 9

Metropolitan Area Network Switch u Backbone of Industrial Environment u Full Ports Gigabit u Fiber Optical, 100/1000 X SFP u 20 Gbps per second of non-blocking switch fabric u IPv 6 / IPv 4 Management u High Security u -40~75 o. C Operating Temperature u IP 30 Rugged Case IGS-10080 MFT 10

Metro Switch Application ü Reliable ü Stable ü Long-Reach 11

Product Features Layer 2+ Industrial Managed Switch 12

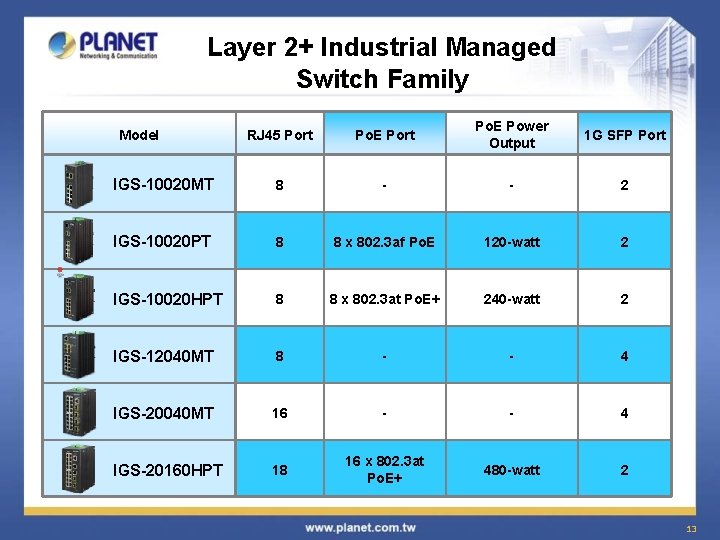

Layer 2+ Industrial Managed Switch Family RJ 45 Port Po. E Power Output 1 G SFP Port IGS-10020 MT 8 - - 2 IGS-10020 PT 8 8 x 802. 3 af Po. E 120 -watt 2 IGS-10020 HPT 8 8 x 802. 3 at Po. E+ 240 -watt 2 IGS-12040 MT 8 - - 4 IGS-20040 MT 16 - - 4 IGS-20160 HPT 18 16 x 802. 3 at Po. E+ 480 -watt 2 Model 13

Product Features Industrial Po. E Switch 14

High Power Po. E Switch IGS-10020 HPT u IPv 6 IP Address / NTP / DNS management u Po. E Power up to 30. 8 Watts for each Po. E ports u Auto detect powered device (PD) u VLAN, Spanning Tree Protocol u ERPS (Ethernet Ring Protection Switching) u IEEE 802. 1 x Port-Based / MAC-Based network access authentication 15

Industrial Po. E Fiber Switch IGS-624 HPT u Fiber-Optical Link Capability u 802. 3 af/at Po. E injector u 48 V DC to 52 V DC Po. E+ power boost u High Power Budget for Po. E Extension u Intelligent LED Indicator for Real-time Po. E Usage u Redundant power system u -40~75 o. C Operating Temperature u IP 30 Rugged Case IGS-624 HPT 16

High Power Po. E Switch Application 240 km 17

18

Solar Power Po. E Switch Application BSP-300 Site: Desert in Chile 19

Solar Power Po. E Switch Application 20

Product Features Wall-mounted Industrial Switch 21

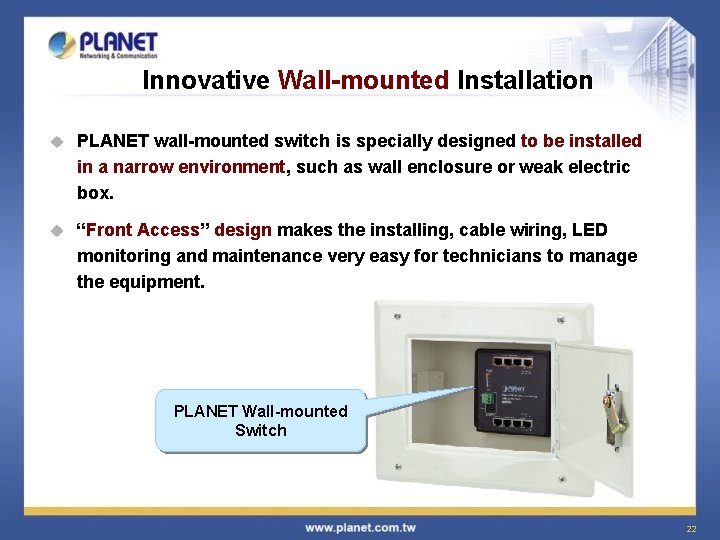

Innovative Wall-mounted Installation u PLANET wall-mounted switch is specially designed to be installed in a narrow environment, such as wall enclosure or weak electric box. u “Front Access” design makes the installing, cable wiring, LED monitoring and maintenance very easy for technicians to manage the equipment. PLANET Wall-mounted Switch 22

Wall-mounted Switch Family Model RJ 45 Port Po. E Power Output 1 G SFP Port Operating Temp. WGS-803 8 - -10~60 o. C WGS-804 HP 4 4 120 -watt - -10~60 o. C WGS-804 HPT 4 4 120 -watt - -40~75 o. C WGS-4215 -8 T 8 - -40~75 o. C WGS-4215 -8 T 2 S 8 - - 2 -40~75 o. C 23

Wall-mounted Managed Gigabit Po. E+ Switch u Designed for Home / Building automation u Wall-mount, Magnetic wall-mount, DIN-rail type u 802. 3 af/at Po. E injector, 120 -watt Po. E budget u LED indicators for per port Po. E In-Use and Po. E Power Usage u Dual redundant power input: terminal block and DC jack u IP 30 Slime Case, -40 ~ 75 degrees C operating temperature u IPv 6/IPv 4 Web / Telnet / SNMP v 1, v 2 c / SSH / SSL Management u Po. E Schedule / Schedule Power Recycle / PD Alive Check WGS-804 HPT 24

Wall-mounted Po. E+ Switch Application 25

Product Features Weather-proof Industrial Switch / Extender 26

Weather-proof Industrial Switch 27

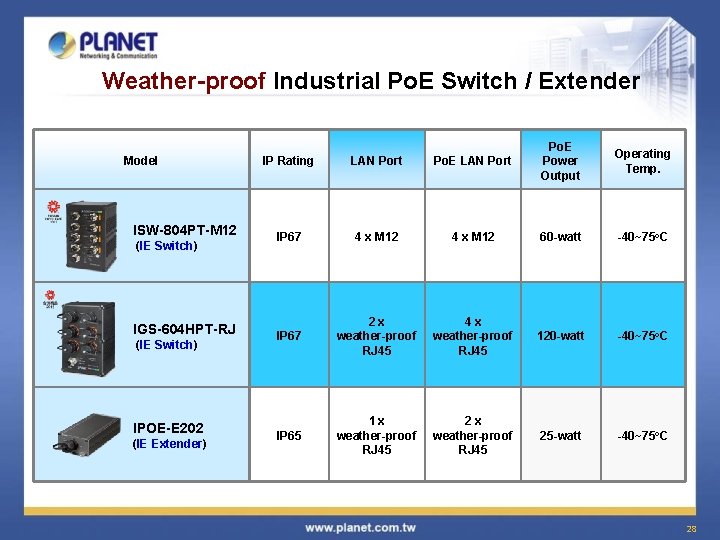

Weather-proof Industrial Po. E Switch / Extender Model ISW-804 PT-M 12 (IE Switch) IGS-604 HPT-RJ (IE Switch) IPOE-E 202 (IE Extender) IP Rating LAN Port Po. E Power Output IP 67 4 x M 12 60 -watt -40~75 o. C IP 67 2 x weather-proof RJ 45 4 x weather-proof RJ 45 120 -watt -40~75 o. C IP 65 1 x weather-proof RJ 45 25 -watt -40~75 o. C Operating Temp. 28

Product Features Industrial Media Converter 29

Industrial Media Converter IGTP-80 x series ü LC Fiber Interface IGTP-805 AT ü Multi / Single Mode SFP module ü Distance up to 120 km max. (Vary on SFP module, 100/1000 dual mode support) IGTP-802 TS IGTP-802 T ü SC Fiber Interface with Single-mode ü Distance up to 10 km ü SC Fiber Interface with Multi-mode ü Distance up to 220 m / 550 m 30

Industrial Media Converter IGTP-80 x series u IEEE 802. 3 at / 802. 3 af standard u Po. E Power up to 30 Watts for Po. E port u 24 V / 48 V DC redundant power u DC 52 V power over RJ-45 Ethernet Cable to devices with Ethernet port u Real-Time Power Fault Relay Alarm u -40 to 75 o. C operating temperature u IP 30 metal case / DIN-Rail and Wall-mountable design u 6 KV DC EFT protection for power line / 6 KV DC Ethernet ESD protection 31

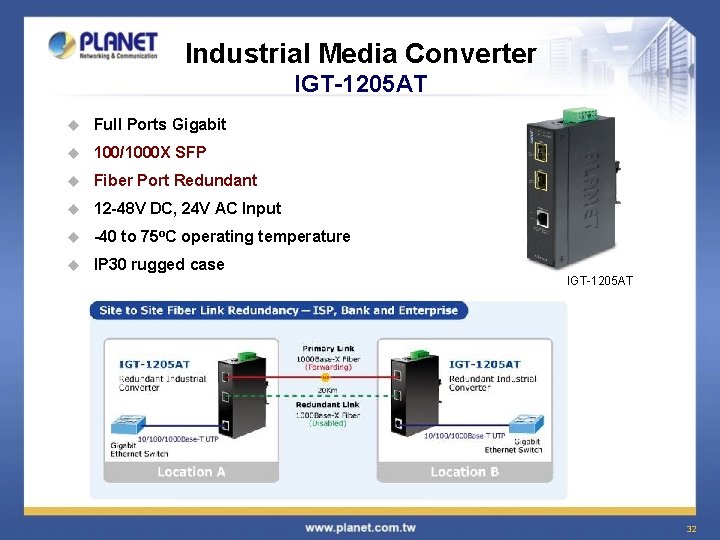

Industrial Media Converter IGT-1205 AT u Full Ports Gigabit u 100/1000 X SFP u Fiber Port Redundant u 12 -48 V DC, 24 V AC Input u -40 to 75 o. C operating temperature u IP 30 rugged case IGT-1205 AT 32

Product Features Industrial Ethernet Extender 33

Industrial Ethernet Extender IVC-2004 PT 34

Product Features Industrial Network Application 35

Industrial Po. E Wireless Access Point u 802. 11 n compliant, up to 300 Mbps performance u 4 -Port IEEE 802. 3 af Po. E injector interface u -10 to 60 o. C operating temperature u IPv 6 / IPv 4 Web and SNMP Management u Secure wireless transmission ü u WPA-PSK /WPA 2 -PSK with TKIP / AES encryption Dual power redundant system for efficient operation IAP-2000 PS Warehouse / Factory 36

Industrial Po. E IP Camera u 36 x Optical Zoom u Multi-Profile & 3 GPP u 2 -way Audio u Removable IR-Cut Filter (ICR) u Wide Dynamic Range (WDR) u 3 D de-interlaced u IEEE 802. 3 at Po. E+ compliant u DDNS and FTP uploading support u IP 66 outdoor classification with heater and fan for rigorous environment ICA-H 652 Before 3 D de-interlaced After 3 D de-interlaced 37

u View PLANET Industrial Ethernet solution online 38
