XC 9500 Developed for a Better ISP Solution

XC 9500 - Developed for a Better ISP Solution w Flexible, efficient, pin-locking architecture w Industry standard JTAG/ISP w High endurance w High performance ar e ftw So s y es og oc ol Pr chn Te w PC & WS software Chip Architecture

ISP Supports the Product Life Cycle Prototyping System Integration Manufacturing Pre-production Manufacturing High Volume w Easy prototyping: l l Minimize fragile package handling Develop - program - test - redesign - reprogram in an integrated software environment w System integration: l Advanced debugging tools via JTAG w Manufacturing: l l Pre-production: allow last minute design changes High volume: integrate device programming & board-level test w Field upgrades: l Allows for design upgrading/reconfiguration in the field Field Upgrades

ISP Market Growth

In-System Programming (ISP) Drives CPLD Market Growth $M 1600 CAGR (‘ 00/’ 95) Total CPLD 1400 CPLD ISP 1200 27% 65% 1000 800 ISP CPLD 600 400 200 1994 1995 1996 1997 1998 1999 2000 Source: Pace Technologies 10/96

XILINX CPLDs Driving the ISP Evolution w Complete support of the ISP designer’s Product Life Cycle w Delivers new FLASH technology benefits to CPLDs w Provides industry’s best pin-locking CPLD at lowest price w Complete “state-of-the-art” software support w CPLDs key part of the Xilinx “total logic solution”

XC 9500 Supports Multiple Programming Methods w ISP via PC/Workstation download cable l l Prototype programming/debug Functional test/programming in manufacturing w Hardware programmer l Data I/O, BP Micro, etc. w ATE l HP, Gen. Rad, Teradyne w Microprocessor/Microcontroller download

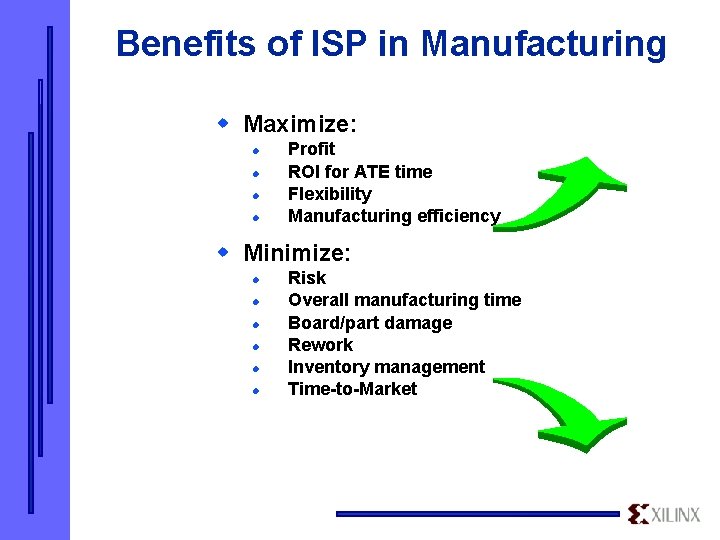

Benefits of ISP in Manufacturing w Maximize: l l Profit ROI for ATE time Flexibility Manufacturing efficiency w Minimize: l l l Risk Overall manufacturing time Board/part damage Rework Inventory management Time-to-Market

Four Typical Manufacturing Flows ΠAssemble PC Program ATE Test Assemble ATE Program/Test Assemble ATE Test Preprogram Assemble PC Program ATE Test

Flow 1 Assemble/PC Program/ATE Test Assemble Blank Chips Program on PC Programming Considerations PC Cost Handling fallout Programming personnel Cable Floor space Fixture development Test on ATE & Burn-in Inventory & Ship Xilinx Solutions • JTAG Programming Software • Download Parallel/Serial Cables • Win 95/NT support • Concurrent Programming (available 3 Q 97)

Flow 2 Assemble/ATE Program & Test Assemble Blank Chips Program & Test on ATE Burn-in Inventory & Ship Xilinx Solutions Programming Considerations • HP 3070 Support ATE memory More tester time • Gen. RAD GR 228 X Support • Teradyne L-200/300 &Z 1800 (available June ‘ 97) • Generates Industry Standard SVF files • Full JTAG Support

Flow 3 Assemble/ATE Test/PC Program Assemble Blank Chips Test on ATE Program on PC Programming Considerations PC Cost Handling fallout Programming personnel Cable Floor space Fixture development Functional Test Inventory & Ship Xilinx Solutions • JTAG Programming Software • Download Parallel/Serial Cables • Win 95/NT support • Concurrent Programming (available 3 Q 97)

Flow 4 Preprogram/Assemble/ATE Test Board Assembly of Programmed Chips Test on ATE Programming Considerations Programming cost Inventory cost Insertion handling fallout Programmer cost Inventory & Ship Xilinx Solutions • 3 rd Party Programmer Certification • HW 130 Programmer Support • Distribution Programming Center Certification • Factory Programming

Robust JTAG Instruction Set Industry standard 4 -pin IEEE 1149. 1 JTAG Design, debug, chip test & programming through JTAG Basic JTAG support: EXTEST, SAMPLE/PRELOAD, BYPASS Industry-leading extended JTAG manufacturing support USERCODE: built-in version control capability IDCODE: identification of manufacturer, part number, silicon revision INTEST: drive/read internal logic HIGHZ: all outputs in high impedance mode, sophisticated interconnect test

XC 9500 Fits In Industry Standard JTAG Chains TDI XC 9500 DSP u. P XC 9500 XC 4000 EX TMS TCK TDO ASIC

Xilinx Supports All Flows Key Attribute Mfg Time Inventory Savings Flow 1 Flow 2 X Flow 3 X X X Yield Enhancement X HW Cost Savings X Floor Space Savings Process Adaptability Outsource Programming Use of Subcontractors X X C Benefits/ Option Comments X Fewer steps X Lower cost Lower Handling Fallout X X X Flow 4 X X No need for PCs, cables, handlers Less equipment needed Easy upgrades during prototyping phase Consistent with well known mature flow More focus on core competency

Xilinx Provides Total ISP Manufacturing Solution w Many ways to program XC 9500 devices in manufacturing w Xilinx provides support for all flows l resources, tools, relationships w XC 9500 has most complete JTAG support w GOAL: Make customers successful in applying ISP to their manufacturing process

Xilinx Third Party Solutions w HP 3070 ATE kit w Gen. RAD ATE kit w Teradyne ATE kit (6/97) w Corelis w JTAG Technologies w Asset Intertech w Many others….
