IP Telephony Solution 1 IP Telephony Total Solution
- Slides: 37
IP Telephony Solution 1
IP Telephony Total Solution Wireless Voice DECT Router Conference Phone IP Phone VIP-60400 PT VIP-EXT-40 VIP-8030 NT Unified Office Gateway VIP-5060 PT VIP-EXT-26 VIP-462 DG Voice Gateway UMG-2000 (4 -Port FXO) UMG-2200 (8 -Port FXO) VIP-2020 PT VIP-EXT-26 UMG-1000 IP PBX VIP-2480 (12 FXO, 12 FXS) VIP-1680 ( 8 FXO, 8 FXS) VIP-1010 PT IPX-330 IPX-2100 (30 registrations) (100 registrations, Maxi. 8 calls with module support) E 1 / T 1 Gateway VGW-400 (2 FXO, 2 FXS) VIP-880 (4 FXO, 4 FXS) VIP-281 (1 FXO, 1 FXS) VIP-2100 VIP-2400 VIP-362 WT IPX-2500 (500 registrations, Maxi. 8 calls with module support) Multipoint Conferencing Unit MCU-1900 MCU-1400 ATA VIP-156 VIP-157 (1 FXS) (1 FXO, 1 FXS) VIP-156 PE VIP-157 S (1 FXS, 1 Po. E) (2 FXS) 2
Fully Interoperable Design u SIP 2. 0 based u Secure transmission ü ü u TLS (RFC 2246, Transport Layer Security) SRTP (RFC 3711, Secure Real-time Transport Protocol) Po. E for flexible deployment PLANET Voice Gateways Asterisk partner ITSP-solution partner PLANET ATA PLANET UMG / IP PBX applications PLANET Vo. IP phones 3

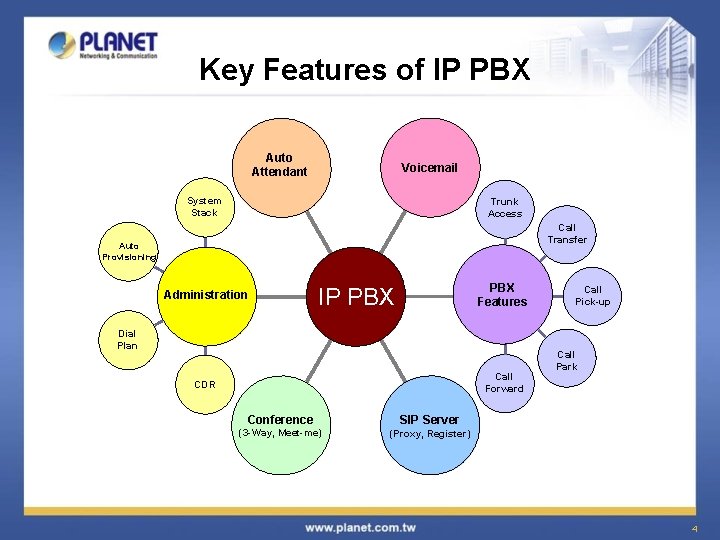

Key Features of IP PBX Auto Attendant Voicemail System Stack Trunk Access Call Transfer Auto Provisioning Administration PBX Features IP PBX Dial Plan Call Forward CDR Conference SIP Server (3 -Way, Meet-me) (Proxy, Register) Call Pick-up Call Park 4

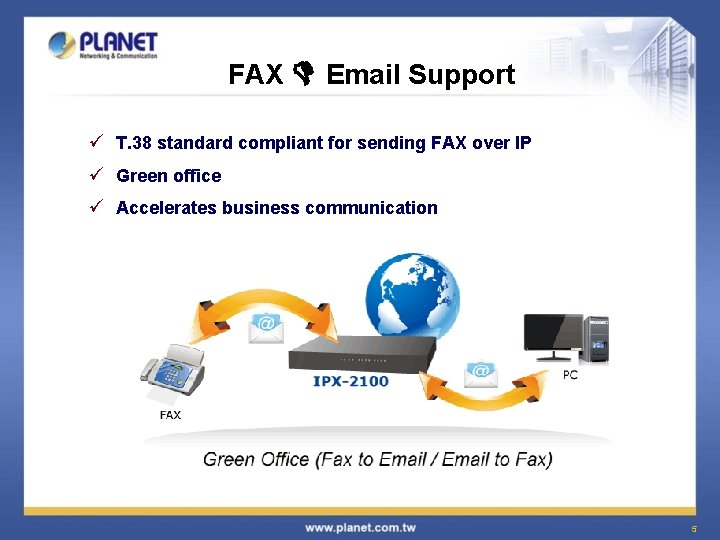

FAX Email Support ü T. 38 standard compliant for sending FAX over IP ü Green office ü Accelerates business communication 5
Product Features Unified Office Gateway 6

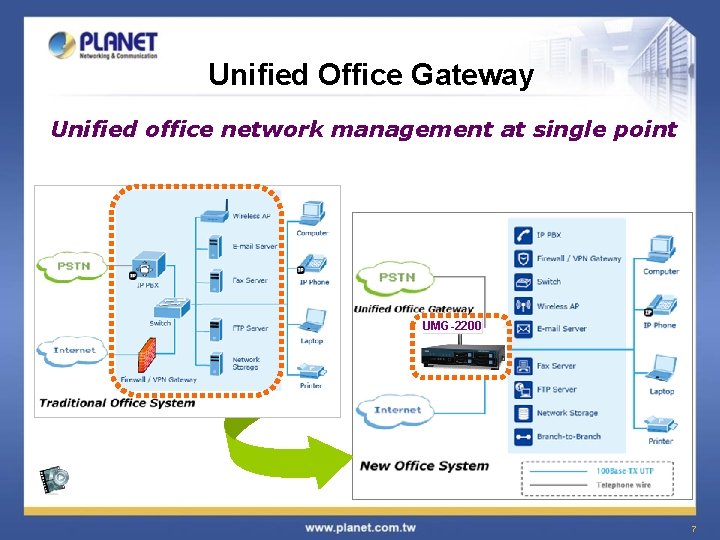

Unified Office Gateway Unified office network management at single point UMG-2200 7
Features UMG-2200 Front Panel Network Storage Service • RAID 0, 0/1, 5, and JBOD • Up to 4 TB Hot-swap Disk Array • User Network Storage Quota • Scheduled Auto Backup, Auto Snapshot • User/Group Privilege ACL E-mail Service Internet Security Service • Supports POP 3, SMTP, IMAP • Access Control List (ACL) • Secured Socket Layer (SSL) • URL / IM / P 2 P Blocking • Junk Mail Filtering • Firewall / NAT • Anti-Virus and Anti-Spam • Do. S Attack Protection • Auto Backup, Auto Reply • Site-to-Site SSL VPN • Web Mail • PPTP VPN Remote Access 8
Features UMG-2200 Rear Panel Wi. Fi Service • 802. 11 b/g/n Wireless Access Point • 3 RP-SMA Detachable Antennas • Security: WEP / WPA 2 24+2 G Switch Service • IEEE 802. 1 d Spanning Tree • IGMP Snooping IP PBX / Vo. IP Service • SIP 2. 0 (RFC 3261) compliant • Up to 250 Registrations • Call-Parking, Echo Cancellation • Qo. S Support • Telephone Conference, 3 -Way Calling • Call Hold, Call Waiting • Fax Server Support 9
Product Features IP PBX 10
Features IPX-330 Target: SOHO / SMB u 10 concurrent calls and up to 30 registers u HD voice codec G. 722 for perfect voice quality u IEEE 802. 3 af Power over Ethernet compliant u Fax to Email / Email to Fax for Green Office u Voicemail to Email for not missing any important message u Paging and intercom function strengthens work efficiency u Multiple Language of GUI for international business u Supports 2 port FXO u IEEE 802. 1 Q of VLAN u Supports IPv 6, IPv 4 u VPN Client – supports N 2 N / L 2 TP / PPTP / Open. VPN u VPN Server – supports PPTP / L 2 TP / Open. VPN Server IPX-330 11
Features IPX-2100 Target: SMB u 20 concurrent calls and up to 100 registers u HD voice codec G. 722 for perfect voice quality IPX-2100 u Fax to Email / Email to Fax for Green Office u Voicemail to Email for not missing any important message u Paging and intercom function strengthens work efficiency Rear Panel u Multiple Language of GUI for international business u Supports FXO / FXS / GSM / ISDN (on 2 slots) u IEEE 802. 1 Q of VLAN u Supports IPv 6, IPv 4 u VPN Client - supports N 2 N / L 2 TP / PPTP / Open. VPN u VPN Server - supports PPTP / L 2 TP / Open. VPN Server IPX-21 FO (4 FXO) IPX-21 SL (2 x FXO, 2 x FXS) IPX-21 GS (4 x GSM) IPX-21 PR (1 PRI ISDN) IPX-21 BR (4 x BRI ISDN) 12
Features IPX-2500 Target: SMB / Enterprise u 80 concurrent calls and up to 500 registers u HD voice codec G. 722 for perfect voice quality u Fax to Email / Email to Fax for Green Office u Voicemail to Email for not missing any important message IPX-2500 Rear Panel u Paging and intercom function strengthens work efficiency u Supports FXO / FXS / GSM / ISDN (on 2 slots) u IEEE 802. 1 Q of VLAN u Supports IPv 6, IPv 4 u VPN Client - supports N 2 N / L 2 TP / PPTP / Open. VPN u VPN Server - supports PPTP / L 2 TP / Open. VPN Server IPX-21 FO (4 FXO) IPX-21 SL (2 x FXO, 2 x FXS) IPX-21 GS (4 x GSM) IPX-21 PR (1 PRI ISDN) IPX-21 BR (4 x BRI ISDN) 13
IPX-2500 Application ü An easy-to-manage solution to simplify business communications. 14
Product Features Internet Telephony Gateway 15

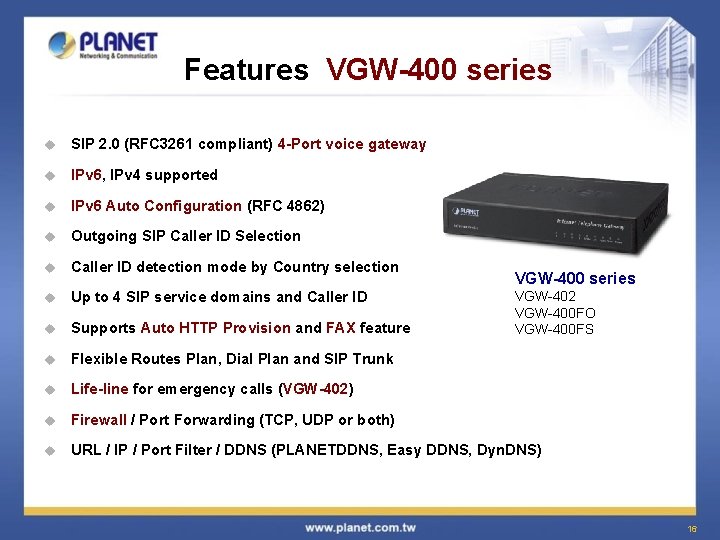

Features VGW-400 series u SIP 2. 0 (RFC 3261 compliant) 4 -Port voice gateway u IPv 6, IPv 4 supported u IPv 6 Auto Configuration (RFC 4862) u Outgoing SIP Caller ID Selection u Caller ID detection mode by Country selection u Up to 4 SIP service domains and Caller ID u Supports Auto HTTP Provision and FAX feature u Flexible Routes Plan, Dial Plan and SIP Trunk u Life-line for emergency calls (VGW-402) u Firewall / Port Forwarding (TCP, UDP or both) u URL / IP / Port Filter / DDNS (PLANETDDNS, Easy DDNS, Dyn. DNS) VGW-400 series VGW-402 VGW-400 FO VGW-400 FS 16

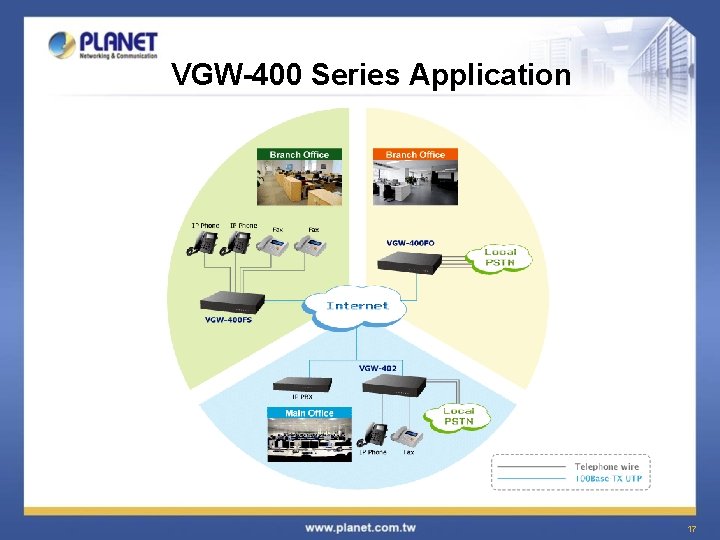

VGW-400 Series Application 17
Product Features IP Phone 18

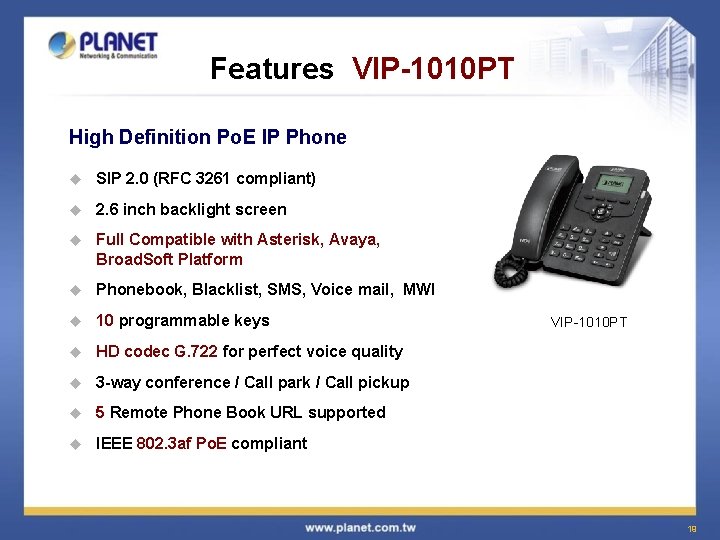

Features VIP-1010 PT High Definition Po. E IP Phone u SIP 2. 0 (RFC 3261 compliant) u 2. 6 inch backlight screen u Full Compatible with Asterisk, Avaya, Broad. Soft Platform u Phonebook, Blacklist, SMS, Voice mail, MWI u 10 programmable keys u HD codec G. 722 for perfect voice quality u 3 -way conference / Call park / Call pickup u 5 Remote Phone Book URL supported u IEEE 802. 3 af Po. E compliant VIP-1010 PT 19

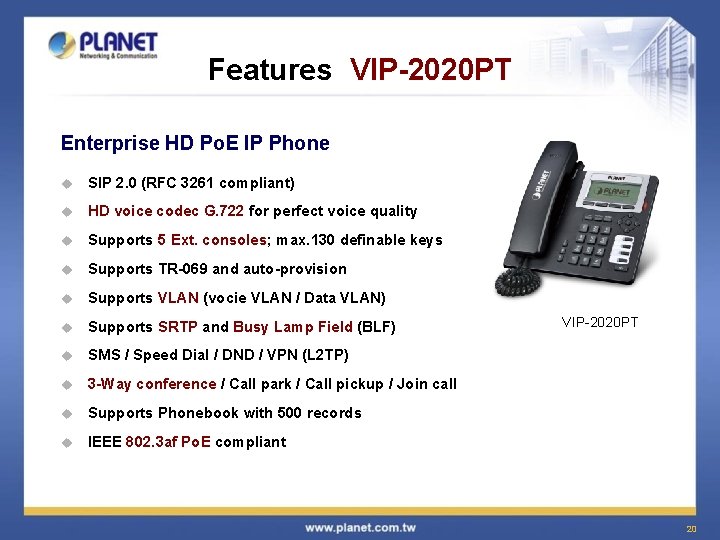

Features VIP-2020 PT Enterprise HD Po. E IP Phone u SIP 2. 0 (RFC 3261 compliant) u HD voice codec G. 722 for perfect voice quality u Supports 5 Ext. consoles; max. 130 definable keys u Supports TR-069 and auto-provision u Supports VLAN (vocie VLAN / Data VLAN) u Supports SRTP and Busy Lamp Field (BLF) u SMS / Speed Dial / DND / VPN (L 2 TP) u 3 -Way conference / Call park / Call pickup / Join call u Supports Phonebook with 500 records u IEEE 802. 3 af Po. E compliant VIP-2020 PT 20
Features VIP-5060 PT Enterprise HD Po. E IP Phone u SIP 2. 0 (RFC 3261 compliant) u HD voice codec G. 722 for perfect voice quality u Supports 5 Ext. consoles; max. 130 definable keys u Supports TR-069 and auto-provision u Supports VLAN (vocie VLAN / Data VLAN) u Supports SRTP and Busy Lamp Field (BLF) u SMS / Speed Dial / DND / VPN (L 2 TP) u Supports Phonebook with 500 records u 3 -Way conference / Call park / Call pickup / Join call u Dual Gigabit Ethernet ports (1 WAN, 1 LAN) u IEEE 802. 3 af Po. E compliant VIP-5060 PT 21

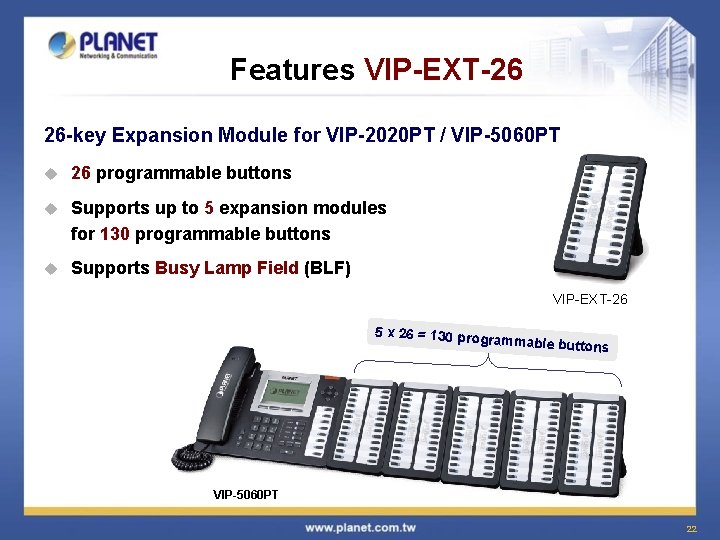

Features VIP-EXT-26 26 -key Expansion Module for VIP-2020 PT / VIP-5060 PT u 26 programmable buttons u Supports up to 5 expansion modules for 130 programmable buttons u Supports Busy Lamp Field (BLF) VIP-EXT-26 5 x 26 = 130 pro grammable butt ons VIP-5060 PT 22
VIP-5060 PT Application 23
Features VIP-6040 PT Gigabit Color LCD HD Po. E IP Phone u 3. 5 inch color screen u Photo caller ID / photo frame u SIP 2. 0 (RFC 3261 compliant) u HD Codec, HD speaker, HD handset u Supports 6 Ext. consoles; max. 240 definable keys u Supports Busy Lamp Field (BLF) and Bridged Line Appearance (BLA) u 5 way conference / 14 programmable keys u Black list, XML/LDAP phonebook u Dual Gigabit Ethernet ports (1 WAN, 1 LAN) u IEEE 802. 3 af Po. E compliant VIP-6040 PT 24
Features VIP-EXT-40 40 -key Color Expansion Module for VIP-6040 PT u 40 programmable buttons u Supports up to 6 expansion modules for 240 programmable buttons u 5. 5 inch with dual color LCD VIP-EXT-40 25
VIP-6040 PT Application Po. E 26
Features VIP-8030 NT HD Voice Conference IP Phone with PSTN u SIP 2. 0 (RFC 3261 compliant) u HD voice codec G. 722 for perfect voice quality u Supports 3 SIP voice lines u 128 x 64 pixel LCD display with ivory backlight u Supports 3 -way conferencing u Built in SD card to recording u Echo cancellation, hi-fi technology of wideband voice communication u Connection type for add-on microphones for a larger recording range 27
Features VIP-362 WT Full-featured Enterprise Wireless Desktop Phone u IEEE 802. 11 b/g/n wireless compliant u Auto Provisioning: TFTP, HTTP and HTTPS u Qo. S, SNMPv 2, TR-069 Vo. IP Features u SIP 2. 0 (RFC 3261) compliant u Message Waiting Indicator (RFC 3842) compliant u STUN (RFC 3489) compliant VIP-362 WT u Supports up to 4 register lines u Voice codec support: G. 711, G. 722, G. 723. 1, G. 729 u 3 -Way Conference / Caller ID / Call Hold, Mute, Transfer, Waiting u Speed Dial / Do Not Disturb / Voice Message u Voice processing: VAD, CNG, AEC, Adaptive Jitter Buffer Management 28

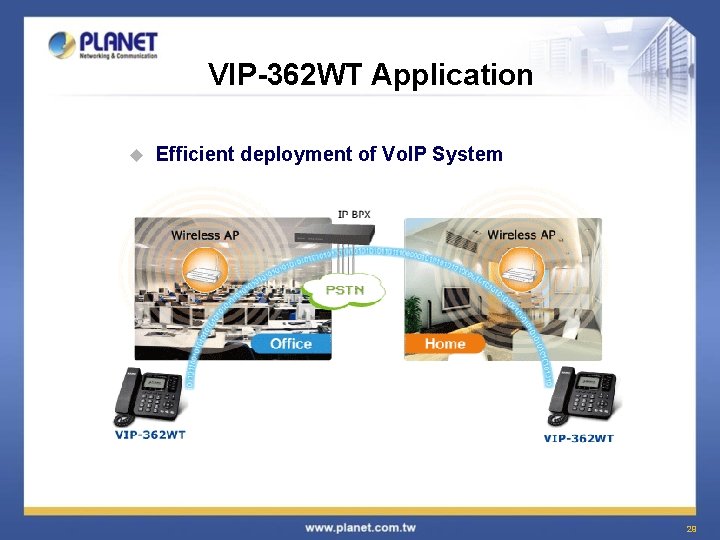

VIP-362 WT Application u Efficient deployment of Vo. IP System 29
Product Features ATA (Analog Telephone Adapter) 30
Features ATA VIP-156 (1 FXS) VIP-156 PE (Po. E) VIP-157 (1 x FXO, 1 x FXS) VIP-157 S (2 x FXS) 31
ATA Application 32
Product Features SIP IP Camera 33
SIP IP Camera u SIP 2. 0 (RFC 3261 compliant) u 1/2. 5” Progressive Scan CMOS u HD Real-time 720 P@30 fps (ICA-4130 S) u Full HD Real-time 1080 P@30 fps (ICA-4230 S) u ONVIF compliant for interoperability changes u Micro SD card local video recording supported u H. 264, MPEG-4 and M-JPEG video compression simultaneously u Easily-recessed mount design u Convenient nano-design blends in nicely with any surrounding u Compliant with IEEE 802. 3 af Po. E interface for flexible deployment u Built-in IR illuminators, effective up to 10 meters (ICA-4230 S) ICA-4130 S ICA-4230 S 34

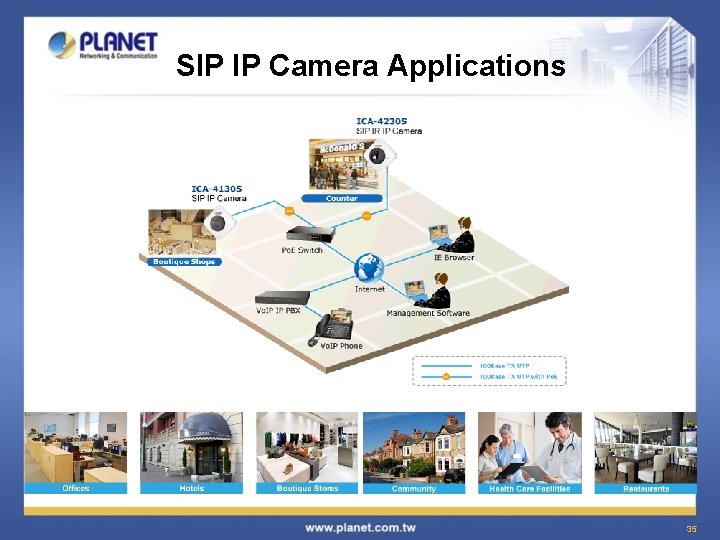

SIP IP Camera Applications 35
u View PLANET IP Telephony solution online 36
37
