Industrial Ethernet Solution 1 Total Industrial Ethernet Solution

Industrial Ethernet Solution 1

Total Industrial Ethernet Solution Long Reach Po. E Fiber Wireless Video / Serial over Ethernet 10 G Weather proof Fiber Switch Po. E Solar Power Flat-type Media Converter Wireless 2

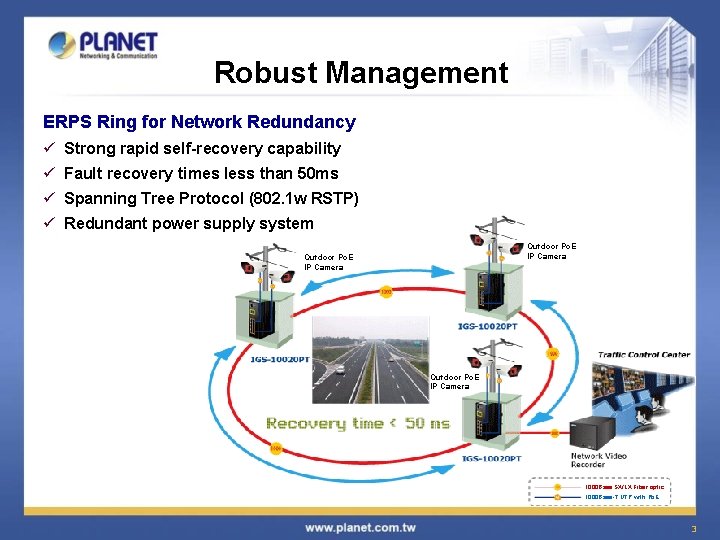

Robust Management ERPS Ring for Network Redundancy ü Strong rapid self-recovery capability ü Fault recovery times less than 50 ms ü Spanning Tree Protocol (802. 1 w RSTP) ü Redundant power supply system Outdoor Po. E IP Camera 1000 Base SX/LX Fiber optic 1000 Base-T UTP with Po. E 3

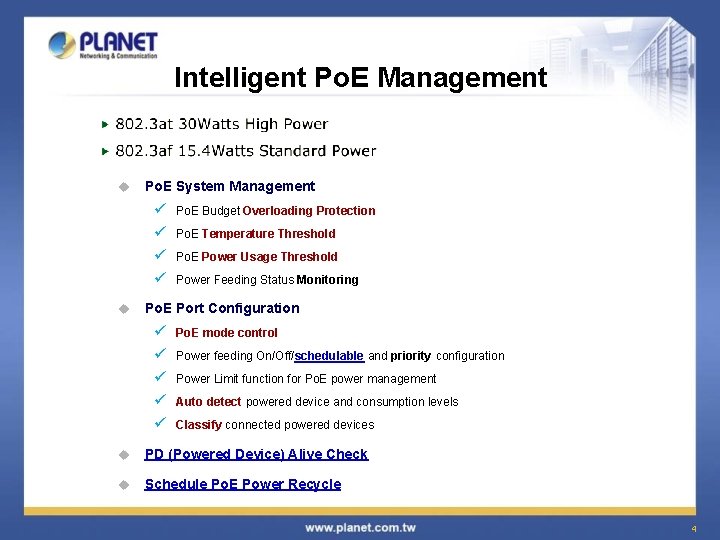

Intelligent Po. E Management u Po. E System Management ü ü u Po. E Budget Overloading Protection Po. E Temperature Threshold Po. E Power Usage Threshold Power Feeding Status Monitoring Po. E Port Configuration ü ü ü Po. E mode control Power feeding On/Off/schedulable and priority configuration Power Limit function for Po. E power management Auto detect powered device and consumption levels Classify connected powered devices u PD (Powered Device) Alive Check u Schedule Po. E Power Recycle 4

Digital Diagnostic Monitor (DDM) u Efficient management by real-time monitoring of the SFP status ü Optical output power ü Optical input power ü Temperature ü Laser bias current ü Transceiver supply voltage 5

IEEE 1588 Protocol (PTP) ü MEF service delivery ü Timing over packet PTP (Precision Time Protocol ) Transparent Configuration ü Synchronous Ethernet PTP 6

Product Features Layer 3 Industrial Managed Switch 7

Industrial Rack-mount Layer 3 Managed Switch IGS-6330 -24 T 4 S u Layer 3 static routing and RIP/OSPF dynamic routing u -40 ~ 75 degrees C operating temperature u IP 30 case with the fanless cooling system u 12~48 V DC redundant power design u Full Management: Web interface; Console; SNMP v 1, v 2 c and v 3; SSH and SSL management u IEEE 802. 1 Q VLAN/Q-in-Q/Protocol-based VLAN u IGMP Snooping v 1, v 2 and v 3/ACL/Port-based 802. 1 x 8

Product Features Layer 2+/Metro Industrial Managed Switch 9

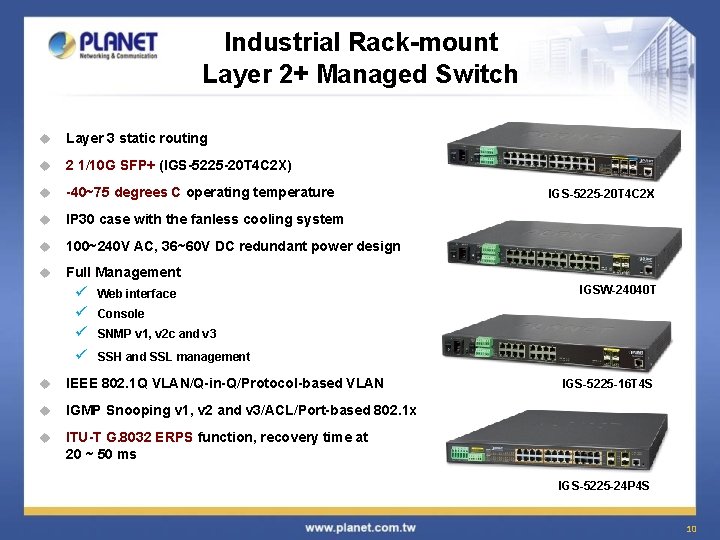

Industrial Rack-mount Layer 2+ Managed Switch u Layer 3 static routing u 2 1/10 G SFP+ (IGS-5225 -20 T 4 C 2 X) u -40~75 degrees C operating temperature u IP 30 case with the fanless cooling system u 100~240 V AC, 36~60 V DC redundant power design u Full Management ü ü Web interface IGS-5225 -20 T 4 C 2 X IGSW-24040 T Console SNMP v 1, v 2 c and v 3 SSH and SSL management u IEEE 802. 1 Q VLAN/Q-in-Q/Protocol-based VLAN u IGMP Snooping v 1, v 2 and v 3/ACL/Port-based 802. 1 x u ITU-T G. 8032 ERPS function, recovery time at 20 ~ 50 ms IGS-5225 -16 T 4 S IGS-5225 -24 P 4 S 10

Industrial Rack-mount Layer 2+ Managed Switch u High Availability Mesh Networking Solution for Big Data System ü ü High Availability Mesh Networking Solution for Big Data System Connect each IGS-5225 -20 T 4 C 2 X together with 10 G SFP+ and E. R. P. S Solution 11

Industrial Managed Switch u 16 -port Gigabit + 4 extra Gigabit SFP interfaces with DDM (Digital Diagnostic Monitor) support u Layer 3 static routing, L 2/L 4 traffic follow control u IPv 4/IPv 6 Full Management u ITU-T G. 8032 ERPS function, recovery time at 20 ~ 50 ms u IEEE 1588 v 2 Precision Time Protocol (PTP) u 2 Digital Input/2 Digital Output u DIN-rail type, IP 30 aluminum housing u -40~75 degrees C operating temperature IGS-20040 MT 12

Metropolitan Area Network Switch u Backbone of industrial environment u Full ports Gigabit u Fiber optical, 100/1000 X SFP u 20 Gbps per second of non-blocking switch fabric u IPv 6/IPv 4 management u High security u -40~75 degrees C operating temperature u IP 30 rugged case IGS-10080 MFT 13

Metro Switch Application ü Reliable ü Stable ü Long-reach 14

Layer 2+ Industrial 19” Managed Switch Family Model Po. E Power Output RJ 45 Port Po. E Port SFP Port IGS-5225 -20 T 4 C 2 X 20 - - 4 x 1 G 2 x 10 G IGSW-24040 T 24 - - 4 x 1 G IGS-5225 -24 P 4 S 24 24 400 -watt 4 x 1 G IGS-5225 -16 T 4 S 16 - - 4 x 1 G 15

Layer 2+ Industrial Din-rail Managed Switch Family Model RJ 45 Port Po. E Power Output SFP Port IGS-20160 HPT 18 16 x 802. 3 at Po. E+ 320 -watt 2 x 1 G IGS-20040 MT 16 - - 4 x 1 G IGS-12040 MT 8 - - 4 x 1 G IGS-10080 MFT 8 - - 8 x 1 G IGS-10020 MT 8 - - 2 x 1 G IGS-10020 HPT 8 8 x 802. 3 at Po. E+ 240 -watt 2 x 1 G IGS-10020 PT 8 8 x 802. 3 af Po. E 120 -watt 2 x 1 G IGS-5225 -8 T 2 S 2 X 8 - - 2 x 1 G 2 x 10 G IGS-5225 -4 UP 1 T 2 S 5 4 x 60 W Ultra Po. E 240 -watt 2 x 1 G 6 waterproof 4 x 802. 3 at Po. E+ 144 -watt - 6 waterproof M 12 4 x 802. 3 at Po. E+ M 12 144 -watt - IGS-604 HPT-RJ IGS-604 HPT-M 12 16

Product Features Industrial Po. E+ Switch 17

Industrial Layer 2+ Po. E+ Switch u 2 x 100/1000 X SFP slots for Fiber-optical Link u IPv 6/IPv 4 Static routing u IPv 6 IP Address/NTP/DNS management u Po. E Power up to 36 watts for each Po. E ports u Auto detect powered device (PD) u -40 ~ 75 degrees C operating temperature u VLAN, Spanning Tree Protocol u IEEE 802. 1 x Port-based/MAC-based network access authentication u ERPS (Ethernet Ring Protection Switching) u DDM (Digital Diagnostic Monitor) u IP 30 rugged case u 2 x DI/DO IGS-20160 HPT (16 -port Gigabit Po. E+, 48~56 V DC redundant power) IGS-10020 HPT (8 -port Gigabit Po. E+, 48 V DC redundant power) 18

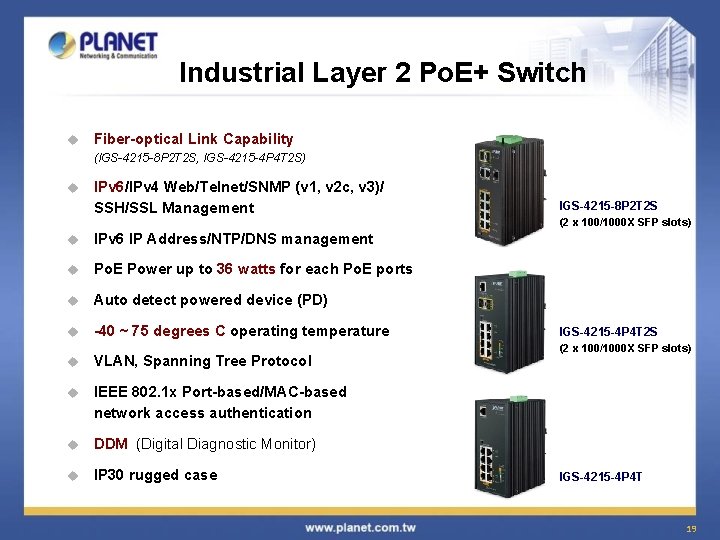

Industrial Layer 2 Po. E+ Switch u Fiber-optical Link Capability (IGS-4215 -8 P 2 T 2 S, IGS-4215 -4 P 4 T 2 S) u IPv 6/IPv 4 Web/Telnet/SNMP (v 1, v 2 c, v 3)/ SSH/SSL Management IGS-4215 -8 P 2 T 2 S (2 x 100/1000 X SFP slots) u IPv 6 IP Address/NTP/DNS management u Po. E Power up to 36 watts for each Po. E ports u Auto detect powered device (PD) u -40 ~ 75 degrees C operating temperature u VLAN, Spanning Tree Protocol u IEEE 802. 1 x Port-based/MAC-based network access authentication u DDM (Digital Diagnostic Monitor) u IP 30 rugged case IGS-4215 -4 P 4 T 2 S (2 x 100/1000 X SFP slots) IGS-4215 -4 P 4 T 19

Industrial Po. E Fiber Switch u Fiber-optical Link Capability u 802. 3 af/at Po. E injector u 48 V DC to 52 V DC Po. E+ power boost u High power budget for Po. E extension u Intelligent LED indicator for real-time Po. E usage u Redundant power system u -40~75 degrees C operating temperature u IP 30 rugged case u Redundant/switch mode on fiber port via DIP switch IGS-624 HPT 20

Industrial Po. E Fiber Switch Application 240 km 21

Industrial Solar Power Po. E Switch u Integrates green energy solar power, wind power and Po. E u Smart power management system ü Co-works with 300 watts solar PV kit or wind power generator and battery u 2/4 -port IEEE 802. 3 at Po. E+ compliant u 24 V DC output u Remote Web-based power monitoring, power usage statistics u Remote Po. E power management u SNMP Trap, Event log Po. E Port Po. E Output IP Management BSP-360 4 Max. 120 W Y BSP-300 2 Max. 60 W N Model 22

Solar Power Po. E Switch Application BSP-300 Site: Desert in Chile 23

Product Features Industrial Flat-type Switch 24

25

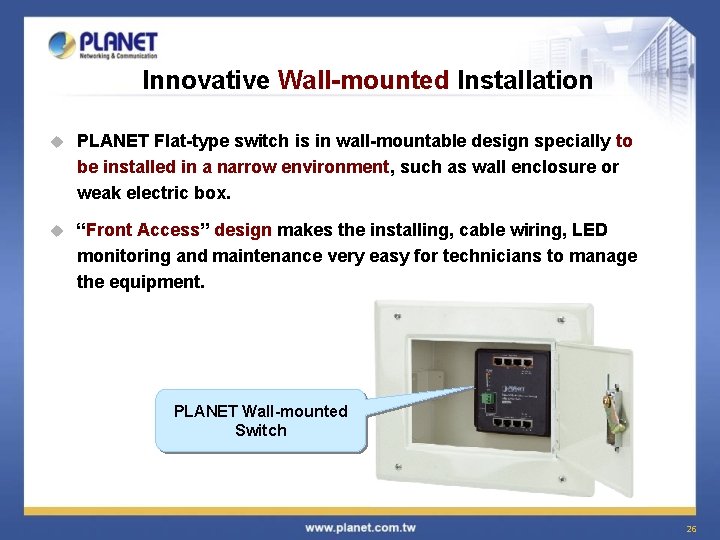

Innovative Wall-mounted Installation u PLANET Flat-type switch is in wall-mountable design specially to be installed in a narrow environment, such as wall enclosure or weak electric box. u “Front Access” design makes the installing, cable wiring, LED monitoring and maintenance very easy for technicians to manage the equipment. PLANET Wall-mounted Switch 26

Flat-type Switch Family RJ 45 Port Po. E Power Output 1 G SFP Port Operating Temp. WGS-803 8 - -10~60 o. C WGS-804 HP 4 4 144 -watt - -10~60 o. C WGS-804 HPT 4 4 144 -watt - -40~75 o. C WGS-4215 -8 P 2 S 8 - 200 -watt 2 -40~75 o. C WGS-4215 -8 T 8 - -40~75 o. C WGS-4215 -8 T 2 S 8 - - 2 -40~75 o. C Model 27

Flat-type Managed Gigabit Po. E+ Switch u Designed for home/Building automation u Wall-mount, Magnetic wall-mount, DIN-rail type u 802. 3 af/at Po. E injector, 144 -watt Po. E budget u LED indicators for per port Po. E In-Use and Po. E Power Usage u Dual redundant power input: terminal block and DC jack u IP 30 Slime Case, -40~75 degrees C operating temperature u IPv 6/IPv 4 Web/Telnet/SNMP v 1, v 2 c/SSH/SSL Management u Po. E Schedule/Schedule Power Recycle/ PD Alive Check WGS-804 HPT 28

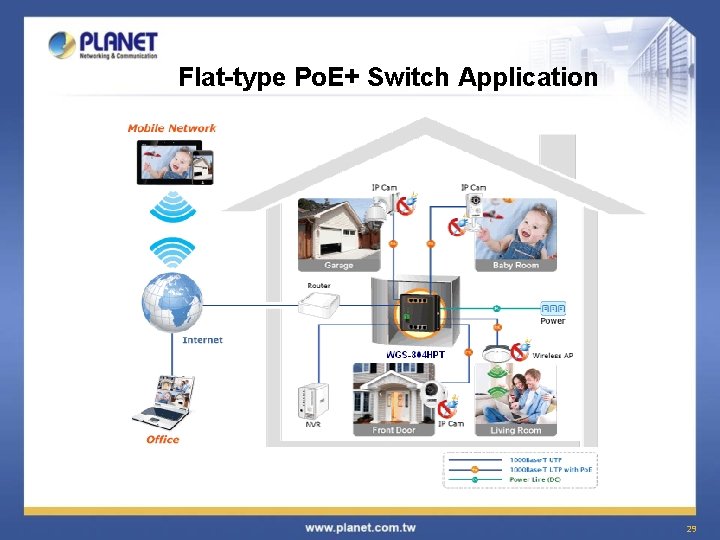

Flat-type Po. E+ Switch Application 29

Product Features Weather-proof Industrial Switch/Extender 30

Weather-proof Industrial Switch 31

Waterproof Po. E+ Switch u IPv 6 IP Address/NTP/DNS management u Po. E Power up to 36 watts for each Po. E ports u Auto detect powered device (PD) u VLAN, Spanning Tree Protocol u ERPS (Ethernet Ring Protection Switching) u IEEE 802. 1 x Port-based/MAC-based network access authentication u -40 ~ 75 degrees C operating temperature u Waterproof and dustproof RJ 45 copper IGS-604 HPT-RJ (IGS-604 HPT-RJ) u Waterproof M 12 connectors (IGS-604 HPT-M 12) u IP 67 -rated aluminum case IGS-604 HPT-M 12 32

Weather-proof Industrial Po. E Switch/Extender Model ISW-804 PT-M 12 (IE Switch) ISW-800 T-M 12 (IE Switch) IGS-604 HPT-RJ (IE Switch) IPOE-E 202 (IE Extender) IP Rating LAN Port Po. E Power Output Operating Temp. IP 67 4 x M 12 60 -watt -40~75 o. C IP 67 8 x M 12 -- -- -40~75 o. C IP 67 6 x weather-proof M 12 4 x M 12 144 -watt -40~75 o. C IP 67 2 x weather-proof RJ 45 4 x weather-proof RJ 45 144 -watt -40~75 o. C IP 65 1 x weather-proof RJ 45 25 -watt -40~75 o. C 33

Product Features Industrial Media Converter 34

Industrial Media Converter IGTP-80 x series ü LC Fiber Interface IGTP-805 AT ü Multi / Single Mode SFP module ü Distance up to 120 km max. (Vary on SFP module, 100/1000 dual mode support) IGTP-802 TS IGTP-802 T ü SC Fiber Interface with Single-mode ü Distance up to 10 km ü SC Fiber Interface with Multi-mode ü Distance up to 220 m/550 m 35

Industrial Media Converter IGTP-80 x series u IEEE 802. 3 at/802. 3 af standard u Po. E Power up to 30 watts for Po. E port u 24 V/48 V DC redundant power u DC 52 V power over RJ-45 Ethernet Cable to devices with Ethernet port u Real-Time Power Fault Relay Alarm u -40 to 75 degrees C operating temperature u IP 30 metal case/DIN-Rail and Wall-mountable design u 6 KV DC EFT protection for power line/6 KV DC Ethernet ESD protection 36

Industrial Media Converter IGT-1205 AT u Full Ports Gigabit u 100/1000 X SFP u Fiber Port Redundant u 12 -48 V DC, 24 V AC Input u -40 to 75 degrees C operating temperature u IP 30 rugged case IGT-1205 AT 37

Product Features Industrial Ethernet Extender 38

Industrial Ethernet Extender IVC-2004 PT 39

Product Features Industrial Long Reach Po. E 40

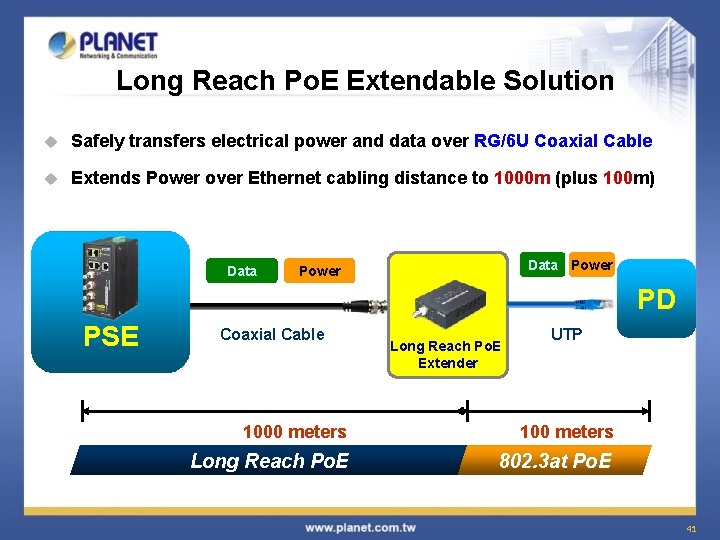

Long Reach Po. E Extendable Solution u Safely transfers electrical power and data over RG/6 U Coaxial Cable u Extends Power over Ethernet cabling distance to 1000 m (plus 100 m) Data Power PD PSE Coaxial Cable Long Reach Po. E Extender UTP 1000 meters 100 meters Long Reach Po. E 802. 3 at Po. E 41

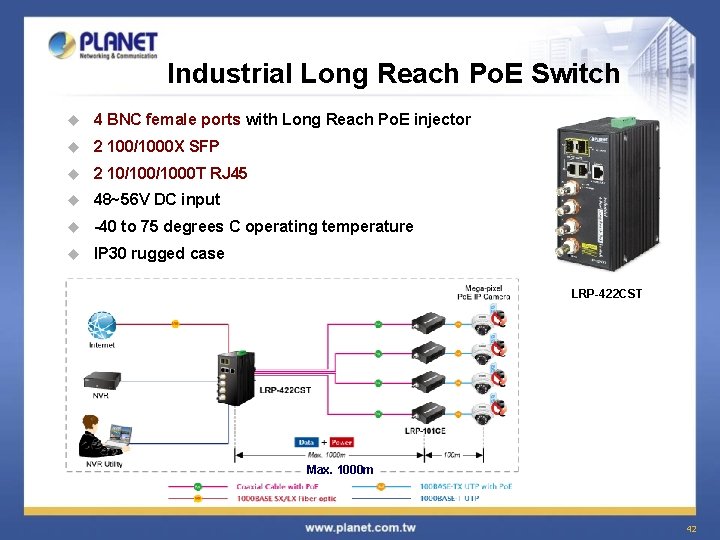

Industrial Long Reach Po. E Switch u 4 BNC female ports with Long Reach Po. E injector u 2 100/1000 X SFP u 2 10/1000 T RJ 45 u 48~56 V DC input u -40 to 75 degrees C operating temperature u IP 30 rugged case LRP-422 CST Max. 1000 m 42

Product Features Industrial Network Application 43

Industrial Po. E+ 11 ac Wireless AP u 802. 11 a/b/g/n/ac compliant, up to 1200 Mbps performance u IEEE 802. 3 at Po. E/PD, Gigabit LAN u IP 30 metal case design, -10 to 60 o. C operating temperature u Schedule Reboot for reliable connection u Secure wireless transmission ü u WPA-PSK / WPA 2 -PSK with TKIP/AES encryption PLANET AP Controller manageable WDAP-W 7200 AC 44

Industrial Po. E 11 n Wireless AP u 802. 11 n compliant, up to 300 Mbps performance u 4 -port IEEE 802. 3 af Po. E injector interface u -10 to 60 degrees C operating temperature u IPv 6/IPv 4 Web and SNMP Management u Secure wireless transmission ü u WPA-PSK/WPA 2 -PSK with TKIP/AES encryption Dual power redundant system for efficient operation IAP-2000 PS Warehouse / Factory 45

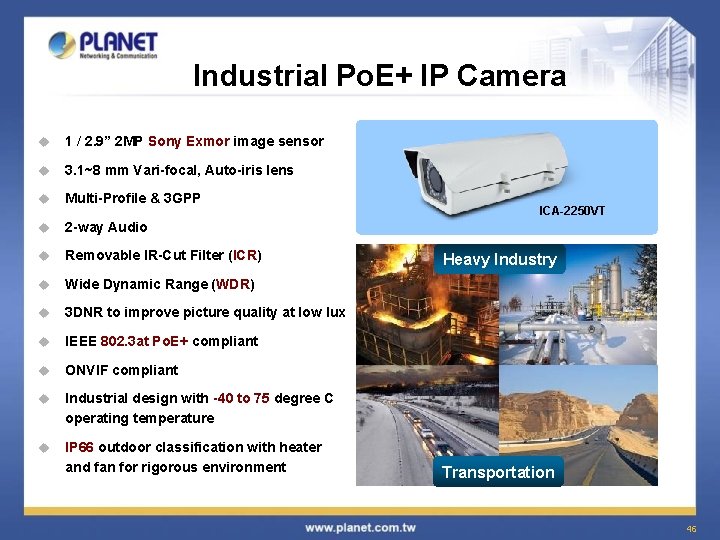

Industrial Po. E+ IP Camera u 1 / 2. 9” 2 MP Sony Exmor image sensor u 3. 1~8 mm Vari-focal, Auto-iris lens u Multi-Profile & 3 GPP u 2 -way Audio u Removable IR-Cut Filter (ICR) u Wide Dynamic Range (WDR) u 3 DNR to improve picture quality at low lux u IEEE 802. 3 at Po. E+ compliant u ONVIF compliant u Industrial design with -40 to 75 degree C operating temperature u IP 66 outdoor classification with heater and fan for rigorous environment ICA-2250 VT Heavy Industry Transportation 46

u View PLANET Industrial Ethernet solution online 47
