Leaves Form and structure Chapter 6 The Plant

Leaves: Form and structure Chapter 6

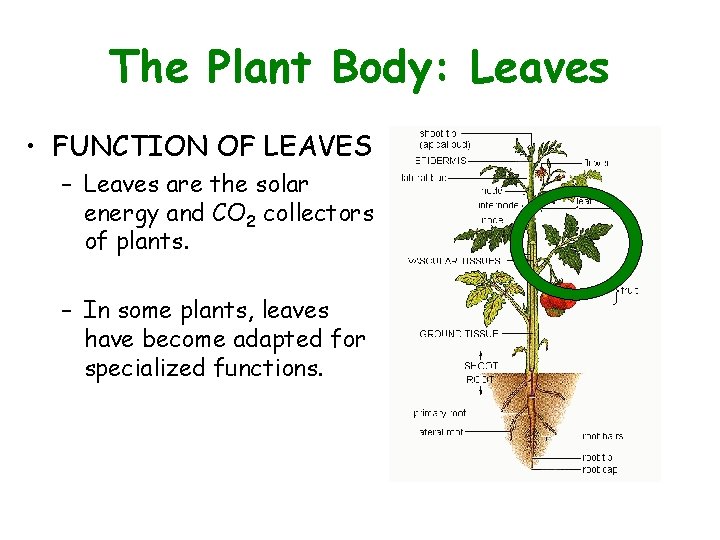

The Plant Body: Leaves • FUNCTION OF LEAVES – Leaves are the solar energy and CO 2 collectors of plants. – In some plants, leaves have become adapted for specialized functions.

And so, on to leaves • Leaves are the principle structure, produced on stems, where photosynthesis takes place. • Cacti are an exception. The leaves are reduced to spines, and the thick green, fleshy stems are where photosynthesis takes place.

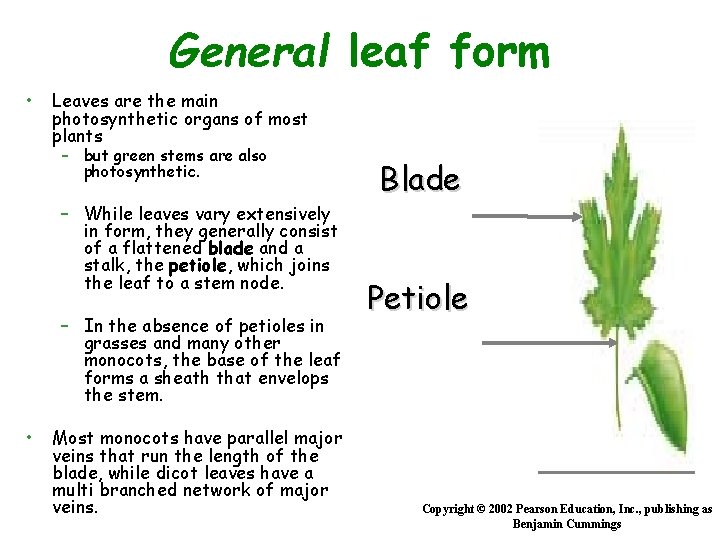

General leaf form • Leaves are the main photosynthetic organs of most plants – but green stems are also photosynthetic. – While leaves vary extensively in form, they generally consist of a flattened blade and a stalk, the petiole, which joins the leaf to a stem node. – In the absence of petioles in grasses and many other monocots, the base of the leaf forms a sheath that envelops the stem. • Most monocots have parallel major veins that run the length of the blade, while dicot leaves have a multi branched network of major veins. Blade Petiole Copyright © 2002 Pearson Education, Inc. , publishing as Benjamin Cummings

Leaf Arrangement on the Stem Opposite: 2 leaves at a node, on opposite sides of the stem Spiral: 1 leaf per node, with the second leaf being above the first but attached on the opposite side of the stem Whorled: 3 or more leaves at a node

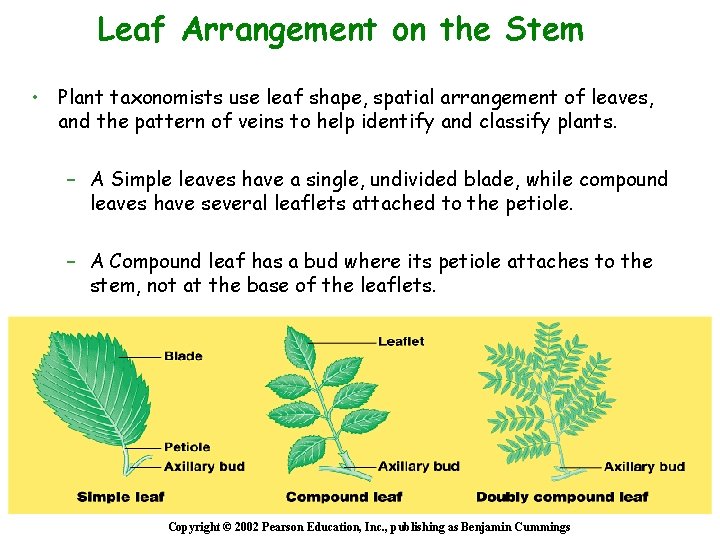

Leaf Arrangement on the Stem • Plant taxonomists use leaf shape, spatial arrangement of leaves, and the pattern of veins to help identify and classify plants. – A Simple leaves have a single, undivided blade, while compound leaves have several leaflets attached to the petiole. – A Compound leaf has a bud where its petiole attaches to the stem, not at the base of the leaflets. Copyright © 2002 Pearson Education, Inc. , publishing as Benjamin Cummings

Venation = arrangement of veins in a leaf • Netted-venation = one or a few prominent midveins from which smaller minor veins branch into a meshed network; • common to dicots and some nonflowering plants. – Pinnately-veined leaves = main vein called midrib with secondary veins branching from it (e. g. , elm). – Palmately-veined leaves = veins radiate out of base of blade (e. g. , maple).

Venation = arrangement of veins in a leaf • Parallel venation = characteristics of many monocots (e. g. , grasses, cereal grains); veins are parallel to one another. • Dichotomous venation = no midrib or large veins; rather individual veins have a tendency to fork evenly from the base of the blade to the opposite margin, creating a fan-shaped leaf

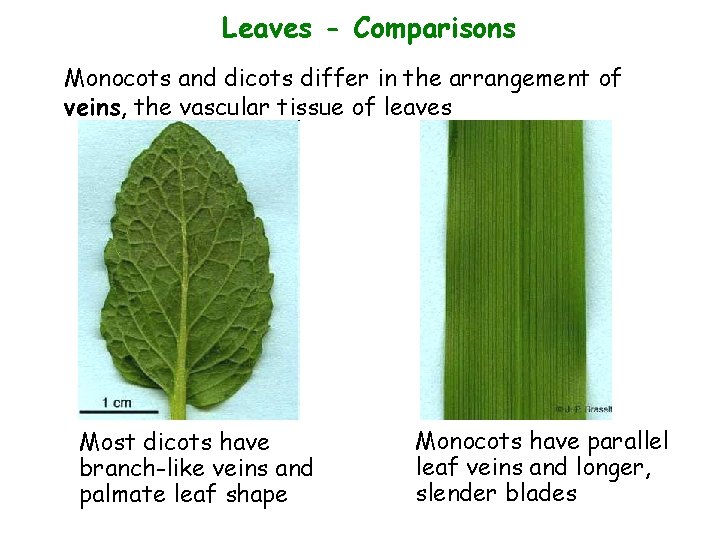

Leaves - Comparisons Monocots and dicots differ in the arrangement of veins, the vascular tissue of leaves Most dicots have branch-like veins and palmate leaf shape Monocots have parallel leaf veins and longer, slender blades

INTERNAL STRUCTURE OF LEAVES • Each part of the leaf has an important job. chloroplasts Copyright © 2002 Pearson Education, Inc. , publishing as Benjamin Cummings

Conserves water Photosynthesis Structures of the Leaf Transports water and sugar to stem and roots Copyright © 2002 Pearson Education, Inc. , publishing as Benjamin Cummings

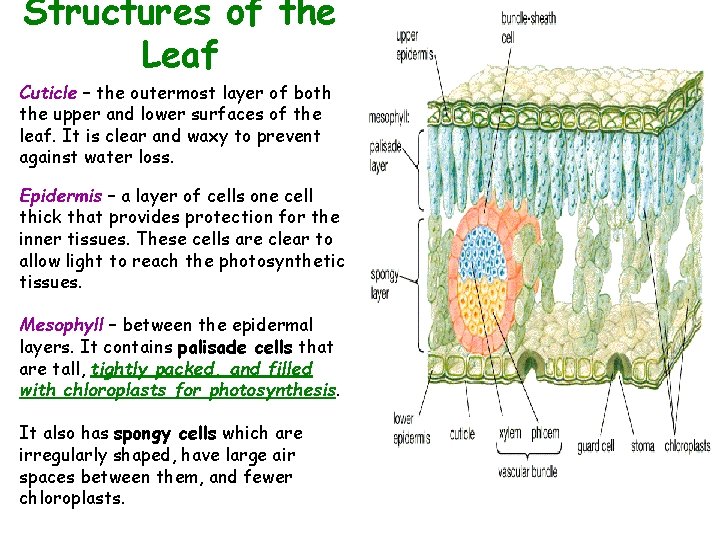

Structures of the Leaf Cuticle – the outermost layer of both the upper and lower surfaces of the leaf. It is clear and waxy to prevent against water loss. Epidermis – a layer of cells one cell thick that provides protection for the inner tissues. These cells are clear to allow light to reach the photosynthetic tissues. Mesophyll – between the epidermal layers. It contains palisade cells that are tall, tightly packed, and filled with chloroplasts for photosynthesis. It also has spongy cells which are irregularly shaped, have large air spaces between them, and fewer chloroplasts.

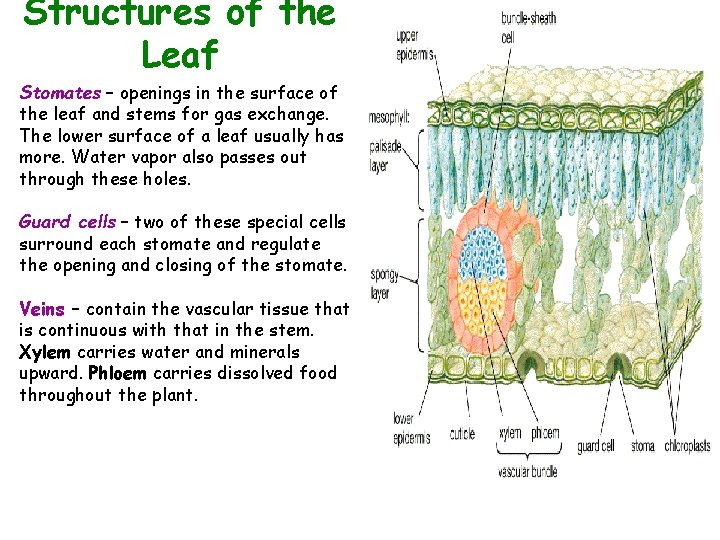

Structures of the Leaf Stomates – openings in the surface of the leaf and stems for gas exchange. The lower surface of a leaf usually has more. Water vapor also passes out through these holes. Guard cells – two of these special cells surround each stomate and regulate the opening and closing of the stomate. Veins – contain the vascular tissue that is continuous with that in the stem. Xylem carries water and minerals upward. Phloem carries dissolved food throughout the plant.

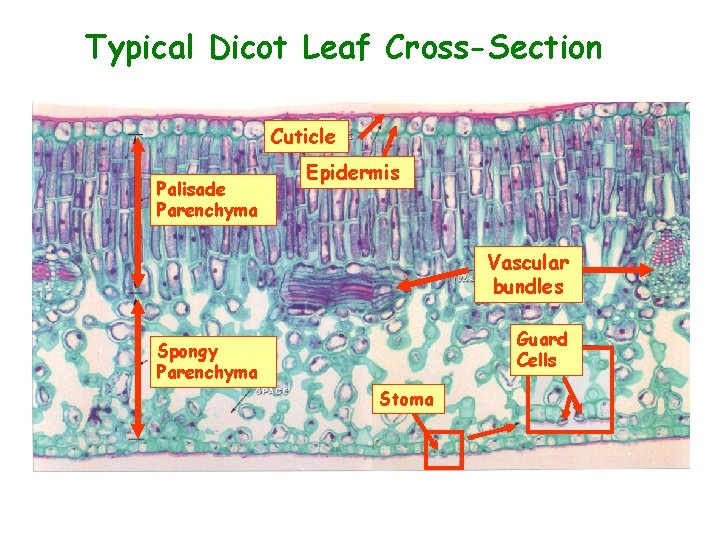

Typical Dicot Leaf Cross-Section Cuticle Palisade Parenchyma Epidermis Vascular bundles Guard Cells Spongy Parenchyma Stoma

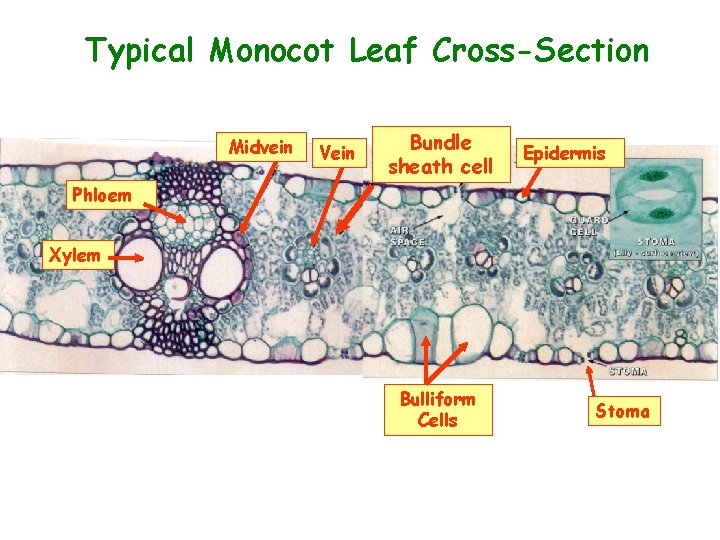

Typical Monocot Leaf Cross-Section Midvein Vein Bundle sheath cell Epidermis Phloem Xylem Bulliform Cells Stoma

Function of the Leaf • Photosynthesis • Gaseous exchange – take in O 2 and release CO 2 during respiration – take in CO 2 and release O 2 during photosynthesis Water Vapour can be lost from the surface of the leaf in a process known as Transpiration.

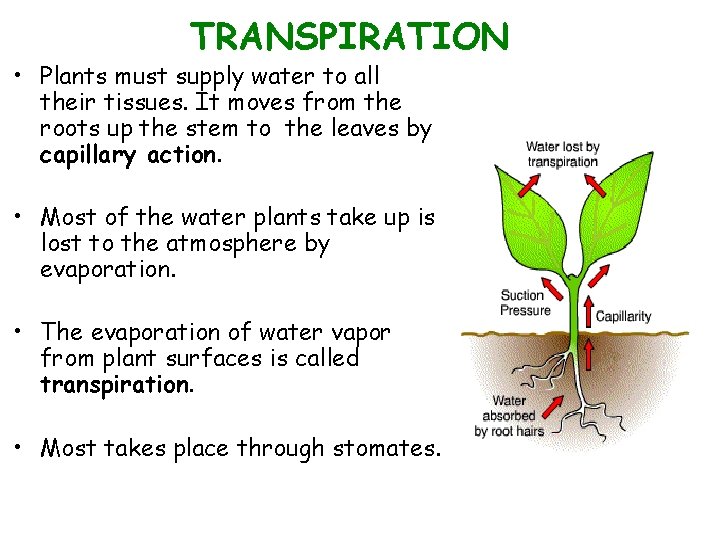

TRANSPIRATION • Plants must supply water to all their tissues. It moves from the roots up the stem to the leaves by capillary action. • Most of the water plants take up is lost to the atmosphere by evaporation. • The evaporation of water vapor from plant surfaces is called transpiration. • Most takes place through stomates.

• The rate of transpiration is regulated by the size of the opening of the stomates. • They are usually closed when there is too little water available, temperature is low, or there is little light. • Most plants open their stomates during the day and close them at night. • This is controlled by the guard cells.

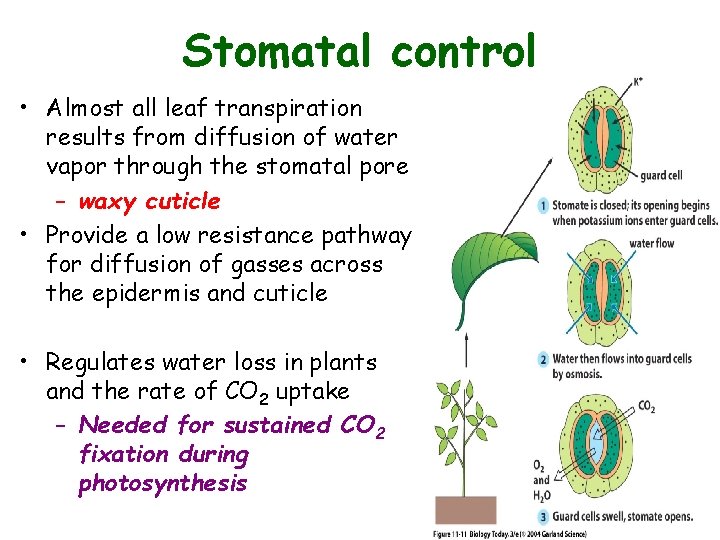

Stomatal control • Almost all leaf transpiration results from diffusion of water vapor through the stomatal pore – waxy cuticle • Provide a low resistance pathway for diffusion of gasses across the epidermis and cuticle • Regulates water loss in plants and the rate of CO 2 uptake – Needed for sustained CO 2 fixation during photosynthesis

Stomatal control • When water is abundant: • Temporal regulation of stomata is used: – OPEN during the day – CLOSED at night • At night there is no photosynthesis, so no demand for CO 2 inside the leaf • Stomata closed to prevent water loss • Sunny day - demand for CO 2 in leaf is high – stomata wide open • As there is plenty of water, plant trades water loss for photosynthesis products

Stomatal control • When water is limited: – Stomata will open less or even remain closed even on a sunny morning • Plant can avoid dehydration • Stomatal resistance can be controlled by opening and closing the stomatal pores. • Specialized cells – The Guard cells

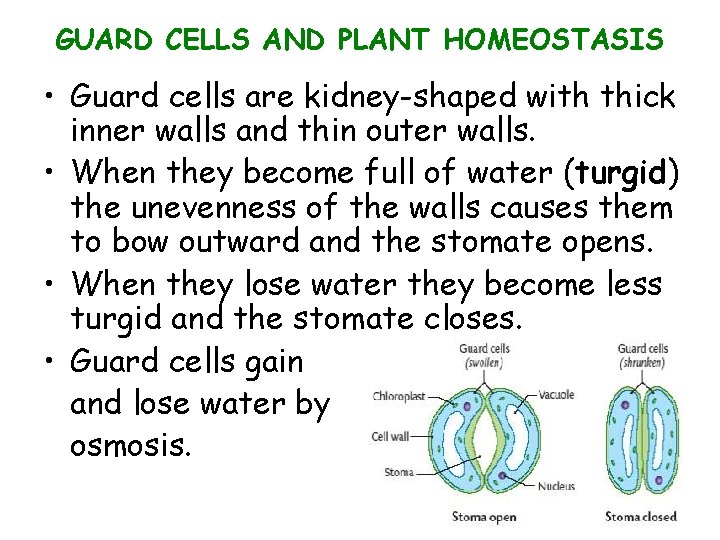

GUARD CELLS AND PLANT HOMEOSTASIS • Guard cells are kidney-shaped with thick inner walls and thin outer walls. • When they become full of water (turgid) the unevenness of the walls causes them to bow outward and the stomate opens. • When they lose water they become less turgid and the stomate closes. • Guard cells gain and lose water by osmosis.

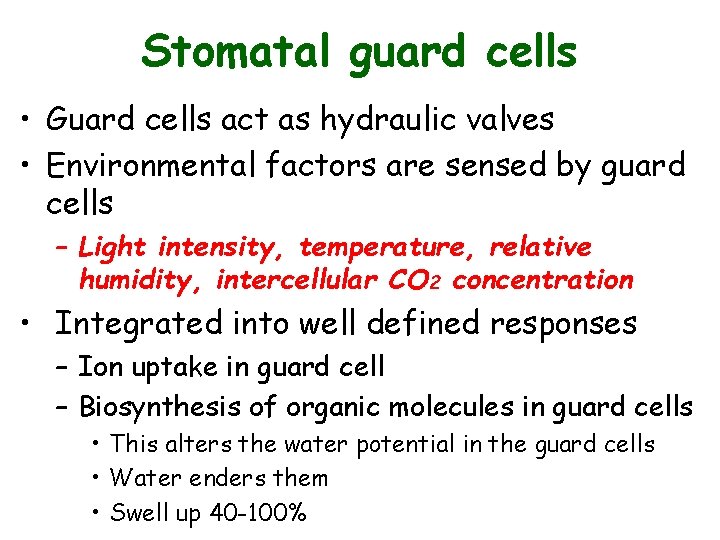

Stomatal guard cells • Guard cells act as hydraulic valves • Environmental factors are sensed by guard cells – Light intensity, temperature, relative humidity, intercellular CO 2 concentration • Integrated into well defined responses – Ion uptake in guard cell – Biosynthesis of organic molecules in guard cells • This alters the water potential in the guard cells • Water enders them • Swell up 40 -100%

Relationship between water loss and CO 2 gain • Effectiveness of controlling water loss and allowing CO 2 uptake for photosynthesis is called the transpiration ratio. • There is a large ratio of water efflux and CO 2 influx – Concentration ratio driving water loss is 50 larger than that driving CO 2 influx – CO 2 diffuses 1. 6 times slower than water • Due to CO 2 being a larger molecule than water – CO 2 uptake must cross the plasma membrane, cytoplasm, and chloroplast membrane. All add resistance

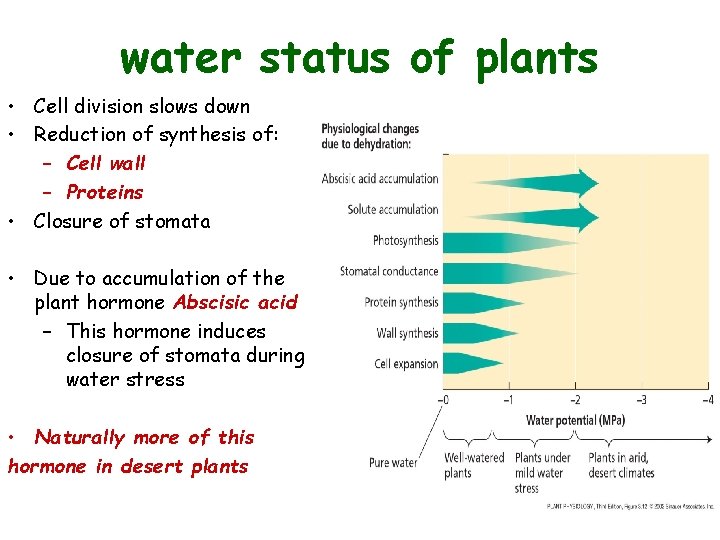

water status of plants • Cell division slows down • Reduction of synthesis of: – Cell wall – Proteins • Closure of stomata • Due to accumulation of the plant hormone Abscisic acid – This hormone induces closure of stomata during water stress • Naturally more of this hormone in desert plants

Plants and water • Water is the essential medium of life. • Land plants faced with dehydration by water loss to the atmosphere • There is a conflict between the need for water conservation and the need for CO 2 assimilation – This determines much of the structure of land plants – 1: extensive root system – to get water from soil – 2: low resistance path way to get water to leaves – xylem – 3: leaf cuticle – reduces evaporation – 4: stomata – controls water loss and CO 2 uptake – 5: guard cells – control stomata.

Photosynthesis • One of the most important biochemical process in plants. – Let’s not forget cell wall biosynthesis and adaptation during plant development, growth, interaction with the environment, and disease defense. • Among the most expensive biochemical processes in plant in terms of investment • The biochemical process that has driven plant form and function

General overall reaction 6 CO 2 + 6 H 2 O Carbon dioxide Water C 6 H 12 O 6 + 6 O 2 Carbohydrate Oxygen Photosynthetic organisms use solar energy to synthesize carbon compounds that cannot be formed without the input of energy. More specifically, light energy drives the synthesis of carbohydrates from carbon dioxide and water with the generation of oxygen.

C 3 and C 4 Leaf structure

The C 4 carbon Leaf • This is a biochemical pathway that prevents photorespiration • C 4 leaves have TWO chloroplast containing cells – Mesophyll cells – Bundle sheath (deep in the leaf so atmospheric oxygen cannot diffuse easily to them) • C 3 plants only have Mesophyll cells • Operation of the C 4 cycle requires the coordinated effort of both cell types – No mesophyll cells is more than three cells away from a bundle sheath cells • Many plasmodesmata for communication

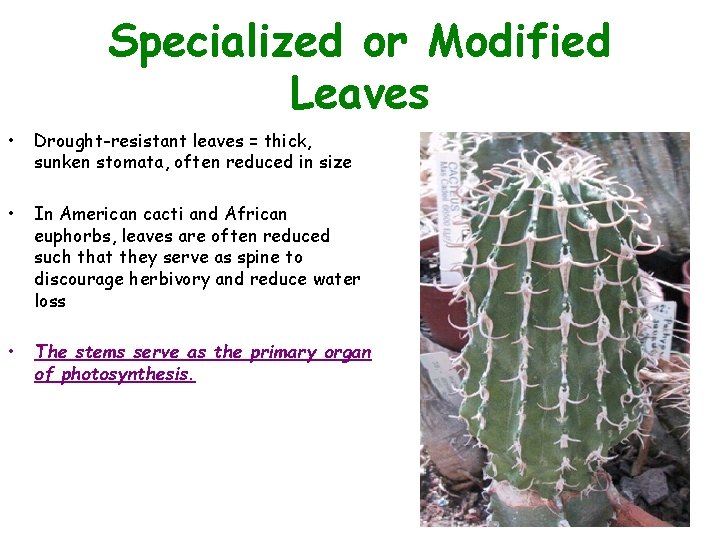

Specialized or Modified Leaves • Drought-resistant leaves = thick, sunken stomata, often reduced in size • In American cacti and African euphorbs, leaves are often reduced such that they serve as spine to discourage herbivory and reduce water loss • The stems serve as the primary organ of photosynthesis.

Specialized or Modified Leaves • In pine trees, the leaves are adapted to living in a dry environment too. • Water is locked up as ice during significant portions of the year and therefore not available to the plant; pine leaves possess – sunken stomata, – thick cuticles – needle-like leaves – hypodermis, which is an extra cells just underneath the epidermis –

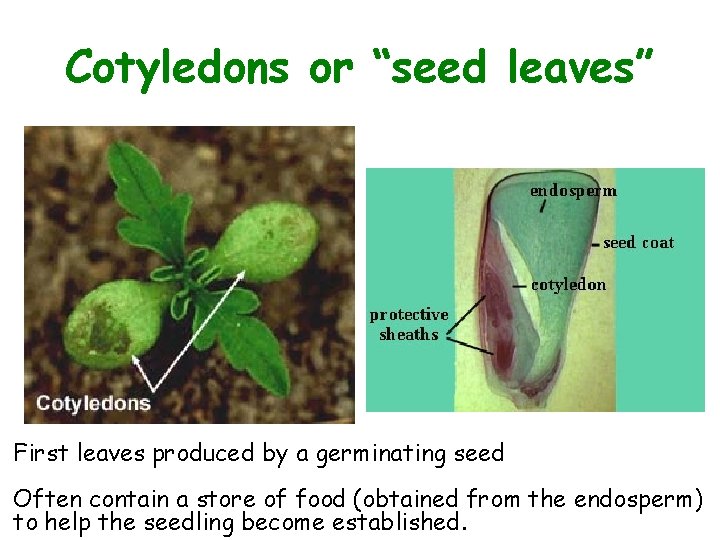

Cotyledons or “seed leaves” First leaves produced by a germinating seed Often contain a store of food (obtained from the endosperm) to help the seedling become established.

Tendrils Garden Pea Tendrils - blade of leaves or leaflets are reduced in size, allows plant to cling to other objects (e. g. , sweet pea and garden peas.

Specialized Leaves Figure 11. 8 (1) • Some plants obtain nitrogen from digesting animals (mostly insects). • The Pitcher plant has digestive enzymes at the bottom of the trap • This is a “passive trap” Insects fall in and can not get out • Pitcher plants have specialized vascular network to tame the amino acids from the digested insects to the rest of the plant

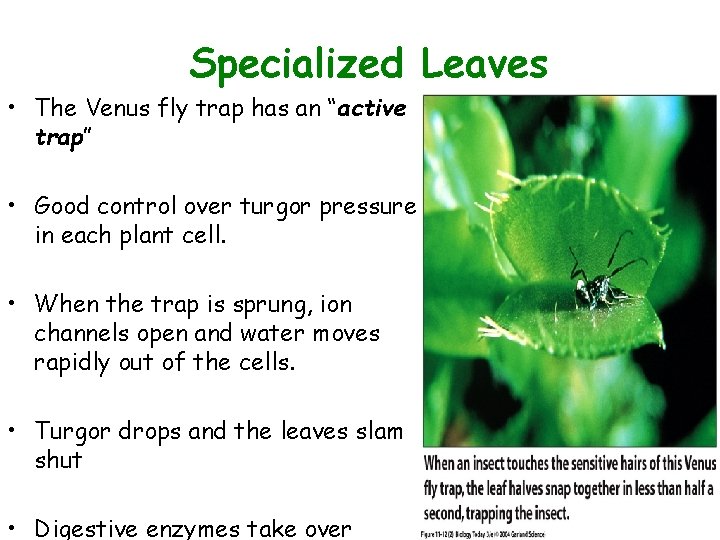

Specialized Leaves Figure 11. 12 (2) • The Venus fly trap has an “active trap” • Good control over turgor pressure in each plant cell. • When the trap is sprung, ion channels open and water moves rapidly out of the cells. • Turgor drops and the leaves slam shut • Digestive enzymes take over

The End. Any Questions?
