Dynamic Network Visualization in 1. 5 D Lei Shi *, Chen Wang *, Zhen Wen † * IBM Research – China † IBM T. J. Watson Research Center
Mobile SMS Network – Spammer
Mobile SMS Network – Non-Spammer
Mobile SMS Network – Spammer/Non-Spammer
Outline p Problem p Related Works & Previous Solutions p Data Processing – Dynamic Ego Network – Event-based Dynamic Networks p Visualization – Metaphor – Graph layouts – Interactions p Case Study – Mobile SMS Networks – Infovis/VAST Conferences

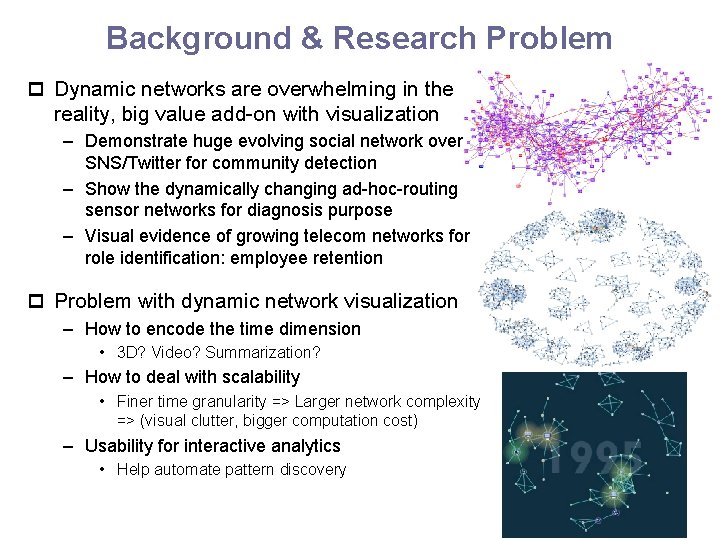

Background & Research Problem p Dynamic networks are overwhelming in the reality, big value add-on with visualization – Demonstrate huge evolving social network over SNS/Twitter for community detection – Show the dynamically changing ad-hoc-routing sensor networks for diagnosis purpose – Visual evidence of growing telecom networks for role identification: employee retention p Problem with dynamic network visualization – How to encode the time dimension • 3 D? Video? Summarization? – How to deal with scalability • Finer time granularity => Larger network complexity => (visual clutter, bigger computation cost) – Usability for interactive analytics • Help automate pattern discovery
Related Works: Dynamic Movie Approach
Related Works: Small Multiple Display
Related Works: Dynamic Graph Drawing p Objective: preserve the user’s mental map [ELM 91][MEL 95] – Orthogonal ordering – Proximity relationships – Topology p Mental-map preserving dynamic graph drawing algorithms – Online dynamic graph drawing algorithms: compute the layout of one time frame only from its previous time frame and the graph change • Graph adjustment, e. g. force-scan algorithm [MEL 95] • Extension from KK model [BBP 07] • Incremental graph layout [North 95][DKM 06] – Offline dynamic graph drawing algorithms: take all the graphs in previous time frame into consideration • Optimize global stability [DGK 01][CKN 03] • Encode the graph change in multi-layer representation [BC 02] – Special graph/drawing types • Hierarchical graph [North 95][NW 02], clustered graph [HEW 98][FT 04] • Orthogonal graph [PT 98][GBP 04], radial graph [YFD 01]
1. 5 D Dynamic Network Visualization p Basic idea: only consider the dynamic ego network central to one node – Many network analytics applications are egocentric: person role analysis, company collaborations analysis – Rationality: demultiplex the data in network domain (1. 5 D Vis) v. s. time domain (movie approach) v. s. space domain (small multiple displays) p Benefits: – Fit both time and network info into a single static 2 D visualization (0. 5 D time, 1. 5 D network) – Reduced network size and layout computation complexity, less visual clutter – Better support dynamic network analytics, e. g. temporal network pattern discovery p Trade-offs: – Will lose the overall graph topology semantics and the topology evolving patterns – Compensate a little with interactions
Visual Metaphor Horizontal Glyph 2 -hop node central node sending/receiving trend 1 -hop node time-dependent edge time-independent edge Radial Glyph
Data Processing for 1. 5 D Visualization p 3 steps to generate the dynamic ego network data for 1. 5 D visualization – Slotting: – Extraction: reduce each slotted graph into the ego graph central to the selected node – Compression: aggregate the ego graphs into a single graph with timedependent and time-independent edges p Event-based dynamic networks – Insertion: the new event node is added to the graph, an edge is added between the event node and existing nodes if this event ever happens to it at a specific time
Graph Layout p Customized force-directed layout model for small/medium-sized networks: – Split the central trend node into several subnodes – Fix the sub-node locations at Y axis – Add stability constraints to non-central nodes to place them near their average time to the center – A balance of time-dependent and timeindependent edge forces p Circular graph layout for large networks – Partition – Sort – Assign
Graph Interactions p Timeline navigation zoom & pan zoom p Egocentric graph navigation drill-in to new central node view
Case Study — Mobile SMS Network p For each people, send only one message in one time For some people, send multiple messages in multiple times
Case Study — Mobile SMS Network p Unidirectional communication (no reply) Bidirectional communication (send & reply)
Case Study — Mobile SMS Network p No communications between receivers (friends) Connections between receivers (friends)

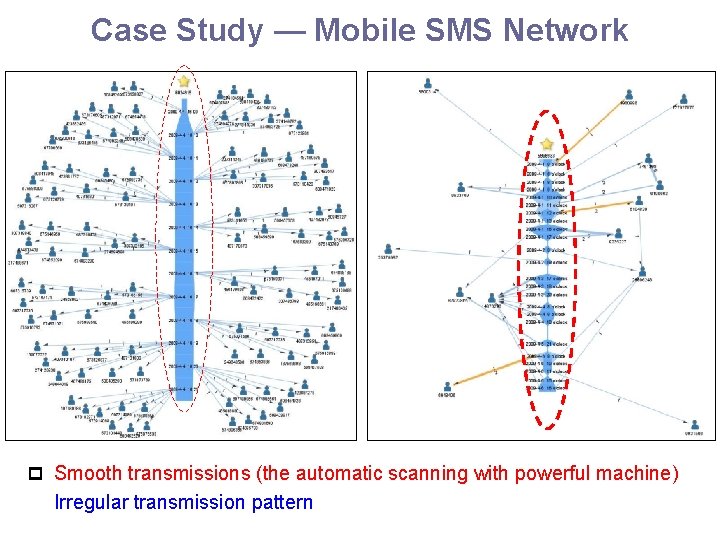

Case Study — Mobile SMS Network p Smooth transmissions (the automatic scanning with powerful machine) Irregular transmission pattern

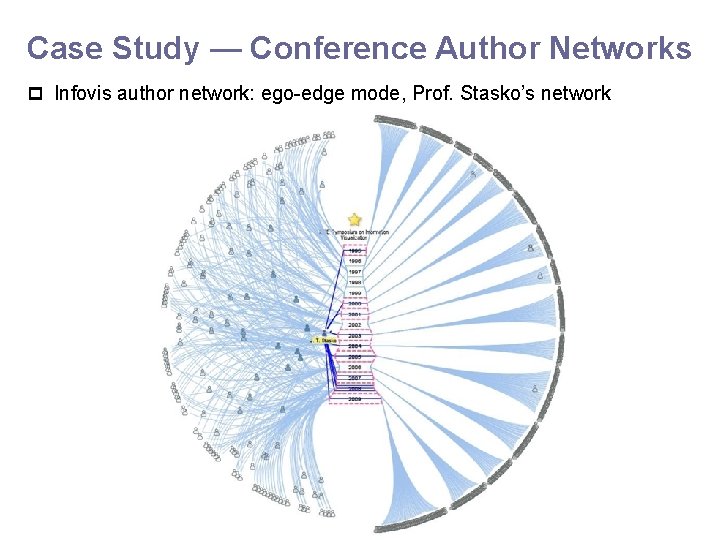

Case Study — Conference Author Networks p Infovis author network: ego-edge mode, Prof. Stasko’s network
Case Study — Conference Author Networks p Infovis author network: network-edge mode Dr. Wong’s network Prof. Munzner’s network
Case Study — Conference Author Networks p VAST author network Overview Prof. Ribarsky’s network
