Dynamic Circuit Network HandsOn Workshop University of NebraskaLincoln
Dynamic Circuit Network Hands-On Workshop University of Nebraska-Lincoln Nebraska Student Union Lincoln, NE July 19 th and 20 th, 2008
Welcome! • Wireless – cannot access workshop system from Joint Techs Wireless • Wired connections also available

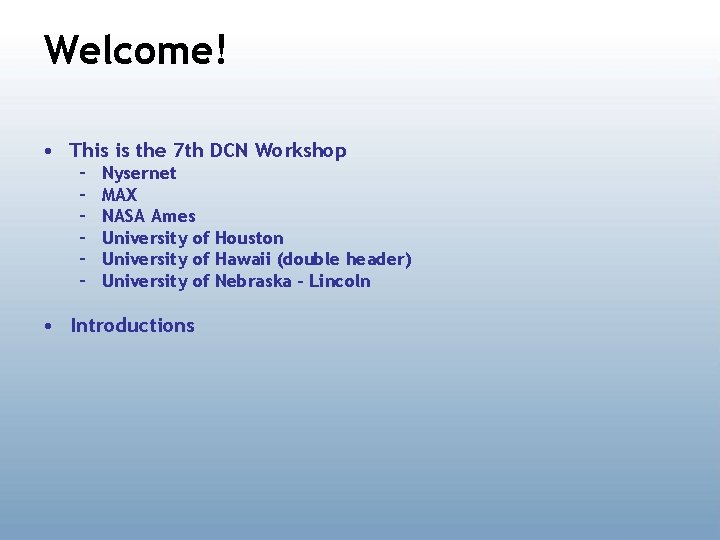

Welcome! • This is the 7 th DCN Workshop – – – Nysernet MAX NASA Ames University of Houston University of Hawaii (double header) University of Nebraska - Lincoln • Introductions
Welcome! • Key objectives of this workshop are: – Disseminate information to the R&E community regarding the emerging class of Hybrid Network and the associated techniques for Dynamic provisioning and configuration – Review in detail and provide instruction on how to use the control plane software currently in service on the Internet 2 Dynamic Circuit Network (DCN), ESnet Science Data Network (SDN), and several regional networks. – Obtain feedback directly from the community on how to improve the technologies…Hopefully, to help guide future development and deployment priorities and speed adoption – Review the state of implementation and deployment of these types of dynamic networks throughout the R&E community.
Instructors • Tom Lehman (USC/ISI) • Chris Tracy (MAX) • Andy Lake (Internet 2) • These people are involved in numerous projects related to deploying dynamic control planes: – – – Internet 2 Dynamic Circuit Network ESnet OSCARS Project NSF DRAGON Internet 2 HOPI Testbed DICE (Dante, Internet 2, Canarie, Esnet) – International development activities
Why do a workshop? • Dynamic Hybrid Networks are new… – The service concepts are still unfamiliar to many networker experts and users… What does one gain with DCN? – The software and hardware implementations are still evolving… – Even the standards are still evolving… – The networks that support these capabilities are few but growing. – The user base is small [for now]…. But will grow as the capabilities mature and become more ubiquitous, persistent, robust, and the utility of both connection oriented services and dynamic provisioning becomes more widely recognized and accepted. • Providing hands-on experience to design and deploy these architectures is one way to broaden and promote adoption.

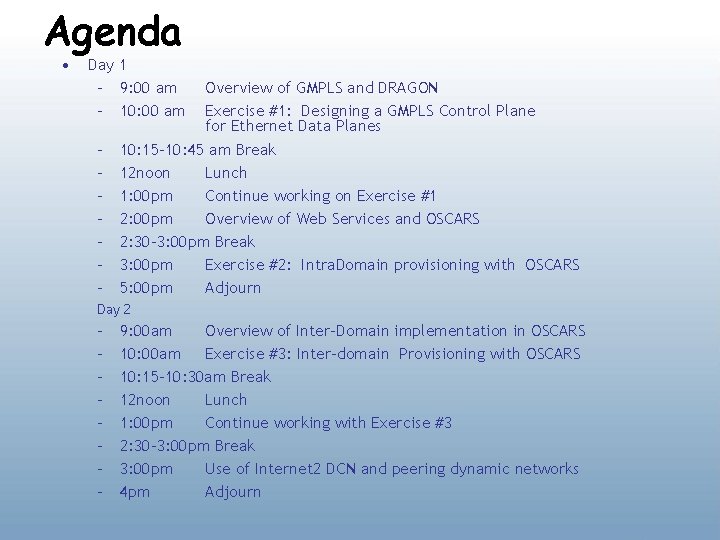

Agenda • Day 1 – 9: 00 am – 10: 00 am – – – – Overview of GMPLS and DRAGON Exercise #1: Designing a GMPLS Control Plane for Ethernet Data Planes 10: 15 -10: 45 am Break 12 noon Lunch 1: 00 pm Continue working on Exercise #1 2: 00 pm Overview of Web Services and OSCARS 2: 30 -3: 00 pm Break 3: 00 pm Exercise #2: Intra. Domain provisioning with OSCARS 5: 00 pm Adjourn Day 2 – – – – 9: 00 am Overview of Inter-Domain implementation in OSCARS 10: 00 am Exercise #3: Inter-domain Provisioning with OSCARS 10: 15 -10: 30 am Break 12 noon Lunch 1: 00 pm Continue working with Exercise #3 2: 30 -3: 00 pm Break 3: 00 pm Use of Internet 2 DCN and peering dynamic networks 4 pm Adjourn
D R A G O N Workshop Perspective • In this workshop we focus on implementation – – We will design and build a multi-domain GMPLS controlled ethernet network We have a mobile GMPLS test and evaluation lab consisting of 24 PCs and 12 switches • We will be focused on the GMPLS intra-domain control plane issues – – Specifically, OSPF and RSVP protocols and Path Computation We will do a very brief and cursory review of RSVP and OSPF. • For detailed information on the protocols themselves see the IETF RFCs. • We will not deal with ISIS or CR/LDP or LMP • We will focus on the “DICE” Inter-domain architecture – Web Services based topology distribution and provisioning • We use open source software developed by the NSF DRAGON Project, the DOE OSCARS Project – – – Intra-domain: Adapted versions of KOM-RSVP and Zebra OSPF plus the NARB for path computing This software is the only GMPLS software available to support dynamic ethernet services Uses OSCARS (Dept of Energy) for book-ahead scheduling and AAA Additional software and interfaces have been developed under auspices of the DICE effort (DANTE, Internet 2, Canarie, ESnet) The code has been adapted to support a wide variety of vendor equipment (e. g. Force 10, Extreme, Dell, Ciena, Cisco, Raptor) OSCARS
DCN Workshop Architecture Internet 2 Core Dynamic Circuit Network Green Pod ASN 4 Red Pod ASN 1 Yellow Pod ASN 3 Blue Pod ASN 2 Control Plane Data Plane
Pod Network Elements Control and Data Planes Network Aware Resource Broker- “NARB” Inter-Domain Controller – “IDC” NARB / IDC gre 6 Virtual Label Switching Router- “VLSR” VLSR 2 gre 2 VLSR 1 gre 4 VLSR 3 -PC gre 3 VLSR 1 -PC D 2 D 4 VLSR 1 -SW D 1 VLSR 3 -SW D 3 ES 1 D 5 ES 2 Control Plane PC (VLSR#-PC, NARB, IDC) Data Plane Ethernet Switch (VLSR#-SW) End System (ES#) VLSR 3
Dynamic Networks Overview and Status • Objectives and of Dynamic Hybrid Networks • Hybrid Networking and the Global R&E Community • Standardization Efforts • Internet 2 Dynamic Circuit Network (DCN) – Control Plane Software – Network Architecture
Hybrid Networking • There has been interest from many communities for the development of network architectures and mechanisms that utilize lower layers of the protocol stack along with IP at layer 3 • This has become known as “hybrid networking” • It is motivated by applications from the research and education community that require greater capabilities – High bandwidth flows (for example, flows that come close to saturating links in the shared IP backbone) – Flows with special requirements related to quality of service, for example jitter requirements – Network and Application Virtualization
Hybrid Networks - Motivating Factors • Hybrid networks are intended to provide a flexible mix of IP routed service and “lower layer services” – “flexible” means the network can respond quickly to user/application/connector requirements and requests to access both the IP Routed and/or lower layer services – “lower layer services” means access to layer 2 and below paths which can be utilized in a multitude of ways by creative users. • Typical user requirements for these lower layer services are based on: – critical, large bandwidth flows which may require one of more of the following: deterministic network performance, dedicated network resources, guaranteed network capacity, freedom to use protocols other than (congestion control friendly) TCP, privacy/security requirements, scheduled services – User/application communities which desire to build entire topologies which integrate domain specific resources along with dedicated network resources (which have one or more of the above mentioned characteristics)
Hybrid Networks Heterogeneous By Nature • Hybrid networks are extremely heterogeneous at several levels • Data. Plane can be constructed from – router based Multiprotocol Label Switching (MPLS) tunnels – Ethernet VLAN based Circuits – Synchronous Optical Network / Synchronous Digital Hierarchy (SONET/SDH) circuits – Wavelength Division Multiplexing (WDM) connections – Combinations of the above
Hybrid Networks Heterogeneous By Nature • Control Planes can be based on – – – Multiprotocol Label Switching (MPLS) Generalized Multiprotocol Label Switching (GMPLS) Web Services Management Systems Combinations of the above • Client (user) services or attachment points could be – – Ethernet SONET IP Router Infini. Band

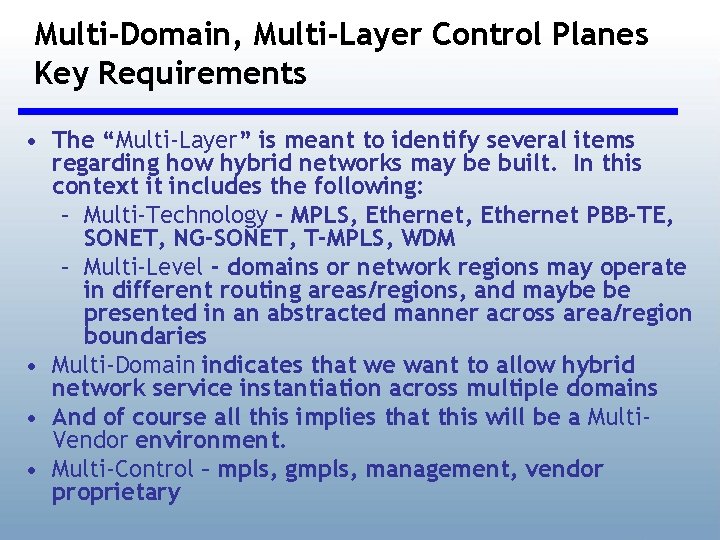

Multi-Domain, Multi-Layer Control Planes Key Requirements • The “Multi-Layer” is meant to identify several items regarding how hybrid networks may be built. In this context it includes the following: – Multi-Technology - MPLS, Ethernet PBB-TE, SONET, NG-SONET, T-MPLS, WDM – Multi-Level - domains or network regions may operate in different routing areas/regions, and maybe be presented in an abstracted manner across area/region boundaries • Multi-Domain indicates that we want to allow hybrid network service instantiation across multiple domains • And of course all this implies that this will be a Multi. Vendor environment. • Multi-Control – mpls, gmpls, management, vendor proprietary
Dynamic Network Services Intra. Domain Circuit Request • Source Address • Destination Address • Bandwidth • VLAN TAG (untagged | any | tagged | tunnel) • User Identification (certificate) • Schedule XML USER API Client A Dynamically Provisioned Dedicated Resource Path (“Circuit”) DRAGON Enabled Control Plane Internet 2 IDC Ethernet Mapped SONET or SONET Circuits Client B Internet 2 DCN Service • api can run on the client, or in a separate machine, or from a web browser Actual Network Path
Dynamic Network Services Inter. Domain • No difference from a client (user) perspective for Inter. Domain vs Intra. Domain USER API XML 1 A A 2 2 RON Dynamic Infrastructure Ethernet VLAN Internet 2 DCN Ethernet Mapped SONET A. Abstracted topology exchange 1. Client Service Request 2. Resource Scheduling 5. Service Instantiation (as a result of Signaling) Multi-Domain Dynamically Provisioned Circuit
DCN Control Plane
DCN Control Plane Software • OSCARS (Web Service) – Started by ESnet, merged with Internet 2’s BRUW project in 2006 – Web service architecture, interfaces to lower level network specific provisioning systems – Vendor based MPLS L 2 VPN (Martini Draft) • Internet 2 DCS/HOPI – DRAGON (NSF funded project in development by USC/ISI EAST and MAX) – Uses GMPLS protocols to build layer 2 circuits
I 2 DCN Software Suite • OSCARS (IDC) – Web service layer, Inter. Domain messaging, AAA, Scheduling • DRAGON (DC) – Control of domain network elements (Core Directors and/or Ethernet Switches) – Intra and Inter Domain Path Computation – RSVP based signaling • Version 0. 3. 1 of DCNSS released April, 2008 – https: //wiki. internet 2. edu/confluence/display/DCNSS
OSCARS-DRAGON Integration
DRAGON • Virtual Label Switched Router(VLSR) – PC based control plane software – Manages and provisions various network equipment such as ethernet switches, SDH/SONET – Signaling with RSVP packets • Network Aware Resource Broker (NARB) – Stores topology in OSPF-TE database – Performs inter/intradomain path calculation – Exchanges interdomain topology
IDC - Web Service Based Definition • Four Primary Web Services Areas: • Topology Exchange, Resource Scheduling, Signaling, User Request
Other AAA Models Possible gy Meta. Scheduler ng o ol uli ing d al he ign c S S p To T Sc opo Si hed log y gn u al lin in g g • Meta-Scheduler Approach • Same set of Web Services used for linear instantiation model can be used by a high level process to build services: • Topology Exchange, Resource Scheduling, Signaling, User Request • A key issue is that this requires a trust relationship between the “metascheduler” and all the domains with which it needs to talk
Inter. Domain Controller (IDC) Protocol (IDCP) • • Developed via collaboration with multiple organizations – The following organizations have implemented/deployed systems which are compatible with this IDCP – – – – – • Internet 2, ESnet, GEANT 2, Nortel, University of Amsterdam, others Internet 2 Dynamic Circuit Network (DCN) ESNet Science Data Network (SDN) GÉANT 2 Auto. Bahn System Nortel (via a wrapper on top of their commercial DRAC System) Surfnet (via use of above Nortel solution) LHCNet (use of I 2 DCN Software Suite) Nysernet (use of I 2 DCN Software Suite) University of Amsterdam (use of I 2 DCN Software Suite) DRAGON Network The following "higher level service applications" have adapted their existing systems to communicate via the user request side of the IDCP: – – – Lambda. Station (Fermi. Lab) Tera. Paths (Brookhaven) Phoebus
DCN – Global Network Interoperation via IDCP
Inter. Domain Controller Protocol Standardization Activities • Standardization process and increasing community involvement continues • Optical Grid Forum (OGF) – Network Markup Language (NML) Working Group • Standardizing topology schemas (perfsonar and control plane) – Network Services Interface (NIS-WG) – Grid High Performance Networking (GHPN) Research Group – Network Measurement (NM-WG) – Network Measurement Control (NMC-WG) – Information Services (IS-WG) • GLIF – Control Plane Subgroup working on normalizing between various interdomain protocols (IDCP, G-Lambda GNS-WSI, Phosphorus API) – Also other GLIF subgroups in this and related space (global id format, Perf. Sonar)
Internet 2 DCN Working Group • DCN WG has been formed under NTAC – Chair: Linda Winkler (Argonne National Laboratory) • DCN WG will drive directions and set agenda in this area • Mailing list and Wiki available – dcn-wg@internet 2. edu – https: //spaces. internet 2. edu/display/DCN/Home • DCN WG BOF on Monday, July 21, 12: 30 PM 1: 50 PM
Internet 2 DCN Infrastructure
Internet 2 DCN Services 1 -A-5 -1 -1 1 -A-6 -1 -1
DCN Services - circuits • Physical Connection: – 1 or 10 Gigabit Ethernet – SONET (Future) • Circuit Service: – Point to Point Ethernet (VLAN) Framed SONET Circuit – Point to Point SONET Circuit (future) – Bandwidth provisioning in 100 Mbps increments • How do Clients Request? – Client must specify [VLAN ID | ANY ID | Untagged | Tunnel], SRC Address, DST Address, Bandwidth – Request mechanism options are Web Service API, Web Page, phone call, email • What is the definition of a Client? – Anyone who connects to an ethernet or SONET port on an Ciena Core Director; could be RON, other wide area networks, domain specific applications
DCN Services - topologies • Individual circuits are the “atomic” service provided by the DCN and control plane • These circuits could be intra or inter domain • It is envisioned that higher level “services” may be developed which coordinate the instantiation of multiple individual circuits to develop entire “topologies” – co-scheduling/allocation of other resources (compute, data storage) may also be desired – Probably a task for individual science/application domains or someone developing middleware on their behalf
Workshop Details
DCN Workshop Architecture Internet 2 Core Dynamic Circuit Network Green Pod ASN 4 Red Pod ASN 1 Yellow Pod ASN 3 Blue Pod ASN 2 Control Plane Data Plane
Pod Network Elements Inter-Domain Controller – “IDC” Network Aware Resource Broker- “NARB” NARB / IDC Virtual Label Switching Router- “VLSR” VLSR 2 VLSR 3 VLSR 1 VLSR 3 -PC VLSR 1 -PC VLSR 3 -SW VLSR 1 -SW ES 1 ES 2 Control Plane PC (VLSR#-PC, NARB, IDC) Data Plane Ethernet Switch (VLSR#-SW) End System (ES#)
Basic Pod Data Plane VLSR 2 -SW Ethernet Switch D 2 D 4 VLSR 1 -SW VLSR 3 -SW D 3 D 1 ES 1 D 5 ES 2 End System Data Plane via Cat 5 Patch Cable Data Plane Ethernet Switch (VLSR#-SW) End System (ES#) Data Plane (D#)
Basic Pod Control Plane Network Aware Resource Broker- “NARB” Inter-Domain Controller – “IDC” NARB / IDC Virtual Label Switching Router“VLSR” gre 6 gre 2 gre 4 gre 3 VLSR 1 -PC VLSR 3 -PC Control Plane PC (VLSR#-PC, NARB, IDC) End System (ES#)
Pod Network Elements Control and Data Planes Network Aware Resource Broker- “NARB” Inter-Domain Controller – “IDC” NARB / IDC gre 6 Virtual Label Switching Router- “VLSR” VLSR 2 gre 2 VLSR 1 gre 4 VLSR 3 -PC gre 3 VLSR 1 -PC D 2 D 4 VLSR 1 -SW D 1 VLSR 3 -SW D 3 ES 1 D 5 ES 2 Control Plane PC (VLSR#-PC, NARB, IDC) Data Plane Ethernet Switch (VLSR#-SW) End System (ES#) VLSR 3
Pod Management Addressing “Red” pod: ASN=1 “Blue” pod: ASN=2 “Yellow” pod: ASN=3 “Green” pod: ASN=4 Workshop Gateway Router 192. 168. 1. 1 Management VLAN 192. 168. <asn>. n/16. 10 NARB / IDC VLSR 2. 6 VLSR 1 VLSR 3. 5 eth 0. 4 . 8 . 7 . 3 eth 0. 2 eth 1 ES 1 eth 0 - Management Plane Interface and Control Channel (PCs) eth 1 - Data Plane Interfaces (PCs) eth 1 ES 2 . 9 eth 0
Rack Layout 1 2 3 4 5 6 7 8 9 0 GW 1 SW 1 NARB VLSR 1 -SW VLSR 1 -PC VLSR 2 -SW VLSR 2 -PC VLSR 3 -SW VLSR 3 -PC ES 1 ES 2 Rack 1 1 2 3 4 5 6 7 8 9 0 GW 2 SW 2 NARB VLSR 1 -PC VLSR 1 -SW VLSR 2 -PC VLSR 2 -SW VLSR 3 -PC VLSR 3 -SW ES 1 ES 2 NARB VLSR 1 -PC VLSR 1 -SW VLSR 2 -PC VLSR 2 -SW . VLSR 3 -PC VLSR 3 -SW ES 1 ES 2 Rack 2
Workshop Pods
Red Pod
Green Pod
Yellow Pod
Blue Pod
Exercise #1 Intra-Domain Detail (Answer Sheet) “Red” pod: ASN=1 “Blue” pod: ASN=2 “Yellow” pod: ASN=3 “Green” pod: ASN=4 Workshop Gateway Router 192. 168. 1. 1 Management VLAN 192. 168. <asn>. n/16. 10 NARB / IDC GRE 6 VLSR 2 -PC 10. a. 2. 2 GRE 2 10. a. 6. 1 . 6 GRE 4 10. a. 4. 1 VLSR 2 -SW VLSR 1 -PC 10. a. 2. 1 eth 0. 4 . 5 1 10. a. 3. 1 VLSR 1 -SW 4 . 3 1 eth 0. 2 3 D 1 eth 1 5 11. a. 2. 1 3 D 2 11. a. 2. 2 4 11. a. 4. 1 VLSR 3 -PC 10. a. 3. 2 D 4 GRE 3 11. a. 4. 2 11. a. 3. 1 11. a. 3. 2 D 3 ES 1 Dynamic Data plane port group = g 3 -g 24 Dynamic VLAN range = 100… 200 10. a. 4. 2. 8 VLSR 3 -SW 4 5 3 . 7 1 D 5 eth 1 ES 2 . 9 eth 0 Management VLAN 192. 168. <asn>. n/16 GRE<x> = 10. <asn>. <x>. n / 30 GRE 7= 10. 1. 7. 0 / 30 TEaddr = 11. <asn>. <x>. n / 30
Exercise #1 Data and Control links NARB / IDC “Red” pod: N=1 “Blue” pod: ASN=2 “Yellow” pod: ASN=3 “Green” pod: ASN=4 GRE 6 VLSR 2 GRE 4 GRE 2 VLSR 1 4 3 VLSR 3 D 4 D 2 4 GRE 3 4 3 3 5 5 D 1 D 3 eth 1 ES 1 eth 1 ES 2
Login information • • • Wireless Network: – SSID: DCNworkshop – WPA Personal Key: Workshop! Login to all VLSR, ES and NARB – ssh port 22 – username: user[1 -16]; password: Workshop! – username: root; password: rootme Login to all switches – telnet port 23 – username: admin; password: admin OSCARS configuration; login to the NARB/IDC machine – ssh port 22 – username: tomcat 55; password: dragon OSCARS axis 2 login – https: //idc. <color>. pod. lan: 8443/axis 2 -admin/ – username: admin; password: axis 2 OSCARS web user interface; – https: //idc. <color>. pod. lan: 8443/OSCARS/ – username: oscars-admin; password: oscars
Login information • Command Line Interface ports – dragond 2611 – ospfd 2604 (intra-domain) – narb 2626 – rce 2688 > telnet localhost 2611 > password: dragon

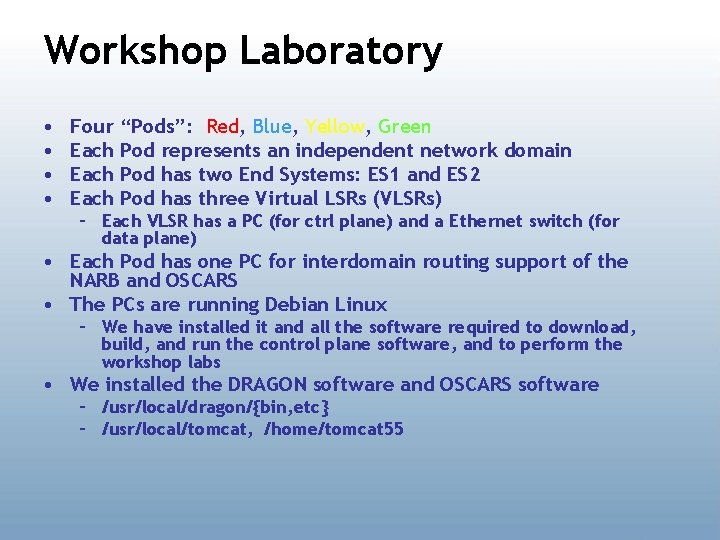

Workshop Laboratory • • Four “Pods”: Red, Blue, Yellow, Green Each Pod represents an independent network domain Each Pod has two End Systems: ES 1 and ES 2 Each Pod has three Virtual LSRs (VLSRs) – Each VLSR has a PC (for ctrl plane) and a Ethernet switch (for data plane) • Each Pod has one PC for interdomain routing support of the NARB and OSCARS • The PCs are running Debian Linux – We have installed it and all the software required to download, build, and run the control plane software, and to perform the workshop labs • We installed the DRAGON software and OSCARS software – /usr/local/dragon/{bin, etc} – /usr/local/tomcat, /home/tomcat 55
Workshop Exercises • Exercise 1: Designing a GMPLS Control Plane for Ethernet Data Planes • Exercise 2: Intra-Domain Provisioning with OSCARS • Exercise 3: Inter-Domain Provisioning with OSCARS

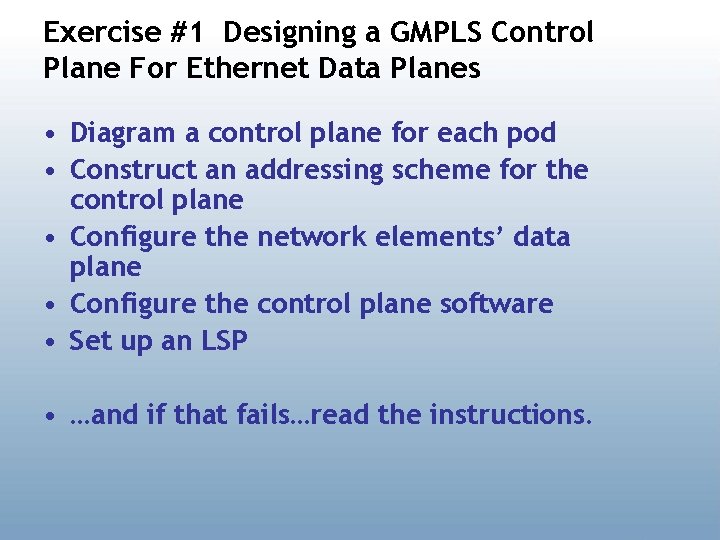

Exercise #1 Designing a GMPLS Control Plane For Ethernet Data Planes • Diagram a control plane for each pod • Construct an addressing scheme for the control plane • Configure the network elements’ data plane • Configure the control plane software • Set up an LSP • …and if that fails…read the instructions.
GMPLS Snapshot • Generalized Multi-Protocol Label Switching – GMPLS – Evolved from MPLS concepts, and experiences gained from deployments within the IP packet world • GMPLS extends Traffic Engineering (TE) concepts to the multiple layers: – – – Packet Switching Capable (PSC) – standard MPLS LSPs Layer 2 switch capable (L 2 SC) – Ethernet and VLANs TDM switch capable (TDM) – SONET/SDH Lambda switching (LSC) – Wavelength Fiber Switch capable (FSC) - Automated Patch Panel • In the GMPLS, any network element that supports one of the above switching capabilities and participates in the GMPLS control plane protocols is referred to as a “Label Switching Router” or LSR. • GMPLS Protocols: – – – Routing: GMPLS-OSPF-TE Signaling: GMPLS-RSVP-TE Link layer: LMP (not widely implemented) ISIS and CR/LDP are also considered part of the GMPLS protocols In this workshop we will focus only on OSPF and RSVP
What is the Control Plane? • The Control Plane is the network facilities and associated protocols that select, allocate/deallocate, and provision network resources to fulfill a user service request. – Typically this includes routing protocols that distribute topology and reachability information among interconnected networks and network elements – It also includes other functions that allocate appropriate resources and put those resources into service (Path computing and signaling) • With GMPLS, routing and signaling messages between LSRs do not travel along the same [physical] path as the circuit being established. – The set of facilities between LSRs that carry the data circuits themselves is called the “Data Plane” – The set of facilities between LSRs that carry the routing and signaling protocols is called the “Control Plane” • It is good practice to design the control plane so as to be highly robust and impervious to effects of other network traffic or malicious activity • In this workshop, our control plane and data plane will be separate as is typically the case for GMPLS networks.
Control Plane and Data Plane Control Plane CP GMPLS Protocols Label Switched Paths Data Plane CP
![A [Typical] Label Switching Router – “LSR” Management Interface Control Processor Switching Fabric Interface](http://slidetodoc.com/presentation_image/3423754c89429ebb1a4c0985d540185b/image-57.jpg "A [Typical] Label Switching Router – “LSR” Management Interface Control Processor Switching Fabric Interface")
A [Typical] Label Switching Router – “LSR” Management Interface Control Processor Switching Fabric Interface Link Data Interfaces Label Switching Fabric • What is an “LSR” – In the MPLS world, it is any router capable of recognizing and processing the MPLS shim header in the IP packet • In the GMPLS world, an LSR is any network element that is able to establish “label switched paths” (LSPs) under control of the GMPLS protocol suite: – This now includes fiber switches, wave division multiplexors, sonet (tdm) switches, ethernet switches, and traditional packet switches (MPLS routers)
Key Control Plane Features • Routing – distribution of "data" between networks. The data that needs to be distributed includes reachability information, resource usages, etc • Path computation – the processing of information received via routing data to determining how to provision an end-to-end path. This is typically a Constrained Shortest Path First (CSPF) type algorithm for the GMPLS control planes. Web services based exchanges might employ a modified version of this technique or something entirely different. • Signaling – the exchange of messages to instantiate specific provisioning requests based upon the above routing and path computation functions. This is typically a RVSP-TE exchange for the GMPLS control planes. Web services based exchanges might employ a modified version of this technique or something entirely different.
OSPF – “Open Shortest Path First” • OSPF is a “Link State” Routing Protocol – OSPF routers discover each other thru a HELLO protocol exchanged over OSPF interfaces – Routers identify themselves with a “router id” (typically the loopback IP address or another unique IP address is used) – OSPF routers flood Link State Announcements (LSAs) to each other that describe their connections to each other and that specify the current link state of these connections • In the GMPLS and TE extensions to OSPF, the LSA contains information about the available bandwidth, routing metrics, switching capabilities, encoding types, etc. • LSAs are not flooded in the direction from which they are heard – Link State flooding does not scale well • OSPF routing is often divided into “areas” to reduce or limit LSA flooding in large networks • Other routing protocols are used between routing “domains” that distribute reachability information but not link state info – Each OSPF router in an area has a full topological view of its area – SPF identifies the next-hop for each known destination prefix
CSPF • Constrained Shortest Path First – In OSPF TE, reachability is no longer the only criteria for deciding next-hop • E. g. Bandwidth available on each intemediate link could be a constraint used to identify or select a path • In GMPLS, with multiple switching capabilities, there are many constraints to be considered – Path Computation is used differently for selecting circuit layout than for selecting the next-hop for shortest path packet forwarding • Two identical path requests may generate two completely separate paths (unlike traditional routed IP which would select only the single “best” path forwarding packets) • Paths are not computed until or unless a path is needed. – Some GMPLS service models do propose precomputing paths (or at least next-hops) based on certain apriori assumptions about the LSP – the tradeoff is generally one of scheduled “book ahead” reservations vs fast “on-demand” provisioning.
RSVP – Re. Ser. Vation Protocol • GMPLS-RSVP-TE is the signaling (provisioning) protocol used to instantiate a Label Switched Path (LSP) thru the network • Five basic RSVP messages we will reference: – PATH = First message issued by the source towards the destination requesting a connection be established – RESV = Response from the destination towards the source accepting the connection – PATH_TEAR = Message sent to tear down an LSP – PATH_ERR = Error message sent when a PATH request is denied or encounters a problem – REFRESH = Message sent between LSRs indicating a connection is still active (prevent timeout and deletion)
Path Computation Element • In GMPLS, the Path Computation Element (PCE) is separated from the routing protocol. – The routing protocol distributes topology information and builds the topology database that contains all the [visible] resources and their state – the Traffic Engineering Data Base (TEDB) – PCE is responsible for processing the TEDB to select a path through the network that meets the constraints specified in the service request (e. g. BW, encoding, Src/Dst, Policy, etc. ) • In GMPLS, the path computed is expressed as an “Explicit Route Object” (ERO). – An ERO is simply a data structure that contains a sequentially ordered list of routers (LSRs) that the path will travels from Source to Destination – A “Loose Hop” ERO specifies a partial set of transit nodes – the path may contain other nodes as long as it passes through the specified nodes in the order specified. – A “Strict Hop” ERO specifies a complete list of transit nodes – no other intervening nodes are allowed. – RSVP includes the ERO in the PATH message to pin the path through specific nodes
DRAGON Control Plane - Key Elements • Virtual Label Switching Router – VLSR – Open source protocols running on PC act as GMPLS network element (OSPF-TE, RSVP-TE) – Control PCs participate in protocol exchanges and provisions covered switch according to protocol events (PATH setup, PATH tear down, state query, etc) • Network Aware Resource Broker – NARB – Intradomain listener, Path Computation, Interdomain Routing and Path Computation • More information: – dragon. east. isi. edu – dragon. maxgigapop. net
The Virtual Label Switching Router “VLSR” • The DRAGON Project developed a control plane "proxy" element to cover non-GMPLS capable devices like standard ethernet switches. Mgmt Interface Linux Control PC GMPLS Control Plane Control Links Via GRE tunnels SNMP Ethernet Switch Operations Access Switch Linux Control PC Data Plane VLSR - conceptual Core Ethernet Switch VLSR – physical
VLSR (Virtual Label Switching Router) • RSVP Signaling module – – – Originated from Martin Karsten’s C++ KOM-RSVP Extended to support RSVP-TE (RFC 3209) Extended to support GMPLS (RFC 3473) Extended to support Q-Bridge MIB (RFC 2674) For manipulation of VLANs via SNMP (cross-connect) Extended to support VLAN control through CLI • OSPF Routing module – Originated from GNU Zebra – Extended to support OSPF-TE (RFC 3630) – Extended to support GMPLS (RFC 4203) • Ethernet switches tested to date – Dell Power. Connect, Extreme, Intel, Raptor, Force 10
NARB (Network Aware Resource Broker) • NARB is an agent that represents a domain • Intra-domain Listener – Listens to OSPF-TE to acquire intra-domain topology – Builds an abstracted view of internal domain topology • Inter-domain routing – Peers with NARBs in adjacent domains – Exchanges (abstracted) topology information – Maintains an inter-domain link state database • Path Computation – Performs intra-domain (strict hop) TE path computation – Performs inter-domain (loose hop) TE path computation – Expands loose hop specified paths as requested by domain boundary (V)LSRs. • Hooks for incorporation of AAA and scheduling into path computation via a “ 3 Dimensional Resource Computation Engine (3 D RCE)” – The Traffic Engineering Data. Base (TEDB) and Constrained Shortest Path Computation (CSPF) are extended to include dimensions of GMPLS TE parameters, AAA constraints, and Scheduling constraints. – 3 D RCE is the combination of 3 D TEDB and 3 D CSPF
Heterogeneous Network Environment multi-technology, multi-level, multi-domain, multivendor, multi-provision system network environments IDC DC GMPLS • IDC DC MPLS Management Plane DRAGON is used as the DOMAIN Controller for I 2 DCN Ciena Core Directors IDC to other domain IDCs GMPLS to other domains to other domain IDCs DRAGON GMPLS Control Plane DRAGON 1 tl ni, u un i, t l GMPLS to other domains 1 Ciena Region CD_a • subnet signaling flow CD_z DRAGON allows for incorporation of non-GMPLS equipment and vendor proprietary provisioning methods into the overall GMPLS environment
Exercise #2: Intra-domain Provisioning with OSCARS • In this exercise we will bring up the OSCARS software, configure the network topology and candidate paths, and provision LSPs across a single administrative network domain • OSCARS: – “On-demand Secure Circuits and Advanced Reservation System” – Provides Authentication and Authorization for LSP requests – Provides book-ahead scheduling for network path resources – Interim: implements the static topology distribution function and provides precomputed static EROs for provisioning • OSCARS is a Java based application. OSCARS runs on top of Tomcat, uses My. SQL and AXIS 2.
Exercise #3: Inter-domain Provisioning with OSCARS • In this exercise we will configure and use OSCARS to accomplish Inter. Domain provisioning. – – Design (and implement) the inter-domain Data plane Layout the inter-domain control plane Configure OSCARS for inter-domain Test
IDC - Web Service Based Definition • Four Primary Web Services Areas: • Topology Exchange, Resource Scheduling, Signaling, User Request
DCN Web Services • Web Service Definitions • wsdl - web service definition of message types and formats • xsd – definition of schemas used for network topology descriptions and path definitions • Ongoing work with OGF Working Group(s), Perf. Sonar, and GLIF with the goal to achieve interoperability amongst all groups.
Inter. Domain Specification Web Services • https: //wiki. internet 2. edu/confluence/display/C PD/OSCARS+Web+Service+Definition • Specification is defined by a Web Service Desciption Language (WSDL) document and XML Schema files containing associated data types. • OSCARS. wsdl - web service definition of OSCARS messages • OSCARS. xsd - data types used by OSCARS. wsdl • nmtopo-ctrlp. xsd - NMWG control plane topology schema used by OSCARS. xsd for topology-related data types
AAA and Security • OSCARS AAA • SSL Encryption • Authentication – X. 509 Certificates • User to Domain • Domain to Domain – Web Service Security by OASIS – SAML assertions about end-user (future) • Authorization – OSCARS attribute based system
DCN Control Plane uses OGF Topology Schema
Information Services Topology Service and Look. Up Service • Control Plane uses Information Services Topology Service and Look. Up Service • Look. Up Service – Provides a mapping from circuit end points to user friendly names • Topology Service – Provides an infrastructure from which to retrieve topologies from other domains – Will be utilized for global path computation
Information Services Topology Service and Look. Up Service
DCN Information Service Lookup Service
DCN Provisioning Web Page or API Web Page Based Provisioning Internet 2 IDC Web Service USER API java create. Reservation https: //dcn. internet 2. edu: axis 2/services/dcn reservation. properties
DCN – Circuit Status Description
DCN – Circuit Status Description
Requesting a circuit - Interfaces • Web User Interface (WBUI) – Java servlet interface used by OSCARS web page – Not intended for use by other applications • Web Service API – XML-based API intended for use by applications • e. g. Phoebus, Lambda. Station, Tera. Paths
Requesting a circuit – WS API • Used by applications to contact IDC • Authenticate using an X. 509 certificate – Generate with command-line tools – Have CA sign (Internet 2 has test CA) • Message format defined in DICE Control Plane group • Custom applications should use this interface
Additional Information • DCN Software Suite – https: //wiki. internet 2. edu/confluen ce/display/DCNSS/Home • Java Client API – https: //wiki. internet 2. edu/confluen ce/display/CPD/OSCARS+Client+Java +API
Workshop Details - end
DCN Control Plane Possible Future Features and Work Areas • Improved user documentation and software installation procedures • Improved reliability and redundancy of dynamic provisioning operations. (better automated logging and failure reporting, redundant control plane elements, automated interaction between control plane and monitoring systems and NOC operations) • Support for VLAN Translation across a multi-domain circuits • Support for SONET Client Access ports and Interdomain Links • Design for automated multi-domain topology exchange • Enhanced user request options (additional parameters and ability to ask questions without actually making a reservation) • Enabling other signaling methods, e. g. RSVP (as opposed to only Web Service method) • Continue work with international groups, standards bodies to formalize the IDC Inter. Domain Protocol to further increase interconnected global community for these services

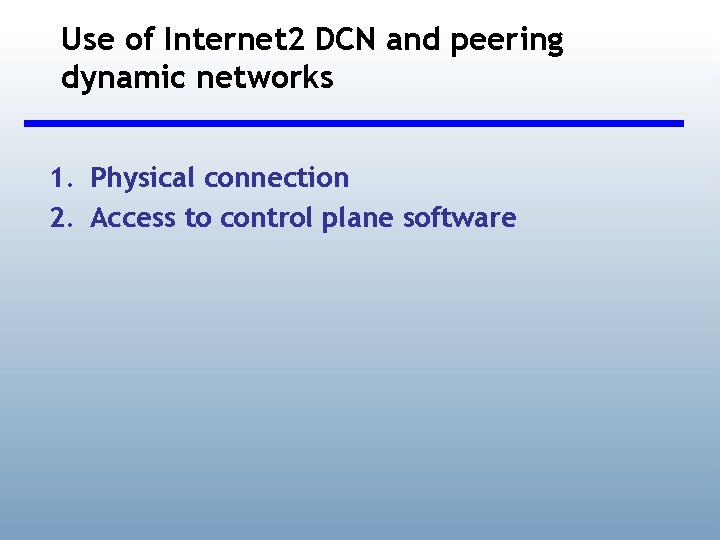

Use of Internet 2 DCN and peering dynamic networks 1. Physical connection 2. Access to control plane software
How do I connect? – Physical Connection • Internet 2 Connectors – Connect to Internet 2 DCN • Universities and campuses – Contact Internet 2 Connector
How do I connect? – Software Configuration • Option 1: No local IDC • Option 2: Install local IDC
How do I connect? – Software Configuration • Option 1: No local IDC – Statically configure your local network – Applications/Users can dynamically request circuits from the nearest IDC
How do I connect? – Software Configuration • Option 1: No local IDC
How do I connect? – Software Configuration • Option 2: Install local IDC
How do I request a circuit? Clients • User-initiated – OSCARS Web Page – Simple command-line tools • Program-initiated – Phoebus • Transparently request circuit upon data transfer initiation – Custom applications you build!
How do I request a circuit? Interfaces • Web User Interface (WBUI) – Java servlet interface used by OSCARS web page – Not intended for use by other applications • Web Service API – XML-based API intended for use by applications • E. g. Phoebus, Lambda. Station, Tera. Paths
How do I write my own DCN application? • Java library for making DCN calls • Can call simple command-line client directly from application • Google Summer of Code students will be developing PERL, C, and Python libraries
backup
VLSR (Virtual Label Switching Router) • GMPLS Proxy – (OSPF-TE, RSVP-TE) • Local control channel – CLI, TL 1, SNMP, others • Used primarily for ethernet switches • Provisioning requests via CLI, XML, or ASTB Web page XML Interface CLI Interface User API One NARB per Domain
DRAGON Virtual Label Switching Router (VLSR) – Control channels could also be provisioned out-of-band via GRE tunnels over an IP network IPsec is one of several mechanisms recommended for securing outof-band control channels provisioned over IP networks (RFC 3945)
DCN – Circuit Status Description
Laying Out the Control Plane • • • Lay out the data plane between NEs first. – – For now, we are going to ignore intervening static NEs. Make sure all Nes and links are uniquely labeled Then, control links connect the dynamic network elements If you are including end systems in the dynamic network, you should add them where appropriate S C 7 D 8 C 5 R 3 C 1 R 6 D 7 D 5 D 1 D 9 C 3 R 1 C 6 D 3 C 2 R 2 C 9 D 6 C 4 D 2 R 5 D 4 D R 4
Control Plane • • Often, the dynamic network elements are not directly adjacent to one another – but the control structure expects them to be (at least logically adjacent) We employ Generic Routing Encapsulation (GRE) tunnels for the control links in order to create logical adjacencies – – GRE Tunnels are set up between two IP hosts over the conventional internet interface. (these are the “tunnel endpoints”) They present a pseudo interface to the end host that appears to be directly linked to the remote endpoint, thus allowing a single common IP subnet to be allocated on this GRE (pseudo) interface. C 3 C 2 C 1 Data plane D 1 R 2 R 3 Control Link Endpoints GRE Tunnel Endpoints D 2 D 3 C 4 D 4
Generic Network Element Consider all of the components in a network element:
Case Study: Control Channels DRAGON Virtual Label Switching Router (VLSR) – Linux PC implements GMPLS control plane protocols – Control channels may be provisioned in-band or out-of-band One goal of DRAGON’s VLSR software is to provide GMPLS protocol support for devices which do not support GMPLS
Case Study: Control Channels DRAGON Virtual Label Switching Router (VLSR) – Assuming underlying network uses Ethernet VLANs, control channels may be provisioned in-band with static control VLANs In-band control channels are considered somewhat less vulnerable than out-of-band (RFC 3945)
Case Study: Control Channels DRAGON Virtual Label Switching Router (VLSR) – Control channels could also be provisioned out-of-band via GRE tunnels over an IP network IPsec is one of several mechanisms recommended for securing outof-band control channels provisioned over IP networks (RFC 3945)
Case Study: Control Channels Data plane Control Link Endpoints GRE Tunnel Endpoints

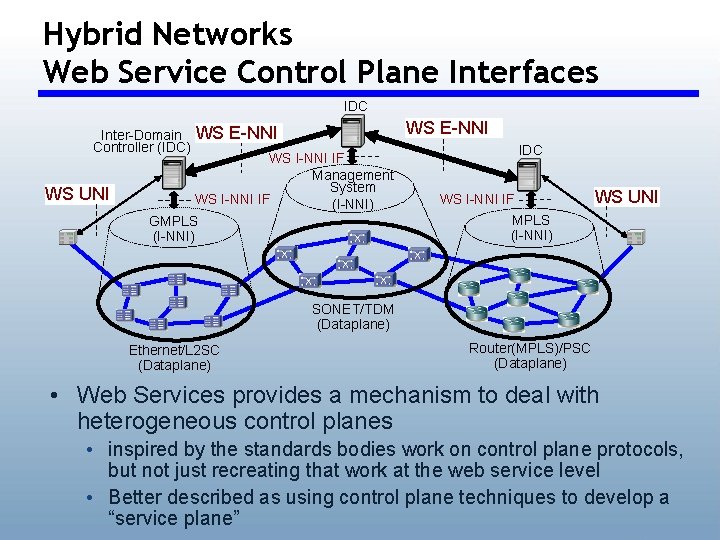

Hybrid Networks Web Service Control Plane Interfaces IDC Inter-Domain Controller (IDC) WS UNI WS E-NNI WS I-NNI IF Management System WS I-NNI IF (I-NNI) GMPLS (I-NNI) IDC WS I-NNI IF MPLS (I-NNI) WS UNI SONET/TDM (Dataplane) Ethernet/L 2 SC (Dataplane) Router(MPLS)/PSC (Dataplane) • Web Services provides a mechanism to deal with heterogeneous control planes • inspired by the standards bodies work on control plane protocols, but not just recreating that work at the web service level • Better described as using control plane techniques to develop a “service plane”
Hybrid Networks Control Plane Architecture • The benefits offered by Web Services include • standardized mechanisms for user authentication and policy management • flexible features for interfacing with a diverse set of I-NNI mechanisms • Allows focus on several issues that current control plane work has not addressed in a robust manner: • scalability, stability, security, flexible application of policy, AAA, scheduling • Will still allow for peering domains with compatible non web service E-NNI (i. e. GMPLS based) to utilize that as desired • a domain might peer with one domain at GMPLS level, and another at the Web Service level
Web Service based E-NNI Three Main Components • Routing – Topology Exchange – Domain Abstraction – Varying levels of dynamic information • Resource Scheduling – Multi-Domain path computation techniques – Resource identification, reservation, confirmation • Signaling – path setup, service instantiation
Key Control Plane Key Capabilities • Domain Summarization – Ability to generate abstract representations of your domain for making available to others – The type and amount of information (constraints) needed to be included in this abstraction requires discussion. – Ability to quickly update this representation based on provisioning actions and other changes • Multi-layer “Techniques” – Stitching: some network elements will need to map one layer into others, i. e. , multi-layer adaptation – In this context the layers are: PSC, L 2 SC, TDM, LSC, FSC – Hierarchical techniques. Provision a circuit at one layer, then treat it as a resource at another layer. (i. e. , Forward Adjacency concept) • Multi-Layer, Multi-Domain Path Computation Algorithms – Algorithms which allow processing on network graphs with multiple constraints – Coordination between per domain Path Computation Elements
OSCARS Architecture Customer Site External Peer End-Host Application Resource Manager User Web-Services Interface (Signed SOAP Messages) Link Reservations Bandwidth Scheduler Web-User Interface I-NNI Policy Authentication Authorization OSCARS Resource Manager Path Setup (MPLS) Path Setup (GMPLS) Topology
Integration Core Director Domain into the End-to-End Signaling VLSR uni -subnet i, un LSR upstream tl 1 un signaling flow data flow i, t l 1 LSR downstream Ciena Region CD_a • CD_z Signaling is performed in contiguous mode. • • • subnet signaling flow Single RSVP signaling session (main session) for end-to-end circuit. Subnet path is created via a separate RSVP-UNI session (subnet session), similar to using SNMP/CLI to create VLAN on an Ethernet switch. The simplest case: one VLSR covers the whole UNI subnet. • • • VLSR is both the source and destination UNI clients. This VLSR is control-plane ‘home VLSR’ for both CD_a and CD_z. UNI client is implemented as embedded module using KOM-RSVP API.
DRAGON enables integration of the Core Director Domain into Multi-Domain, Multi-Layer, Multi-Service, Multi-Vendor Provisioning Environment Domain Boundary VLSR uni-subnet 1 VLSR uni-subnet 2 Domain Boundary VLSR uni style control LSR upstream signaling flow data flow uni style control LSR downstream Ciena Region CD_a • CD_z Goal is to utilize Ciena Domain control plane and advanced features to maximum extent possible • • • subnet signaling flow advanced provisioning, management, monitoring, restoration and protection features applicable to single domain, single vendor Integrate these capabilities into the Multi-X environment
