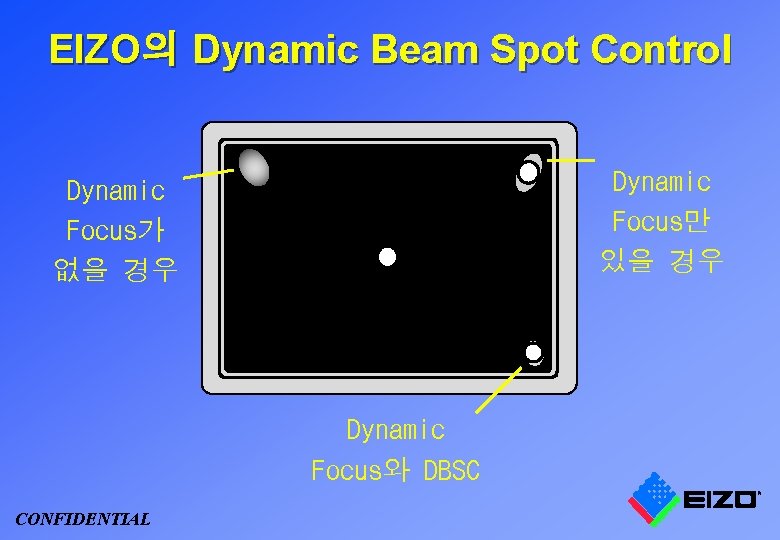

EIZO Dynamic Beam Spot Control Dynamic Focus Dynamic
EIZO의 Dynamic Beam Spot Control Dynamic Focus만 있을 경우 Dynamic Focus가 없을 경우 Dynamic Focus와 DBSC CONFIDENTIAL
TCO 95 vs. TCO 99 CONFIDENTIAL
Control Panel Auto-Sizing button BNC/D-SUB SW Quick. Set* Power SW control pad for Screen. Manager ¦ 현대적인 감각의 전면 판넬 디자인 ¦ EZIO만의 Screen. Manager Quick. Set 컨트롤 패드 ¦ 단 한번의 조작으로 화면크기 및 입력신호 자동선택 기능 CONFIDENTIAL
Screen. Manager ™ ¦ ¦ ¦ Quick. Set control pad를 이용한 손쉬운 조작 Colorful and Graphical Menu Icons 사용하기 쉬운 Windows 형식의 메뉴 아이콘 CONFIDENTIAL
Screen. Manager™ Pro for USB o Screen. Manager Pro S/W로 모니터를 제어 o 사용자가 조정한 스크린 이미지를 각각의 파일로 저장 CONFIDENTIAL
Maintenance Port 모니터 후면에 장치 RS 232 C를 이용한 Maintenance Port와 RS-232 C를 사용하여 통신 - Maintenance Port를 이용하여 Windows상에서 화면조 절* - A/S시 분해하지 않고 수리가능 * Screen Manager Pro S/W 필요(MAC/Windows version) - CONFIDENTIAL
USB Hub 제공 (F 67, T 760, T 961) o USB Rev. 1. 0 호환 o 1 Upstream Port, 4 Downstream Ports o Hot Plug-in o Screen. Manager™ Pro for USB 제공 o 윈도우상에서 스크린 콘트롤 Support CONFIDENTIAL
Further Expandability i. Sound * Unit (option) ¦ 모니터로 부터 직접 전원 공급. ¦ 모니터가 절전 모드로 들 어가면 스피커는 자동으 로 전원 차단(NETEK) ¦ 1 W per channel speakers ¦ 음량조절 ¦ Microphone 내장 ¦ Jack for headphones and headset CONFIDENTIAL
Further Expandability Non-Interference Shield (option) ¦ 모니터와 모니터 사이에서 발생하는 전자장의 간섭을 차단. ¦ Supplied as an option for the corporate users such as those in a dealing room system. CONFIDENTIAL

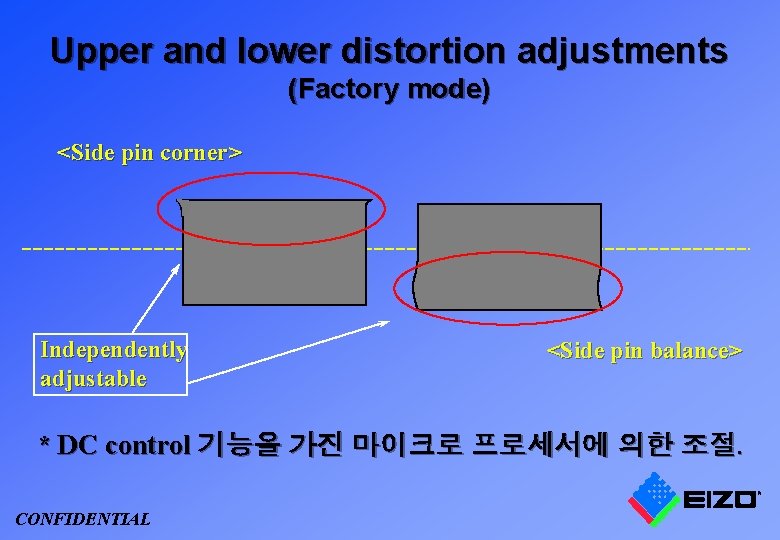

Upper and lower distortion adjustments (Factory mode) <Side pin corner> Independently adjustable <Side pin balance> * DC control 기능을 가진 마이크로 프로세서에 의한 조절. CONFIDENTIAL
EIZO Monitors (CRT) FS: Flat Square (Invar shadow mask) NF: Natural Flat Diamondtron (Mitsubishi) TK: Natural Flat Trinitron (SONY) CONFIDENTIAL
T 550 - 17인치 Flat AG CRT: Mitsubishi NF(완전평면) 0. 25 mm ¦Less power consumption ¦Less weight Better color reproduction ¦Fine Contrast function ¦ 4000 K – 10000 K supported Specification ¦f. H: up to 82 k. Hz CONFIDENTIAL

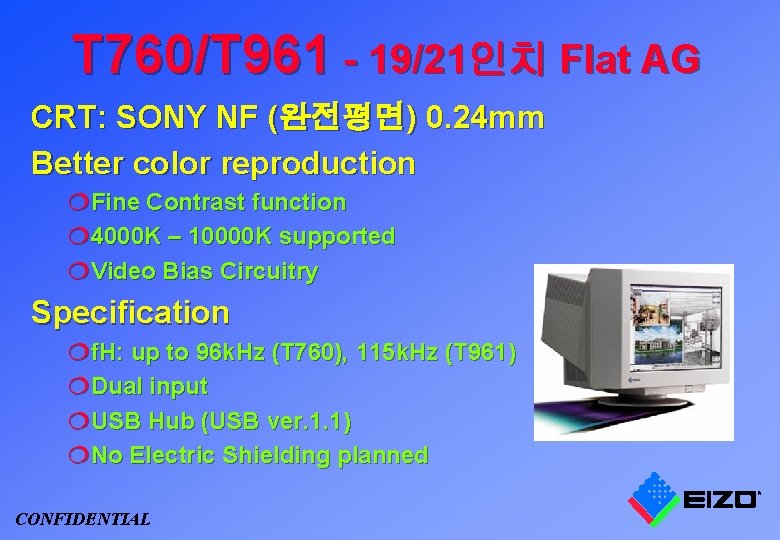

T 760/T 961 - 19/21인치 Flat AG CRT: SONY NF (완전평면) 0. 24 mm Better color reproduction ¦Fine Contrast function ¦ 4000 K – 10000 K supported ¦Video Bias Circuitry Specification ¦f. H: up to 96 k. Hz (T 760), 115 k. Hz (T 961) ¦Dual input ¦USB Hub (USB ver. 1. 1) ¦No Electric Shielding planned CONFIDENTIAL
F 67 - 19인치 FS New CRT & DY from Hitachi ¦Less power consumption ¦Reduced Components Specification ¦f. H: up to 96 k. Hz ¦Dual input ¦USB-Hub ¦Maintenance port ¦OSD multilingual support ¦Beep sound ¦NUTEK power saving ¦DSP CONFIDENTIAL
F 77 S - 21인치 FS New CRT & DY from Hitachi ¦Less power consumption ¦New spattering coat for reduced reflection glare Specification ¦f. H: up to 110 k. Hz for 1600× 1200@87 Hz ¦Features for better colour reproduction • Fine Contrast function, 4000 K – 10000 K supported, Reduced Warm-up period ¦Lower power consumption ¦DSP CONFIDENTIAL
FPD Monitors 15, 18. 1인치 LCD Monitor EIZO Update for TAEIL SYSTEMS Ltd. / Jan. 2000 CONFIDENTIAL EIZO NANAO CORPORATION, 2000
Common Features (L 350 / L 661 / L 680) Newly developed ASIC by EIZO ¦“Real” full screen mode • No black borders left SXGA XGA SVGA ¦Enlarged mode • Aspect ratio maintained • For 18” models only ¦Picture / text smoothing • User adjustable function ¦Enhanced Auto-Sizing function CONFIDENTIAL
Common Features (L 350 / L 661 / L 680) Simple structural design ¦Built-in PSU • No external PSU ¦VESA mounting system compatible ¦Good accessibility for cables • Standard VGA cable compatible ¦Removable stand base • By taking off screws CONFIDENTIAL Photo: L 350 Back Side
Common Features (L 350 / L 661 / L 680) i-Sound for LCD ¦Detachable speaker • • CONFIDENTIAL Easy, clip-on installation 2 W + 2 W stereo output Not applicable to L 350 Applicable to L 360

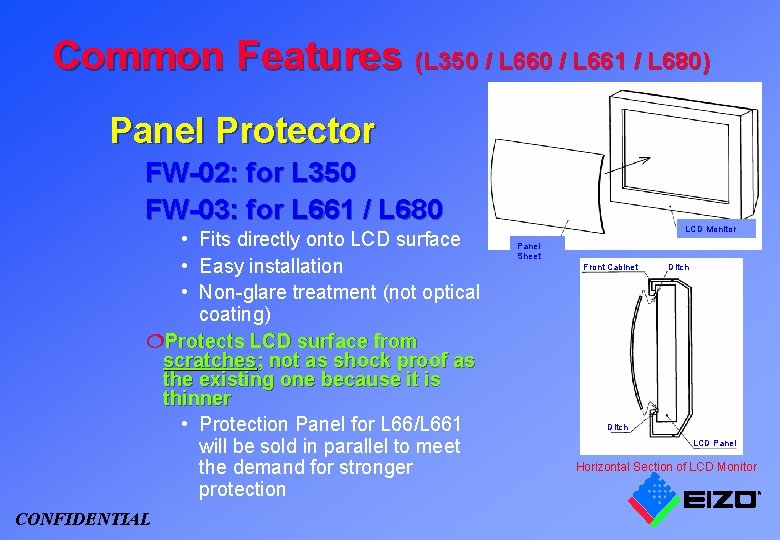

Common Features (L 350 / L 661 / L 680) Panel Protector FW-02: for L 350 FW-03: for L 661 / L 680 • Fits directly onto LCD surface • Easy installation • Non-glare treatment (not optical coating) ¦Protects LCD surface from scratches; not as shock proof as the existing one because it is thinner • Protection Panel for L 66/L 661 will be sold in parallel to meet the demand for stronger protection CONFIDENTIAL LCD Monitor Panel Sheet Front Cabinet Ditch LCD Panel Horizontal Section of LCD Monitor
New Models Summary (LCD) * Sharp panel product will be shipped when it is impossible to fulfill the demand only by Mitsubishi panel product alone. CONFIDENTIAL TN: Twisted Nematic + Retardation Film IPS: In-Plane Switching S-IPS: Super-IPS (Hitachi)

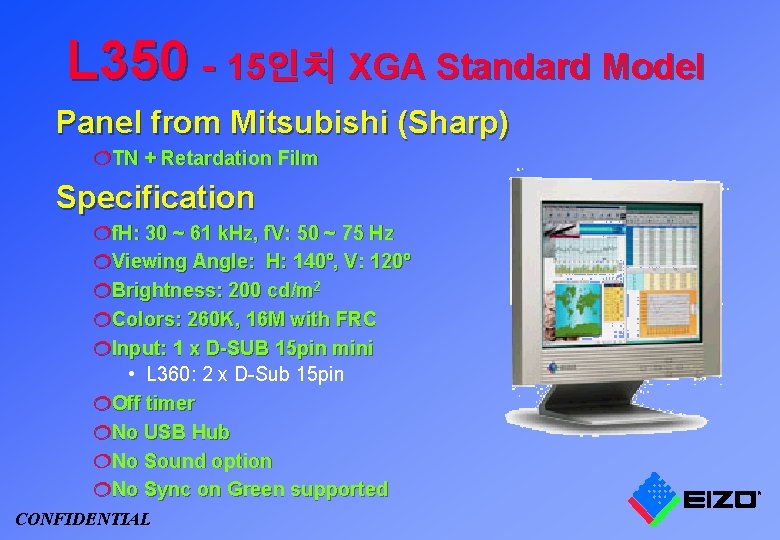

L 350 - 15인치 XGA Standard Model Panel from Mitsubishi (Sharp) ¦TN + Retardation Film Specification ¦f. H: 30 ~ 61 k. Hz, f. V: 50 ~ 75 Hz ¦Viewing Angle: H: 140º, V: 120º ¦Brightness: 200 cd/m 2 ¦Colors: 260 K, 16 M with FRC ¦Input: 1 x D-SUB 15 pin mini • L 360: 2 x D-Sub 15 pin ¦Off timer ¦No USB Hub ¦No Sound option ¦No Sync on Green supported CONFIDENTIAL
L 661 - 18인치 SXGA Models Panel from Sharp (L 661) ¦ TN + Retardation film Specification ¦ f. H: 30 ~ 82 k. Hz, f. V: 50 ~ 85 Hz ¦ Viewing Angle: H: 140º, V: 140º ¦ Brightness: 200 cd/m 2 ¦ Colors: 16 M colors ¦ USB Hub built-in ¦ Off Timer ¦ Sound option ¦ Sync on Green supported CONFIDENTIAL
L 680 Flagship in EIZO LCD products Brand-new "Super-IPS" panel from Hitachi ¦Very wide viewing angle & excellent color reproduction ¦Eizo is the first to use this panel in the market Functions are identical with L 660 / L 661 CONFIDENTIAL
