DCM for Time-Frequency 1. DCM for Induced Responses 2. DCM for Phase Coupling Bernadette

DCM for Time-Frequency 1. DCM for Induced Responses 2. DCM for Phase Coupling Bernadette van Wijk VU University Amsterdam, The Netherlands

Dynamic Causal Models Neurophysiological Phenomenological Phase spiny stellate cells Pyramidal Cells Electromagnetic forward model

Dynamic Causal Models Neurophysiological Phenomenological Phase spiny stellate cells Pyramidal Cells Electromagnetic forward model included • DCM for ERP • DCM for SSR Frequency inhibitory interneurons Time Source locations not optimized • DCM for Induced Responses • DCM for Phase Coupling

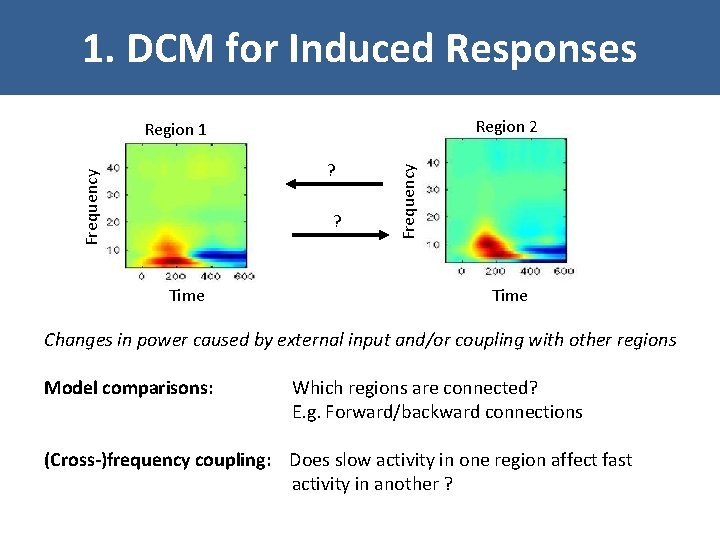

1. DCM for Induced Responses Region 2 Frequency ? ? Time Frequency Region 1

1. DCM for Induced Responses Region 2 Frequency ? ? Time Frequency Region 1 Time Changes in power caused by external input and/or coupling with other regions Model comparisons: Which regions are connected? E. g. Forward/backward connections (Cross-)frequency coupling: Does slow activity in one region affect fast activity in another ?

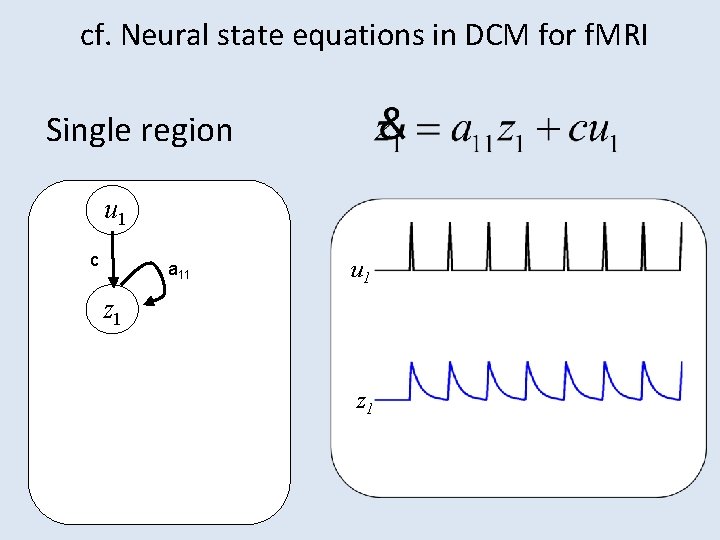

cf. Neural state equations in DCM for f. MRI Single region u 1 c

cf. Neural state equations in DCM for f. MRI Single region u 1 c a 11 z 1 u 2 z 1 z 2

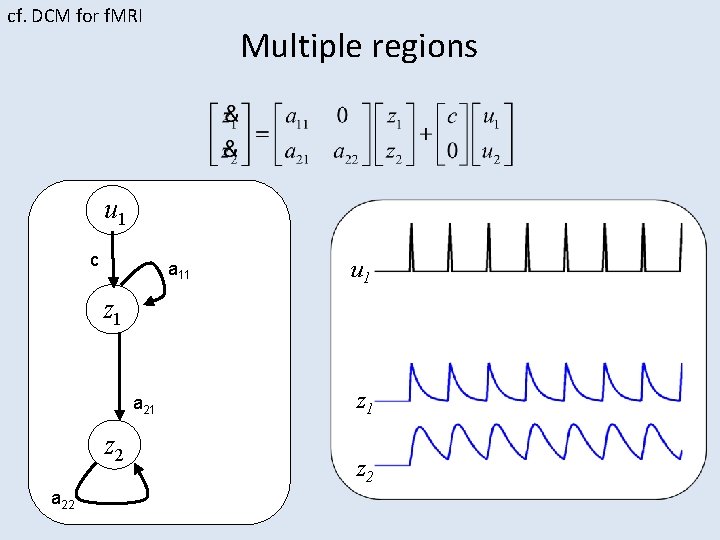

cf. DCM for f. MRI Multiple regions u 1 c a 11 z 1

cf. DCM for f. MRI Multiple regions u 1 c a 11 z 1 u 2 a 21 z 2 a 22 u 1 z 2

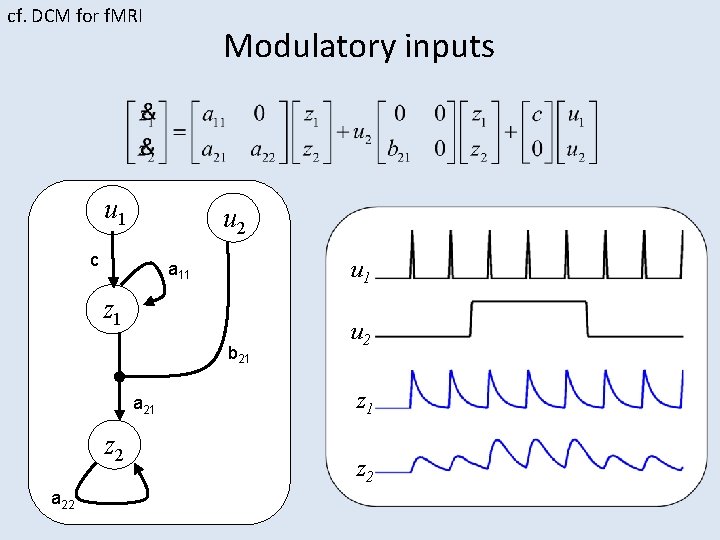

cf. DCM for f. MRI Modulatory inputs u 1 u 2 c u 1

cf. DCM for f. MRI Modulatory inputs u 1 u 2 c u 1 a 11 z 1 b 21 a 21 z 2 a 22 u 2 z 1 z 2

cf. DCM for f. MRI Reciprocal connections u 1 u 2 c u 1

cf. DCM for f. MRI Reciprocal connections u 1 u 2 c u 1 a 11 z 1 b 21 a 12 a 21 z 2 a 22 u 2 z 1 z 2

Frequency DCM for induced responses dg(t)/dt=A∙g(t)+C∙u(t) Time Where g(t) is a K x 1

Frequency DCM for induced responses dg(t)/dt=A∙g(t)+C∙u(t) Time Where g(t) is a K x 1 vector of spectral responses A is a K x K matrix of frequency coupling parameters Also allow A to be changed by experimental condition

Frequency Use of Frequency Modes G=USV’ Time Where G is a K x T

Frequency Use of Frequency Modes G=USV’ Time Where G is a K x T spectrogram U is K x K’ matrix with K frequency modes V is K x T and contains spectral mode responses over time Hence A is only K’ x K’, not K x K

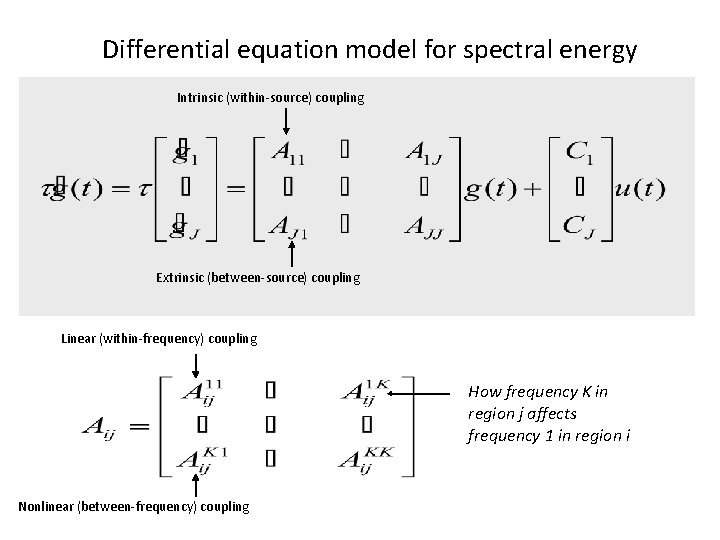

Differential equation model for spectral energy Intrinsic (within-source) coupling Extrinsic (between-source) coupling Linear (within-frequency)

Differential equation model for spectral energy Intrinsic (within-source) coupling Extrinsic (between-source) coupling Linear (within-frequency) coupling How frequency K in region j affects frequency 1 in region i Nonlinear (between-frequency) coupling

Modulatory connections Intrinsic (within-source) coupling Extrinsic (between-source) coupling

Modulatory connections Intrinsic (within-source) coupling Extrinsic (between-source) coupling

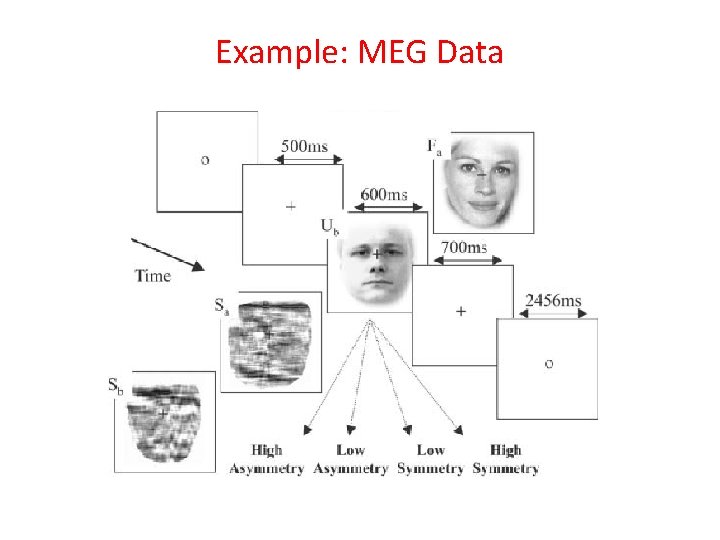

Example: MEG Data

Example: MEG Data

The “core” system FFA OFA input

The “core” system FFA OFA input

Face selective effects modulate within hemisphere forward and backward cxs linear nonlinear Backward Forward

Face selective effects modulate within hemisphere forward and backward cxs linear nonlinear Backward Forward linear nonlinear F L BL F NB L F L NB F NB N F L BL F NB L nonlinear (and linear) linear F L BN F NB N FFA FFA OFA OFA Input

Model Inference Winning model: FNBN Both forward and backward connections are nonlinear FLBL FNBL

Model Inference Winning model: FNBN Both forward and backward connections are nonlinear FLBL FNBL FLBN *FNBN 0 1000 0 -10000 -20000 -16308 -16306 -11895 -2000 -30000 -40000 -5000 -6000 -50000 -7000 -60000 -70000 backward linear backward nonlinear -59890 -8000 forward linear forward nonlinear

Parameter Inference: gamma affects alpha Right backward - inhibitory suppressive effect of gamma-alpha coupling

Parameter Inference: gamma affects alpha Right backward - inhibitory suppressive effect of gamma-alpha coupling in backward connections SPM t df 72; FWHM 7. 8 x 6. 5 Hz 12 20 44 28 36 28 20 Frequency (Hz) 12 4 36 4 To 10 Hz Left forward - excitatory - activating effect of gamma-alpha coupling in the forward connections 44 From 30 Hz From 32 Hz (gamma) to 10 Hz (alpha) t = 4. 72; p = 0. 002

2. DCM for Phase Coupling Region 2 Region 1 ? ? Synchronization achieved by

2. DCM for Phase Coupling Region 2 Region 1 ? ? Synchronization achieved by phase coupling between regions Model comparisons: Which regions are connected? E. g. ‘master-slave’/mutual connections Parameter inference: (frequency-dependent) coupling values

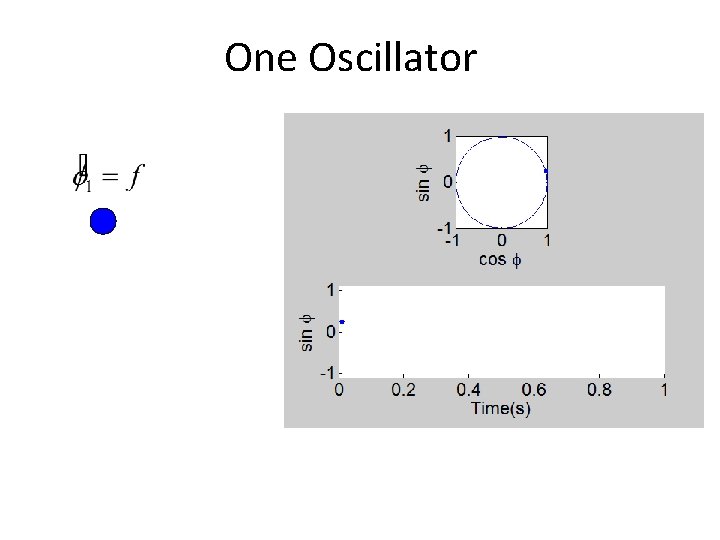

One Oscillator

One Oscillator

Two Oscillators

Two Oscillators

Two Coupled Oscillators 0. 3

Two Coupled Oscillators 0. 3

Different initial phases 0. 3

Different initial phases 0. 3

Stronger coupling 0. 6

Stronger coupling 0. 6

Bidirectional coupling 0. 3

Bidirectional coupling 0. 3

DCM for Phase Coupling Allow connections to depend on experimental condition Phase interaction function

DCM for Phase Coupling Allow connections to depend on experimental condition Phase interaction function is an arbitrary order Fourier series

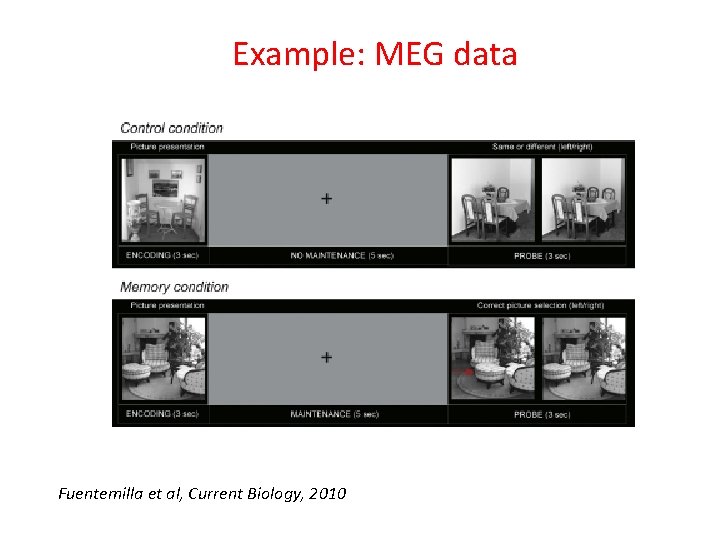

Example: MEG data Fuentemilla et al, Current Biology, 2010

Example: MEG data Fuentemilla et al, Current Biology, 2010

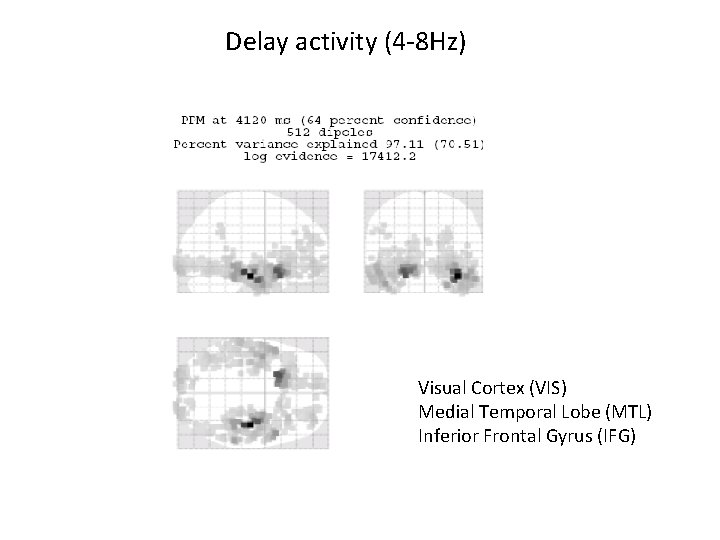

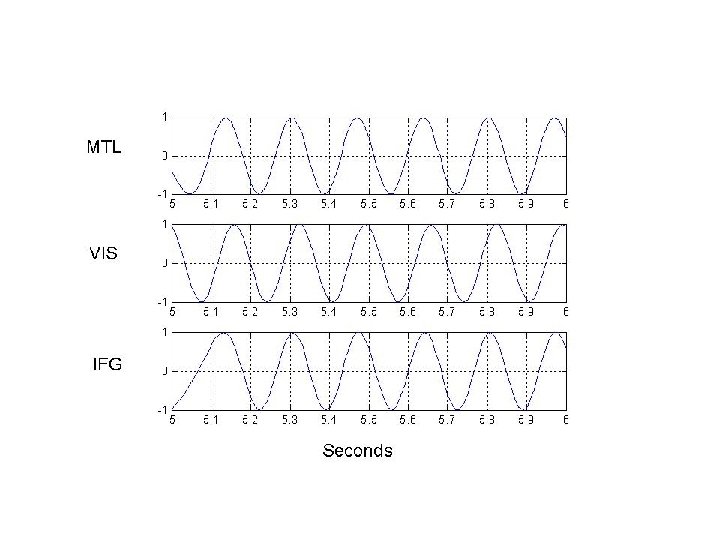

Delay activity (4 -8 Hz) Visual Cortex (VIS) Medial Temporal Lobe (MTL) Inferior Frontal

Delay activity (4 -8 Hz) Visual Cortex (VIS) Medial Temporal Lobe (MTL) Inferior Frontal Gyrus (IFG)

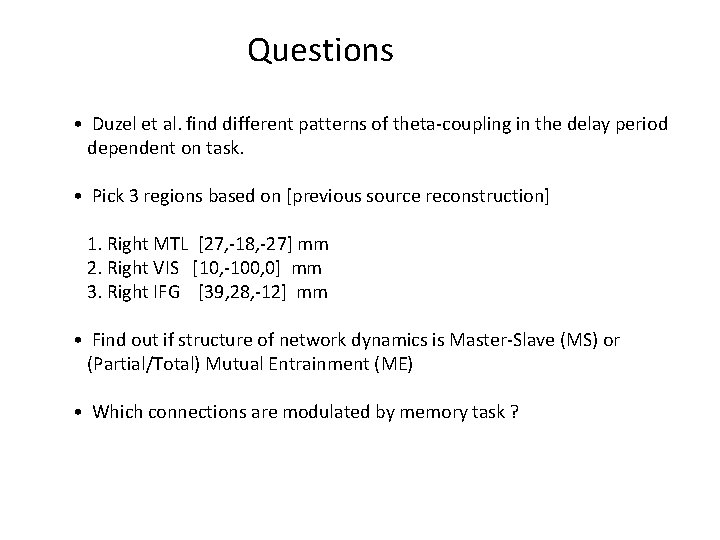

Questions • Duzel et al. find different patterns of theta-coupling in the delay period

Questions • Duzel et al. find different patterns of theta-coupling in the delay period dependent on task. • Pick 3 regions based on [previous source reconstruction] 1. Right MTL [27, -18, -27] mm 2. Right VIS [10, -100, 0] mm 3. Right IFG [39, 28, -12] mm • Find out if structure of network dynamics is Master-Slave (MS) or (Partial/Total) Mutual Entrainment (ME) • Which connections are modulated by memory task ?

MTL Master. Slave 1 IFG VIS Master VIS 3 IFG Partial Mutual Entrainment VIS

MTL Master. Slave 1 IFG VIS Master VIS 3 IFG Partial Mutual Entrainment VIS 5 IFG MTL 2 IFG Master IFG VIS 4 IFG MTL Total Mutual Entrainment MTL VIS MTL 6 IFG VIS MTL 7 IFG VIS

Analysis • Source reconstruct activity in areas of interest (with fewer sources than sensors

Analysis • Source reconstruct activity in areas of interest (with fewer sources than sensors and known location, then pinv will do; Baillet 01) • Bandpass data into frequency range of interest • Hilbert transform data to obtain instantaneous phase • Use multiple trials per experimental condition • Model inversion

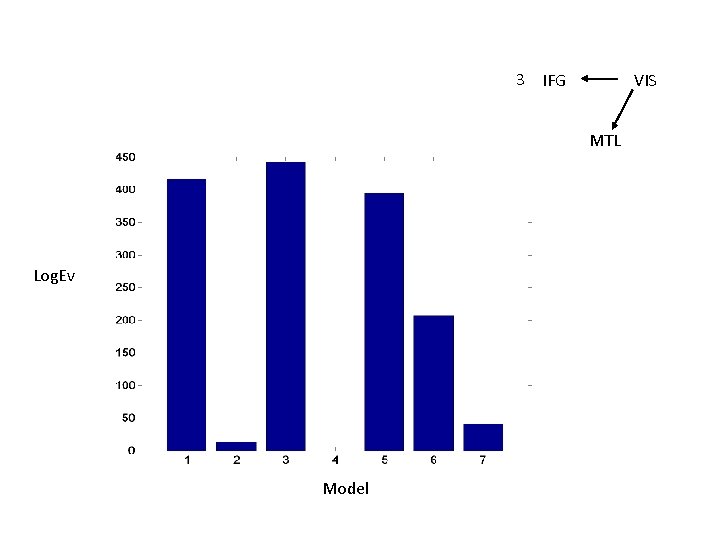

3 IFG VIS MTL Log. Ev Model

3 IFG VIS MTL Log. Ev Model

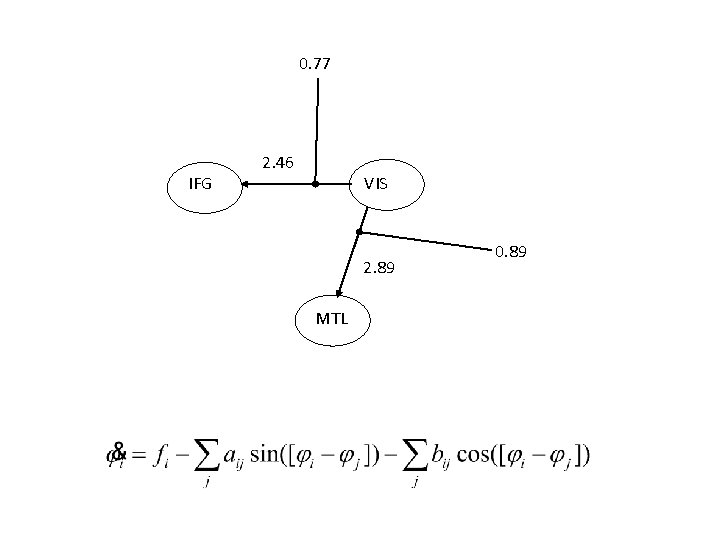

0. 77 IFG 2. 46 VIS 2. 89 MTL 0. 89

0. 77 IFG 2. 46 VIS 2. 89 MTL 0. 89

f. IFG-f. VIS Control f. MTL-f. VIS

f. IFG-f. VIS Control f. MTL-f. VIS

f. IFG-f. VIS Memory f. MTL-f. VIS

f. IFG-f. VIS Memory f. MTL-f. VIS

Recordings from rats doing spatial memory task: Jones and Wilson, PLo. S B, 2005

Recordings from rats doing spatial memory task: Jones and Wilson, PLo. S B, 2005

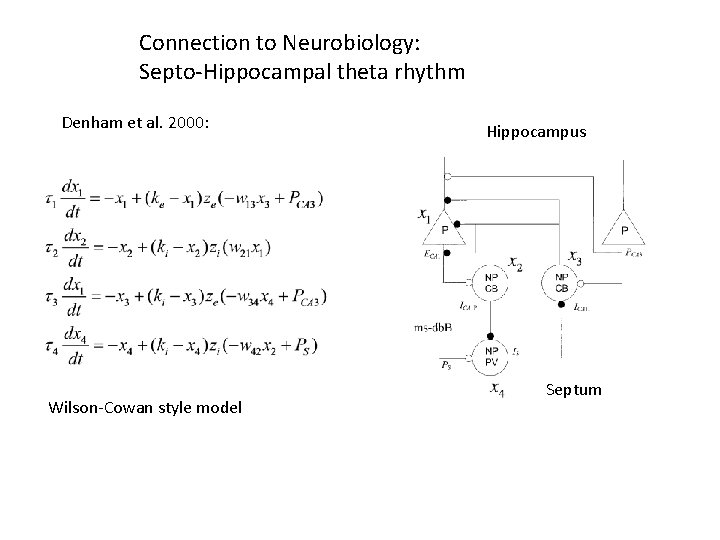

Connection to Neurobiology: Septo-Hippocampal theta rhythm Denham et al. 2000: Wilson-Cowan style model Hippocampus

Connection to Neurobiology: Septo-Hippocampal theta rhythm Denham et al. 2000: Wilson-Cowan style model Hippocampus Septum

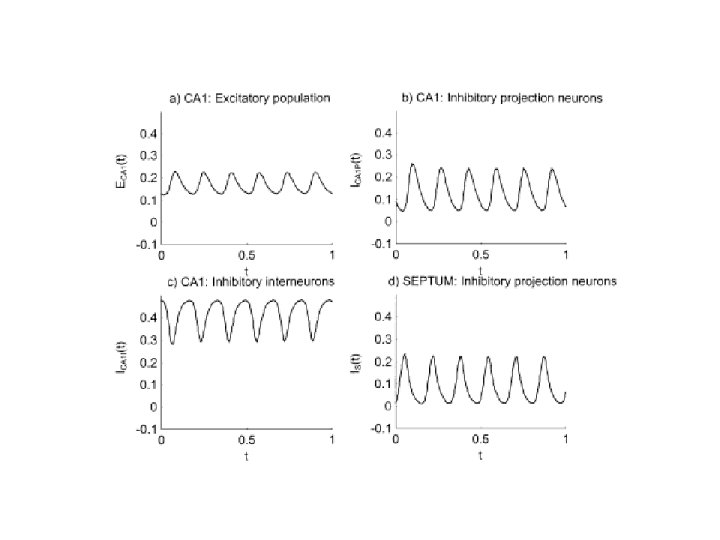

Four-dimensional state space

Four-dimensional state space

Hopf Bifurcation Hippocampus A B Septum A B

Hopf Bifurcation Hippocampus A B Septum A B

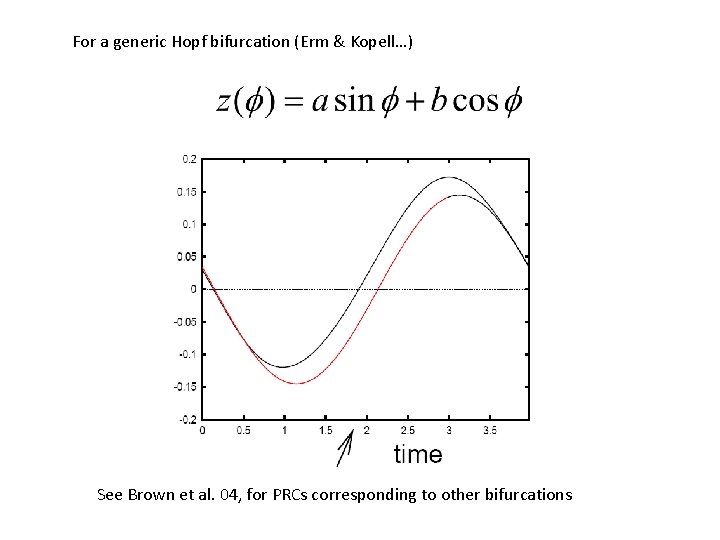

For a generic Hopf bifurcation (Erm & Kopell…) See Brown et al. 04, for

For a generic Hopf bifurcation (Erm & Kopell…) See Brown et al. 04, for PRCs corresponding to other bifurcations

Connection to Neural Mass Models First and Second order Volterra kernels From Neural Mass

Connection to Neural Mass Models First and Second order Volterra kernels From Neural Mass model. Strong (saturating) input leads to cross-frequency coupling
