DCM 305 E Earth Leakage Clamp Meter Ian

DCM 305 E Earth Leakage Clamp Meter Ian Bensted Applications Engineer ian. bensted@megger. com 1

DCM 305 E Earth Leakage Clamp n n n n n 2 0. 001 m. A resolution Up to 100 A AC TRMS reading Low pass filter to aid stability of readings Auto, data & peak hold Compare feature 40 mm jaw Auto back light Auto power off (switchable)

DCM 305 E TRMS Current Ranges n n 3 6 m. A, 600 m. A, 60 A, 100 A (AC) Manual or Auto ranging 0. 001 m. A resolution (6 m. A range) TRMS meters allow accurate measurements on both pure, undistorted, sinusoidal AC waveforms and non-sinusoidal AC waveforms which can contain triangles, pulse trains and other ragged waves

DCM 305 E Power On / Battery Check Power On 4 n Display of battery condition at switch on n Full battery = 100 % n Battery replacement = 1 %

DCM 305 E Display Hold Features Hold Selection 5 n n Data Hold Freezes display readings Auto Hold Automatically freezes display readings n Peak Hold n Maintains highest current reading

DCM 305 E Low Pass Filter Cut-off frequency Mains Supply Frequency 6 Unwanted (Harmonic) Frequencies n Wide response (all frequencies) n 50 -60 Hz response (low pass filter) n Low pass filters pass frequencies lower than cut-off frequency and attenuate frequencies above the cut-off frequency n Filters out high frequency harmonics to enable stable measurements n Cut-off frequency 100 Hz n Attenuation characteristic -24 d. B / octave

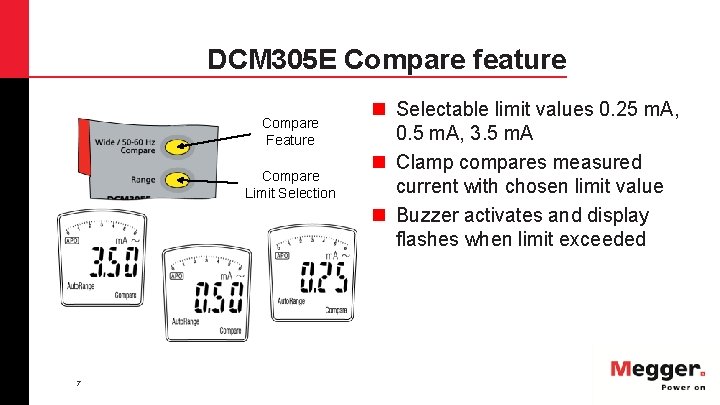

DCM 305 E Compare feature Compare Feature Compare Limit Selection 7 n Selectable limit values 0. 25 m. A, 0. 5 m. A, 3. 5 m. A n Clamp compares measured current with chosen limit value n Buzzer activates and display flashes when limit exceeded

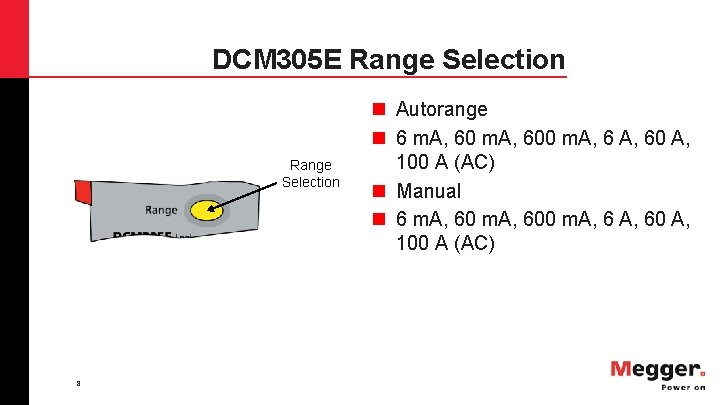

DCM 305 E Range Selection 8 n Autorange n 6 m. A, 600 m. A, 60 A, 100 A (AC) n Manual n 6 m. A, 600 m. A, 60 A, 100 A (AC)

DCM 305 E Auto Back Light Backlight Sensor 9 n Auto backlight sensor illuminates display automatically in very poorly illuminated locations

DCM 305 E Single Phase Earth Leakage Phase Neutral 10 n Phase & Neutral conductors

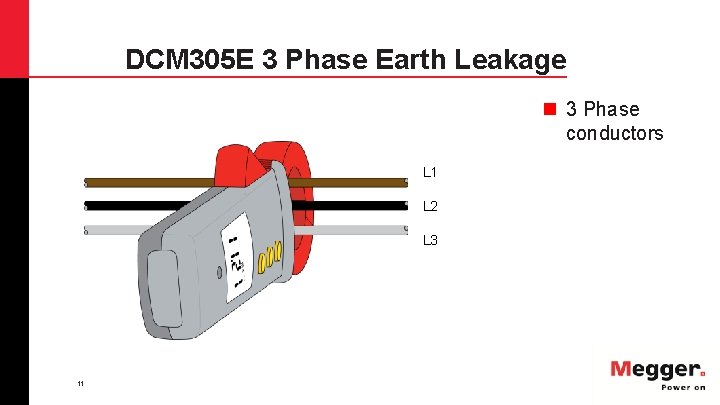

DCM 305 E 3 Phase Earth Leakage n 3 Phase conductors L 1 L 2 L 3 11

DCM 305 E 3 Phase + Neutral Earth Leakage n 3 Phase & Neutral conductors L 1 L 2 L 3 N 12

DCM 305 E Earth Conductor Earth Leakage Earth / Ground Conductor 13 n Earth conductor n Will only measure leakage in earth conductor not entire installation

DCM 305 E Load Current n Phase conductor only Neutral Phase 14
