CATTEDRA DI CHIRURGIA PEDIATRICA UNIVERSITA’ DEGLI STUDI “G. D’ANNUNZIO” CHIETI-PESCARA ANOMALIE DI DISCESA DEL TESTICOLO N. Pappalepore Lanciano 25. 11. 2006

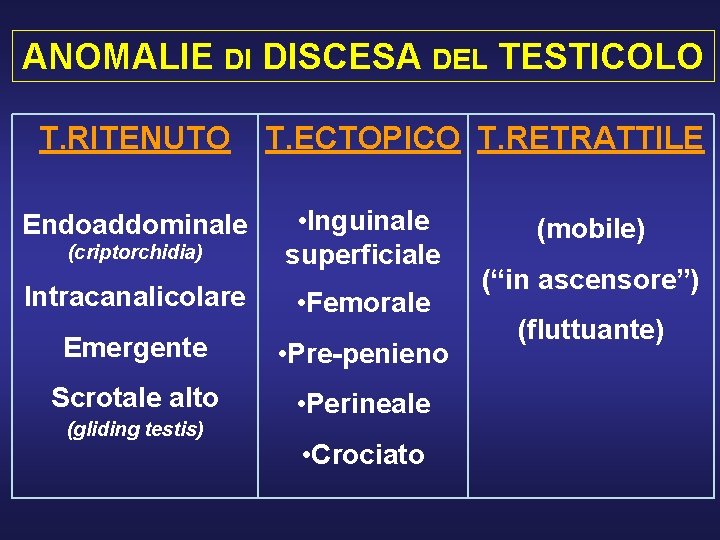

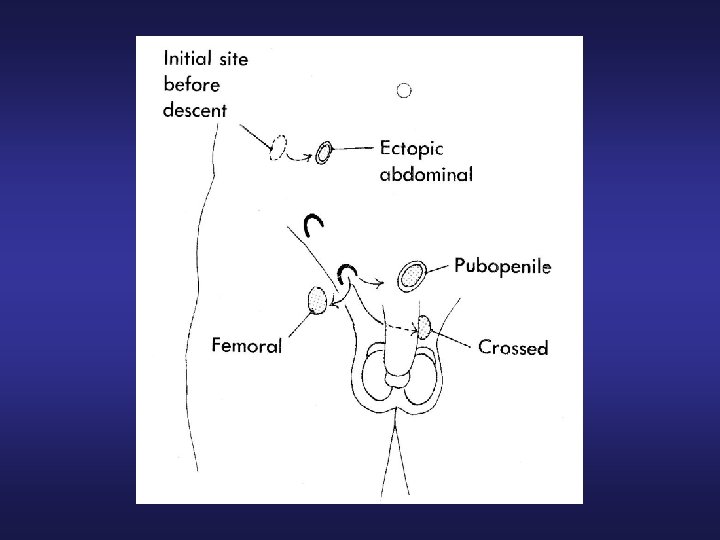

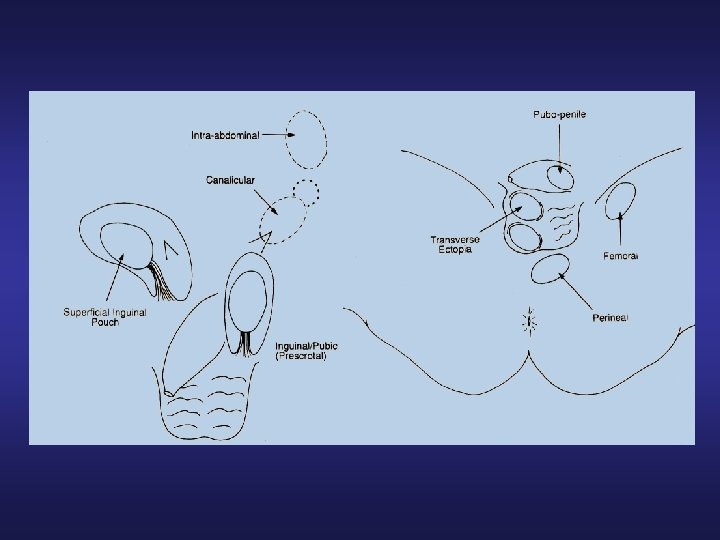

ANOMALIE DI DISCESA DEL TESTICOLO T. RITENUTO T. ECTOPICO T. RETRATTILE (criptorchidia) • Inguinale superficiale Intracanalicolare • Femorale Endoaddominale Emergente • Pre-penieno Scrotale alto • Perineale (gliding testis) • Crociato (mobile) (“in ascensore”) (fluttuante)

TESTICOLO RITENUTO EMERGENTE

TESTICOLO ECTOPICO PERINEALE

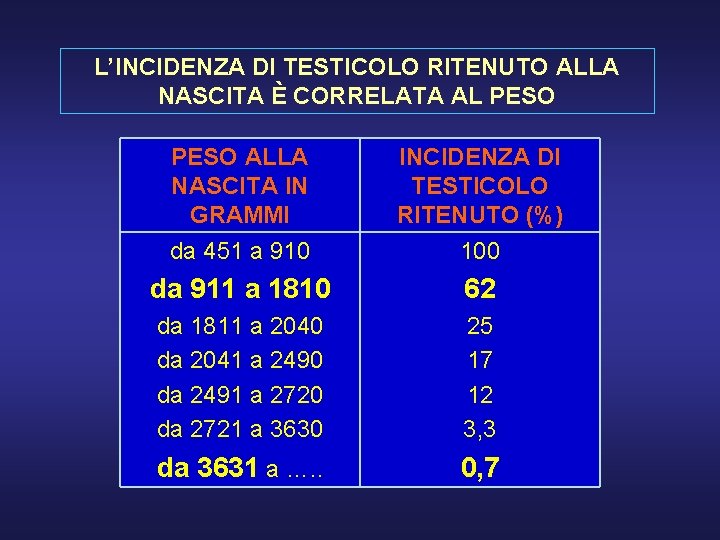

L’INCIDENZA DI TESTICOLO RITENUTO ALLA NASCITA È CORRELATA AL PESO ALLA NASCITA IN GRAMMI INCIDENZA DI TESTICOLO RITENUTO (%) da 451 a 910 100 da 911 a 1810 62 da 1811 a 2040 da 2041 a 2490 da 2491 a 2720 da 2721 a 3630 25 17 12 3, 3 da 3631 a …. . 0, 7

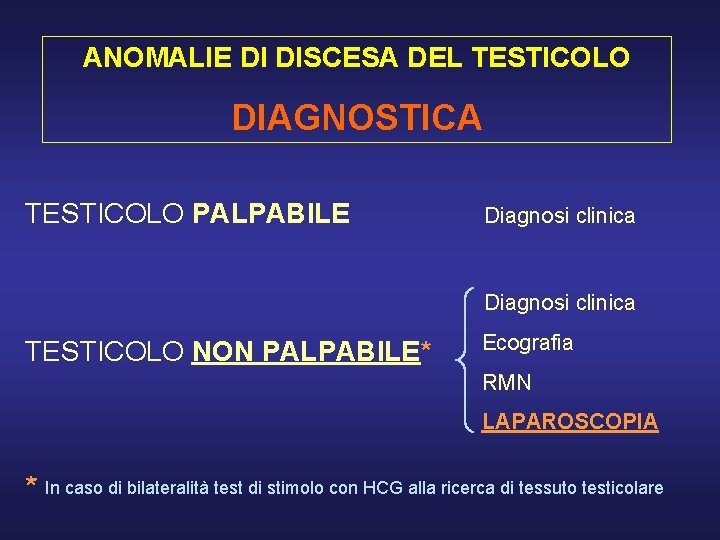

ANOMALIE DI DISCESA DEL TESTICOLO DIAGNOSTICA TESTICOLO PALPABILE Diagnosi clinica TESTICOLO NON PALPABILE* Ecografia RMN LAPAROSCOPIA * In caso di bilateralità test di stimolo con HCG alla ricerca di tessuto testicolare

Testicolo endoscrotale Testicolo endocanalicolare Test. Endoaddominale alto Testicolo all’anello ing. Int. Vanishing testis

ANOMALIE DI DISCESA DEL TESTICOLO QUALE TRATTAMENTO ?

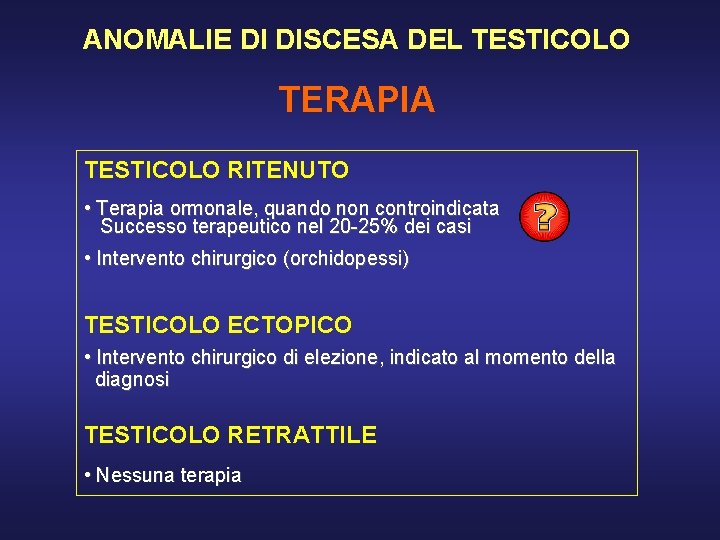

ANOMALIE DI DISCESA DEL TESTICOLO TERAPIA TESTICOLO RITENUTO • Terapia ormonale, quando non controindicata Successo terapeutico nel 20 -25% dei casi • Intervento chirurgico (orchidopessi) TESTICOLO ECTOPICO • Intervento chirurgico di elezione, indicato al momento della diagnosi TESTICOLO RETRATTILE • Nessuna terapia

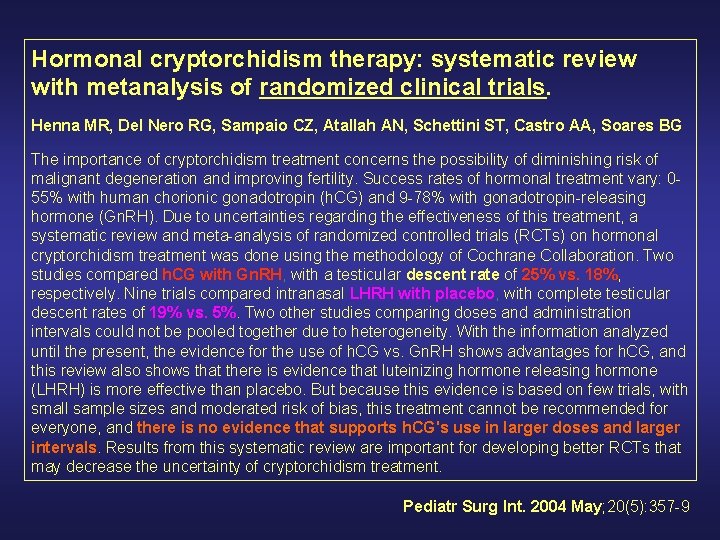

Hormonal cryptorchidism therapy: systematic review with metanalysis of randomized clinical trials. Henna MR, Del Nero RG, Sampaio CZ, Atallah AN, Schettini ST, Castro AA, Soares BG The importance of cryptorchidism treatment concerns the possibility of diminishing risk of malignant degeneration and improving fertility. Success rates of hormonal treatment vary: 055% with human chorionic gonadotropin (h. CG) and 9 -78% with gonadotropin-releasing hormone (Gn. RH). Due to uncertainties regarding the effectiveness of this treatment, a systematic review and meta-analysis of randomized controlled trials (RCTs) on hormonal cryptorchidism treatment was done using the methodology of Cochrane Collaboration. Two studies compared h. CG with Gn. RH, with a testicular descent rate of 25% vs. 18%, respectively. Nine trials compared intranasal LHRH with placebo, with complete testicular descent rates of 19% vs. 5%. Two other studies comparing doses and administration intervals could not be pooled together due to heterogeneity. With the information analyzed until the present, the evidence for the use of h. CG vs. Gn. RH shows advantages for h. CG, and this review also shows that there is evidence that luteinizing hormone releasing hormone (LHRH) is more effective than placebo. But because this evidence is based on few trials, with small sample sizes and moderated risk of bias, this treatment cannot be recommended for everyone, and there is no evidence that supports h. CG's use in larger doses and larger intervals. Results from this systematic review are important for developing better RCTs that may decrease the uncertainty of cryptorchidism treatment. Pediatr Surg Int. 2004 May; 20(5): 357 -9

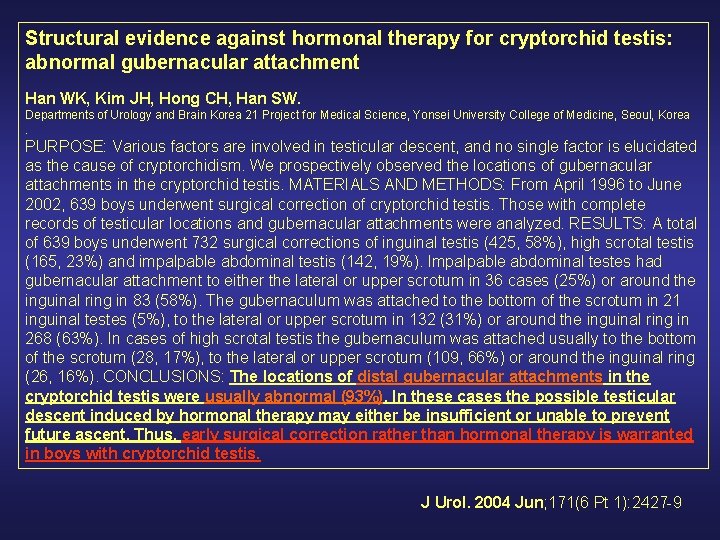

Structural evidence against hormonal therapy for cryptorchid testis: abnormal gubernacular attachment Han WK, Kim JH, Hong CH, Han SW. Departments of Urology and Brain Korea 21 Project for Medical Science, Yonsei University College of Medicine, Seoul, Korea. PURPOSE: Various factors are involved in testicular descent, and no single factor is elucidated as the cause of cryptorchidism. We prospectively observed the locations of gubernacular attachments in the cryptorchid testis. MATERIALS AND METHODS: From April 1996 to June 2002, 639 boys underwent surgical correction of cryptorchid testis. Those with complete records of testicular locations and gubernacular attachments were analyzed. RESULTS: A total of 639 boys underwent 732 surgical corrections of inguinal testis (425, 58%), high scrotal testis (165, 23%) and impalpable abdominal testis (142, 19%). Impalpable abdominal testes had gubernacular attachment to either the lateral or upper scrotum in 36 cases (25%) or around the inguinal ring in 83 (58%). The gubernaculum was attached to the bottom of the scrotum in 21 inguinal testes (5%), to the lateral or upper scrotum in 132 (31%) or around the inguinal ring in 268 (63%). In cases of high scrotal testis the gubernaculum was attached usually to the bottom of the scrotum (28, 17%), to the lateral or upper scrotum (109, 66%) or around the inguinal ring (26, 16%). CONCLUSIONS: The locations of distal gubernacular attachments in the cryptorchid testis were usually abnormal (93%). In these cases the possible testicular descent induced by hormonal therapy may either be insufficient or unable to prevent future ascent. Thus, early surgical correction rather than hormonal therapy is warranted in boys with cryptorchid testis. J Urol. 2004 Jun; 171(6 Pt 1): 2427 -9

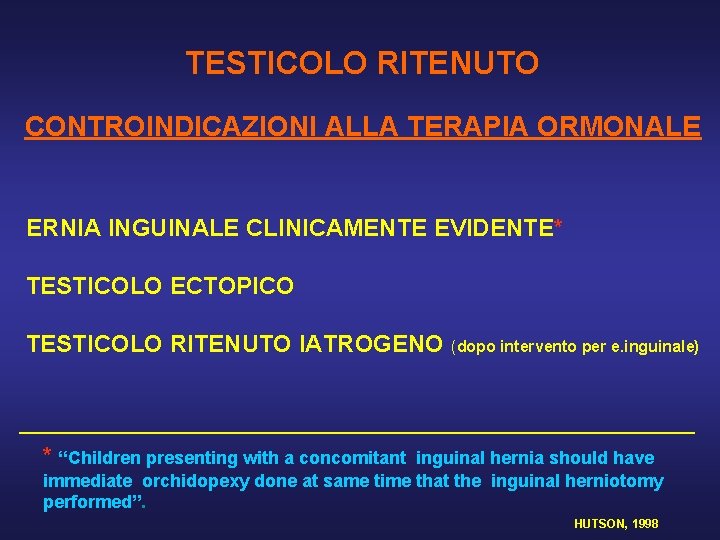

TESTICOLO RITENUTO CONTROINDICAZIONI ALLA TERAPIA ORMONALE ERNIA INGUINALE CLINICAMENTE EVIDENTE* TESTICOLO ECTOPICO TESTICOLO RITENUTO IATROGENO (dopo intervento per e. inguinale) ______________________________________ * “Children presenting with a concomitant inguinal hernia should have immediate orchidopexy done at same time that the inguinal herniotomy performed”. HUTSON, 1998

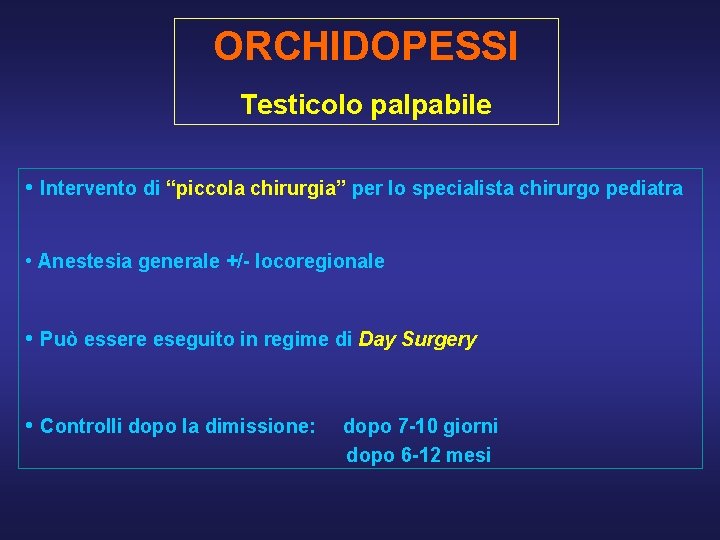

ORCHIDOPESSI Testicolo palpabile • Intervento di “piccola chirurgia” per lo specialista chirurgo pediatra • Anestesia generale +/- locoregionale • Può essere eseguito in regime di Day Surgery • Controlli dopo la dimissione: dopo 7 -10 giorni dopo 6 -12 mesi

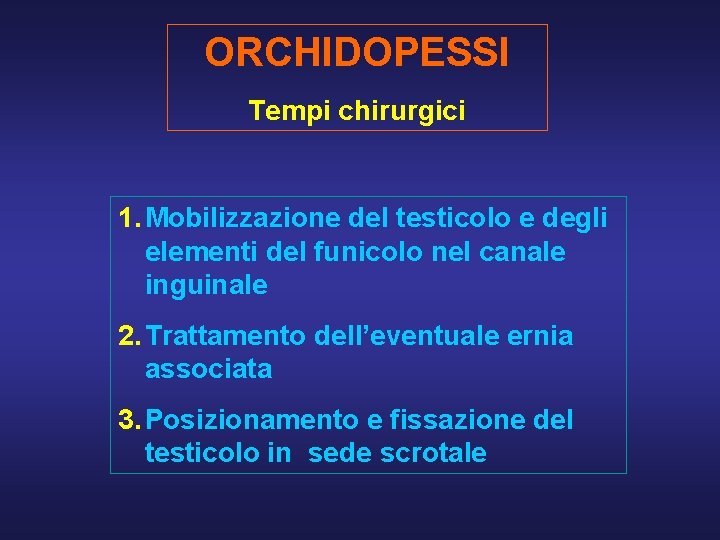

ORCHIDOPESSI Tempi chirurgici 1. Mobilizzazione del testicolo e degli elementi del funicolo nel canale inguinale 2. Trattamento dell’eventuale ernia associata 3. Posizionamento e fissazione del testicolo in sede scrotale

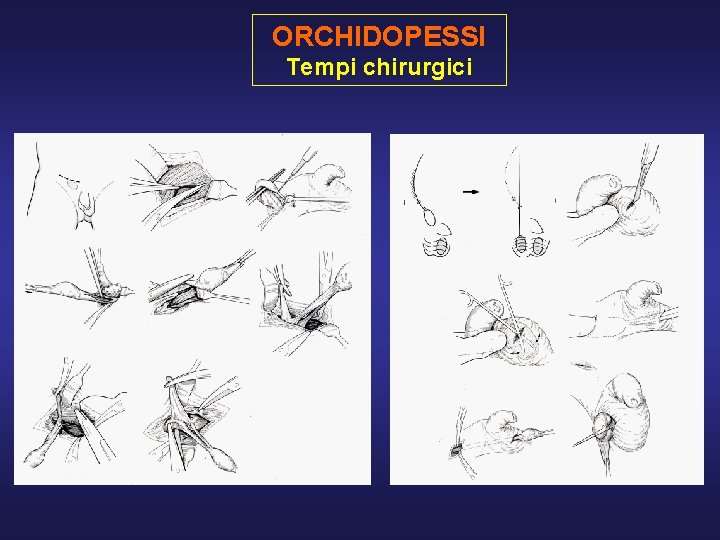

ORCHIDOPESSI Tempi chirurgici

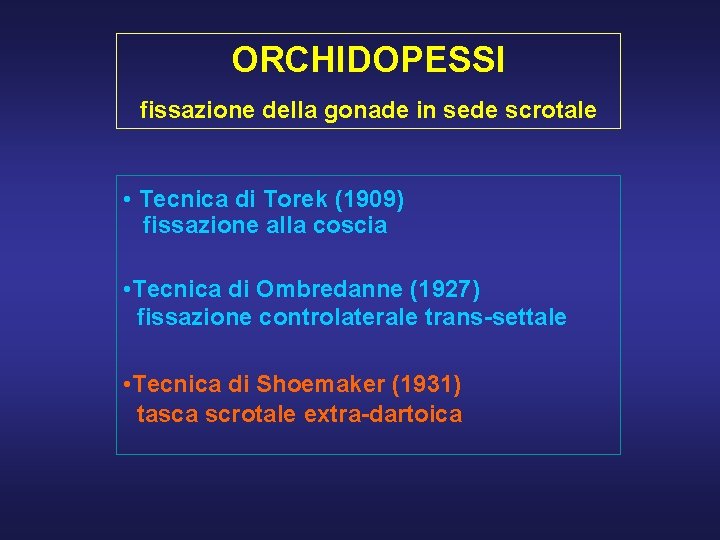

ORCHIDOPESSI fissazione della gonade in sede scrotale • Tecnica di Torek (1909) fissazione alla coscia • Tecnica di Ombredanne (1927) fissazione controlaterale trans-settale • Tecnica di Shoemaker (1931) tasca scrotale extra-dartoica

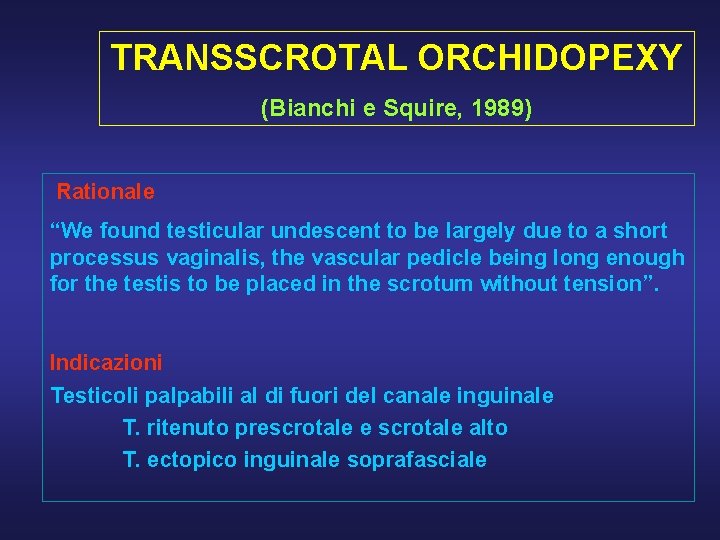

TRANSSCROTAL ORCHIDOPEXY (Bianchi e Squire, 1989) Rationale “We found testicular undescent to be largely due to a short processus vaginalis, the vascular pedicle being long enough for the testis to be placed in the scrotum without tension”. Indicazioni Testicoli palpabili al di fuori del canale inguinale T. ritenuto prescrotale e scrotale alto T. ectopico inguinale soprafasciale

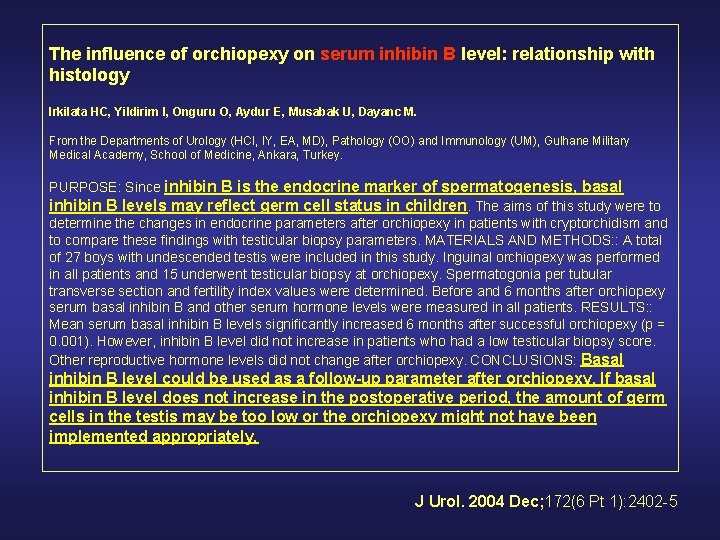

The influence of orchiopexy on serum inhibin B level: relationship with histology Irkilata HC, Yildirim I, Onguru O, Aydur E, Musabak U, Dayanc M. From the Departments of Urology (HCI, IY, EA, MD), Pathology (OO) and Immunology (UM), Gulhane Military Medical Academy, School of Medicine, Ankara, Turkey. PURPOSE: Since inhibin B is the endocrine marker of spermatogenesis, basal inhibin B levels may reflect germ cell status in children. The aims of this study were to determine the changes in endocrine parameters after orchiopexy in patients with cryptorchidism and to compare these findings with testicular biopsy parameters. MATERIALS AND METHODS: : A total of 27 boys with undescended testis were included in this study. Inguinal orchiopexy was performed in all patients and 15 underwent testicular biopsy at orchiopexy. Spermatogonia per tubular transverse section and fertility index values were determined. Before and 6 months after orchiopexy serum basal inhibin B and other serum hormone levels were measured in all patients. RESULTS: : Mean serum basal inhibin B levels significantly increased 6 months after successful orchiopexy (p = 0. 001). However, inhibin B level did not increase in patients who had a low testicular biopsy score. Other reproductive hormone levels did not change after orchiopexy. CONCLUSIONS: Basal inhibin B level could be used as a follow-up parameter after orchiopexy. If basal inhibin B level does not increase in the postoperative period, the amount of germ cells in the testis may be too low or the orchiopexy might not have been implemented appropriately. J Urol. 2004 Dec; 172(6 Pt 1): 2402 -5

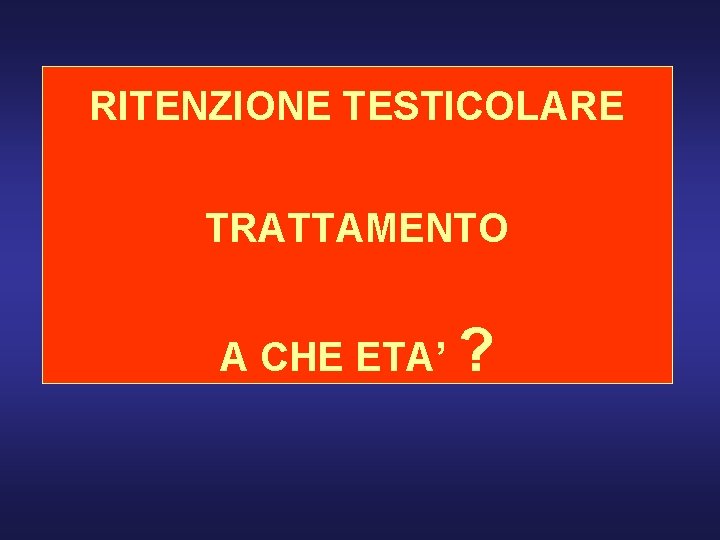

RITENZIONE TESTICOLARE TRATTAMENTO A CHE ETA’ ?

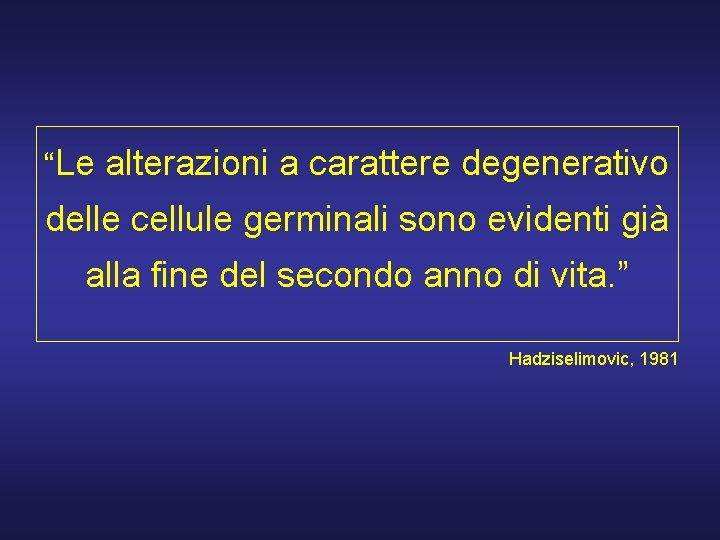

“Le alterazioni a carattere degenerativo delle cellule germinali sono evidenti già alla fine del secondo anno di vita. ” Hadziselimovic, 1981

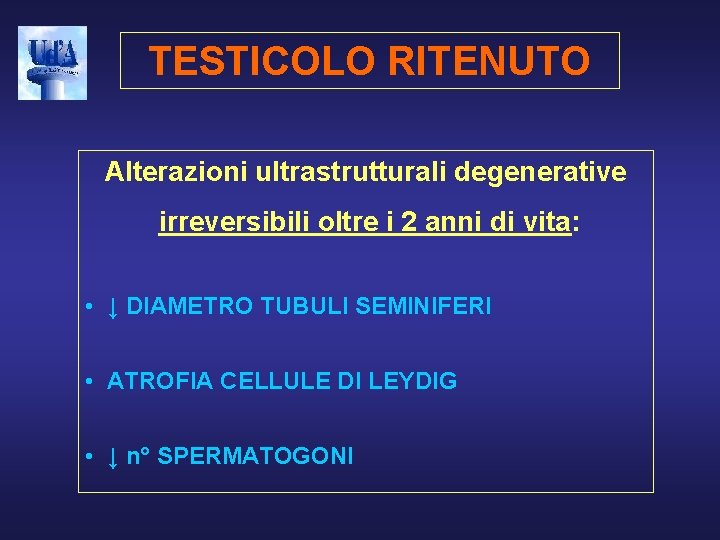

TESTICOLO RITENUTO Alterazioni ultrastrutturali degenerative irreversibili oltre i 2 anni di vita: • ↓ DIAMETRO TUBULI SEMINIFERI • ATROFIA CELLULE DI LEYDIG • ↓ n° SPERMATOGONI

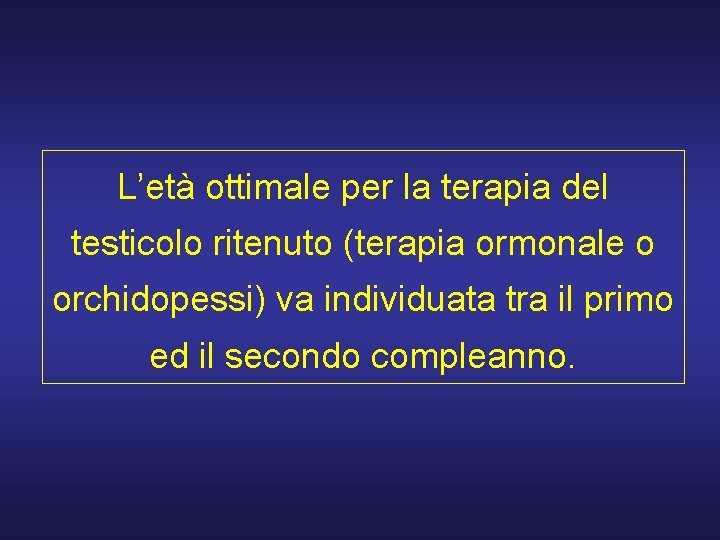

L’età ottimale per la terapia del testicolo ritenuto (terapia ormonale o orchidopessi) va individuata tra il primo ed il secondo compleanno.

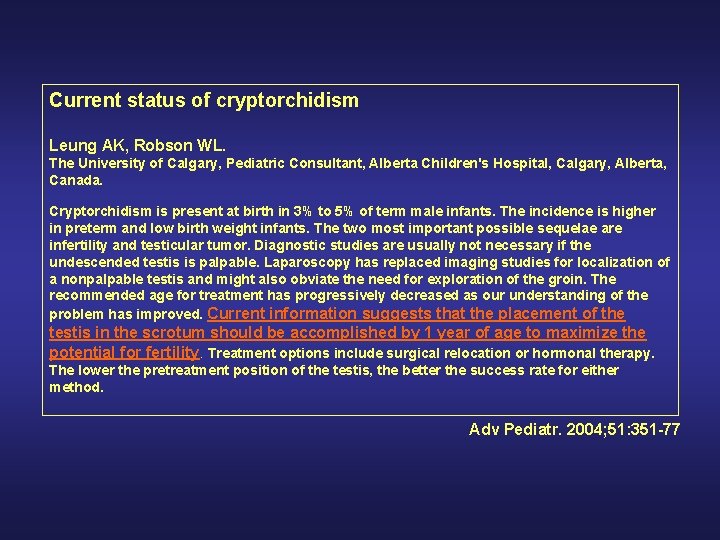

Current status of cryptorchidism Leung AK, Robson WL. The University of Calgary, Pediatric Consultant, Alberta Children's Hospital, Calgary, Alberta, Canada. Cryptorchidism is present at birth in 3% to 5% of term male infants. The incidence is higher in preterm and low birth weight infants. The two most important possible sequelae are infertility and testicular tumor. Diagnostic studies are usually not necessary if the undescended testis is palpable. Laparoscopy has replaced imaging studies for localization of a nonpalpable testis and might also obviate the need for exploration of the groin. The recommended age for treatment has progressively decreased as our understanding of the problem has improved. Current information suggests that the placement of the testis in the scrotum should be accomplished by 1 year of age to maximize the potential for fertility. Treatment options include surgical relocation or hormonal therapy. The lower the pretreatment position of the testis, the better the success rate for either method. Adv Pediatr. 2004; 51: 351 -77

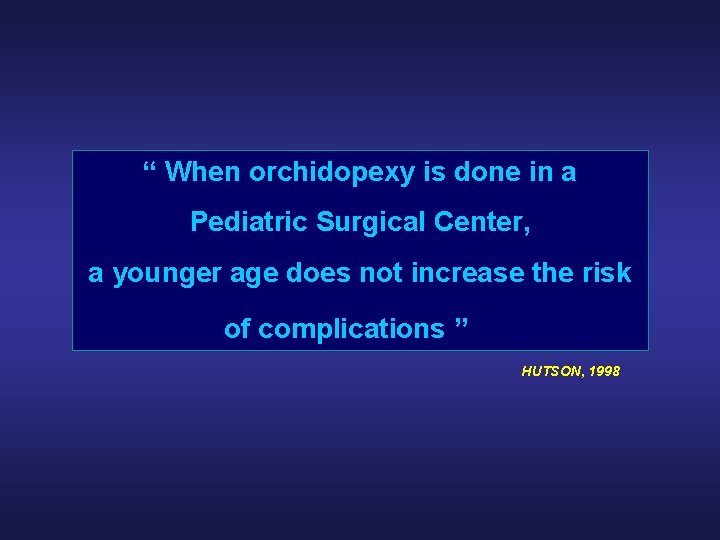

“ When orchidopexy is done in a Pediatric Surgical Center, a younger age does not increase the risk of complications ” HUTSON, 1998

RITENZIONE TESTICOLARE E FERTILITÀ

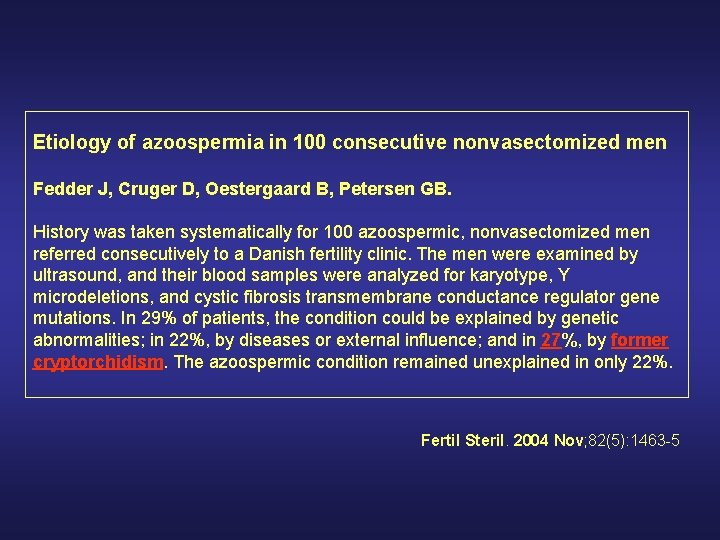

Etiology of azoospermia in 100 consecutive nonvasectomized men Fedder J, Cruger D, Oestergaard B, Petersen GB. History was taken systematically for 100 azoospermic, nonvasectomized men referred consecutively to a Danish fertility clinic. The men were examined by ultrasound, and their blood samples were analyzed for karyotype, Y microdeletions, and cystic fibrosis transmembrane conductance regulator gene mutations. In 29% of patients, the condition could be explained by genetic abnormalities; in 22%, by diseases or external influence; and in 27%, by former cryptorchidism. The azoospermic condition remained unexplained in only 22%. Fertil Steril. 2004 Nov; 82(5): 1463 -5

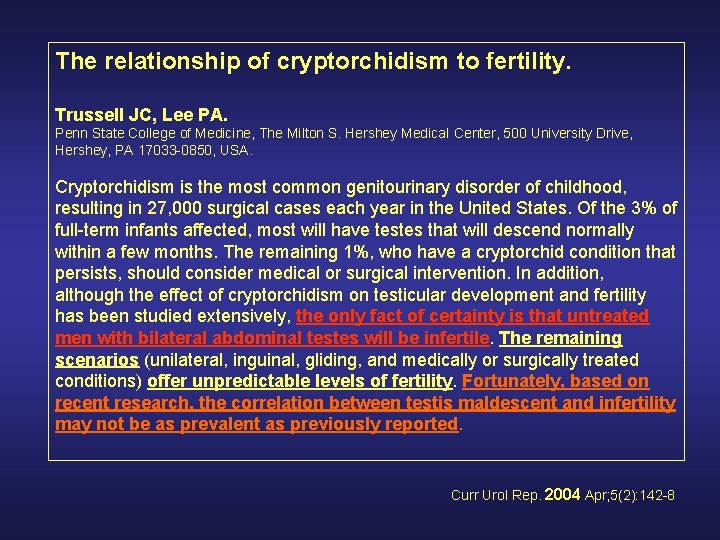

The relationship of cryptorchidism to fertility. Trussell JC, Lee PA. Penn State College of Medicine, The Milton S. Hershey Medical Center, 500 University Drive, Hershey, PA 17033 -0850, USA. Cryptorchidism is the most common genitourinary disorder of childhood, resulting in 27, 000 surgical cases each year in the United States. Of the 3% of full-term infants affected, most will have testes that will descend normally within a few months. The remaining 1%, who have a cryptorchid condition that persists, should consider medical or surgical intervention. In addition, although the effect of cryptorchidism on testicular development and fertility has been studied extensively, the only fact of certainty is that untreated men with bilateral abdominal testes will be infertile. The remaining scenarios (unilateral, inguinal, gliding, and medically or surgically treated conditions) offer unpredictable levels of fertility. Fortunately, based on recent research, the correlation between testis maldescent and infertility may not be as prevalent as previously reported. Curr Urol Rep. 2004 Apr; 5(2): 142 -8

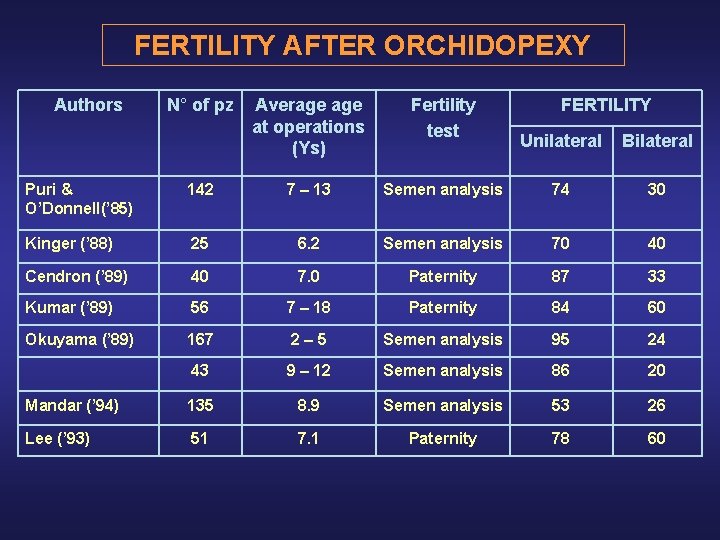

FERTILITY AFTER ORCHIDOPEXY Authors N° of pz Average at operations (Ys) Fertility test FERTILITY Unilateral Bilateral Puri & O’Donnell(’ 85) 142 7 – 13 Semen analysis 74 30 Kinger (’ 88) 25 6. 2 Semen analysis 70 40 Cendron (’ 89) 40 7. 0 Paternity 87 33 Kumar (’ 89) 56 7 – 18 Paternity 84 60 Okuyama (’ 89) 167 2– 5 Semen analysis 95 24 43 9 – 12 Semen analysis 86 20 Mandar (’ 94) 135 8. 9 Semen analysis 53 26 Lee (’ 93) 51 7. 1 Paternity 78 60

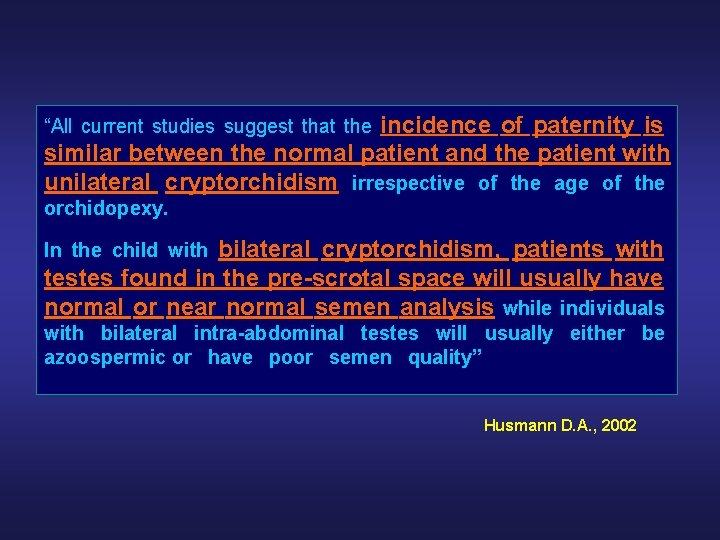

incidence of paternity is similar between the normal patient and the patient with unilateral cryptorchidism irrespective of the age of the “All current studies suggest that the orchidopexy. bilateral cryptorchidism, patients with testes found in the pre-scrotal space will usually have normal or near normal semen analysis while individuals In the child with bilateral intra-abdominal testes will usually either be azoospermic or have poor semen quality” Husmann D. A. , 2002

TESTICOLO RITENUTO DISSOCIAZIONE EPIDIDIMO - DIDIMO

RITENZIONE TESTICOLARE E NEOPLASIA TESTICOLARE

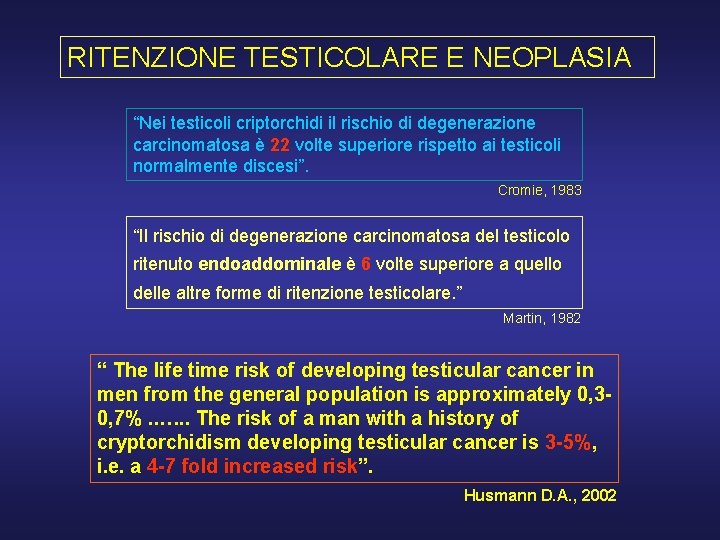

RITENZIONE TESTICOLARE E NEOPLASIA “Nei testicoli criptorchidi il rischio di degenerazione carcinomatosa è 22 volte superiore rispetto ai testicoli normalmente discesi”. Cromie, 1983 “Il rischio di degenerazione carcinomatosa del testicolo ritenuto endoaddominale è 6 volte superiore a quello delle altre forme di ritenzione testicolare. ” Martin, 1982 “ The life time risk of developing testicular cancer in men from the general population is approximately 0, 30, 7%. . …. . The risk of a man with a history of cryptorchidism developing testicular cancer is 3 -5%, i. e. a 4 -7 fold increased risk”. Husmann D. A. , 2002

GRAZIE PER LA VOSTRA ATTENZIONE !

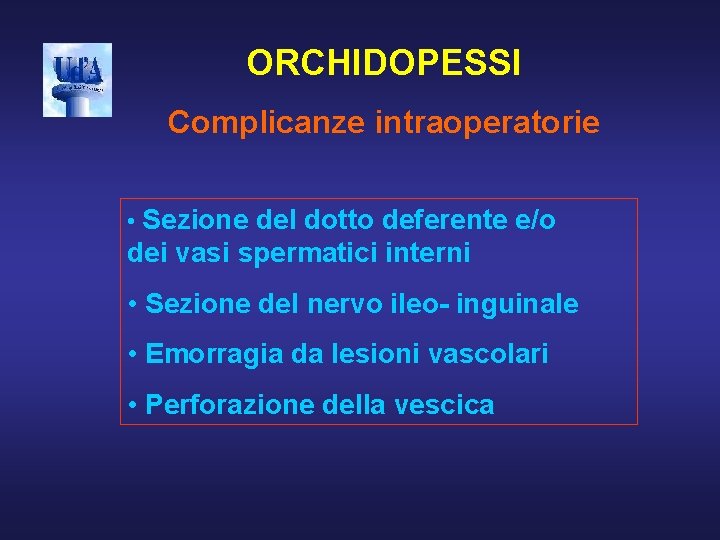

ORCHIDOPESSI Complicanze intraoperatorie • Sezione del dotto deferente e/o dei vasi spermatici interni • Sezione del nervo ileo- inguinale • Emorragia da lesioni vascolari • Perforazione della vescica

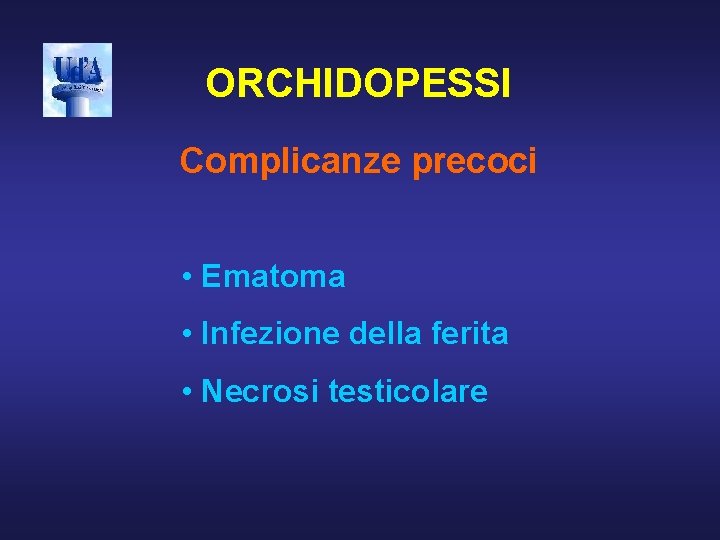

ORCHIDOPESSI Complicanze precoci • Ematoma • Infezione della ferita • Necrosi testicolare

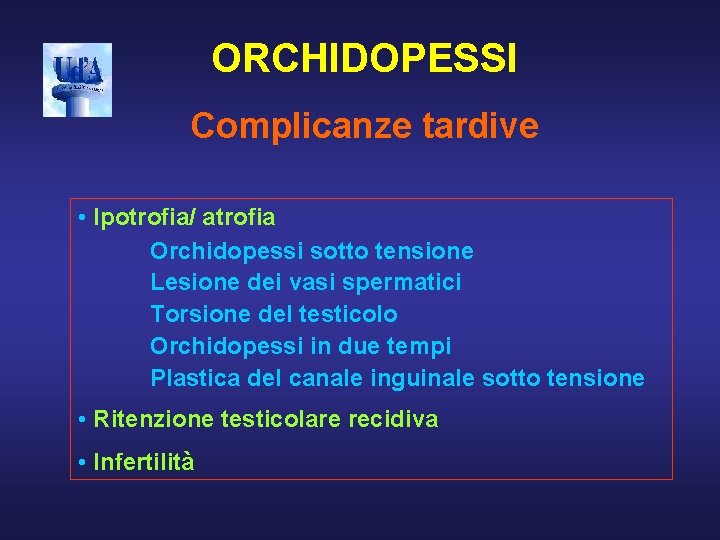

ORCHIDOPESSI Complicanze tardive • Ipotrofia/ atrofia Orchidopessi sotto tensione Lesione dei vasi spermatici Torsione del testicolo Orchidopessi in due tempi Plastica del canale inguinale sotto tensione • Ritenzione testicolare recidiva • Infertilità
