Cardiac catheters DR MAJELLA In 1929 Werner Forssmann

Cardiac catheters -DR. MAJELLA

Ø In 1929 Werner Forssmann demonstrated that a simple Rubber catheter could be passed to the pulmonary artery through the antecubital Vein and An angiographic film could be obtained using radiographic contrast. 2

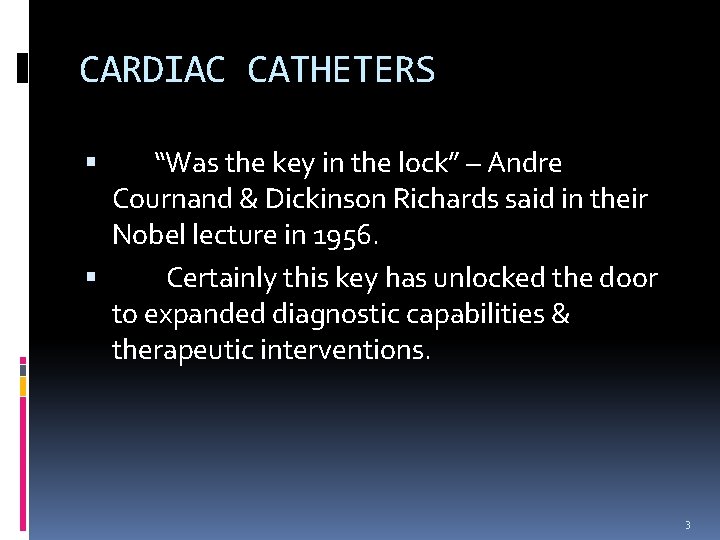

CARDIAC CATHETERS “Was the key in the lock” – Andre Cournand & Dickinson Richards said in their Nobel lecture in 1956. Certainly this key has unlocked the door to expanded diagnostic capabilities & therapeutic interventions. 3

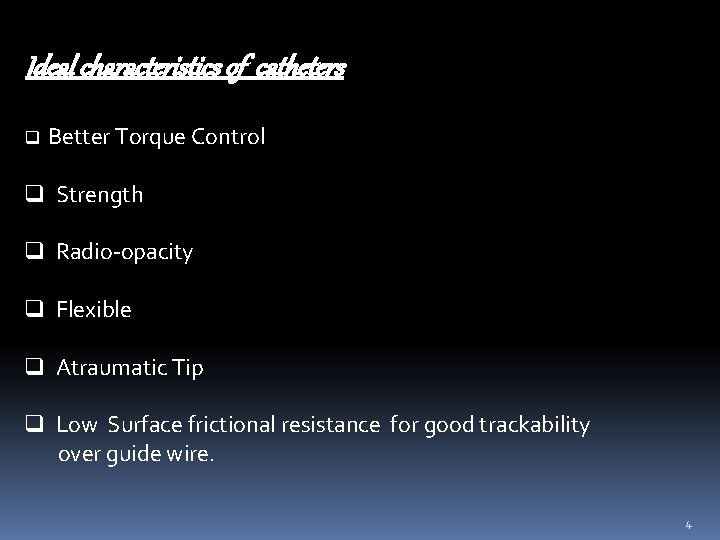

Ideal characteristics of catheters q Better Torque Control q Strength q Radio-opacity q Flexible q Atraumatic Tip q Low Surface frictional resistance for good trackability over guide wire. 4

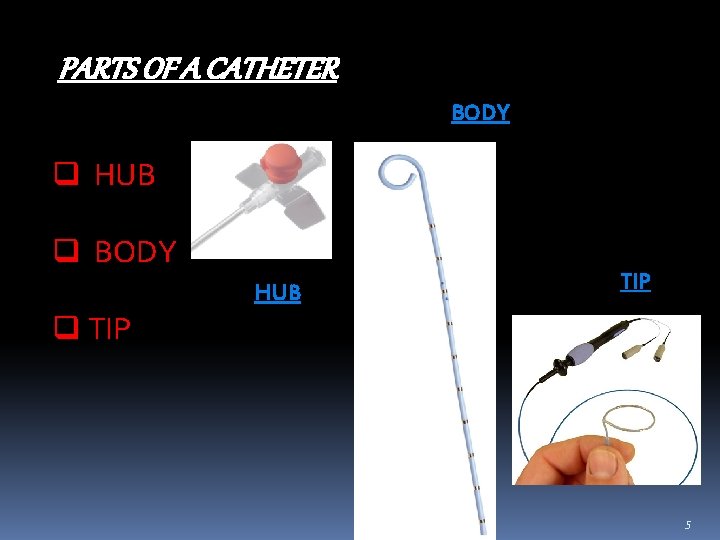

PARTS OF A CATHETER BODY q HUB q BODY HUB TIP q TIP 5

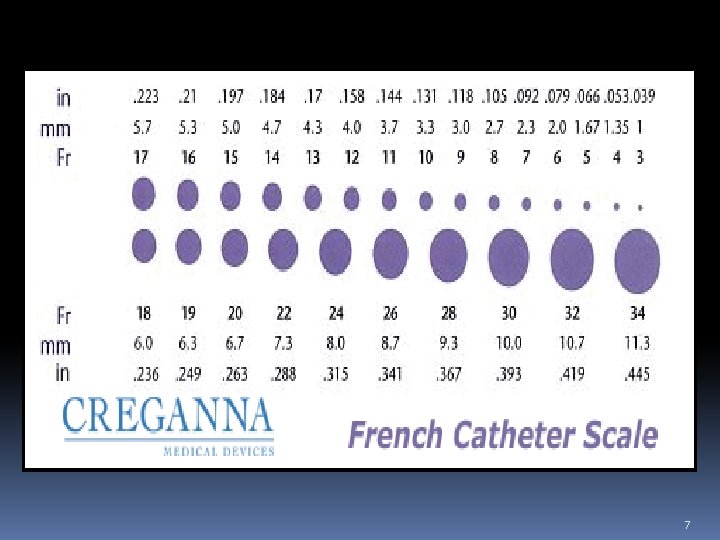

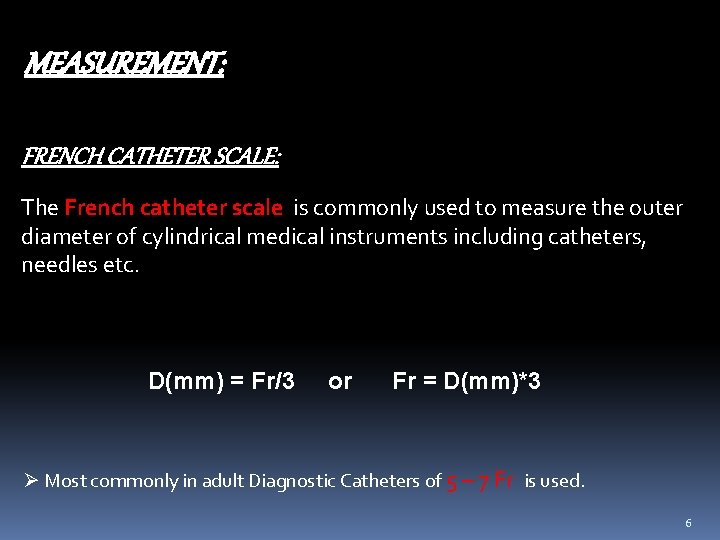

MEASUREMENT: FRENCH CATHETER SCALE: The French catheter scale is commonly used to measure the outer diameter of cylindrical medical instruments including catheters, needles etc. D(mm) = Fr/3 or Fr = D(mm)*3 Ø Most commonly in adult Diagnostic Catheters of 5 – 7 Fr is used. 6

7

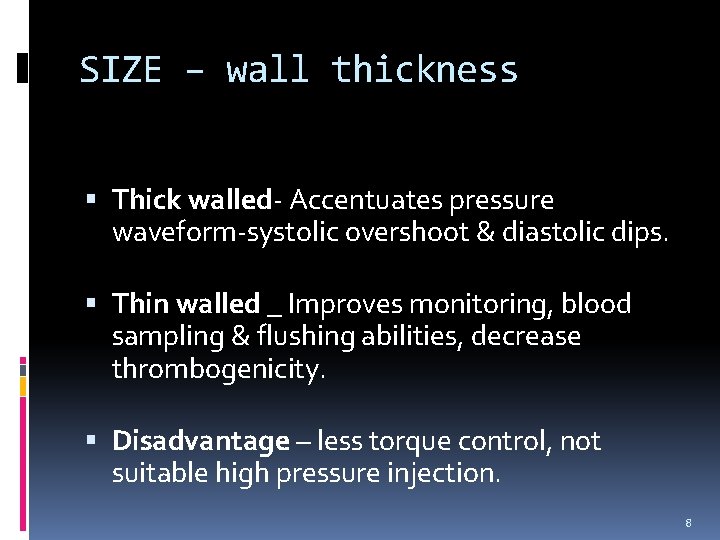

SIZE – wall thickness Thick walled- Accentuates pressure waveform-systolic overshoot & diastolic dips. Thin walled _ Improves monitoring, blood sampling & flushing abilities, decrease thrombogenicity. Disadvantage – less torque control, not suitable high pressure injection. 8

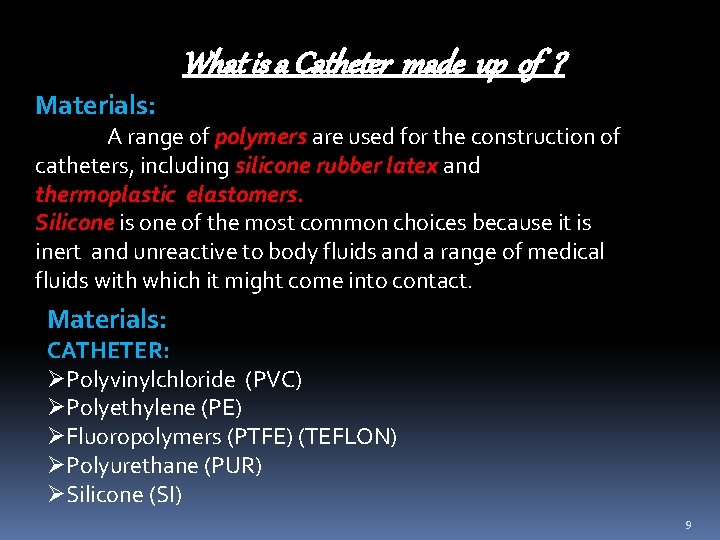

What is a Catheter made up of ? Materials: A range of polymers are used for the construction of catheters, including silicone rubber latex and thermoplastic elastomers. Silicone is one of the most common choices because it is inert and unreactive to body fluids and a range of medical fluids with which it might come into contact. Materials: CATHETER: ØPolyvinylchloride (PVC) ØPolyethylene (PE) ØFluoropolymers (PTFE) (TEFLON) ØPolyurethane (PUR) ØSilicone (SI) 9

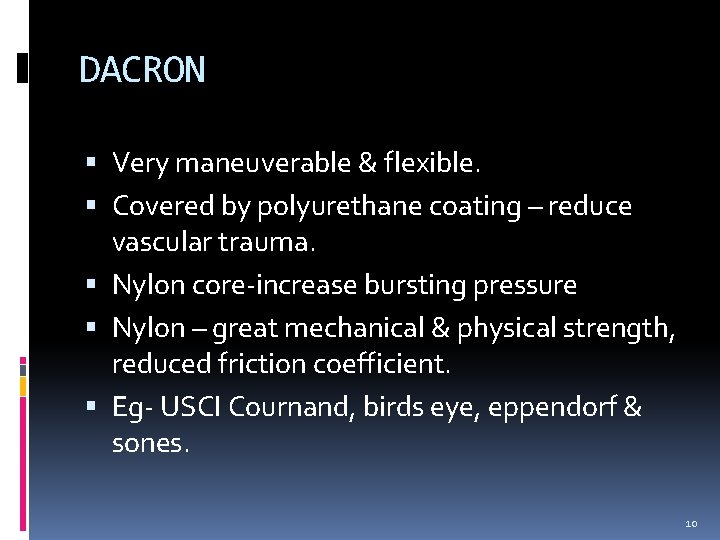

DACRON Very maneuverable & flexible. Covered by polyurethane coating – reduce vascular trauma. Nylon core-increase bursting pressure Nylon – great mechanical & physical strength, reduced friction coefficient. Eg- USCI Cournand, birds eye, eppendorf & sones. 10

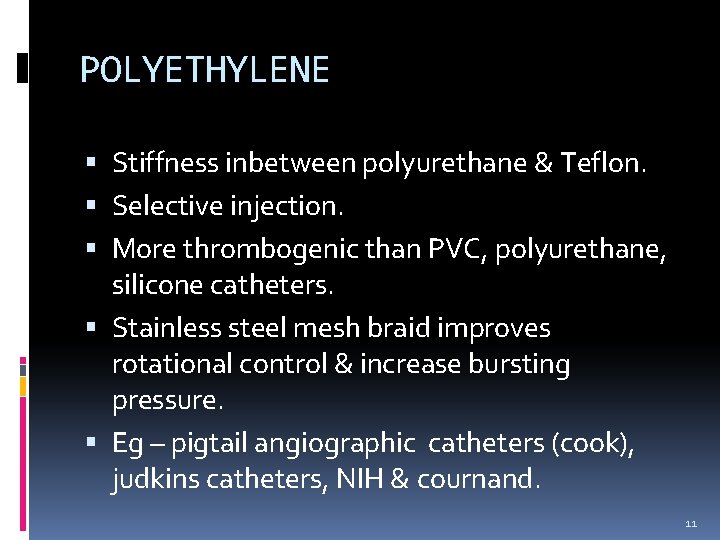

POLYETHYLENE Stiffness inbetween polyurethane & Teflon. Selective injection. More thrombogenic than PVC, polyurethane, silicone catheters. Stainless steel mesh braid improves rotational control & increase bursting pressure. Eg – pigtail angiographic catheters (cook), judkins catheters, NIH & cournand. 11

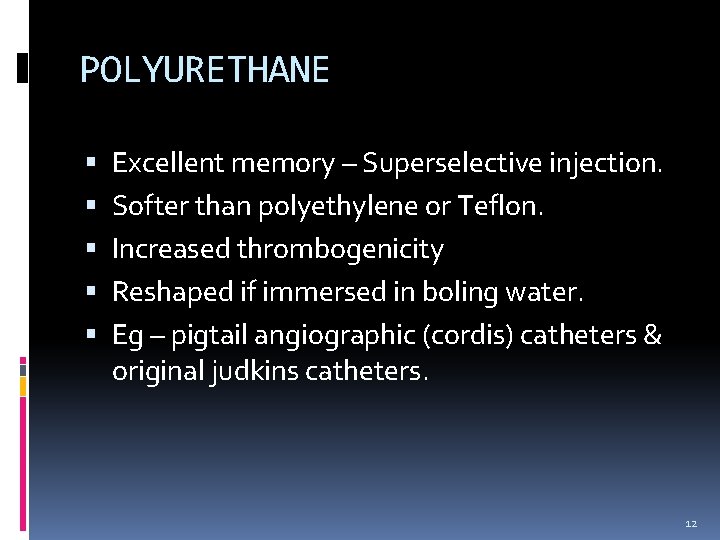

POLYURETHANE Excellent memory – Superselective injection. Softer than polyethylene or Teflon. Increased thrombogenicity Reshaped if immersed in boling water. Eg – pigtail angiographic (cordis) catheters & original judkins catheters. 12

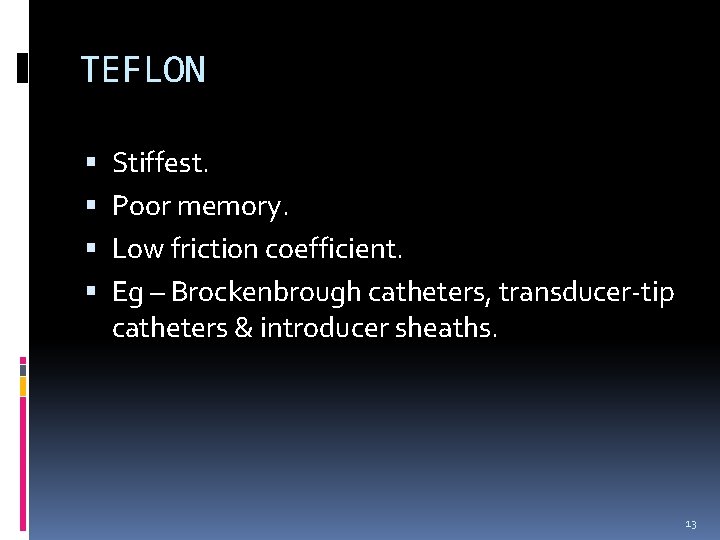

TEFLON Stiffest. Poor memory. Low friction coefficient. Eg – Brockenbrough catheters, transducer-tip catheters & introducer sheaths. 13

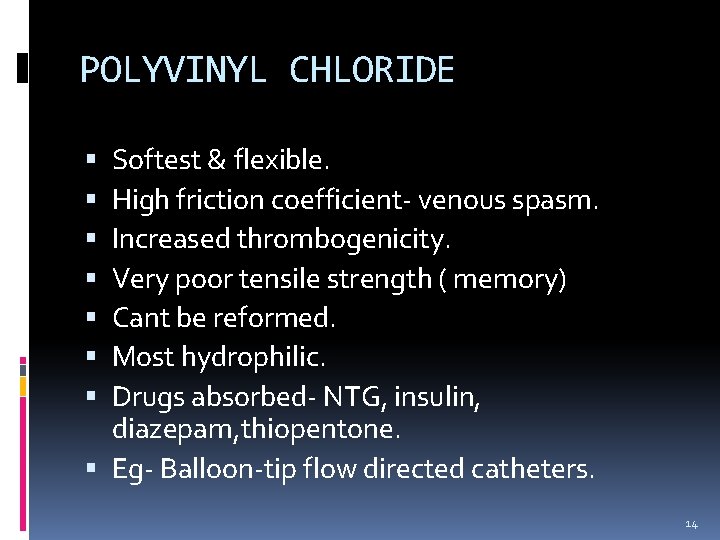

POLYVINYL CHLORIDE Softest & flexible. High friction coefficient- venous spasm. Increased thrombogenicity. Very poor tensile strength ( memory) Cant be reformed. Most hydrophilic. Drugs absorbed- NTG, insulin, diazepam, thiopentone. Eg- Balloon-tip flow directed catheters. 14

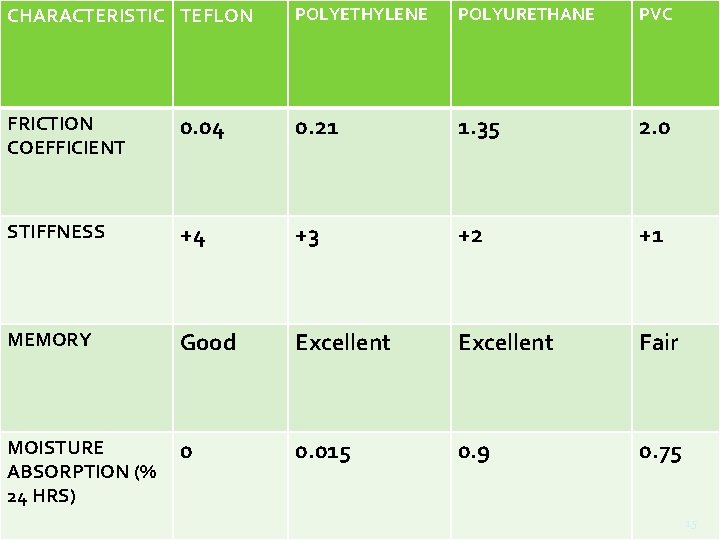

CHARACTERISTIC TEFLON POLYETHYLENE POLYURETHANE PVC FRICTION COEFFICIENT 0. 04 0. 21 1. 35 2. 0 STIFFNESS +4 +3 +2 +1 MEMORY Good Excellent Fair MOISTURE ABSORPTION (% 24 HRS) 0 0. 015 0. 9 0. 75 15

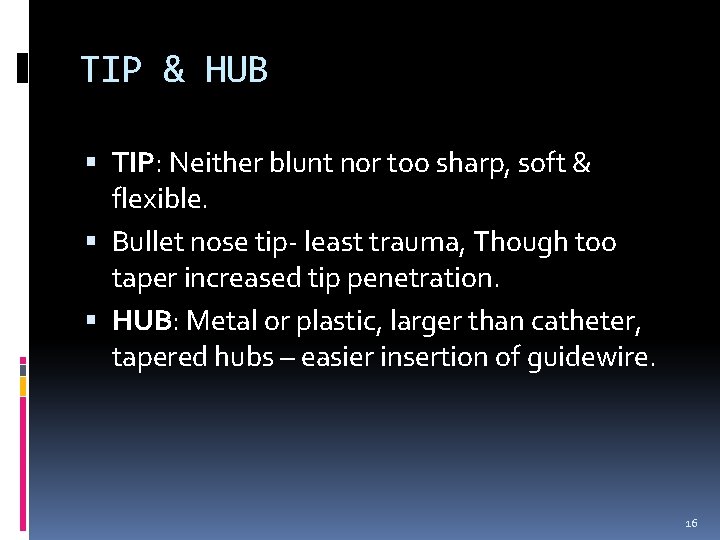

TIP & HUB TIP: Neither blunt nor too sharp, soft & flexible. Bullet nose tip- least trauma, Though too taper increased tip penetration. HUB: Metal or plastic, larger than catheter, tapered hubs – easier insertion of guidewire. 16

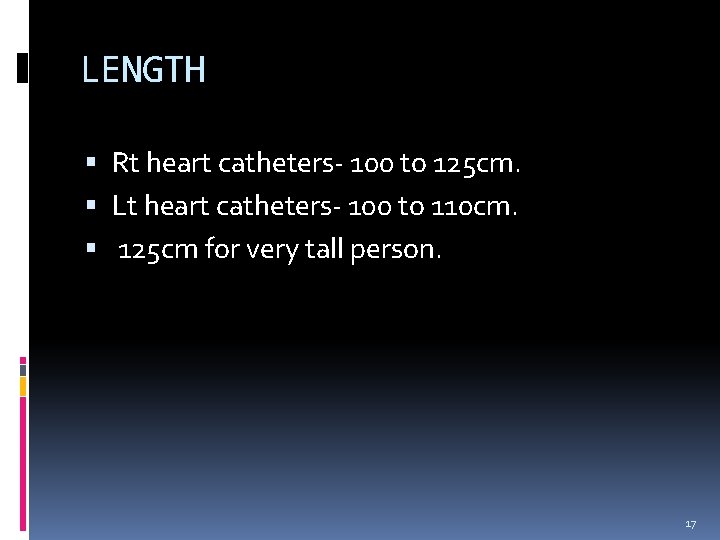

LENGTH Rt heart catheters- 100 to 125 cm. Lt heart catheters- 100 to 110 cm. 125 cm for very tall person. 17

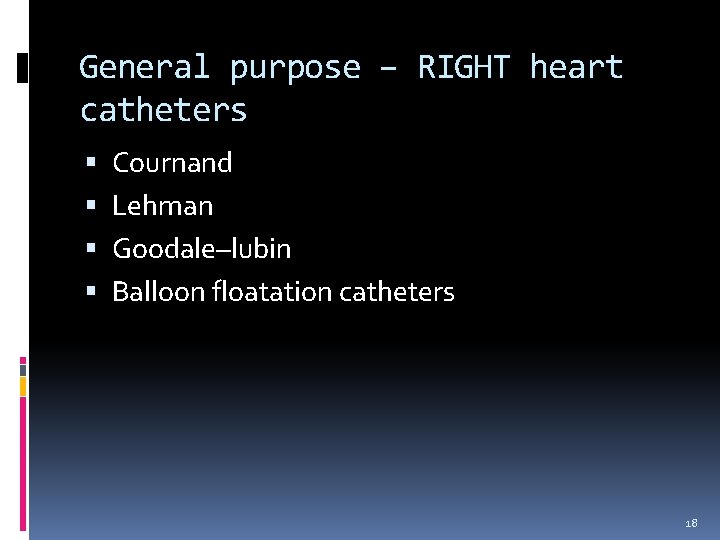

General purpose – RIGHT heart catheters Cournand Lehman Goodale–lubin Balloon floatation catheters 18

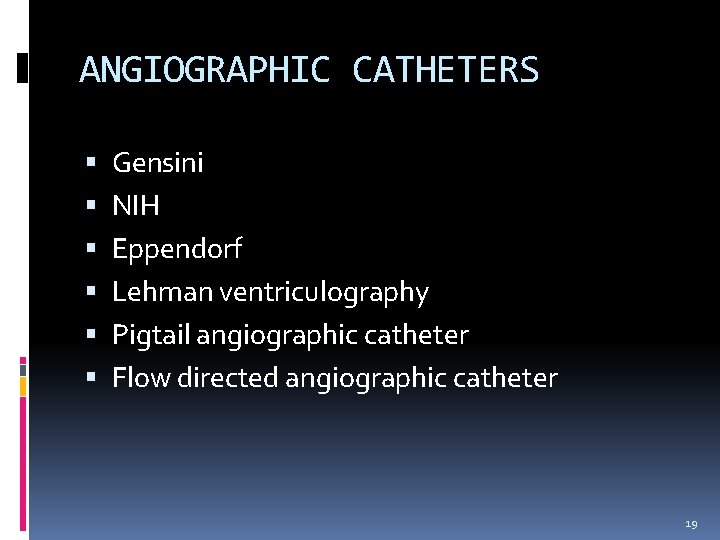

ANGIOGRAPHIC CATHETERS Gensini NIH Eppendorf Lehman ventriculography Pigtail angiographic catheter Flow directed angiographic catheter 19

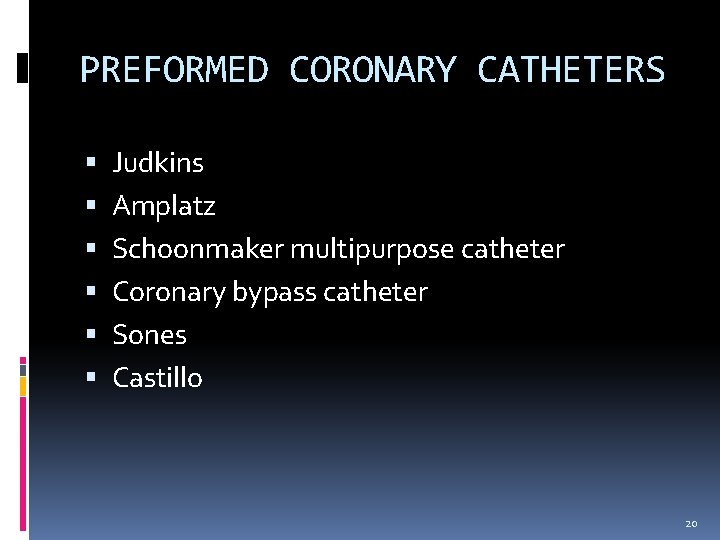

PREFORMED CORONARY CATHETERS Judkins Amplatz Schoonmaker multipurpose catheter Coronary bypass catheter Sones Castillo 20

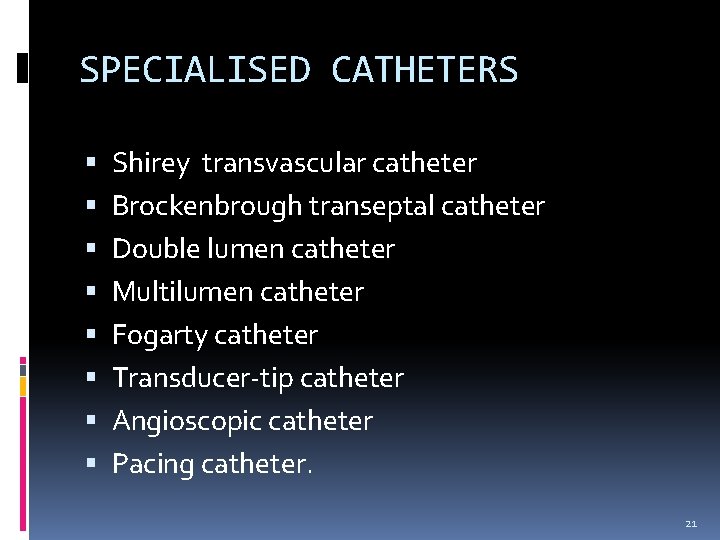

SPECIALISED CATHETERS Shirey transvascular catheter Brockenbrough transeptal catheter Double lumen catheter Multilumen catheter Fogarty catheter Transducer-tip catheter Angioscopic catheter Pacing catheter. 21

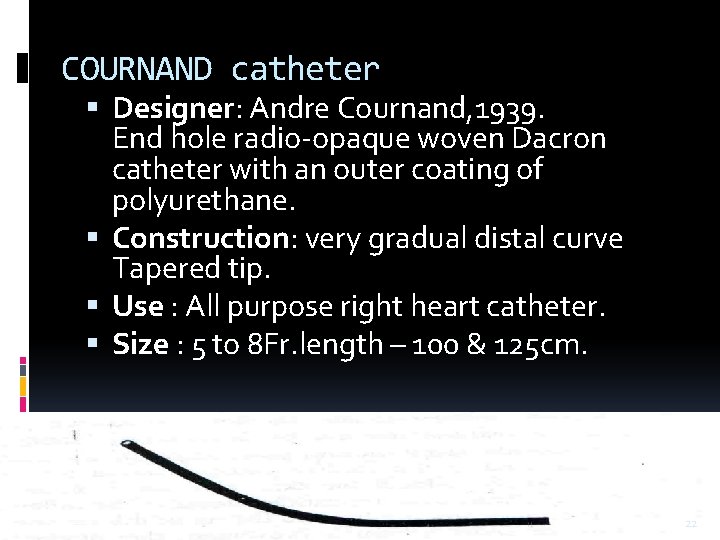

COURNAND catheter Designer: Andre Cournand, 1939. End hole radio-opaque woven Dacron catheter with an outer coating of polyurethane. Construction: very gradual distal curve Tapered tip. Use : All purpose right heart catheter. Size : 5 to 8 Fr. length – 100 & 125 cm. 22

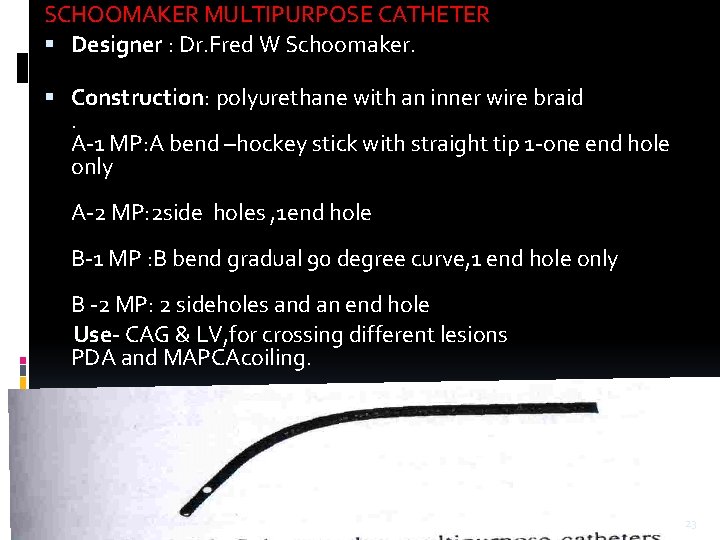

SCHOOMAKER MULTIPURPOSE CATHETER Designer : Dr. Fred W Schoomaker. Construction: polyurethane with an inner wire braid. A-1 MP: A bend –hockey stick with straight tip 1 -one end hole only A-2 MP: 2 side holes , 1 end hole B-1 MP : B bend gradual 90 degree curve, 1 end hole only B -2 MP: 2 sideholes and an end hole Use- CAG & LV, for crossing different lesions PDA and MAPCAcoiling. Size : 7 & 8 Fr. length – 100 cm. 23

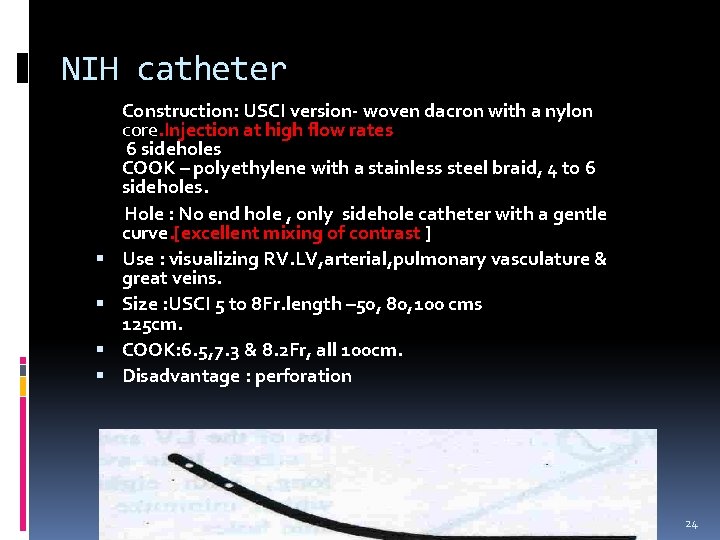

NIH catheter Construction: USCI version- woven dacron with a nylon core. Injection at high flow rates 6 sideholes COOK – polyethylene with a stainless steel braid, 4 to 6 sideholes. Hole : No end hole , only sidehole catheter with a gentle curve. [excellent mixing of contrast ] Use : visualizing RV. LV, arterial, pulmonary vasculature & great veins. Size : USCI 5 to 8 Fr. length – 50, 80, 100 cms 125 cm. COOK: 6. 5, 7. 3 & 8. 2 Fr, all 100 cm. Disadvantage : perforation 24

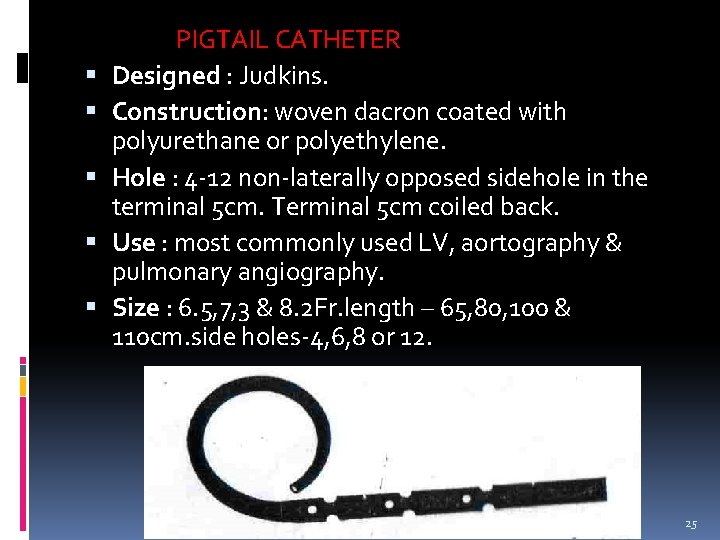

PIGTAIL CATHETER Designed : Judkins. Construction: woven dacron coated with polyurethane or polyethylene. Hole : 4 -12 non-laterally opposed sidehole in the terminal 5 cm. Terminal 5 cm coiled back. Use : most commonly used LV, aortography & pulmonary angiography. Size : 6. 5, 7, 3 & 8. 2 Fr. length – 65, 80, 100 & 110 cm. side holes-4, 6, 8 or 12. 25

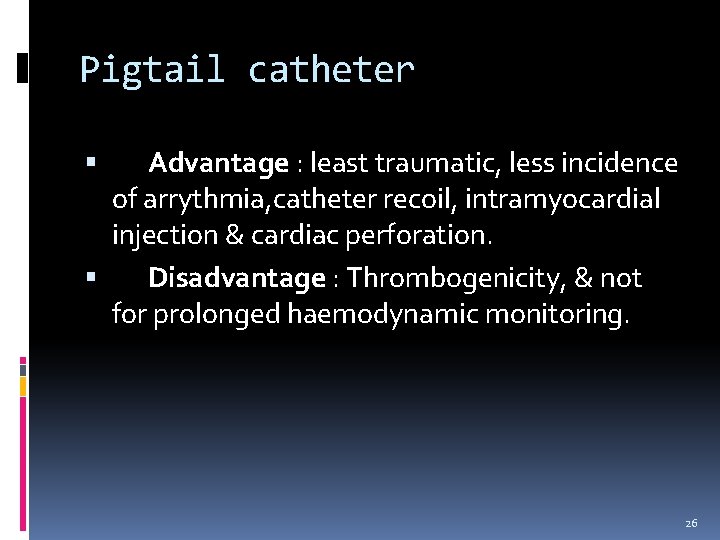

Pigtail catheter Advantage : least traumatic, less incidence of arrythmia, catheter recoil, intramyocardial injection & cardiac perforation. Disadvantage : Thrombogenicity, & not for prolonged haemodynamic monitoring. 26

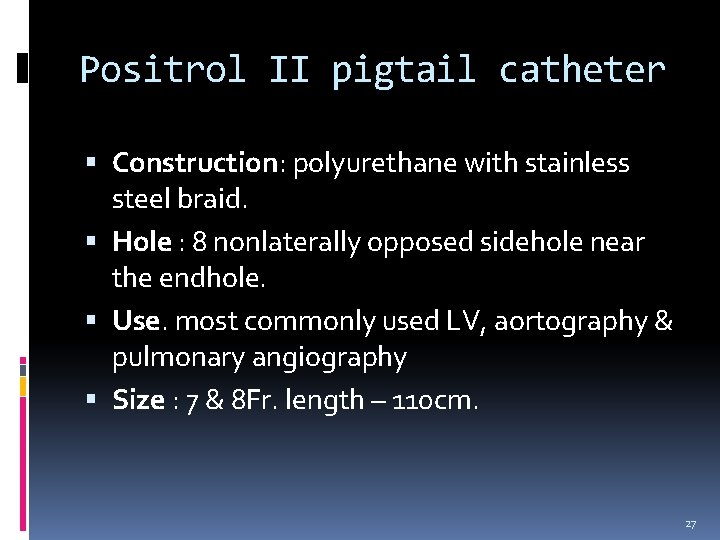

Positrol II pigtail catheter Construction: polyurethane with stainless steel braid. Hole : 8 nonlaterally opposed sidehole near the endhole. Use. most commonly used LV, aortography & pulmonary angiography Size : 7 & 8 Fr. length – 110 cm. 27

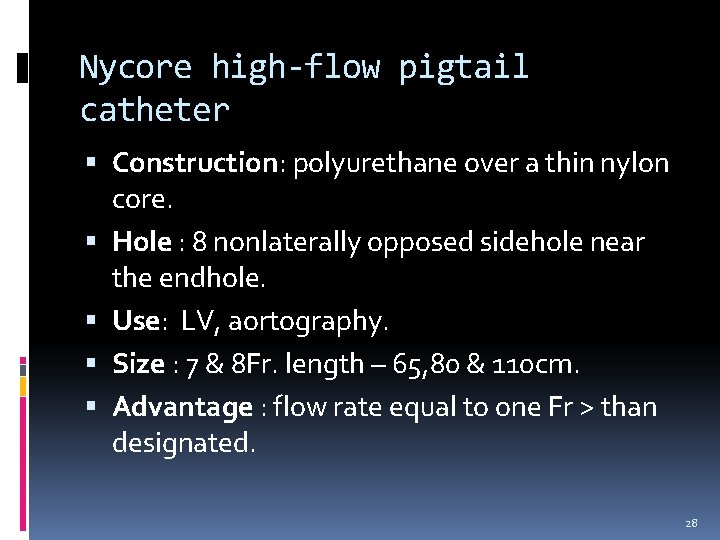

Nycore high-flow pigtail catheter Construction: polyurethane over a thin nylon core. Hole : 8 nonlaterally opposed sidehole near the endhole. Use: LV, aortography. Size : 7 & 8 Fr. length – 65, 80 & 110 cm. Advantage : flow rate equal to one Fr > than designated. 28

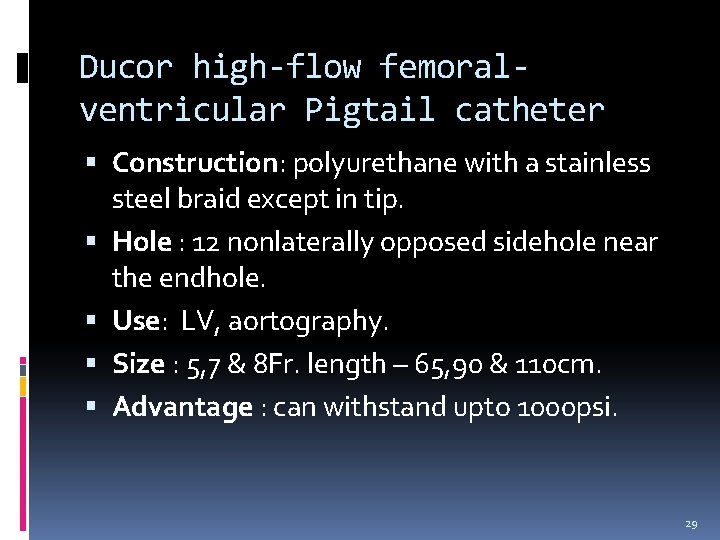

Ducor high-flow femoralventricular Pigtail catheter Construction: polyurethane with a stainless steel braid except in tip. Hole : 12 nonlaterally opposed sidehole near the endhole. Use: LV, aortography. Size : 5, 7 & 8 Fr. length – 65, 90 & 110 cm. Advantage : can withstand upto 1000 psi. 29

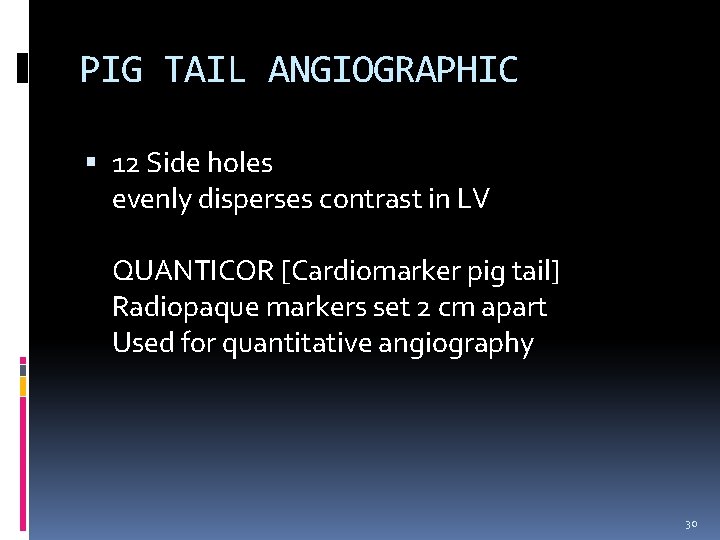

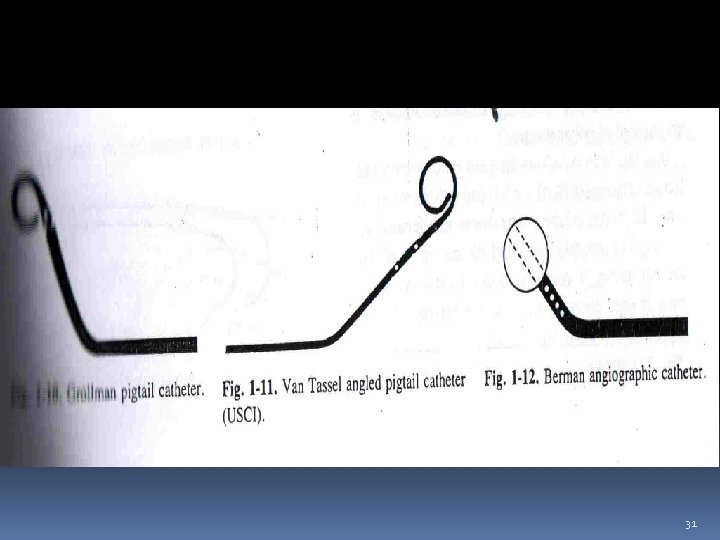

PIG TAIL ANGIOGRAPHIC 12 Side holes evenly disperses contrast in LV QUANTICOR [Cardiomarker pig tail] Radiopaque markers set 2 cm apart Used for quantitative angiography 30

31

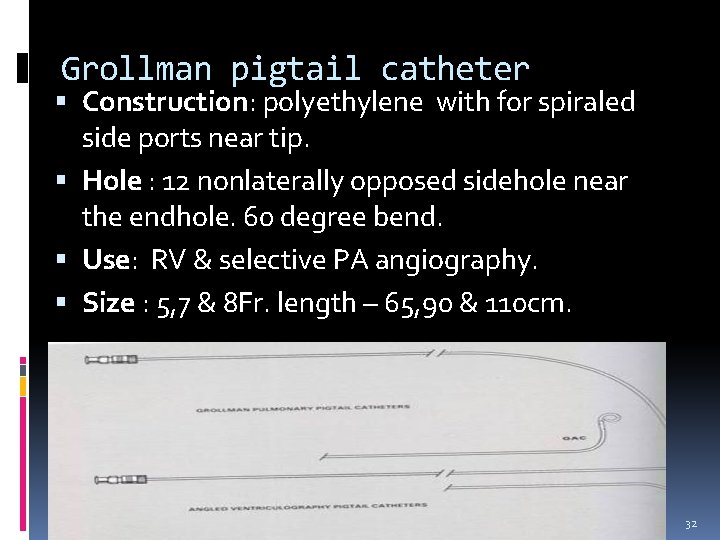

Grollman pigtail catheter Construction: polyethylene with for spiraled side ports near tip. Hole : 12 nonlaterally opposed sidehole near the endhole. 60 degree bend. Use: RV & selective PA angiography. Size : 5, 7 & 8 Fr. length – 65, 90 & 110 cm. 32

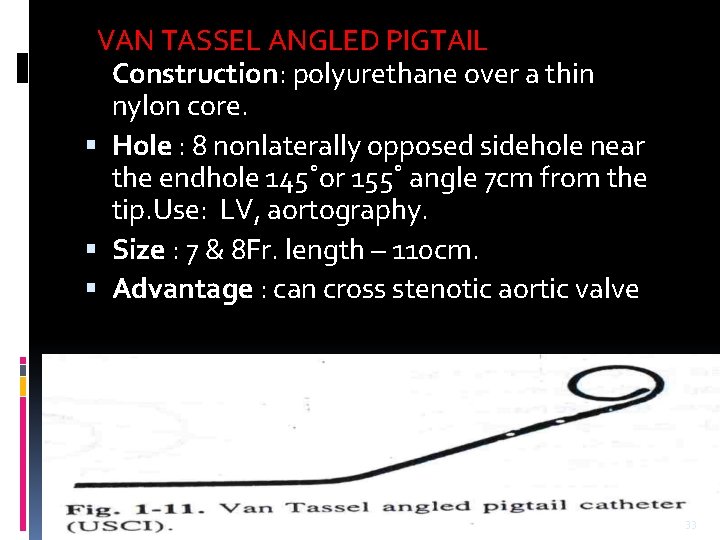

VAN TASSEL ANGLED PIGTAIL Construction: polyurethane over a thin nylon core. Hole : 8 nonlaterally opposed sidehole near the endhole 145˚or 155˚ angle 7 cm from the tip. Use: LV, aortography. Size : 7 & 8 Fr. length – 110 cm. Advantage : can cross stenotic aortic valve 33

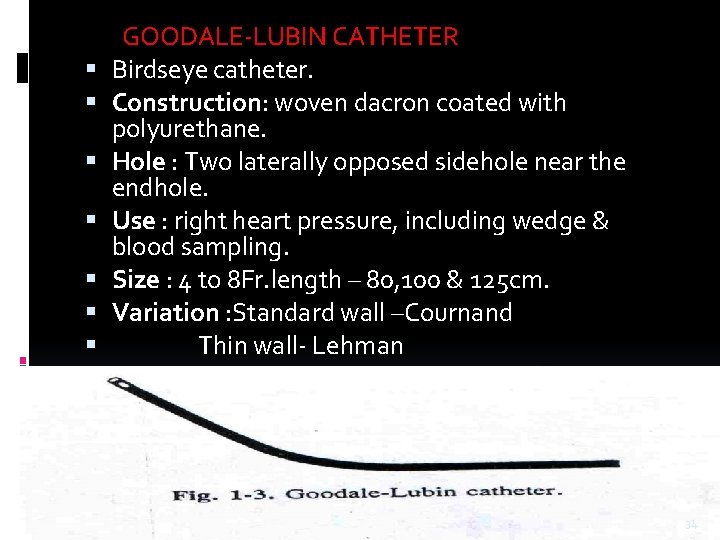

GOODALE-LUBIN CATHETER Birdseye catheter. Construction: woven dacron coated with polyurethane. Hole : Two laterally opposed sidehole near the endhole. Use : right heart pressure, including wedge & blood sampling. Size : 4 to 8 Fr. length – 80, 100 & 125 cm. Variation : Standard wall –Cournand Thin wall- Lehman 34

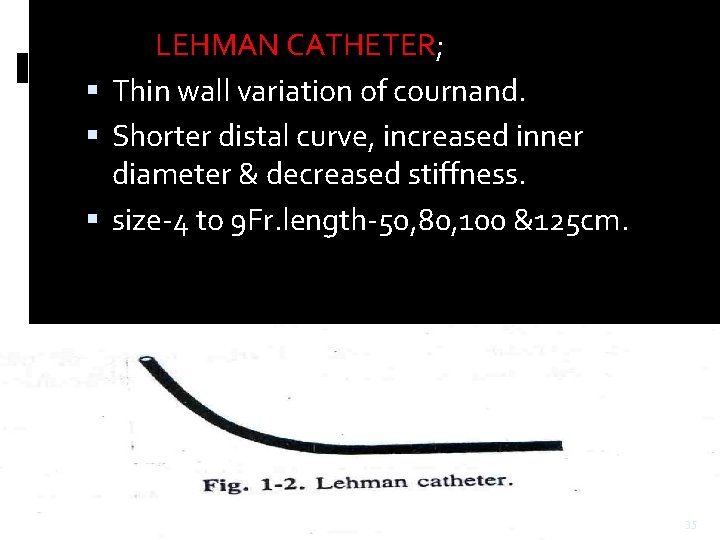

LEHMAN CATHETER; Thin wall variation of cournand. Shorter distal curve, increased inner diameter & decreased stiffness. size-4 to 9 Fr. length-50, 80, 100 &125 cm. 35

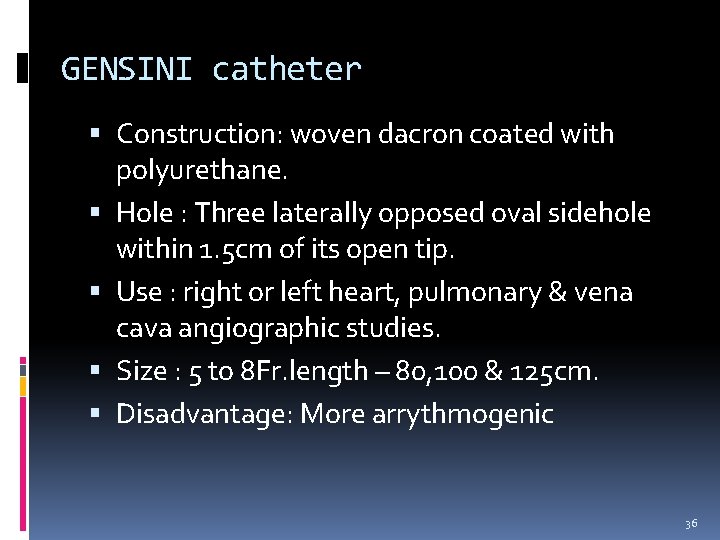

GENSINI catheter Construction: woven dacron coated with polyurethane. Hole : Three laterally opposed oval sidehole within 1. 5 cm of its open tip. Use : right or left heart, pulmonary & vena cava angiographic studies. Size : 5 to 8 Fr. length – 80, 100 & 125 cm. Disadvantage: More arrythmogenic 36

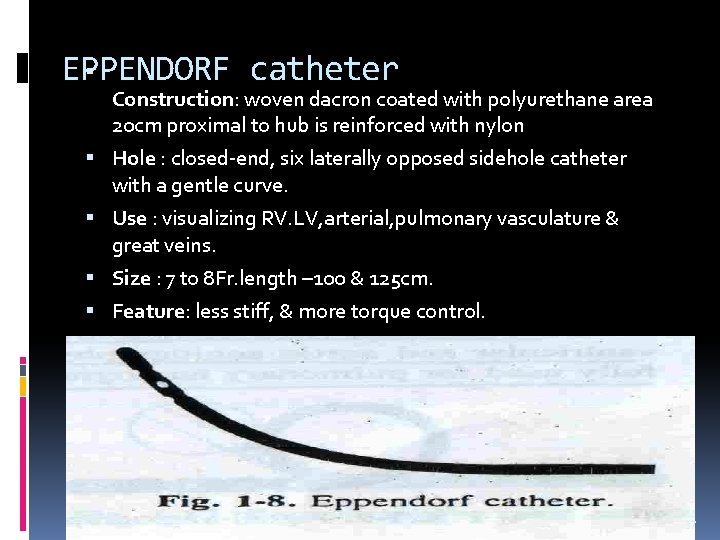

EPPENDORF catheter Construction: woven dacron coated with polyurethane area 20 cm proximal to hub is reinforced with nylon Hole : closed-end, six laterally opposed sidehole catheter with a gentle curve. Use : visualizing RV. LV, arterial, pulmonary vasculature & great veins. Size : 7 to 8 Fr. length – 100 & 125 cm. Feature: less stiff, & more torque control. 37

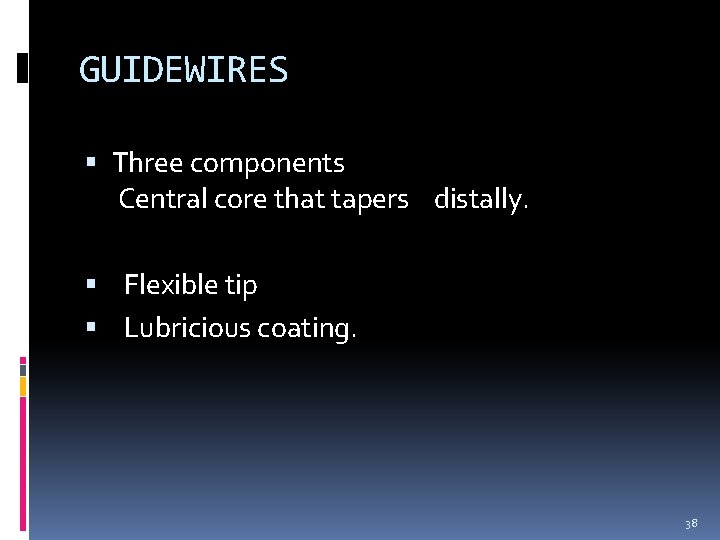

GUIDEWIRES Three components Central core that tapers distally. Flexible tip Lubricious coating. 38

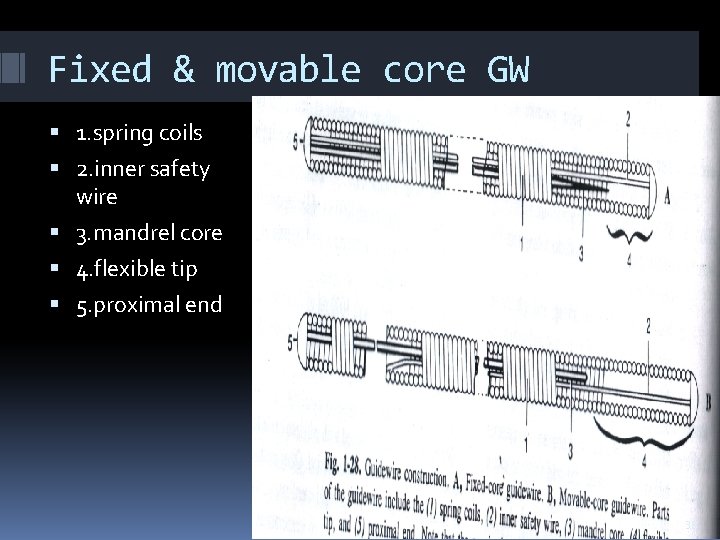

Fixed & movable core GW 1. spring coils 2. inner safety wire 3. mandrel core 4. flexible tip 5. proximal end 39

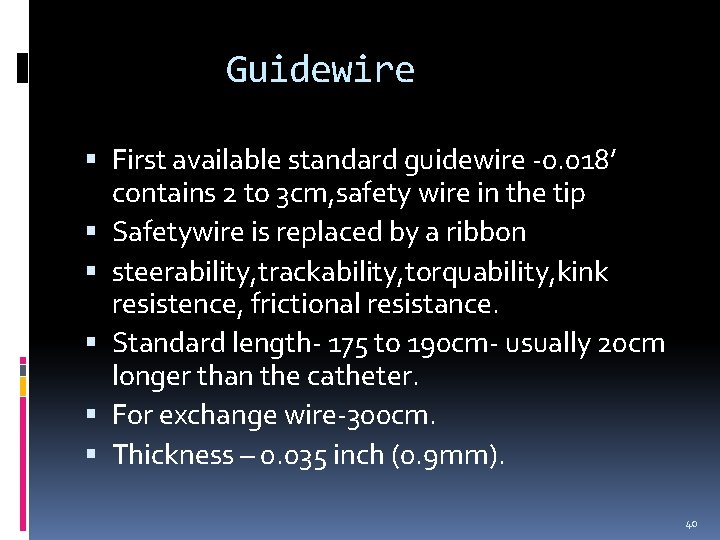

Guidewire First available standard guidewire -0. 018’ contains 2 to 3 cm, safety wire in the tip Safetywire is replaced by a ribbon steerability, trackability, torquability, kink resistence, frictional resistance. Standard length- 175 to 190 cm- usually 20 cm longer than the catheter. For exchange wire-300 cm. Thickness – 0. 035 inch (0. 9 mm). 40

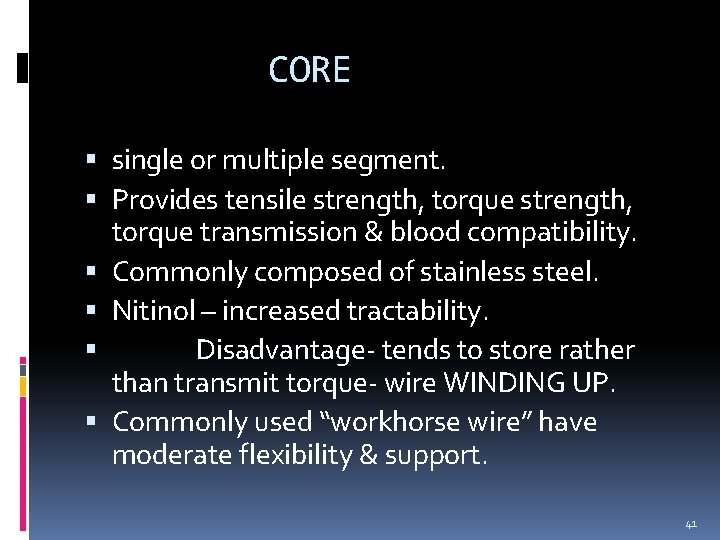

CORE single or multiple segment. Provides tensile strength, torque transmission & blood compatibility. Commonly composed of stainless steel. Nitinol – increased tractability. Disadvantage- tends to store rather than transmit torque- wire WINDING UP. Commonly used “workhorse wire” have moderate flexibility & support. 41

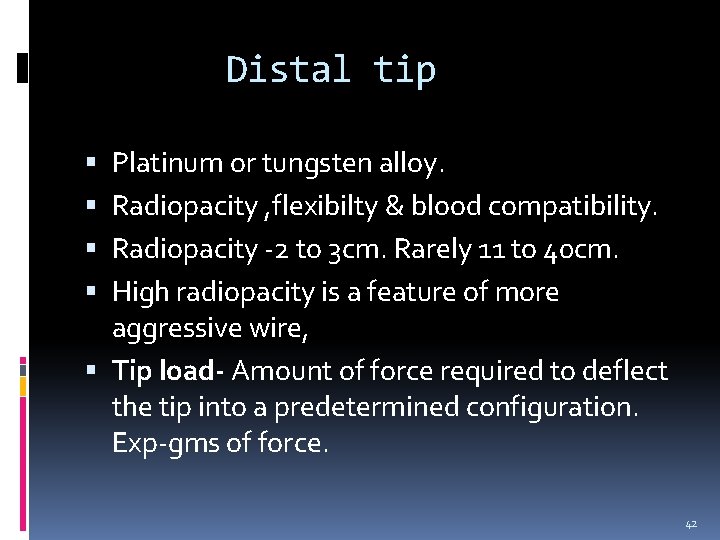

Distal tip Platinum or tungsten alloy. Radiopacity , flexibilty & blood compatibility. Radiopacity -2 to 3 cm. Rarely 11 to 40 cm. High radiopacity is a feature of more aggressive wire, Tip load- Amount of force required to deflect the tip into a predetermined configuration. Exp-gms of force. 42

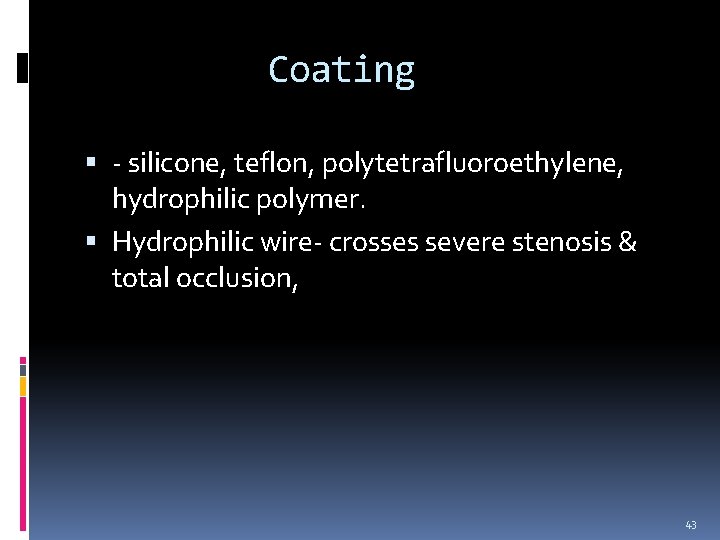

Coating - silicone, teflon, polytetrafluoroethylene, hydrophilic polymer. Hydrophilic wire- crosses severe stenosis & total occlusion, 43

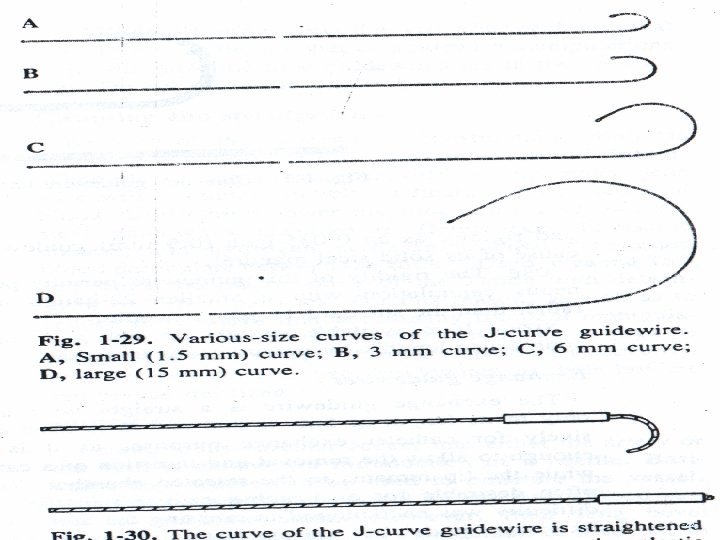

J-curve guidewire 44

46

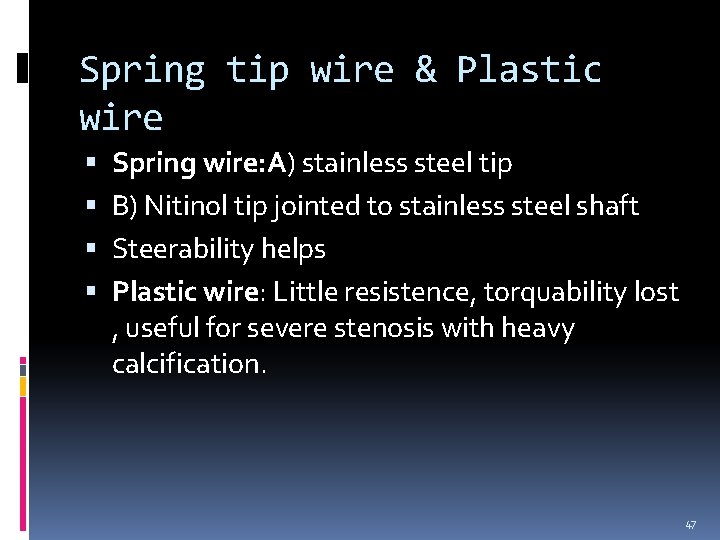

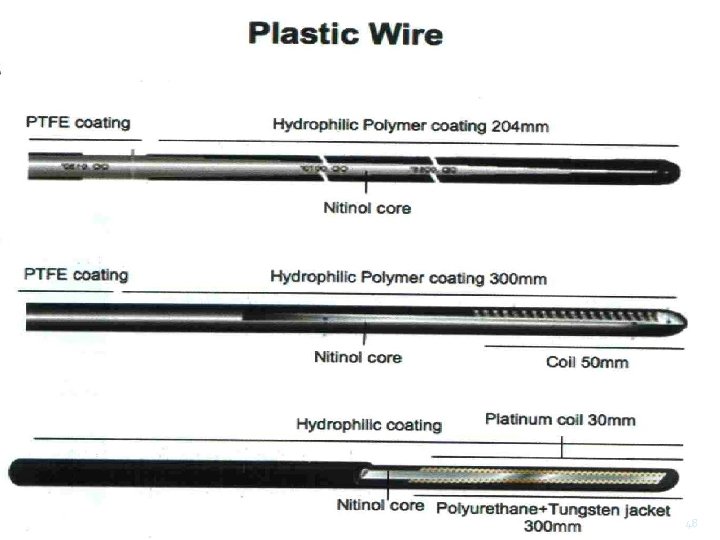

Spring tip wire & Plastic wire Spring wire: A) stainless steel tip B) Nitinol tip jointed to stainless steel shaft Steerability helps Plastic wire: Little resistence, torquability lost , useful for severe stenosis with heavy calcification. 47
